Old 03-28-2014, 11:36 PM   #241
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

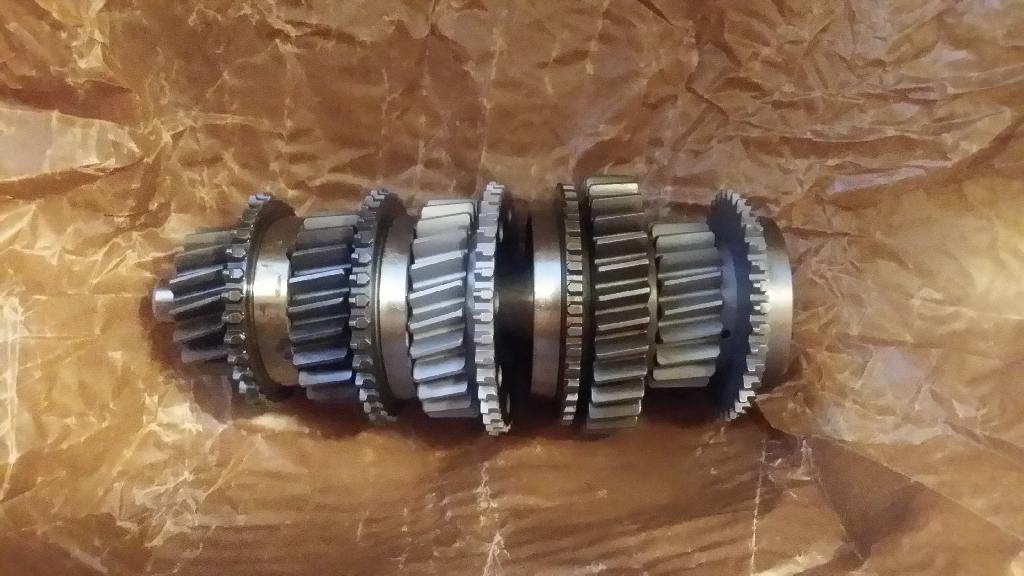

My "option" showed up this week



Attached Thumbnails
Gearbox options/experiences-20140323_234854_zps8kl9pfcw.jpg   Gearbox options/experiences-20140325_201306_zps5w5p8ll5.jpg
TNTUBA is offline   Reply With Quote
Old 03-29-2014, 12:46 AM   #242
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 650
Total Cats: 9
Default

Quote:
Originally Posted by TNTUBA View Post
My "option" showed up this week
How much did that run if you don't mind sharing?
paNX2K&SE-R is offline   Reply With Quote
Old 03-29-2014, 05:50 AM   #243
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

It was $2,680.00 shipped on the day I ordered it. I'm not sure what has happened to the exchange rate, shipping costs or the price of the kit since. I placed the order on January 27th and it arrived at my house on March 24th.
TNTUBA is offline   Reply With Quote
Old 03-29-2014, 12:19 PM   #244
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Quote:
Originally Posted by emilio700 View Post
If the initial proposal comes back good from the supplier, I'll start a new thread. I'd pay for the tooling and initial deposit so kit deposits wouldn't be needed until Q3 I think. My guess is delivery in Q2/15 or thereabouts.

What I'm considering, and so is the supplier, is the potential for cross platform compatibility between some or all the kit components. IOW, if the 86 kids can haz dogs too, our costs come down even further.
I am not in the market at the moment but could see wanting dog box gears in the future. One question I would have is serviceability. If the gears sets are custom what happens at rebuild time? What if I chip one gear only are they available separate.
k24madness is offline   Reply With Quote
Old 03-29-2014, 01:31 PM   #245
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 213
Default

Sign me up as interested. Dammit, Emilio, you're going to make me suffer through the first world dilemma of having to choose between CNC head goodness or transmission goodness.

Future availability of the gearset will be on a small-batch minimum order basis? Or potentially stocked.
Mobius is offline   Reply With Quote
Old 03-29-2014, 01:48 PM   #246
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

In for Thomas answer, but hell yeah. Thanks for pioneering the way... well be glad to step up. Good timing as perhaps the track car will be ready by then and I'll need something capable of 350ftlbs
GeneSplicer is offline   Reply With Quote
Old 03-29-2014, 02:32 PM   #247
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,613
Total Cats: 858
Default

Regular stocking item. Definitely not one off. MOQ is 25. 20 to customers, 3 on shelf, 2 on my cars. 2nd production run would be whenever demand is sufficient.
emilio700 is online now   Reply With Quote
Old 03-29-2014, 05:23 PM   #248
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Will this be a miata specific thing, our can/will you market to Nissan and other guys?
Reason I ask, is because I run with several other Nissan 240 guys who might step up for a dog box...
GeneSplicer is offline   Reply With Quote
Old 03-29-2014, 05:25 PM   #249
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,613
Total Cats: 858
Default

Quote:
Originally Posted by GeneSplicer View Post
Well this be a miata specific thing, our can/will you market to Nissan and other guys?
Thats proprietary at this point.
emilio700 is online now   Reply With Quote
Old 03-29-2014, 06:05 PM   #250
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

The more I think about it the better Emilio's gear set looks. Dog box shifting in OEM case for reasonable $$$. I wish I had the cash to join in on the group buy.
k24madness is offline   Reply With Quote
Old 03-29-2014, 06:51 PM   #251
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 252
Default

I will buy this. **** life priorities, I will get a second job if I have to.
soviet is offline   Reply With Quote
Old 03-29-2014, 10:03 PM   #252
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,168
Total Cats: 18
Default

I better start saving up, this is exactly the solution I was looking for!
Der_Idiot is offline   Reply With Quote
Old 03-31-2014, 06:15 AM   #253
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,168
Total Cats: 18
Default

These guys are talking Albins Gear dog set, this part in particular caught my attention:

"All Albins dogs feature a CAD “pent-roof” pentagon-shaped surface that deflects the dogs apart on a mis-shift, drastically extending the life of the gear. Albins dog gears are verified using a robotic CMM (coordinate measuring machine) to assure perfection with tolerances better than 0.015 mm on each and every part. Furthermore, Albins has been able to produce its own proprietary steel alloy with a consistency far superior to mass-produced, low-cost sets."

Synchromesh vs. Dog Box - Gearbox Beatdown - Import Tuner Magazine

Does PAR or PPG have anything like that? Could be sales up-talk but what do I know, I'm not a machinist :P
Der_Idiot is offline   Reply With Quote
Old 03-31-2014, 08:12 PM   #254
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,152
Total Cats: 30
Default

Well, everyone who wondered what transmission to use when that guy finally comes out with his K swap kit just got their answer!
Chilicharger665 is offline   Reply With Quote
Old 03-31-2014, 08:23 PM   #255
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Breaking news: I've just started renting myself(my body) on an hourly biases. Transmission internals here I come.
Impuls is offline   Reply With Quote
Old 04-01-2014, 02:06 PM   #256
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by emilio700 View Post
We are talking with a supplier (not PAR, Quaife or BAR) to get 6spd gearsets and steel shift forks for the AZ-6. I'm leaning towards one ratio option close to what Andrew and I posted above, dog engagement, helical gears. Torque capacity would be a close to 400lbs as we could get. The Stock AZ-6 is nominally rated for about 200lbs. At 300 + the lifespan gets measured in hours, 400+ measured in minutes.

Target gear ratios, or something near this
2.8
2
1.52
1.22
1
.87

We would have to get about 20 orders. Ball park is about $3100 for the parts kit.
ETA would be roughly 10 months from green lighting the project to you door.

Dog box allows for greater strength but is only happy when banging through gears. Shifting slow on the street can be a PITA. For those that have never clutchless shifted a close ratio dog box, it's only slightly less awesome than a full sequential.

Thoughts?
Looks really good, I would definitely be in. One question why not go with straight cut gears? Less parasitic drag, and I think straight cut gears are stronger and easier to manufacture? This transmission would be a good option for EP and FP cars, with a pit gear to boot!!
hingstonwm is offline   Reply With Quote
Old 04-01-2014, 02:27 PM   #257
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,613
Total Cats: 858
Default

Quote:
Originally Posted by hingstonwm View Post
Looks really good, I would definitely be in. One question why not go with straight cut gears? Less parasitic drag, and I think straight cut gears are stronger and easier to manufacture? This transmission would be a good option for EP and FP cars, with a pit gear to boot!!
This particular manufacture simply doesn't like straight cut gears. I asked, they said, "er, ah, we don't like straight cut gears". For them doing helicals right is a matter of pride from what I gather. Tiny gains in power from straight cut but very noisy. Beautiful noise it could be argued, but there you have it.

I'm just blissed to be able to do dog engagement. I won't know how much torque capacity we'll gain but anything will be an improvement at this point. Not a concern for EP/FP guys I know but the ratios and dogs should easily make up for the few hp you toss away lugging around gears made for 300lbs tq

On a side note, it sounds like we will be able to tweak the shifter geometry. The 5 speed has slightly wider spaced gates. I'll try to match that with the SPMAZ6. Move them a few mm further apart and take slop out to make it a more positive mechanical engagement feel. When stock AZ-6s are in good condition, they shift great. Any bushing or shift fork wear and a stock AZ-6 quickly becomes unpleasant and balky. Hopefully we can address that as well.
emilio700 is online now   Reply With Quote
Old 04-01-2014, 03:35 PM   #258
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by emilio700 View Post
This particular manufacture simply doesn't like straight cut gears. I asked, they said, "er, ah, we don't like straight cut gears". For them doing helicals right is a matter of pride from what I gather. Tiny gains in power from straight cut but very noisy. Beautiful noise it could be argued, but there you have it.

I'm just blissed to be able to do dog engagement. I won't know how much torque capacity we'll gain but anything will be an improvement at this point. Not a concern for EP/FP guys I know but the ratios and dogs should easily make up for the few hp you toss away lugging around gears made for 300lbs tq

.
A manufacture that takes pride in their product? They are few and far between. Looking forward to following the progress of this project!
hingstonwm is offline   Reply With Quote
Old 04-01-2014, 03:52 PM   #259
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,219
Total Cats: 210
Default

Quote:
Originally Posted by emilio700 View Post
FWIW the first car we would put one in is a street licensed 200whp N/A Miata. I don't have any problems driving one on the street but I'll caution anyone not familiar with them to, well, watch the video.
A while back I was talking to a dog box manufacturer. It was said for no-lift racing the simplest and quickest shift was a simple button to cut ignition. You preload slightly the shift ****, push the button and it'd slide into the gear. Quicker than wiggling the gas pedal to take the load off the dogs.

Along the same lines, when I went to the AEM's tuner school the instructor showed how he set up a load cell/strain gauge on the shift handle to trigger the Gen1 AEM EMS cut the ignition, for super fast dogbox shifts. That as trick.
TurboTim is offline   Reply With Quote
Old 04-01-2014, 04:12 PM   #260
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,362
Total Cats: 56
Default

Quote:
Originally Posted by TurboTim View Post
Along the same lines, when I went to the AEM's tuner school the instructor showed how he set up a load cell/strain gauge on the shift handle to trigger the Gen1 AEM EMS cut the ignition, for super fast dogbox shifts. That as trick.
Wonder if the neutral switch alone would be suitable to do the same, making the stab at the clutch (switch) I do now unnecessary (MS flatshift).
NiklasFalk is offline   Reply With Quote
