Old 03-21-2016, 03:17 PM   #61
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,818
Total Cats: 1,600
Default

Attached Thumbnails

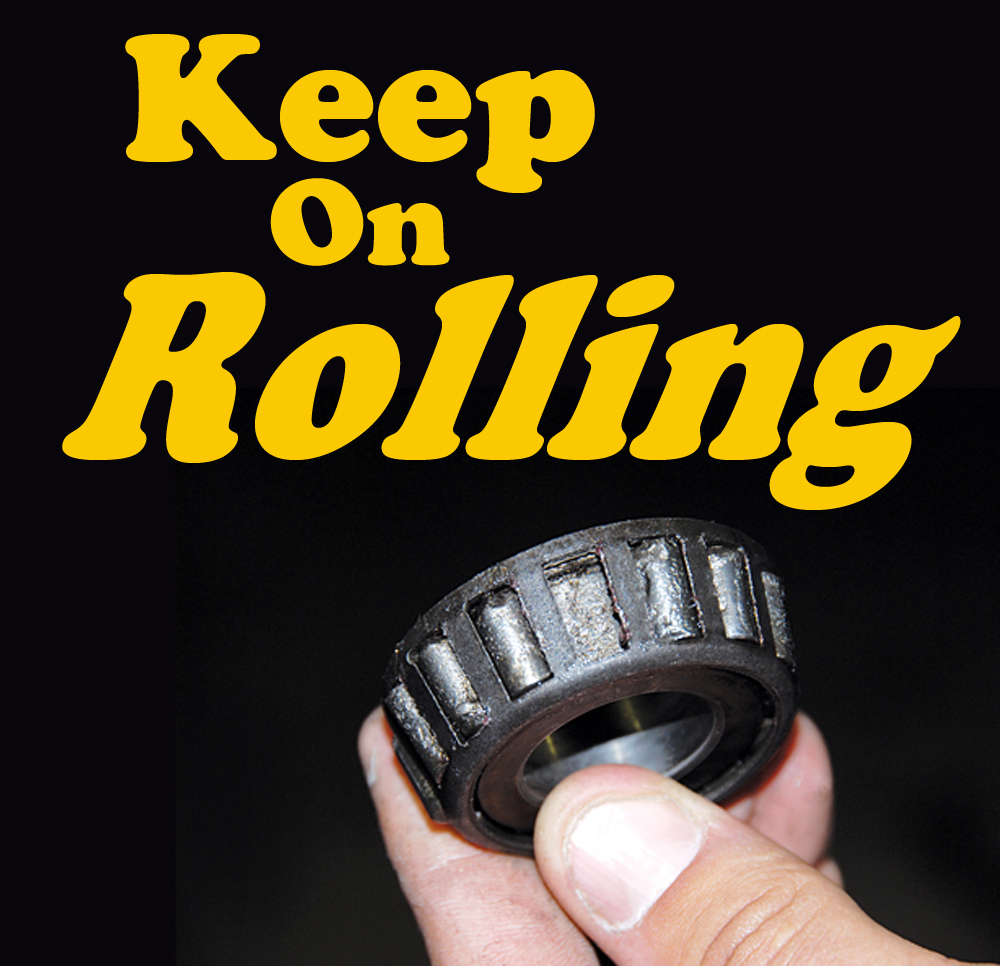

Tapered Roller Bearing Hubs--IT'S HAPPENING-80-undefined_0ad6e320a004988d8dbfa4a57ed609a6d83eb431.png
Joe Perez is offline   Reply With Quote
Old 03-21-2016, 07:11 PM   #62
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 415
Total Cats: 8
Default

I have had exactly the opposite experiences with all the cars we've had, many many trouble free miles.
jmann is offline   Reply With Quote
Old 03-21-2016, 08:33 PM   #63
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,665
Total Cats: 92
Default

Quote:
Originally Posted by bbundy View Post
My Mazda's that had tapered roller bearings **** there wheel bearings out on a regular basis on street driven cars on all season tires. My GM SUV gets new wheel bearings every time I change rotors they also are ****.

They were not cartridge type bearings however. Maybe tighter tolerances would help and better adjustment of cartridge type would help allot.
Were those cars with rollers adjustable? There's basically 3 ways to do a pair bearing combo be it tapered roller or angular contact ball.

Trailer level, two bearings opposed with plenty of clearance between the inner races, castle nut and cotter pin. You tighten the nut until the wheel doesnt turn easy and then back it off till you can cotter pin the castle nut. So your preload is set in really really rough increments which is fine on non-steering minimal side load wheel bearings.

Modern OEM, set preload, the inner bearing races are just set so that the two touch and you can crank the spindle nut until you shear the spindle off and it wont change the bearing preload. These are nice when you have good tolerances on all the bits involved or if the hub comes as a unit with the bearings so they can be assembled and together with the proper clearance. YOU"RE COMPLETELY AT THE MERCY OF CHINA TO SET THIS CORRECTLY AND ITS A BIG DEAL.

Old Style Adjustable, like above but you have shims between the two races and you have to futz around with the shims until the wheel spins nice and has no play. You get these when the spindle uses two separate bearings and they're also not part of the hub. They're nice between you can re-shim it with wear or shim it tighter to handle higher loading than originally intended. I dont think I've ever seen a ball bearing like this.
Leafy is offline   Reply With Quote
Old 03-21-2016, 08:47 PM   #64
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 415
Total Cats: 8
Default

A Taper bearing is tightened until you take all slack out, and then tighten 12 to 24 in.# torque Max.., not until the wheel doesn't turn easy because that exist for several turns to tight. I've been doing it this way for 50 plus years and never had an issue with these wheel bearings. It's actually ok to have a very very slight amount of play in them verses being to tight, not so with ball bearings.

Last edited by jmann; 03-26-2016 at 09:55 PM.
jmann is offline   Reply With Quote
Old 03-22-2016, 08:08 PM   #65
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,431
Total Cats: 108
Default

Quote:
Originally Posted by Leafy View Post
Were those cars with rollers adjustable? There's basically 3 ways to do a pair bearing combo be it tapered roller or angular contact ball.

Trailer level, two bearings opposed with plenty of clearance between the inner races, castle nut and cotter pin. You tighten the nut until the wheel doesnt turn easy and then back it off till you can cotter pin the castle nut. So your preload is set in really really rough increments which is fine on non-steering minimal side load wheel bearings.

Modern OEM, set preload, the inner bearing races are just set so that the two touch and you can crank the spindle nut until you shear the spindle off and it wont change the bearing preload. These are nice when you have good tolerances on all the bits involved or if the hub comes as a unit with the bearings so they can be assembled and together with the proper clearance. YOU"RE COMPLETELY AT THE MERCY OF CHINA TO SET THIS CORRECTLY AND ITS A BIG DEAL.

Old Style Adjustable, like above but you have shims between the two races and you have to futz around with the shims until the wheel spins nice and has no play. You get these when the spindle uses two separate bearings and they're also not part of the hub. They're nice between you can re-shim it with wear or shim it tighter to handle higher loading than originally intended. I dont think I've ever seen a ball bearing like this.
Shims between the races. They absolutely sucked even when set precisely to the specs.

Last edited by bbundy; 03-22-2016 at 08:55 PM.
bbundy is offline   Reply With Quote
Old 03-22-2016, 08:09 PM   #66
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,431
Total Cats: 108
Default

Quote:
Originally Posted by jmann View Post
A Taper bearing is tightened until you take all slack out, and then tighten 10 to 15# torque Max.., not until the wheel doesn't turn easy because that exist for several turns to tight. I've been doing it this way for 50 plus years and never had an issue with these wheel bearings. It's actually ok to have a very very slight amount of play in them verses being to tight, not so with ball bearings.
Good for cheap trailers.
bbundy is offline   Reply With Quote
Old 03-22-2016, 09:10 PM   #67
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,723
Total Cats: 132
Default

Quote:
Originally Posted by Leafy View Post
Were those cars with rollers adjustable? There's basically 3 ways to do a pair bearing combo be it tapered roller or angular contact ball.

Trailer level, two bearings opposed with plenty of clearance between the inner races, castle nut and cotter pin. You tighten the nut until the wheel doesnt turn easy and then back it off till you can cotter pin the castle nut. So your preload is set in really really rough increments which is fine on non-steering minimal side load wheel bearings.

Modern OEM, set preload, the inner bearing races are just set so that the two touch and you can crank the spindle nut until you shear the spindle off and it wont change the bearing preload. These are nice when you have good tolerances on all the bits involved or if the hub comes as a unit with the bearings so they can be assembled and together with the proper clearance. YOU"RE COMPLETELY AT THE MERCY OF CHINA TO SET THIS CORRECTLY AND ITS A BIG DEAL.

Old Style Adjustable, like above but you have shims between the two races and you have to futz around with the shims until the wheel spins nice and has no play. You get these when the spindle uses two separate bearings and they're also not part of the hub. They're nice between you can re-shim it with wear or shim it tighter to handle higher loading than originally intended. I dont think I've ever seen a ball bearing like this.
We don't deal with China on these (or any) products. These are all parts sourced in Taiwan from a Tier 1, ISO9000 manufacturer. The bearings themselves are U.S. made Timken bearings, non-adjustable.
cordycord is offline   Reply With Quote
Old 03-22-2016, 10:48 PM   #68
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 415
Total Cats: 8
Default

Good for all the cars and PU's I've had with them to this day and lots of others that I know of in the 60's and 70's when I was racing.
jmann is offline   Reply With Quote
Old 03-23-2016, 08:59 AM   #69
Newb

Join Date: Oct 2012
Posts: 18
Total Cats: -6
Default

interesting reading and product - cordy - go for it. This is making me re-evaluate my thinking a bit on wheel bearings - my 71 911E has tapered, and the tapereds on the Porsche's thru 96 werent known for failure i don't believe, and they were raced - just a bit. I managed a bearing manufacturing facility for a while and we built both automotive (VW, Chrysler) hub units - all *****, and heavy truck bearings - all tapered. My belief is that the OEM's changed to hub units to reduce assembly line work, tho I could be wrong.
ccsc is offline   Reply With Quote
Old 03-24-2016, 02:07 PM   #70
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,431
Total Cats: 108
Default

Quote:
Originally Posted by ccsc View Post
interesting reading and product - cordy - go for it. This is making me re-evaluate my thinking a bit on wheel bearings - my 71 911E has tapered, and the tapereds on the Porsche's thru 96 werent known for failure i don't believe, and they were raced - just a bit. I managed a bearing manufacturing facility for a while and we built both automotive (VW, Chrysler) hub units - all *****, and heavy truck bearings - all tapered. My belief is that the OEM's changed to hub units to reduce assembly line work, tho I could be wrong.
Adjusting non pre-set tapered rollers on an assembly line is a horrible process that results in poor quality control I can attest to that. I work with heavy trucks. Heavy trucks in virtually all the rest of the world except the USA/north America which is still stuck in the dark ages uses cartridge type bearings that you just tighten down and don't adjust. tapered rollers are generally used in heavy load applications ***** are used for High speed and lower rolling resistance.
bbundy is offline   Reply With Quote
Old 03-25-2016, 09:52 PM   #71
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,723
Total Cats: 132
Default

Quote:
Originally Posted by ccsc View Post
interesting reading and product - cordy - go for it. This is making me re-evaluate my thinking a bit on wheel bearings - my 71 911E has tapered, and the tapereds on the Porsche's thru 96 werent known for failure i don't believe, and they were raced - just a bit. I managed a bearing manufacturing facility for a while and we built both automotive (VW, Chrysler) hub units - all *****, and heavy truck bearings - all tapered. My belief is that the OEM's changed to hub units to reduce assembly line work, tho I could be wrong.
By hub "units", I assume that you mean bearings installed as a cartridge that require no preloading or fiddling when they're installed. I'll go with that. My other default reason for everything is liability. Stick a lawyer in any situation where there's a potential for a law suit, and they'll make you change your product to stoopid-proof it for the consumer. Maybe not for bearings, but most everything else seems that way.
cordycord is offline   Reply With Quote
Old 03-30-2016, 12:49 PM   #72
Newb

Join Date: Sep 2015
Location: Birmingham, AL
Posts: 6
Total Cats: -3
Default

Quote:
Originally Posted by cordycord View Post
We don't deal with China on these (or any) products. These are all parts sourced in Taiwan from a Tier 1, ISO9000 manufacturer. The bearings themselves are U.S. made Timken bearings, non-adjustable.
I know many of the Application Engineers at Timken's World Head Quarters in North Canton, OH. Can you provide us the Part Number that will be used for these hubs? I would like to see if they will provide me all the specs on the bearings (OD,ID,treatment,lubricant,load ratings,etc.).

We are looking forward to ordering a pair once they are available.
Aaron@TLM_Motorsports is offline   Reply With Quote
Old 03-30-2016, 01:14 PM   #73
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,498
Total Cats: 872
Default

Quote:
Originally Posted by Aaron@TLM_Motorsports View Post
I know many of the Application Engineers at Timken's World Head Quarters in North Canton, OH. Can you provide us the Part Number that will be used for these hubs? I would like to see if they will provide me all the specs on the bearings (OD,ID,treatment,lubricant,load ratings,etc.).
Seriously?

"I know some guys at your vendor, can you provide me with all of your proprietary intellectual property on your new product?"

Want to see his **** too?

Savington is offline   Reply With Quote
Old 03-30-2016, 01:56 PM   #74
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,818
Total Cats: 1,600
Default

Quote:
Originally Posted by Savington View Post
Want to see his **** too?
Well, this is MT.net.

But, in all seriousness, it's not as though the part number of an OEM bearing constitutes "all of your proprietary intellectual property on your new product." As soon as the hubs start shipping, the p/n of the bearing insert will be essentially public-domain knowledge.

Knowing that number won't make it any easier for someone else to attempt to create a knockoff product. If demand is sufficiently high, then the design will eventually be copied by an Asian manufacturer and distributed in the US for a lower price. If it is not (and I seriously doubt that it will be), then the impetus to copy the product will be small.
Joe Perez is offline   Reply With Quote
Old 04-01-2016, 12:15 AM   #75
Newb

Join Date: Sep 2015
Location: Birmingham, AL
Posts: 6
Total Cats: -3
Default

Quote:
Originally Posted by Savington View Post
Seriously?

"I know some guys at your vendor, can you provide me with all of your proprietary intellectual property on your new product?"

Want to see his **** too?

A Part Number on a suppliers product is not intellectual property. All We want to know is if the Part Number he is using because we want to know how Timken is hardening the bearings: case-carburized, through-hardened, or nothing. Case-carburized and through-hardening are staples of Timken bearings and depending on the application which one (if any) should/is being used http://www.timken.com/en-us/solution...ts/Vol6No2.pdf. Anyone can look up the specs of Timken's bearing on their website too based on any number of dimensional data points or Part Number http://www.timken.com/en-us/Knowledg...s/default.aspx.

Didn't know this was a sore subject. I figured this is data everyone would like to know that I could provide.
Aaron@TLM_Motorsports is offline   Reply With Quote
Old 04-01-2016, 12:35 AM   #76
Junior Member
iTrader: (1)

Join Date: Jan 2005
Location: Los Gatos, California
Posts: 64
Total Cats: -2
Default

Aaron

its waste of our time explaining why your "question" is in poor taste and came across so confidently, i.e. arrogantly, that its amazing.

Cord is plenty capable to build the product himself, and I did not hear him ask for help asking Timken for product support.

Again, I don't expect you to understand why we think you are way off line: if you did understand you would never cross the line..I assume you are older than 10, maybe even of drinking age, by than if you don't distinguish wrong from right, its too late.

Please, unless you have something to add that will help us/enlighten us, do not pollute the discussion.

FYI: like all OEMs Timken provides their customers will all pertinent information upon request, and I am sure Cord has it- how else could he complete FEA Analysis, and conclude the product chosen is performed well...see 1st page for that!!
alpinaturbo is offline   Reply With Quote
Old 04-01-2016, 04:51 AM   #77
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,079
Total Cats: 424
Default

^i bet you're a riot at parties.

Seems to me like he could have gotten some information which could potentially answer some of the questions posed in this thread.
turbofan is offline   Reply With Quote
Old 04-01-2016, 01:07 PM   #78
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,498
Total Cats: 872
Default

Quote:
Originally Posted by Aaron@TLM_Motorsports View Post
A Part Number on a suppliers product is not intellectual property. All We want to know is if the Part Number he is using because we want to know how Timken is hardening the bearings: case-carburized, through-hardened, or nothing.
It's one thing to ask Cord if the bearing he's using is case-carburized, through-hardened, or nothing. It's quite another to ask him to essentially provide you with all of the dimensional specifications on a product he hasn't even released yet.

Quote:
Didn't know this was a sore subject. I figured this is data everyone would like to know that I could provide.
I assume you work in the industry, based on your username, so let me ask you this: Can I have the engineering drawings for your most recent product in devleopment? It's certainly nothing that won't be in the public domain once the product is released, so it's hardly intellectual property, right?

This community is rife with knock-offs and rip-off artists. My own products have been ripped off by vendors who advertise on this site alongside me. So yes, you could say that it's a bit of a sore subject for me. Sorry if I offended you, but IMO it's inappropriate to pose such a question to a vendor regarding a product in development.
Savington is offline   Reply With Quote
Old 04-01-2016, 01:17 PM   #79
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

Sav, I'd like your vendor contact info for the outfit that casts your exhaust manifolds. KTHANKSBYE.
sixshooter is offline   Reply With Quote
Old 04-01-2016, 01:39 PM   #80
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,812
Total Cats: 224
Default

Quote:
Originally Posted by Savington View Post
This community is rife with knock-offs and rip-off artists. My own products have been ripped off by vendors who advertise on this site alongside me.
Good thing they can't rip off excellent TSE customer service and response to customers. Worth passing up bargain price for quality support.
psyber_0ptix is offline   Reply With Quote
