Back shocks, cake...fronts, WTF OMG I'm gonna lose it!

Thread Tools

Search this Thread

Old 11-21-2011, 09:22 AM
  #21
Newb

Ayge's Avatar

Join Date: Nov 2011
Posts: 31
Total Cats: 0
Default

Originally Posted by Braineack
I dont event think my short *** Teins would be easy. There's not enough clearance between the two control arms to angle it out, and then between the UCA and the fender wall...so they need to come almost straight up to clear the UCA then out to clear the fender.

This is how I first did my install back 2000, it took my 6 hours with power tools on a lift. The extra time it took wrestling to get the fronts in and out I could have removed the long bolt and cooked a steak dinner, took a nap, and played 3 hours of video games. I ended up having to get someone to stand on the control arm to get as much clearance as possible, while trying to compress the shock up against the fender wall a little at a time to shorten the shock and to hope and pray it went in.

Honestly, there's no "dealing" with the long bolt. Lower the two sway bar mount bolts flush with the nut, hit it with a wrench and a 21mm socket, and slide it out. I'd say it adds an extra 2-4minutes tops.

In fact, the long bolt method is so easy, I've pulled the shocks in the parking lot at work on my lunch break with nothing more than a scissor jack and some hand tools.
Fair enough - admittedly I've never tried either method, though I can swap suspensions in under an hour using the method I described above. Next time I'll give the long bolt a shot.

Last edited by Ayge; 11-21-2011 at 02:28 PM.
Ayge is offline
Old 11-21-2011, 04:17 PM
  #22
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 10,454
Total Cats: 1,799
Default

Got a pic of this long bolt you speak of?
triple88a is offline
Old 11-21-2011, 04:24 PM
  #23
Elite Member
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,388
Total Cats: 474
Default

It's the long bolt that forms the pivot for the upper suspension arm.
mgeoffriau is offline
Old 11-21-2011, 04:50 PM
  #24
Newb

Ayge's Avatar

Join Date: Nov 2011
Posts: 31
Total Cats: 0
Default

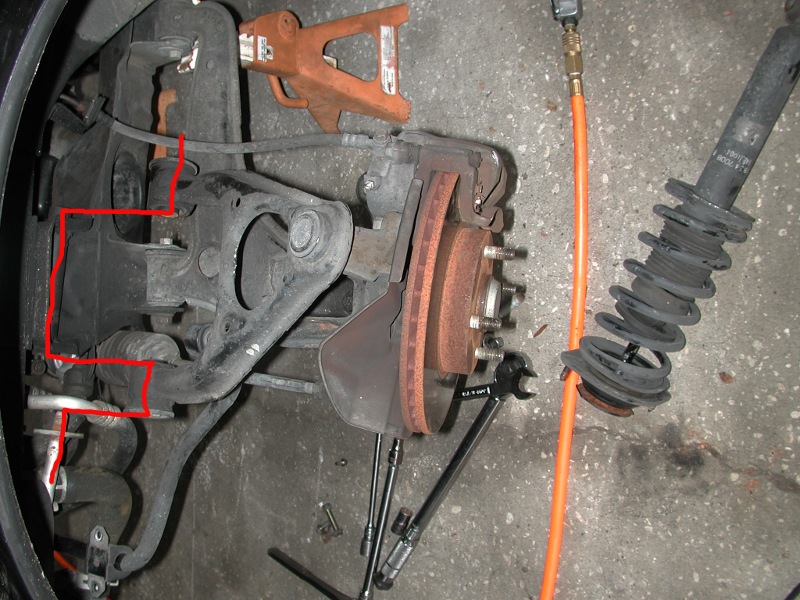

Long bolt attaches the upper control arm to the front sub-frame. In the picture below, it follows the red line.

Attached Thumbnails Back shocks, cake...fronts, WTF OMG I'm gonna lose it!-05-shockoutonground.jpg
Ayge is offline
Old 11-21-2011, 05:38 PM
  #25
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,181
Total Cats: 1,133
Default

No it doesn't, it's straight. Jesus. Your Miata might of been in a wreck there...
curly is offline
Old 11-21-2011, 06:16 PM
  #26
Newb

Ayge's Avatar

Join Date: Nov 2011
Posts: 31
Total Cats: 0
Default

Dang, maybe that explains why my miata doesn't turn so good.
Ayge is offline
Old 11-21-2011, 11:52 PM
  #27
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 10,454
Total Cats: 1,799
Default

Yeah i was looking at that route when i did my kit but that bitch wouldn't budge.
triple88a is offline
Old 11-22-2011, 12:02 AM
  #28
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 6,022
Total Cats: 304
Default

Mine didn't seem like it was gonna crack loose. 13/16 wrench and a soft mallet knocked it loose and saved the day.
