Old 11-04-2015, 07:00 PM   #641
Junior Member

Join Date: Oct 2015
Posts: 56
Total Cats: 1
Default

I've read the whole thread and had my calculator totalling up the bits to do this and my math tells me , I should buy the Vmaxx Classic or extreme from FM. Am I wrong?
Zeddriver is offline   Reply With Quote
Old 11-04-2015, 07:02 PM   #642
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,238
Total Cats: 978
Default

Bilstein = better shock than Vmaxx.
aidandj is offline   Reply With Quote
Old 11-04-2015, 08:41 PM   #643
Crumple Zone Tester
iTrader: (6)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,530
Total Cats: 393
Default

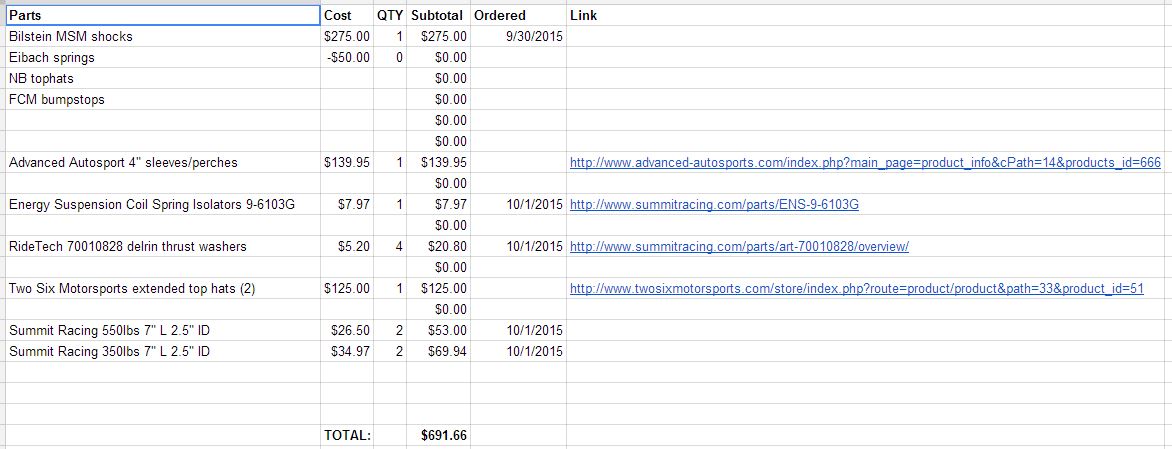

I posted this in another thread, but I'll repost it here.



So, sure, you maybe can't replicate this exactly. I lucked into a pretty good deal on MSM's with good bumpstops I can reuse and crappy springs I can resell. But other than than, it's pretty close to something anyone else could piece together.

Go find some Bilsteins in decent shape and do something similar to this.
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-152890d1445372868-yellow-speed-vs-v-maxx-coilovers-bilstein.jpg
mgeoffriau is online now   Reply With Quote
Old 11-04-2015, 10:09 PM   #644
Junior Member

Join Date: Sep 2013
Location: SL,UT
Posts: 50
Total Cats: 6
Default

Posting images that contain hyperlinks....

I made my set a while ago, but I'm gonna pick up some of those delrin thrust washers. Seems like a way better plan that the torrington bearings, as far as maintenance/contamination.

If it helps anyone, I have 10AE Bilsteins (Hard S) on an NA with ISC 1"/1.5" and can put the tire into the body at full bump (205/50 r15 Rival S on an et +15 wheel). To maximize bump travel without losing more droop than necessary I'd do .5" front 1" rear hats if I could go back. I'm running ~26mm bump stops.

I have 6" 600lbs front springs and 7" 400 lbs rear. RB race bar with brace blocks in the front and no RSB. No coil bind and the car handles really well for autox (neutral with throttle controllable oversteer) . I'd put the stock rear bar back on for track though (can just unhook one endlink for autocross and then reattach it.)
soot is offline   Reply With Quote
Old 11-04-2015, 10:19 PM   #645
Crumple Zone Tester
iTrader: (6)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,530
Total Cats: 393
Default

Quote:
Originally Posted by soot View Post
Posting images that contain hyperlinks....
Here:

https://docs.google.com/spreadsheets...it?usp=sharing

mgeoffriau is online now   Reply With Quote
Old 11-04-2015, 11:00 PM   #646
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 947
Total Cats: -248
Default

I made some shock spacers from plastic cutting boards for my front shocks with ISC 1 inch top hats.
wannafbody is offline   Reply With Quote
Old 11-17-2015, 07:56 AM   #647
Newb

Join Date: Nov 2015
Posts: 2
Total Cats: 0
Default

Is this setup better than a MeisterR Zeta?
Foxy is offline   Reply With Quote
Old 11-17-2015, 01:32 PM   #648
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,719
Total Cats: 1,061
Default

Quote:
Originally Posted by Foxy View Post
Is this setup better than a MeisterR Zeta?
Well, one engineers their products for the rigors of drifting and gives it a nifty German marketing name and the other is an actual motorsports supplier and OEM supplier with a hundred years of manufacturing experience.

I'd trust Chinese shocks sold out of England with a German name over anything, personally. But I verifiably don't have a lick of sense.
sixshooter is online now   Reply With Quote
Old 11-17-2015, 01:34 PM   #649
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,238
Total Cats: 978
Default

Quote:
Originally Posted by sixshooter View Post
But I verifiably don't have a lick of sense.
Verified
aidandj is offline   Reply With Quote
Old 11-20-2015, 03:19 PM   #650
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

I driving NB. So if I'm buying new shocks from the Mazdaspeed program, it appears that the following part numbers would be the ones to get? (I believe these are the "Hard S")?

Front damper: NC12-34-700D
Rear dampers: NC12-28-700D
stefanst is offline   Reply With Quote
Old 11-20-2015, 04:00 PM   #651
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,719
Total Cats: 1,061
Default

Those look like the right ones.
sixshooter is online now   Reply With Quote
Old 11-20-2015, 04:34 PM   #652
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 999
Total Cats: 38
Default

And another $400 going in the pursuit of speed
stefanst is offline   Reply With Quote
Old 12-08-2015, 01:21 PM   #653
Newb

Join Date: Dec 2015
Posts: 2
Total Cats: 0
Default

Hey

I am gathering parts, and I can find these in EU, but can someone tell me if they are the correct ones?
MX-5 Stoßdämpfer Bilstein hinten NA
MX-5 Stoßdämpfer Bilstein vorne NA
Casper Remmer is offline   Reply With Quote
Old 12-08-2015, 04:54 PM   #654
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 947
Total Cats: -248
Default

Quote:
Originally Posted by Casper Remmer View Post
Hey

I am gathering parts, and I can find these in EU, but can someone tell me if they are the correct ones?
MX-5 Stoßdämpfer Bilstein hinten NA
MX-5 Stoßdämpfer Bilstein vorne NA
Those are the correct NA shocks
wannafbody is offline   Reply With Quote
Old 12-14-2015, 10:13 PM   #655
Junior Member
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

I picked up some suspension goodies in the hopes of assembling DIY coilovers to tide me over until tax time. I had a couple concerns though:

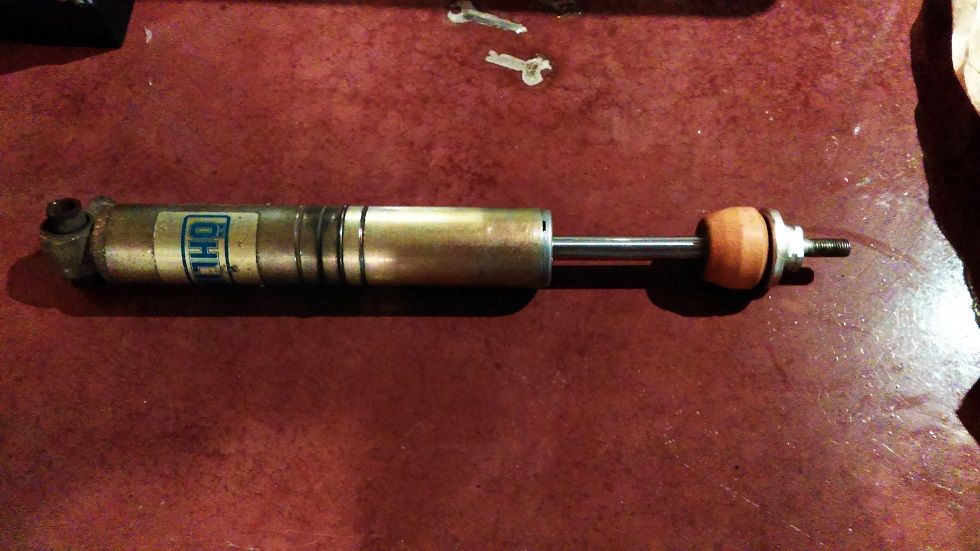

I got a set of Öhlins shocks (for the NA) that I'd really prefer to use. Besides being superior shocks, they have multiple grooves for the circlip so that I can choose where to mount the adjustment sleeves. I also have a connection at Öhlins if I need to re-valve them.



I also picked up a full set of '04 MSM assemblies.

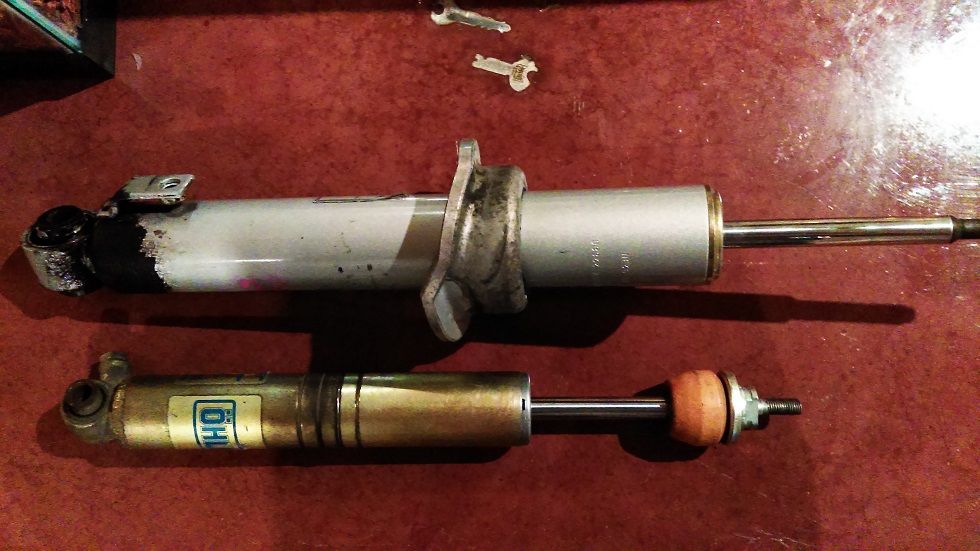

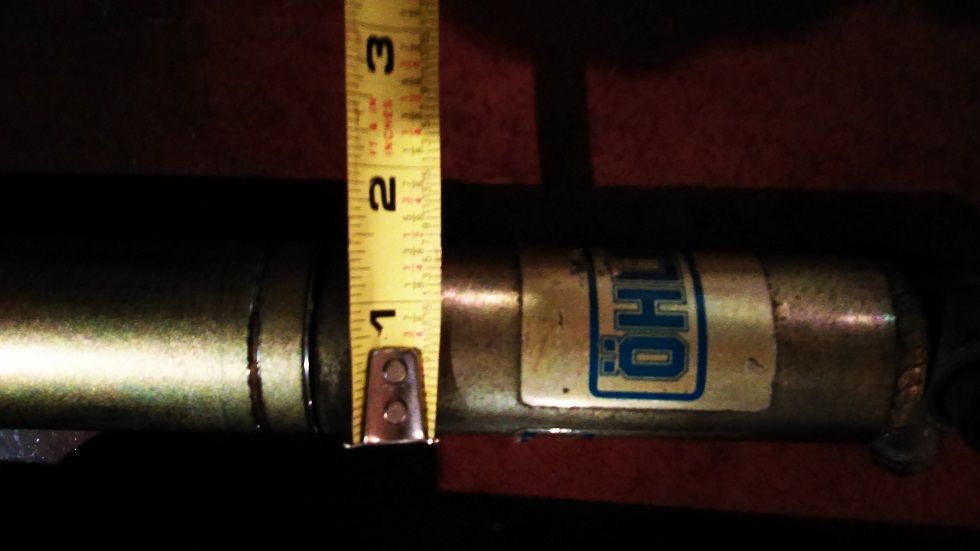

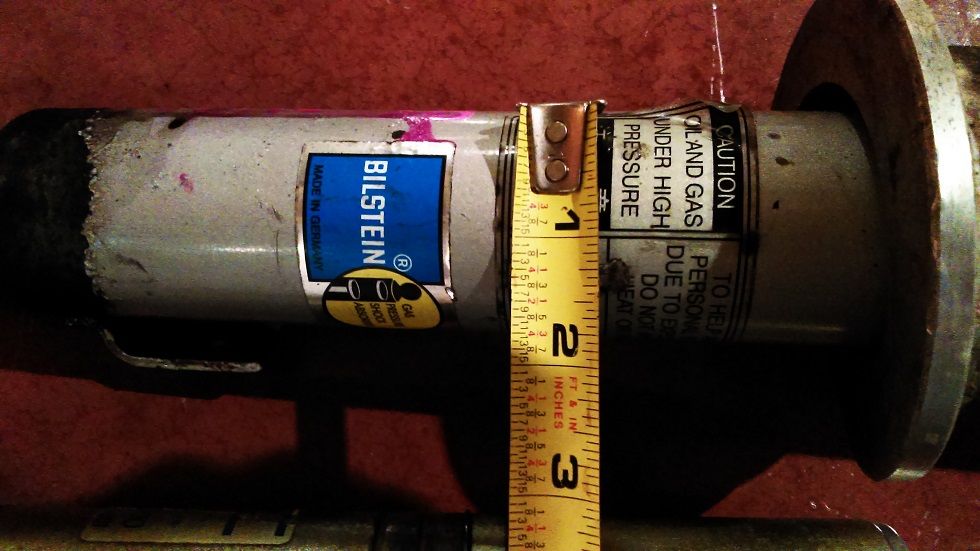

Upon measuring the two sets of shocks, I discovered that the Öhlins are significantly smaller than the Bilsteins. I'm now doubtful that the FleaBay coilover sleeves I ordered will work with them.









I'm also somewhat concerned about using the NB tophats with the MSMs as I've heard the MSM Bilsteins are the longest shock. Would I need to run ISC or GarageStar tophats to compensate?
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-80-imag0059_d74ad7026759ff2c8ebf4fe83603b9f3ebe8c877.jpg   The Better Bilstein Ebay Coilover Thread-80-imag0060_a619c3c2f9c6851aec83c587cd06b332a9133b3c.jpg   The Better Bilstein Ebay Coilover Thread-80-imag0061_ffac7d420a32cbe052e65151b8f98752a5908bdb.jpg   The Better Bilstein Ebay Coilover Thread-80-imag0062_0bff0001cd52ca9d481c7ca8c407308816e279de.jpg
VRRMPSH is offline   Reply With Quote
Old 12-14-2015, 10:22 PM   #656
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 626
Total Cats: 45
Default

Quote:
Originally Posted by VRRMPSH View Post

I'm also somewhat concerned about using the NB tophats with the MSMs as I've heard the MSM Bilsteins are the longest shock. Would I need to run ISC or GarageStar tophats to compensate?
This entirely depends on your ride height. I'm at 12"/12.25" with MSM Billies and I wouldn't want any less than 1.5" top hats. I actually went for the first drive with the new hats a few hours ago and it was wonderful.
acedeuce802 is offline   Reply With Quote
Old 12-14-2015, 10:25 PM   #657
Junior Member
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Quote:
Originally Posted by acedeuce802 View Post
This entirely depends on your ride height. I'm at 12"/12.25" with MSM Billies and I wouldn't want any less than 1.5" top hats. I actually went for the first drive with the new hats a few hours ago and it was wonderful.
Would you mind listing which components you used?
VRRMPSH is offline   Reply With Quote
Old 12-14-2015, 10:41 PM   #658
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 255
Total Cats: -16
Default

The Ohlins look at least 1/2" dia smaller than the MSMs. Which did you get your sleeves to fit?

And never mind that the Ohlins look way shorter too.
huesmann is offline   Reply With Quote
Old 12-14-2015, 10:41 PM   #659
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 626
Total Cats: 45
Default

MSM Billies (revalved), 36mm FCM bumpstops, 550/400 6" springs, Fleabay sleeves, OEM circlip location, 1.5" custom top hats.

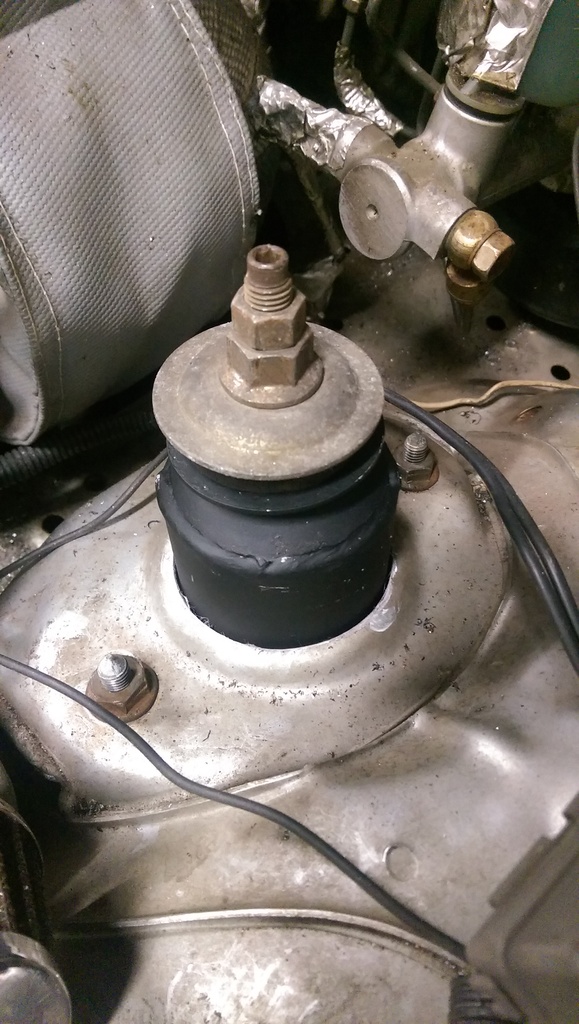

For the top hats, I used a 2.5" hole saw to cut the top hat in two pieces, and welded 2.5" tube in between. The hole in the chassis for the front is too small for 2.5" tube, so I widened that. I machined a guide for the hole saw (ID = hole saw drill size, OD = top hat hole size, then a lip so it doesn't slide through), then I used the hole saw to drill through the chassis and top hat at the same time.

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-imag0462_zpsnhqw0zcf.jpg
acedeuce802 is offline   Reply With Quote
Old 12-14-2015, 10:52 PM   #660
Junior Member
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Thanks for that.

I've found some adjustable sleeve kits that will work with the Öhlins:

Bilstein Coil-Over Sleeve Kits B4BOA0000187 - Free Shipping on Orders Over $99 at Summit Racing

I'm still undecided on tophats, but I guess there's no reason to upgrade unless I go with the MSM shock.
VRRMPSH is offline   Reply With Quote
