Quote:

Originally Posted by asmasm

A kit for bronze sleeved poly bushings would be a really good product for a vendor to offer. I want to put them on my car but the hassle of sourcing parts and getting things machined puts it way down my list compared to all the other stuff I have to do.

Pm me, I do machine work on the side, I can put a kit together for you.

12-19-2015, 06:50 PM

#22

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

Can get 6ft of 20mm TGP 303 for like 140 bucks, that's enough for like 36 bushings. I wonder if it'd stand to daily driver duty if it were stainless and greased up well. Imperial sized bar would be cheaper. Use 3/4 TGP and olite bronze bushings, also like $2/per...

I might just try turning 303 bar down really fine.

12-19-2015, 06:52 PM

#23

unplugged92

Junior Member

Thread Starter

iTrader: (1)

Join Date: Jun 2014

Location: Toronto, ON, Canada

Posts: 133

Total Cats: -7

You Can get bronze sleeve bearings off McMaster-carr. Not sure what the outer diameter is, but I'm assuming the alignment bolt is an M10?

McMaster-Carr

12-19-2015, 06:56 PM

#24

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

Those are bearings, not really bushings. Those are what I'd use around the steel bushing pin, not what you'd run the bolt through.

McMaster-Carr

12-19-2015, 07:09 PM

#25

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Deezums do you have a facespace. Add me or Sean. We are doing bushings right now.

12-19-2015, 07:12 PM

#26

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

What are facespace?

12-19-2015, 07:14 PM

#27

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Quote:

Originally Posted by deezums

What are facespace?

Facebook lol

12-19-2015, 07:26 PM

#28

unplugged92

Junior Member

Thread Starter

iTrader: (1)

Join Date: Jun 2014

Location: Toronto, ON, Canada

Posts: 133

Total Cats: -7

Quote:

Originally Posted by deezums

Those are bearings, not really bushings. Those are what I'd use around the steel bushing pin, not what you'd run the bolt through.

McMaster-Carr

You're right!

So looks like for me it's either machine my own pin and bearings to go in poly bushings, or make spherical bushings... hmmmm....

12-19-2015, 07:27 PM

#29

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

I deleted my account a few years ago. All it does is **** my family off when I don't respond to their ****.

Facespace is actually a thing, too. Nice!

12-19-2015, 09:38 PM

#30

hi_im_sean

SadFab CEO

iTrader: (3)

Join Date: Sep 2012

Location: your mom's house phoenix, AZ

Posts: 4,560

Total Cats: 1,142

what a relief, i found a txxxy xxxxx in kansas that i was hoping wasnt you. lol

12-19-2015, 09:47 PM

#31

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Quote:

Originally Posted by hi_im_sean

what a relief, i found a txxxy xxxxx in kansas that i was hoping wasnt you. lol

Haha!! I found the same guy!

12-19-2015, 09:52 PM

#32

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

See, this why I don't have facebook.

12-19-2015, 10:11 PM

#33

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Join Date: Apr 2014

Location: Beaverton, USA

Posts: 18,642

Total Cats: 1,866

Attached Thumbnails

Delrin Control arm bushings... yay or nay?-6iehx2r.jpg

12-20-2015, 01:07 AM

#34

deezums

Elite Member

iTrader: (3)

Join Date: May 2014

Location: Kansas

Posts: 3,146

Total Cats: 201

Yeah, that's not me luckily

12-21-2015, 11:24 AM

#35

bbundy

Elite Member

Join Date: Jul 2005

Location: Anacortes, WA

Posts: 2,478

Total Cats: 144

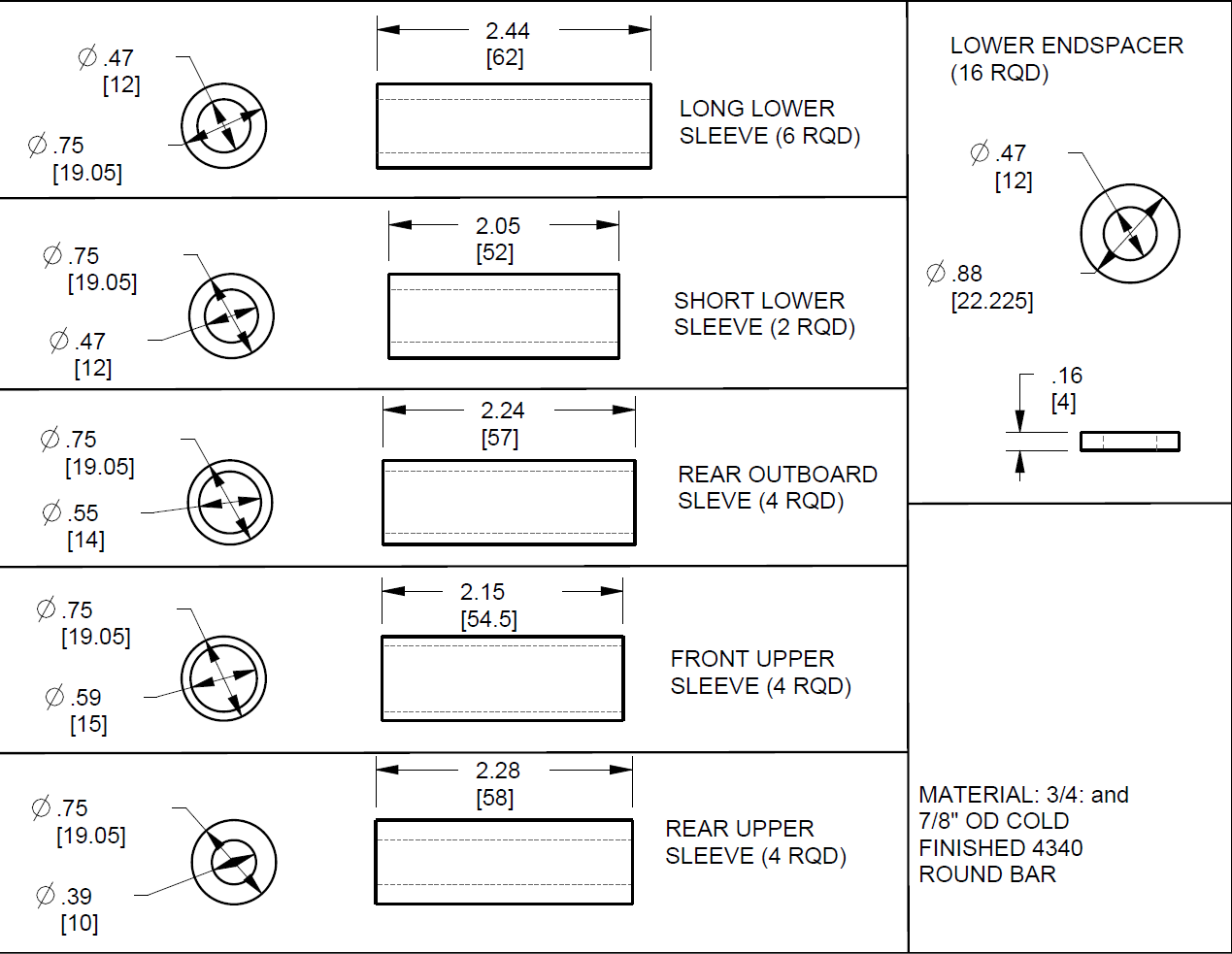

the sleeves I had made. The rear outboard upper is a sperical setup made by Sean.

Attached Thumbnails

Delrin Control arm bushings... yay or nay?-sleeves.png

Delrin Control arm bushings... yay or nay?-157871d1450715015-delrin-control-arm-bushings-yay-nay-sleeves.png

Attached Files

bushed_pivot_sleeves.pdf (42.9 KB, 194 views)

12-18-2016, 05:45 PM

#36

KMiata

Supporting Vendor

Join Date: Sep 2012

Posts: 635

Total Cats: 322

Sorry to bump such an old thread, but did any of you continue to make these sleeves? Seems like a really smart way to improve on the ES poly bushings. Mine have gotten pretty trashed so I'm thinking something like this would extend the life. A year later how are your setups holding up? Better than Delrin?
