Old 09-14-2016, 11:09 PM   #41
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

EO2K

We have essentially the exact same transmission. Follow closely
aidandj is offline   Reply With Quote
Old 09-14-2016, 11:37 PM   #42
Senior Member
iTrader: (4)

Join Date: Feb 2011
Location: Joliet, IL
Posts: 603
Total Cats: 15
Default

[QUOTE=aidandj;1360988]So I did some measuring and brainstorming with sean yesterday for a TOB solution. And I think I have an idea. The real questions are italicized and bolded.

Here are the measurements:

T5:

TOB Sleeve OD 1.435"
TOB Sleeve thickness ~.1", couldn't really measure it well.
Input shaft OD: 1.054"

Miata:

TOB Sleeve OD 1.296"

My first thought was to turn down the TOB sleeve on the T5 to fit a miata TOB. But that won't work, so my next plan is to press the sleeve out of the T5, and machine a new one, that has the OD of the Miata TOB, with an ID that will fit over the input shaft.

How much clearance should the input shaft have from the TOB sleeve? In reality will the input shaft move at all while supported by the pilot bearing?

Picture of T5 TOB sleeve





I also still need to get my hands on a 90-93 V8 T5 input shaft. Not sure if new or used is the way to go.[/QUOTE


Would it be possible to put the T5 throw out bearing onto the Miata clutch fork?
Might be another option.
2manyhobyz is offline   Reply With Quote
Old 09-14-2016, 11:38 PM   #43
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Maybe, but the interfaces looked a lot different. IMO the way i have thought of is easier.
aidandj is offline   Reply With Quote
Old 09-14-2016, 11:49 PM   #44
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 590
Total Cats: 42
Default

Are you able to use the stock Miata TOB with the twin disk clutch? I'm using a teeny tiny little AP Racing hydraulic release bearing with my Quartermaster 5.5".
acedeuce802 is online now   Reply With Quote
Old 09-14-2016, 11:51 PM   #45
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by acedeuce802 View Post
Are you able to use the stock Miata TOB with the twin disk clutch? I'm using a teeny tiny little AP Racing hydraulic release bearing with my Quartermaster 5.5".
I have been for almost a year now. I'm waiting on emilio to find a new supplier for organic discs and ask if he can make me a set for the mustang input shaft. Then I should have clutch, pilot, TOB, and bellhousing figured out.

Driveshaft will be cake.

Shifter will be fun.
aidandj is offline   Reply With Quote
Old 09-14-2016, 11:54 PM   #46
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by aidandj View Post
EO2K

We have essentially the exact same transmission. Follow closely
WAT.
EO2K is offline   Reply With Quote
Old 09-14-2016, 11:55 PM   #47
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Same gearing. Same input shaft length, same shifter. different speedo output.
aidandj is offline   Reply With Quote
Old 09-15-2016, 09:19 AM   #48
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by aidandj View Post
I have been for almost a year now. I'm waiting on emilio to find a new supplier for organic discs and ask if he can make me a set for the mustang input shaft. Then I should have clutch, pilot, TOB, and bellhousing figured out.

Driveshaft will be cake.

Shifter will be fun.
What about the PPF?

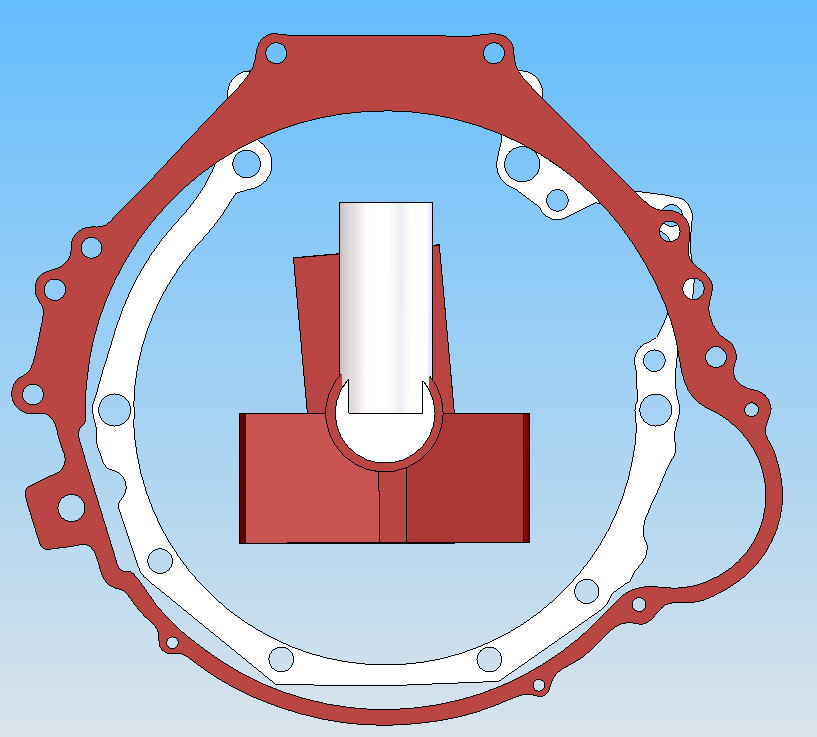

On SBF T5's, the shifter is angled 5 when the cross member mount is horizontal.

Attached Thumbnails
ITT: We discuss T5 swaps and other information.-t5-bp1.jpg
TurboTim is online now   Reply With Quote
Old 09-15-2016, 09:36 AM   #49
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Wow thanks for that info. I'm glad I didn't assume.

I need to do more measuring.


PPF is gonna be a struggle. Im going to build a negative jig that locates a piece of PPF right where it goes on the Miata trans. Then stick the t5 on. And build to that jig.

Or I will chicken out and do a solid mount.
aidandj is offline   Reply With Quote
Old 09-15-2016, 09:41 AM   #50
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Be sure to have a way to adjust pinion angle in both directions, unless you're real good or real lucky. It was only until this year that I got a combination of pinion angle and driveshaft balance that worked for my setup. hehehe
TurboTim is online now   Reply With Quote
Old 09-15-2016, 10:02 AM   #51
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

With a ppf adapter? Or with a solid mount?
aidandj is offline   Reply With Quote
Old 09-15-2016, 11:43 AM   #52
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 228
Total Cats: -10
Default

Quote:
Originally Posted by 2manyhobyz View Post
Would it be possible to put the T5 throw out bearing onto the Miata clutch fork?
The Mustang clutch fork pivots on the end of the fork with the bearing in the middle, whereas the Miata fork pivots in the middle with the bearing on the end (using middle and end loosely, of course). Probably coz the Mustang has a mechanical clutch that needs to pull the fork, as opposed to the Miata's hydraulic one that needs to push it. The TOBs are different designs. The Mustang TOB is retained in place by a spring clip on the clutch fork, whereas the Miata TOB is held onto the fork by tabs on the bearing.
huesmann is offline   Reply With Quote
Old 09-15-2016, 10:47 PM   #53
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

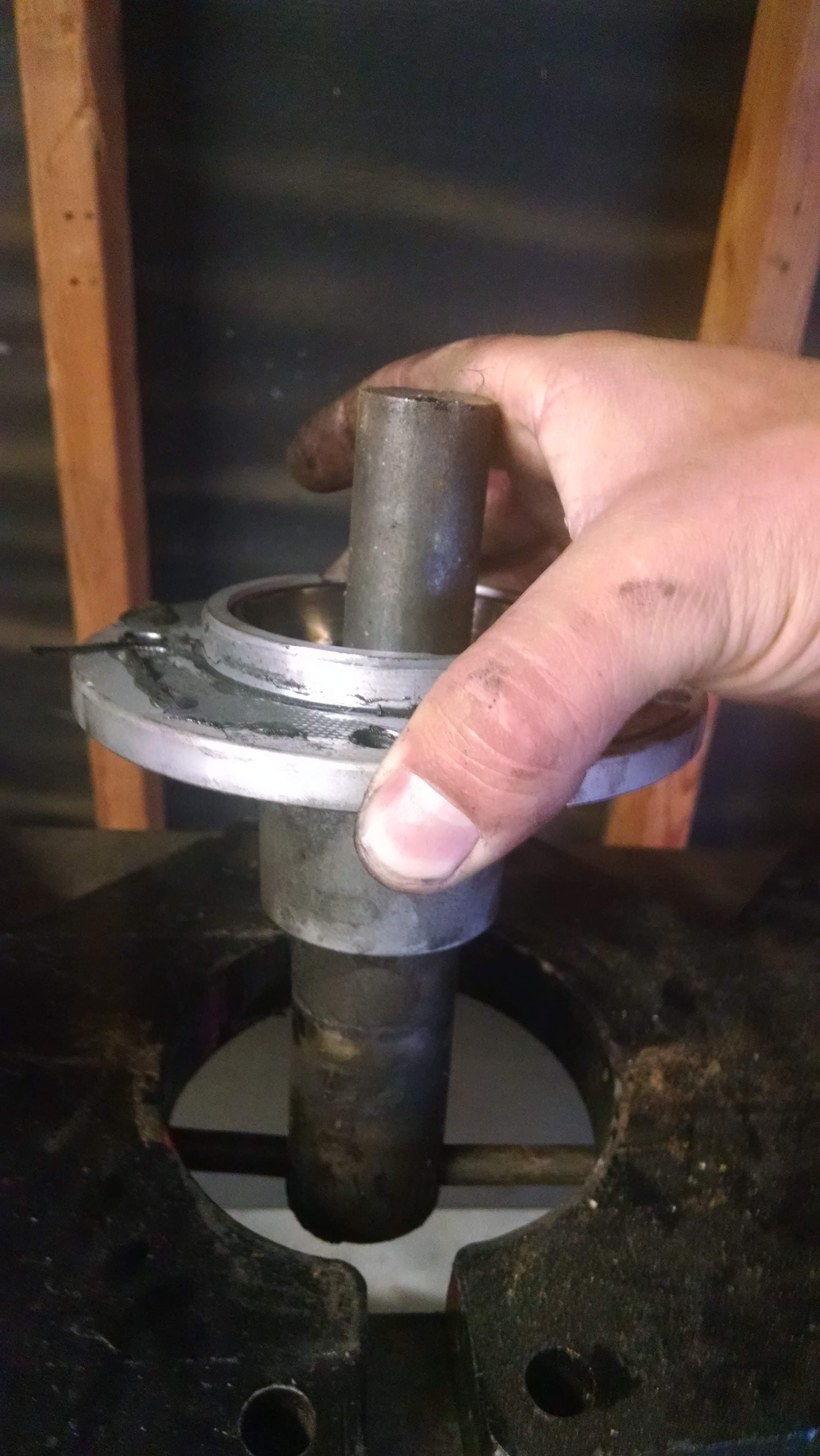

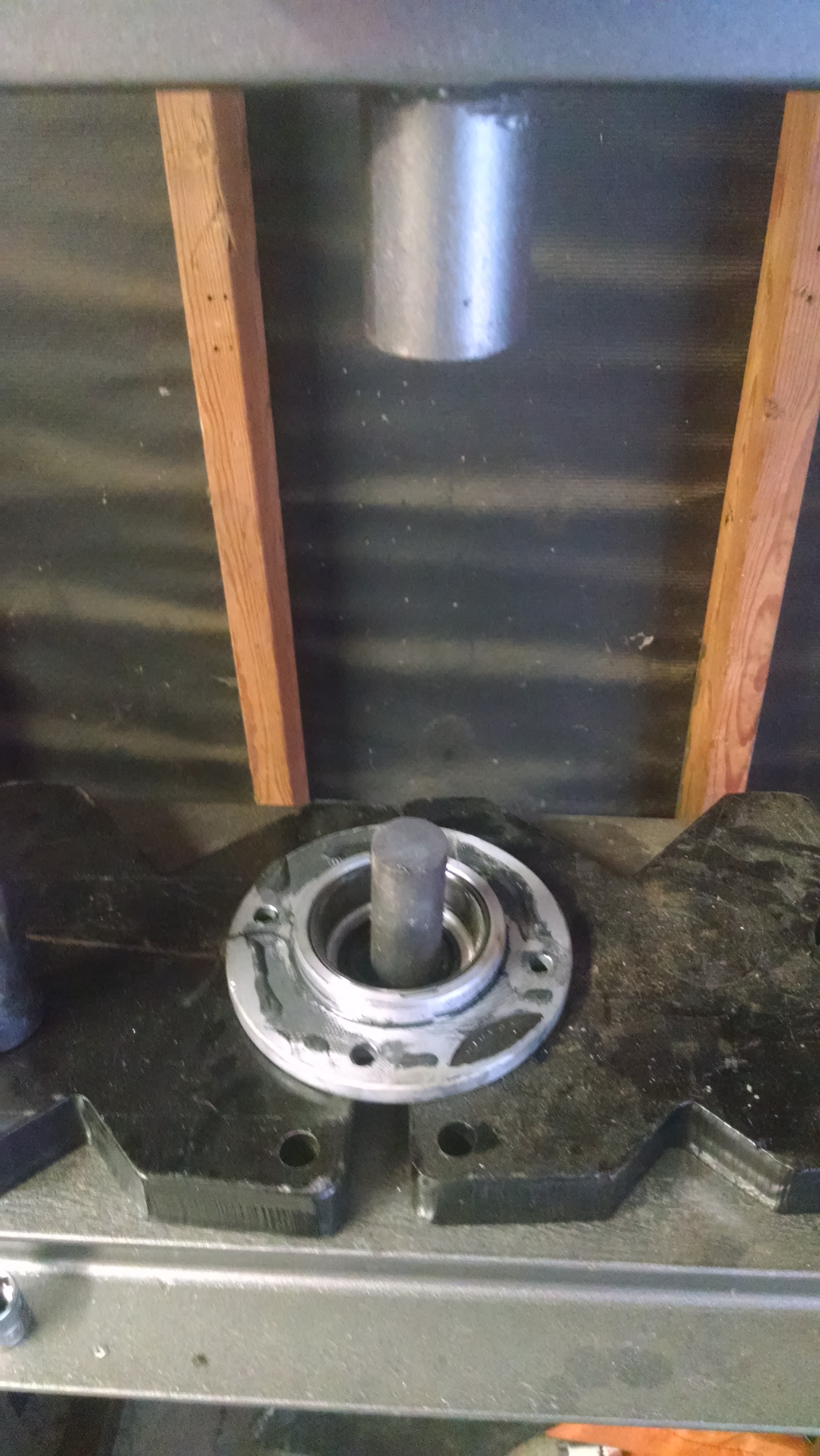

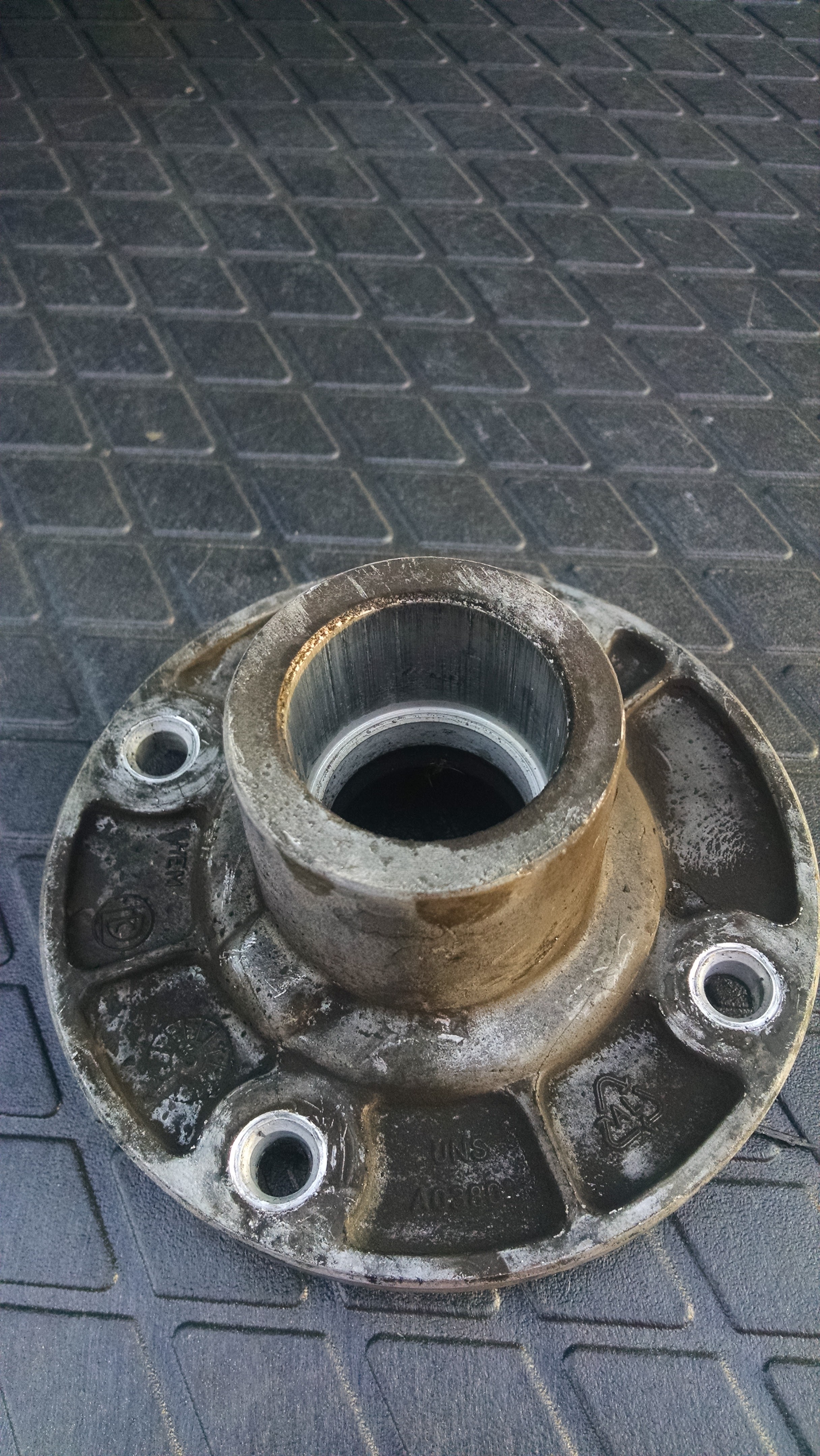

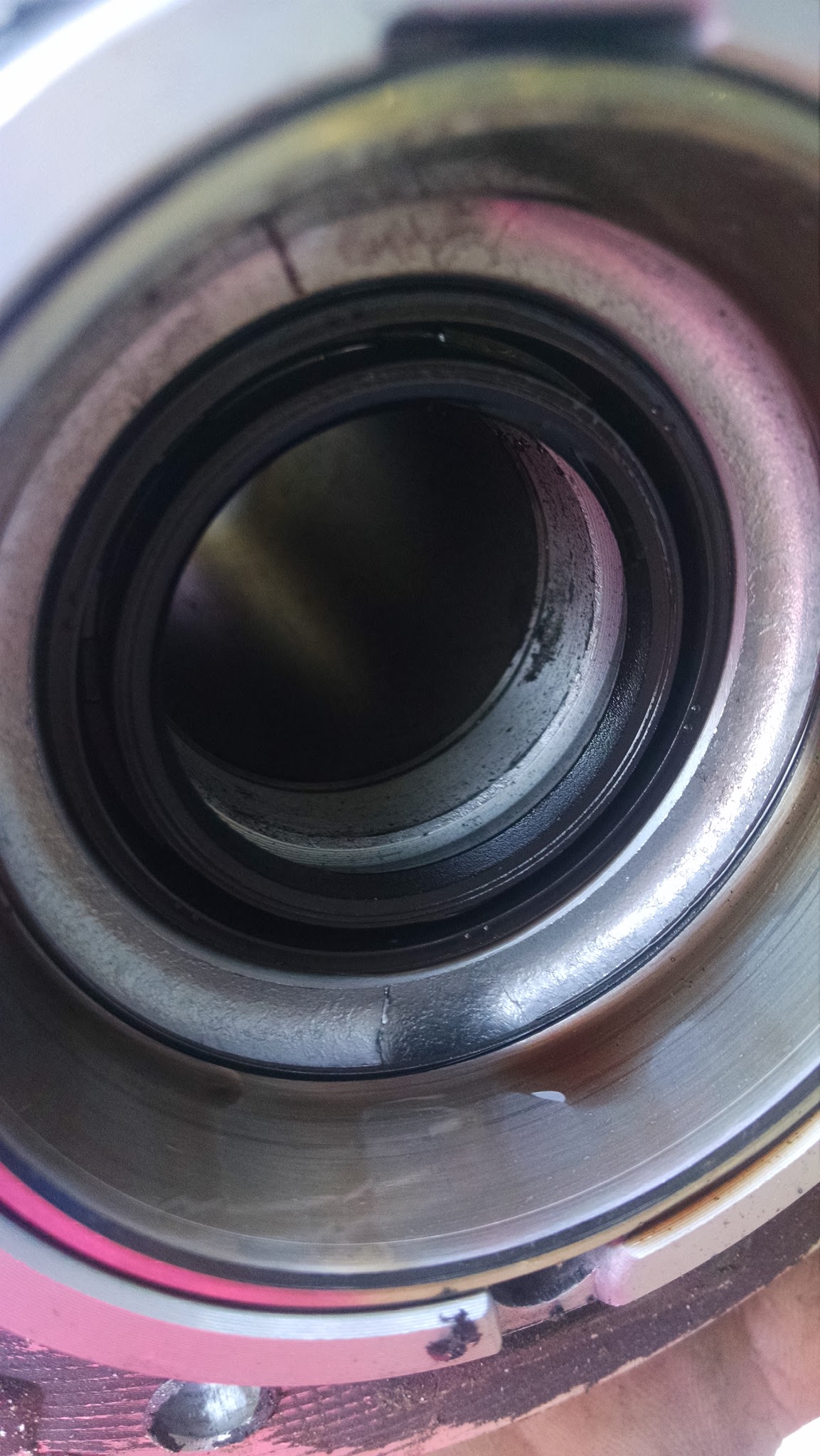

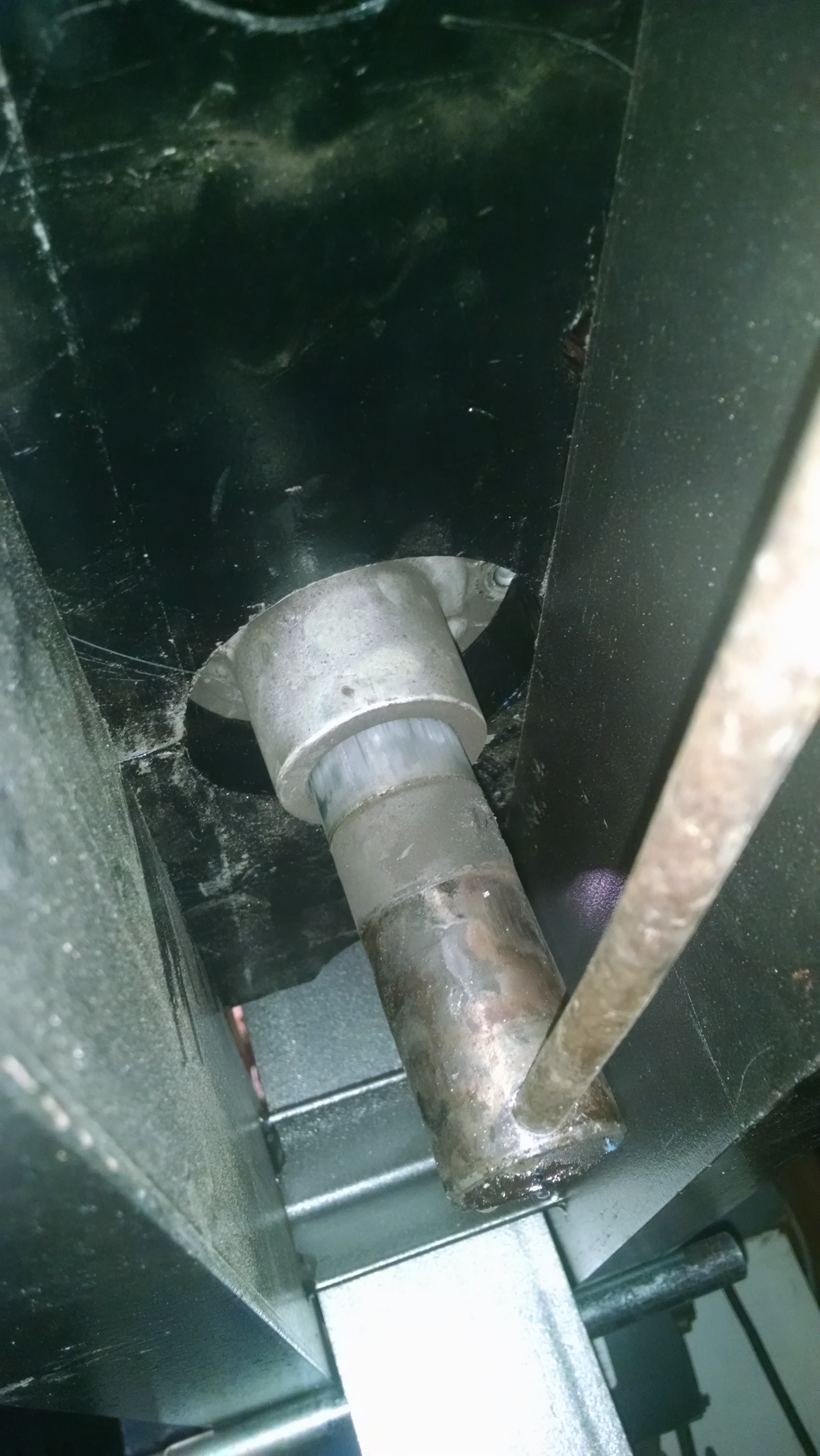

Pulled off the bearing cover to get the TOB sleeve out. You can see where the sleeve meets the cover, its super tight, nowhere to press. So I drilled a hole in the end of the sleeve and stuck a bigass nail through it, to press against. Then I heated the **** out of it, and it came out easy.

Depth inside bearing cover: 1.1125"





aidandj is offline   Reply With Quote
Old 09-15-2016, 10:48 PM   #54
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

I also updated the original post with a link to my spreadsheet with all the data.

https://docs.google.com/spreadsheets...it?usp=sharing
aidandj is offline   Reply With Quote
Old 09-16-2016, 12:09 AM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

Dude what the ****, press that **** back in there and buy this. 6000-Series Hydraulic Release Bearings - Tilton Engineering You want to measure the diameter of the tips your twin disk fingers with the clutch cover tightened and order the closest diameter to that for the release bearing. You'll have way better clutch feel with the proper release bearing on that twin disk than the stock miata crap.
Leafy is offline   Reply With Quote
Old 09-16-2016, 12:10 AM   #56
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

$400. LOL. Good joke.
aidandj is offline   Reply With Quote
Old 09-16-2016, 12:11 AM   #57
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,299
Total Cats: 399
Default

I think he forgot who he was dealing with
hi_im_sean is offline   Reply With Quote
Old 09-16-2016, 12:12 AM   #58
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

I actually paid $420 through modern driveline for the radius 44mm to go with my quartermaster clutch. I figure it was worth it since I got a twin disk about the same weight as the 949 for $800. And I could have been super stupid and got the tiny ******* one and been even lighter.

If you want to turn that steel sleeve down I'll sell you the quartermaster release bearing I decided to not use because of the having to turn down the already too thin sleeve for $100.
Leafy is offline   Reply With Quote
Old 09-16-2016, 12:14 AM   #59
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

And I got my twin disk for $400. But that doesn't really matter.

The goal of this project is to get a transmission for less than a 6 speed that holds the same power. Is cheaper to replace, and has real upgrade options.

aidandj is offline   Reply With Quote
Old 09-16-2016, 12:15 AM   #60
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by Leafy View Post
I actually paid $420 through modern driveline for the radius 44mm to go with my quartermaster clutch. I figure it was worth it since I got a twin disk about the same weight as the 949 for $800. And I could have been super stupid and got the tiny ******* one and been even lighter.

If you want to turn that steel sleeve down I'll sell you the quartermaster release bearing I decided to not use because of the having to turn down the already too thin sleeve for $100.
We aren't turning a sleeve down. Were turning a new sleeve.

Did you miss the picture where I drilled 2 massive holes in it?

aidandj is offline   Reply With Quote
