ITT: We discuss T5 swaps and other information.

Thread Tools

Search this Thread

Old 09-22-2016, 09:00 PM
  #101
Senior Member

hector's Avatar

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 807
Total Cats: 163
Default

Of all the things I want to do on a saturday morning, a clutch is not one of them. I envy your youth.

Did I mention my N/A monster makes a whopping 125 wtq/145 whp? And 4 years but only 4k miles per year. Of course, in another 4 years who knows if I'll even have this car.
hector is offline
Old 09-22-2016, 11:34 PM
  #102
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

Originally Posted by aidandj
Played with shifter ideas today. Drew a very technical drawing of my plans for an adapter.



This will lead out to a shifter mounted above the U-joint.

Kind of like how this video does it. But without the offset and angle **** needed.

T5 shifter relocation experiment - YouTube
No clearance for that. Do what I said.
Leafy is offline
Old 09-22-2016, 11:38 PM
  #103
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

No clearance for what? It's basically what the guy did in the video
aidandj is offline
Old 09-22-2016, 11:41 PM
  #104
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,165
Total Cats: 855
Default

Originally Posted by aidandj
4 years would be plenty. I can do a clutch in a Saturday morning and still have time for stuff in the afternoon. Biggest issue is the PTT discs are $286. And can't be resurfaced. Ill be pulling my organics soon after a year to measure wear and see how things are doing.
Want to come do the clutch on my FD?

--Ian
codrus is offline
Old 09-22-2016, 11:42 PM
  #105
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Bring it up here.
aidandj is offline
Old 09-23-2016, 12:05 AM
  #106
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 5,165
Total Cats: 855
Default

Originally Posted by aidandj
Bring it up here.
Heh. Torque spec on the flywheel nut (there's only one) is 350 ft-lbs.

--Ian
codrus is offline
Old 09-23-2016, 10:39 AM
  #107
Junior Member

mekilljoydammit's Avatar

Join Date: Jun 2016
Location: Dousman, WI
Posts: 147
Total Cats: 14
Default

Originally Posted by codrus
Heh. Torque spec on the flywheel nut (there's only one) is 350 ft-lbs.

--Ian
I have never in my life seen an RX-7 flywheel nut that will come off that easily, and I have a bent 3/4" breaker bar to prove it.
mekilljoydammit is offline
Old 09-23-2016, 10:43 AM
  #108
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Grab one of these.

1 in. Industrial Pinless Air Impact Wrench
aidandj is offline
Old 09-23-2016, 12:07 PM
  #109
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

I have literally split a vortec V8 intake manifold in half with that impact gun.

Dont ask...

hi_im_sean is offline
Old 09-24-2016, 09:50 PM
  #110
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

Originally Posted by aidandj
No clearance for what? It's basically what the guy did in the video
Nut on the bottom of the bolt going through the shifter ball socket.
Leafy is offline
Old 09-24-2016, 11:31 PM
  #111
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

You tap threads into the whole adapter block. Like the guy in the video did.
aidandj is offline
Old 10-09-2016, 06:43 PM
  #112
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Turns out my t5 doesn't have the freeze plug on the shifter housing. Not sure when that started, but I hadn't read about it going anywhere. I'll have to cut a hole. Would be nice to figure out when the change happened.



aidandj is offline
Old 10-09-2016, 09:19 PM
  #113
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

Lol. My rebuilt one with borg warner labeling has the freeze plug. It was for an 93 mustang gt, of course it was rebuilt and also upgraded to cobra spec by the rebuilder so who knows what the case it from.
Leafy is offline
Old 10-09-2016, 09:21 PM
  #114
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

I realized after more brainstorming that I actually don't want the freeze plug. It gets in the way of the shaft. The shift shaft is so high up that to seal it correctly with a freeze plug there would be nearly impossible.

Stay tuned. I have a new idea.
aidandj is offline
Old 10-09-2016, 09:22 PM
  #115
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

just hole saw it bruh.
Leafy is offline
Old 10-09-2016, 09:22 PM
  #116
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Almost did. Then I decided I don't want a hole there. Especially if doing an extended shift rod.
aidandj is offline
Old 10-09-2016, 09:24 PM
  #117
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

how are you going to get the shaft out the back if you dont have a hole?
Leafy is offline
Old 10-09-2016, 09:24 PM
  #118
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

I will have a hole. Just not in the same place the freeze plug would be.
aidandj is offline
Old 10-09-2016, 09:26 PM
  #119
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

Duh.
Leafy is offline
Old 10-10-2016, 10:30 PM
  #120
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Got the thing taken apart some more.

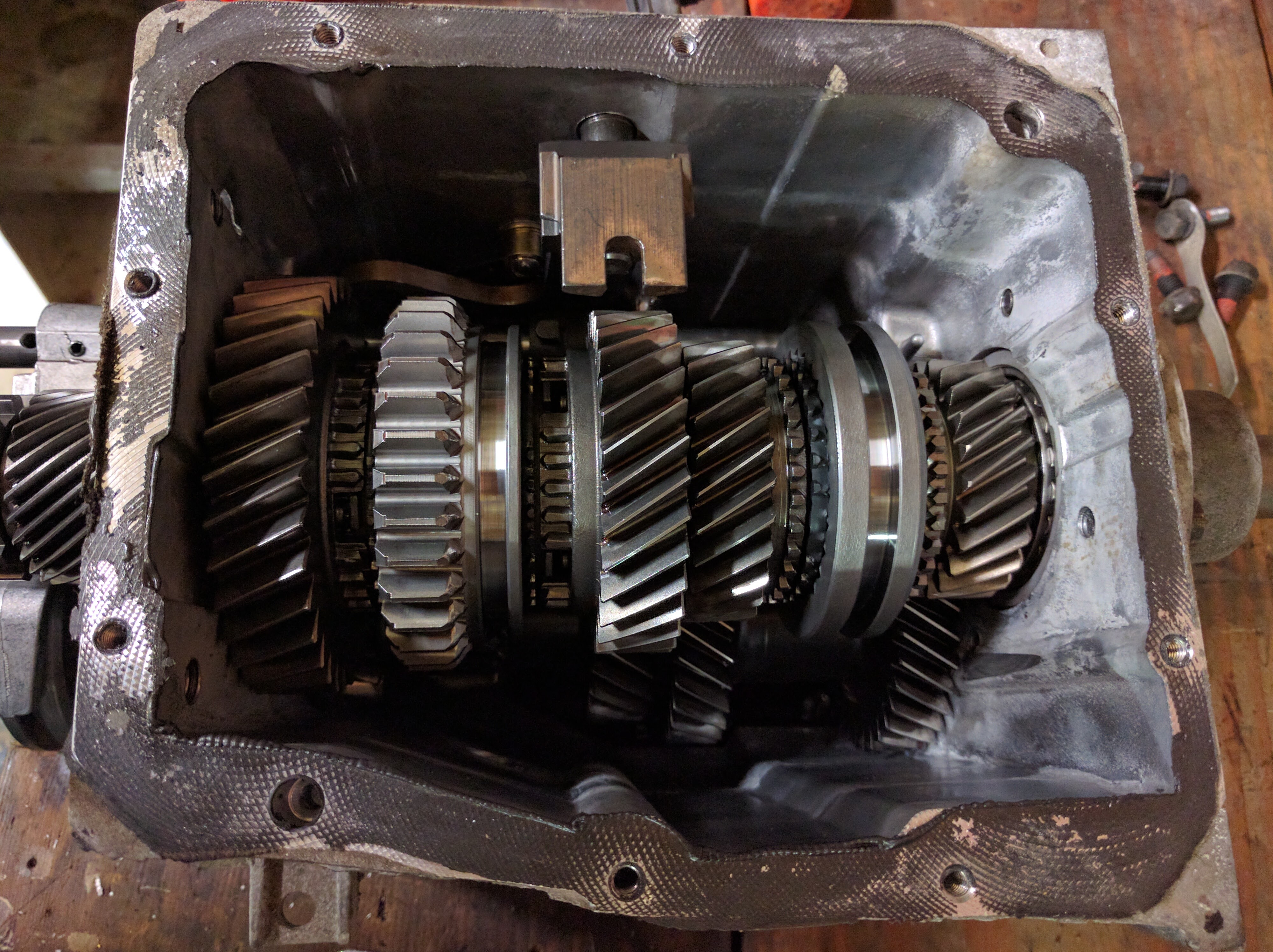

Name:  eq2dyaM.jpg
Views: 34
Size:  2.35 MB

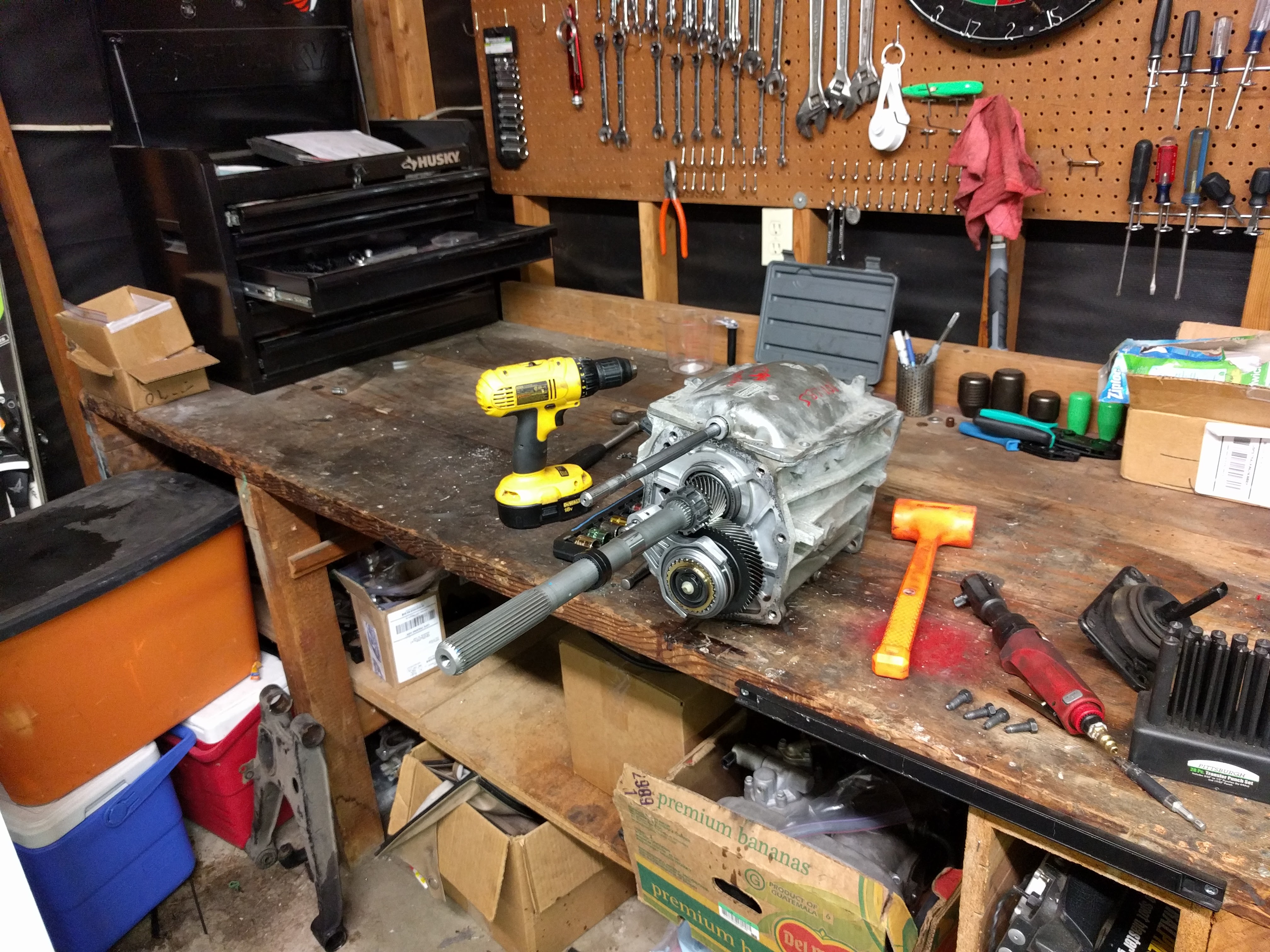

Name:  FyUXLQ9.jpg
Views: 35
Size:  2.18 MB
Name:  xPY35ss.jpg
Views: 33
Size:  693.5 KB

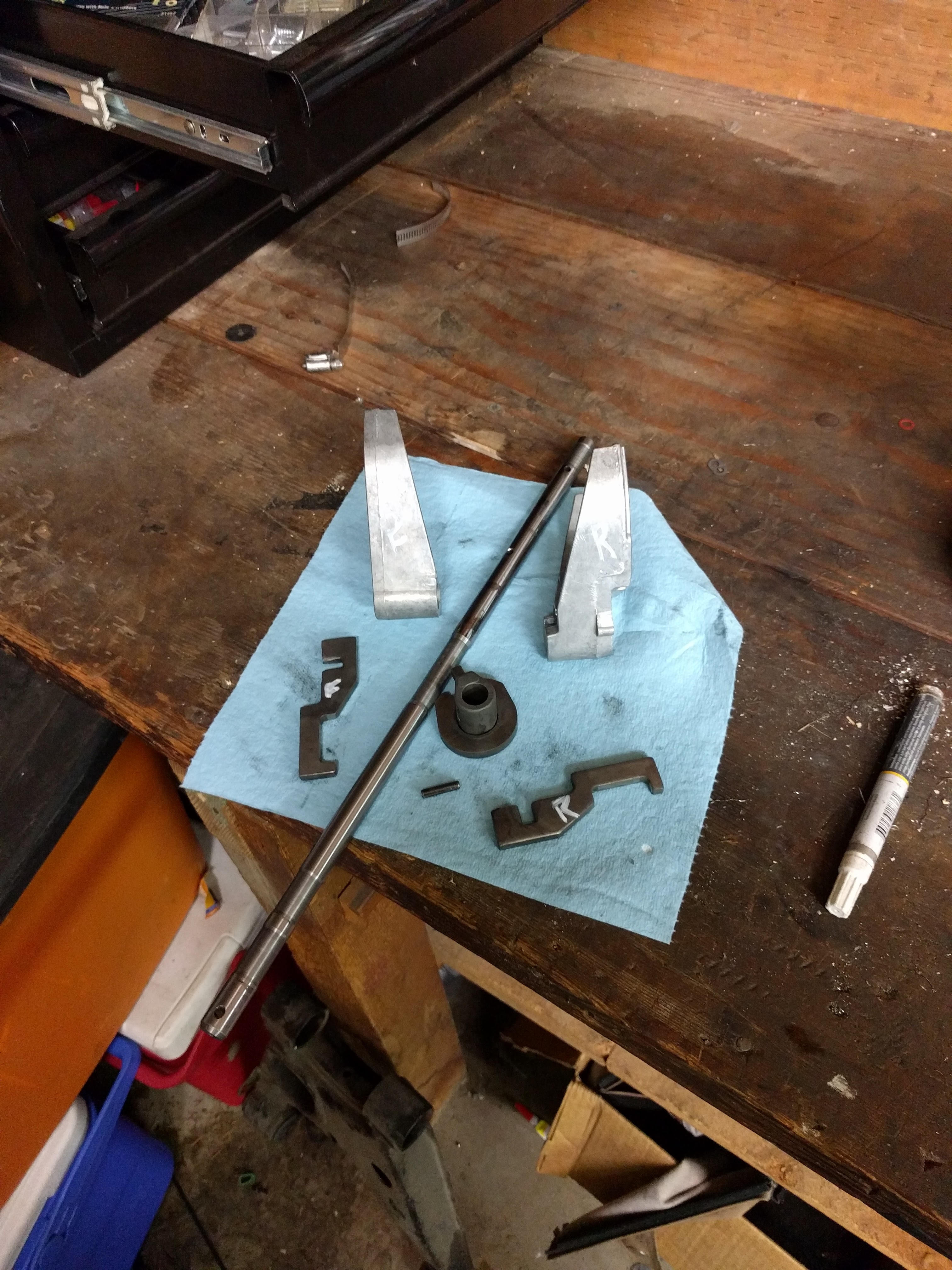

Name:  mgOlNuV.jpg
Views: 35
Size:  1.82 MB

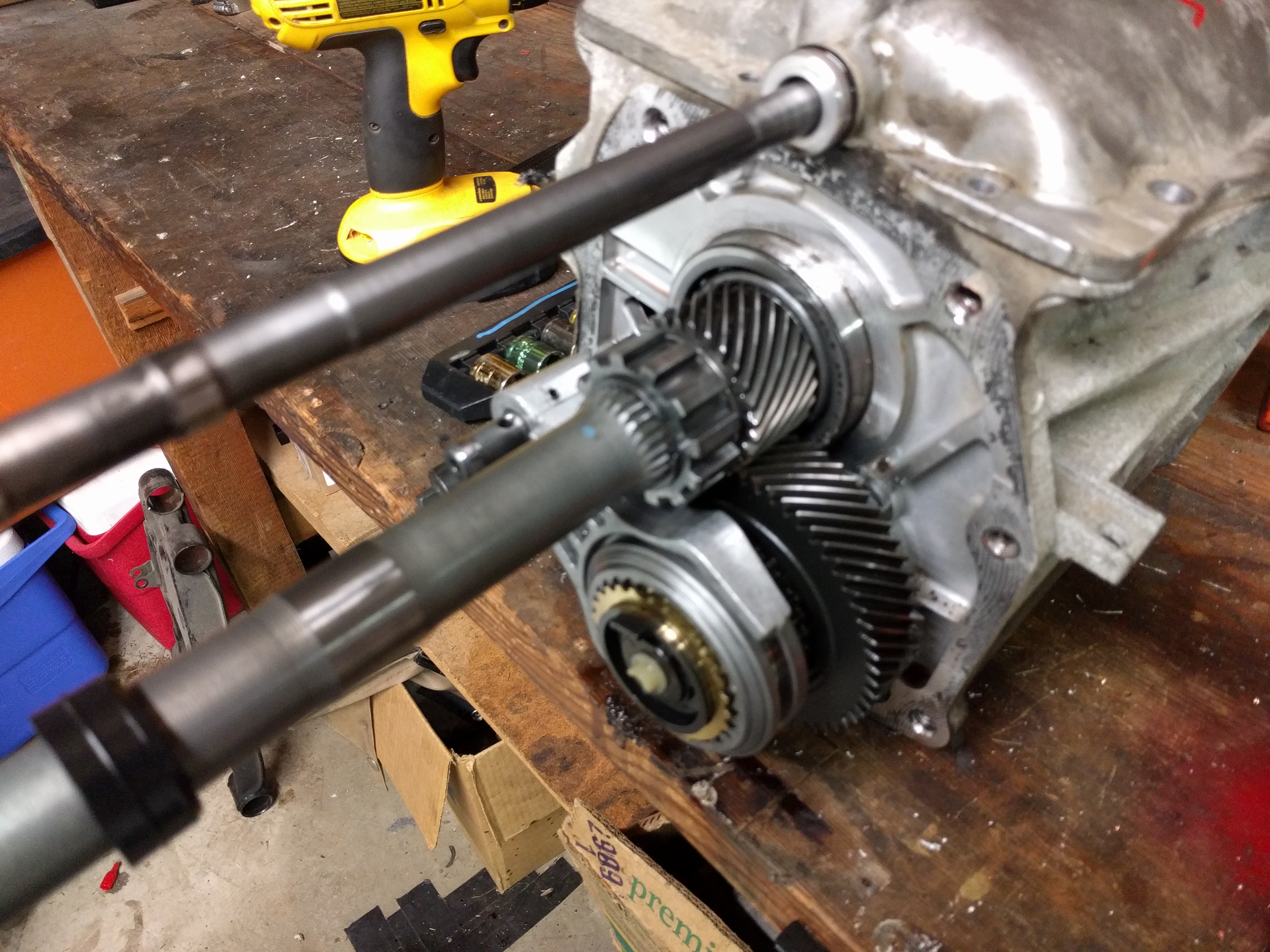

Name:  Xqw1Wn5.jpg
Views: 35
Size:  1.83 MB

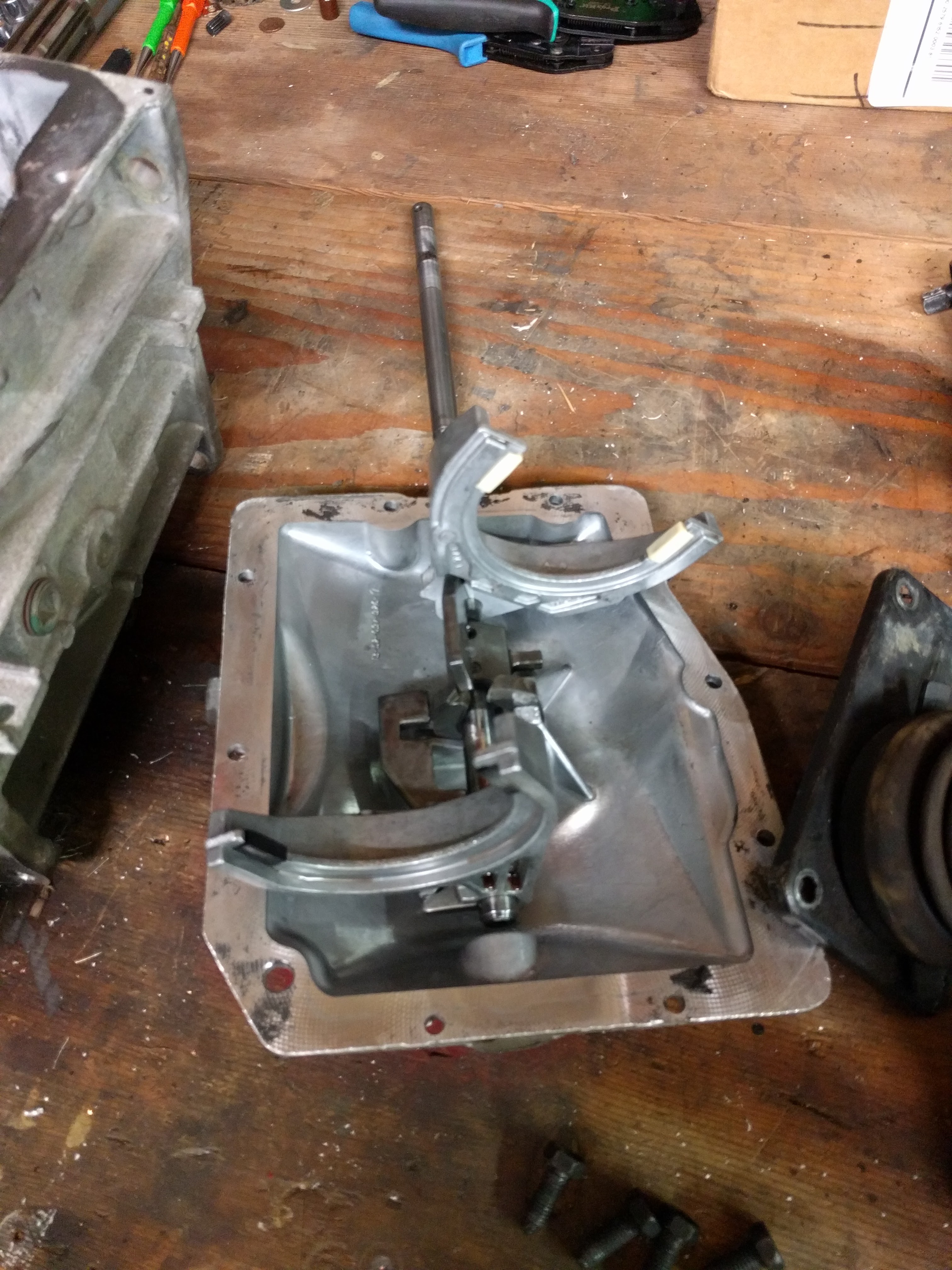

Name:  9oz5eGT.jpg
Views: 41
Size:  1.64 MB

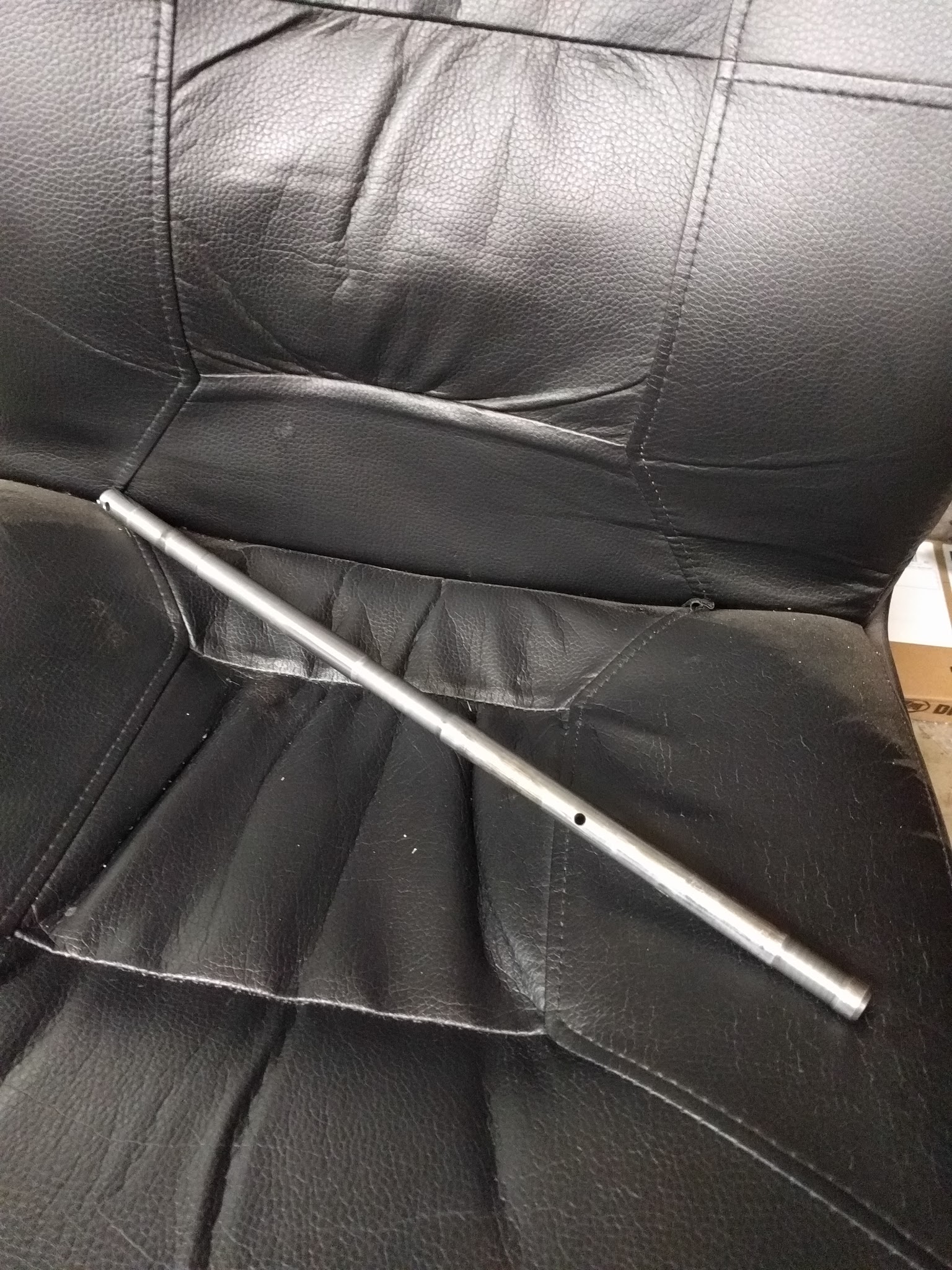

Pictured is the upper shift rail. Going to replace that with a longer one, which will extend the shifter the correct distance out the back of the output shaft housing. With an adapter the lever will be in the perfect location in the cabin.
aidandj is offline
