Old 07-31-2015, 01:57 AM   #81
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default Installation complete




The 11.75" rotor is certainly beefier

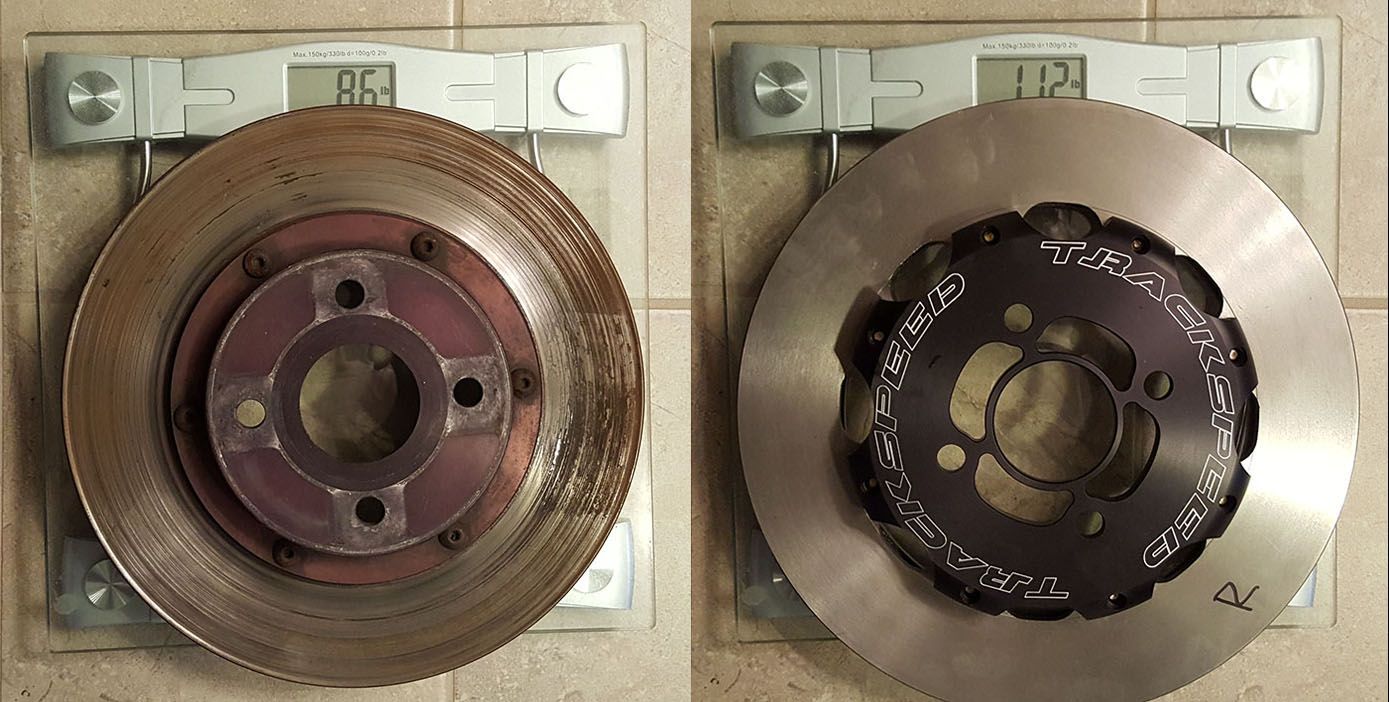

And about 2.6 lbs heavier in aggregate

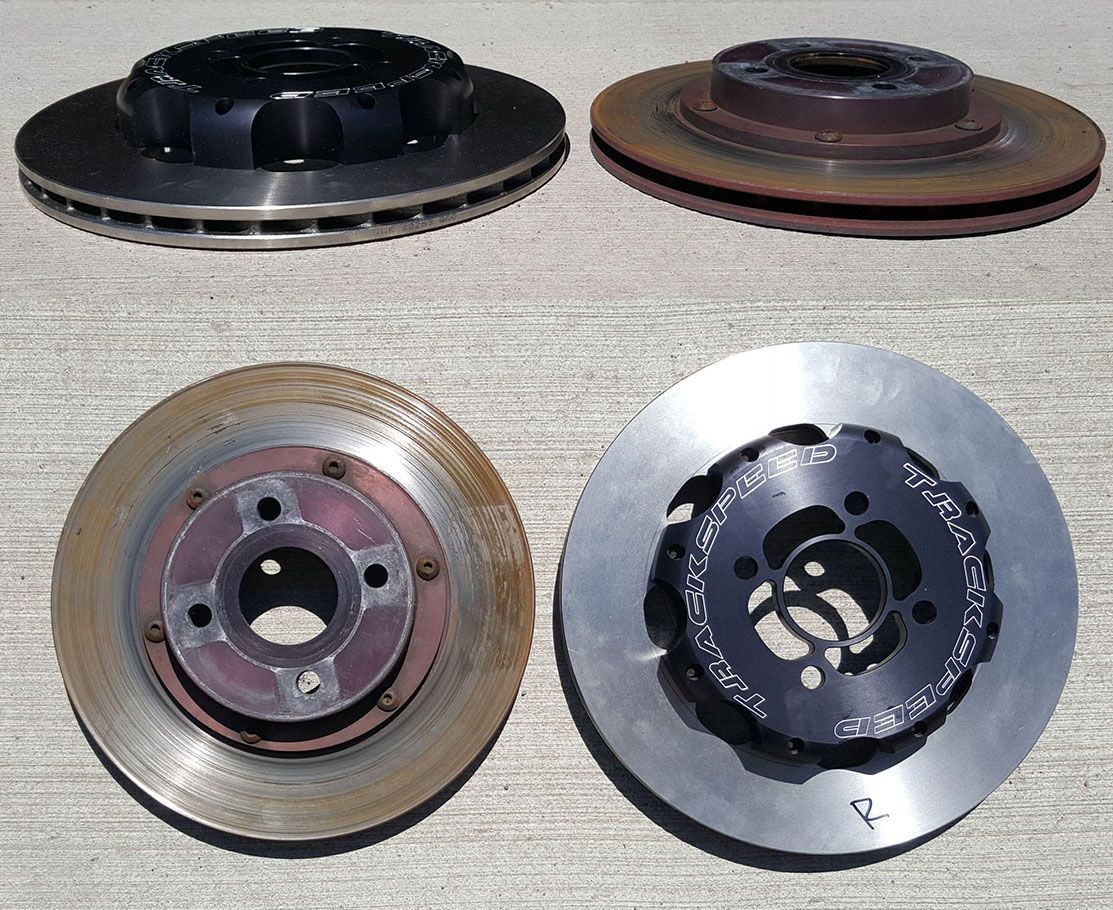

Out with the old (the car had been sitting for a while after a wash - hence the patina of rust)

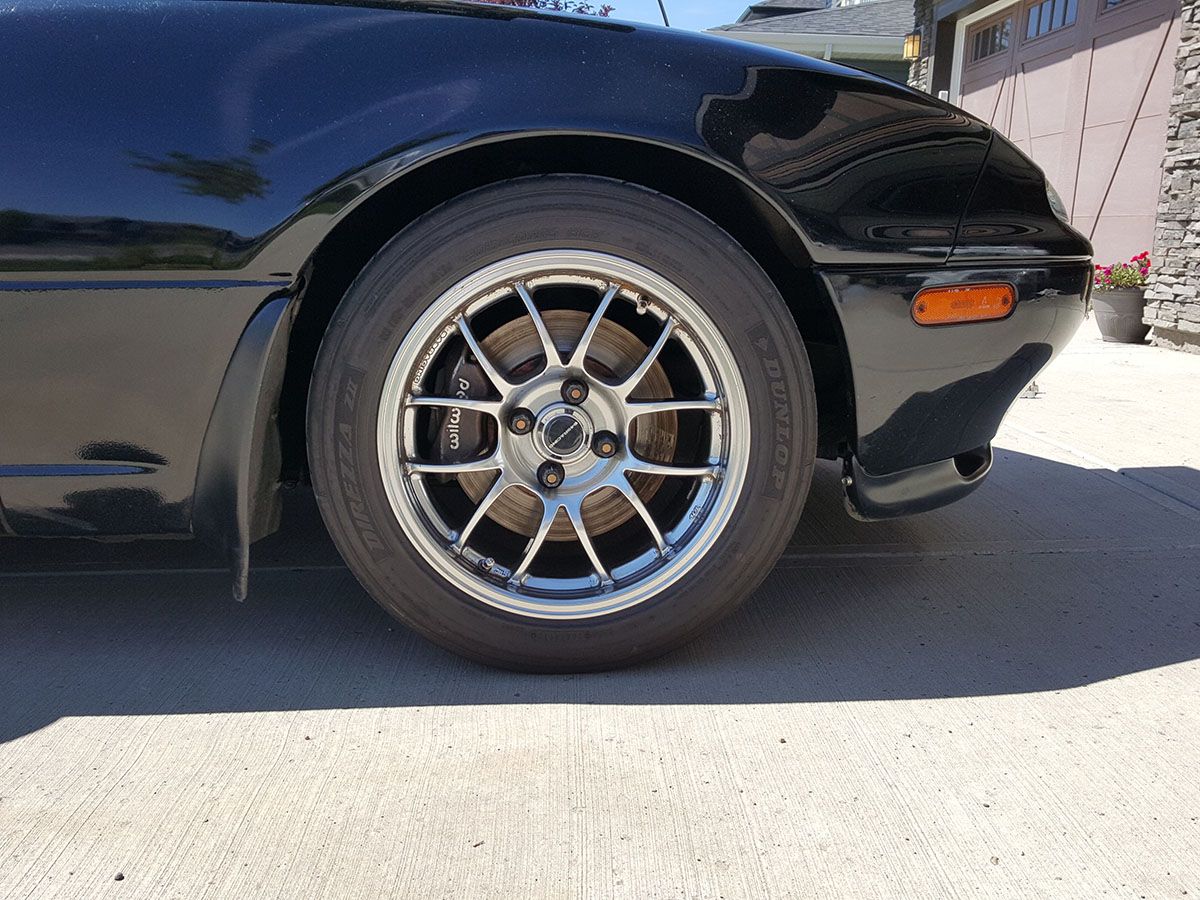

A fair amount of clearance with these 15x8 6ULs

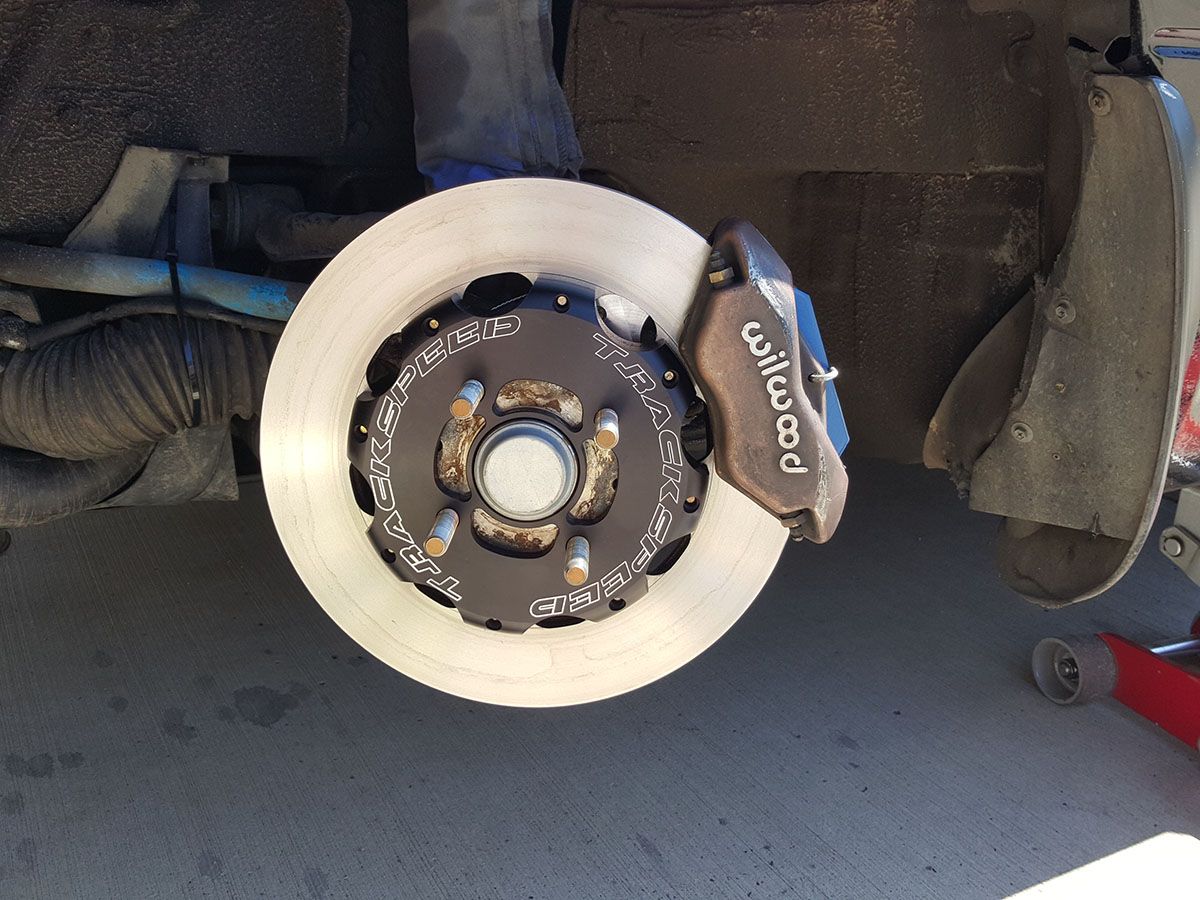

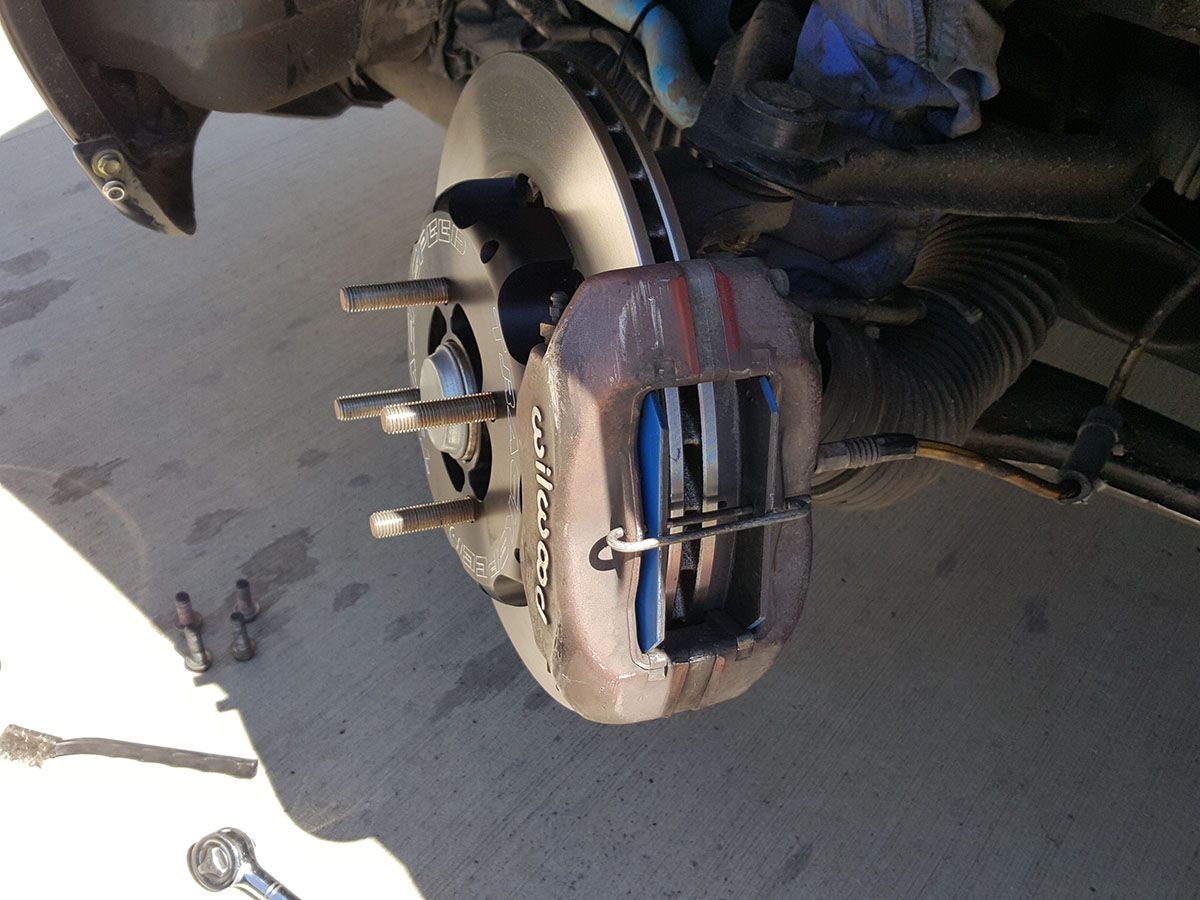

Installation was a breeze. There are no instructions on which way to mount the caliper bracket, but it's fairly obvious through inspection.






Fresh XP12 pads were installed and all mounting bolts were torqued to 40 lb-ft (after liberal application of threadlocker).
Attached Thumbnails
Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-old_vs_new_b154221240de2912430544a548ab875c8a5231c9.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-weight_comparison_1f8f8c2a0978fd8c64e499af6f43aa86ee180b38.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-goodwin_bbk_with_15x8_62f21eb2dbfd0566a4310a34e9ef35de833d01cd.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-goodwin_bbk_caliper_clearance_ff51277d3340cec06536c7a94c386fbef846d745.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_front__4f22943c5781b776c6b9d1ad688121ab203782ac.jpg

Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_oblique__ab1a6c5f0b30d64c0298cc3696d3579f782fe1ba.jpg
DeerHunter is offline   Reply With Quote
Old 07-31-2015, 02:09 AM   #82
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

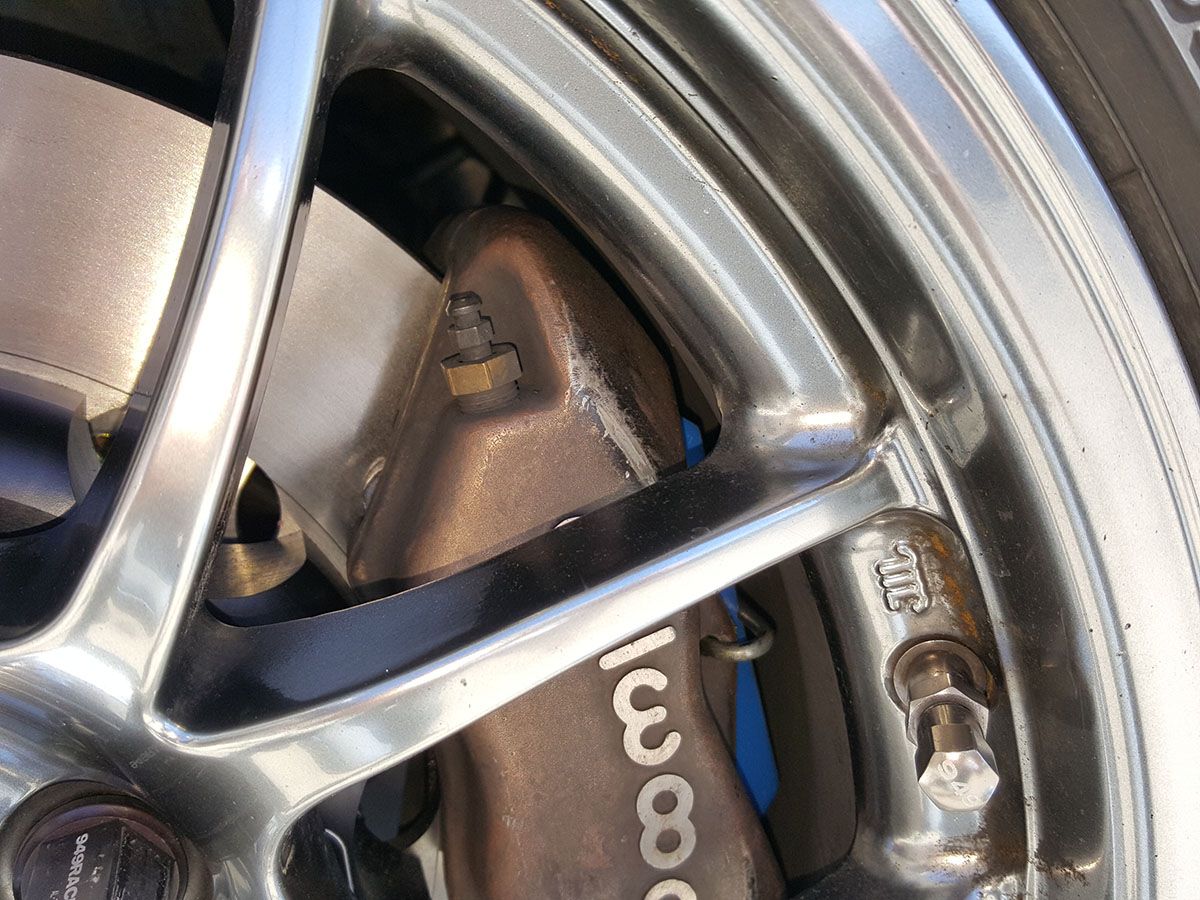

There's not a lot of clearance between the caliper and 15x8 rim. No interference that I could discern though.

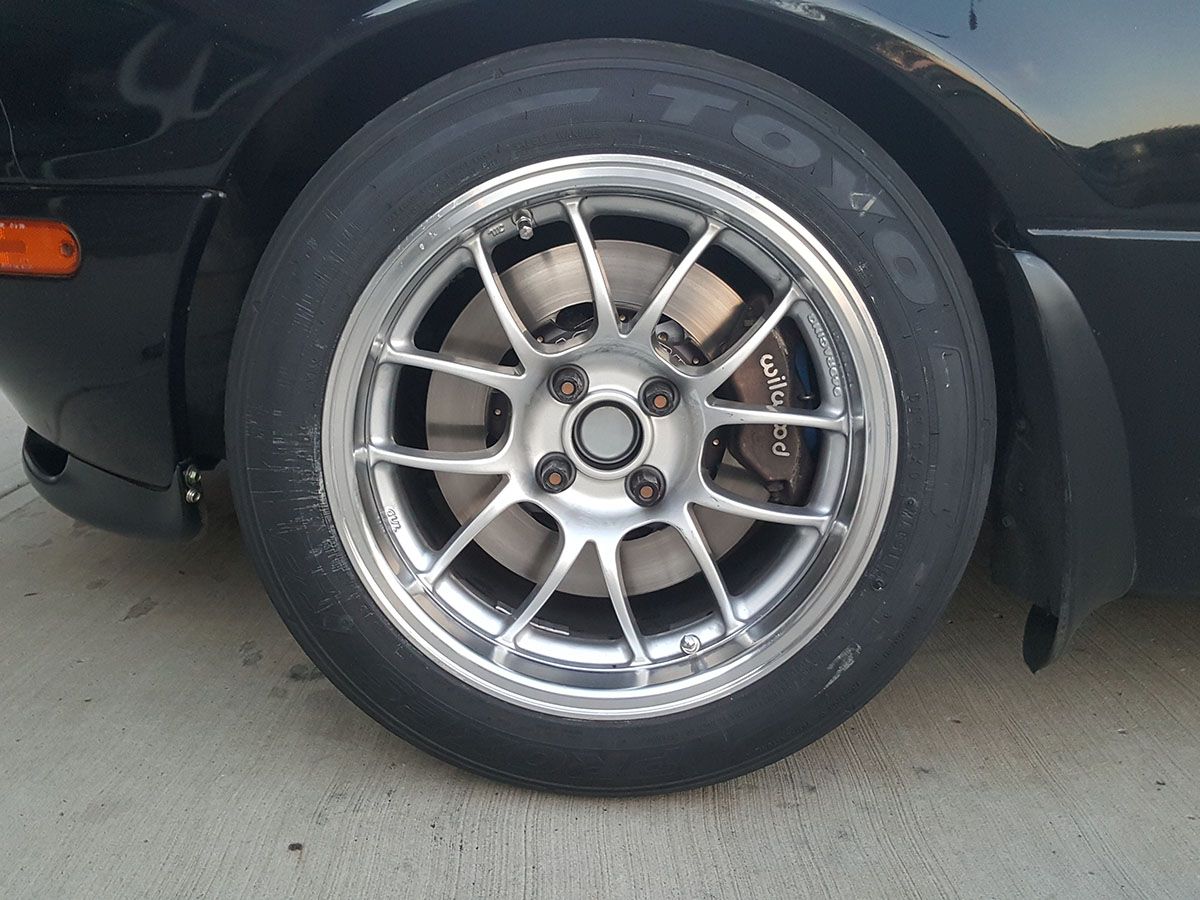

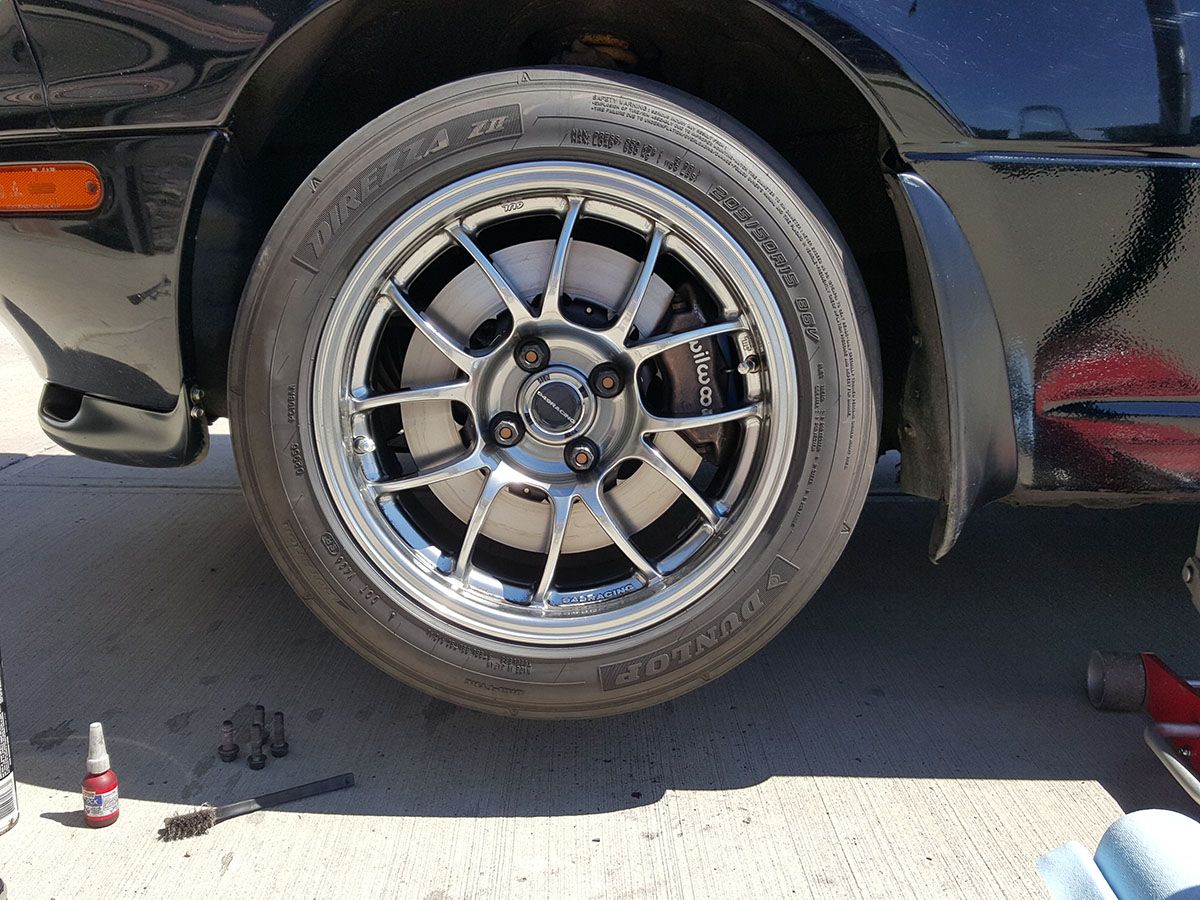

Money shot: That fills the wheel nicely.

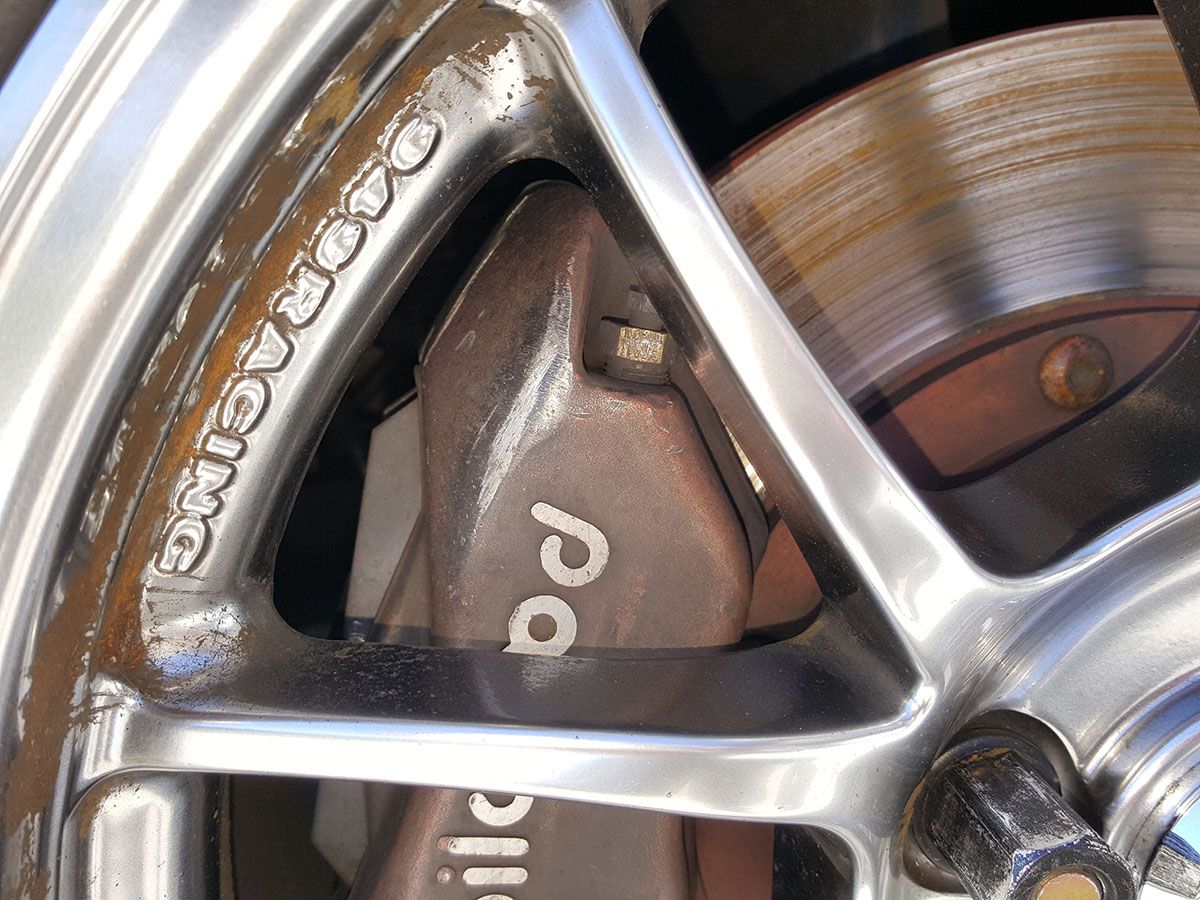

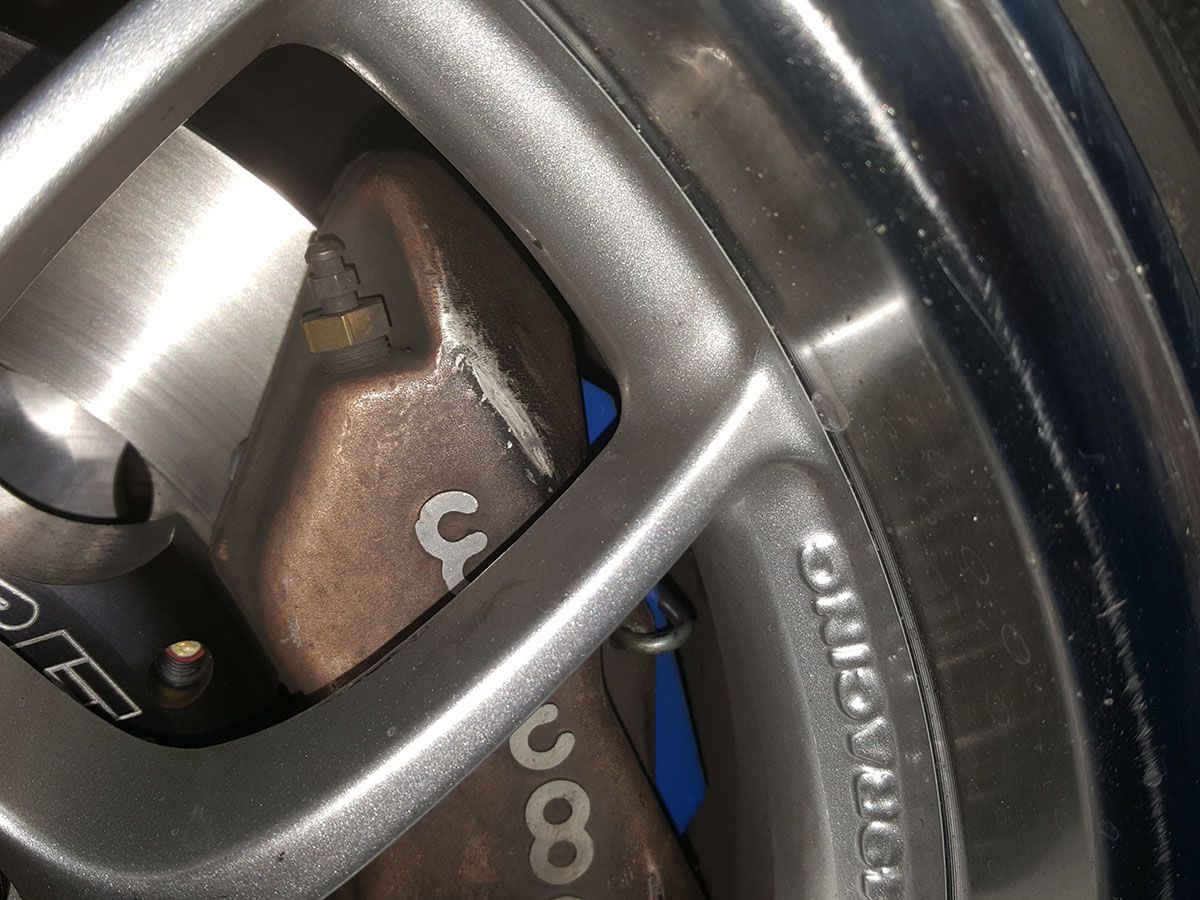

Clearance to my 15x9 6UL track wheels is about the same to the barrel of the rim, but closer to the spokes.






My favourite wheel.


My next track day is tomorrow and the first session will be to bed everything in nicely. Thanks again Andrew - well worth the wait.
Attached Thumbnails
Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_caliper_clearance_15x8__081570fe9315b095257a963562c3078e1fb5d694.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_overview_15x8__e7747e7e4b1c75f00fb99cbe54d0e56bc298e09a.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_caliper_clearance_15x9__d9b13fa9a0d9b0b3b928fd6a811dbe09b0389c38.jpg   Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-tse_bbk_installed_overview_15x9__8b2aa19298a8d2fbdb94a9b47f77522750df86a5.jpg
DeerHunter is offline   Reply With Quote
Old 08-01-2015, 02:05 AM   #83
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

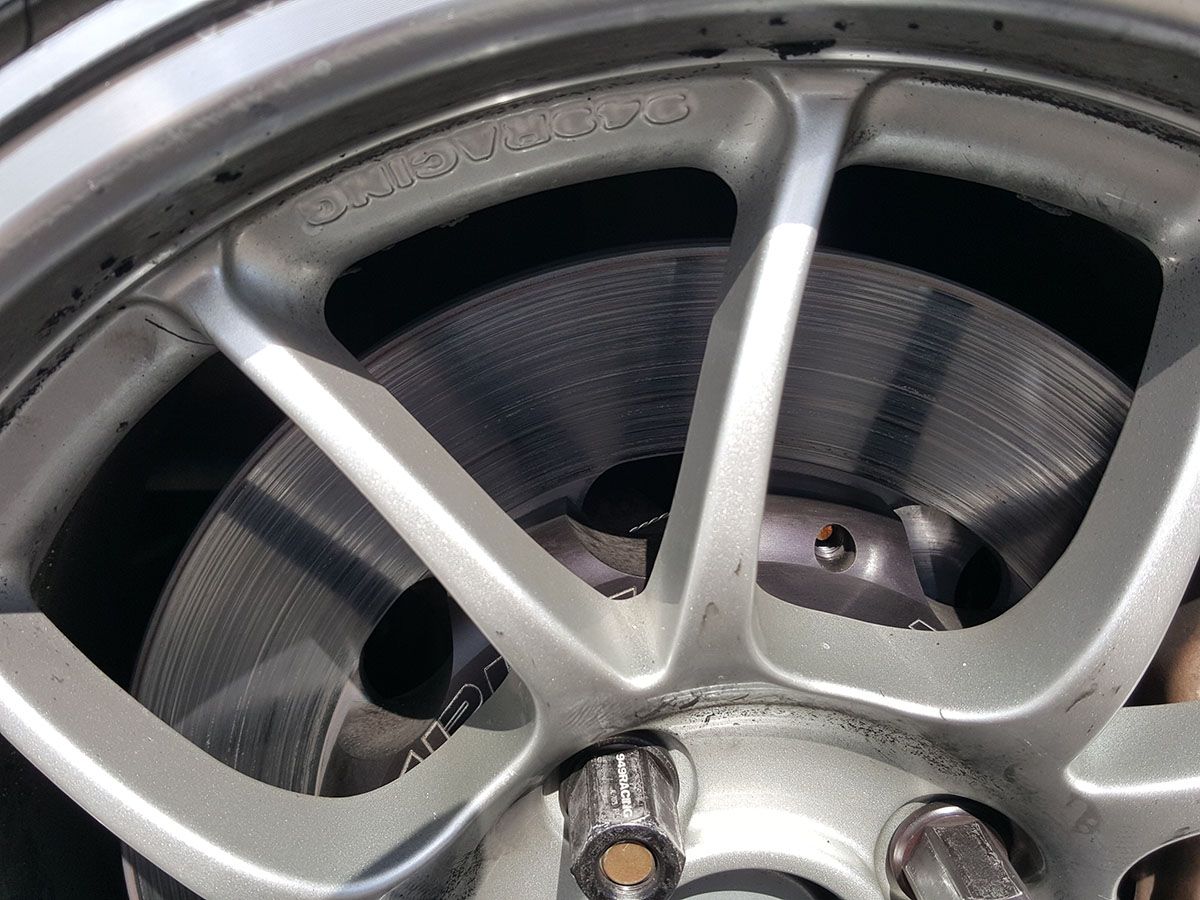

Update: Brakes performed flawlessly at my track day today. They bedded-in reasonably well by my second session:



Unfortunately, my Quaife tranny blew up again during my third session.
Attached Thumbnails
Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-bedded_in_66aef1d7c9eac4b06876ecd5458d714f2eca4407.jpg
DeerHunter is offline   Reply With Quote
Old 08-03-2015, 03:56 PM   #84
Junior Member

Join Date: Aug 2011
Location: Wichita, Ks
Posts: 94
Total Cats: 0
Default

I have flyin miata 11" setup up front on my car. It is the dynapro calipers. Will these calipers fit your upgrade kit?
NeedDirection is offline   Reply With Quote
Old 08-03-2015, 10:50 PM   #85
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,726
Total Cats: 975
Default

Quote:
Originally Posted by NeedDirection View Post
I have flyin miata 11" setup up front on my car. It is the dynapro calipers. Will these calipers fit your upgrade kit?
Yes.
Savington is offline   Reply With Quote
Old 08-04-2015, 11:37 AM   #86
Junior Member

Join Date: Mar 2014
Location: ATX
Posts: 90
Total Cats: 1
Default

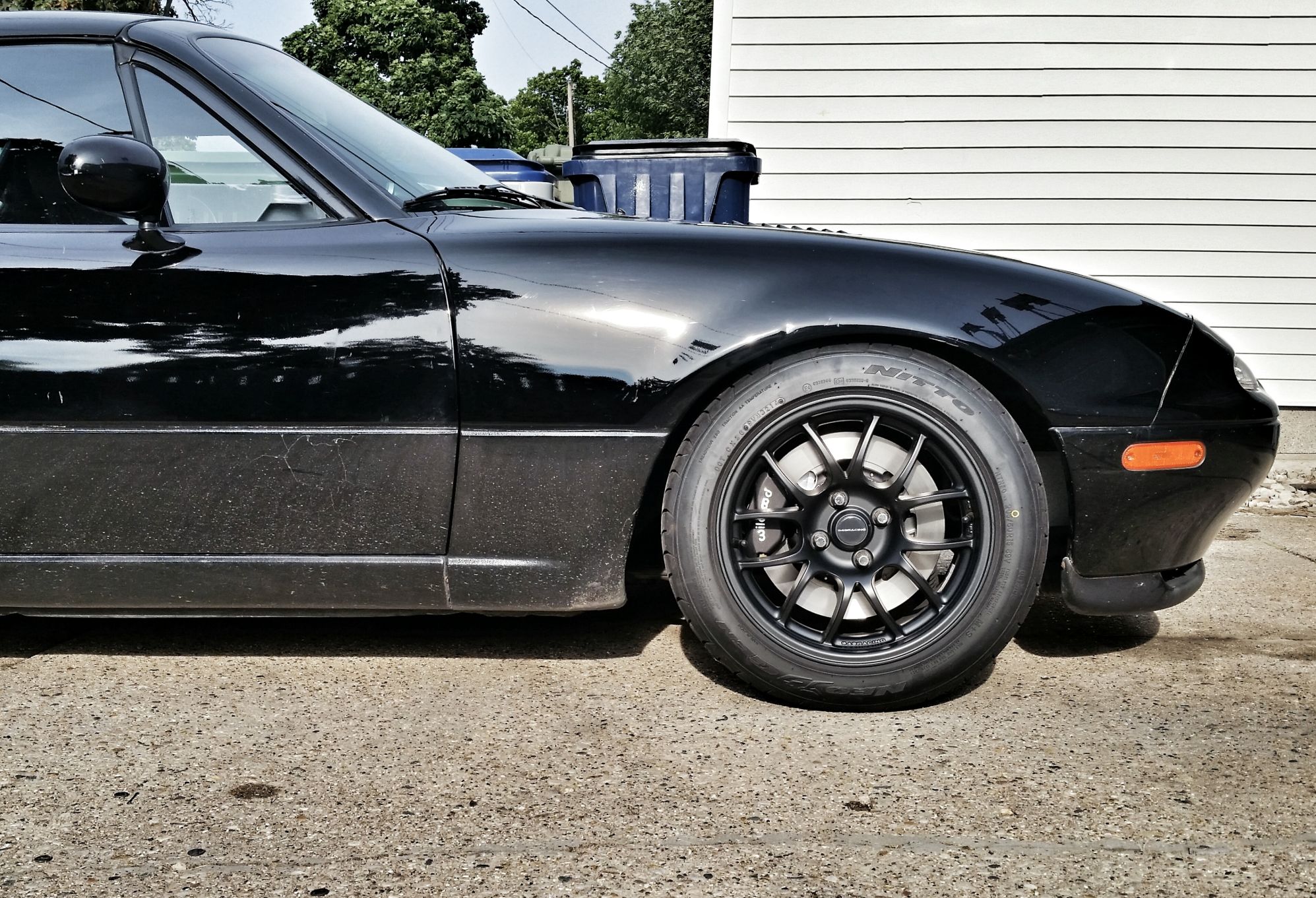

Put mine on this weekend, they look great, can't wait to see how they perform at Road America this fall. (Nittos are my street wheels/tires)

Attached Thumbnails
Gen2 11.75" Big Brake Kit @ Trackspeed - Only 9!-80-20150802_173651_01_98acd1aa669258d8b7afb0b8d012878f68245a6b.jpeg
tyhackman15 is offline   Reply With Quote
Old 08-16-2015, 05:06 PM   #87
Newb

Join Date: Nov 2011
Location: Le Mans
Posts: 7
Total Cats: 1
Default

<p><img src="http://cimg6.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11899927_154456124889288_3062398796122731528_n_056 51c89efa2dcf28354814cfdcb753f9ec3ff42.jpg" title="" /><br />
<br /><br />
<br /><img src="https://cimg4.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11880675_154456144889286_2360858123191903138_n_703 7dff527cfb4364d6d84334f828c6606f5bcb1.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg9.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11885152_154456451555922_778074074759318043_n_69fc 53e849463f7a9b1ea71be134a1d4885a146c.jpg" title="No clearance between (my) track rod end and the rotor." /></p>
<br />
<br /><p><em>No clearance between (my) track rod end and the rotor.</em></p>
<br />
<br /><p><br />
<br /><img src="http://cimg6.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11870817_154456498222584_4464984753173522739_n_d7e 918cdc5eedb465adb2b7612927062095db429.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg7.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11880381_154456518222582_3691946001036695990_n_44f 41883a024ed66c2ed2aa889cbb3b4ebcb29cf.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg8.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11896108_154456611555906_1276060033440100445_n_877 d2b42ea792faab56347688f3201e6842e89b1.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg9.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11880544_154456778222556_8206041576815541739_n_54b 05221dab04e2949a9b4375d4fb6d5d43ccc6e.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg0.ibsrv.net/gimg/www.miataturbo.net-vbulletin/2000x1504/80-11875063_154456808222553_1547407537542757973_o_f10 a03e8c2e9cf8bc52011089f5b26bdfd39f30a.jpg" title="" /><br />
<br /><br />
<br /><img src="http://cimg1.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11870840_154456884889212_4592669915133816721_n_358 e06e4488126f23941900b36d082f80c777c74.jpg" title="15x9 6UL " /></p>
<br />
<br /><p><em>15x9 6UL </em></p>
<br />
<br /><p><br />
<br /><img src="http://cimg2.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11873793_154456991555868_2425354450905317491_n_aa6 cfe4730a0baf52f394b01ba66bad333fc6a61.jpg" title="Clearance is around 1 mm (WITHOUT wheel spacer) - 15x9 6UL " /></p>
<br />
<br /><p><em>Clearance is around 1 mm (WITHOUT wheel spacer) - 15x9 6UL </em></p>
<br />
<br /><p><br />
<br /><img src="http://cimg3.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-11899824_154457318222502_1553811333584629273_n_539 1187d7e3976882140c20508cffbaebb164fc6.jpg" title="" /><br />
<br /><br />
<br /><img src="https://cimg4.ibsrv.net/gimg/www.miataturbo.net-vbulletin/2000x1504/80-11896519_154457474889153_988915134596825664_o_da9b f6f32811a5de530e6cc5751f387c6036b29e.jpg" title="10 mm wheel spacer" /></p>
<br />
<br /><p><em>10 mm wheel spacer</em></p>
<br />
<br /><p><br />
<br /><img src="https://cimg5.ibsrv.net/gimg/www.miataturbo.net-vbulletin/2000x1504/80-11864756_154457404889160_65956527643550646_o_f5b39 c09b976370e2833aace11381626a48f4dab.jpg" title="Clearance is around 3 mm (WITH 10 mm wheel spacer)" /></p>
<br />
<br /><p><em>Clearance is around 3 mm (WITH 10 mm wheel spacer)</em></p>
<br />
<br /><p><br />
<br />&nbsp;</p>
Blackpegaz is offline   Reply With Quote
Old 08-16-2015, 06:25 PM   #88
Newb

Join Date: Jul 2015
Location: Cary, NC
Posts: 5
Total Cats: 0
Default

How are you guys clearing your wheel weights? Are you just not running any?
Amani576 is offline   Reply With Quote
Old 08-16-2015, 09:00 PM   #89
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,726
Total Cats: 975
Default

Single-plane balance on street cars, no wheel weights on race cars.
Savington is offline   Reply With Quote
Old 08-22-2015, 09:47 PM   #90
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 947
Total Cats: -248
Default

Does this kit ship with pads?
wannafbody is offline   Reply With Quote
Old 08-22-2015, 10:57 PM   #91
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,813
Total Cats: 479
Default

Blackpegaz, wow.
curly is online now   Reply With Quote
Old 08-23-2015, 02:59 AM   #92
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

Looks like attention to detail on par with Jeff's. Incredible.
turbofan is offline   Reply With Quote
Old 08-23-2015, 05:34 PM   #93
Newb

Join Date: Nov 2011
Location: Le Mans
Posts: 7
Total Cats: 1
Smile

<p>
Quote:
Originally Posted by curly View Post
Blackpegaz, wow.
</p><p>[Off topic]. Cool thing (I think) is, at the beginning of the year 2012, when I was waiting for a roll bar from Bethania, I started to see US Miata forums and some of your posts. After that, I searched to push this project further ;-)&nbsp;</p><p>Good or bad, comments are welcome to do a better work ... to build a better car.</p><p>
Quote:
Originally Posted by wannafbody View Post
Does this kit ship with pads?
</p><p>No pads into this kit.</p>

Last edited by Blackpegaz; 08-23-2015 at 05:54 PM.
Blackpegaz is offline   Reply With Quote
Old 08-24-2015, 10:51 AM   #94
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,726
Total Cats: 975
Default

No pads with the kit. Everyone has different needs or preferences for pads (brand/compound), so rather than charge everyone a set of pads that probably won't work for most people, we leave pads out of the kit (and the price).

Blackpegaz, the clearance on the DP6s is definitely a bit tighter than the DP4s or DL4s. The tie rod interference is interesting - I checked clearance on new OEM 93LE tie rods and had no issues. Are yours OEM or aftermarket?

Car looks great
Savington is offline   Reply With Quote
Old 08-24-2015, 12:28 PM   #95
Newb

Join Date: Nov 2011
Location: Le Mans
Posts: 7
Total Cats: 1
Default

<p>
Quote:
Originally Posted by Savington View Post
Blackpegaz, the clearance on the DP6s is definitely a bit tighter than the DP4s or DL4s. The tie rod interference is interesting - I checked clearance on new OEM 93LE tie rods and had no issues. Are yours OEM or aftermarket? Car looks great <img alt="" src="http://www.miataturbo.net/images/smilies/smile.gif" title="" />
</p><p>Yes ... after brake ducts modification, I started to think it probably wasn't a good idea because the geometry of the car has not been set (no motor). Currently, toe is negative, so I think I could gain 3-4 millimeters (0.12&nbsp;- 0.16 inches) (on each side) by screwing tie rod ends.</p><p>Tie rod ends come from&nbsp;<span style="color:rgb(0, 0, 0)">1993&nbsp;</span><span style="color:rgb(0, 0, 0)">LE&nbsp;/&nbsp;1994-1995 R package (bought on MiataRoadster)&nbsp;like yours. [For information :&nbsp;revlimiter comparison]&nbsp;+ (nearly only) NB front suspension parts (steering rack, spindles, subframe, hubs, upper control arms)</span></p><p><span style="color:rgb(0, 0, 0)">Do you think that tie rod dust boot will suffer from brake heat and dust ?</span></p><p>Sorry for incorrect, incomplete information.&nbsp;Now, I have to wait next weekend to try to gain clearance.</p>

Last edited by Blackpegaz; 08-24-2015 at 03:43 PM.
Blackpegaz is offline   Reply With Quote
Old 08-24-2015, 09:11 PM   #96
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 238
Total Cats: 4
Default

FYI- from the pile of parts I just removed. These weigh the same as factory 1.6 parts with half used pads. Not that people buying this kit are that concerned with weight. But some weight weenies exist (autocrossers). I'll be tossing some scalloped rotors at this later down the line.
mcfandango is offline   Reply With Quote
Old 08-25-2015, 01:18 AM   #97
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

Weight is definitely a concern. A considerable motivator of my purchasing a similar kit.
turbofan is offline   Reply With Quote
Old 09-12-2015, 02:32 PM   #98
Newb

Join Date: Nov 2011
Location: Le Mans
Posts: 7
Total Cats: 1
Default

<p>I reduced amount of (<s>negative toe</s>) toe-in by screwing tie rod ends. No real clearance gain.</p><p>I will wait for the motor (not before one year).</p><p>If anyone could give me an idea of the expected clearance between tie rod end and brake disk, that would be interesting.</p><p>&nbsp;</p><p><img src="http://cimg6.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x960/80-12003277_170019296666304_6344658881625772436_n_ca5 50e46e986c5e3080afe8e841f10377060fc5f.jpg" title="" /><br /><br />&nbsp;</p>
Blackpegaz is offline   Reply With Quote
Old 09-12-2015, 06:32 PM   #99
Elite Member

Join Date: Jul 2005
Posts: 6,363
Total Cats: 78
Default

No heat shield to protect the ball joint?
JasonC SBB is offline   Reply With Quote
Old 12-13-2015, 09:43 PM   #100
Junior Member

Join Date: Jun 2014
Posts: 113
Total Cats: 1
Default

Seems like this kit clears 15x9 but will this clear advanti storm s1 15x8?
kmvguy is offline   Reply With Quote
