Default Jongbloed 15x8, 15x9 and 15x10 wheels

You've seen these discussed in this forum in the past, now it's happening.

The Jongbloed Aero 500 is a high pressure forged wheel rated at 550 kg. It's built specifically for the Miata with a 54.1mm bore size and Miata-friendly offsets.

More details

We'll be keeping these in stock in the future, but there's an introductory group buy. The group buy gets you $10 off per wheel and free shipping. The initial order is pretty small, so we're hoping the group buy will also bump the order size for improved availability.

Specs:
15x8
4x100 bolt pattern, 54.1mm hub bore
13.5 lbs
+36 offset
$199 group buy price with free shipping

15x9
4x100 bolt pattern, 54.1mm hub bore
14 lbs
+36 offset
$219 group buy price with free shipping

15x10
4x100 bolt pattern, 54.1mm hub bore
14.5 lbs (est)
+25 offset
$229 group buy price with free shipping

The group buy will be taking place in our Group Buy center. Basically, place an order through the FM website and we'll add you to the list. We'll charge you once the parts are available to ship.

Note: We know that the renderings have a 5x130 bolt pattern. Obviously , the Miata wheels will have a 4x100 pattern.

Attached Thumbnails

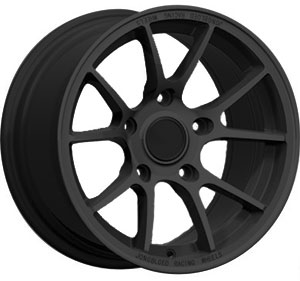

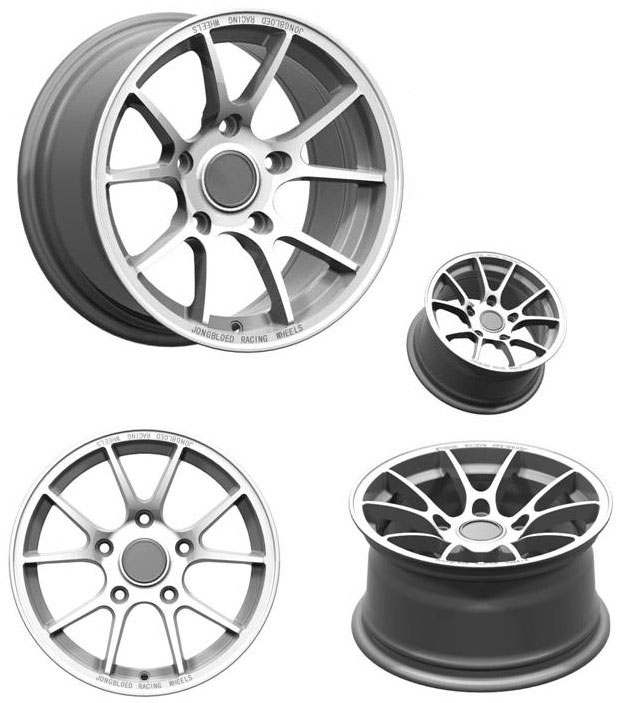

Jongbloed 15x8, 15x9 and 15x10 wheels-l16-52050.jpg   Jongbloed 15x8, 15x9 and 15x10 wheels-16-52000.jpg

Last edited by Keith@FM; 01-23-2014 at 06:18 PM.
Keith@FM is offline   Reply With Quote
Old 01-23-2014, 06:12 PM   #2
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

Neat. Color options?

Nevermind, silver and flat black, saw it on the FM website

http://www.flyinmiata.com/groupbuy/index.php - GroupBuy

http://www.flyinmiata.com/index.php?...umber=16-52050 - Silver

http://www.flyinmiata.com/index.php?...umber=16-52000 - Flat Black

Ninja edit FTW

Last edited by EO2K; 01-23-2014 at 06:23 PM. Reason: flat not matte
EO2K is offline   Reply With Quote
Old 01-23-2014, 06:13 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 732
Total Cats: 76
Default

Silver and flat black.
Keith@FM is offline   Reply With Quote
Old 01-23-2014, 07:32 PM   #4
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 992
Total Cats: 119
Default

Oh if only I could find a set of 15x10.5 and 15x11's :(
TNTUBA is offline   Reply With Quote
Old 01-23-2014, 07:40 PM   #5
Junior Member

Join Date: Nov 2009
Posts: 202
Total Cats: 12
Default

Went from 6UL style to ATS DTC style. Nice move.
latena is offline   Reply With Quote
Old 01-23-2014, 07:42 PM   #6
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 330
Total Cats: 38
Default

"high pressure forged"?
do you mean high pressure cast or actually forged one-piece?

edit: from the FM site theyre actually forged. Amazing, cheapest price I've seen for forged wheels.
scenturion is offline   Reply With Quote
Old 01-23-2014, 07:49 PM   #7
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

Keith: I understand these haven't even been delivered yet, but has there been any testing done in regard to brake clearance? I would be nice to know what these do and do not clear before we all get crazy
EO2K is offline   Reply With Quote
Old 01-23-2014, 07:53 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,844
Total Cats: 559
Default

Can FM ship 225 Rivals with the 15x9s?

I assume a bit of fender rolling needed on a '95 to fit the 15x9?

Clearance on the 11" Wilwood BBK?

Heck of a price for a forged wheel.
hornetball is online now   Reply With Quote
Old 01-23-2014, 08:30 PM   #9
Elite Member

Join Date: Oct 2011
Posts: 2,112
Total Cats: 43
Default

Quote:
Originally Posted by scenturion View Post
"high pressure forged"?
do you mean high pressure cast or actually forged one-piece?

edit: from the FM site theyre actually forged. Amazing, cheapest price I've seen for forged wheels.
They are "flow formed" which is a type of forging, yes.

After no interest from a "nobody" trying to set it up, I got in contact with Keith and Bill, and got Bill in contact with Ryan. I really like the tweaks they made to the design as well.
z31maniac is offline   Reply With Quote
Old 01-23-2014, 08:40 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 732
Total Cats: 76
Default

I believe they were designed with clearance for both the 11" and 11.75" brake kits. I'll confirm.

Here's what Jongbloed has to say about their design and production process.
Engineering - Jongbloed Racing

We can supply Rivals and other tires, but not mounted and balanced like our other wheel packages. They would be shipped from a different location. On a 15x8, you may not have to do any rolling on an NA - or very little at most. 15x9 would require rolling. I run a 225 R1R on a 15x8 on my 1990.

Last edited by y8s; 01-24-2014 at 10:19 AM. Reason: fix url to make it clicky-able
Keith@FM is offline   Reply With Quote
Old 01-23-2014, 09:45 PM   #11
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 330
Total Cats: 38
Default

Quote:
Originally Posted by z31maniac View Post
They are "flow formed" which is a type of forging, yes.
This isn't true. Theyre sufficiently different techniques that it's worth noting.

The Jongbloed site says "Jongbloed Wheels are hot forged on a press under 10 million pounds of pressure." which seems to indicate a traditional progressive-die forging method rather than flow-forming (unless I'm misunderstanding).

Keith, can you contact the manufacturer and clarify?
scenturion is offline   Reply With Quote
Old 01-24-2014, 02:15 AM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 732
Total Cats: 76
Default

The most important thing? They're a very proven manufacturer and the load ratings are very good.

You have their description of how the wheels are made. I'll ask for clarification, but I'm more interested in the end result.
Keith@FM is offline   Reply With Quote
Old 01-24-2014, 02:36 AM   #13
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -216
Default

The weight of the wheels is a bit heavy for a forged wheel. I mean my volk te37 were only 10.6 pounds and 16x7. My 15x7 rpf1 are 10 pounds but not forged. There is a big price difference from the 2. I would expect a lighter wheel for 15x8 for that price. No offense. People want forged wheels because they are both light and strong.
locomonkeyboricua is offline   Reply With Quote
Old 01-24-2014, 08:25 AM   #14
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 651
Total Cats: 10
Default

From their website:

"Second is process. All forged wheels are not created equal. The term “forging” is loosely used today—claiming to manufacture product without a pressure value is an empty statement. Jongbloed Wheels are hot forged on a press under 10 million pounds of pressure. The massive heat and pressure yields a grain structure and metal compression rate within the wheel to make an ultra-strong, high-quality wheel.
Terms like “rotary forged” sound technical, but usually refer to a wheel made on a lighter weight press with offset tooling dies to yield a higher compression rate. When you shop for wheels, make sure you’re comparing apples to apples. Higher pressure manufacturing equals stronger finished products, which result in more durable, dependable and consistent performance characteristics."


Keith: How accurate are those renderings as far as the final product is concerned? Are they going to be concave like they are in the pics? Some wheels look great in lower offsets but not so much in higher offsets where the spokes and face flatten out.
paNX2K&SE-R is offline   Reply With Quote
Old 01-24-2014, 09:36 AM   #15
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

Yes please confirm that the rendering is accurate, they are in my shopping cart right now.
ctdrftna is offline   Reply With Quote
Old 01-24-2014, 09:40 AM   #16
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,291
Total Cats: 224
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
Keith: How accurate are those renderings as far as the final product is concerned? Are they going to be concave like they are in the pics? Some wheels look great in lower offsets but not so much in higher offsets where the spokes and face flatten out.
This is my primary concern too, as my car is a street car and daddy like dish. If I knew the 15x9 would have the same concave shape as the render, except for 4 lug, I would be a lot more comfortable buying the wheel.

Is it better to paint a flat black or silver wheel?
TurboTim is offline   Reply With Quote
Old 01-24-2014, 11:04 AM   #17
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 732
Total Cats: 76
Default

It's better to paint flat black.

I've asked for renders. Thanks for the patience.
Keith@FM is offline   Reply With Quote
Old 01-24-2014, 11:43 AM   #18
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

Yeah, all what them guys said too.

Thanks Keith, you are one of the good ones
EO2K is offline   Reply With Quote
Old 01-24-2014, 12:07 PM   #19
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

Quote:
Originally Posted by Keith@FM View Post
It's better to paint flat black.

I've asked for renders. Thanks for the patience.
Great, once I get to see a more accurate render, I'm ready to order.
ctdrftna is offline   Reply With Quote
Old 01-24-2014, 12:21 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 732
Total Cats: 76
Default

While we're waiting, here's a quick and dirty photoshop job.

Attached Thumbnails
Jongbloed 15x8, 15x9 and 15x10 wheels-jongbloed-15-mockup.jpg
Keith@FM is offline   Reply With Quote
