Old 01-08-2014, 10:40 AM   #781
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,444
Total Cats: 2,038
Default

I took a drill with a wire wheel to mine, and it came out surprisingly good. No cleaners or anything, just wirewheeled the crap out of it.
18psi is offline   Reply With Quote
Old 01-08-2014, 11:14 AM   #782
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Where did you buy the stock undertray? And how much was it?

My car is missing it, and I should probably get one...
Efini~FC3S is offline   Reply With Quote
Old 01-08-2014, 11:28 AM   #783
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,484
Total Cats: 79
Default

Use a soft wire wheel on the alternator that thing is quite easy to clean
Zaphod is offline   Reply With Quote
Old 01-08-2014, 11:29 AM   #784
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Get undertrays from Mazda. About $60.
hornetball is offline   Reply With Quote
Old 01-08-2014, 12:27 PM   #785
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Quote:
Originally Posted by hornetball View Post
Get undertrays from Mazda. About $60.
Hai hai, but which vendor? Or should I just go to my (semi) local mazda dealer?
Efini~FC3S is offline   Reply With Quote
Old 01-08-2014, 12:29 PM   #786
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Depends if the vendor is cheaper after shipping... That's a question only you can answer.

Rosenthal/Arlington/Finish Line or Mazda Motorsports are typically cheapest for me.
concealer404 is offline   Reply With Quote
Old 01-08-2014, 01:26 PM   #787
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,221
Total Cats: 339
Default

Quote:
Originally Posted by 18psi View Post
I took a drill with a wire wheel to mine, and it came out surprisingly good. No cleaners or anything, just wirewheeled the crap out of it.
True, but it is quite soft. It's possible to scratch the hell out of it, hence the suggestion for chemical cleaners.

Harbor Freight sells brass wire brushes that look like oversize toothbrushes. Usually available two for a buck. I stock up on them whenever I go there, and toss them when the bristles start to get bent over. Perfect for cleaning up delicate car parts.
rleete is offline   Reply With Quote
Old 01-08-2014, 02:00 PM   #788
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 334
Total Cats: 30
Default

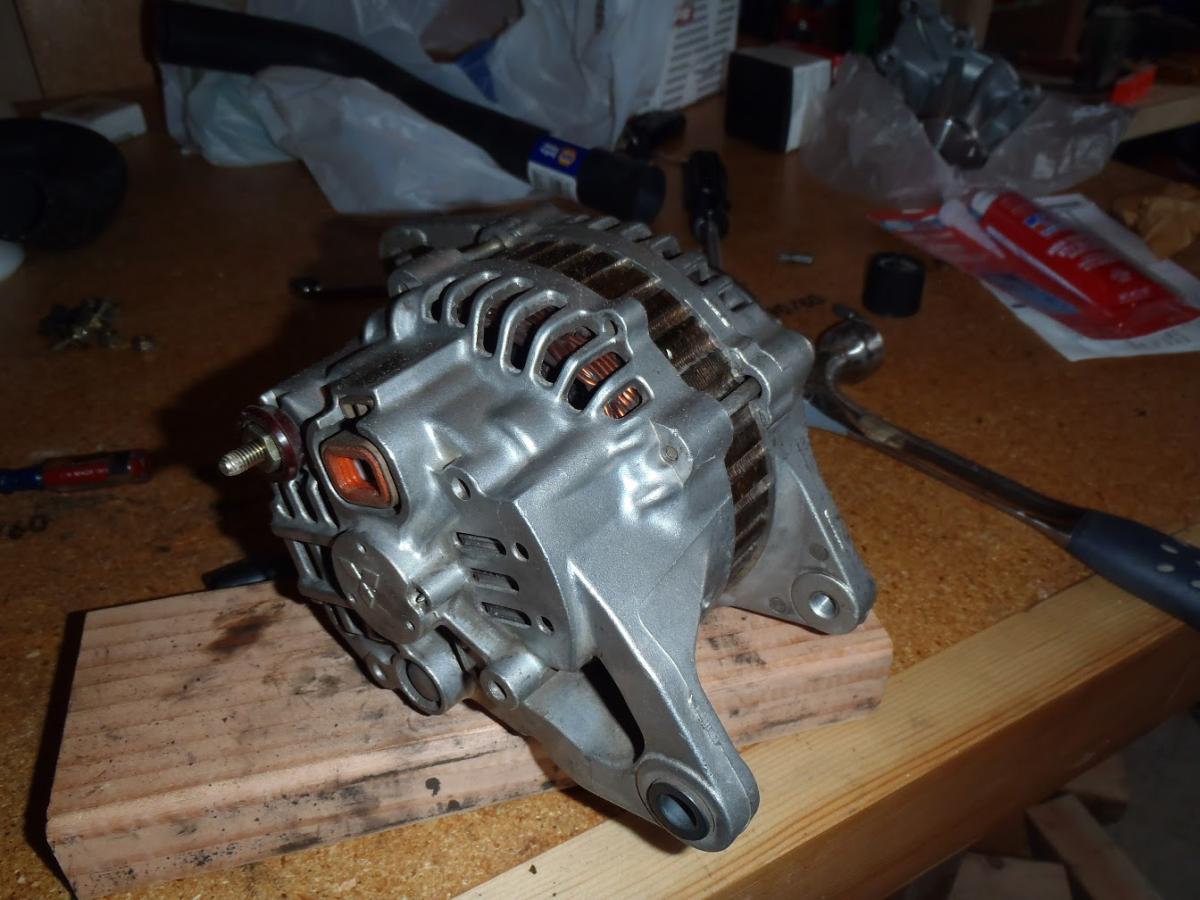

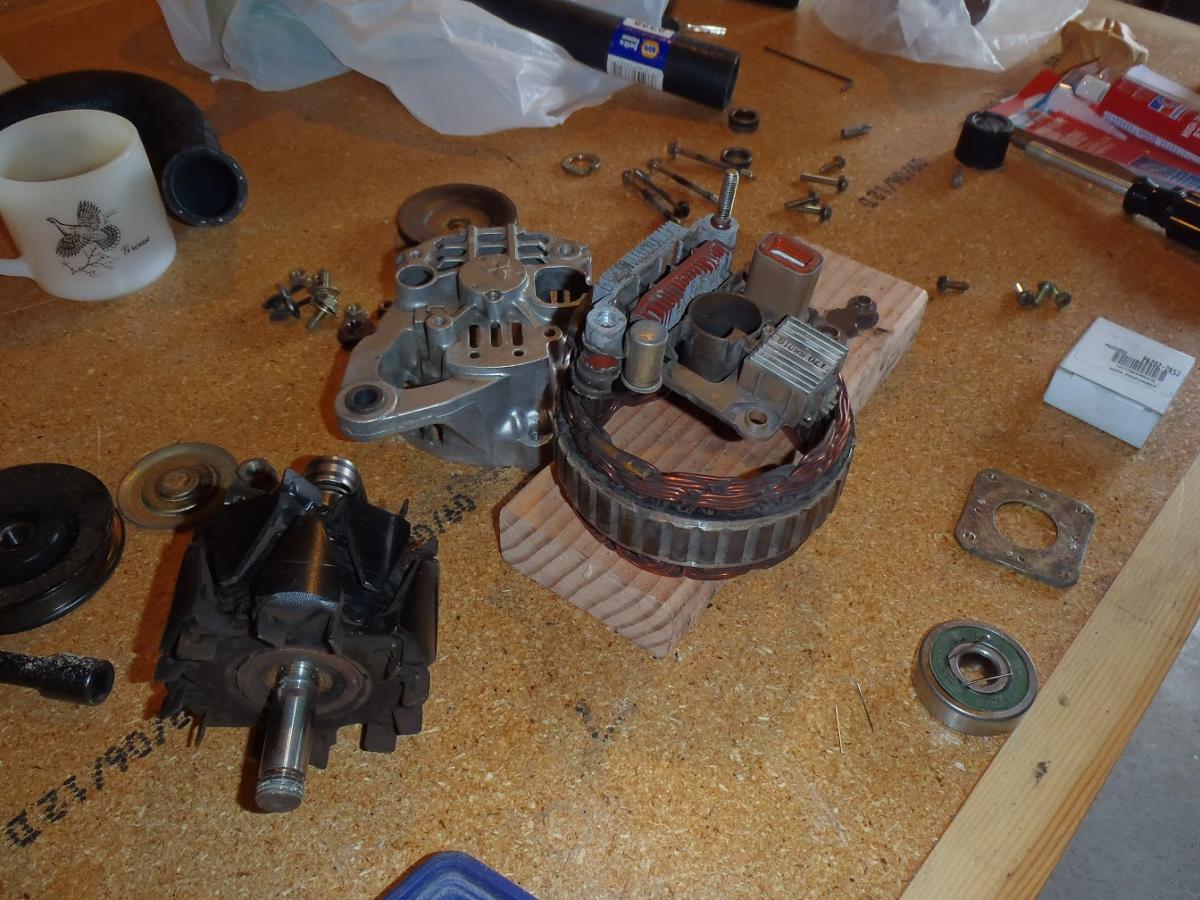

You could take your alternator apart and clean it (even repack the bearings while you're at it)
Alignment marks are your friend...
This is from my mazda truck, but it should be close.


Attached Thumbnails
93' Miata stolen and flipped build thread-p3240234.jpg   93' Miata stolen and flipped build thread-p3240235.jpg
leboeuf is offline   Reply With Quote
Old 01-08-2014, 05:14 PM   #789
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Lebeouf that is baller. I'm not sure if I want to approach that.

Sending the intake manifold to get powder coated today. Should I do it wrinkle black to match the valve cover or a smooth solid black?

Also sending the dash frame and the door sill plates(wasn't happy about the vht finish on it.)

Also the rear main subframe, I'm really happy with how the front turned out.

Door sill plates will be wrinkle black for a little bit of a stronger finish.

Last edited by Jeffbucc; 01-08-2014 at 05:28 PM.
Jeffbucc is offline   Reply With Quote
Old 01-08-2014, 05:29 PM   #790
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

You could send your alternator as well...
jimmyneutron is offline   Reply With Quote
Old 01-08-2014, 05:30 PM   #791
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by jimmyneutron View Post
You could send your alternator as well...
Would that mess with timing at all if i removed it?
Jeffbucc is offline   Reply With Quote
Old 01-08-2014, 07:44 PM   #792
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,668
Total Cats: 227
Default

Quote:
Originally Posted by Jeffbucc View Post
Would that mess with timing at all if i removed it?
whut?
Fireindc is offline   Reply With Quote
Old 01-08-2014, 08:34 PM   #793
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Fireindc View Post

whut?
My brain was thinking of something else

Never mind figured it out.

So I sent out
Both intake manifold pieces
Alternator housing with brackets/pulley
Rear subframe
Gas tank/fuel filter covers
Hard top brackets
Door sill plates
Dashboard frame

Can you tell I'm sick of sanding? Thank goodness this guy give me 50% off and doesn't charge me for blasting.
Jeffbucc is offline   Reply With Quote
Old 01-08-2014, 09:40 PM   #794
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

Your attention to detail is incredible! Favorite miata on this forum now
jimmyneutron is offline   Reply With Quote
Old 01-08-2014, 10:42 PM   #795
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,094
Total Cats: 121
Default

Intake same color as valve cover.
jacob300zx is offline   Reply With Quote
Old 01-09-2014, 01:27 AM   #796
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

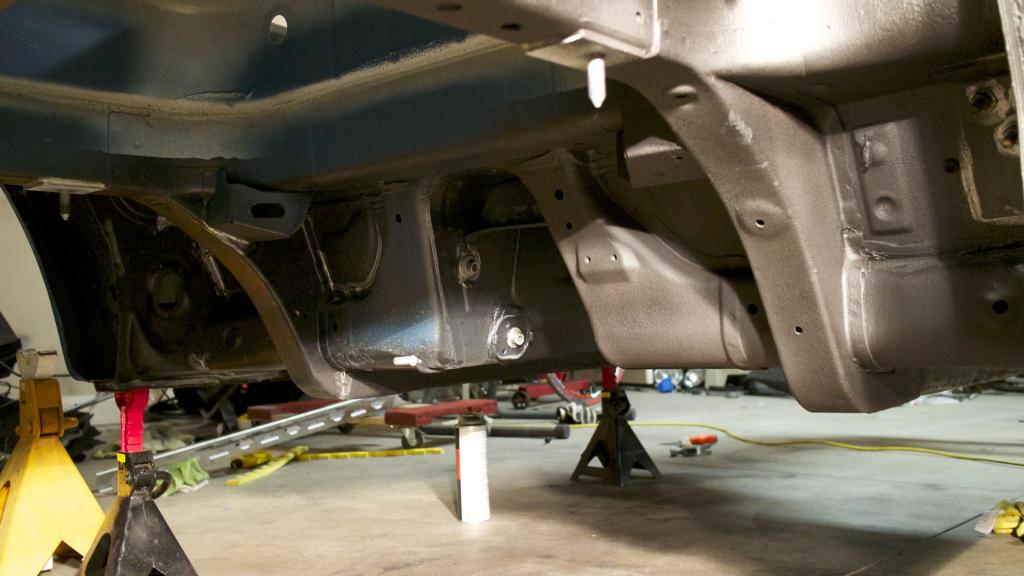

Took off the old frame rails and laid down a a coat of rubberized under spray. I wasn't happy with the truck bed liner in terms of noise and chipping resistance, so I decided to protect it with a coat of rubberized under spray to dampen noise and help things bounce rather than chip.

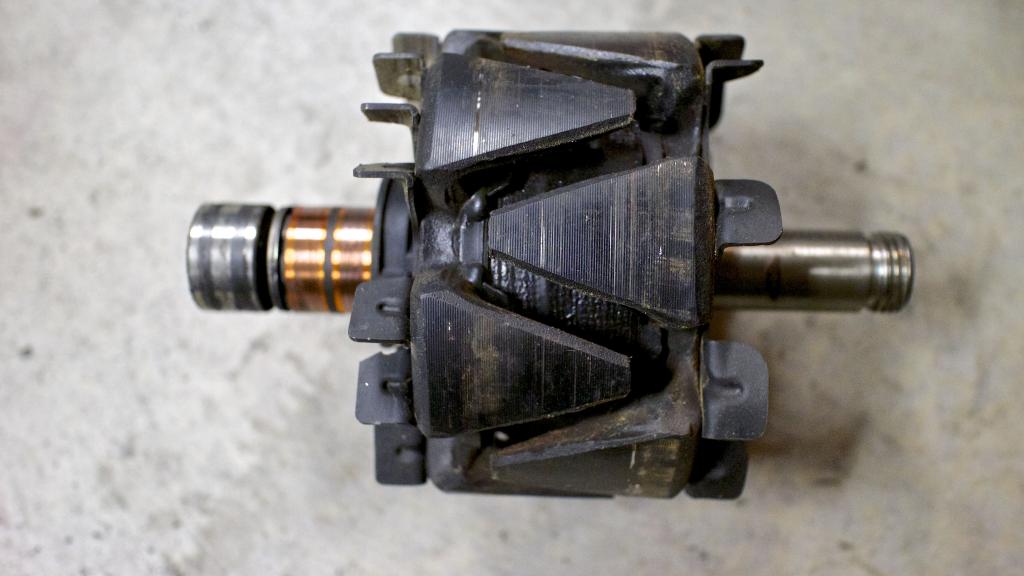

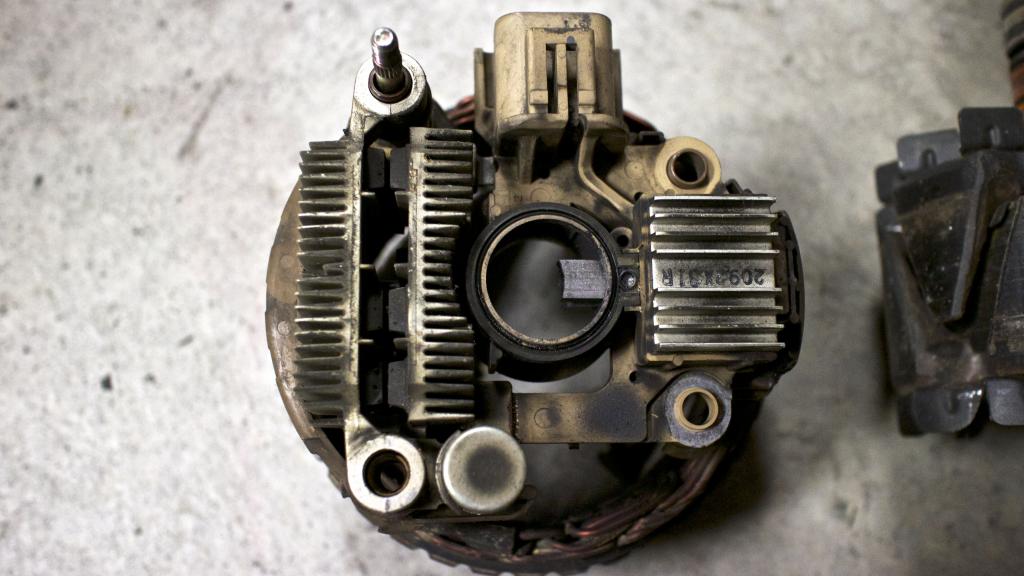

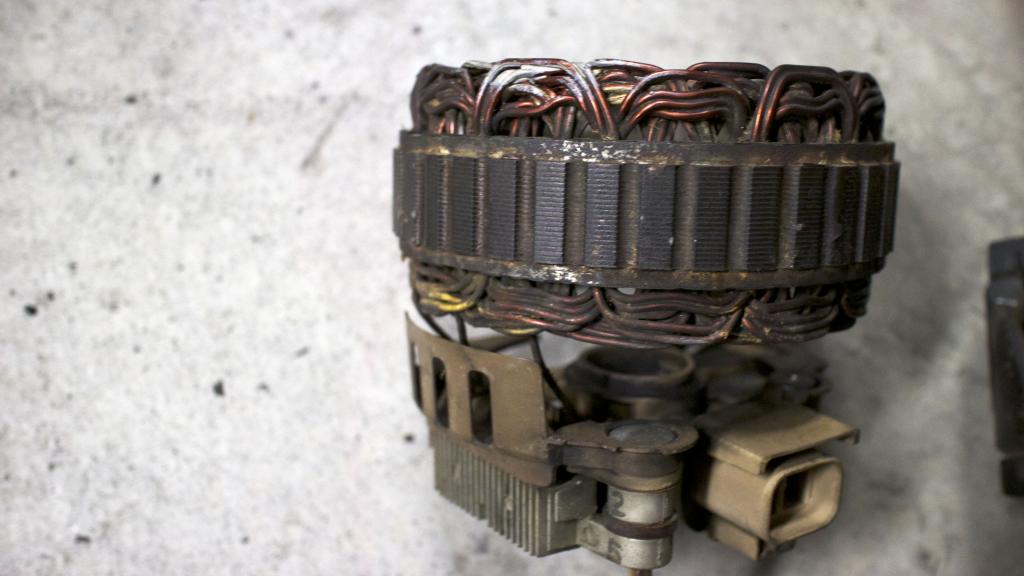

Internals of alternator









Gonna let the rubberized undercoating cure before I put the FM Rails on. Then once that is done I'll do all the sound deadening.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1162.jpg   93' Miata stolen and flipped build thread-img_1163.jpg   93' Miata stolen and flipped build thread-img_1164.jpg   93' Miata stolen and flipped build thread-img_1165.jpg   93' Miata stolen and flipped build thread-img_1166.jpg

Jeffbucc is offline   Reply With Quote
Old 01-09-2014, 01:32 AM   #797
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,084
Total Cats: 424
Default

I knew from the moment I saw that other overachiever's disassembled alternator that pictures of your alternator, disassembled, were sure to follow.

And rubber undercoating? Saweet.
turbofan is offline   Reply With Quote
Old 01-09-2014, 02:46 AM   #798
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by turbofan View Post
I knew from the moment I saw that other overachiever's disassembled alternator that pictures of your alternator, disassembled, were sure to follow.

And rubber undercoating? Saweet.
Yeah excited about the undercoating. I'm not sure why I thought truck bed liner was the better choice. Oh well, no one is perfect especially not me.

Yeah I blame a lot of you guys for projects going further than originally intended!
Jeffbucc is offline   Reply With Quote
Old 01-09-2014, 09:52 AM   #799
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

was it difficult to disassemble, or did you just have to undo the long bolts and slide it apart?

never played with alternators.
shlammed is offline   Reply With Quote
Old 01-09-2014, 10:11 AM   #800
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,221
Total Cats: 339
Default

Quote:
Originally Posted by Jeffbucc View Post
Yeah I blame a lot of you guys for projects going further than originally intended!
Hey man, I just told you to spray it.

BTW, resist the urge to clean the shaft where the brush rides (copper section below the bearing). Sure, wipe it down (alcohol or acetone), but don't try to sand or wire brush it, as this will mean the brush has to re-seat, accelerating wear.
rleete is offline   Reply With Quote
