Default 99mx5 EFR build

I'm finally adding a turbo to my car. I bought a supercharger when I used to autocross. I then started to race on a track. Everything was great until I blew up the blower. I removed it then continued to race naturally aspirated. I eventually became a better driver without the boost, so now its time to add boost again.

So far I have added:

-Enhanced DIYPNP
-Precision intercooler
-ACT clutch and street disc
-TEIN Flex coilovers
-PWR radiator
-SS clutch, brake lines
-Carbotech XP10 and XP8 brakes
-Boss frog rollbar
-Custom CAI airbox
-DIY coolant reroute upper and lower
-PS delete with welded input shaft
-Ultrashield Rally Sport seats
-Simpson camlock harnesses
-Squaretop manifold
-COPS
-Walbro 255HP
-Other smaller details that I forgot

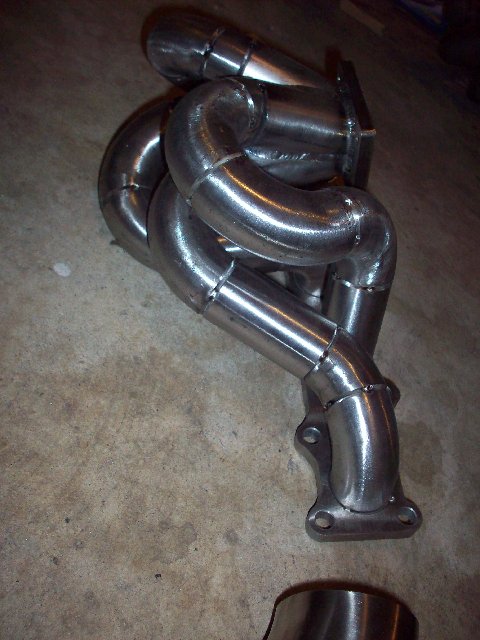

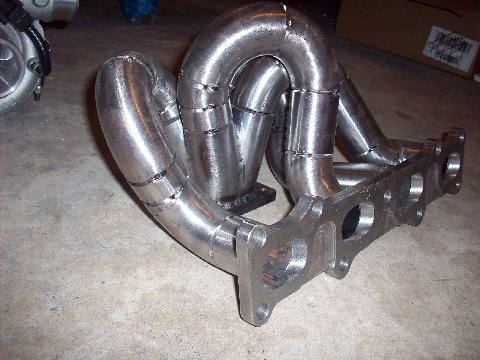

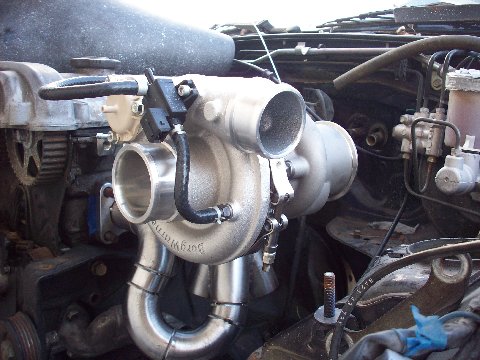

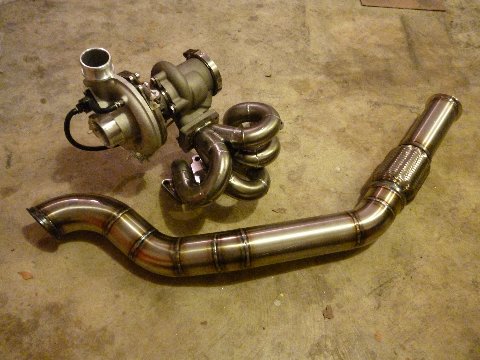

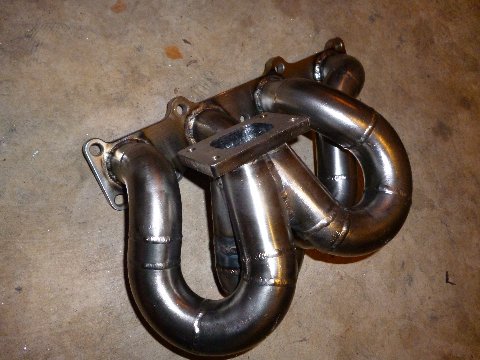

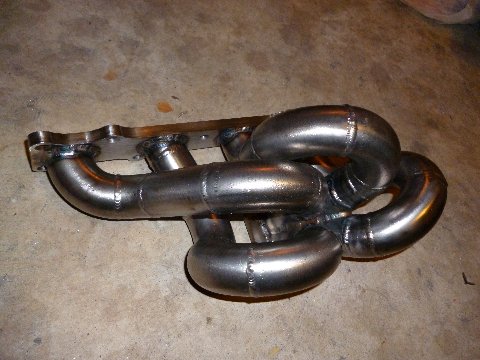

I contacted Abe at ARTech for SS coolant and oil lines, a top mount ramhorn manifold, SS DP and exhaust with Magnaflow resonator and muffler. I purchased a BorgWarner EFR 6258 and sent it off to him.

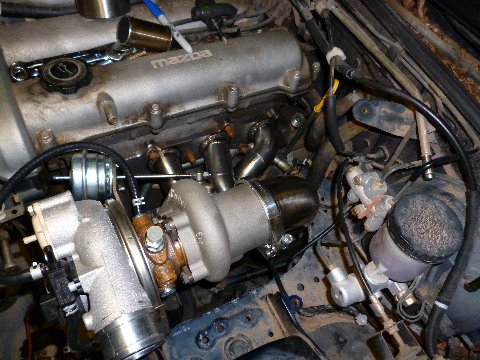

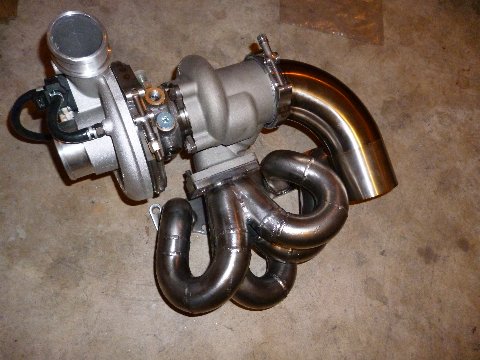

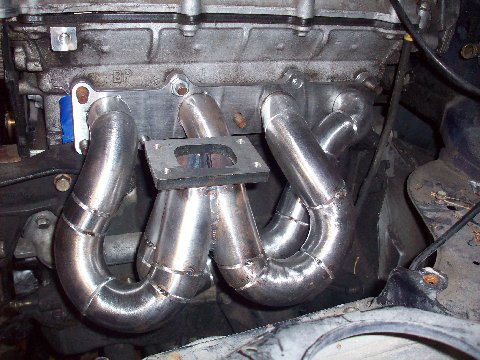

Here are the pics of his progress...

















Attached Thumbnails
99mx5 EFR build-109_1168.jpg   99mx5 EFR build-109_1196.jpg   99mx5 EFR build-109_1195.jpg   99mx5 EFR build-109_1188.jpg   99mx5 EFR build-p1020016.jpg

99mx5 EFR build-p1020018.jpg   99mx5 EFR build-p1020023.jpg   99mx5 EFR build-p1020021.jpg   99mx5 EFR build-p1020031.jpg

Last edited by 99mx5; 01-07-2012 at 06:13 AM.
99mx5 is offline   Reply With Quote
Old 01-06-2012, 02:02 AM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

In on this, was wondering if you were making build thread. Can't wait to see it in person and possibly replicate it. Man that manifold is sexy.
jbrown7815 is offline   Reply With Quote
Old 01-06-2012, 02:07 AM   #3
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Yay target piwer?
Faeflora is offline   Reply With Quote
Old 01-06-2012, 02:21 AM   #4
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

No target yet, just hoping to not pop the stock engine until its built.

I'm thinking on getting forged rods and pistons and replacing the stockers before it needs to be rebuilt. I also see a six-speed in my future.
99mx5 is offline   Reply With Quote
Old 01-06-2012, 02:22 AM   #5
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

From what I've read it will be tough to not blow a stock motor, especially with that turbo and manifold.
jbrown7815 is offline   Reply With Quote
Old 01-06-2012, 03:13 AM   #6
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,950
Total Cats: 228
Default

Yo Ari!
viperormiata is offline   Reply With Quote
Old 01-06-2012, 08:22 AM   #7
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

that manifold is sexy, pic number 4 confused the crap out of me for some reason lol

I see the 255 in your sig but what injectors are you going to run?
Golferluke is offline   Reply With Quote
Old 01-06-2012, 03:44 PM   #8
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

I will be getting 560s
99mx5 is offline   Reply With Quote
Old 01-07-2012, 03:56 PM   #9
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 33
Default

Very sweet. Those EFR's are so long! I will be interested to see how you run the intake and intercooler piping.
mx592 is offline   Reply With Quote
Old 01-07-2012, 09:39 PM   #10
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,219
Total Cats: 210
Default

Yeah man, very very nice. GOod job ABe!
TurboTim is offline   Reply With Quote
Old 01-08-2012, 01:33 AM   #11
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 656
Total Cats: 28
Default

Sweet manifold Abe! It'll be interesting to see some spool data with that efr and a long runner manifold. Whittyworks was at atmospheric at like 1900 rpm with his logish style mani. Keep up the good work!
yank is offline   Reply With Quote
Old 01-14-2012, 02:25 PM   #12
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Updates needed STAT
jbrown7815 is offline   Reply With Quote
Old 01-17-2012, 07:49 PM   #13
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

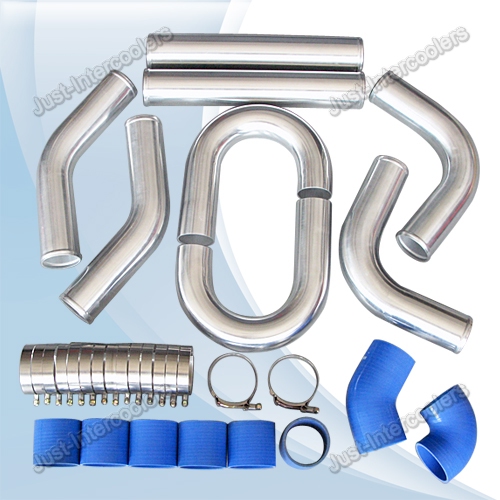

I just ordered the intercooler piping kit. I will have the charge pipes welded.
Attached Thumbnails
99mx5 EFR build-js-kit250-j-eb4590-1.jpg
99mx5 is offline   Reply With Quote
Old 01-19-2012, 02:57 PM   #14
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

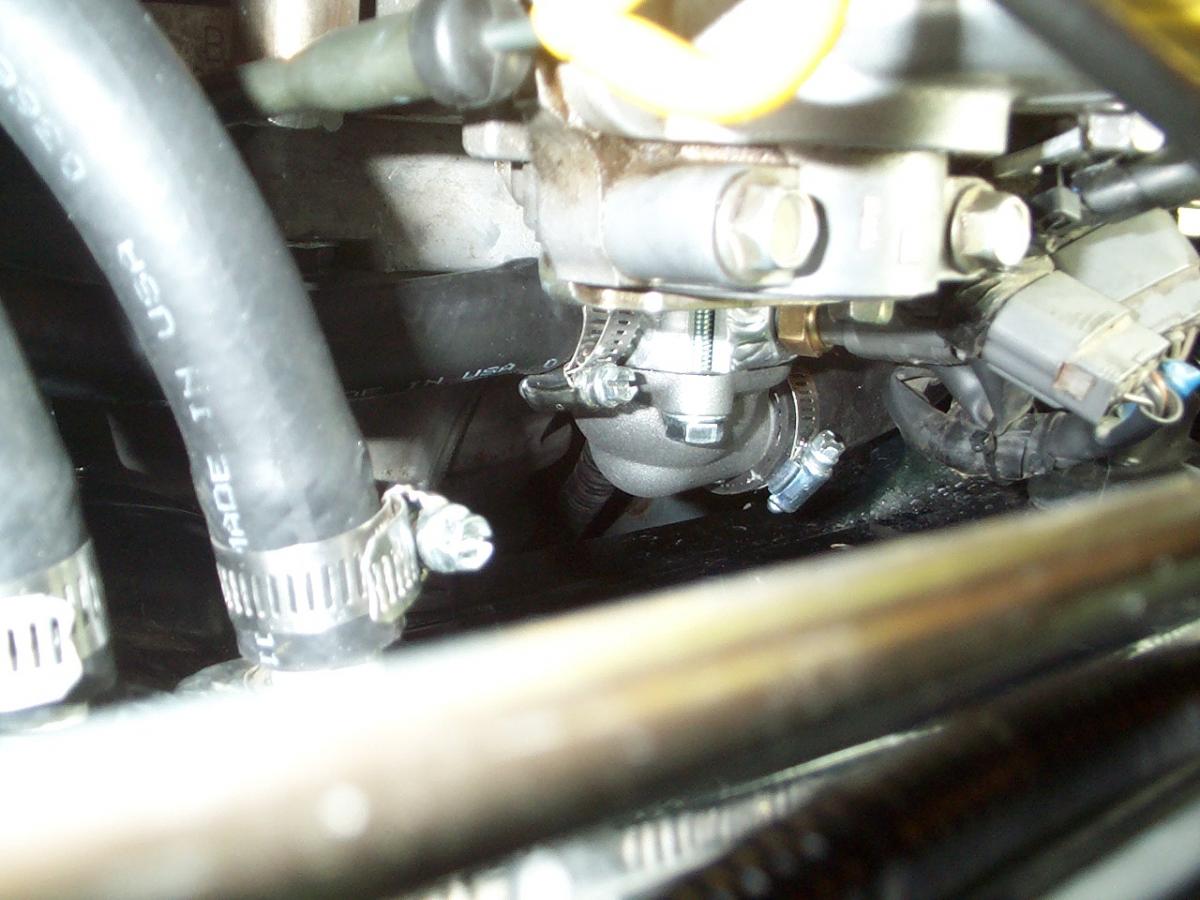

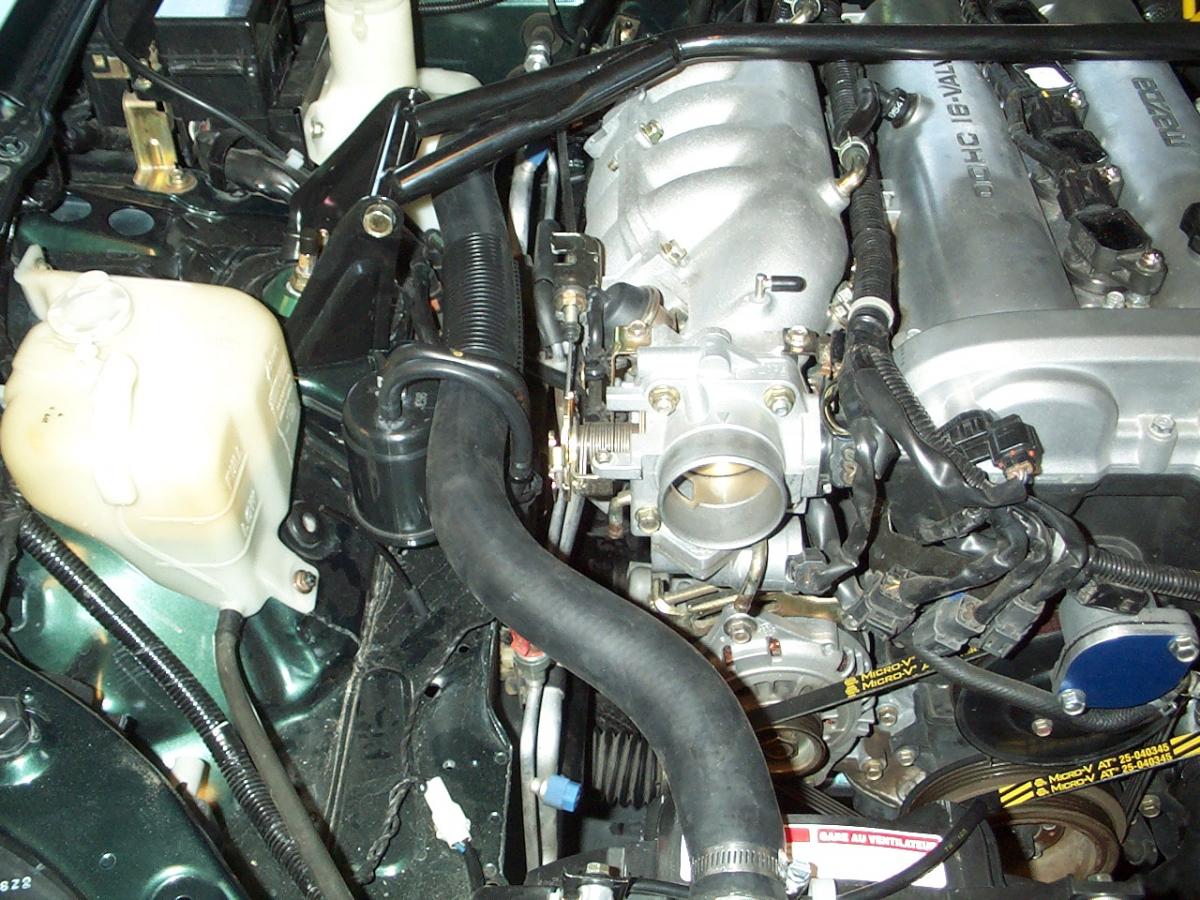

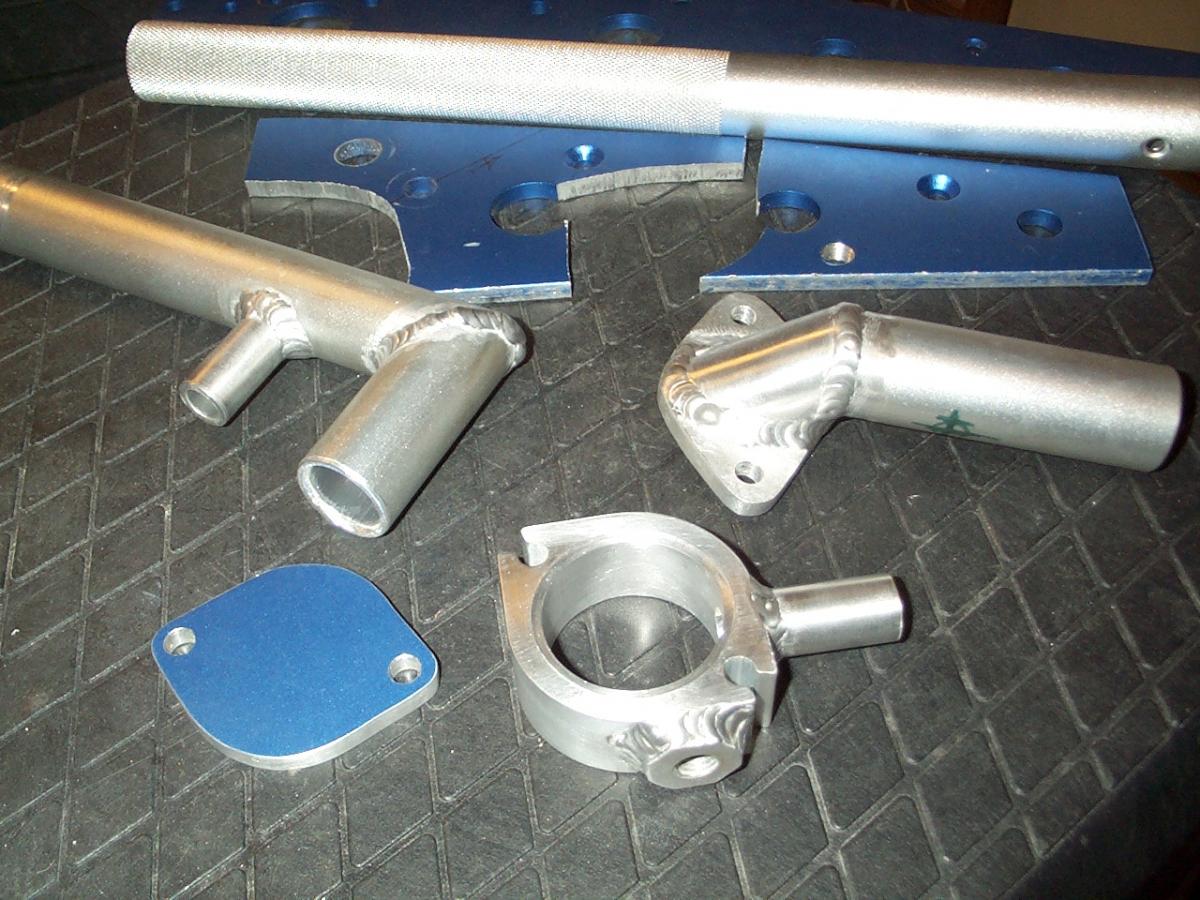

Here is my DIY coolant reroute and lower reroute. I used a broken aluminum race jack for the parts. I posted this in the DIY section, but I'll link the pics here for completeness.

The upper reroute uses the moss spacer, a Kia thermostat cover and a GMC truck water hose.

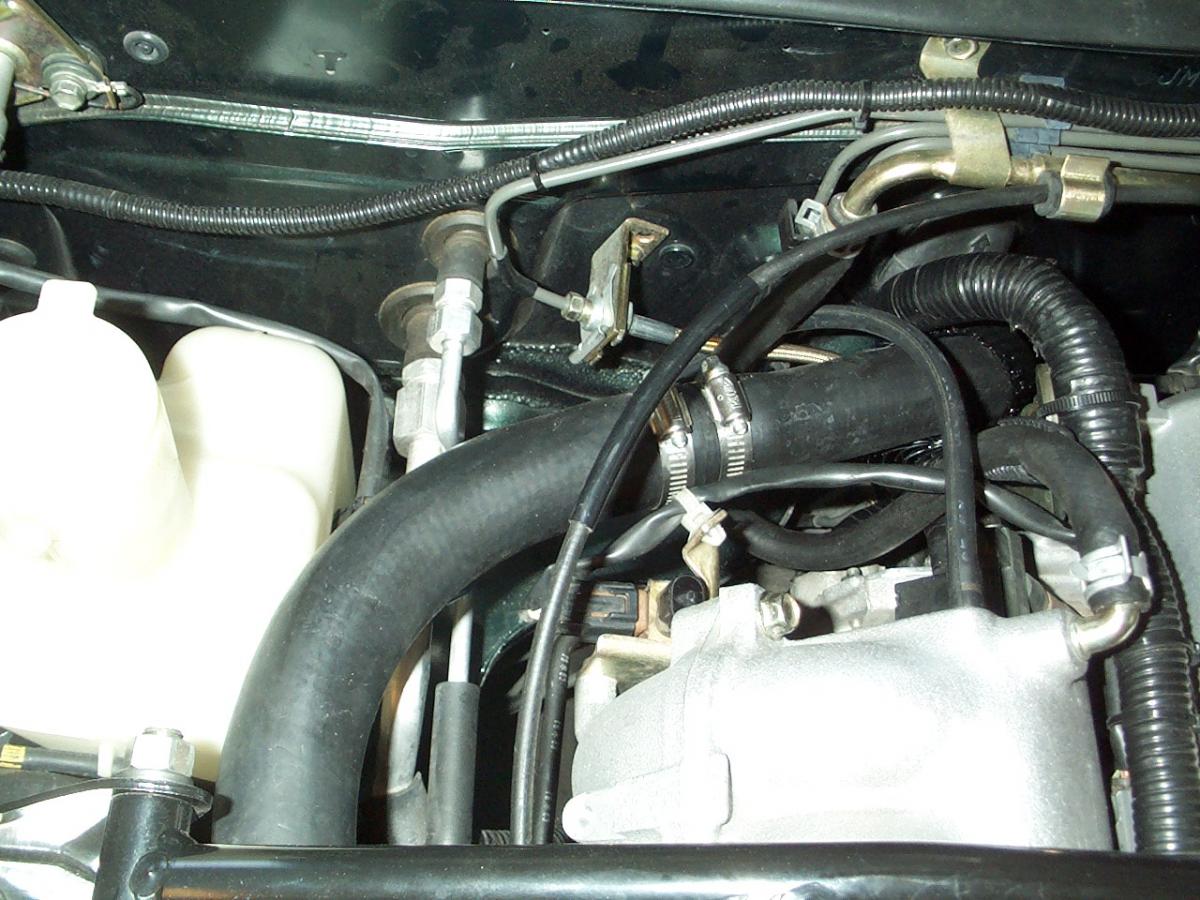

Upper coolant reroute at beck of engine.


Upper reroute hose.





Water pump intake.

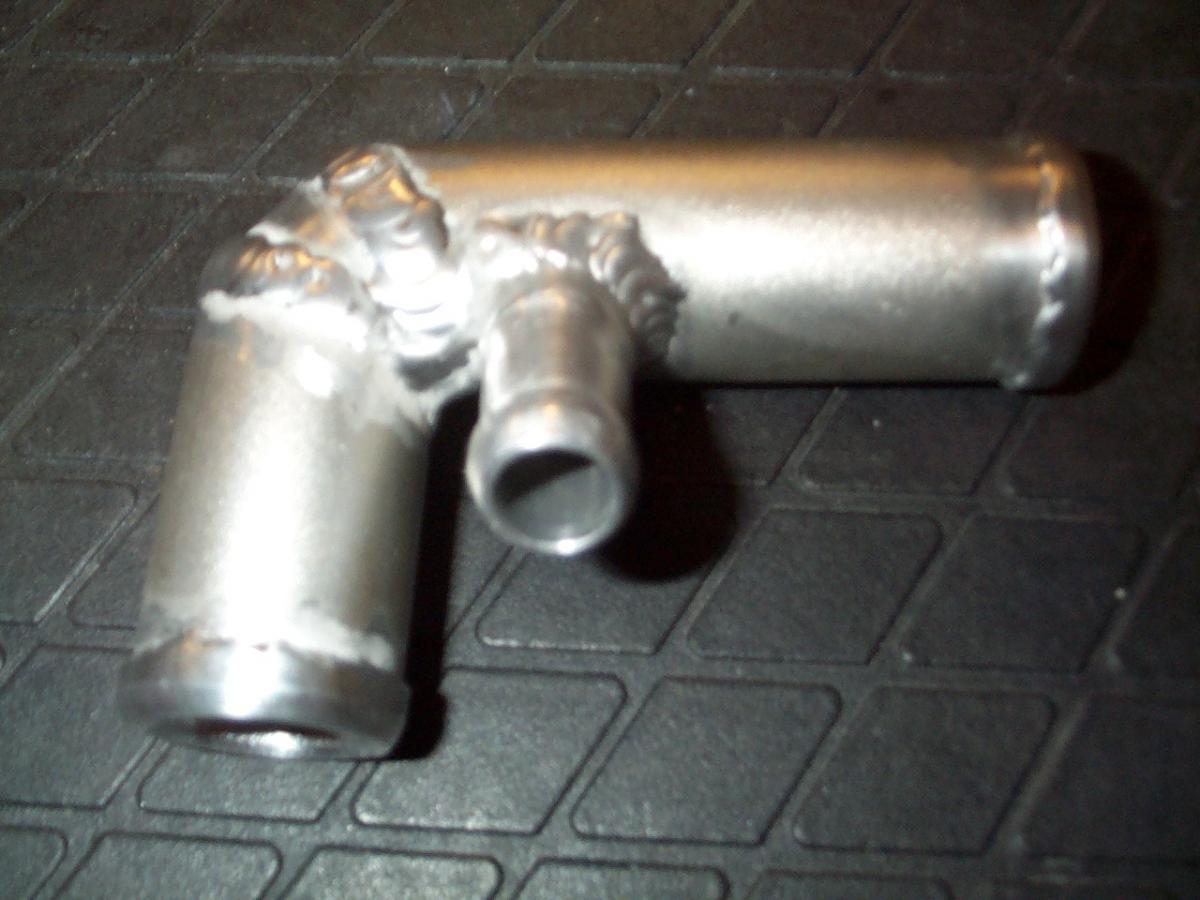

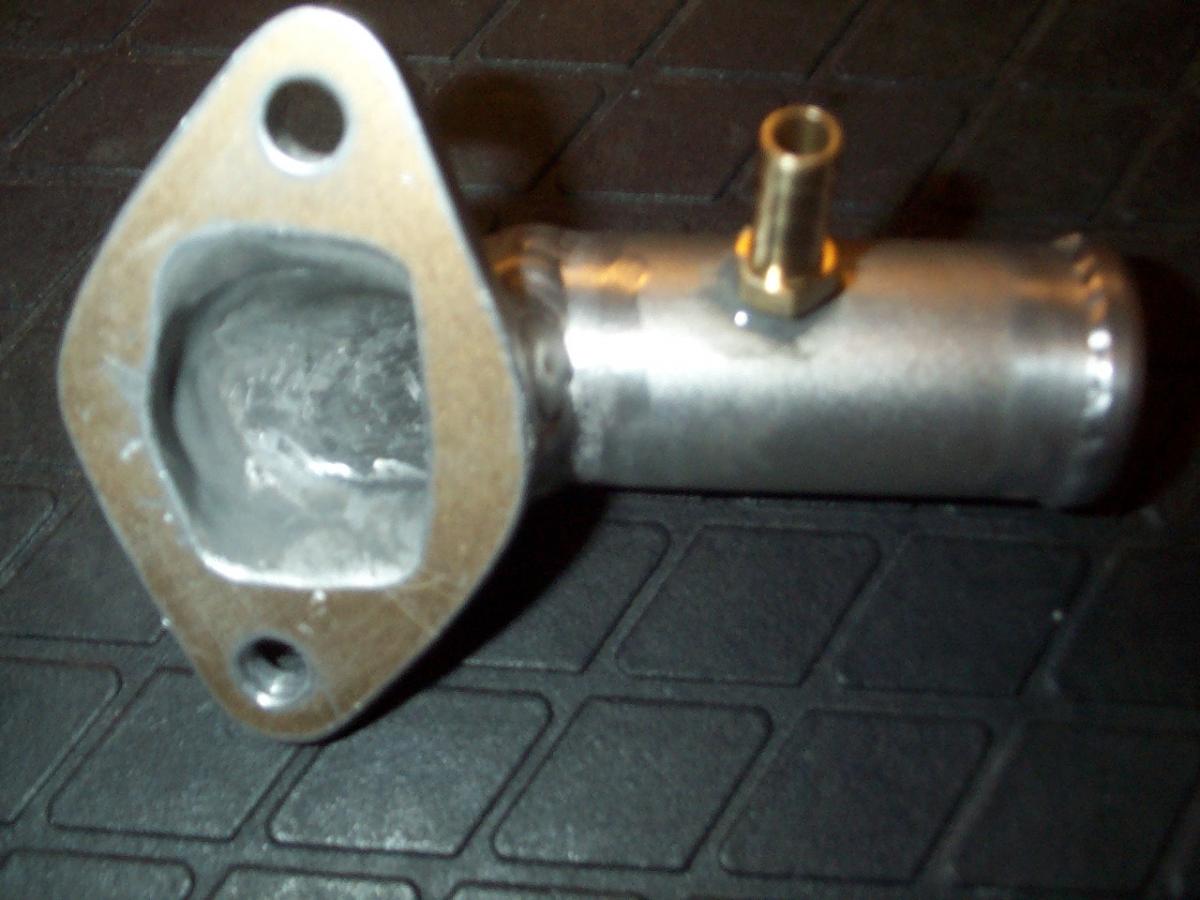

Elbow for coolant radiator to intake with heater hose nipple.

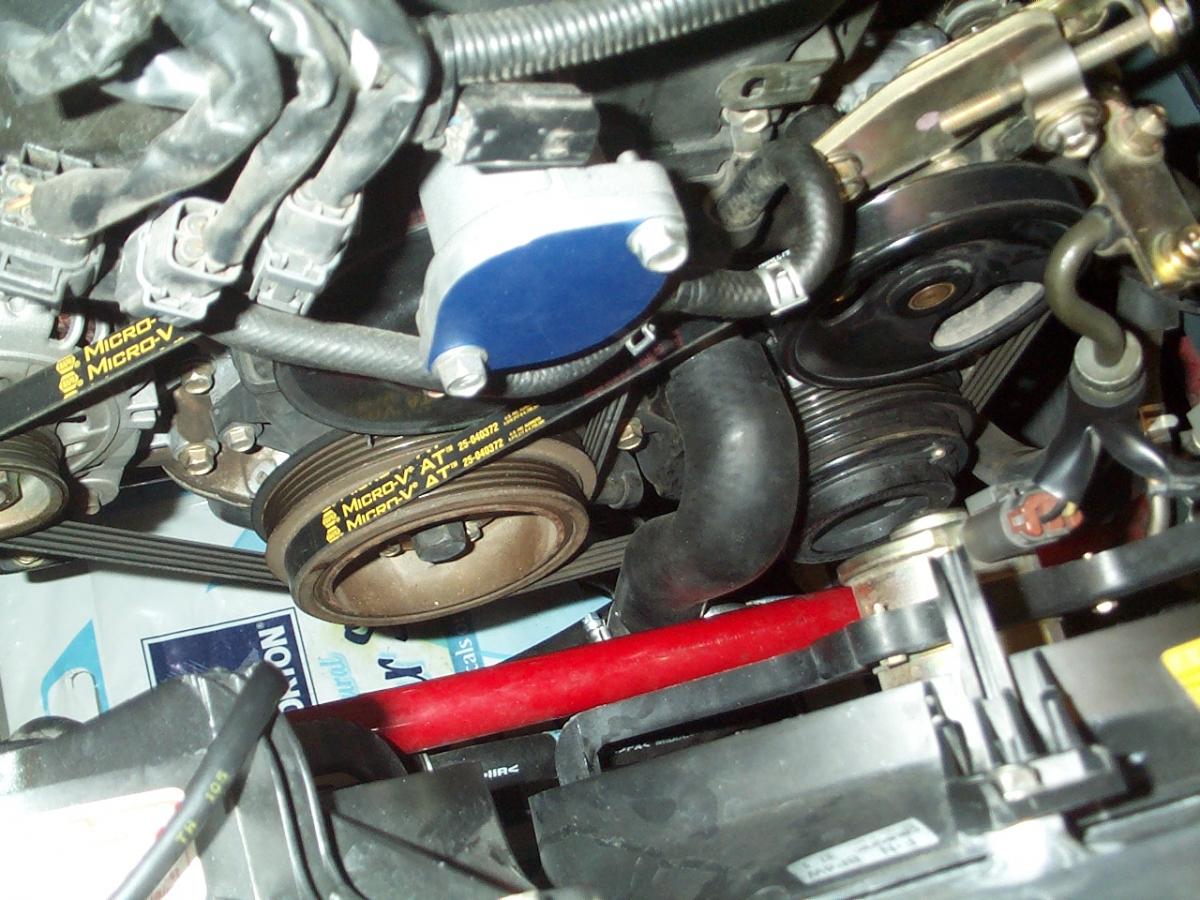

Front block off plate.

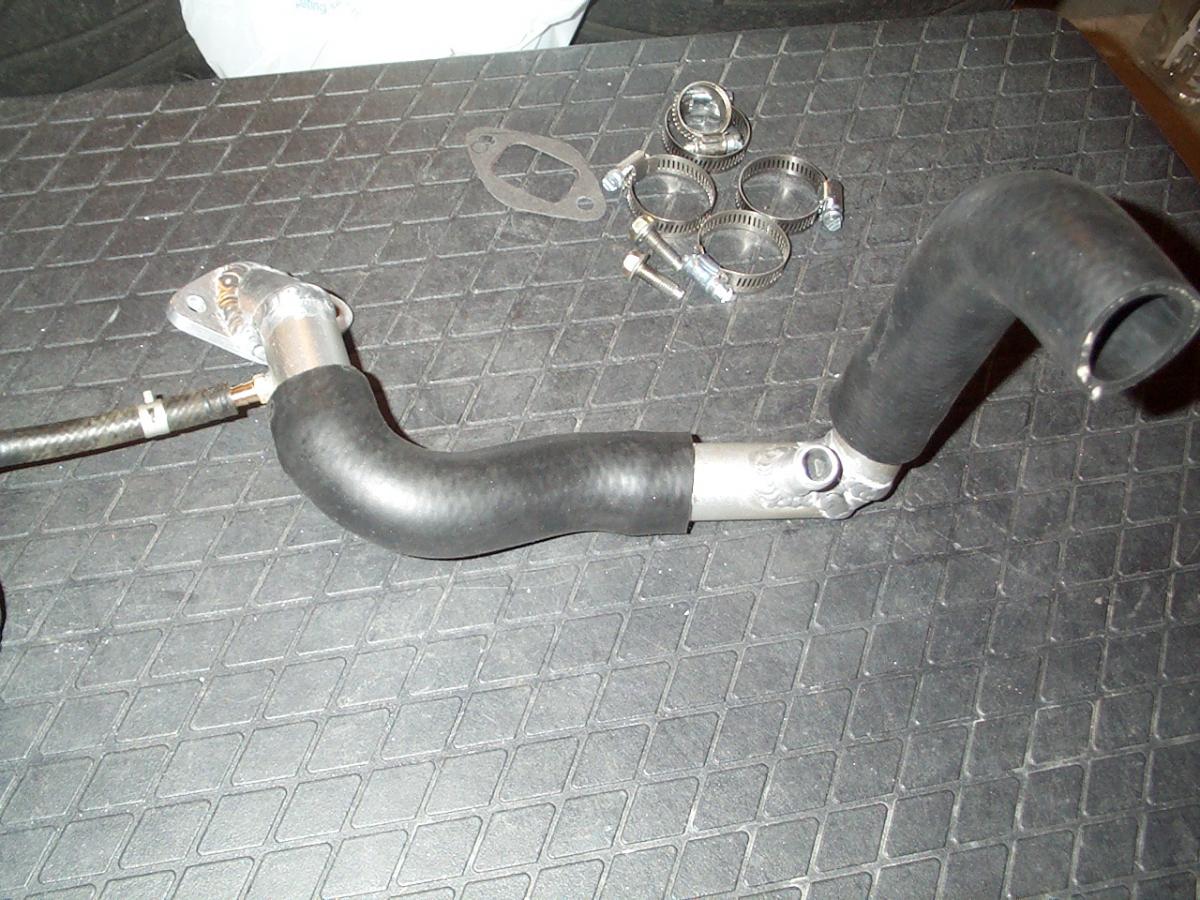

Assembled lower coolant reroute. This make more space for the turbo.

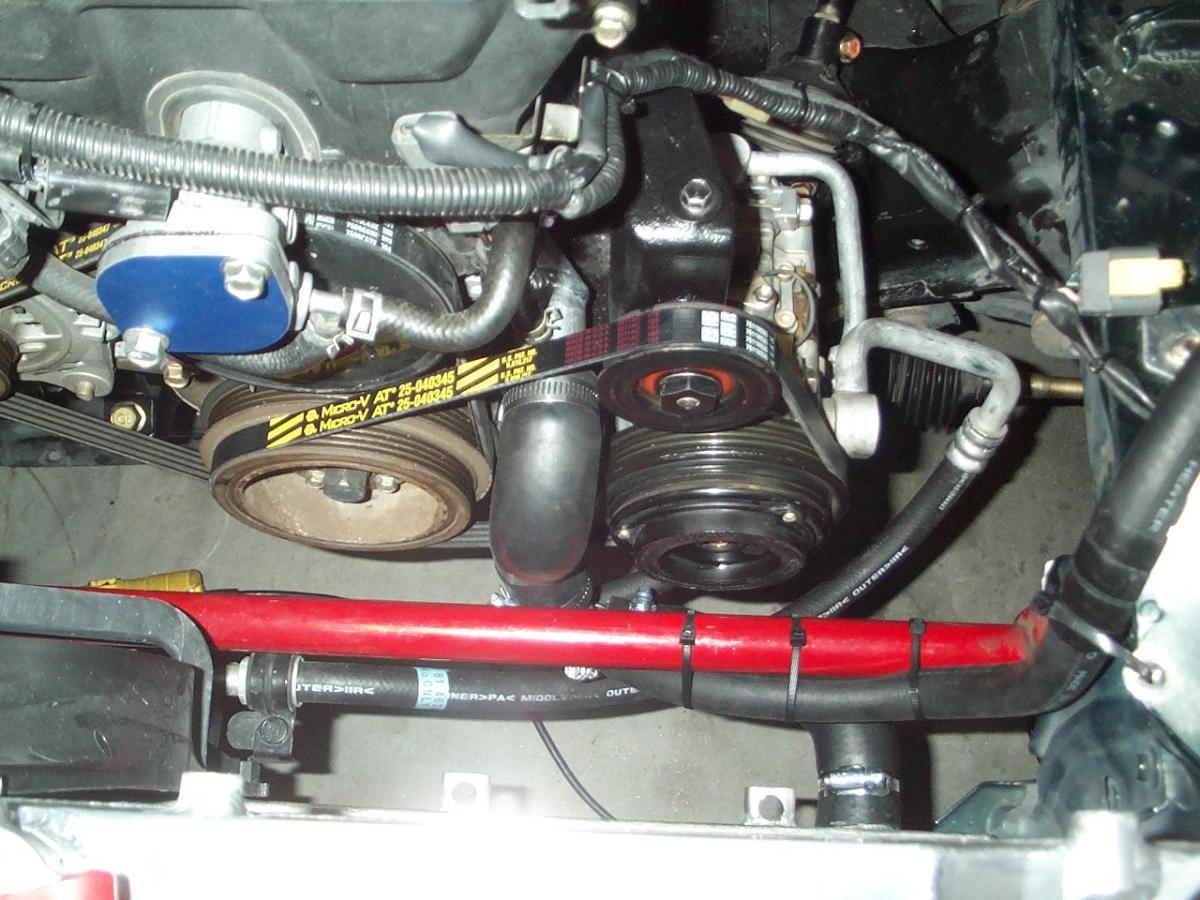

Lower reroute installed on front of engine.
99mx5 is offline   Reply With Quote
Old 01-19-2012, 03:04 PM   #15
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 656
Total Cats: 28
Default

I like that reroute way better than what i did. Sucks you're going to have to remove the rad hose to change the belt tho..
yank is offline   Reply With Quote
Old 01-19-2012, 03:06 PM   #16
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,390
Total Cats: 776
Default

Quote:
Originally Posted by yank View Post
I like that reroute way better than what i did. Sucks you're going to have to remove the rad hose to change the belt tho..
I think the solution to that is to ditch the AC.
shuiend is offline   Reply With Quote
Old 01-19-2012, 03:13 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

I have EFR envy lol
18psi is offline   Reply With Quote
Old 01-20-2012, 02:12 AM   #18
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

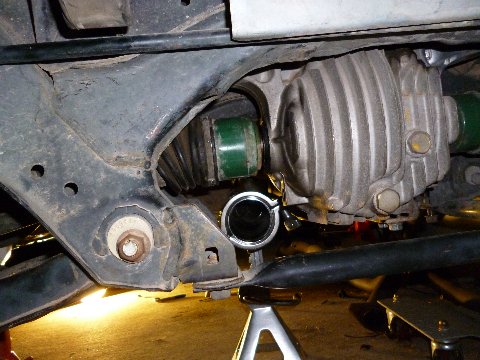

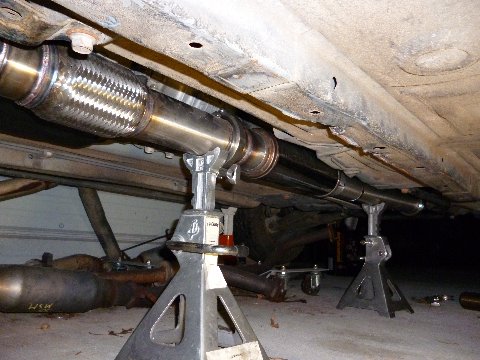

More ARTech goodness! Progress pics of 3" sexhaust.
Attached Thumbnails
99mx5 EFR build-p1020112.jpg   99mx5 EFR build-p1020113.jpg   99mx5 EFR build-p1020115.jpg
99mx5 is offline   Reply With Quote
Old 01-24-2012, 02:08 AM   #19
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

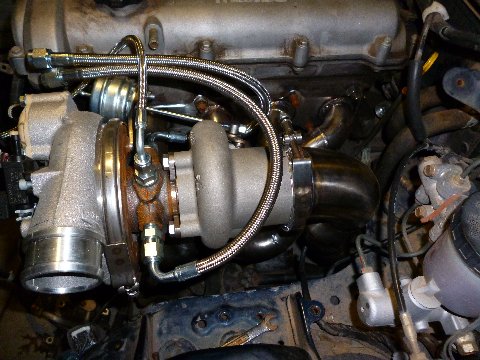

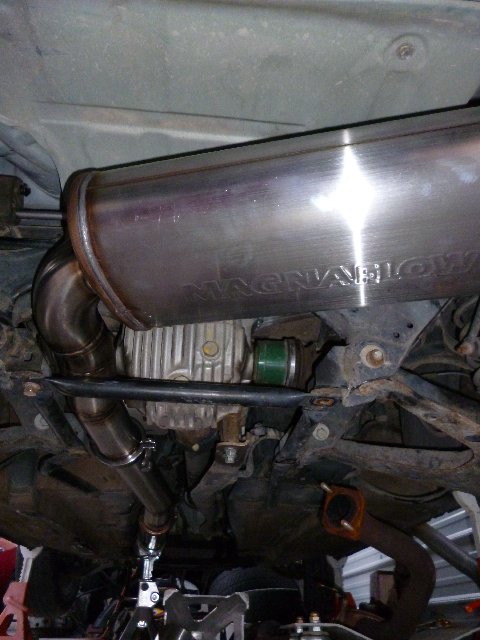

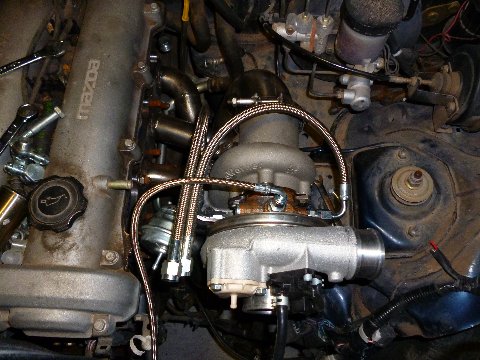

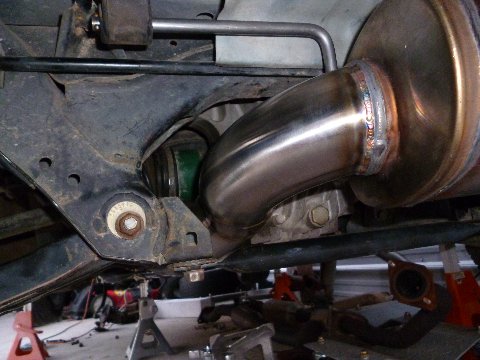

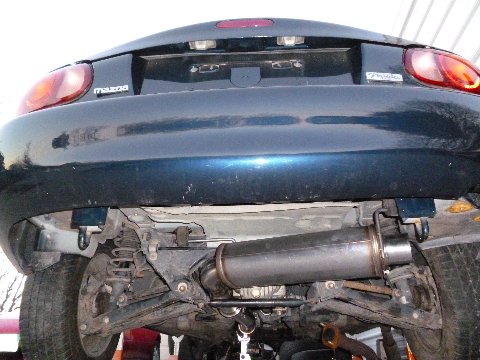

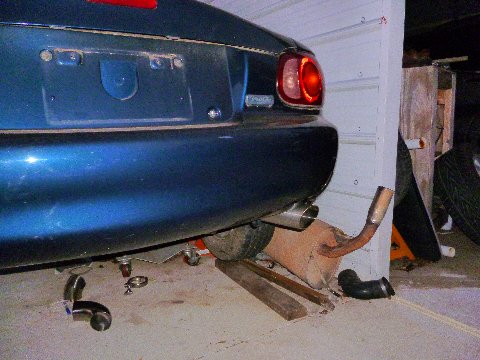

Oil and coolant lines almost completed. Exhaust is done.
Attached Thumbnails
99mx5 EFR build-p1020133.jpg   99mx5 EFR build-p1020118.jpg   99mx5 EFR build-p1020123.jpg   99mx5 EFR build-p1020132.jpg   99mx5 EFR build-p1020120.jpg

99mx5 is offline   Reply With Quote
Old 01-24-2012, 02:10 AM   #20
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

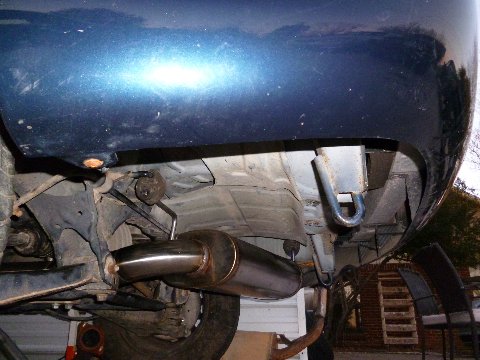

More pics
Attached Thumbnails
99mx5 EFR build-p1020128.jpg   99mx5 EFR build-p1020121.jpg   99mx5 EFR build-p1020119.jpg
99mx5 is offline   Reply With Quote
