I know some of these stuff I've done to the car is out of order, but I'll keep adding to this thread for completeness.

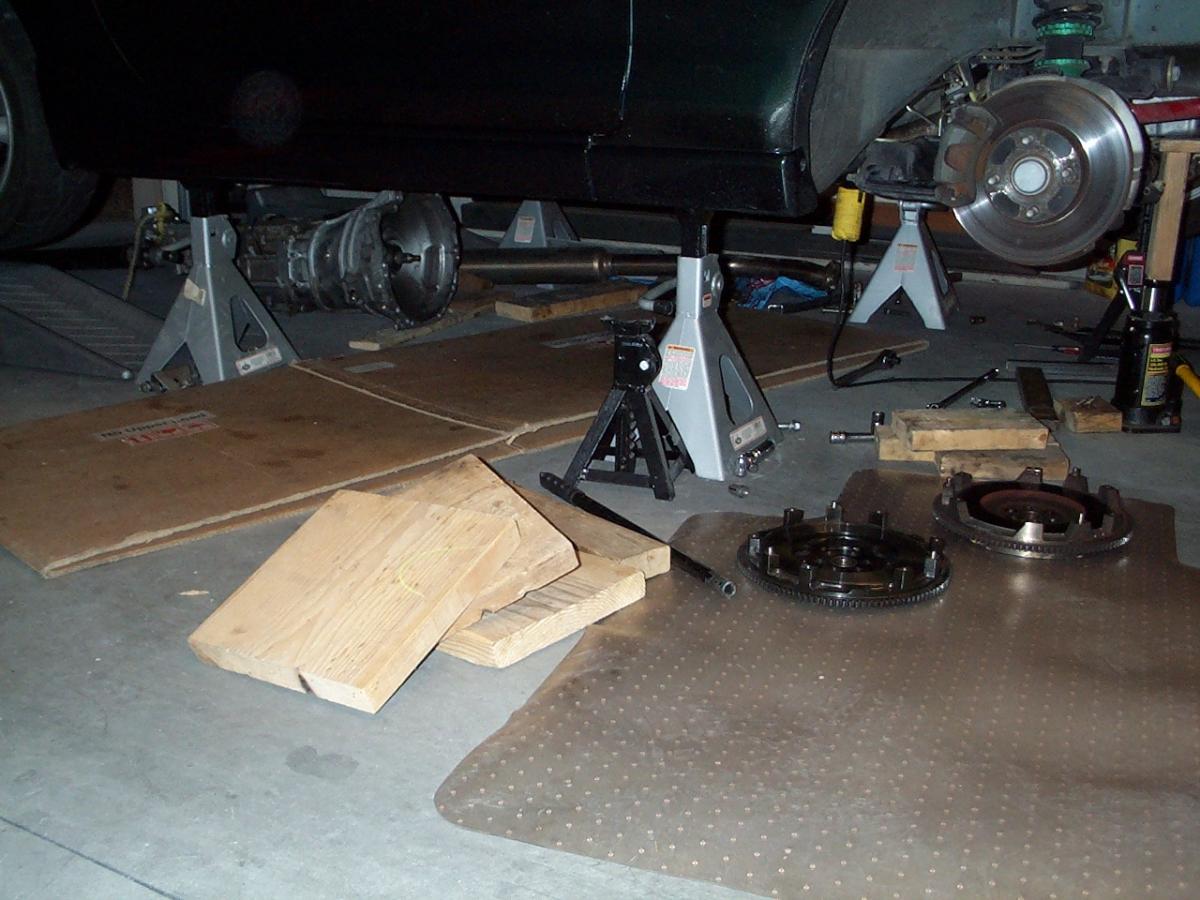

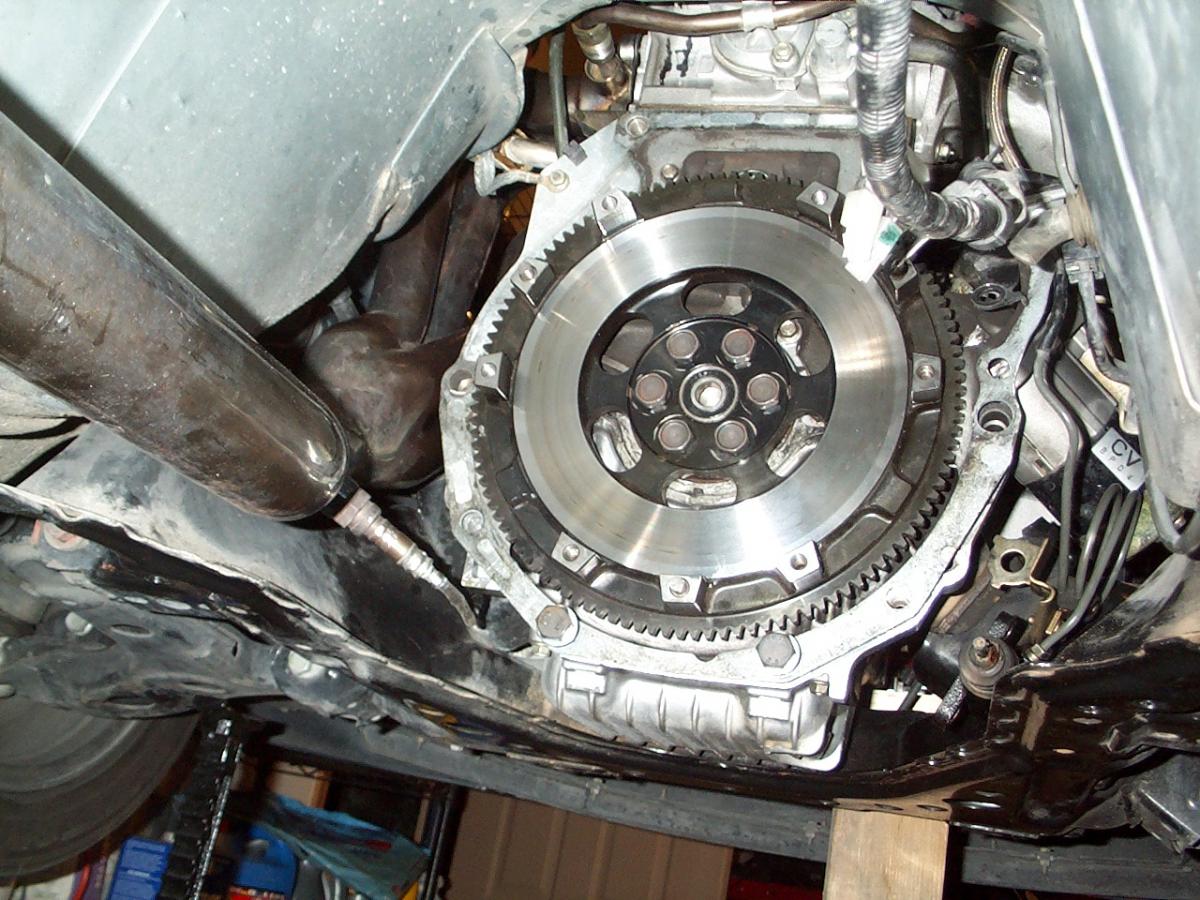

Here is my ACT light flywheel install. I also have a ACT HD clutch with ACT street disc.
Attached Thumbnails
99mx5 EFR build-dcp_4505.jpg   99mx5 EFR build-dcp_4508.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 02:32 PM   #42
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

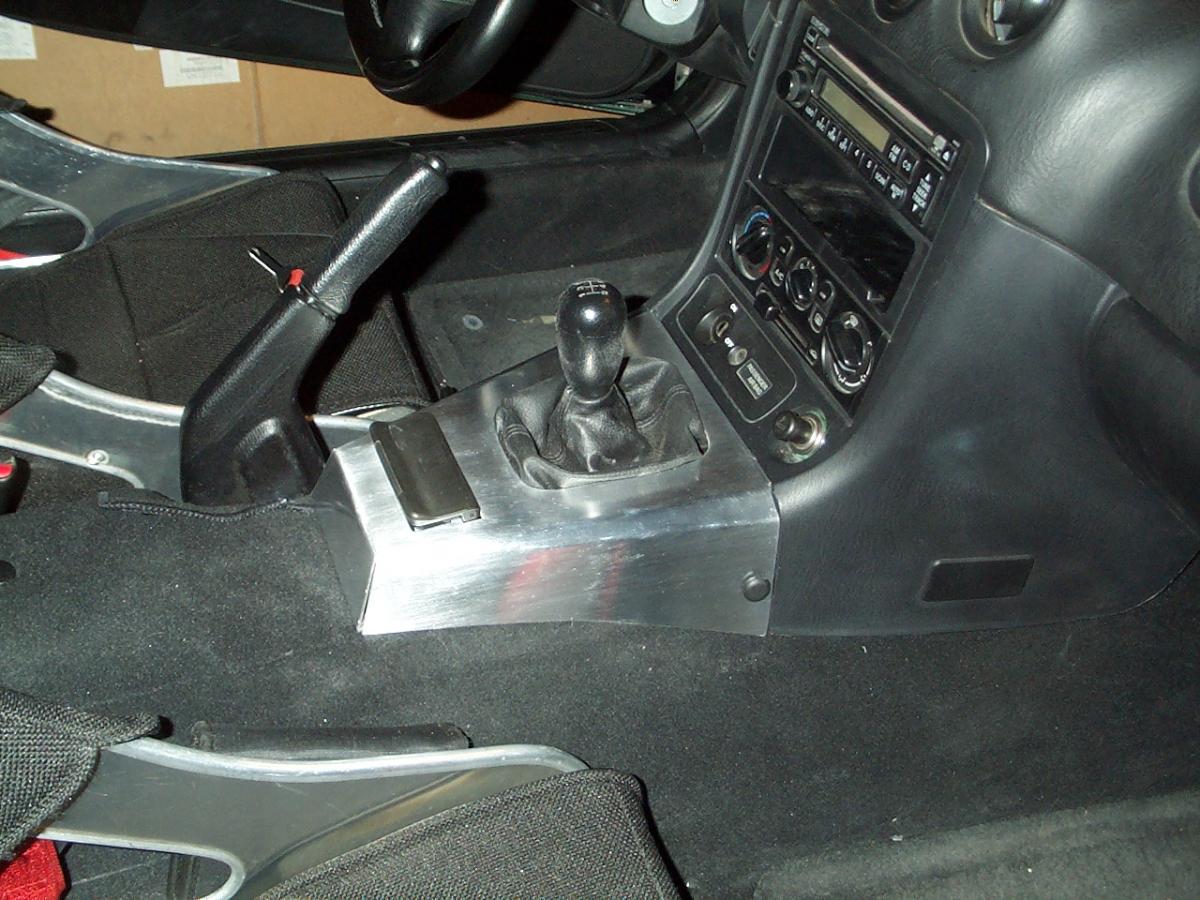

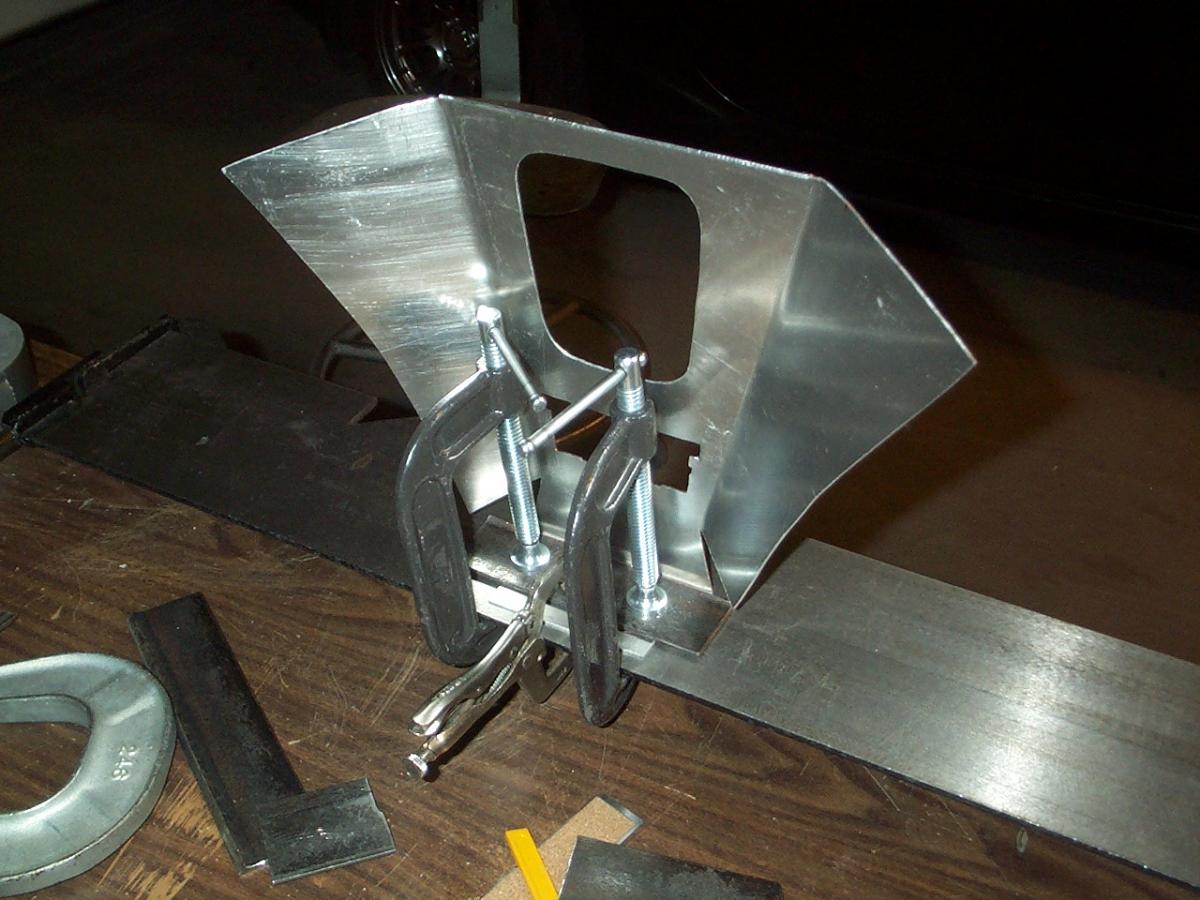

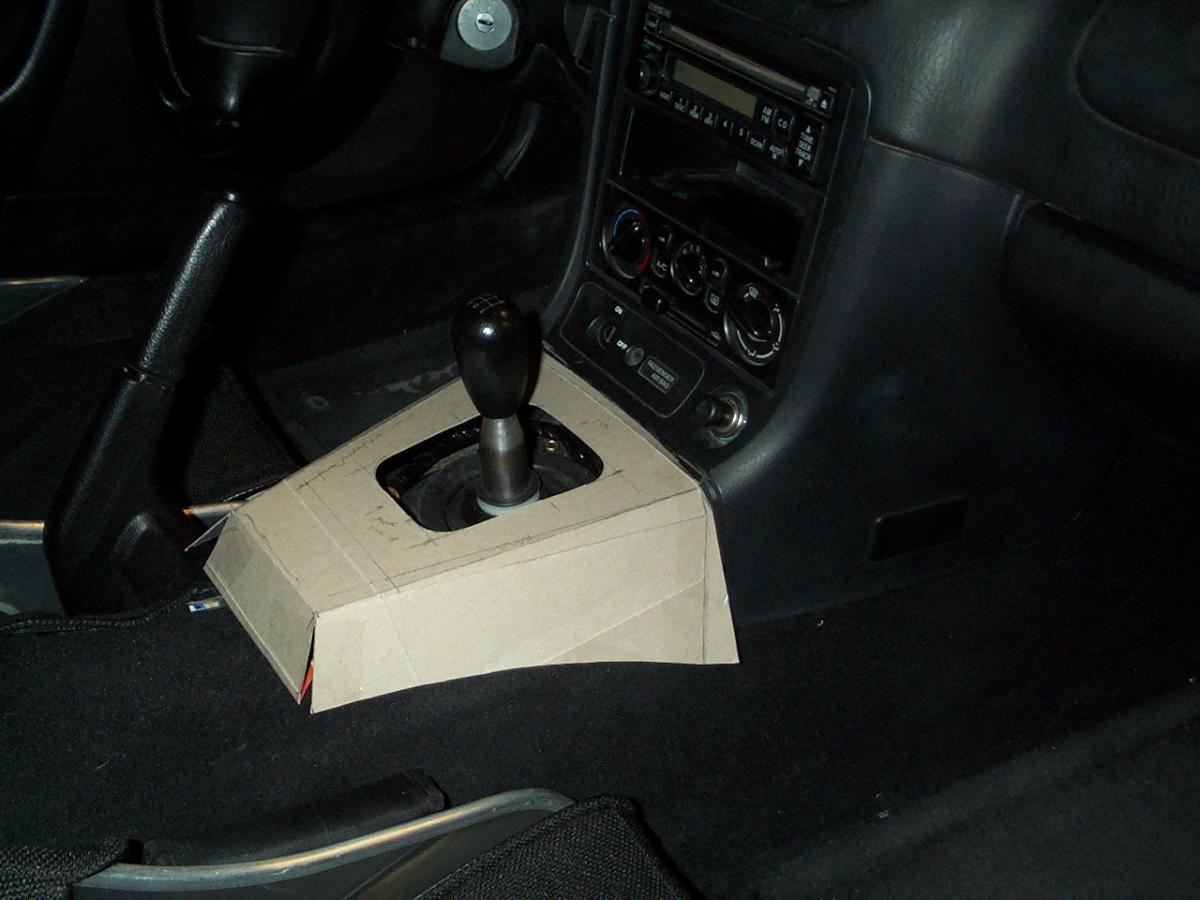

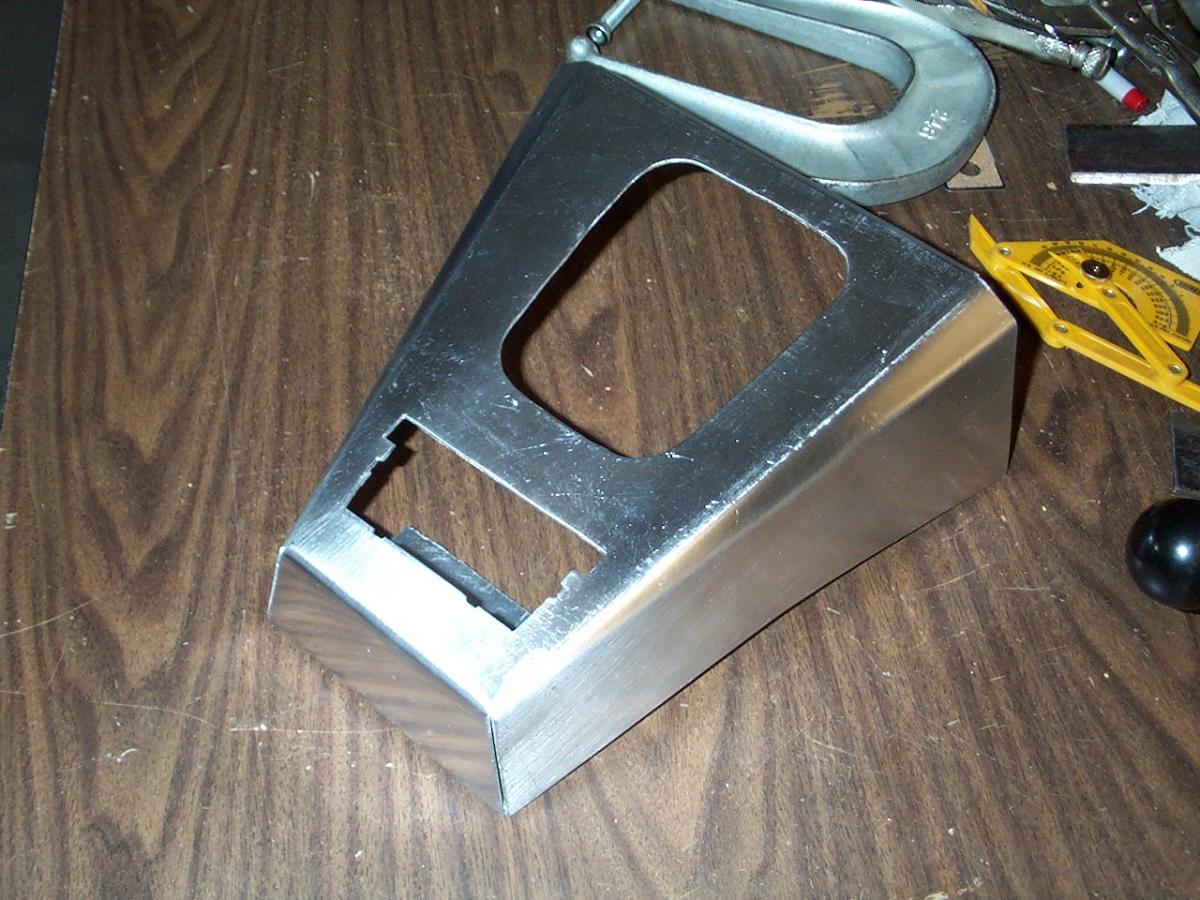

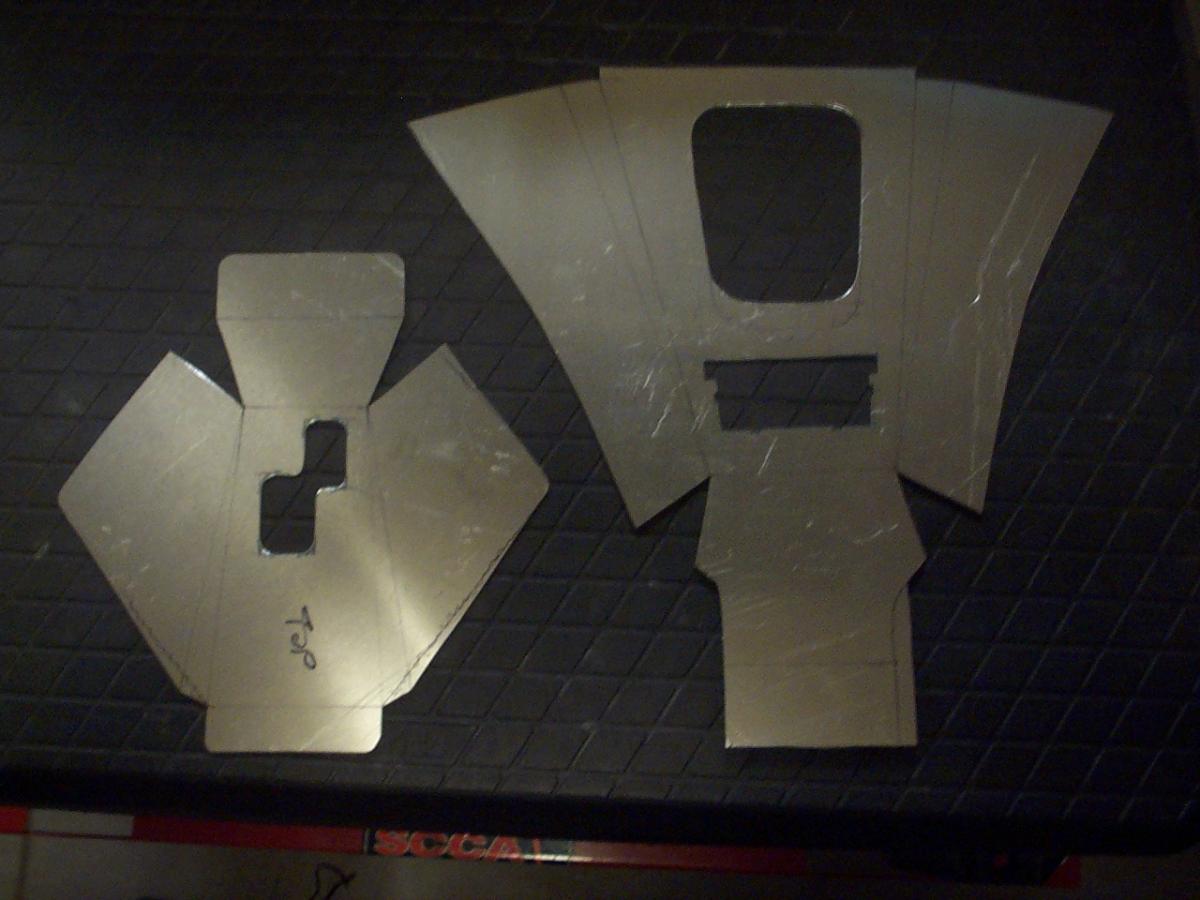

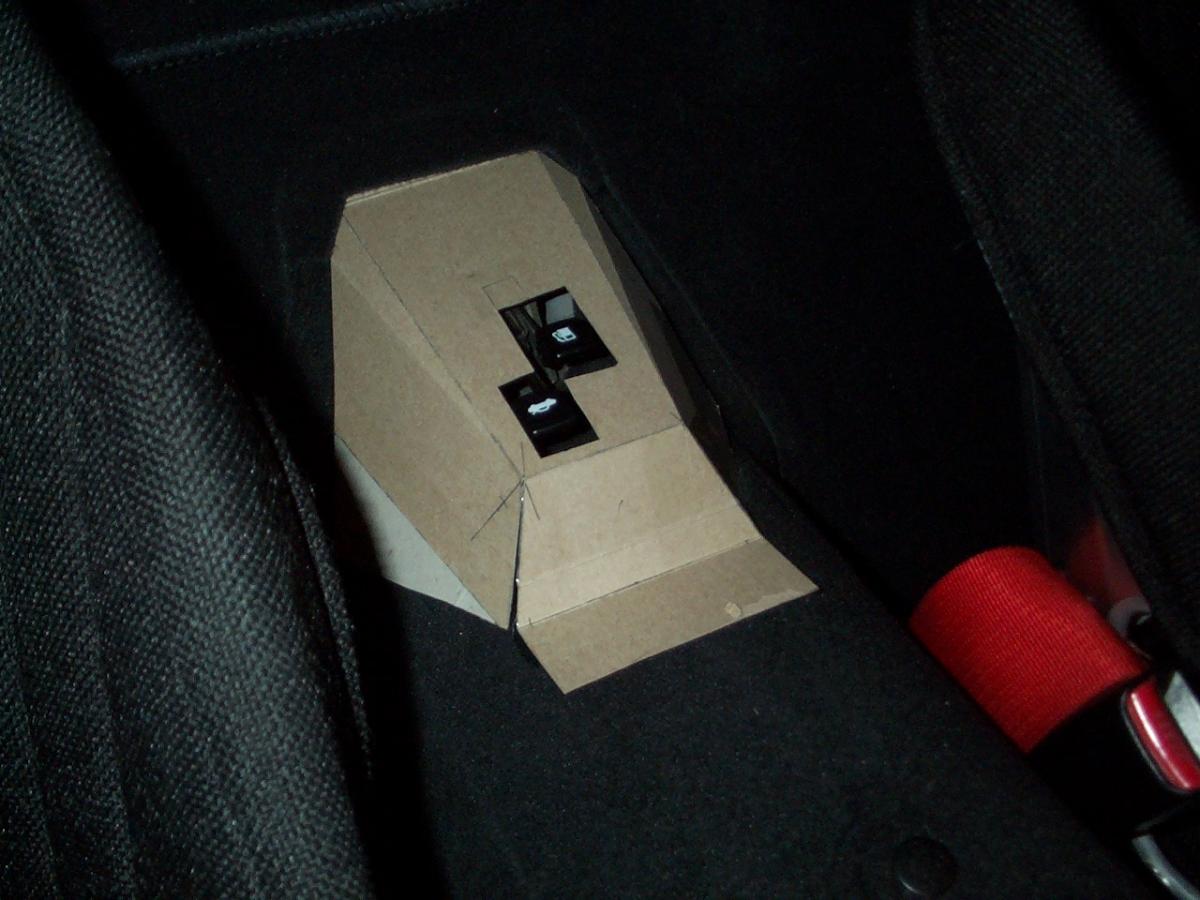

Here is my custom aluminum center console. I made the templates out of cardboard, transferred them to aluminum sheet, cut them out then bent them into shape.
Attached Thumbnails
99mx5 EFR build-dcp_4716.jpg   99mx5 EFR build-dcp_4717.jpg   99mx5 EFR build-dcp_4732.jpg   99mx5 EFR build-dcp_4738.jpg   99mx5 EFR build-dcp_4743.jpg

99mx5 is offline   Reply With Quote
Old 02-04-2012, 02:34 PM   #43
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,001
Total Cats: 330
Default

Dash is bauce as hell.
hustler is offline   Reply With Quote
Old 02-04-2012, 02:34 PM   #44
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

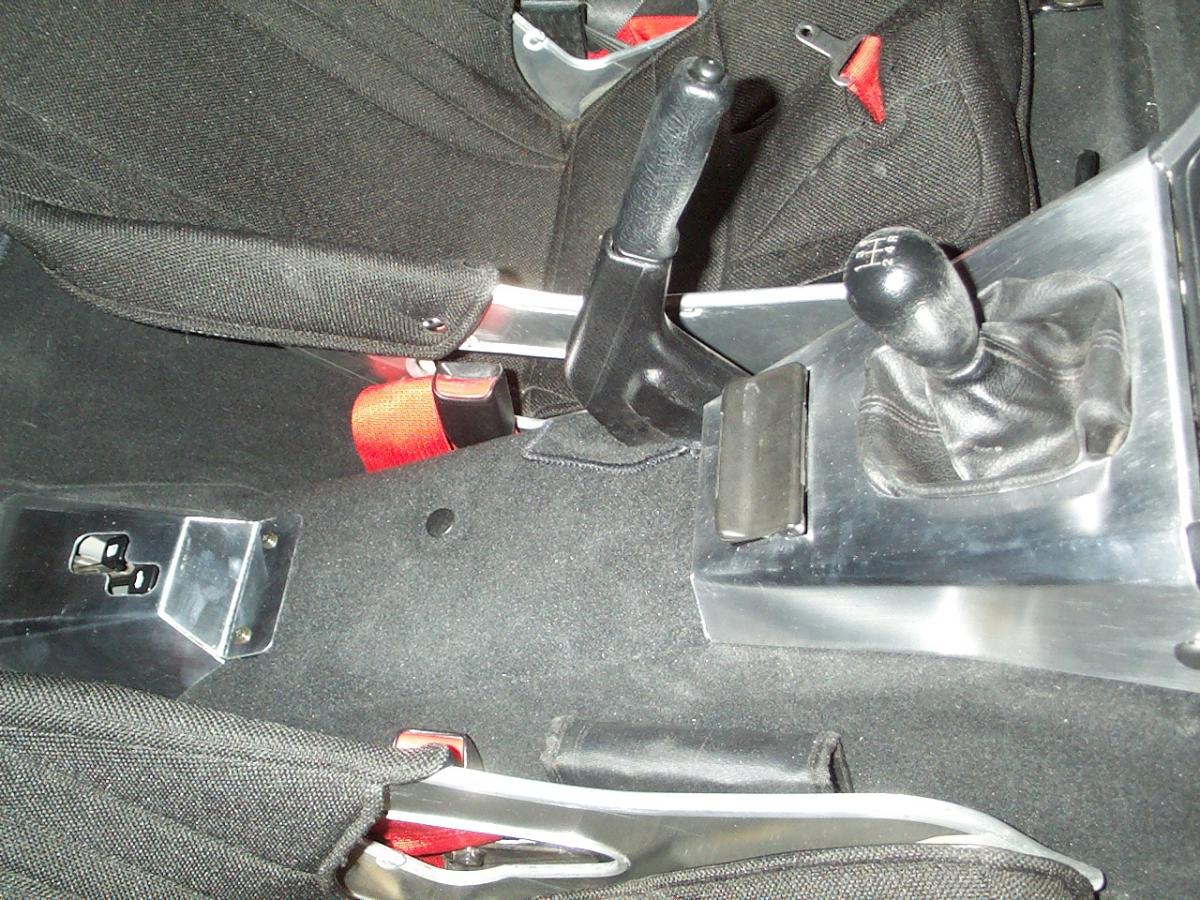

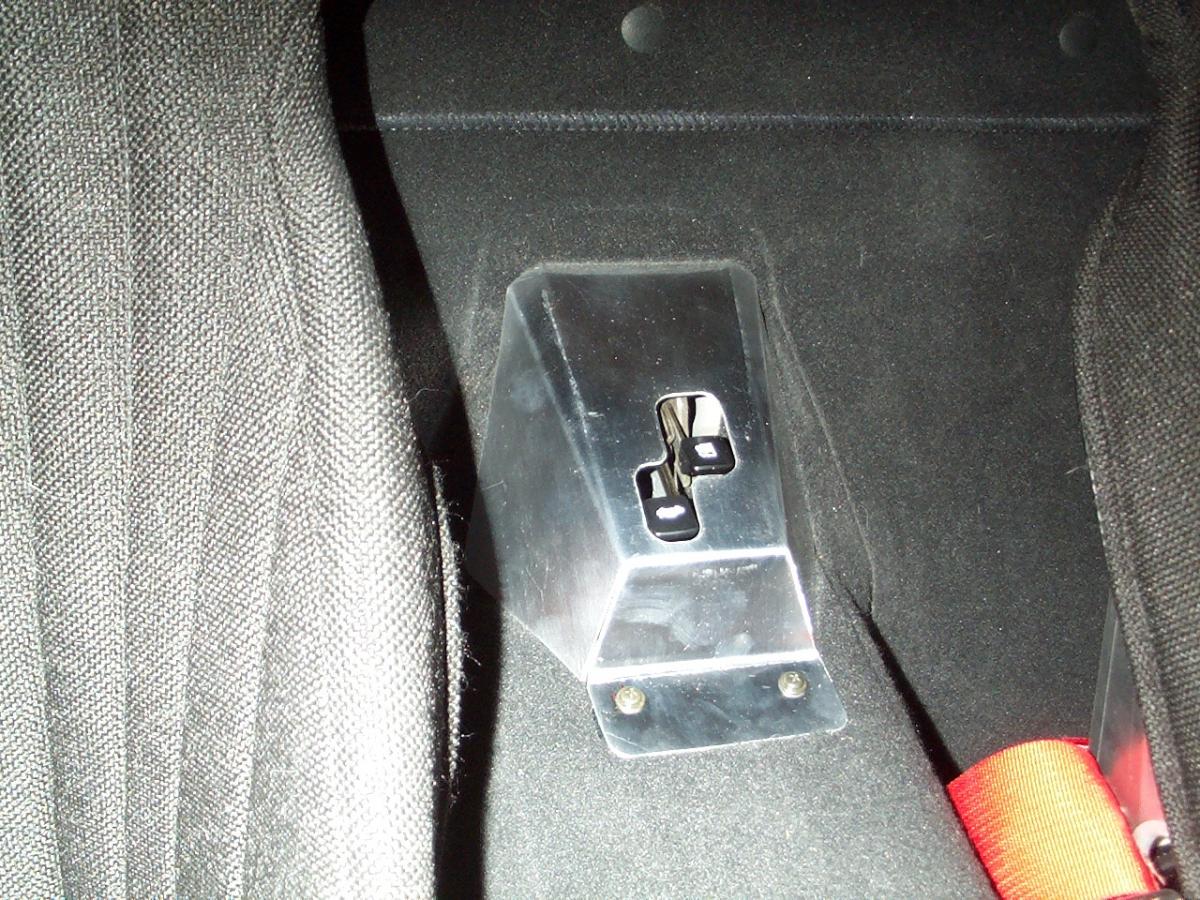

More pics of console.
Attached Thumbnails
99mx5 EFR build-dcp_4747.jpg   99mx5 EFR build-dcp_4746.jpg   99mx5 EFR build-dcp_4749.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 02:37 PM   #45
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

Thanks for the comments!

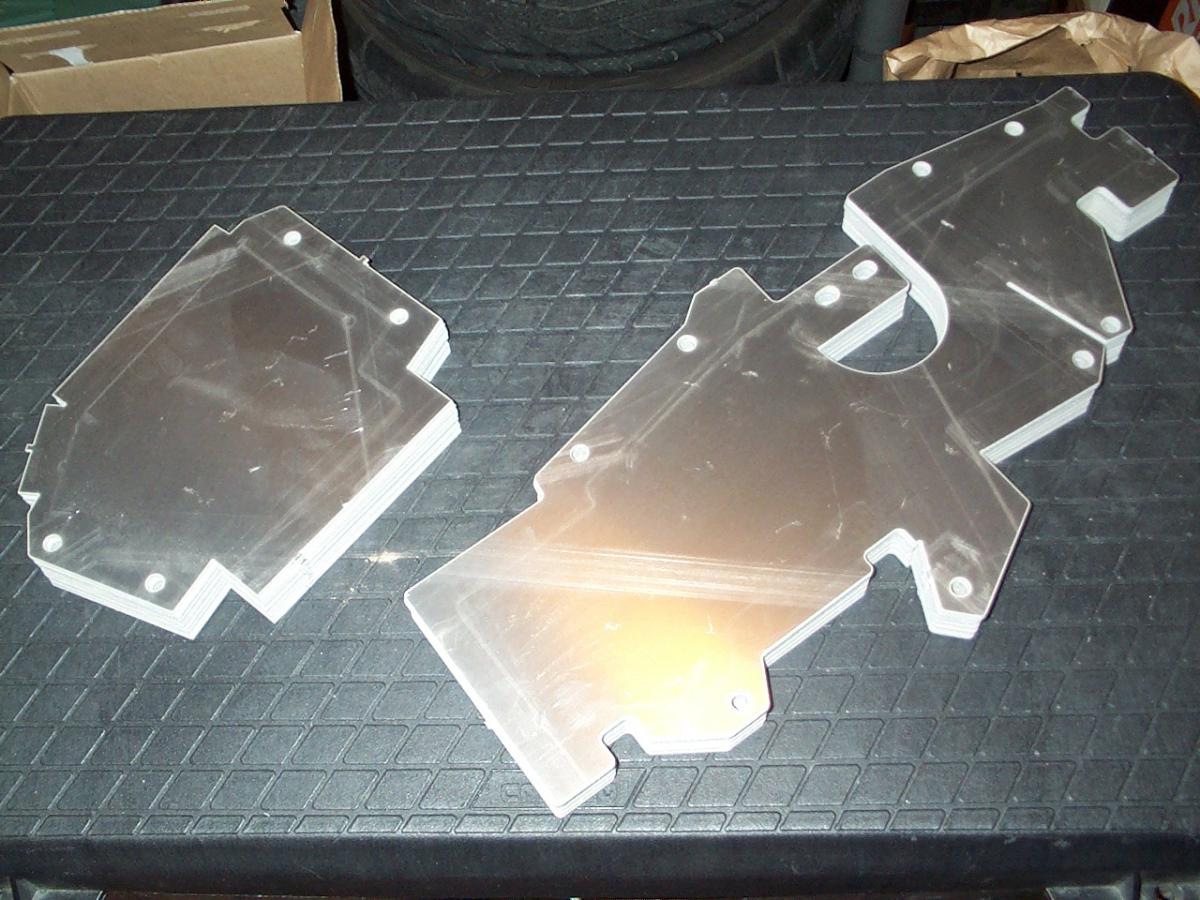

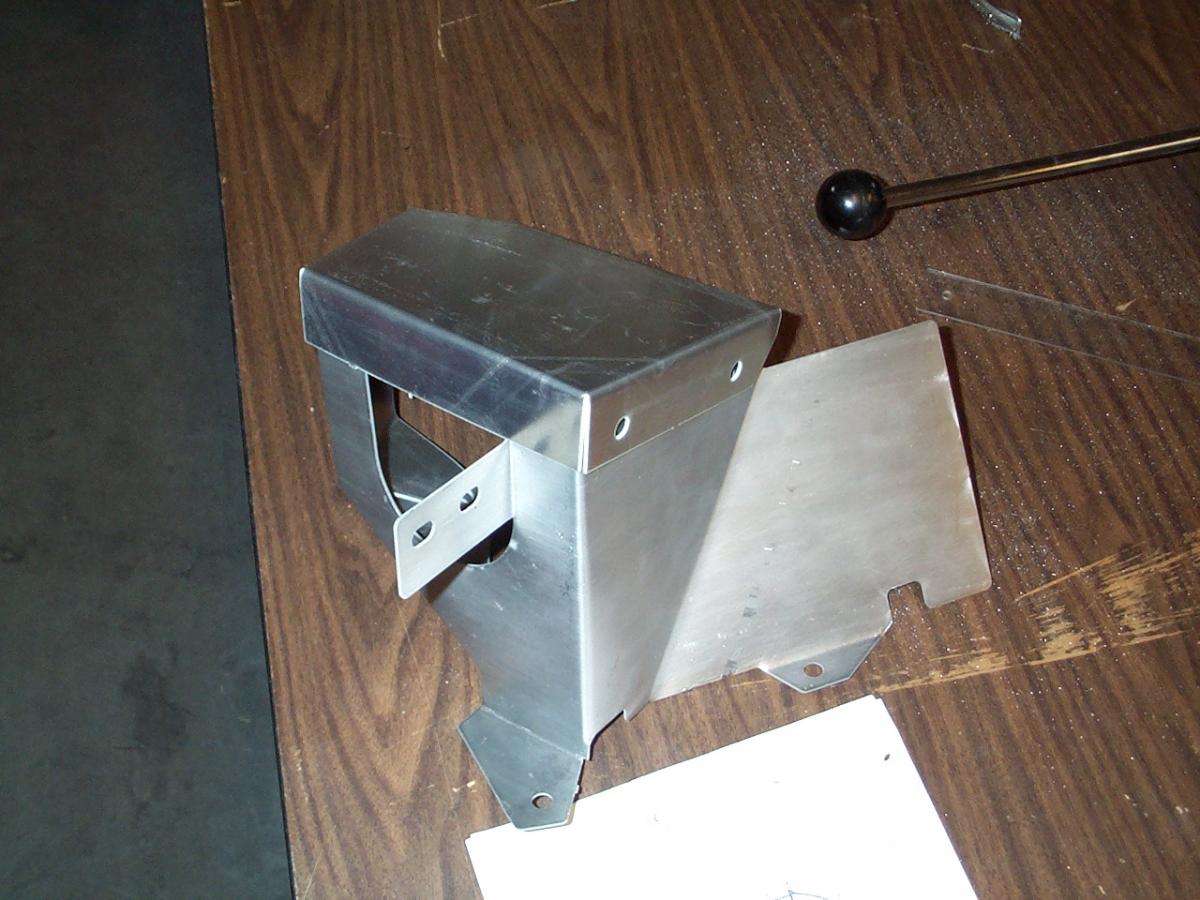

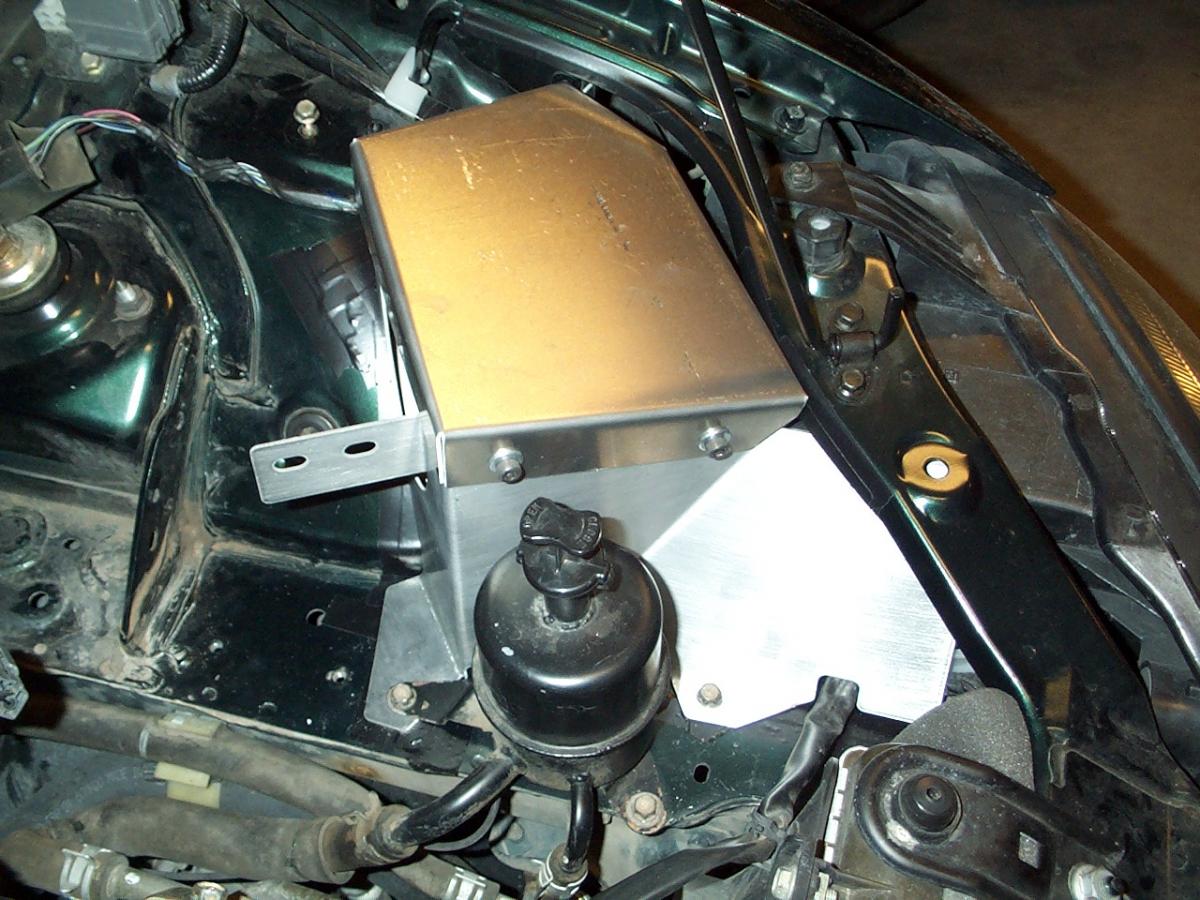

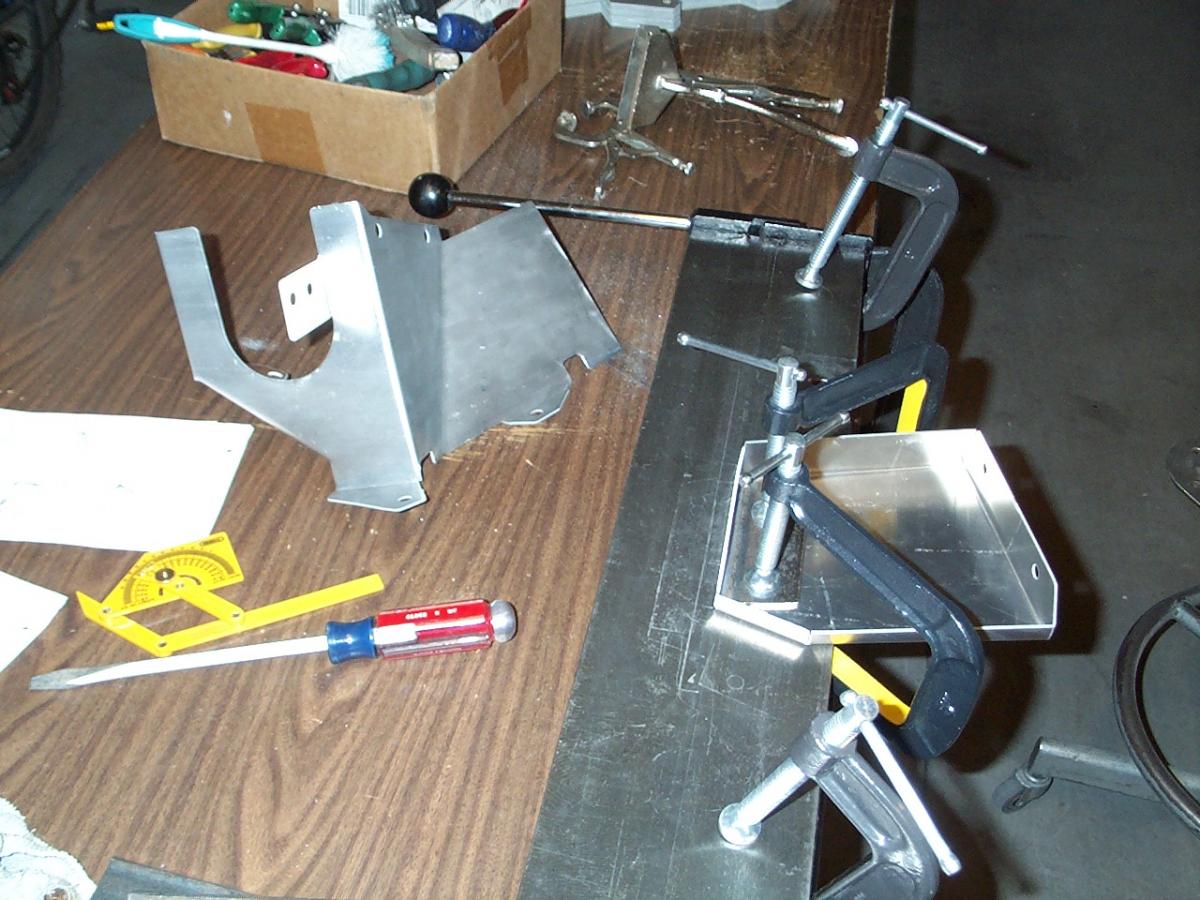

I also made my cold air box.
Attached Thumbnails
99mx5 EFR build-dcp_4471.jpg   99mx5 EFR build-dcp_4477.jpg   99mx5 EFR build-dcp_4478.jpg   99mx5 EFR build-dcp_4494.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 02:44 PM   #46
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,400
Total Cats: 777
Default

While the center console looks cool as ----, I am betting it will get hot as hell in the summer. Might want to watch out for that.
shuiend is online now   Reply With Quote
Old 02-04-2012, 02:50 PM   #47
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

It does, but I don't ever really touch it while driving the car. I'd like to get it powdercoated because it does shine and reflect light when the sun hits it.

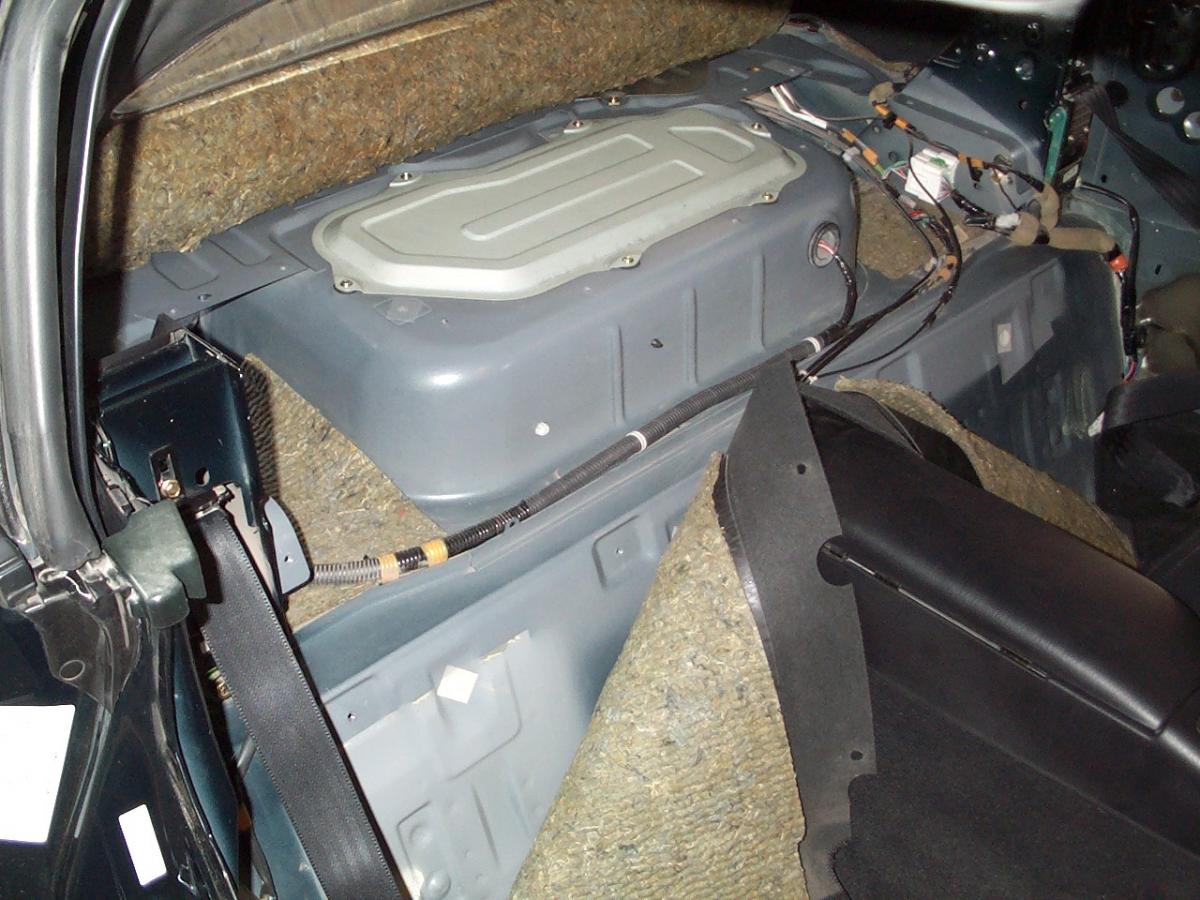

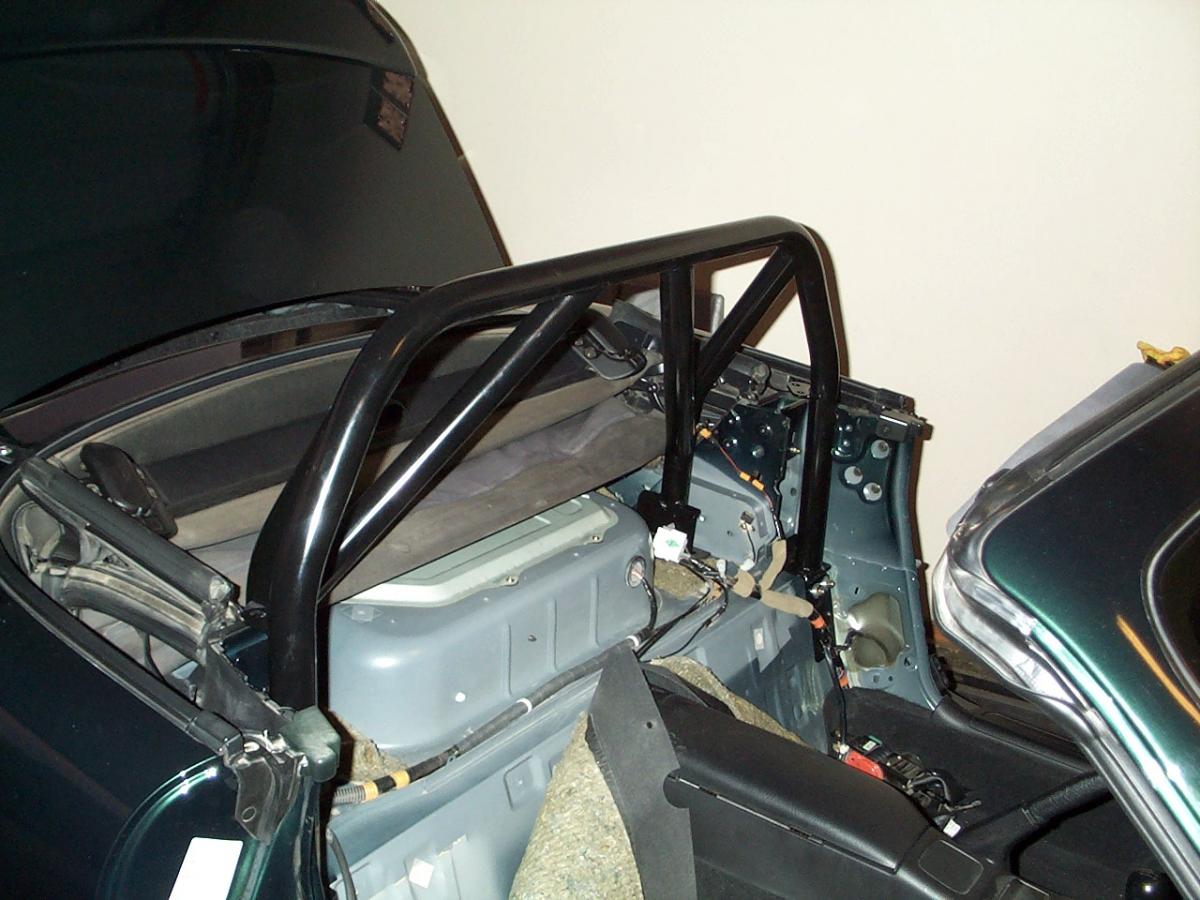

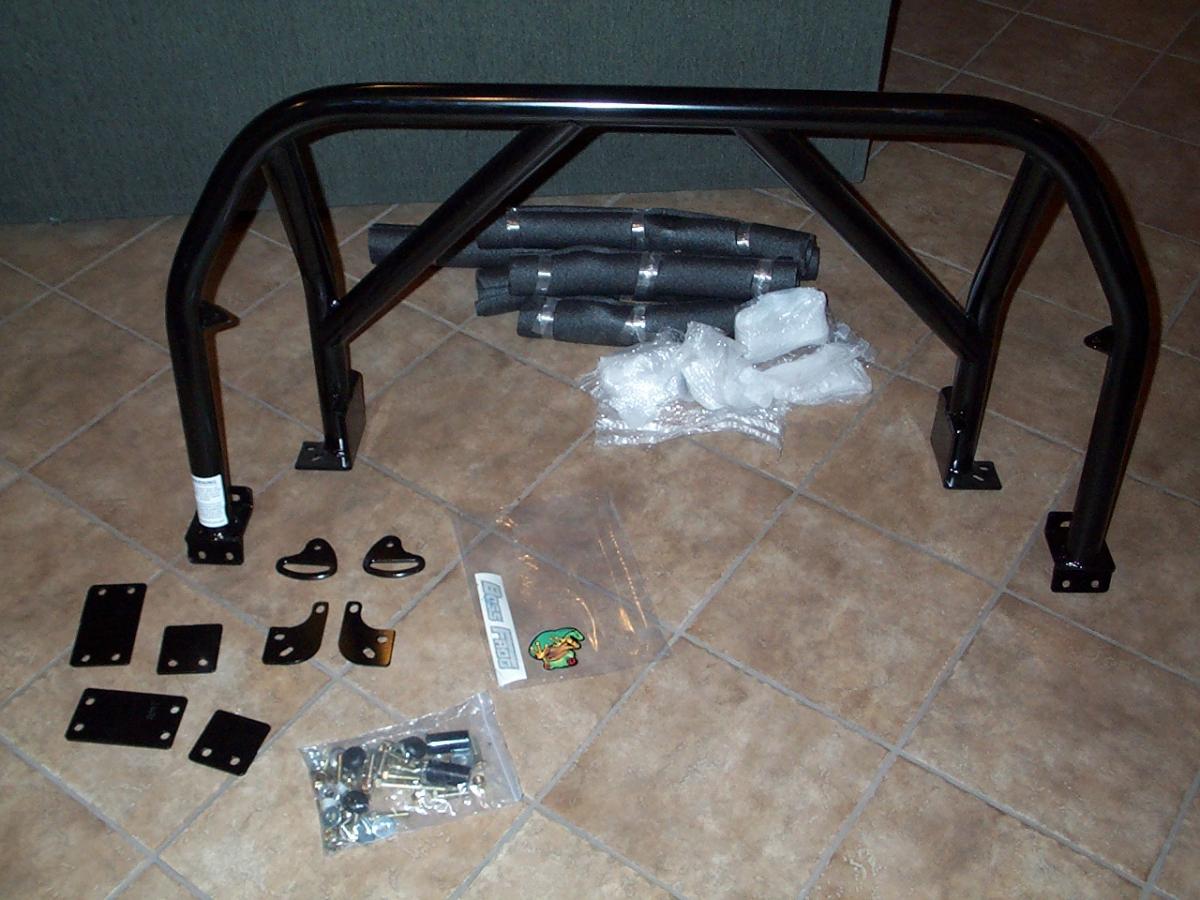

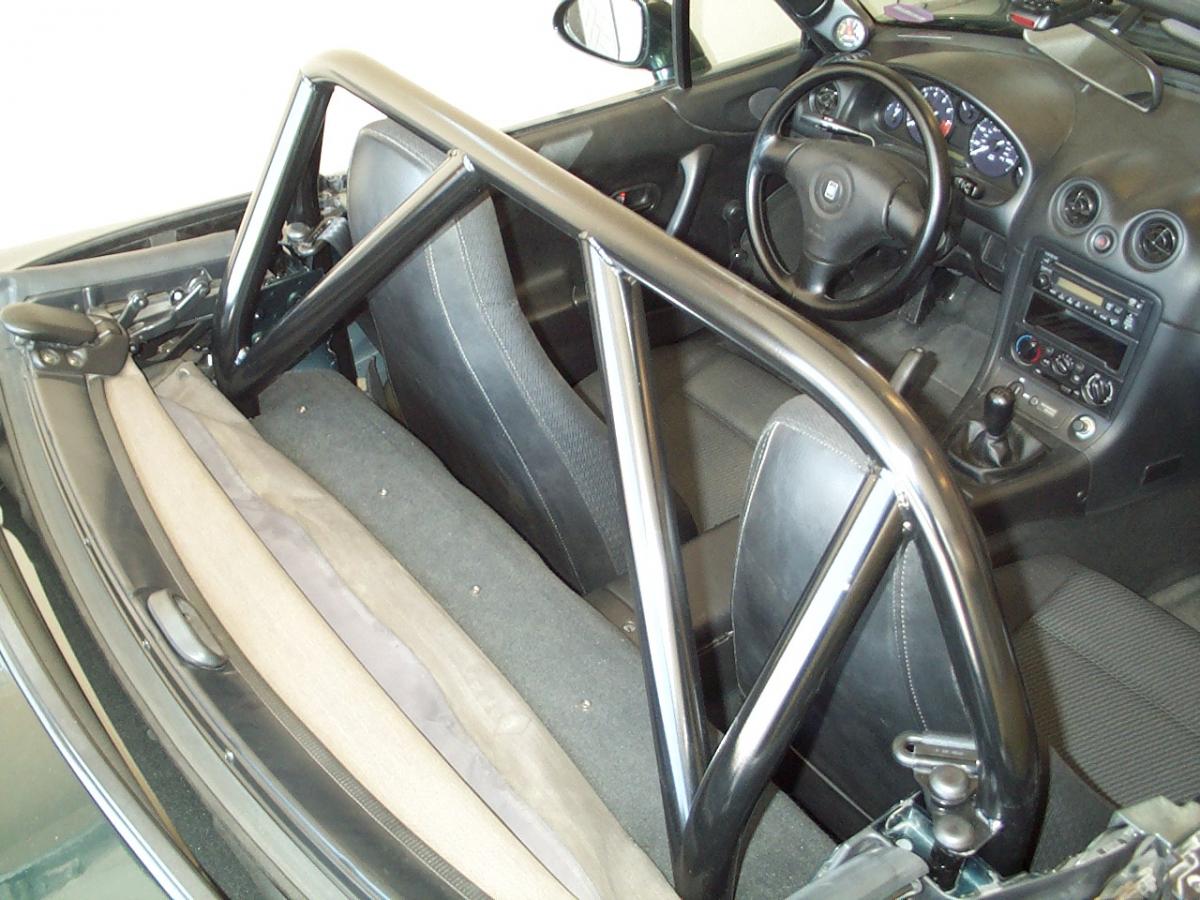

Here is my Boss Frog Clearview rollbar install.
Attached Thumbnails
99mx5 EFR build-dcp_4003.jpg   99mx5 EFR build-dcp_4012.jpg   99mx5 EFR build-dcp_4017.jpg   99mx5 EFR build-dcp_4021.jpg   99mx5 EFR build-dcp_4038.jpg

99mx5 is offline   Reply With Quote
Old 02-04-2012, 02:53 PM   #48
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

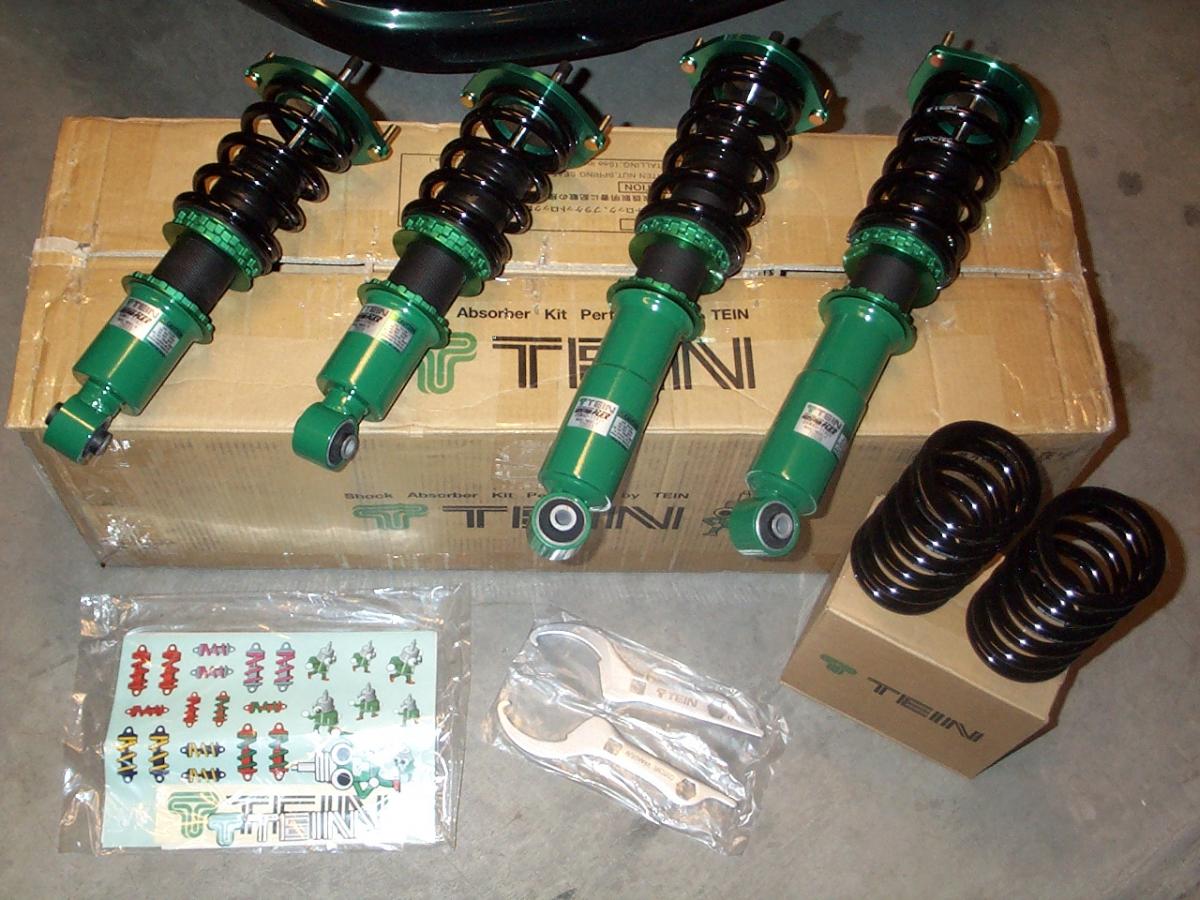

Tein Flex with 9kg/6kg springs.
Attached Thumbnails
99mx5 EFR build-dcp_3947.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:03 PM   #49
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

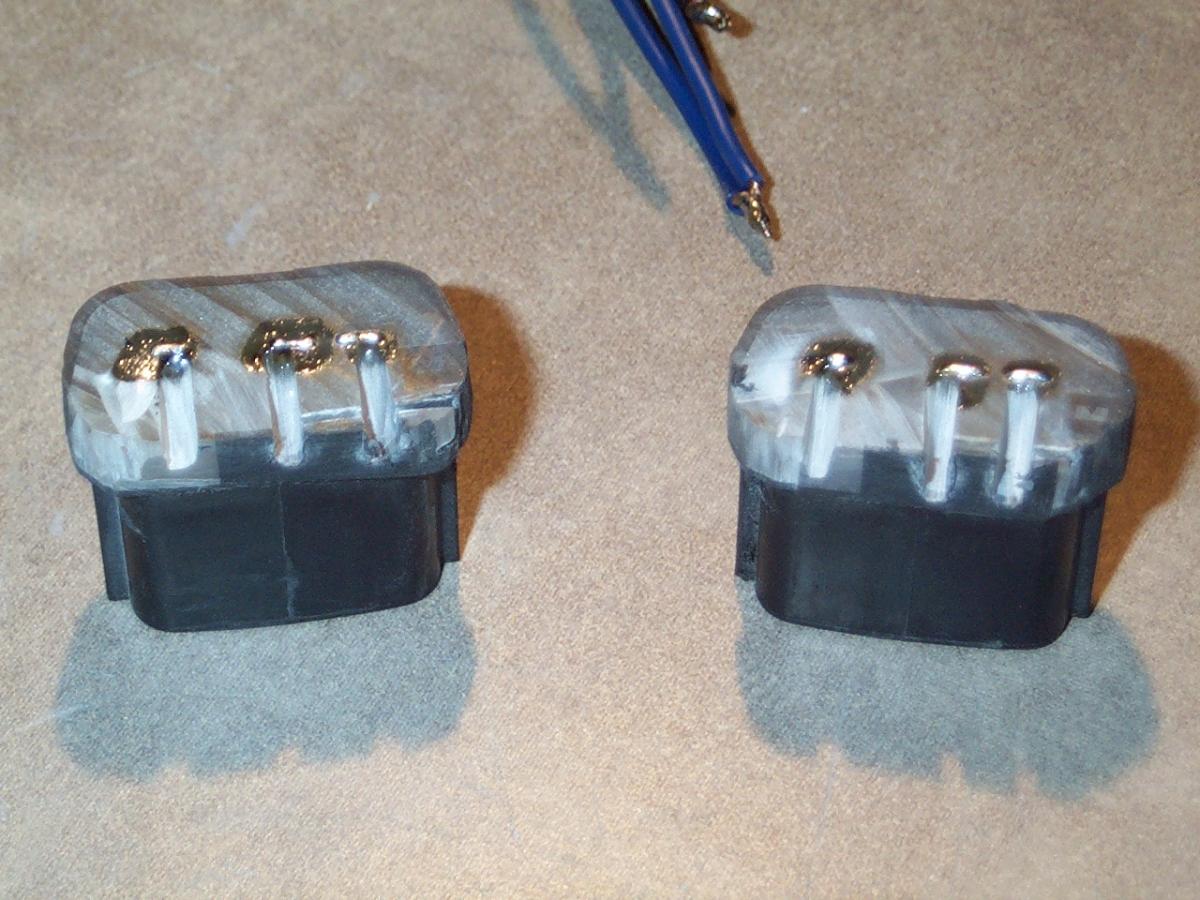

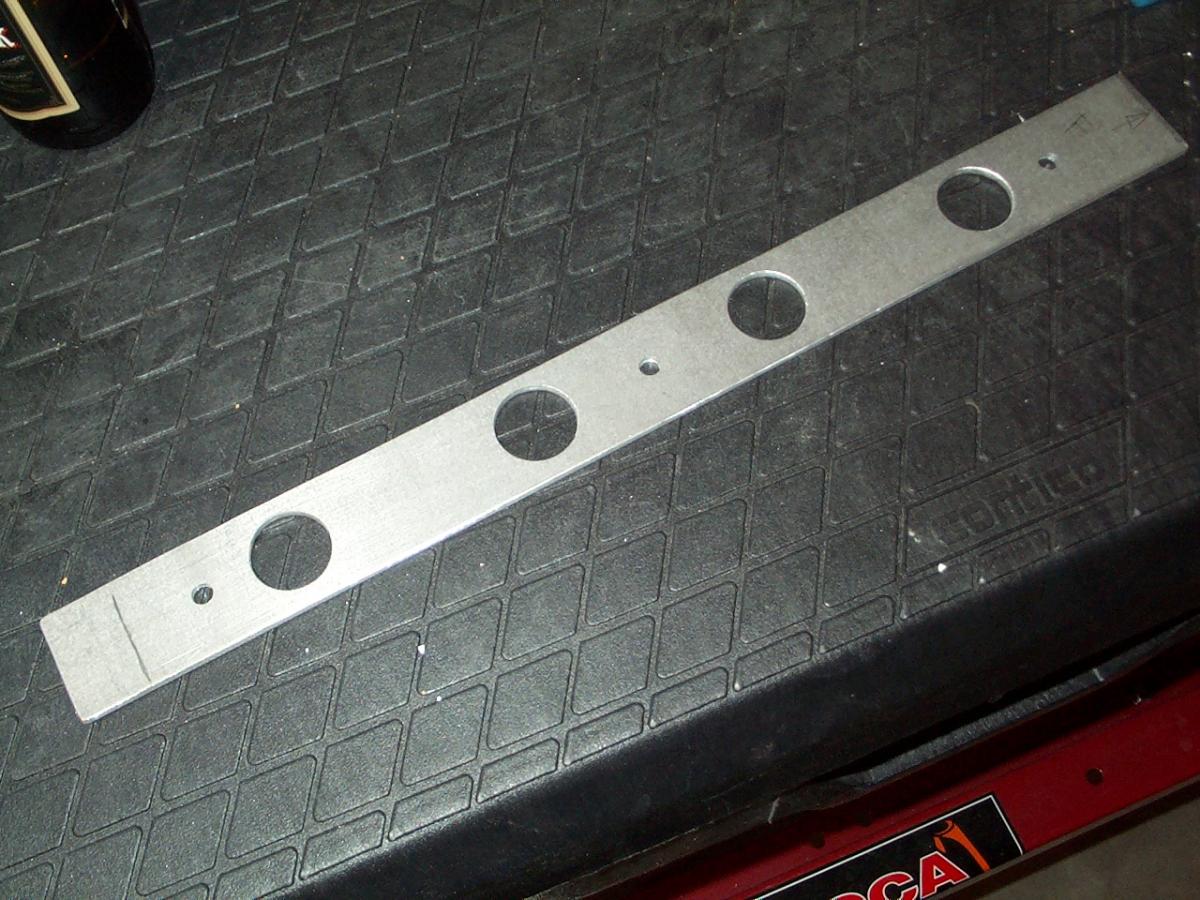

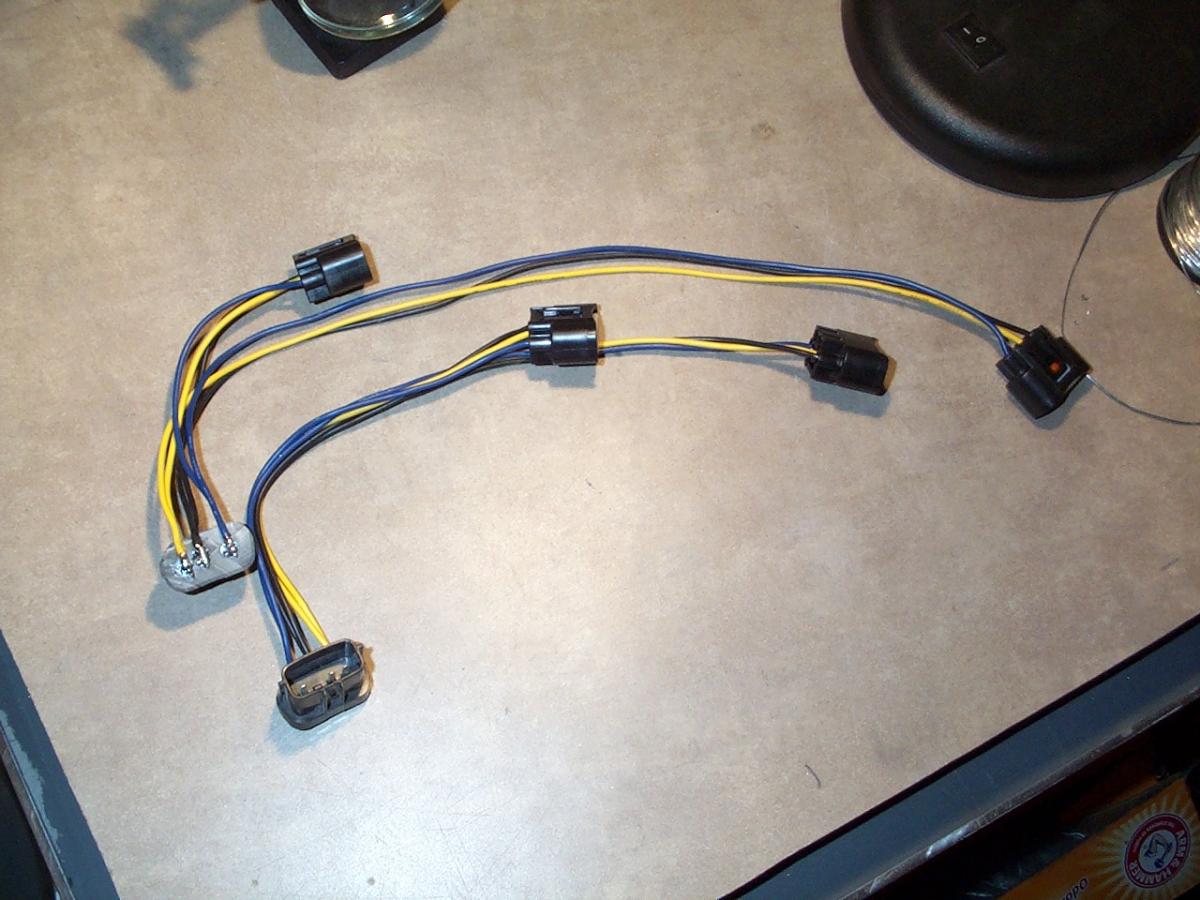

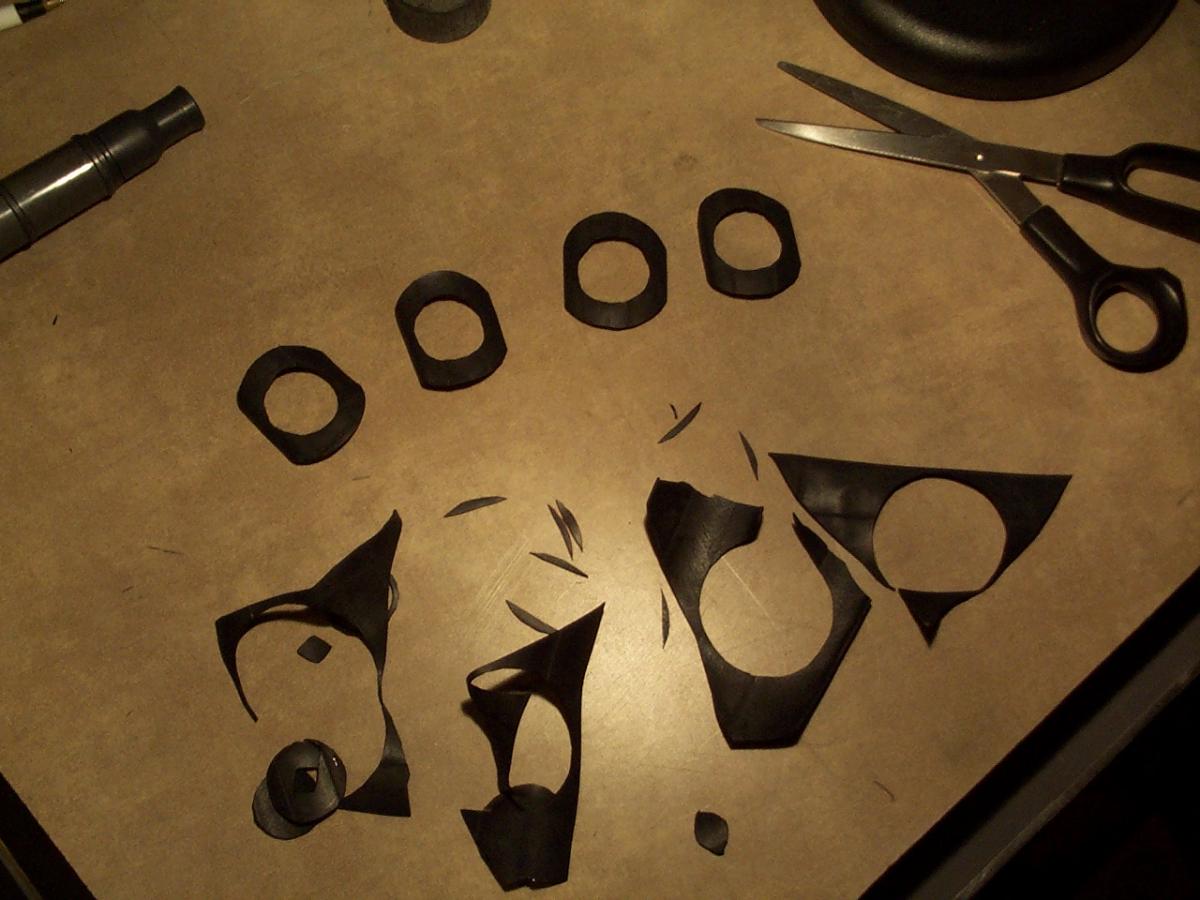

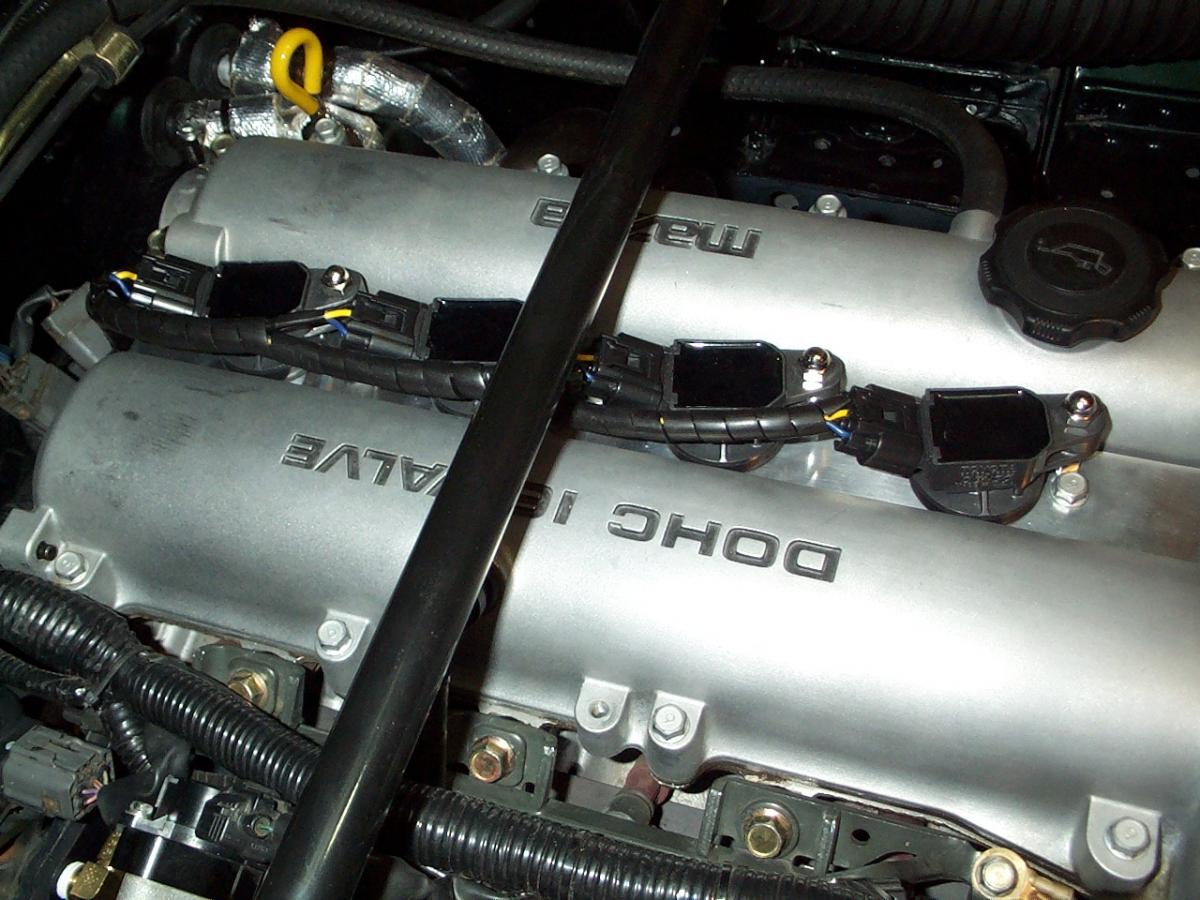

Here is my Toyota coil on plug install.

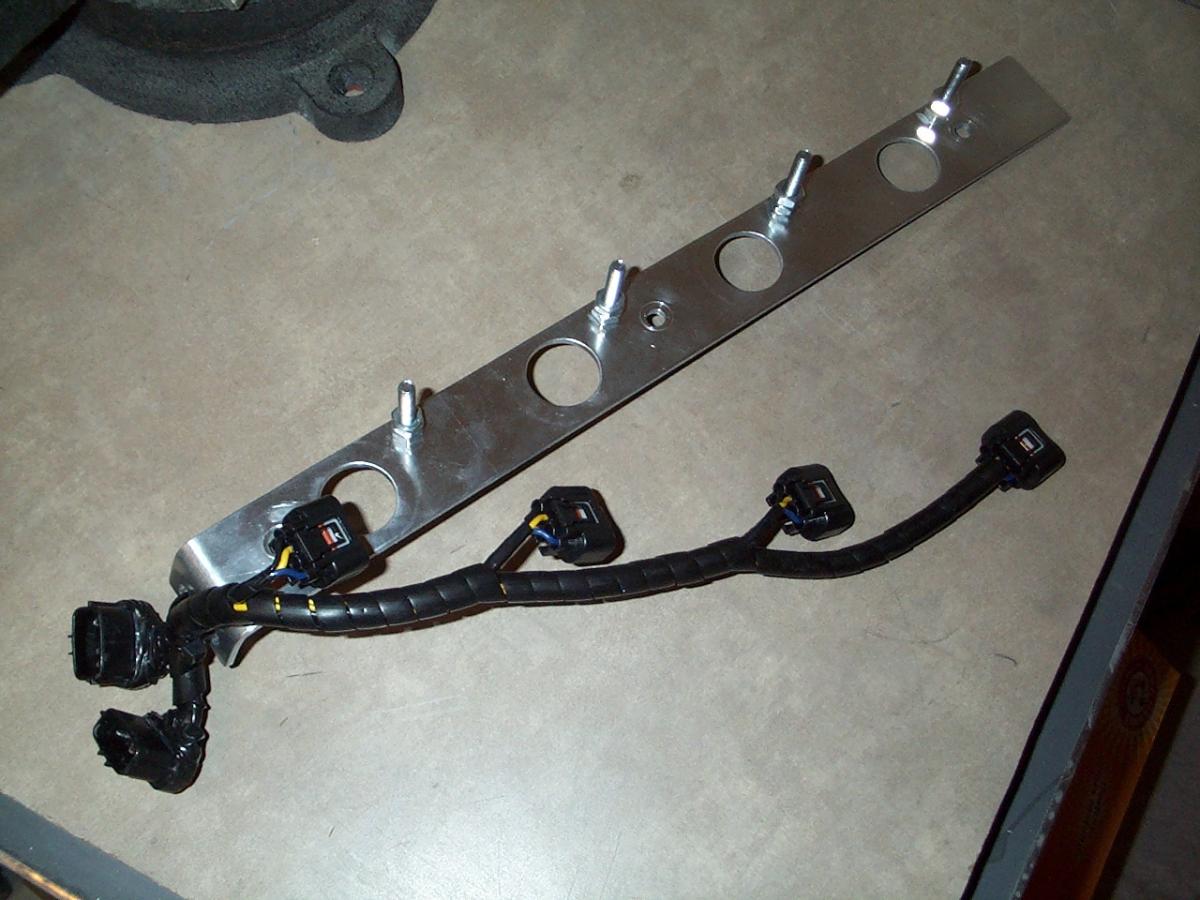

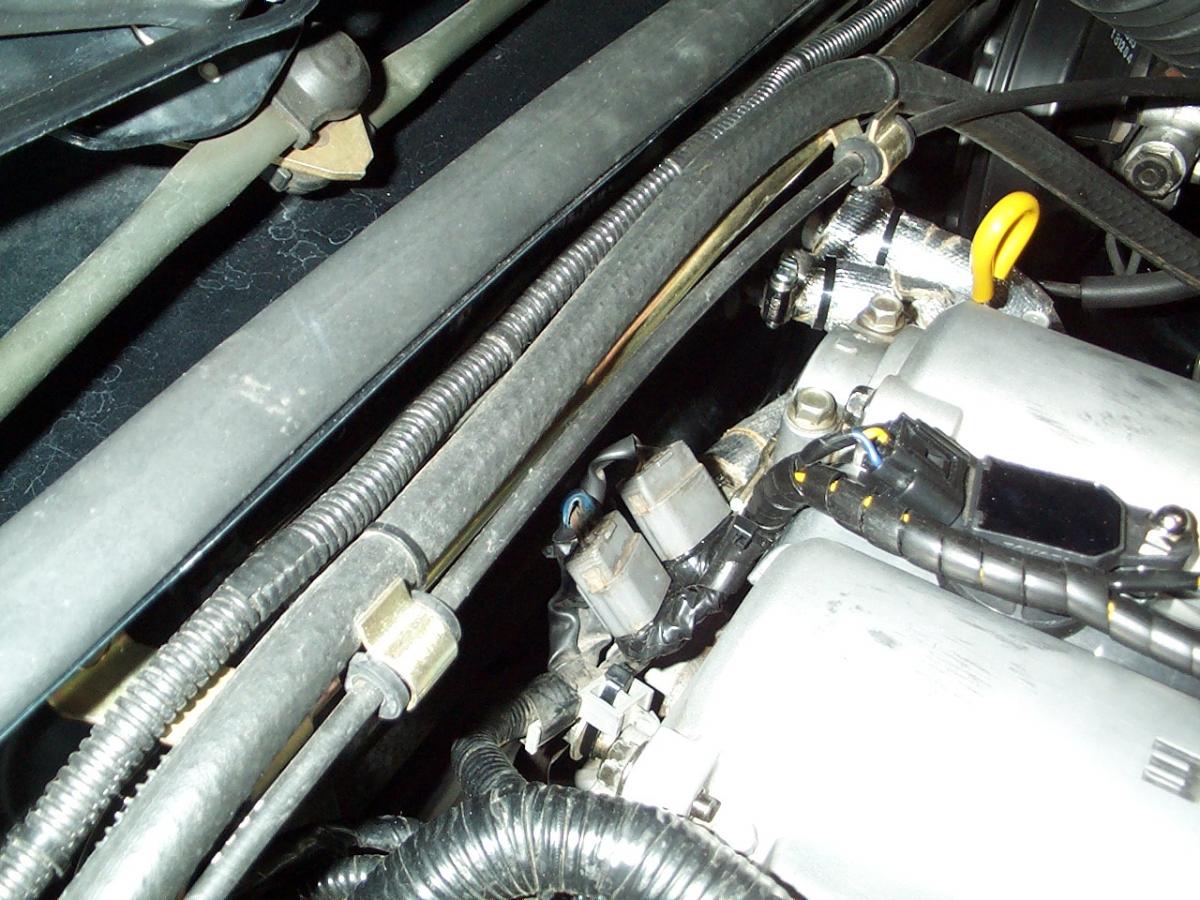

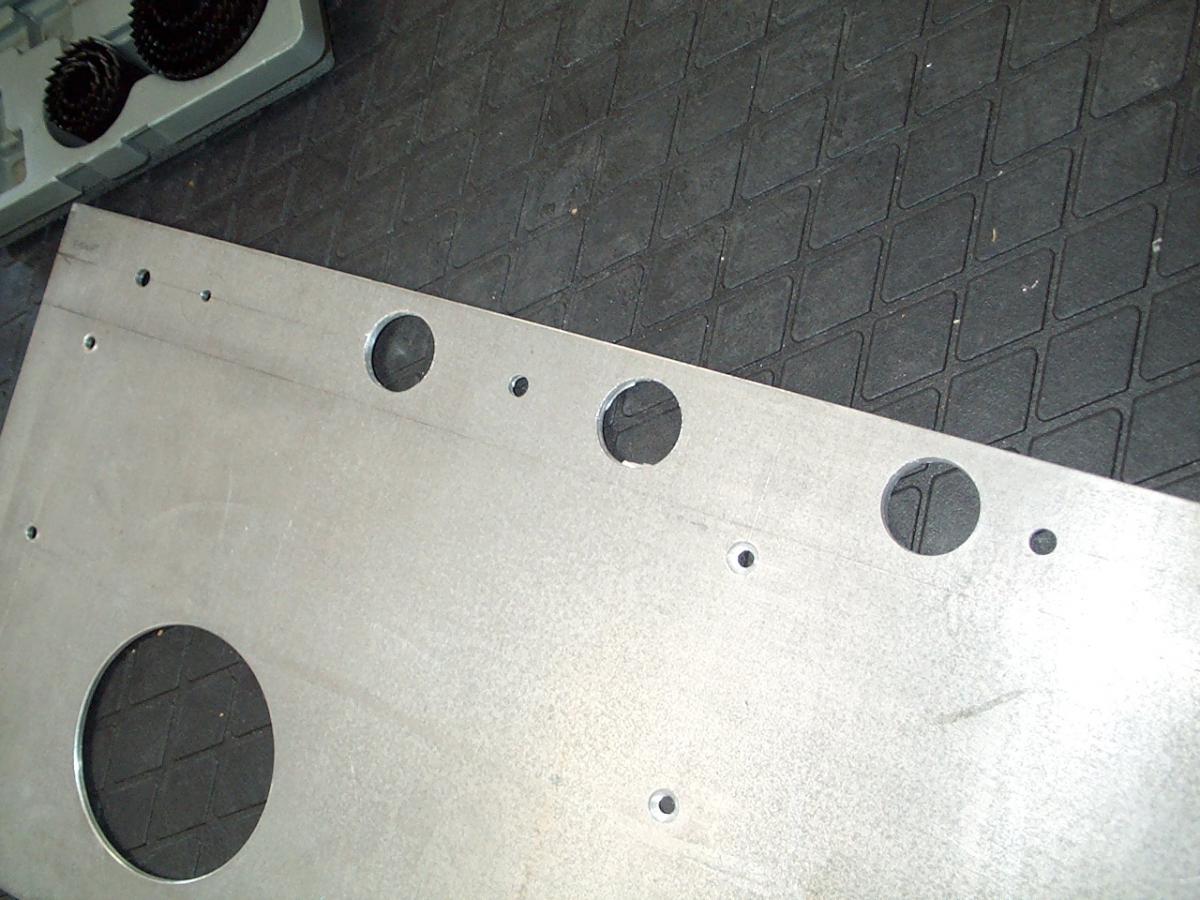

I used damaged coils to make a plug and play harness for the COPs. I made my own mounting bracket for the coils and bolted them on. the setup plug into the factory engine harness. I also made rubber seals to seal the bracket once its bolted onto the engine.
Attached Thumbnails
99mx5 EFR build-dcp_4132.jpg   99mx5 EFR build-dcp_4140.jpg   99mx5 EFR build-dcp_4145.jpg   99mx5 EFR build-dcp_4146.jpg   99mx5 EFR build-dcp_4148.jpg

99mx5 EFR build-dcp_4153.jpg   99mx5 EFR build-dcp_4181.jpg   99mx5 EFR build-dcp_4186.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:07 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,416
Total Cats: 2,034
Default

this keeps getting better and better.
can't wait for results
18psi is offline   Reply With Quote
Old 02-04-2012, 03:09 PM   #51
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

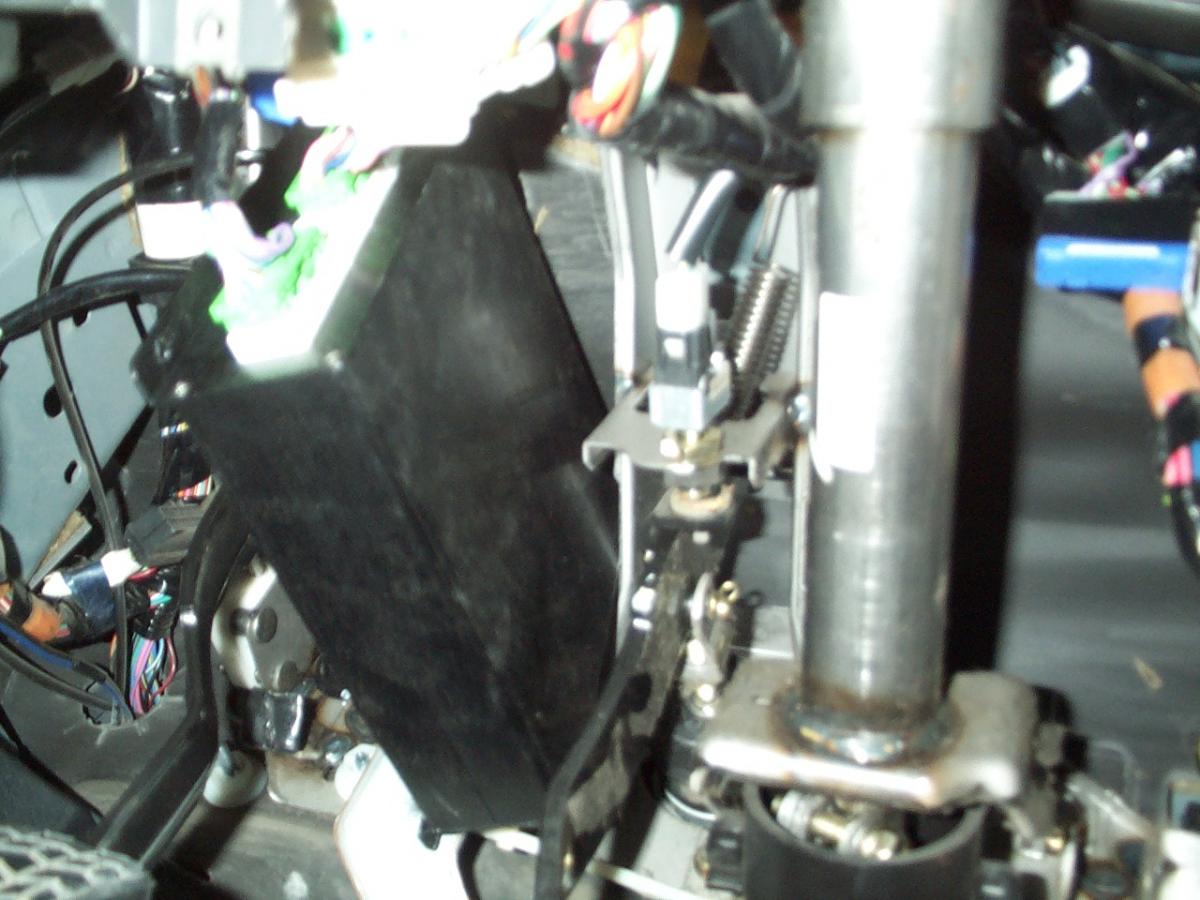

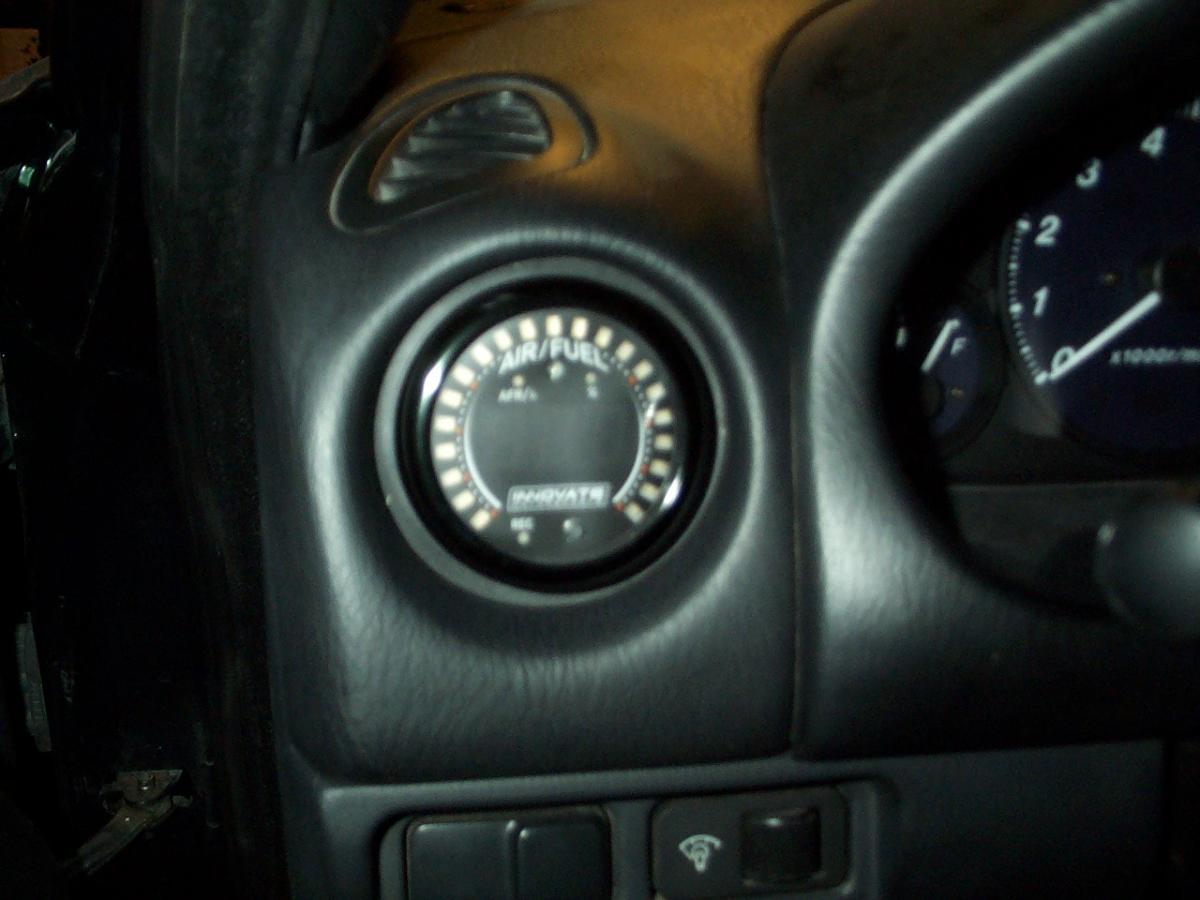

I installed a Innovate Motorsports LC-1 with XD-16 gauge in the vent hole of the dash and a Enhanced-DIYPNP. I have a hidden serial cable in the dash that come out at the passenger side of the center console for the laptop when I tune it.
Attached Thumbnails
99mx5 EFR build-dcp_4694.jpg   99mx5 EFR build-dcp_4696.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:12 PM   #52
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

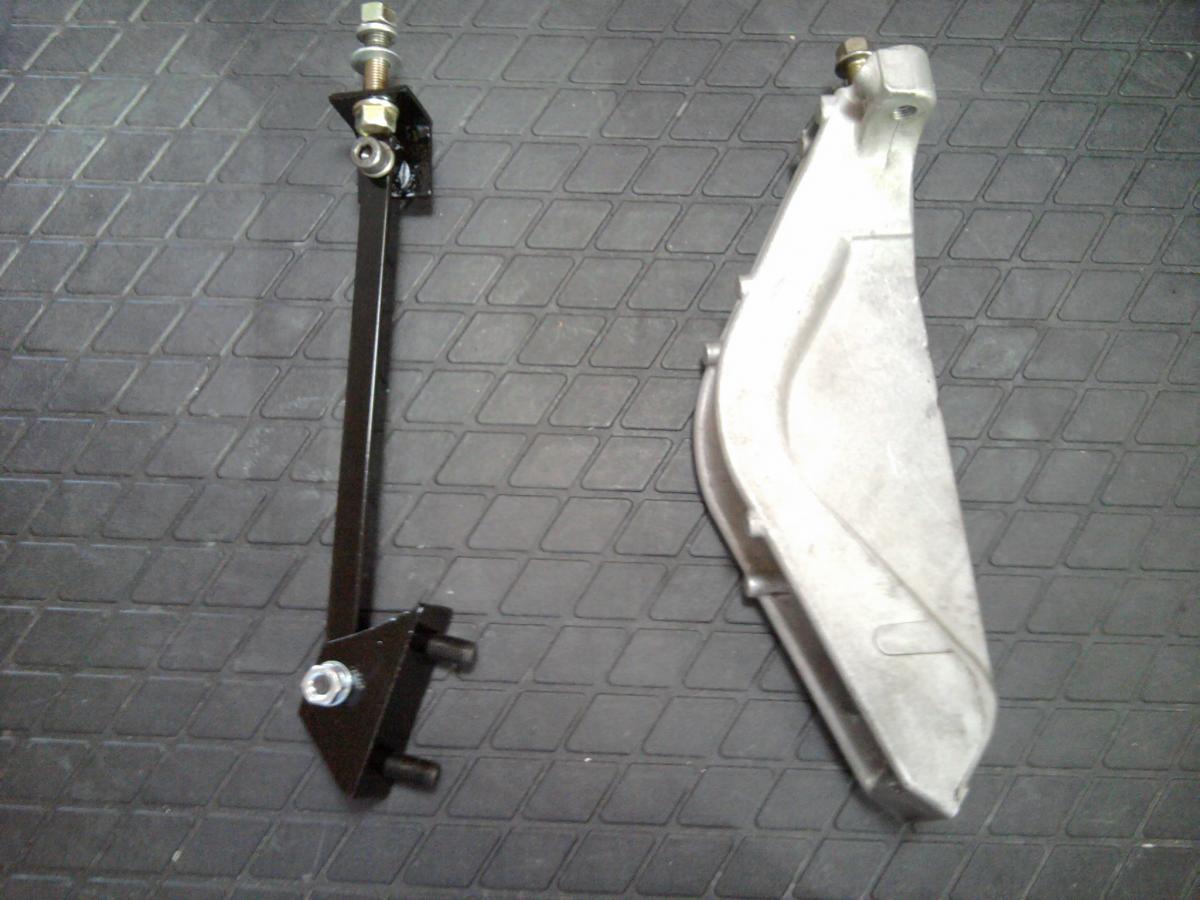

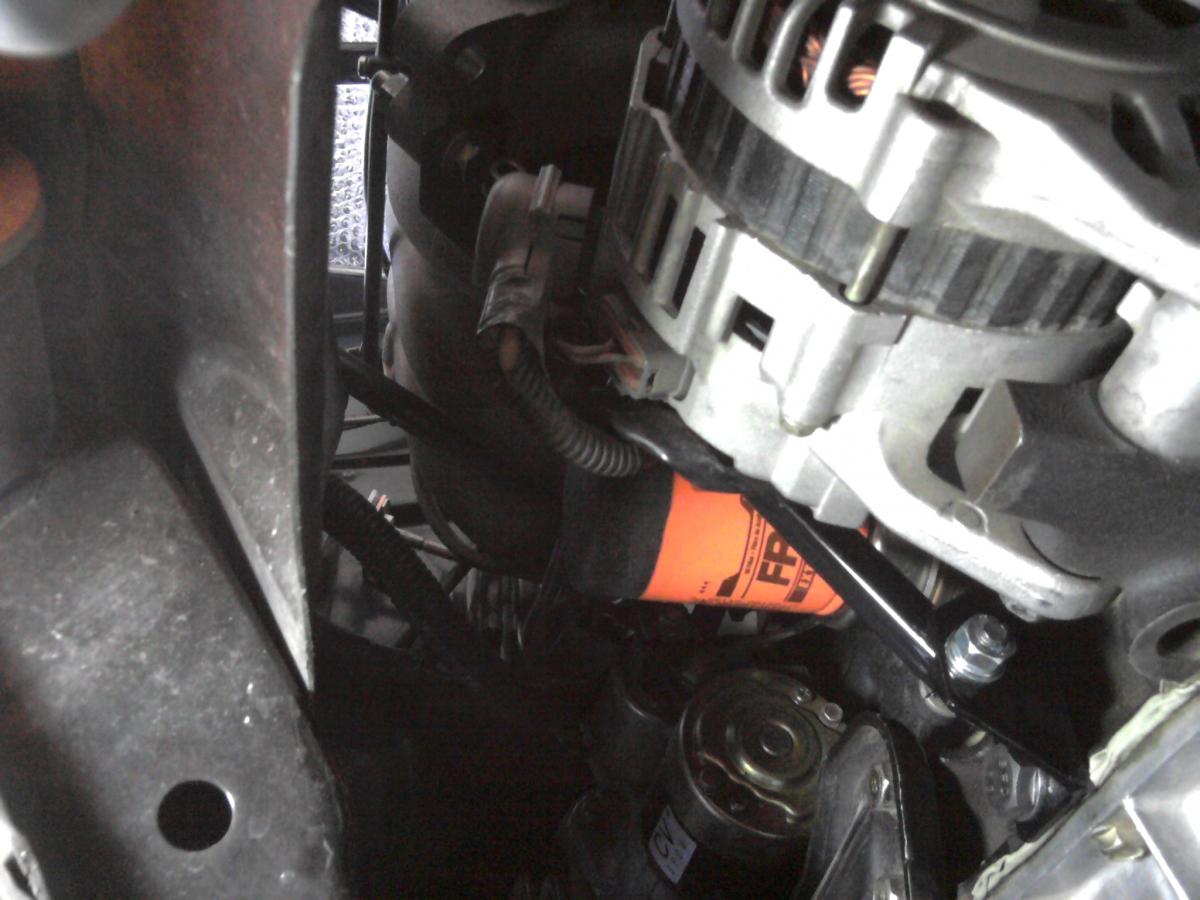

I also made a smaller intake support brace to replace the factory one. It makes oil changes easier.
Attached Thumbnails
99mx5 EFR build-img_20110706_181051.jpg   99mx5 EFR build-img_20110706_183933.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:19 PM   #53
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

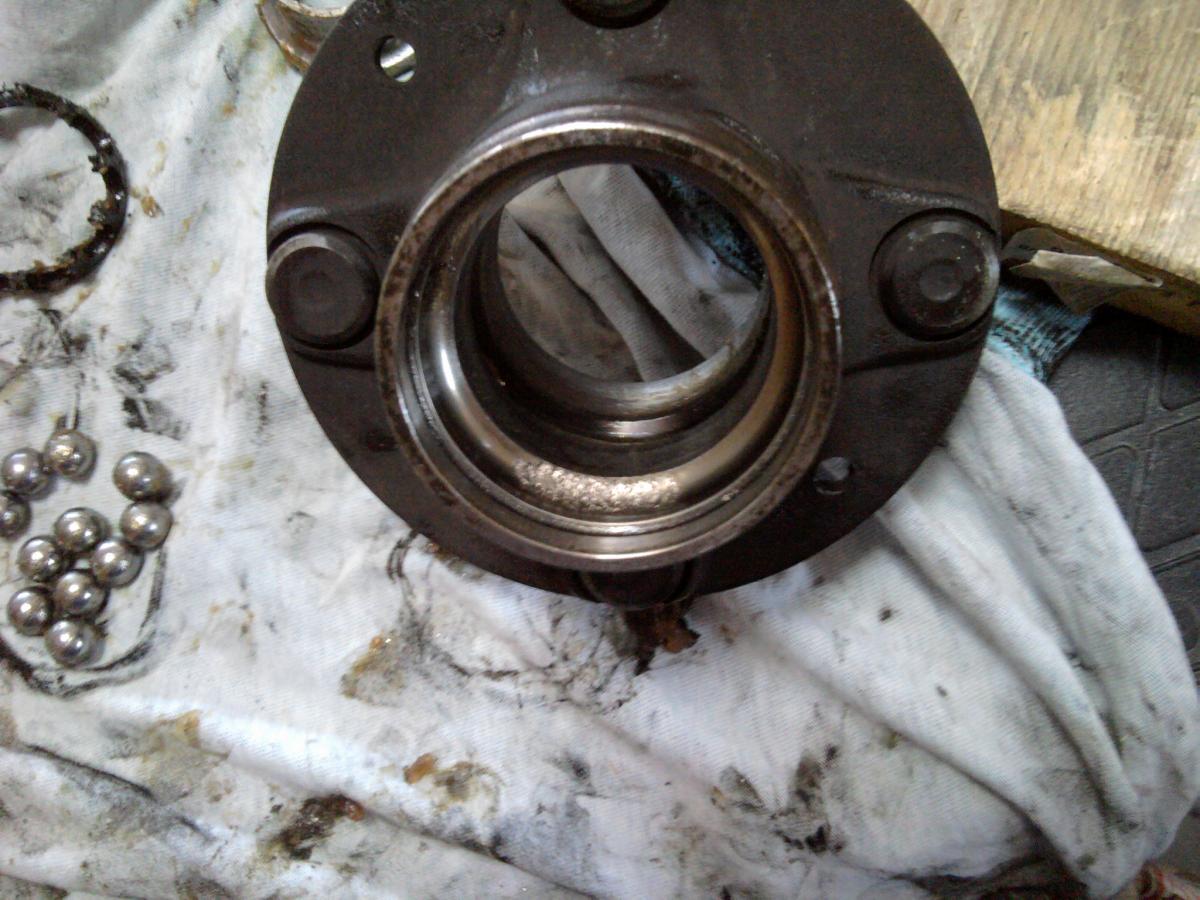

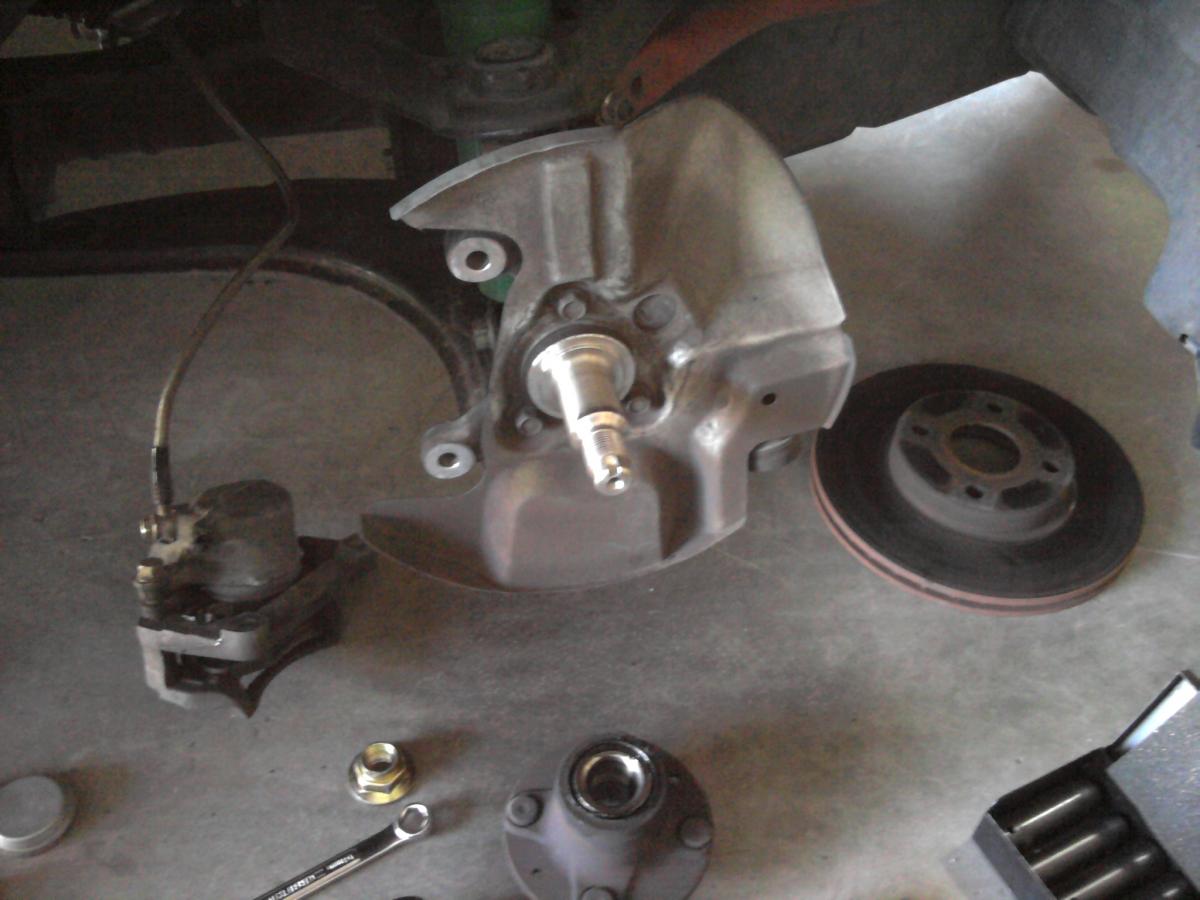

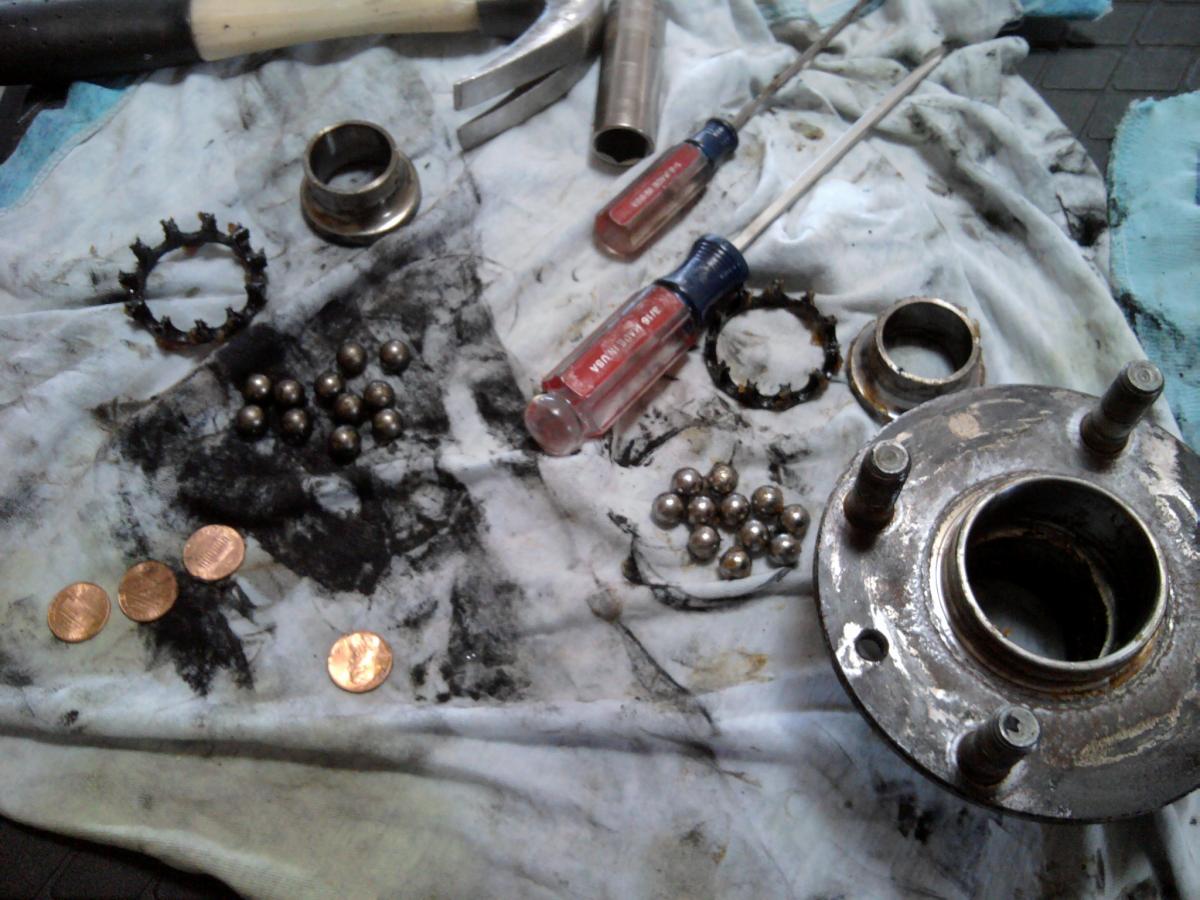

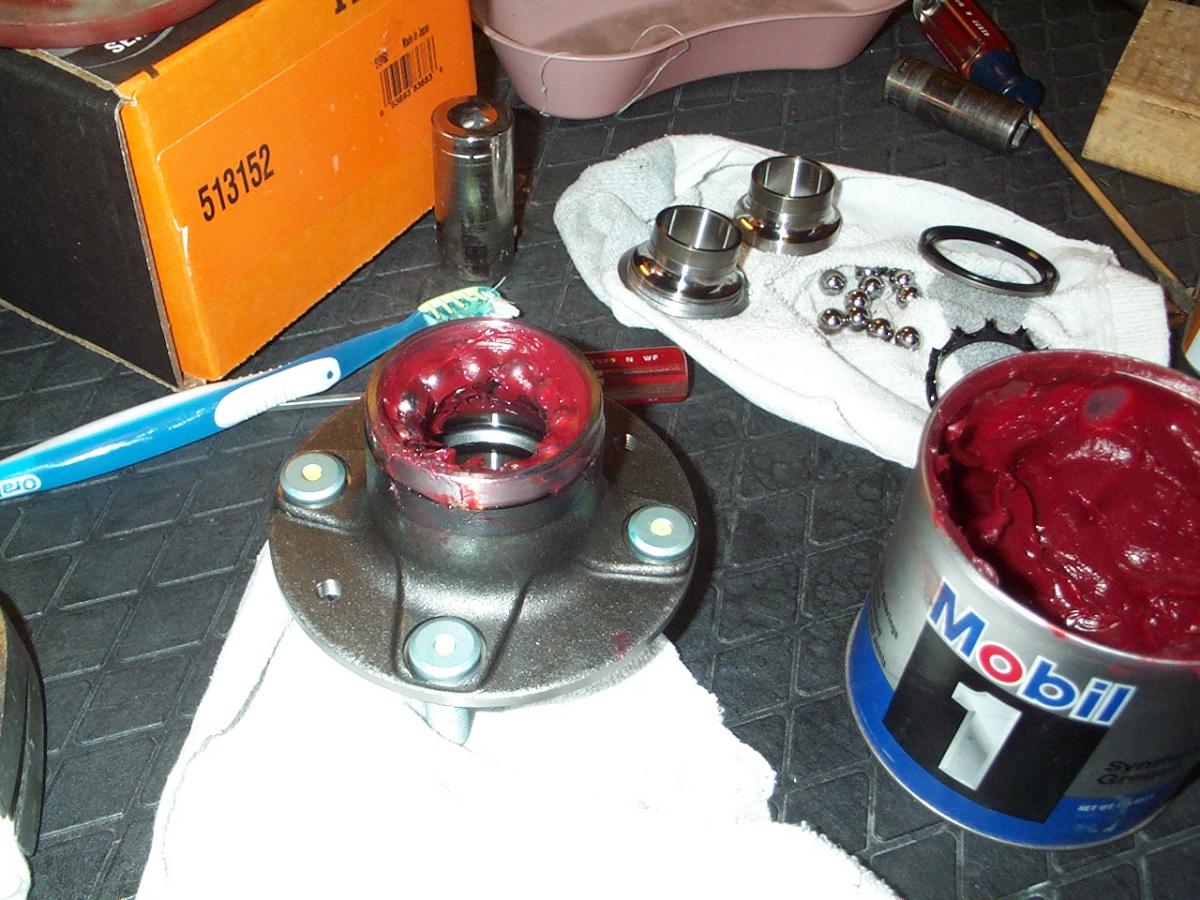

I bought new front hubs and repacked them with high temp grease. I practiced it by disassembling the old one first.
Attached Thumbnails
99mx5 EFR build-img_20110604_180018.jpg   99mx5 EFR build-img_20110604_181317.jpg   99mx5 EFR build-img_20110604_182454.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:27 PM   #54
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

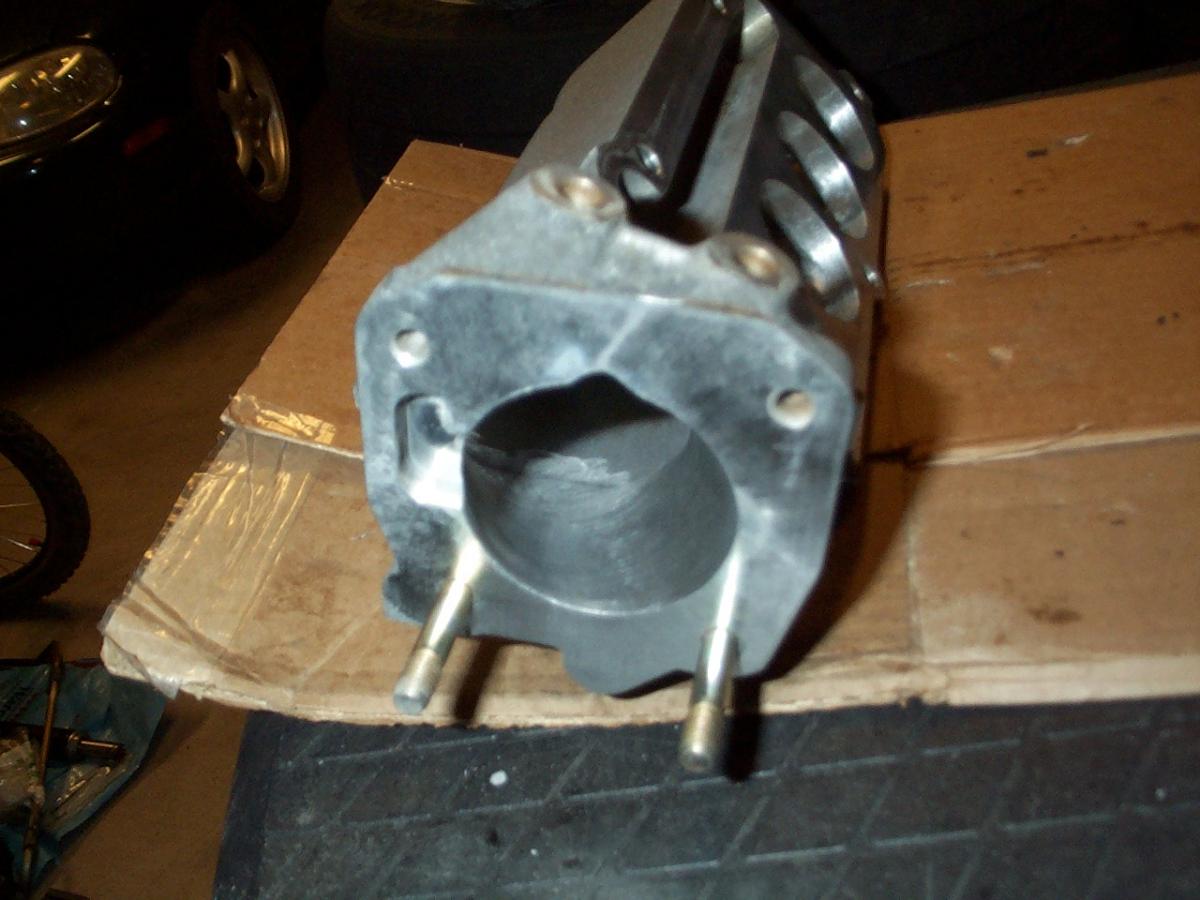

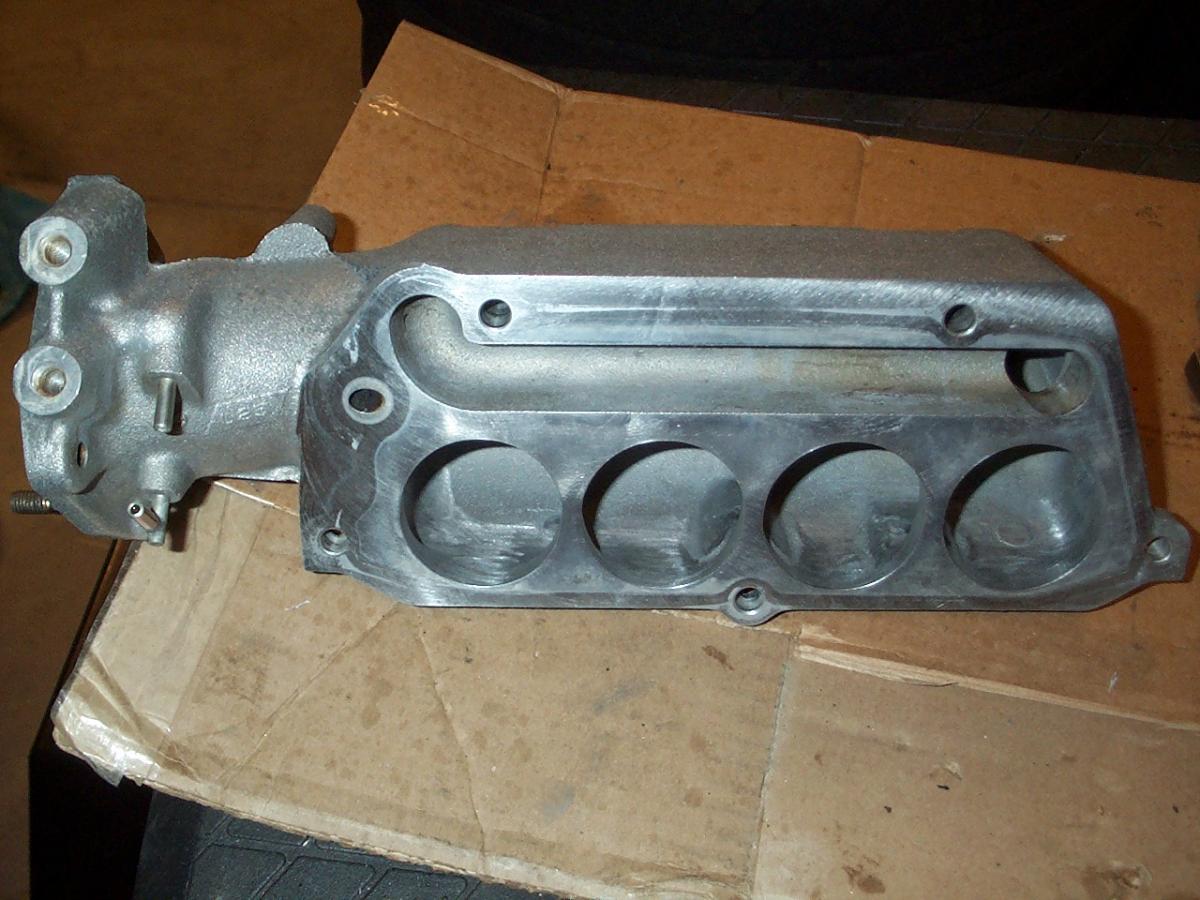

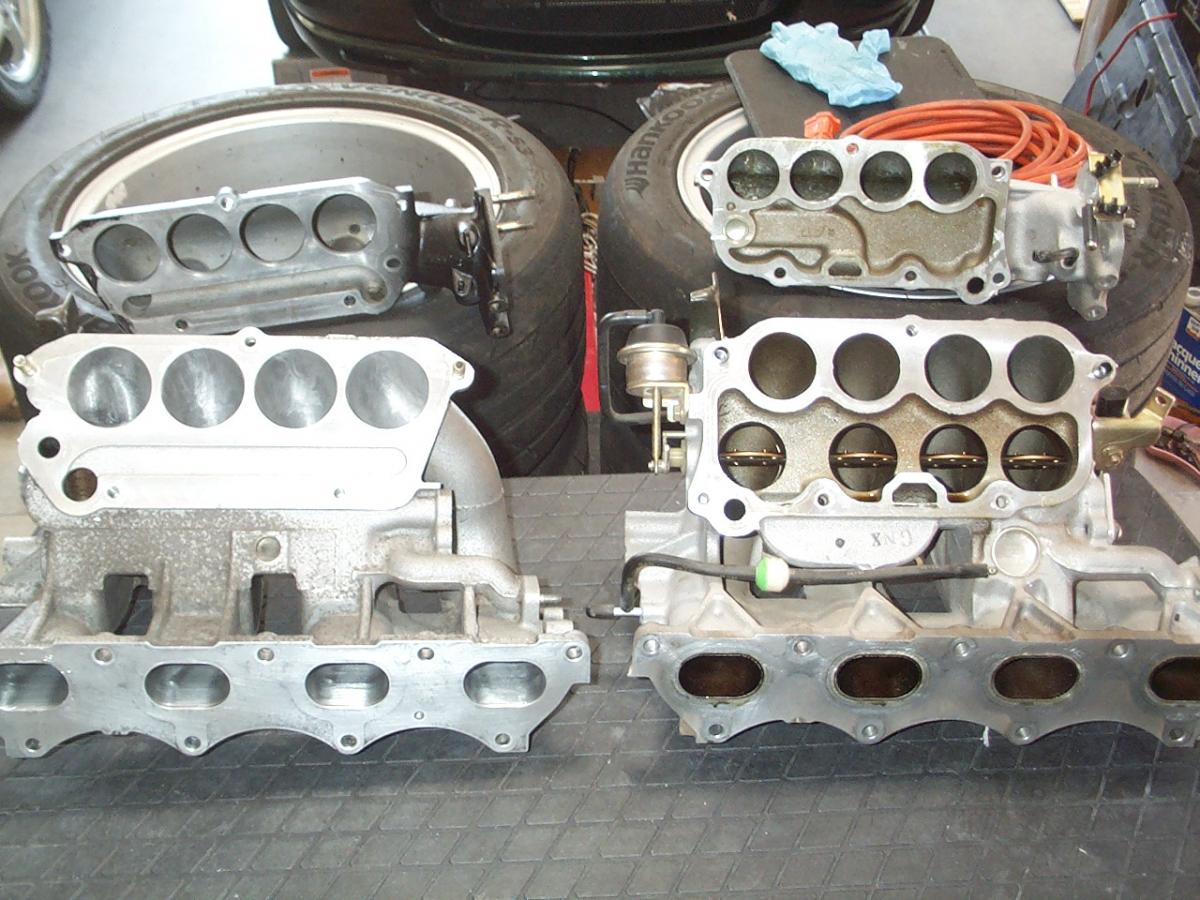

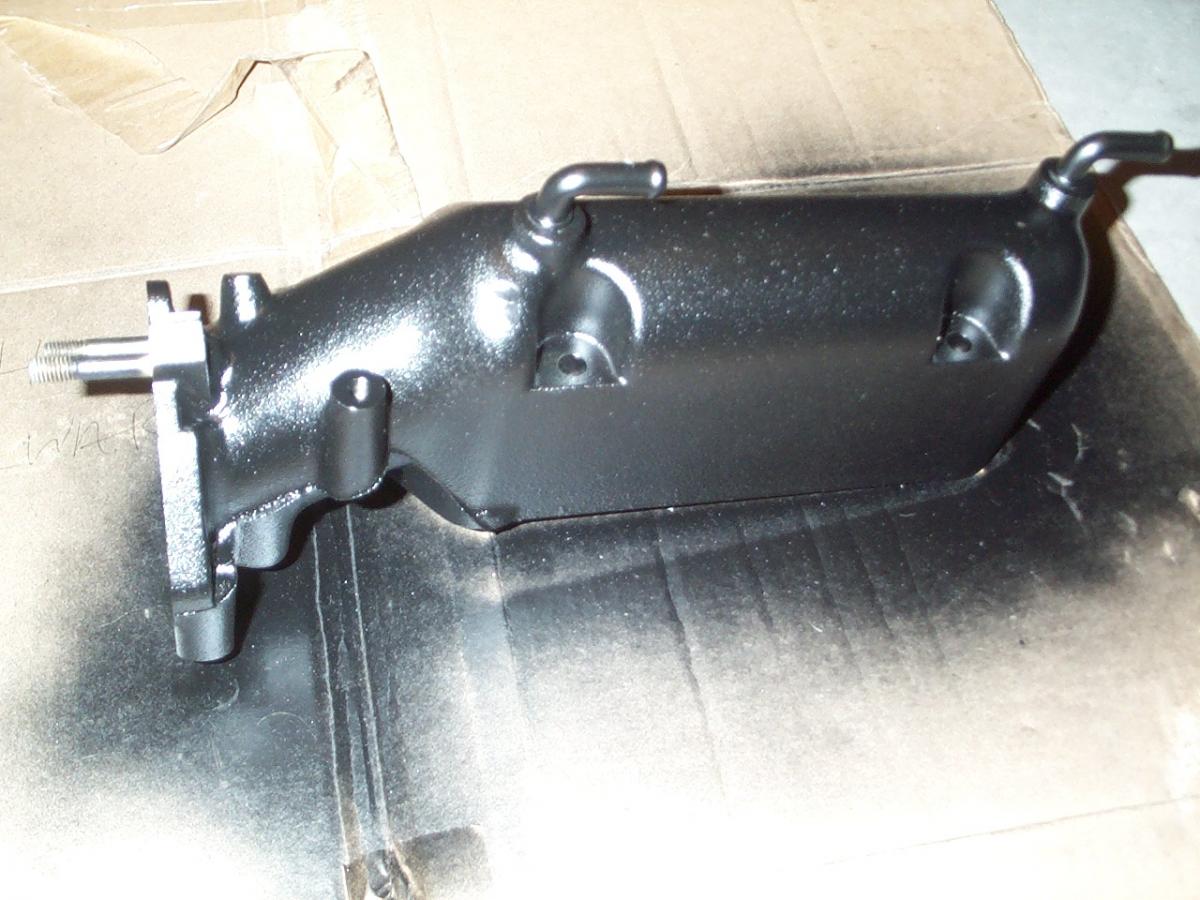

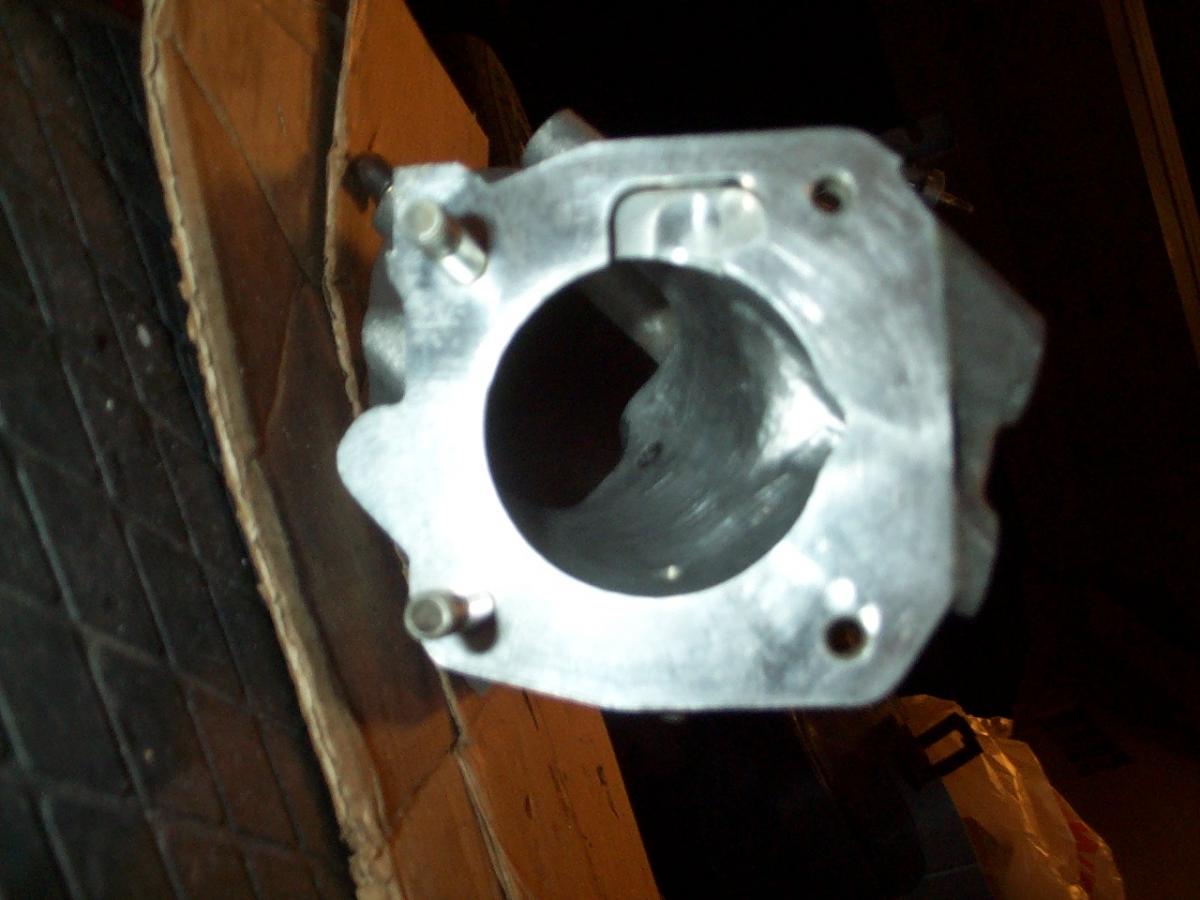

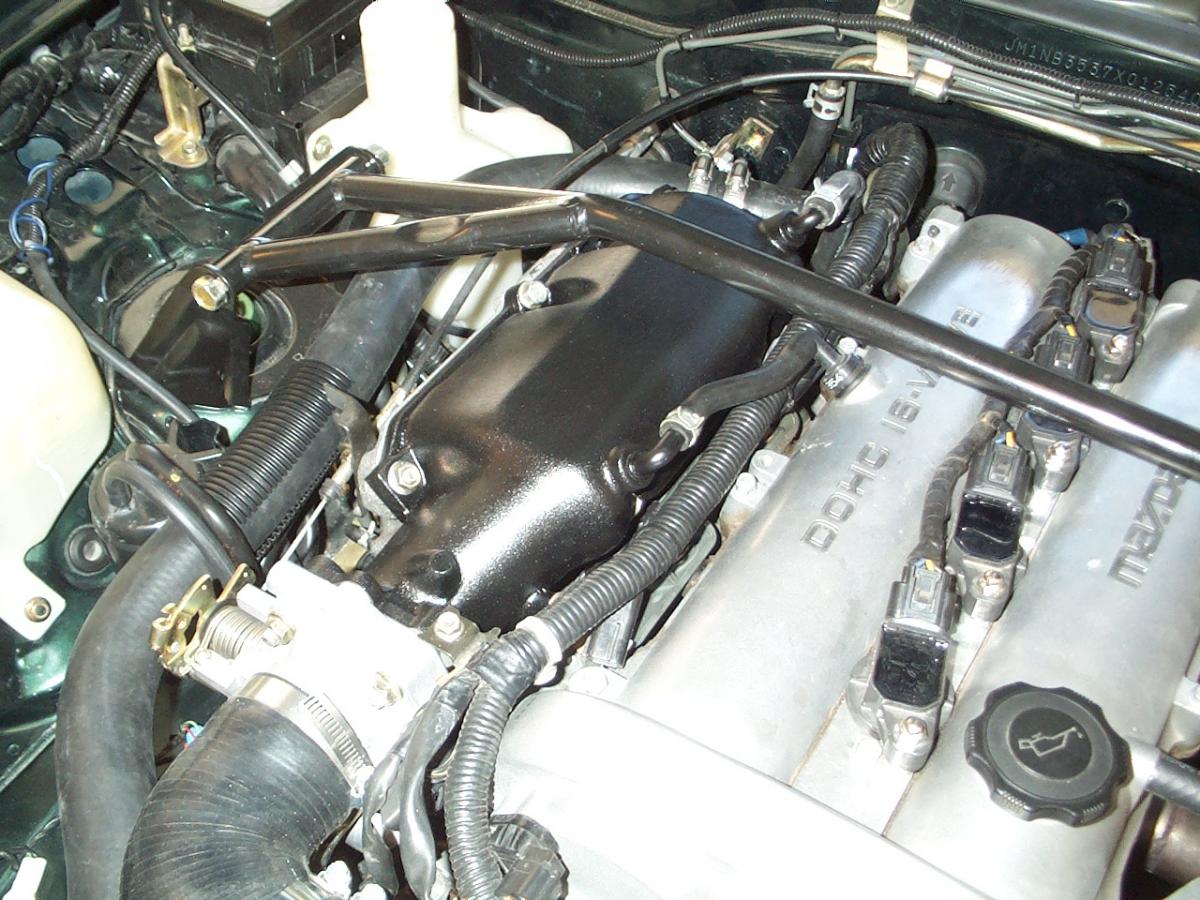

Squaretop intall. I smoothed the runners and neck. I also painted the top half black and made blocking plates to eliminate the EGR. I also took a pic to compare them.
Attached Thumbnails
99mx5 EFR build-dcp_4920.jpg   99mx5 EFR build-dcp_4922.jpg   99mx5 EFR build-dcp_4923.jpg   99mx5 EFR build-dcp_4924.jpg   99mx5 EFR build-dcp_4926.jpg

99mx5 EFR build-dcp_4931.jpg   99mx5 EFR build-dcp_4928.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:32 PM   #55
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

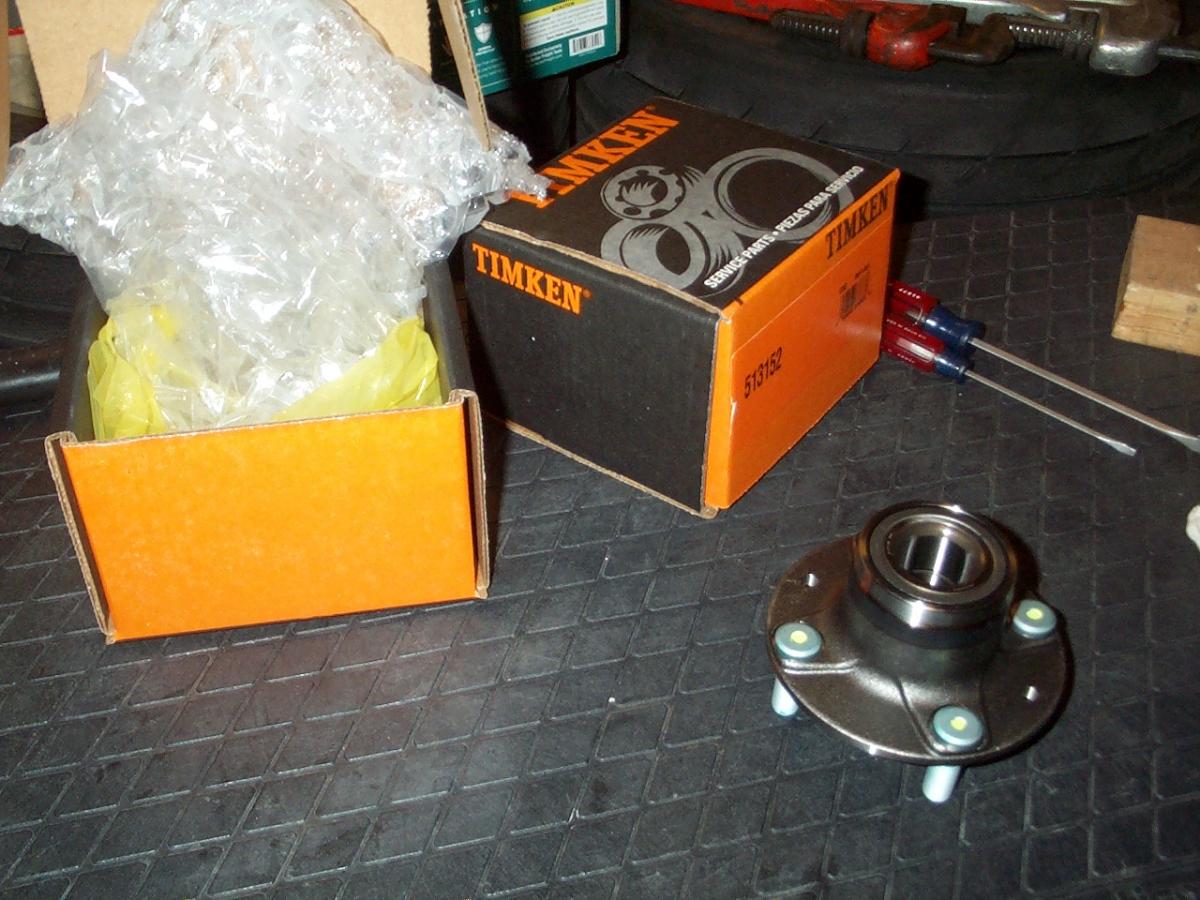

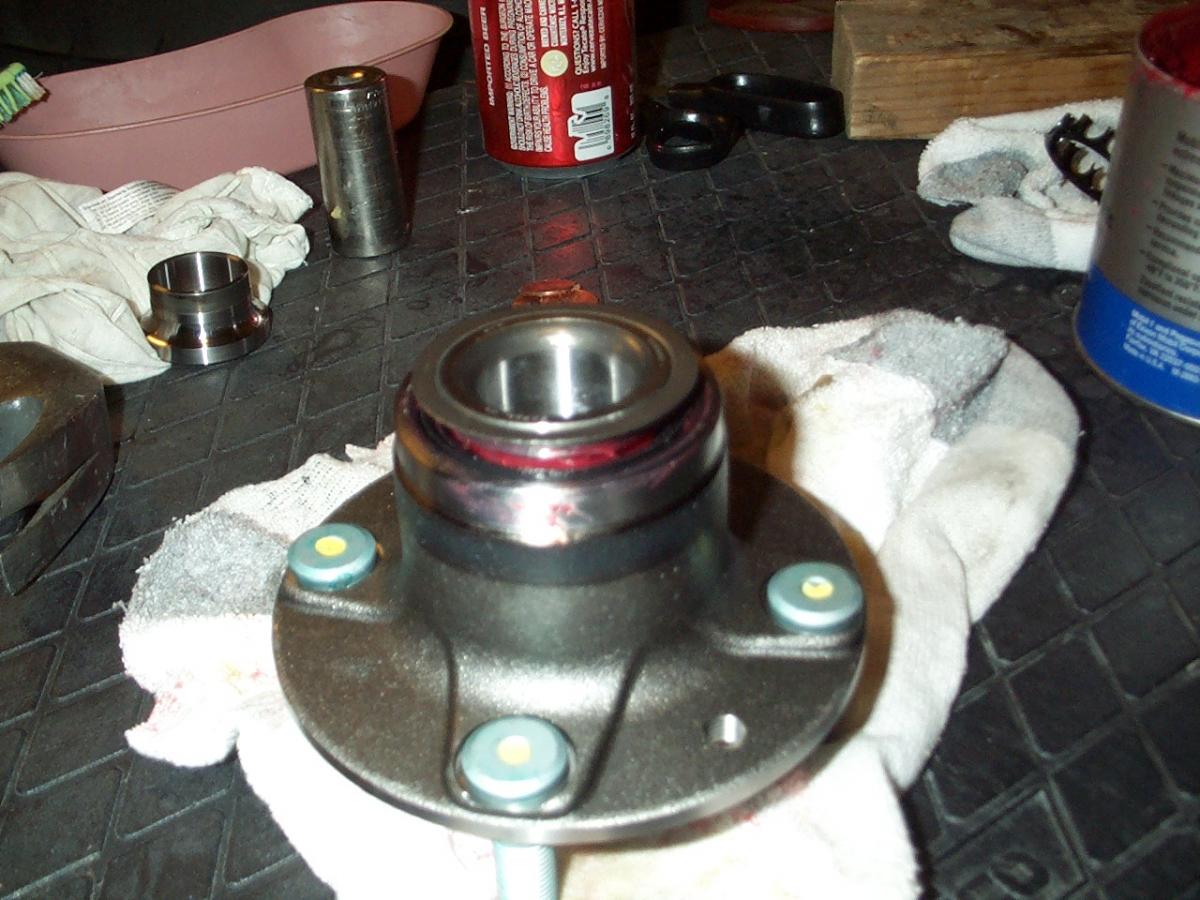

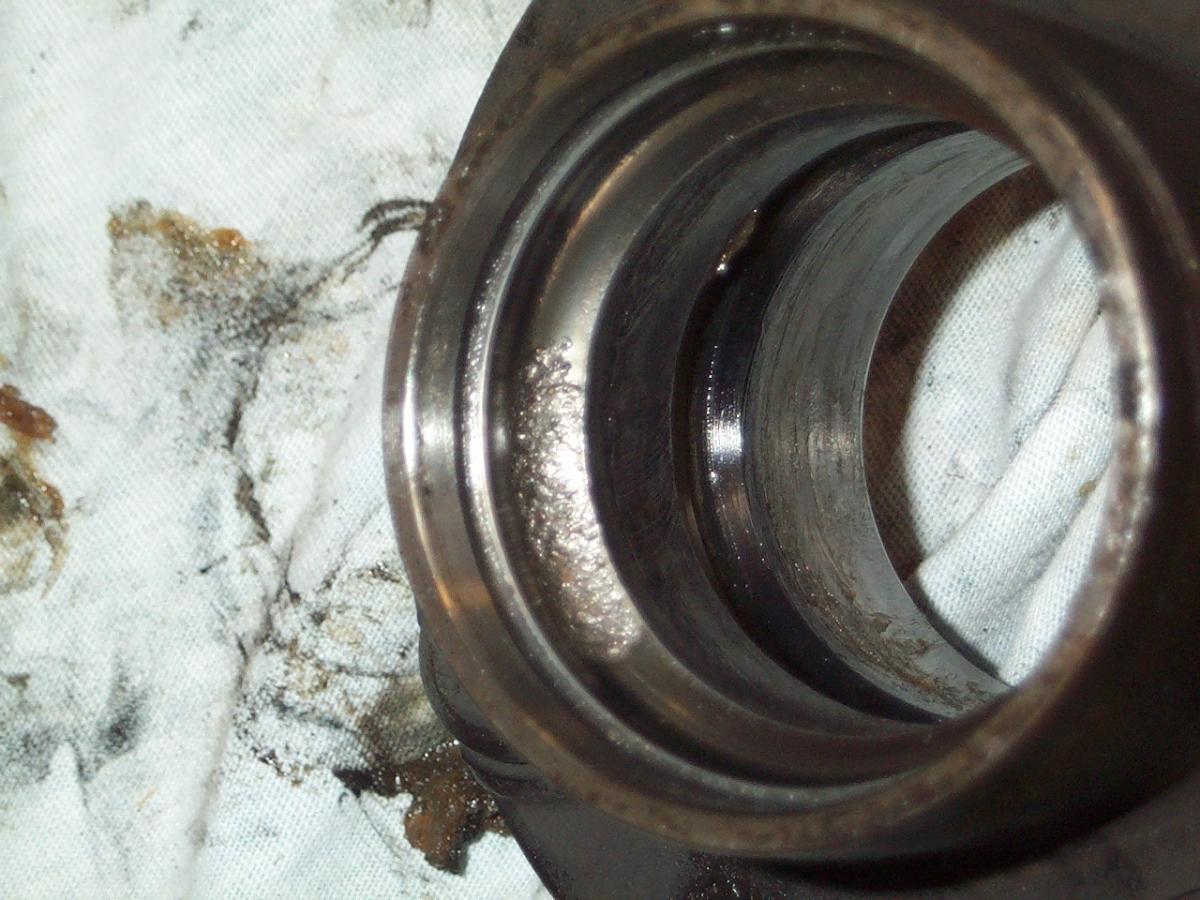

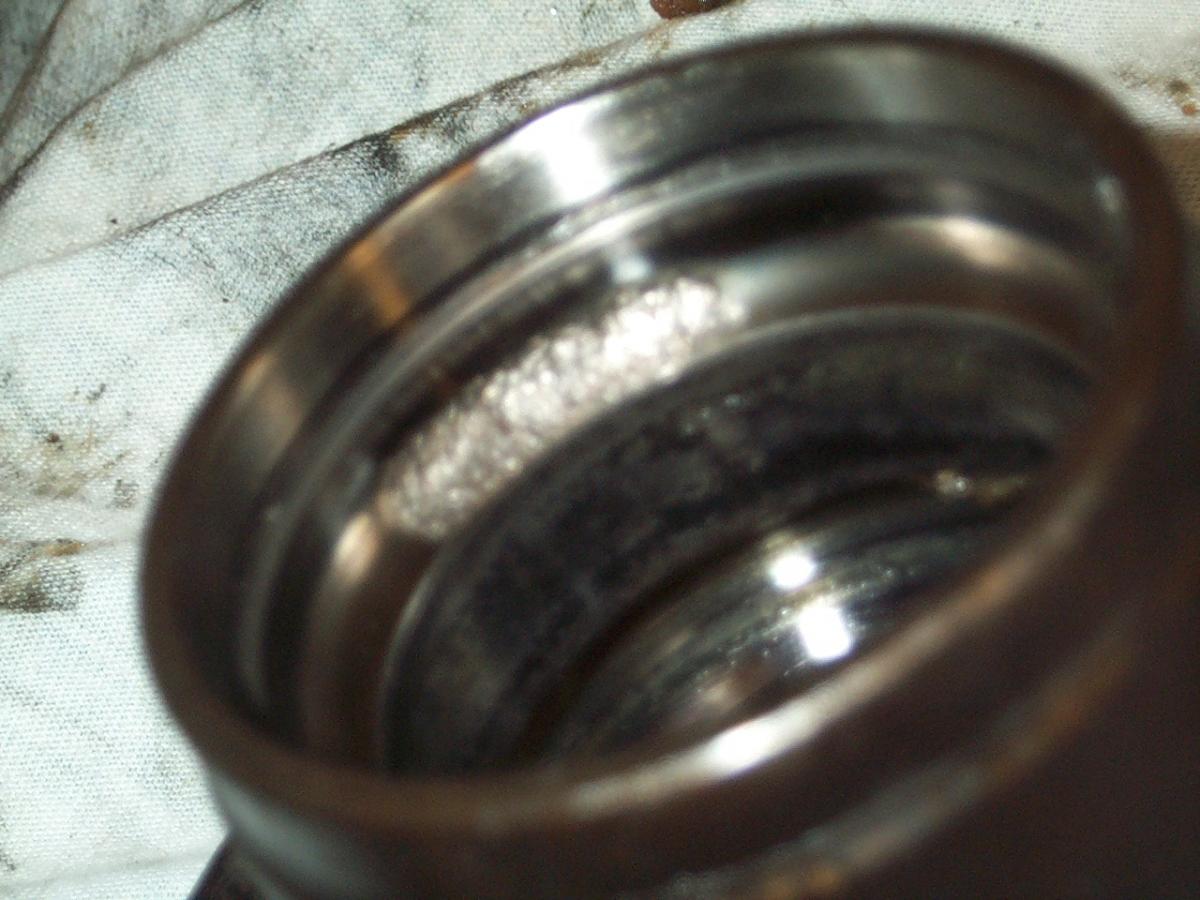

Here are the rest of the pics of the front hubs and pics of the worn hub that was making a grinding noise.
Attached Thumbnails
99mx5 EFR build-dcp_4806.jpg   99mx5 EFR build-dcp_4812.jpg   99mx5 EFR build-dcp_4816.jpg   99mx5 EFR build-dcp_4801.jpg   99mx5 EFR build-dcp_4802.jpg

99mx5 is offline   Reply With Quote
Old 02-04-2012, 03:41 PM   #56
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

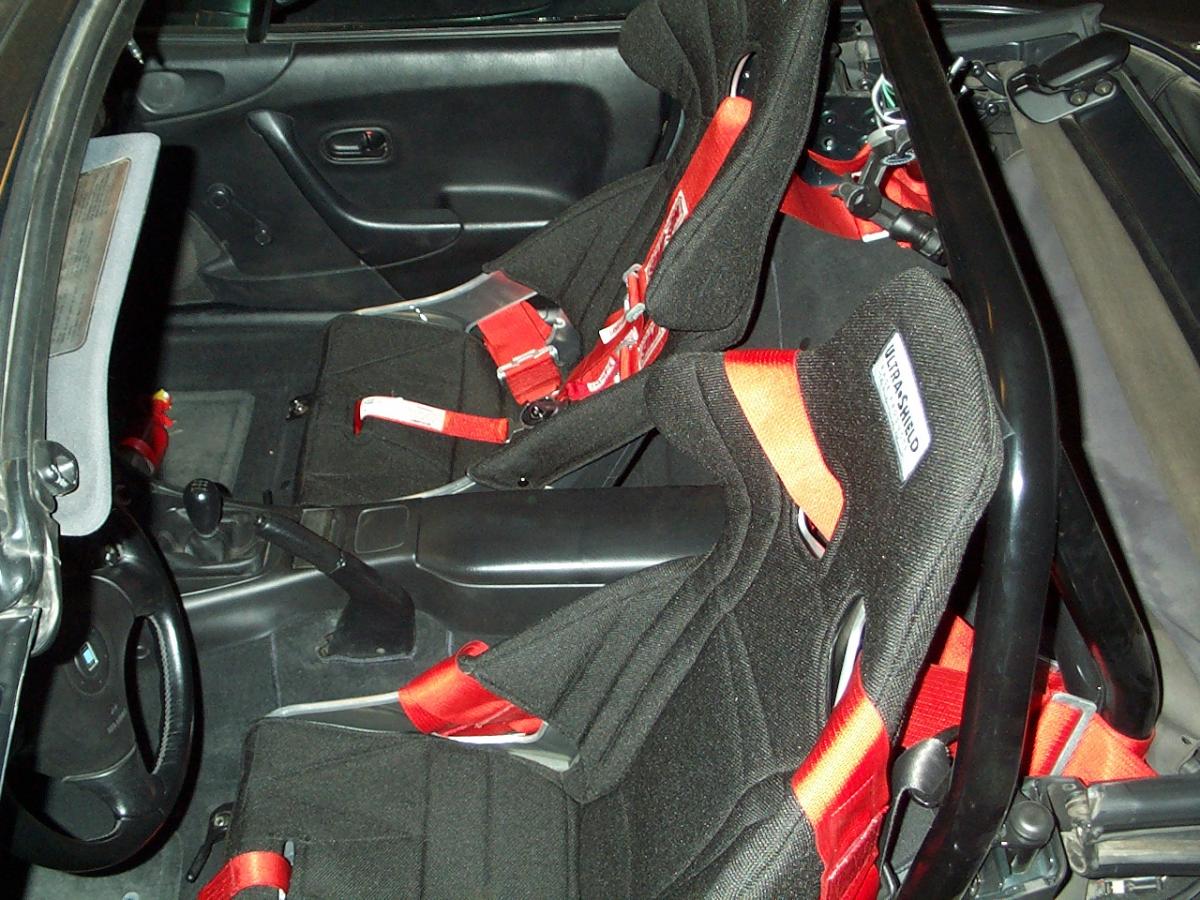

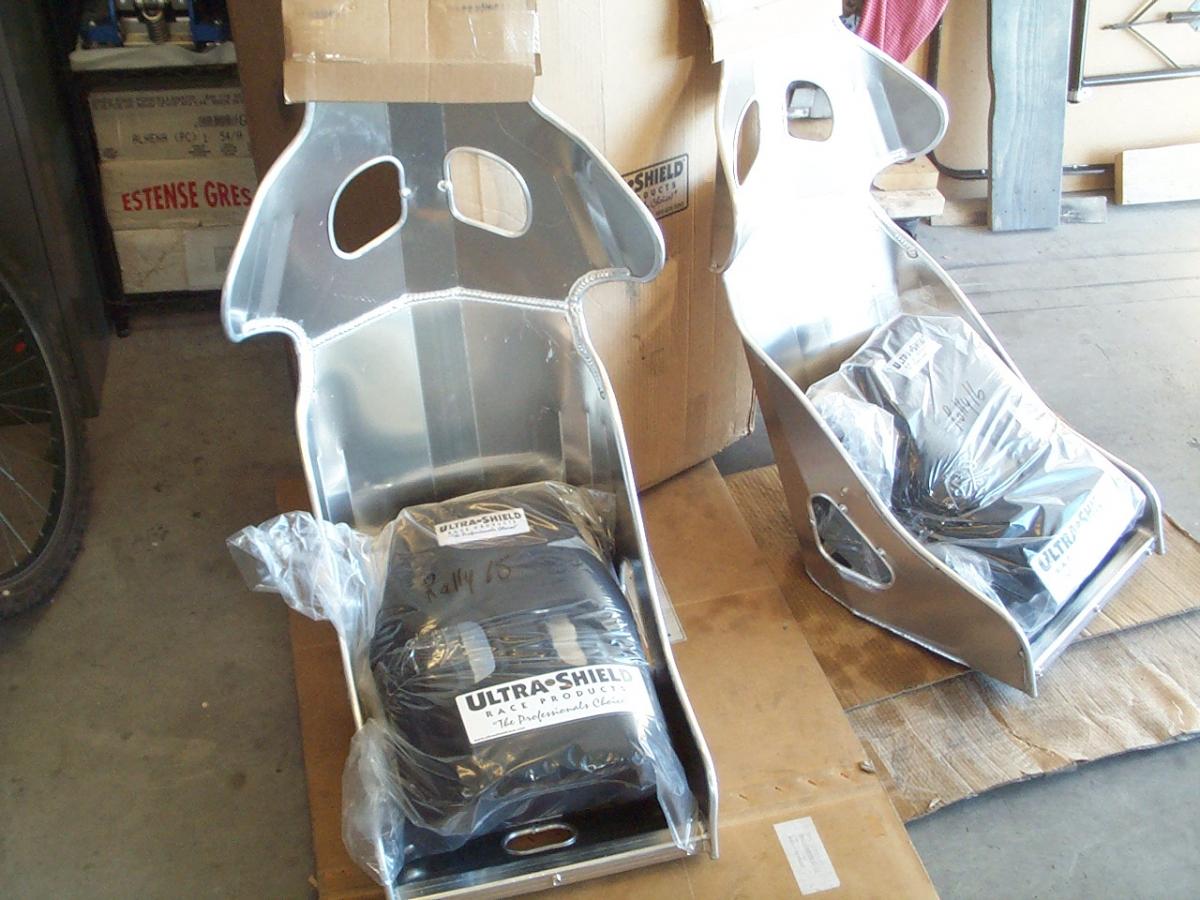

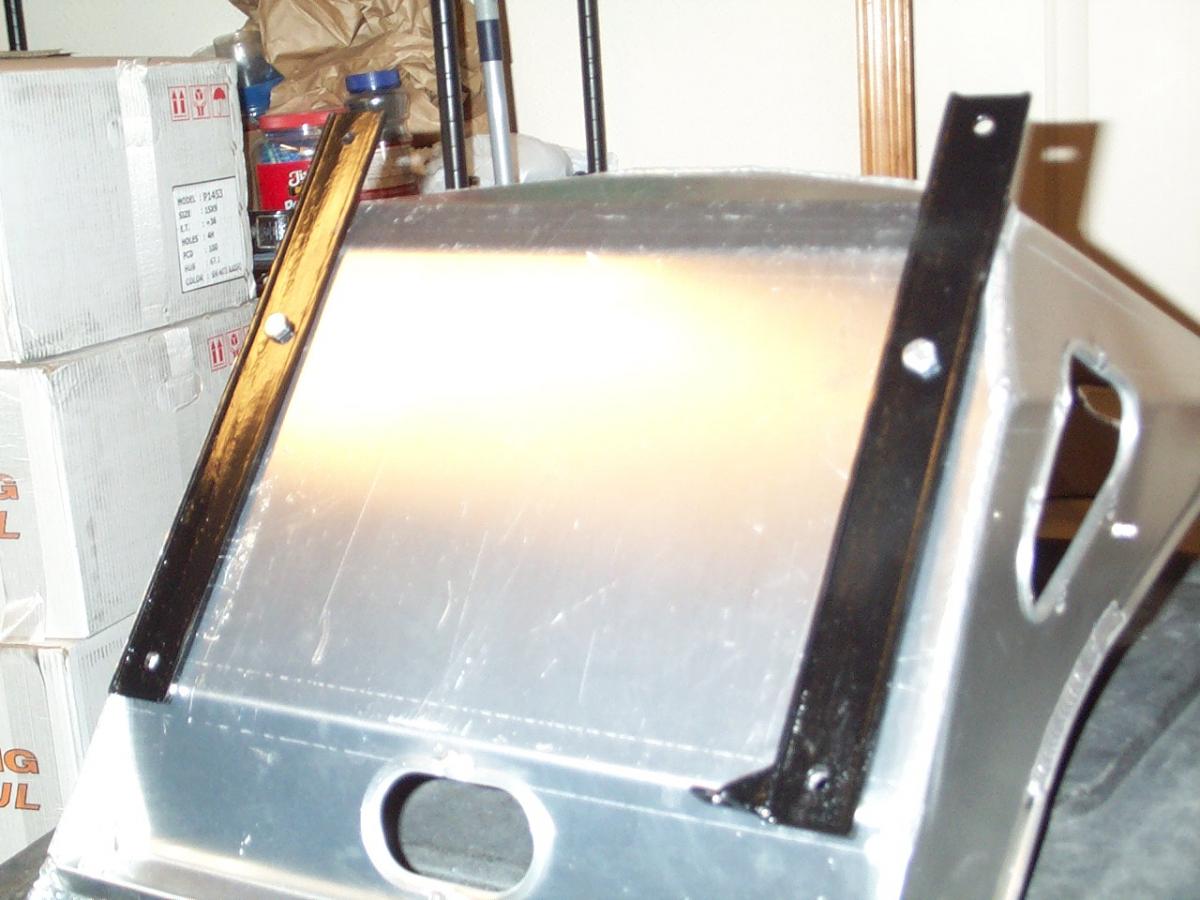

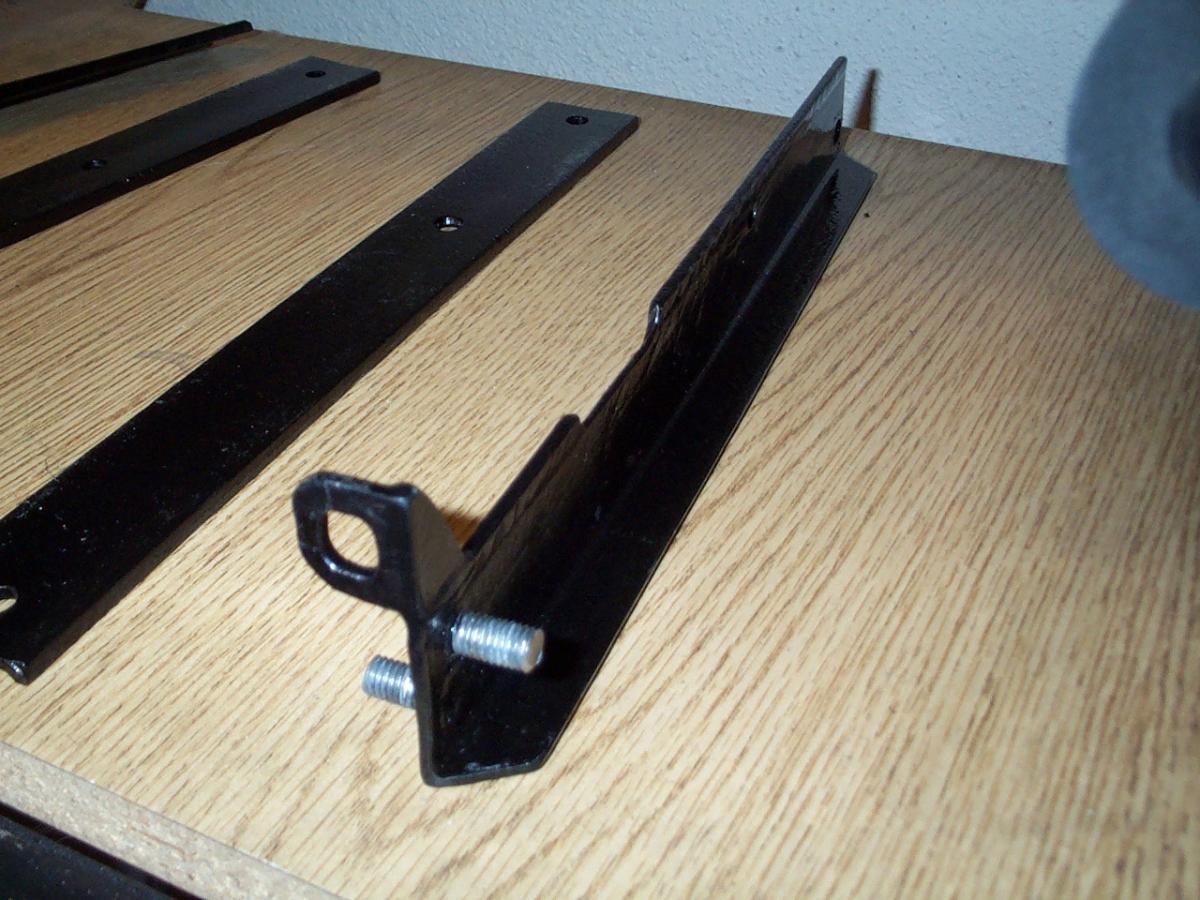

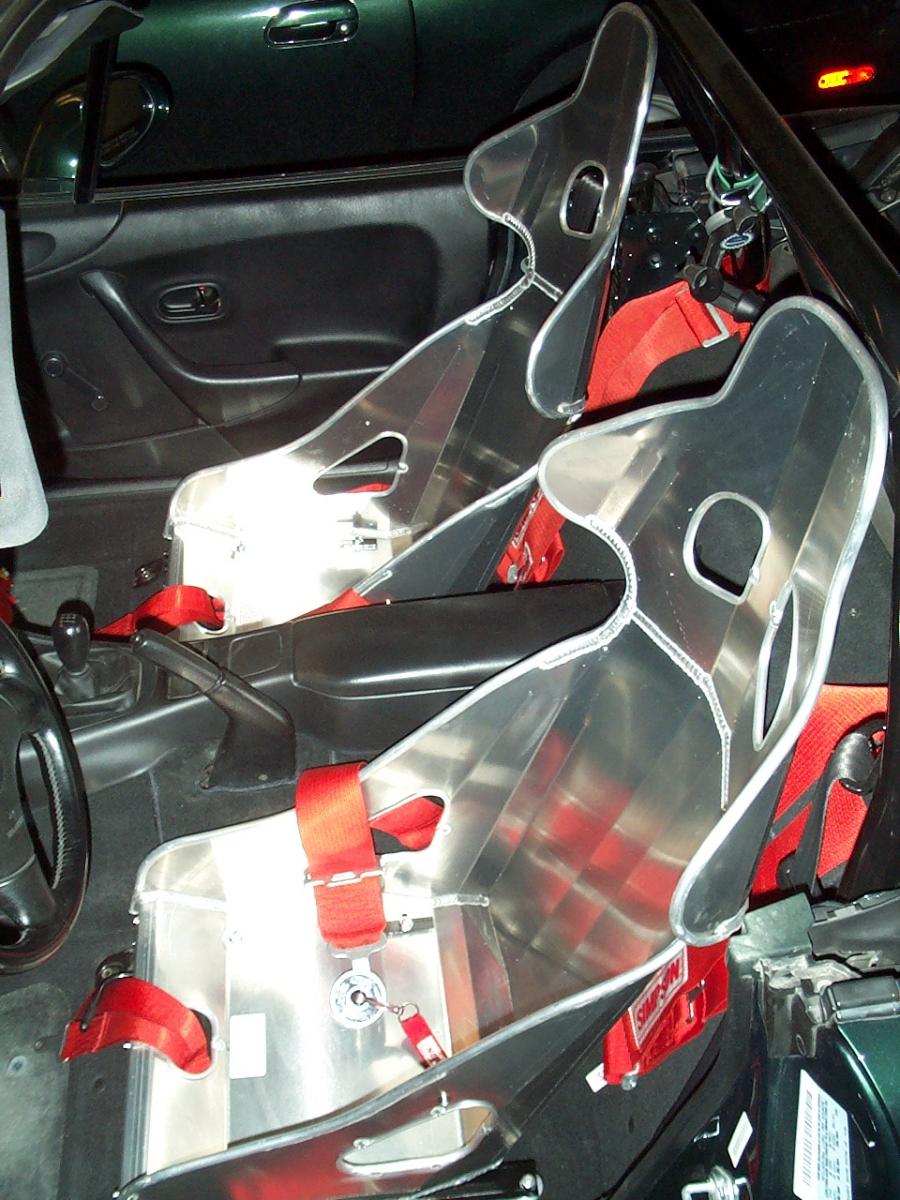

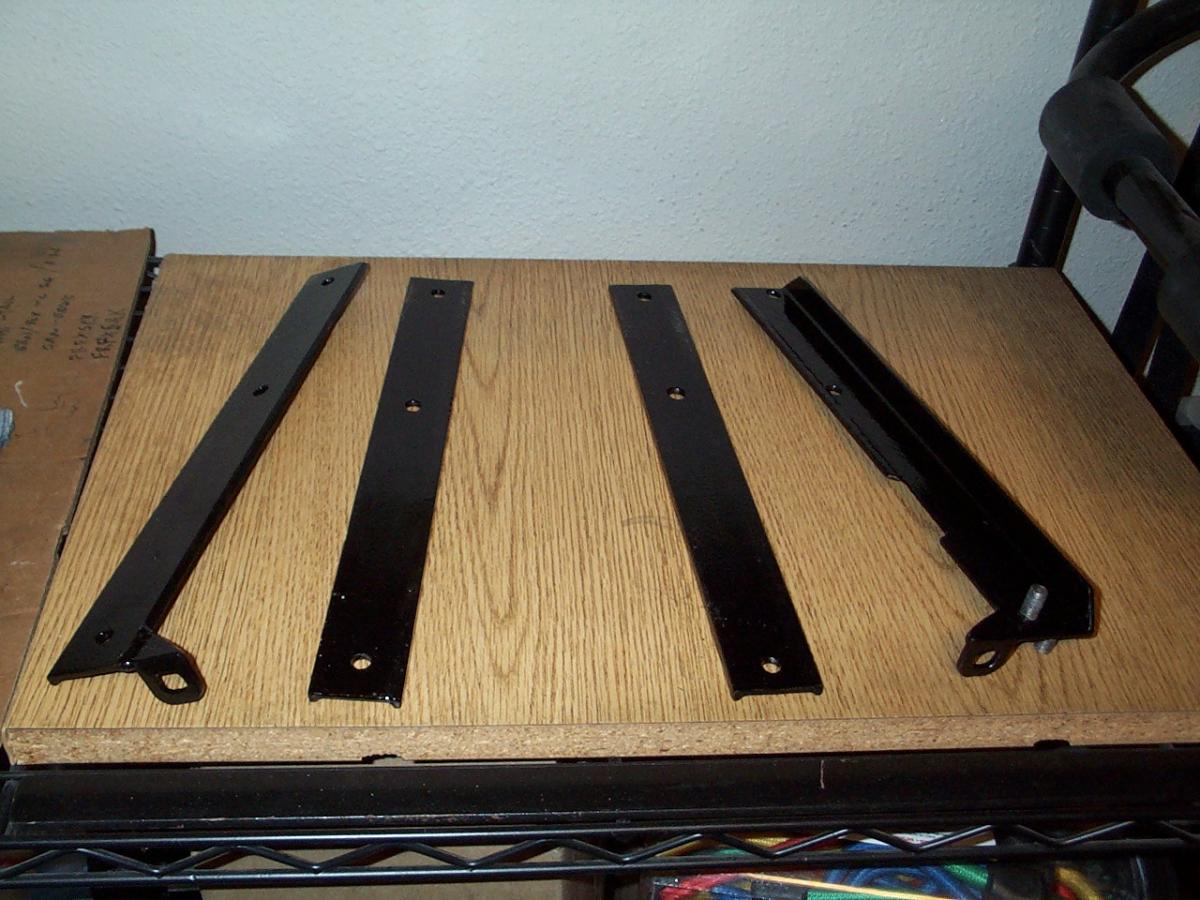

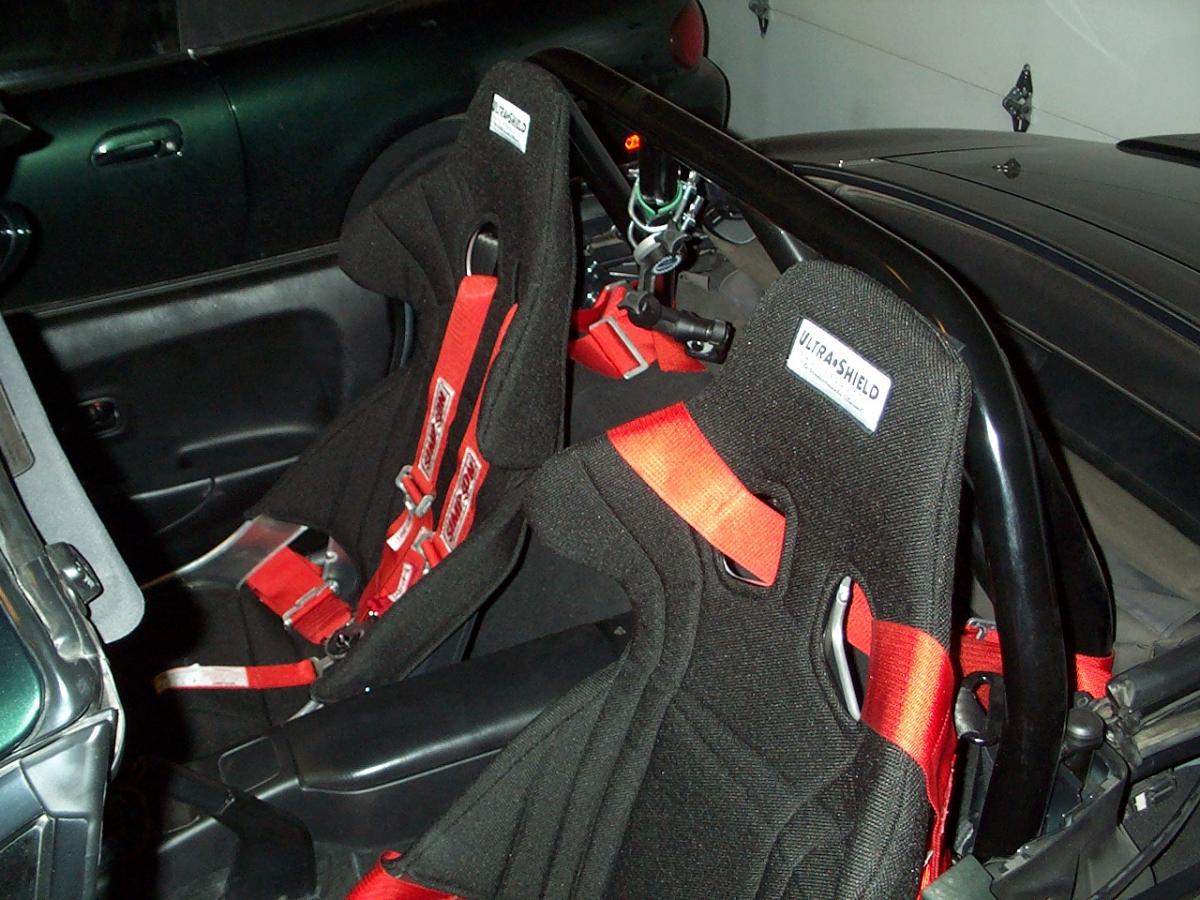

Ultrashield Rally Sport seats. I mounted them to the factory sliders with custom brackets. I also got Simpson 5 point camlock harnesses.
Attached Thumbnails
99mx5 EFR build-dcp_4503.jpg   99mx5 EFR build-dcp_4537.jpg   99mx5 EFR build-dcp_4539.jpg   99mx5 EFR build-dcp_4542.jpg   99mx5 EFR build-dcp_4545.jpg

99mx5 EFR build-dcp_4549.jpg   99mx5 EFR build-dcp_4553.jpg
99mx5 is offline   Reply With Quote
Old 02-04-2012, 06:13 PM   #57
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,001
Total Cats: 330
Default

More comments from my awesome previous experiences:
  • Make sure you keep the ***** seperate when you repack the hubs, sometimes the inside and outside races are different sizes.
  • That Mobile1 grease and Redline are garbage compared to the Amsoil, it always smells burnt when I disassemble after a few days and they hubs did not last as long as the AMSoil "Race Grease".
  • Timken bearings are nice and all, but they don't last any longer than the Enkidu $28 bearings I'm running.
  • Your wire wrap on the coils is going to melt.
hustler is offline   Reply With Quote
Old 02-04-2012, 09:23 PM   #58
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,283
Total Cats: 159
Default

Thanks for the feedback.
I'll definitely repack the front hubs again, I'll follow your advice on the grease. The bearing ***** were the same size but the retainers were different.
I went with Timken because they use the OEM NTK bearings like the factory. The seals were a little different, but the rest was the same.

The wire wrap on the coil harness has been on for over 4 years and is still going strong.
