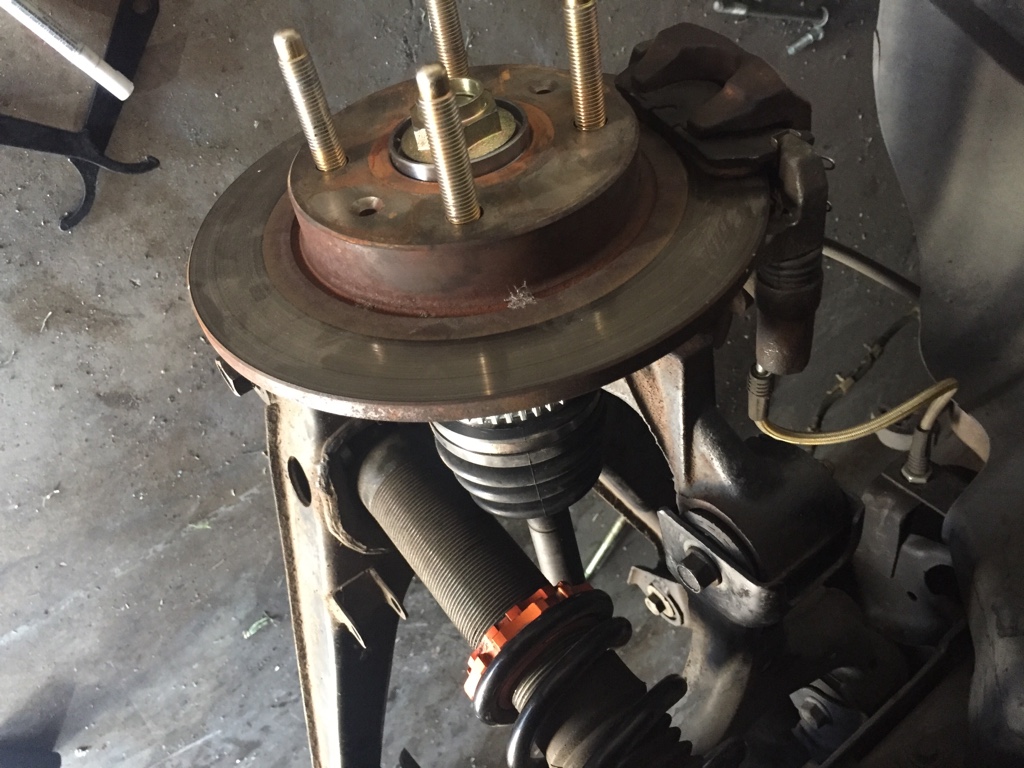

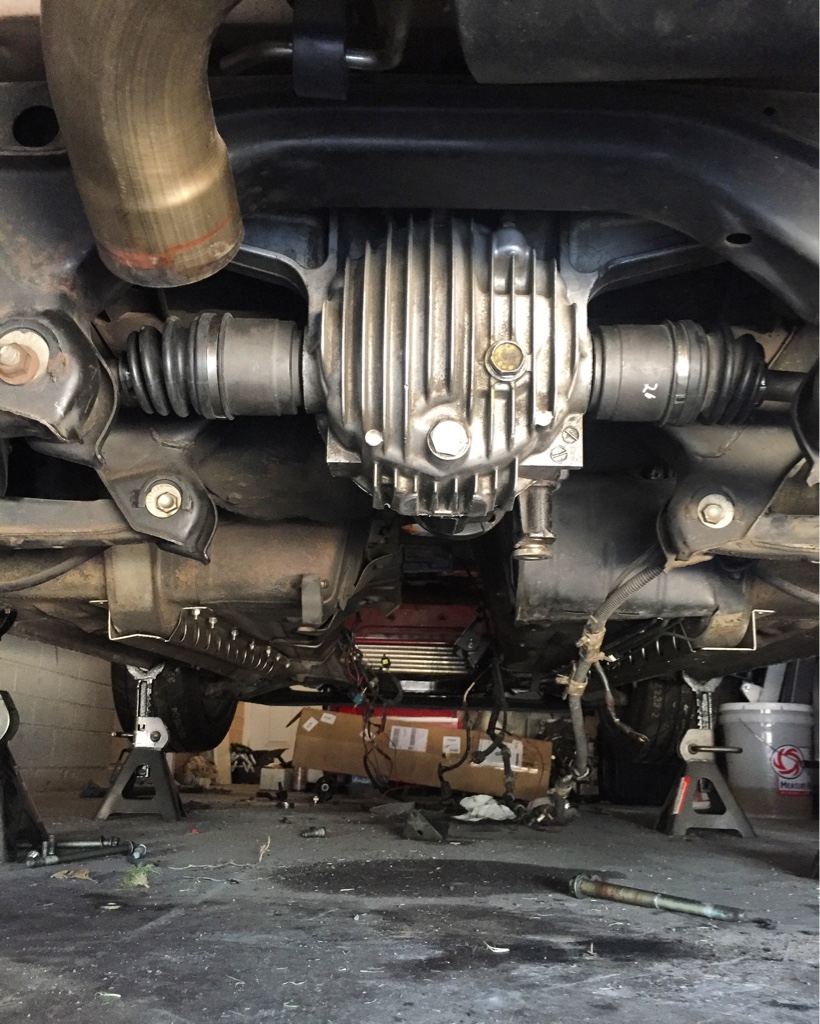

The next day I went out there to finish up what I started. Took longer than I wanted but I got it done. First time doing axels so I would say next time will go a billion times faster, just like pulling the motor did.

Got the axels through just need to torque that nut down. Apparently these are a different size then the originals so I need another socket.

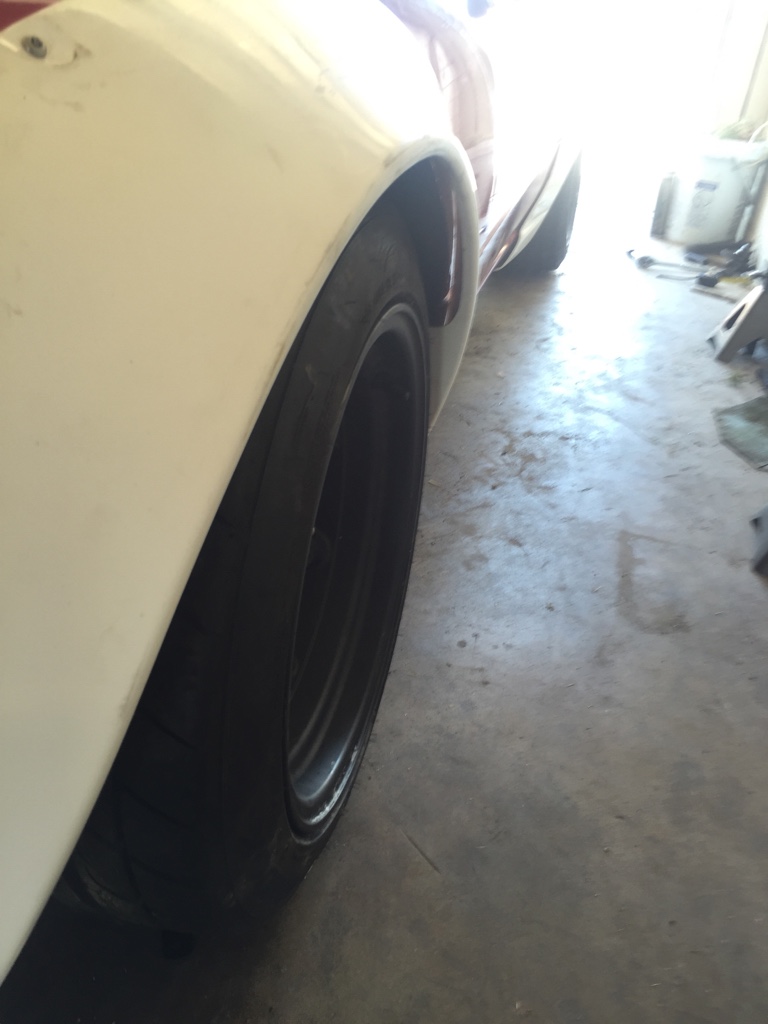

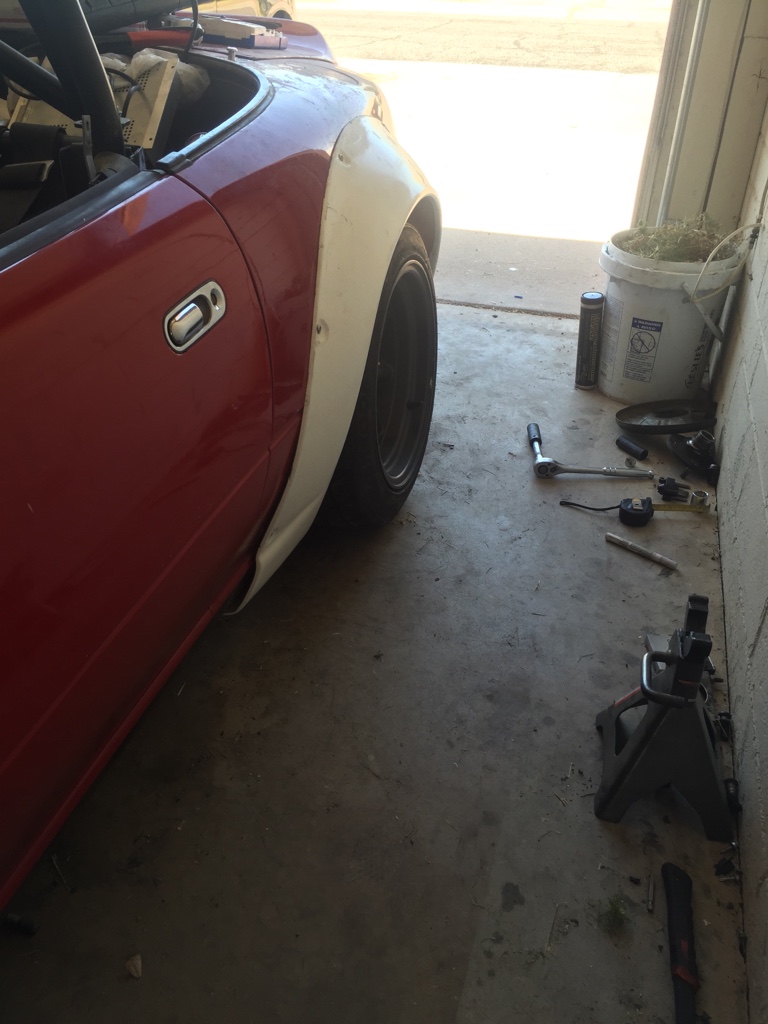

I adjusted the height as well to not monster truck. I'm no where near slammed and it sits a littler better all around.



For the rears

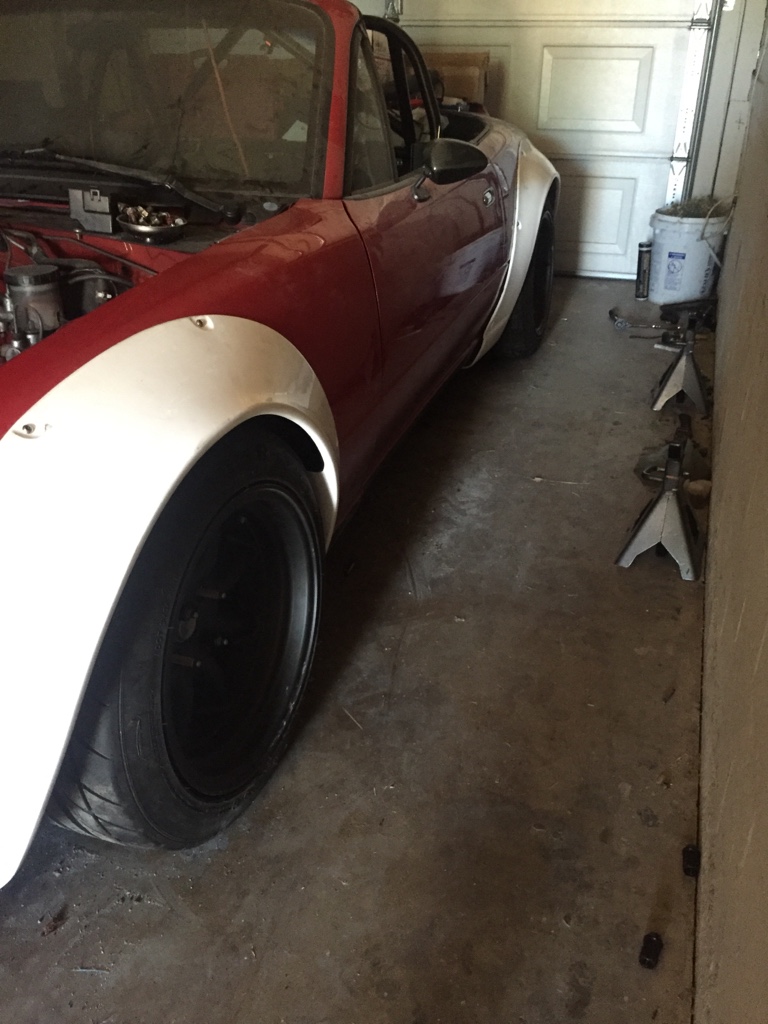

Just need some spacers and that will fill it for the time being. Really wanting 245's on there but I don't see it happening for these wheels anytime soon.

Crazyblackman

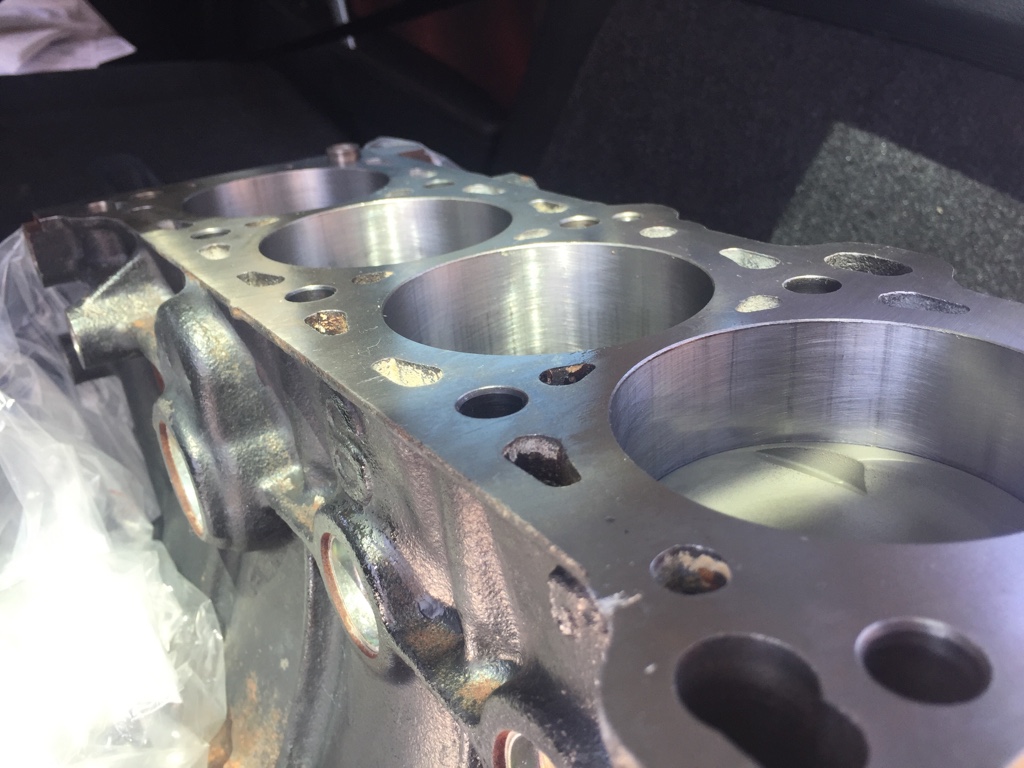

Motor is built. Picking it up one of these days!!!!

1.6L Motor
Wise Forged Pistons 78.5mm/8.5:1
Manley Forged H Beam Rods
ACL Race Bearing set- Standard
Boundary Billet Oil Pump- Street/Strip setup(doesn't fit yet, need to see why)
OEM Intake/Exhaust Valves
Supertech Complete Valve Spring Kit
New Valve Seal Set
Cometic MLS head gasket .040(still need)
ARP Head Studs

Unknown turbo I will be running as of now. Still have the barely used Godspeed GT82 I could use temporarily for now.

Anyone break in a motor recently? I've looked up some stuff regarding it but was curious if someone just has one they regularly use. Oil, rev limits, boost good or bad idea, etc?

williams805

iTrader: (2)

Everyone has an opinion on break in. I think everyone agrees no synthic for break in unless it's formulated for it.
I like to go wide open throttle to about 4500 a few times with and let it decel back down to 1700 or so and repeat a few times. Then 5500 a few times. 6500 a few times. You want high cylinder pressure. Change the oil after initial break in runs.
i'm a little superstitious so I don't pull to redline until after 500 miles. I also change the oil again at 500 and once more at 1k for good measure. That's just me though.

Roda

I have used this method multiple times on motorcycles with good results.... never had the opportunity to try it with a car.

Break In Secrets--How To Break In New Motorcycle and Car Engines For More Power

rleete

iTrader: (21)

FM has a procedure which is just about the same thing I heard from my dad back when I was a snot-nosed kid.

https://www.flyinmiata.com/tech/breakin.php

Crazyblackman

Awesome, I will definitely take it into consideration.

I will read into it, thanks!
Nice, I am taking all kinds of stuff like this into consideration thanks!

Roda

Looks like FM's method is very similar to the 'Motoman' method I posted, and williams805's. The idea is to load the rings through several heat cycles, and change the oil early, as that's when most of the metal particulates are going to show up.

On a bike, I don't go to synthetic 'till 5k, but that's with a wet clutch.

Crazyblackman

Yeah they all sounded similar so far.

I haven't finished reading it yet (at work) but does it go over boost or not? I'm assuming it would aid in the sealing because of the extra pressure, or am I over thinking it?

thumpetto007

iTrader: (15)

Use amsoil brake in oil, change oil at 50 miles, and 250 miles. use the amsoil filters

At 1000 miles use amsoil dominator. and amsoil filters.

Insert "Joe Gibbs Racing oil" instead of amsoil if you wish.

I think there is one other oil company that makes quality oils, but I can't remember what it's called at the moment.

Crazyblackman

Yeah I was planning on using their break in oil and to change it in 20-50 miles looks best. I'll probably freak myself a few times before start up but i'll take it slow.

Appreciate it!

Crazyblackman

So I got my motor finally!!!


I need to get oil pump blind plug I guess for the oil pump and put that in there. The engine builder said the oil pump wouldn't fit. I thought the 1.6 short nose was supported but I guess not. I'll find out for myself once I get it on the engine stand.

I don't think they make high flow oil pumps for a short nose 1.6l from looking around. So I may try and send it back or may have to sell it sadly if that's the case.

Depending on what happens with that will determine the time it takes to get it back up and running.

Need the head gasket, and a few seals here and there but then back together it goes. I can probably start putting the transmission and get the motor back in the car at least then worry about the rest as it comes.

Crazyblackman

Got the hvac stuff back up and running finally on a day I just wasn't doing anything. I honestly thought I wouldn't be able to put it back together again but I took photos and figured it out.

Grabbed it all and just put it in a pile.


I pretty much just did the reverse of the pictures. Could have taken better photos the first pass which would have made it easier but oh well.

Got the lovely yoga mat back out and cut it up and scrapped the remaining 25 year old funk off the old flaps. Then got the yoga mat pieces attached. Definitely not the first to do it but loved it when Jeffis did it.



Then I realized i don't think I aloud the spray to set in too much.


Sprayed a bit more and clamped down and let it sit in the garage for a while. Solid now.



Then I put it back together again, I hope to never do that again cause putting it back together was a pain in the *** I'm just glad I have big hands to hold all the pieces from moving.

Put it together wrong and had to take it apart, again


Then got it right and put some weatherstripping on it so it seals up. I think I may get wider stripping to fill it more but we'll see.


Refreshed vs old


So once this is in in goes the dash and then I need the head gasket, a cam seal, probably new timing belt, etc just miscellaneous stuff now.(hopefully)

Crazyblackman

So it's been a while since I've updated anything. With this wedding coming up, the DJ, booze, food tasting, photographer, etc everything gets crazy expensive so Brutus has been on the back burner for a while.

I kind of go out in the garage and look at him from time to time and think what have I started, have I bitten off more than I can chew, I hope this isn't a huge fail.

First motor build,
First huge investment into such a crucial component
Huge gap since I've put it back together
So many changes all at once

If I could do it over, I would have just left it with the turbo on without the build just to drive it. Probably would have enjoyed it with a proper tune and such. Then I remember this is what I signed up for! No one forced me to do it, so I have to make it work!!!

Anywhoo, since the last post a lot has gone on. Never put pictures of the head in here yet.




I had a bachelor party! 'Twas epic time in vegas! Would love to do it again for sure.



Had a huge *** house! Like 7 bedroom house with 2 masters and an adult play room with pool, ping pong, etc

Came back to Az, fast forward a month or so later helped my son the be father in law his first Miata. NC PRHT


He enjoys it, just need to tighten the latch for the HT, in typical Miata fashion it rattles.

Then I've been working a ton of over time for the past month so I got myself a good job present for Shelby the speed3
A spoiler extension




Probably going to get some different pieces to hold it on I just think it could look better.

Anyways, fast forward to recent, I started assembling the motor after I got my headgasket and remaining important gaskets for now.





Ignore the paint on the motor, I had to redo a couple of places apparently.

Then this is where we are now.

The bottom end is done!
New oil pump
Gaskets all around
Lightly used water pump 4K miles
Same timing belt(not gates yet), 4K miles
New pistons
New rods
New bearings

Will probably leave the normal valve cover on there with stock plugs before cops just to get running and broken in NA instead of Turbo to minimize issues.

Just need some caps for An fittings and we'll be good for that stuff. Got some other stuff hopefully in the works soon, so we will see what happens with all that, but a much needed update!

psyber_0ptix

iTrader: (4)

yay!

Crazyblackman

Got some pieces in the other day, I am planning on putting the motor in the car here soon I swear.

-16 AN fittings for the radiator, I have always wanted to do this so I can get rid of all that rubber. Unnecessarily Necessary



Need to get it all welded up. Need to get a couple more things welded for my water feed too.

I do need the plugs for the head too.



If anyone knows the size let me know. Called Mazda and said it was just a hex plug but I guess it didn't show size.

I can put the tranny back on and drop it back in there. Just need to center the rack before I can get there.

Then I can put everything back in with some fluids and start it up. Oh and Paul's stock header!

Crazyblackman

Got some little plugs that stop me from putting the timing on before. I found 7 ports that needed plugs in the head. Hopefully I didn't miss any.


And some random action shots we've all seen before...

I am glad though I don't need to replace the clutch, I didn't make enough power to harm it in my mind anyways


Switches are still working and not destroyed either.

Almost ready to go in!

Crazyblackman

Nothing to really add just yet finally married though! So that's cool!

Glad for that stress to be done let me tell ya, not for me but for her since she did everything.

Happy wife, happy life so they say.

Anywhoooo, I got a buddy of mine to weld my AN fittings on the radiator

-16 for the radiator and -4 for the turbo line.




Just ordered oil. The normal Amsoil 5W-30 for after break in, and #Shelby the Mazdaspeed 3 needs an oil change too.

I got Amsoil break in oil too.
It says not to run that oil past 1000miles if anything so as long as everything starts up okay I won't have to buy more.


Need to get my custom reroute Kia waterneck done with a -4 AN fitting instead of -6
and the -16 AN fitting on the front of it.

I need the lines to run both of those and we will be good to put it all in!

psyber_0ptix

iTrader: (4)

Yay!

Crazyblackman

Well ****, it's been a while huh. Welp still not done but moving forward still. Just dumping photos




Got my -16 AN line






I was messing around with ride height






The end result without spacers on 15x9 0 Offset with 225/45/15's on, not bad and I think I can deal with that for a little while.






Got me a little alignment to get me to the alignment shop.






Started to put the motor back in while I wait for a few pieces.




Typical pictures of a motor going into a car








Got the motor mounts connected, and the PPF brace installed too, always takes longer than expected.








That brings us to today, hopefully things keep moving at this pace!

Crazyblackman

So I got the body panels back on. Started putting everything in there, radiator hoses, etc.




More photo dump.




Got my jet stream headlights in and tucked the wiring beneath it
















Then I got my custom waterneck installed on the back of the head!






Put some of the other panels on






Decided to put the dash back in. I realized there is only one spot that it would leak from if at all and that's not likely since it's a solid piece.













I needed some block of pieces for the AN lines I won't be using yet until the motor is broken in.




I ended up getting them from summit racing and I got a -4, two -6 and a -10 AN caps









This is where one of the coolant lines for the turbo is.








That leaves us to today. I now need a stock 1.6l header to break in the motor. Once I'm done with that and if that goes well then turbo it is!!




Still need to finish putting fluids in but I have that already and guess the driveshaft would be smart to put in too.




Almost there!
