Old 12-07-2012, 01:03 PM   #141
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

Quote:
Originally Posted by 18psi View Post

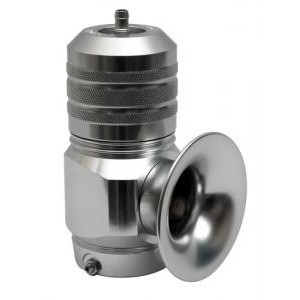

Now to find the QUIETEST vta bov



Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-blow-off-valve-type-h-rfl.jpg
Fireindc is offline   Reply With Quote
Old 12-07-2012, 01:17 PM   #142
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

looks legit

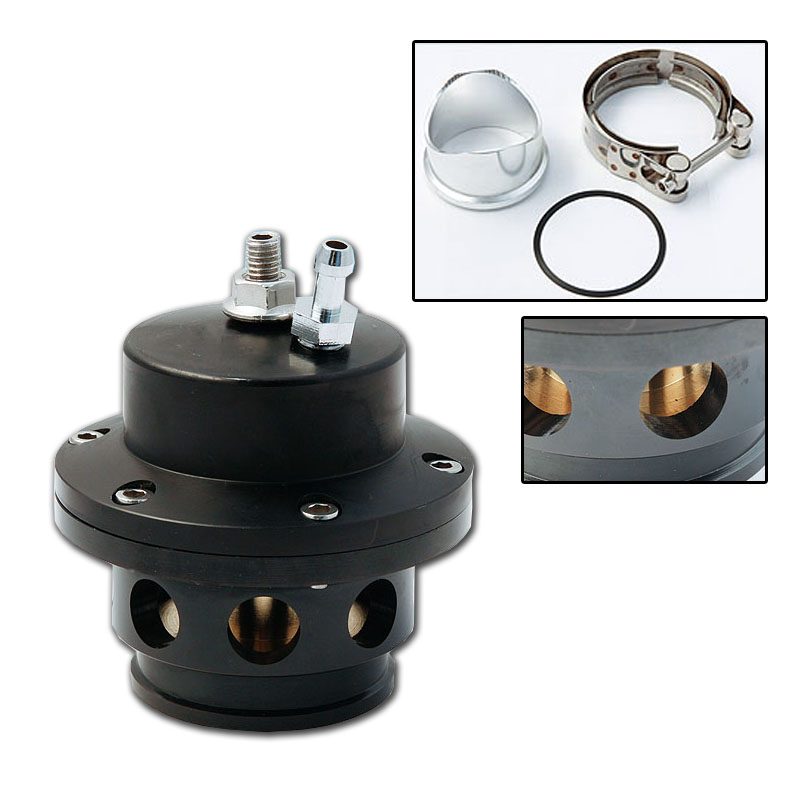

I'm actually kinda torn between a few ebay ones. They're probably not the quietest, but I like that there's spring tension adjustment and its compact

looks like a knockoff of the forge vta or whatever

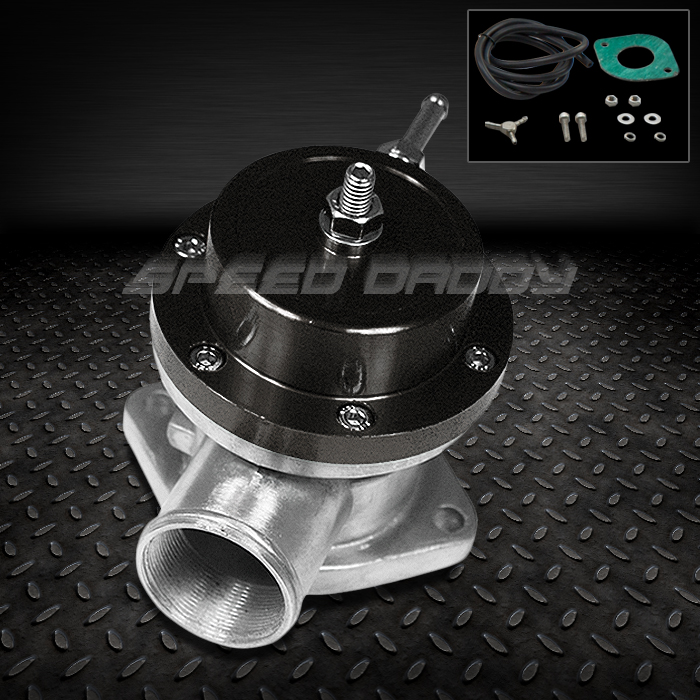

then the greddy type-s knockoff too

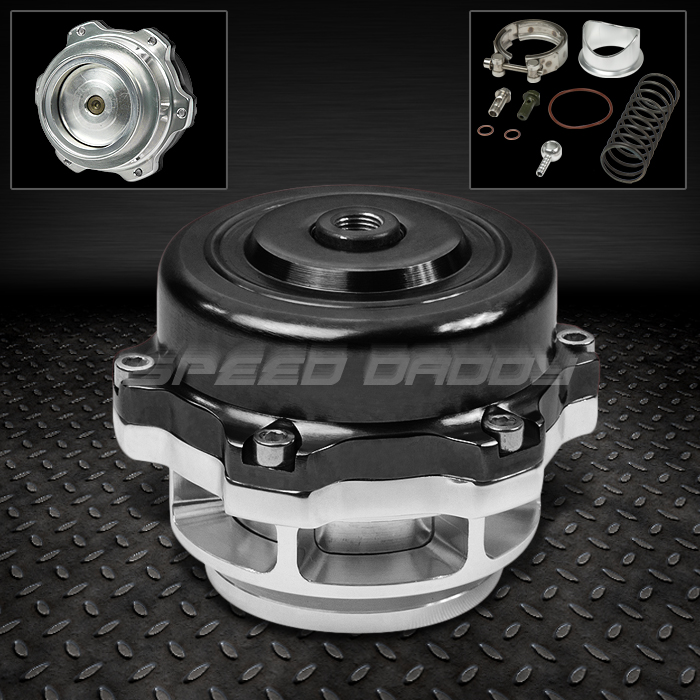

Or I could just say screw it and get the TIAL style



I dunno. I want quiet, but I also want a nice sound when I don't want it quiet.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-50mmbov.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-bov-gs-bk.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-bov-50mm-bk.jpg
18psi is offline   Reply With Quote
Old 12-07-2012, 01:20 PM   #143
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

I have a real type-s on my car. it's pretty goddamn ricer. I love it, i wont lie - but i do doubt it's what your looking for. My car sounds like some **** from fast and the furious, lol.

My buddy has a real Tial on his 570whp wrx, and its loud as ****. That could have something to do with the gt35r and the immense amount of pressure he runs though.

If you want quite i'd go with an oem. My brother is using a 1g DSM bov on his sr20 s14 and its super quiet even VTA.
Fireindc is offline   Reply With Quote
Old 12-07-2012, 01:26 PM   #144
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

My biggest gripe with the oem valves is they're plastic and leak. Almost every other thread about the bosch valves here is a report that they leaked. That really puts me off
18psi is offline   Reply With Quote
Old 12-07-2012, 01:34 PM   #145
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

Quote:
Originally Posted by 18psi View Post
looks legit

I'm actually kinda torn between a few ebay ones. They're probably not the quietest, but I like that there's spring tension adjustment and its compact


then the greddy type-s knockoff too




I dunno. I want quiet, but I also want a nice sound when I don't want it quiet.
I use one of those in my miata, its pretty quite imo vs. most egay crap.

dont mind the old *** videos, I didnt take much of my car unlike you.


Pen2_the_penguin is offline   Reply With Quote
Old 12-07-2012, 02:38 PM   #146
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

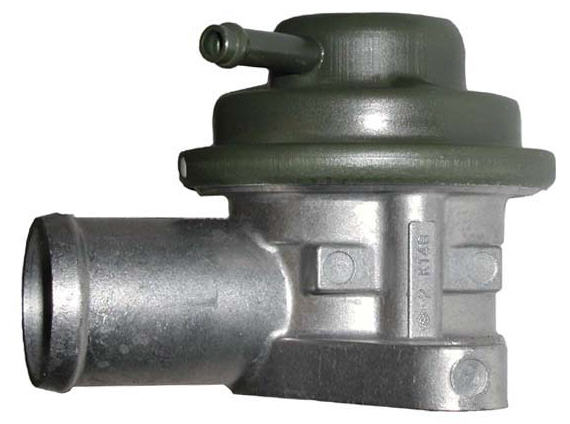

This one isn't plastic. I'm not so sure about leaking at idle or anything, but i know it holds boost well at 16-17 psi before you need to "mod" the bov, lol.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-1g%2520bov.jpg
Fireindc is offline   Reply With Quote
Old 12-07-2012, 02:51 PM   #147
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Reverant View Post
I for one, hate the associated piping.
I agree, cold side BOV returns are probably not worth the effort.
That said, a hot side return can be relatively straight forward.

Some baller turbos have integrated compressor recirc valves which seems to indicate that for surge control, hot side recirc is preferable to cold side vta?
sturovo is offline   Reply With Quote
Old 12-07-2012, 03:47 PM   #148
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,020
Total Cats: 535
Default

Why not get a bosch stock style one? I have the style that is open and although its compact not being able to put a filter on it does get annoying.
triple88a is offline   Reply With Quote
Old 12-07-2012, 05:49 PM   #149
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Houston, TX
Posts: 426
Total Cats: 37
Default

The Audi guys (B5 S4) usually swap in a Bosch 710N. Much more reliable than the stock 710A's & B's.
czubaka is offline   Reply With Quote
Old 12-09-2012, 02:05 AM   #150
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

talked to a friend who is thinking of replacing his Synapse diverter with something else, so I'm going to pick that up from him hopefully.

PISTON style FTW
18psi is offline   Reply With Quote
Old 12-09-2012, 02:14 AM   #151
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,020
Total Cats: 535
Default

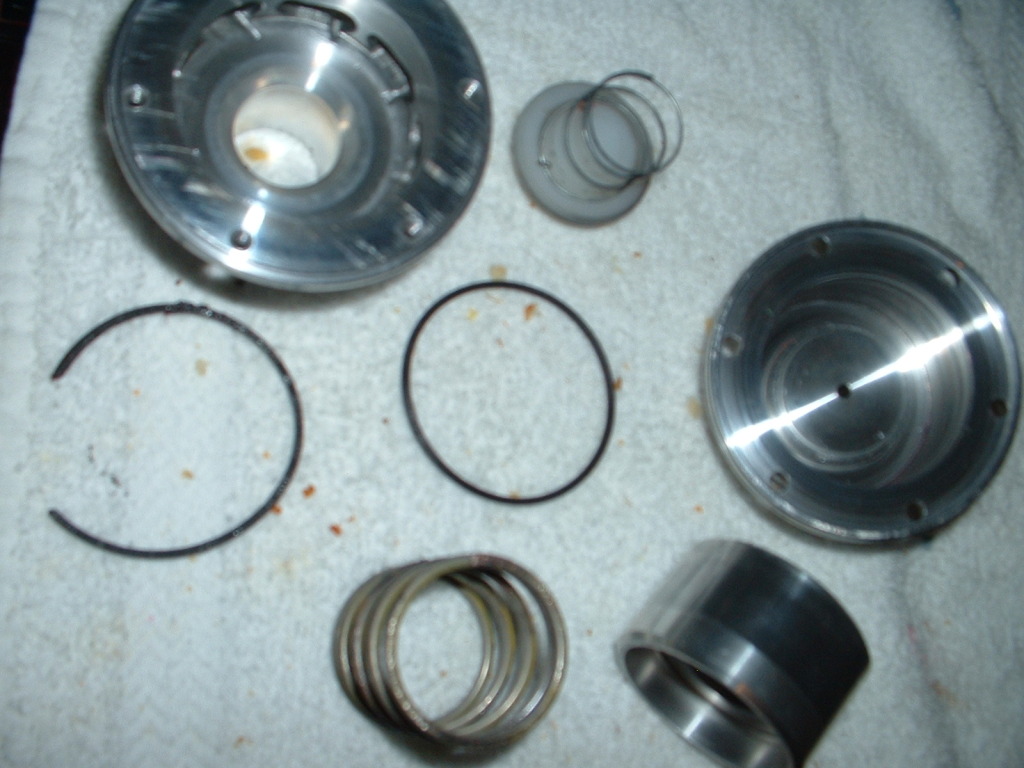

Took apart my forge, no wear and tear other than the 1 o ring. Anyhow pic

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-dscf0002-2.jpg
triple88a is offline   Reply With Quote
Old 12-09-2012, 02:15 AM   #152
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

how is the diaphragm?
18psi is offline   Reply With Quote
Old 12-09-2012, 02:16 AM   #153
Senior Member
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 66
Default

Yeah I'll hook you up with the synapse valve. **** the Bosch valve. Thing blew out on me with the quickness.
miatauser123 is offline   Reply With Quote
Old 12-09-2012, 03:13 AM   #154
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,020
Total Cats: 535
Default

Quote:
Originally Posted by 18psi View Post
how is the diaphragm?

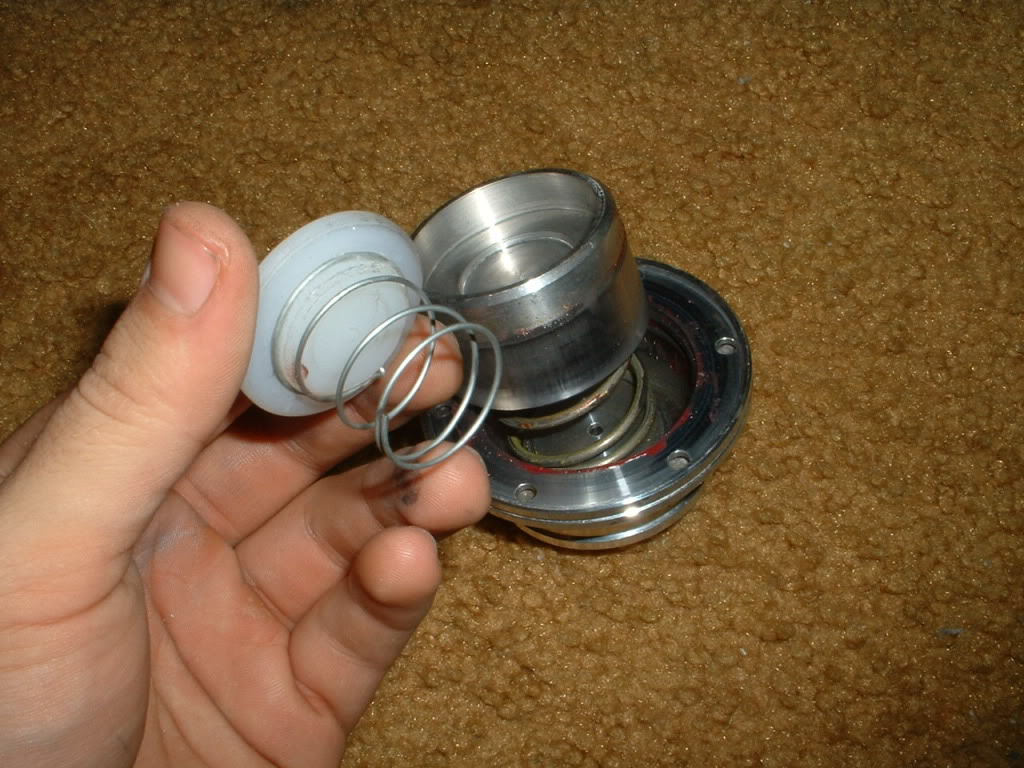

There isnt one. All the parts are layed out in the pic above.

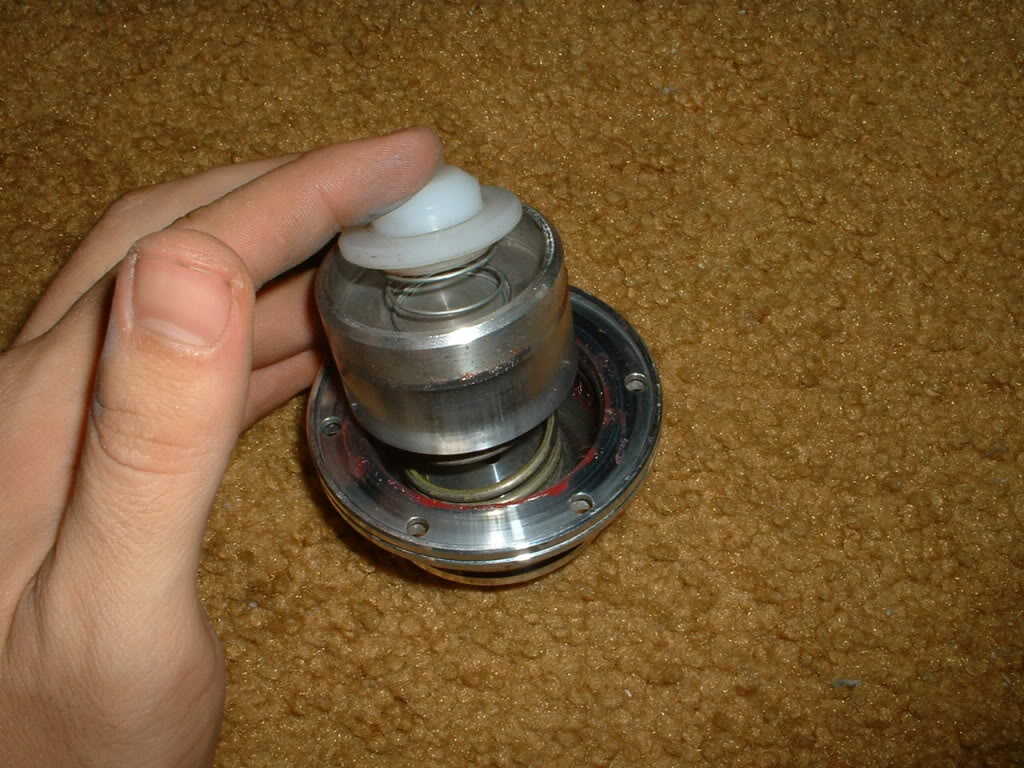

On this pic you can see the hole at the base of the spring for the intake manifold vacuum hose.




Operation is very simple. The top side is filled with manifold pressure (or vacuum depending on the condition) The bottom side is filled with the pressure from the turbo. At wot the manifold pressure = the pressure from the turbo therefore the spring holds it closed and prevents leaking. I do get a small leak between 60-75kpa since the big spring isnt strong enough to overcome the vacuum and the turbo is spooled enough to push it open so the big piston compresses the spring. I gotta replace the big spring with a stronger unit or get few washers to put in there to make it tighter. Anyhow when you let go of the gas the manifold vacuum pulls the piston and opens up the other end so the valve vents.

The plastic piston is there to prevent the valve from being opened at idle when theres about full vacuum. That plastic piece holds the valve closed and then the pressure from the turbo forces it open when the big piston pulls back.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-dscf0002.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-dscf0003.jpg

Last edited by triple88a; 12-09-2012 at 03:33 AM.
triple88a is offline   Reply With Quote
Old 12-09-2012, 03:15 AM   #155
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

the forge vta is a piston style?
18psi is offline   Reply With Quote
Old 12-09-2012, 05:02 AM   #156
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,020
Total Cats: 535
Default

Yes sir. They call it dual piston.

Forge Motorsport | Alloy Fabrication

I'm guessing this one is also same thing just without the plastic piston.
Forge Motorsport | Alloy Fabrication
triple88a is offline   Reply With Quote
Old 12-09-2012, 07:53 PM   #157
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,902
Total Cats: 4
Default

Quote:
Originally Posted by TurboTim View Post
Nope, Racing Mazda 2.5" baby, before it was Turbo Tony.

But that part is long gone.
Talk about OG. That part was made on my old 92.
Pitlab77 is offline   Reply With Quote
Old 12-14-2012, 06:08 PM   #158
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

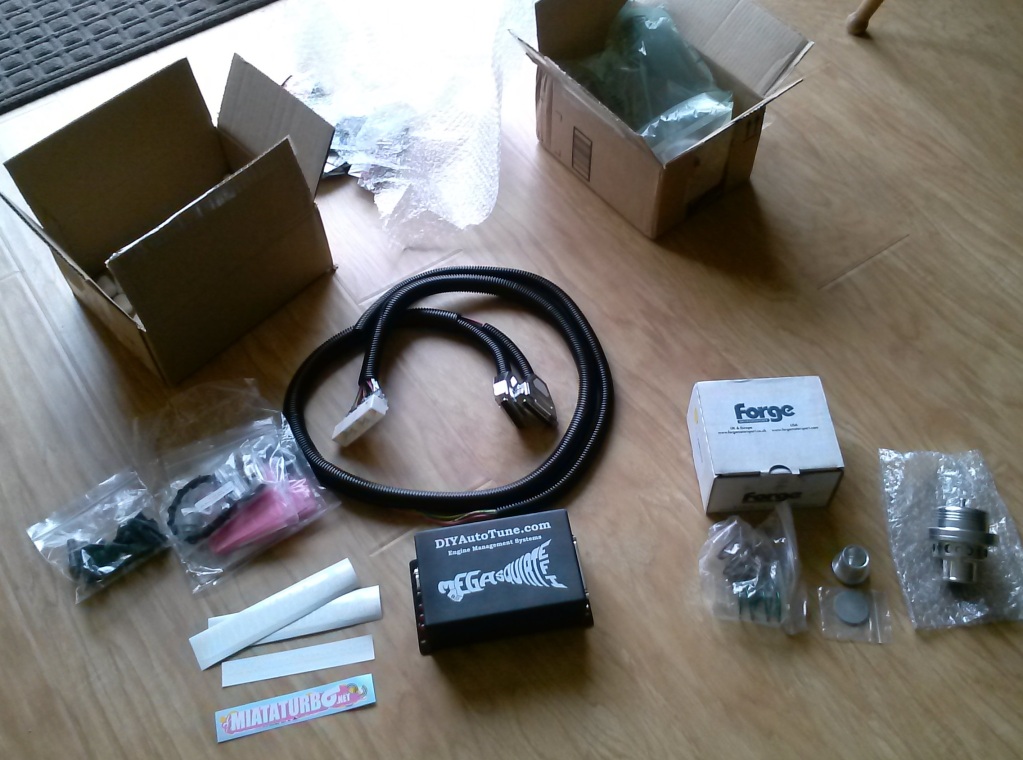

Christmas came early for the heavy pig

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00034.jpg
18psi is offline   Reply With Quote
Old 12-14-2012, 06:25 PM   #159
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,020
Total Cats: 535
Default

For that bov, i ordered some orings. I'd suggest you do the same. I'll confirm mine are the correct ones when they arrive.. no local stores had them.
triple88a is offline   Reply With Quote
Old 12-14-2012, 06:30 PM   #160
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

on 12/12/12...
Quote:
Originally Posted by 18psi View Post
Ordered
Wait, is that a MSLabs Basic MS3??
EO2K is offline   Reply With Quote
