Old 08-25-2014, 10:37 AM   #41
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,844
Total Cats: 559
Default

That's pretty. I love fresh blocks. ****!
hornetball is online now   Reply With Quote
Old 08-25-2014, 10:43 AM   #42
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

Same here. Is that POR15 or something like that?
18psi is offline   Reply With Quote
Old 08-25-2014, 11:40 AM   #43
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

Quote:
Originally Posted by 18psi View Post
Same here. Is that POR15 or something like that?
Not sure about the paint... That is how it came from the engine builder, he did a super nice job, everithin was washed in an ultrasonic bath and assembled with new water jacket and oil galley plugs.
Wish i had the $$ to send him my spare head too, that will be my next **** session LOL
HHammerly is offline   Reply With Quote
Old 08-25-2014, 11:47 AM   #44
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,775
Total Cats: 2,112
Default

Nice. If you can ask him next time you talk that would be awesome. If not, no big deal.
18psi is offline   Reply With Quote
Old 09-01-2014, 05:18 PM   #45
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

Te car is back together after an all nighter, the only issue i had was to get the oil pump primed, i ended up removing the oil galley plug at the pump and filling it with oil with a siringe, that did the trick and it build pressure right away after that.
Car is running great so i plan on putting a few miles and going back to the dyno for a re tune after insalling a new intake cam with all this work.

Last edited by HHammerly; 09-01-2014 at 10:19 PM.
HHammerly is offline   Reply With Quote
Old 09-01-2014, 08:03 PM   #46
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 976
Total Cats: 24
Default

Excellent build! It looks like I'm going to be using the majority of the same hard parts that you are. Looking forward to seeing the new dyno numbers!
TheBandit is offline   Reply With Quote
Old 11-08-2014, 09:24 PM   #47
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

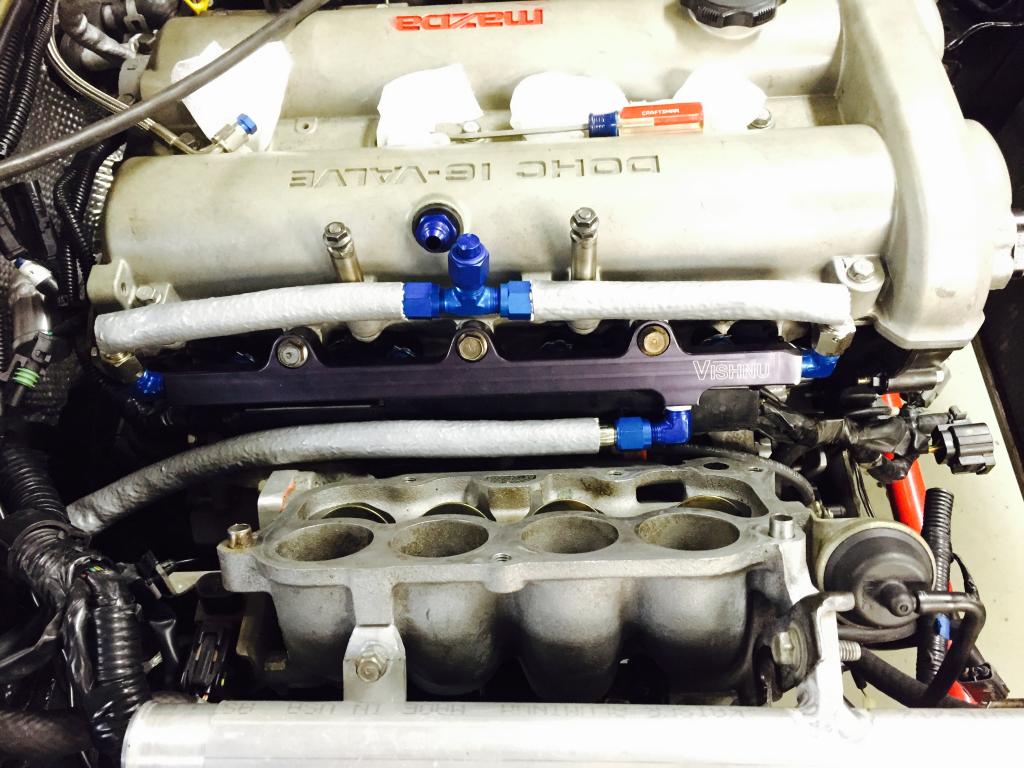

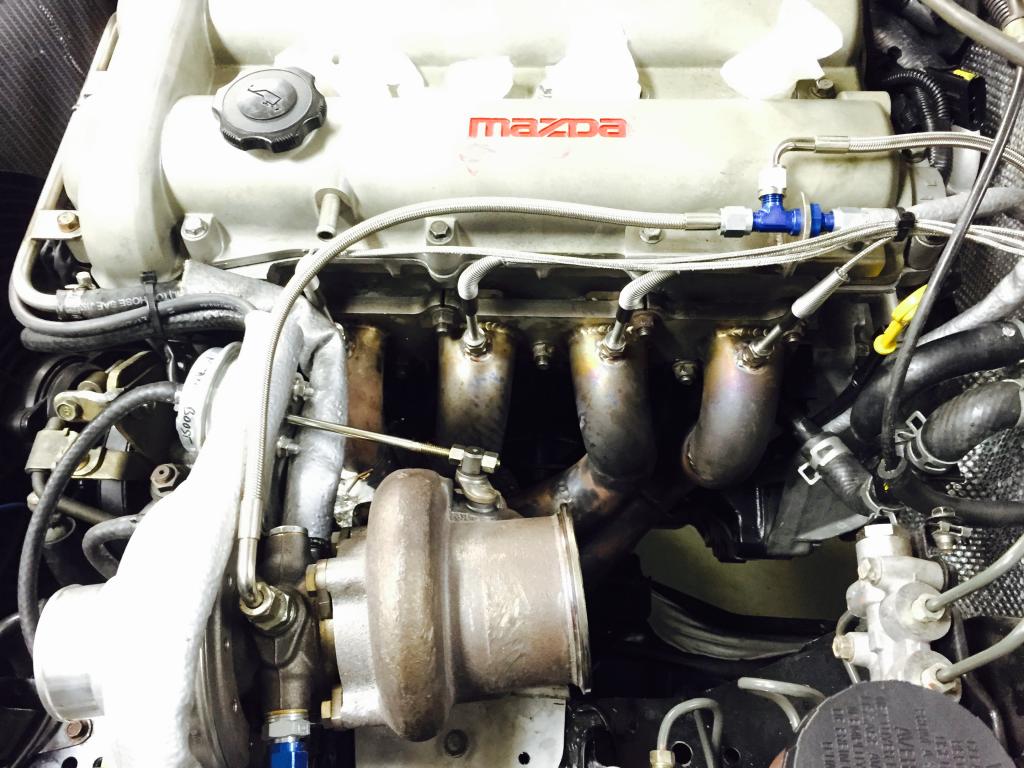

Installed a skunck TB, EGT's for each cylinder for tuning as well as a dual feed fuel rail and AEM rising rate pressure regulator, i think that i will install an E85 sensor as well and get a tune for 93 pump gas and E85 at the same time
Attached Thumbnails
Harold's 1999 sport build-fa7dc9d7-6672-4799-b09a-bd5dcb1e1f93.jpg   Harold's 1999 sport build-a6a8fac7-813e-49cc-80da-635e8e86a2cf.jpg

Last edited by HHammerly; 11-08-2014 at 09:59 PM.
HHammerly is offline   Reply With Quote
Old 01-02-2015, 06:21 PM   #48
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

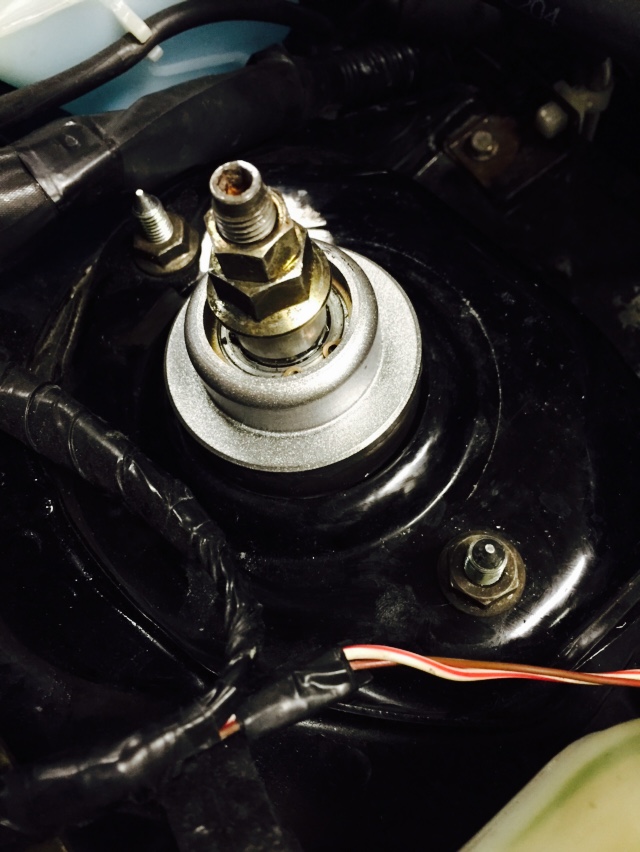

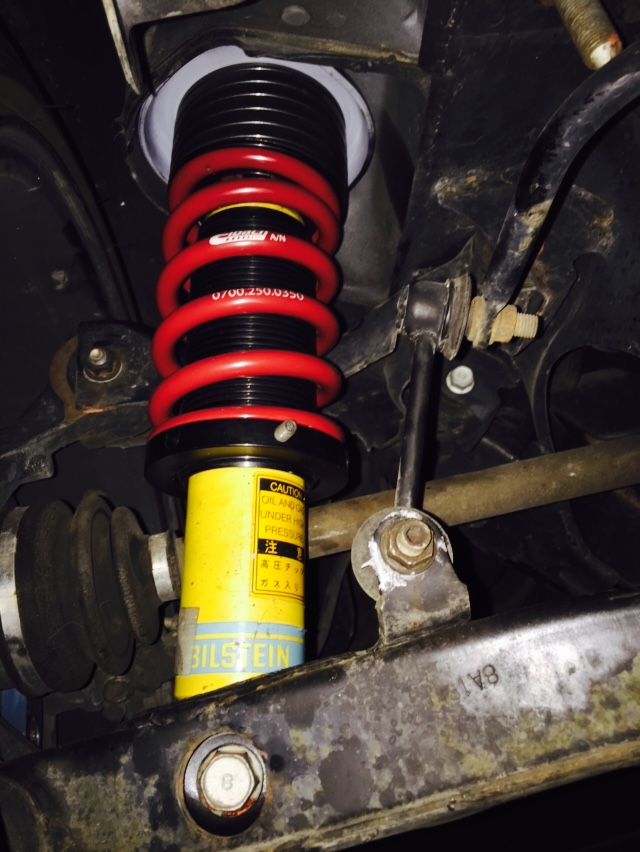

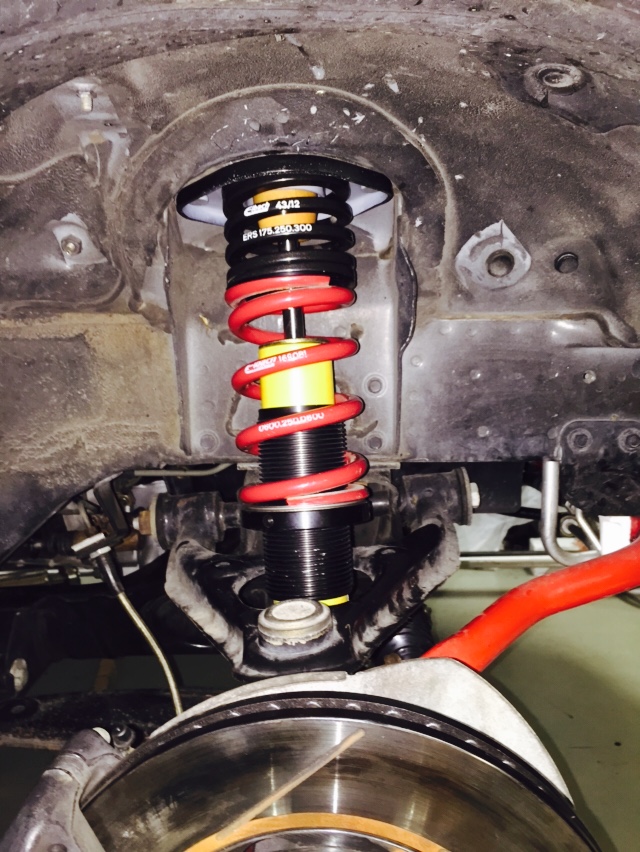

Installed allstar pershces 600# main springs with 175# helpers up front and 350# with 250# helpers in the back and custom made top hats.


Attached Thumbnails
Harold's 1999 sport build-326b3f5b-e5fb-4b33-9ee6-7c7a014131fa.jpg   Harold's 1999 sport build-c3fc9ab8-4fc2-431b-a003-a2960f4bd23f.jpg   Harold's 1999 sport build-a2c317cb-8be1-4934-aaae-8e633df5332d.jpg
HHammerly is offline   Reply With Quote
Old 01-04-2015, 06:33 PM   #49
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

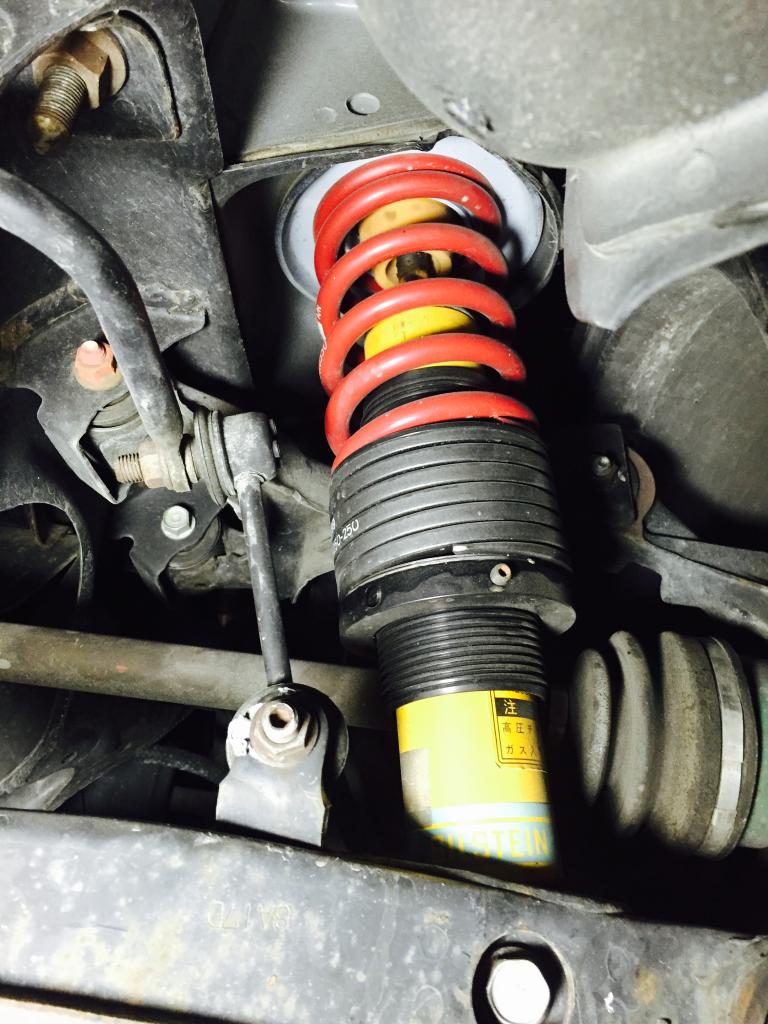

The rear helper spring adapter was touching the perch when going over bumps and making alittle noise so i ended up installing the tender spring on the bottom, this seems to have solved the problem
Attached Thumbnails
Harold's 1999 sport build-bdd1242d-1f63-4682-9b65-7cc5008dfdac.jpg
HHammerly is offline   Reply With Quote
Old 01-04-2015, 07:06 PM   #50
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,811
Total Cats: 479
Default

I've always seen helpers below mains, FYI.

What lengths springs and what ride height are you able to achieve?
curly is offline   Reply With Quote
Old 01-04-2015, 10:17 PM   #51
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

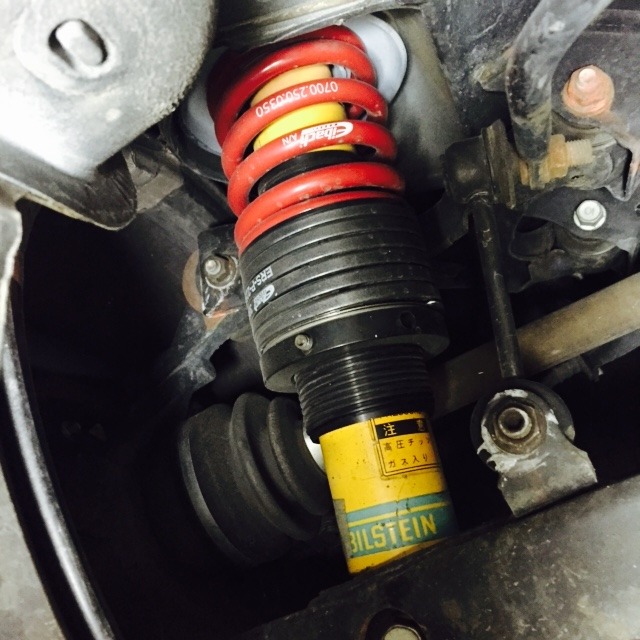

Static is 12.5" F 13" R (picture on post #49 is at static height)
Compression to koni bump stops ( pretty soft bump stops will allow additional 0.75" suspension travel at full compression "just a guess")
10" F, 10.75"R
Full droop 15.675"F, 15.375" R
Attached Thumbnails
Harold's 1999 sport build-7f622f3f-97ac-4929-8202-8bbbd363dfe5.jpg
HHammerly is offline   Reply With Quote
Old 01-14-2015, 08:19 PM   #52
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

Hi Harold!

How do you like the oil temp sensor in that location? I feel like I failed my first time around and your location is better.
EO2K is offline   Reply With Quote
Old 01-14-2015, 09:30 PM   #53
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

The sender has worked well there, is out of the way but below the oil level. I have been thinking to change out the gauge in the future for one that has a 0-5v output for the MS3 but am not sure if the larger sender will clear the front subframe
HHammerly is offline   Reply With Quote
Old 04-09-2015, 07:03 AM   #54
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

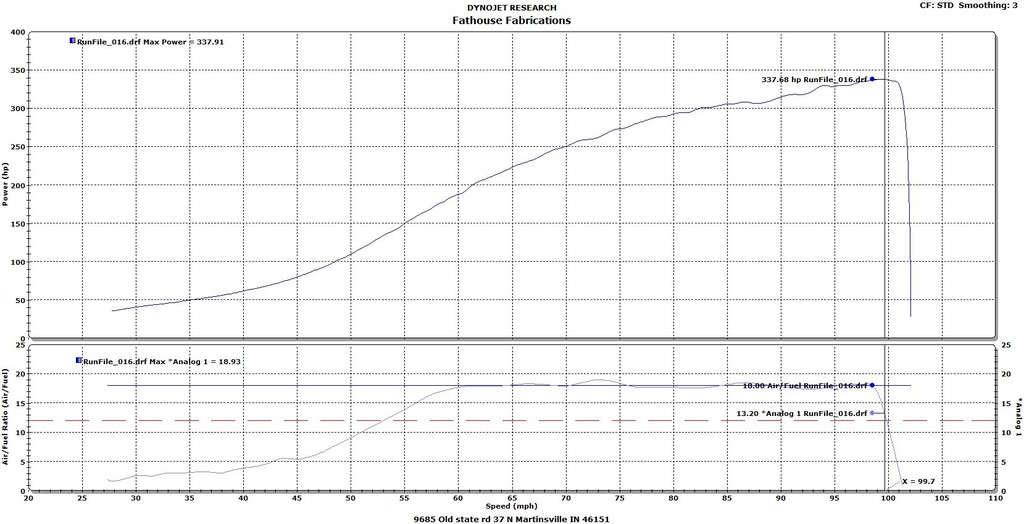

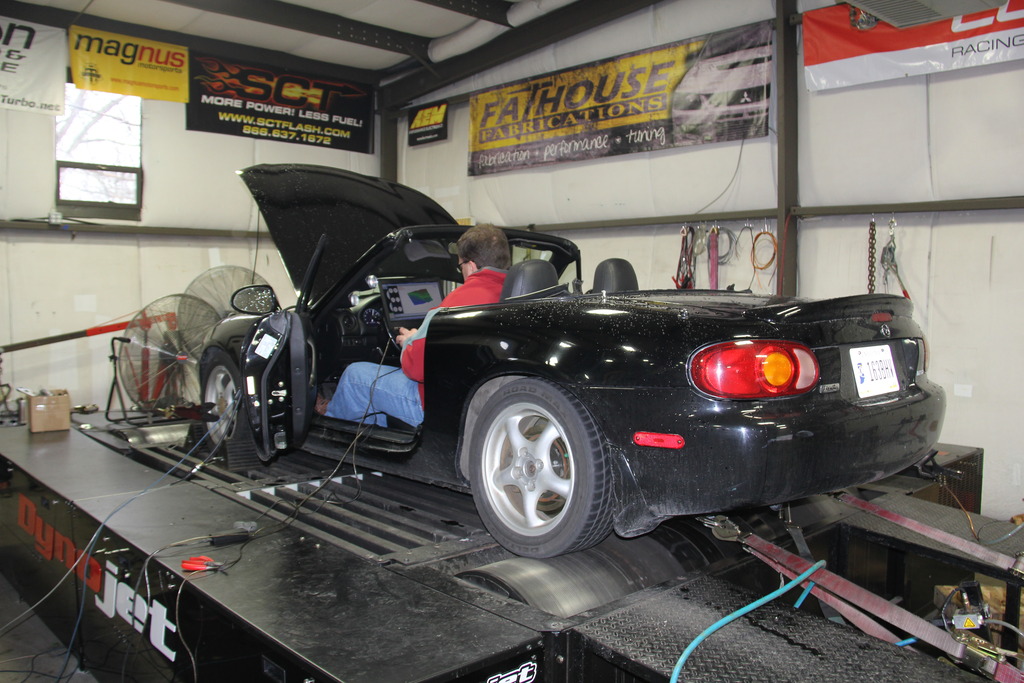

The car was tunned by Scott from DYI last month, it makes 337 hp @ 19 psi


I ended up using a manual boost controller with a **** in the dash so i can change boost without having to plug the laptop and i really like how that is working here is a data log for 15 psi
Attached Thumbnails
Harold's 1999 sport build-27d977c4-f506-463b-b53b-2a7b34379d2d.jpg   Harold's 1999 sport build-6edb3f64-faa1-4eef-8ab1-368b6dfb9068.jpg

Last edited by HHammerly; 04-09-2015 at 12:08 PM.
HHammerly is offline   Reply With Quote
Old 04-17-2015, 09:17 PM   #55
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

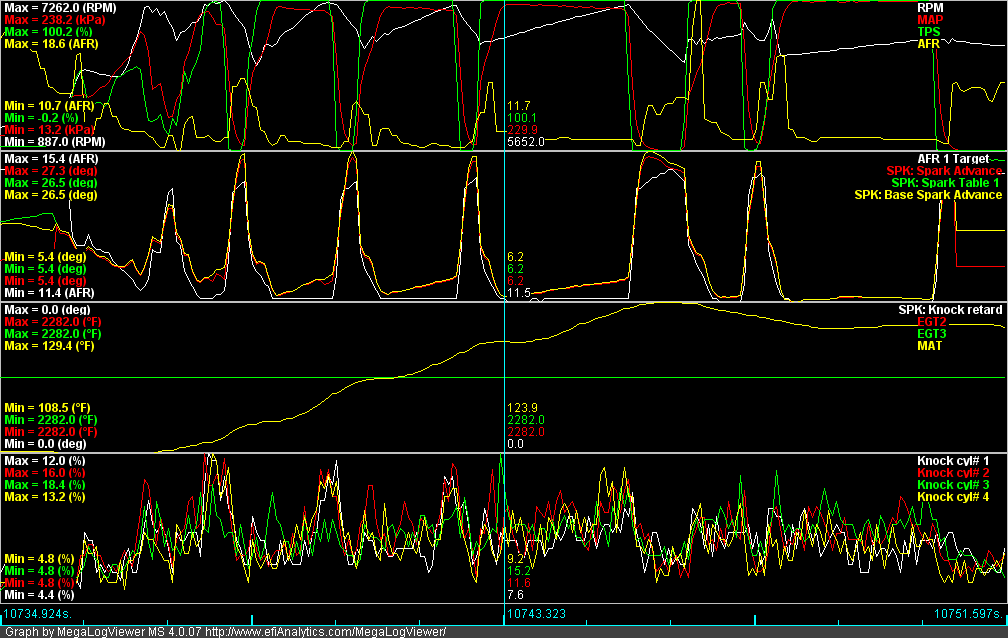

Took the car to the drag strip to see what it will do and found it difficult to get a desent run, wheel hop on first and second gears and missed 4 to 5 th gear changes so my best run was a 13.1 (the first run on the video and MS log) still was a lot of fun
http://youtu.be/4wzq8ms6bmQ



Attached Thumbnails
Harold's 1999 sport build-orp%25204%252015%25202015%252013_114.png   Harold's 1999 sport build-img_0173.jpg   Harold's 1999 sport build-img_0184.jpg

Last edited by HHammerly; 04-17-2015 at 09:42 PM.
HHammerly is offline   Reply With Quote
Old 08-22-2015, 06:33 PM   #56
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

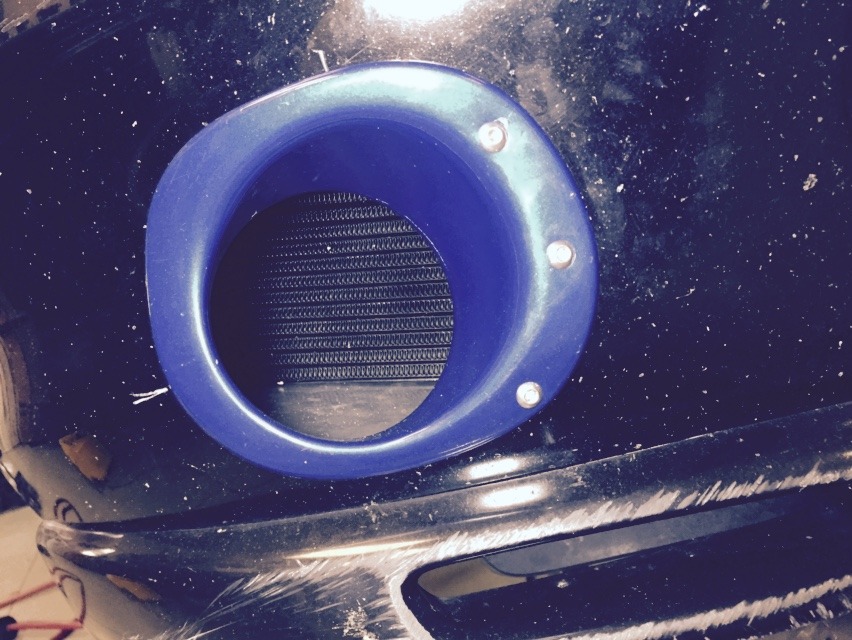

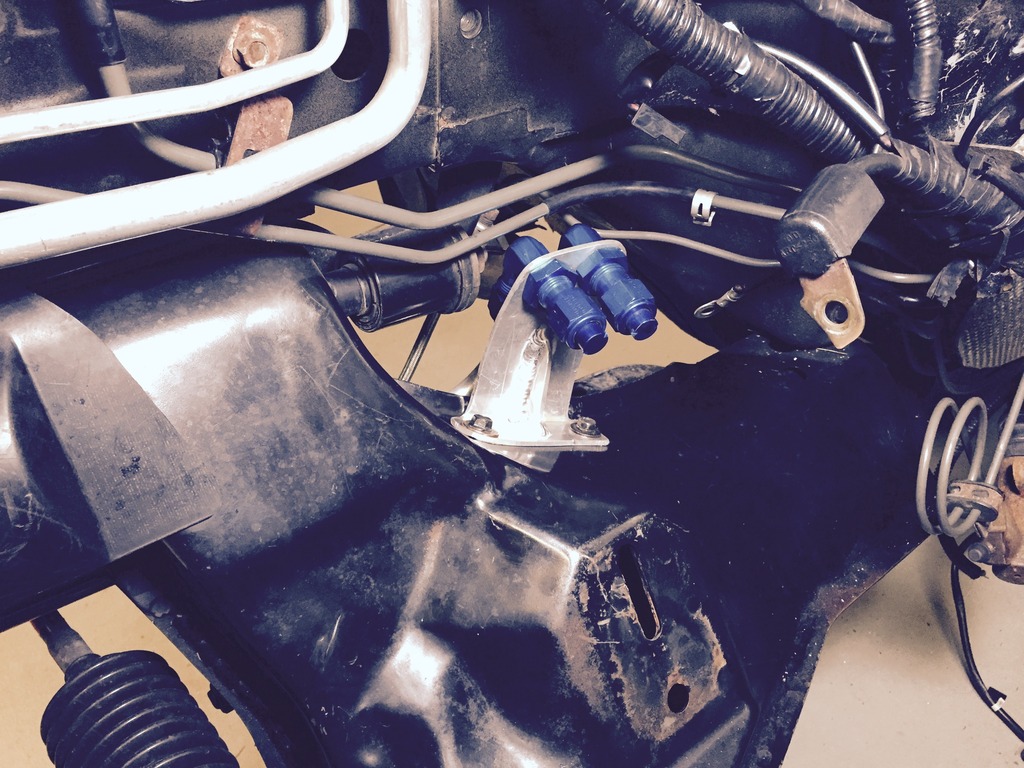

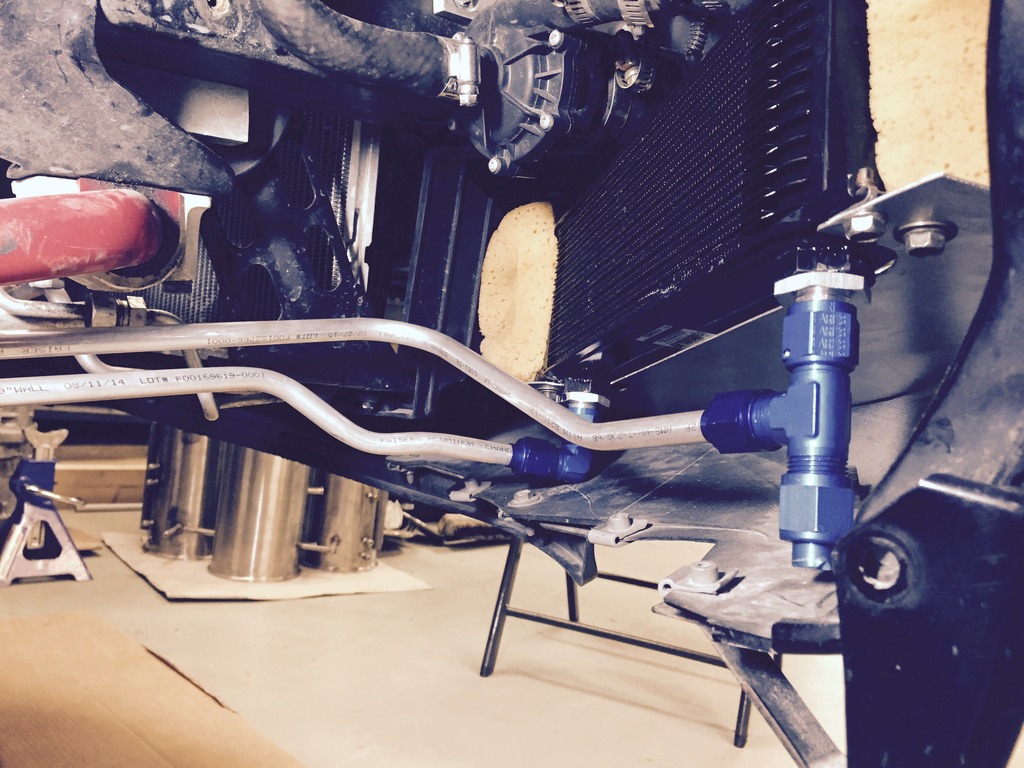

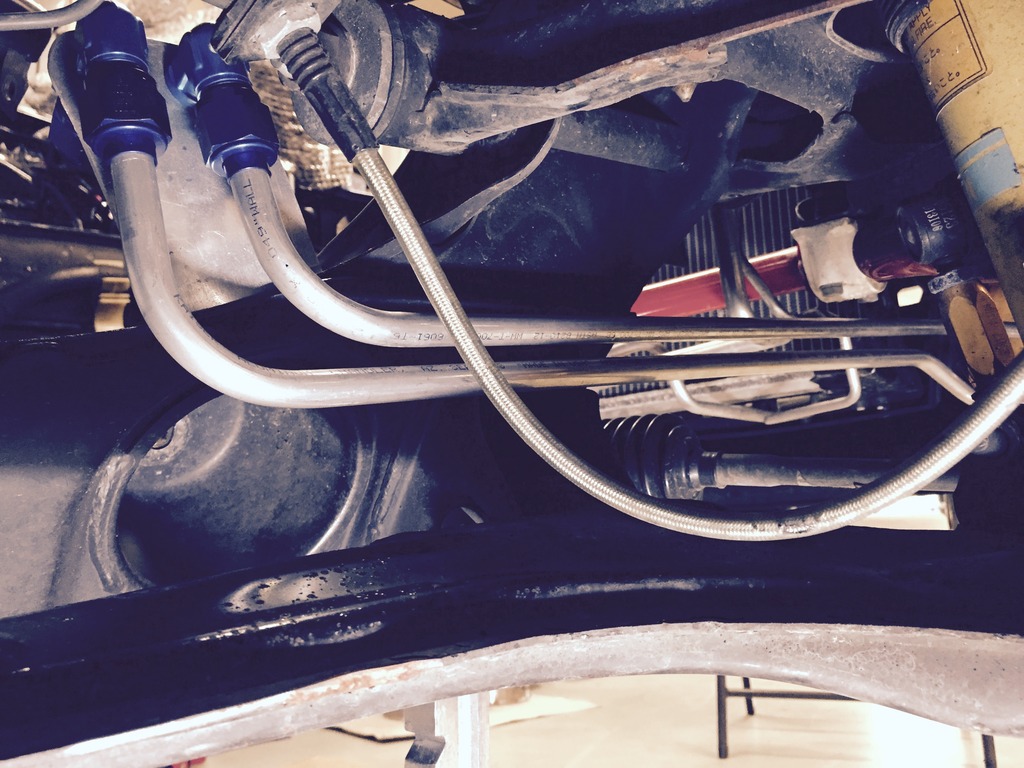

Finally got around to install an oil cooler and mocal thermostatic plate on the car, well see hou it works when i het the car on the road in a couple weeks



Attached Thumbnails
Harold's 1999 sport build-a820bfd7-b896-4739-9794-563e5b0b6b29.jpg   Harold's 1999 sport build-aea815cd-6a67-4d93-b0c6-d61bd38e48f5.jpg   Harold's 1999 sport build-9da777c1-cfbc-4b2f-b74f-8e0f0df8ffbc.jpg   Harold's 1999 sport build-fece21a3-7b83-4da9-92ad-54b15b75cd70.jpg
HHammerly is offline   Reply With Quote
Old 08-22-2015, 06:53 PM   #57
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,028
Total Cats: 808
Default

Oo, hardlines! How long is that run? I'd imagine it might be a good idea to put something in there to support them, but that looks pretty damn clean as-is. Verry nice.
EO2K is offline   Reply With Quote
Old 08-22-2015, 07:10 PM   #58
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

Quote:
Originally Posted by EO2K View Post
Oo, hardlines! How long is that run? I'd imagine it might be a good idea to put something in there to support them, but that looks pretty damn clean as-is. Verry nice.
Right now the un supported run is 24" , will be installing another support block from the sway bar bearring block area
HHammerly is offline   Reply With Quote
Old 12-07-2015, 03:20 PM   #59
Junior Member

Join Date: Oct 2015
Location: Indianapolis, IN
Posts: 89
Total Cats: 0
Default

Love this build!

Hopefully I'll be able to see it in person sometime as you are somewhat local to me.


All of these sick *** NBs are making me want to sell off the NA, lol.
dohc5spd2dr is offline   Reply With Quote
Old 12-07-2015, 05:55 PM   #60
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 728
Total Cats: 53
Default

We can meet up and go for a ryde one of these days, right now it is on jack stands getting a new top and roll bar
