Old 04-14-2015, 01:16 AM   #441
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

An eventful weekend with Chin at TWS!! I signed up for the Chin event to learn the track ahead of a NASA event, and learn I did. Nearly 7 hours of seat time!! Kudos to Chin for that.

Lots of rain late Saturday. I drove every second of it. Here's my recce lap. Laughing ensued. Felt like I was doing a Jeep commercial:

I made enough noise going around the track that eventually some others came out to play. I was in the "zone" by then:

In other news, GT3s spin fantastically (spin at 2:26):

And yellow S2000s are the new Jack-in-the-Box:

My best of the weekend was a 2:02 flat. That's on RS-3 street tires. Some post-data adjustments and R-Comps should shave that time nicely. So, hopefully, I won't embarass myself too much at NASA (the current TTD record on the NASA website is 2:03.6 by Hustler -- which seems pretty slow compared to some of the times I've seen Robert Cope turn):

FUN, FUN WEEKEND. Water toys and all!
hornetball is offline   Reply With Quote
Old 04-14-2015, 10:57 AM   #442
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 394
Total Cats: 23
Default

Great videos and control in the rain.
ofspunk7 is offline   Reply With Quote
Old 04-14-2015, 12:32 PM   #443
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 16
Default

These videos keep giving me motivation to continue with my build.

Great driving!
OneTwo is offline   Reply With Quote
Old 04-17-2015, 04:46 PM   #444
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

Decided it was time to make a music video. What do you think?

hornetball is offline   Reply With Quote
Old 04-17-2015, 04:56 PM   #445
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 435
Total Cats: 23
Default

Car looks like it is running great out there. How do you like the Hankook RS3 V2 after using the RC-1? I'm running the RC-1 right now but I'm thinking of getting some RS3s to stay in class for Miata Challenge and GTA.
Lincoln Logs is offline   Reply With Quote
Old 04-17-2015, 05:13 PM   #446
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

I really liked the new Hankooks. Bought them as rain tires. They worked great, wet and dry. Plus, really inexpensive on TR.
hornetball is offline   Reply With Quote
Old 04-17-2015, 08:25 PM   #447
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,983
Total Cats: 409
Default

Fun to watch, nice job Rick.
turbofan is offline   Reply With Quote
Old 06-28-2015, 11:58 PM   #448
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default Cool Shirt!

Well, it's almost July in Texas. That can only mean one thing . . . I need a Cool Shirt.

Went ahead and store bought everything from Amazon, including the fancy/smancy speed controller doohicky. The controller is pretty big. After sitting in the car for awhile, I decided to put it in the console where the OEM ashtray/cupholders usually go. You'll recall I retained the console in this car because it gives a bit of storage and is really light.

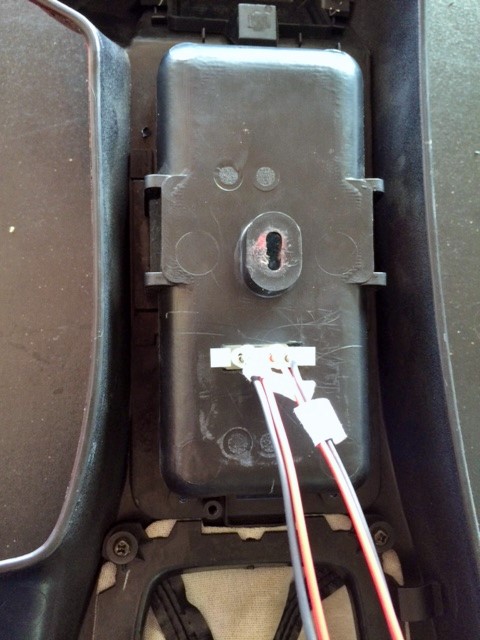

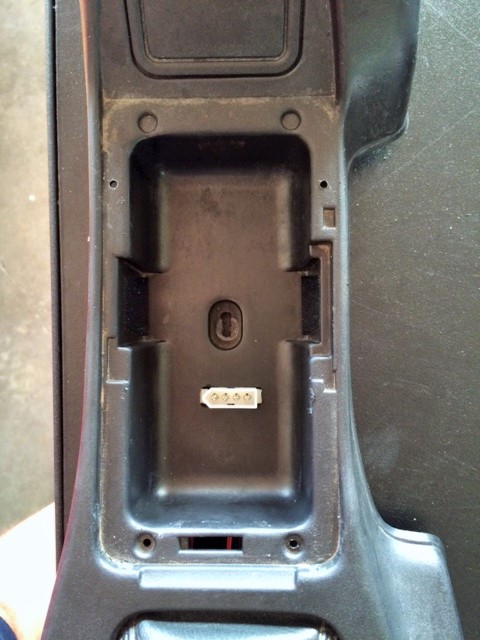

I cut a slot in the bottom of the well and finished it with a file for the mating side of the Molex.

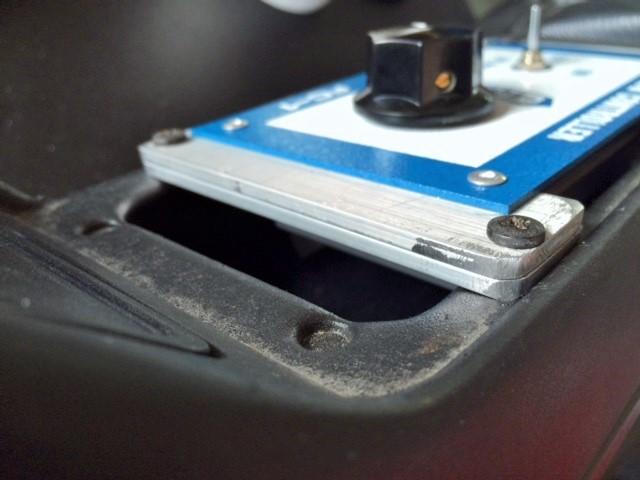

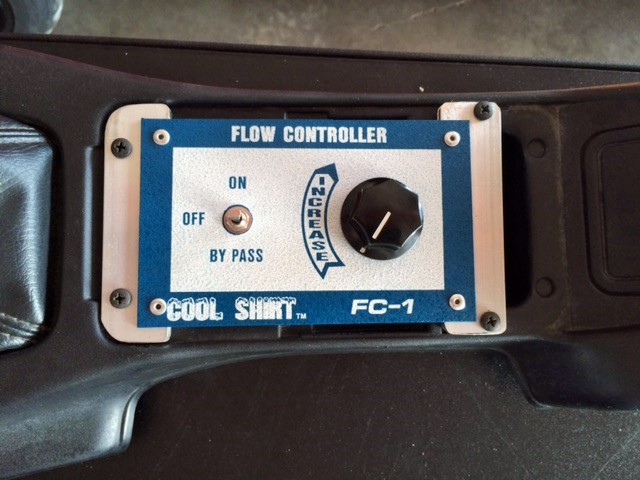

Here's the controller mounted up. I used two stacked 1" x 1/8" pieces of aluminum strap to shim the controller to where I needed it.

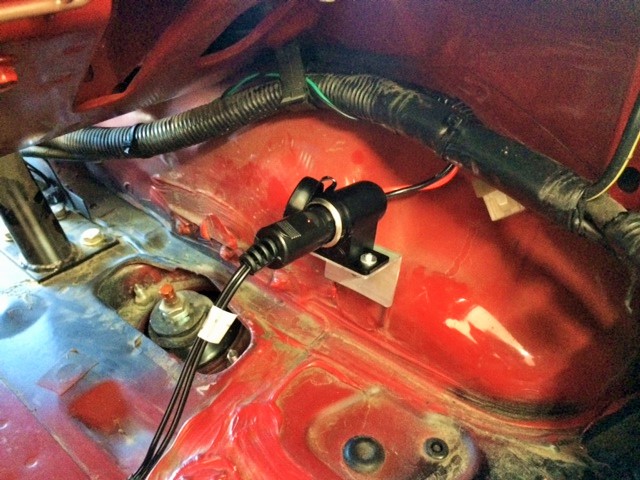

In the trunk, I wired a cigarette lighter outlet to give me an electrical quick disconnect for the cooler/pump assembly. This goes to the modulated voltage from the controller.

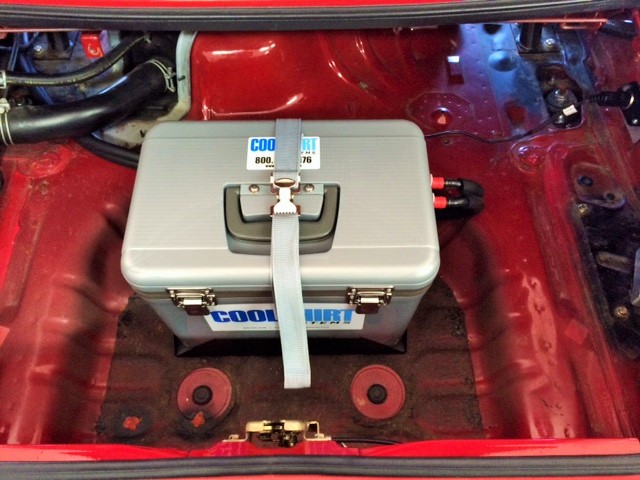

Cooler/pump assembly:

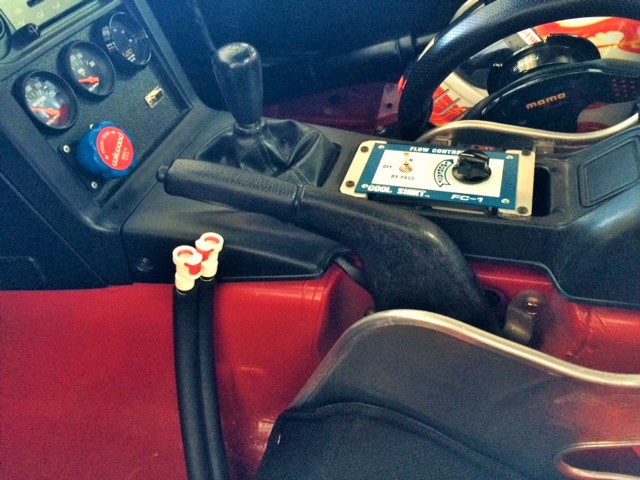

Business end:



A post here wouldn't be complete without video. The Porsches came out to play (but I kept my cool -- LOL). Mostly Spec Boxsters. They're ~200 pounds heavier, but have ~60HP on me.

Attached Thumbnails
HornetBall's Build #2:  Meet Red-img_0628.jpg   HornetBall's Build #2:  Meet Red-img_0629.jpg   HornetBall's Build #2:  Meet Red-img_0630.jpg   HornetBall's Build #2:  Meet Red-img_0631.jpg   HornetBall's Build #2:  Meet Red-img_0635.jpg

HornetBall's Build #2:  Meet Red-img_0636.jpg   HornetBall's Build #2:  Meet Red-img_0637.jpg

Last edited by hornetball; 06-29-2015 at 11:26 AM.
hornetball is offline   Reply With Quote
Old 07-06-2015, 06:59 PM   #449
Junior Member

Join Date: Oct 2013
Location: Portugal
Posts: 108
Total Cats: 24
Default

Great driving Rick! Thatīs how you do it !
Filipe Dias is offline   Reply With Quote
Old 07-27-2015, 01:03 AM   #450
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default TCM Hardtop

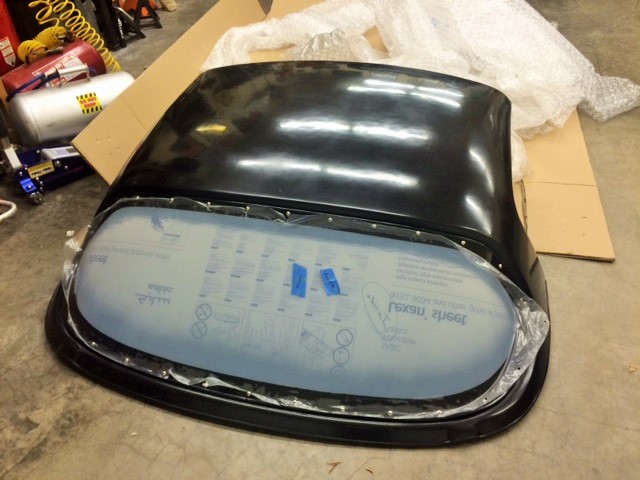

Treasure Coast Miata hardtop. Fully assembled (windows, seals, etc.) in black gelcoat, the hardtop weighed 20.2 pounds!!

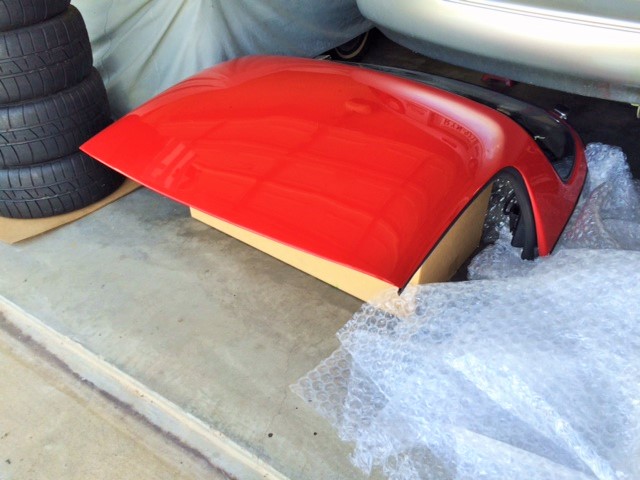

The Snugtop brand top I removed weighed 54.6 pounds. That a savings of 34.4 pounds -- up high!!



The front brackets were regular Spec Miata pieces:

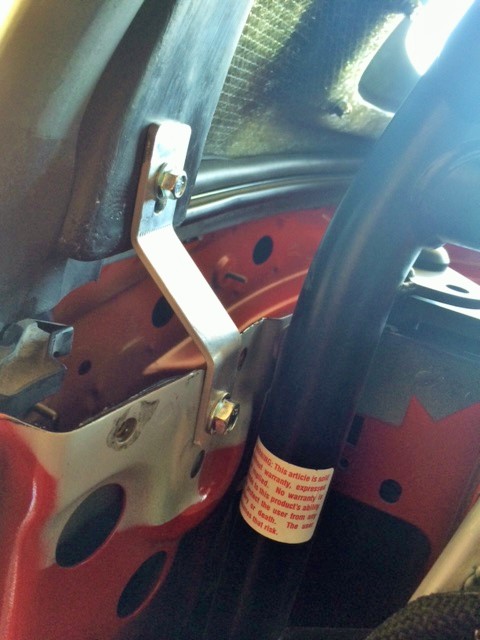

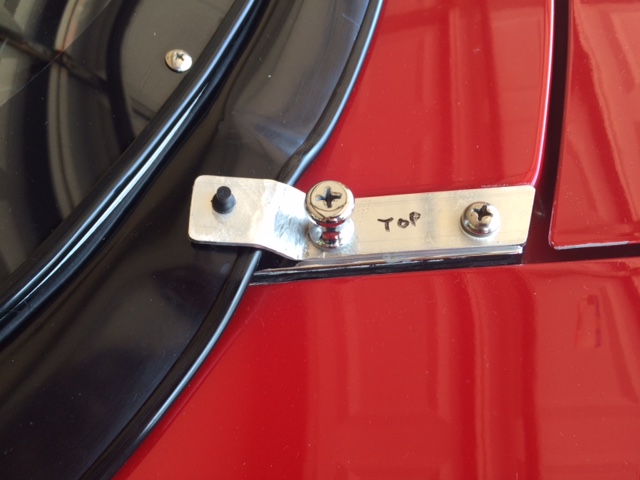

I fabbed brackets for the side and back from 1" x 1/8" aluminum strap:

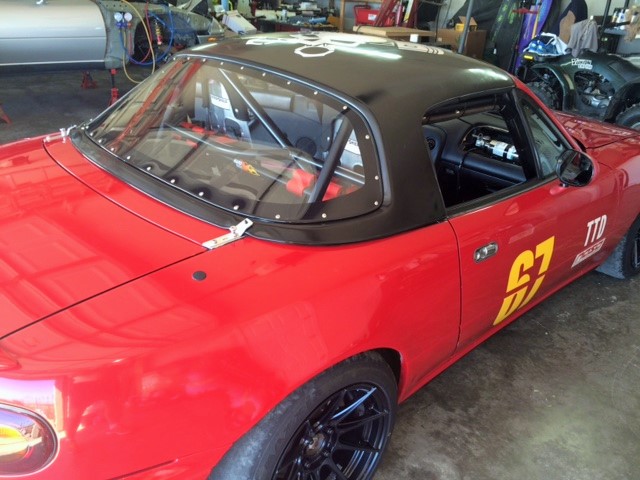

Mounted up:





What to do with all that black gelcoat? Skull and pistons, of course (#world's_coolest_grandpa):

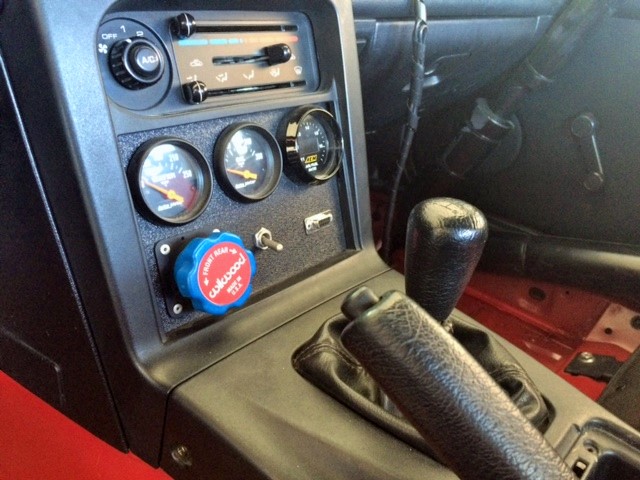

In other news, I gave up on the variable controller for the cool shirt. I found I was just turning it on full blast anyway. And the console location really wasn't working well. So, added a simple toggle switch.

Attached Thumbnails
HornetBall's Build #2:  Meet Red-img_0651.jpg   HornetBall's Build #2:  Meet Red-img_0652.jpg   HornetBall's Build #2:  Meet Red-img_0654.jpg   HornetBall's Build #2:  Meet Red-img_0658.jpg   HornetBall's Build #2:  Meet Red-img_0660.jpg

HornetBall's Build #2:  Meet Red-img_0661.jpg   HornetBall's Build #2:  Meet Red-img_0663.jpg   HornetBall's Build #2:  Meet Red-img_0664.jpg   HornetBall's Build #2:  Meet Red-img_0665.jpg   HornetBall's Build #2:  Meet Red-img_0666.jpg


Last edited by hornetball; 07-27-2015 at 10:58 AM.
hornetball is offline   Reply With Quote
Old 08-31-2015, 04:36 PM   #451
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

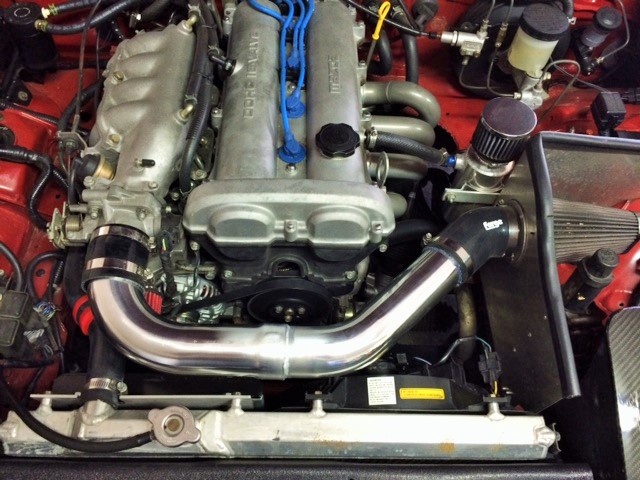

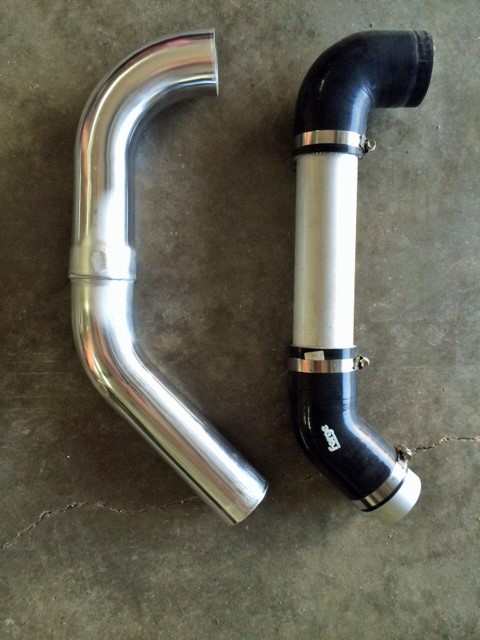

Been doing a bunch of intercooler tube construction for the silver car (Hornetball's Build) and had some leftovers. So, I built a nicer intake -- the hope is that the less severe radiuses might add some power? OTOH, the intake ended up a bit longer and it was already longer than the ideal 19-23" range.

Whatever . . . pictures:



Attached Thumbnails
HornetBall's Build #2:  Meet Red-img_0711.jpg   HornetBall's Build #2:  Meet Red-img_0712.jpg
hornetball is offline   Reply With Quote
Old 08-31-2015, 06:22 PM   #452
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,183
Total Cats: 321
Default

Who cares if it adds some fractional HP? It looks cleaner.
rleete is offline   Reply With Quote
Old 08-31-2015, 06:27 PM   #453
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

I think longer add torque? or something. I know too short makes a NB1 feel even more 1.6ey down low
def looks like it should flow smoother
18psi is offline   Reply With Quote
Old 08-31-2015, 06:40 PM   #454
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

Quote:
Originally Posted by 18psi View Post
I think longer add torque?
In theory, I think that's right. But I'm not sure if length is critical, or tuned volume is critical, or ??

I think Emilio uses 2.75" tubing of between 19 and 23" length for his intake builds.

Anyway, I agree, I think it looks better.
hornetball is offline   Reply With Quote
Old 08-31-2015, 07:05 PM   #455
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,855
Total Cats: -3
Default

Jeez...you are a brazing fool these days
Efini~FC3S is offline   Reply With Quote
Old 08-31-2015, 07:09 PM   #456
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

Quote:
Originally Posted by Efini~FC3S View Post
Jeez...you are a fool these days
FTFY.

Fire! Fire! Heh! Heh!
hornetball is offline   Reply With Quote
Old 08-31-2015, 08:58 PM   #457
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,396
Total Cats: 356
Default

How do you like the new top other than the weight savings?
How well do the windows seal?
Monk is online now   Reply With Quote
Old 08-31-2015, 10:45 PM   #458
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,807
Total Cats: 551
Default

You can get a pretty good seal if you take the time to adjust. I did a hand wash on the red car, and only got water in on the driver's side, and it seemed like a normal amount of water intrusion for an old Miata. I can see the gap where the water got in and may get around to fixing it someday . . . but, no carpet, so meh. It certainly seals well enough for a long tow in the rain.

The top is extremely light and not as rigid as a regular hardtop. As a result, it makes more noise (little squeaks and rattles) from where it sits on the back of the car. I think this could be reduced with a way to positively resist lateral movement like the Frankenstein bolts do for the OEM top. My little brackets with rubber bumpers aren't enough in that regard.

The gelcoat finish is somewhat wavy and would require filler if you wanted it perfectly smooth for a topcoat of paint. But it's just right for a skull and pistons decal.

So, great race top. Not the greatest DD top. Pretty much as advertised. Color me satisfied.
hornetball is offline   Reply With Quote
Old 08-31-2015, 10:52 PM   #459
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,396
Total Cats: 356
Default

Thanks. That's basically what I expected.
Now if I could just find someone near that also wants one so we can split shipping...
Monk is online now   Reply With Quote
Old 09-01-2015, 01:58 AM   #460
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

Quote:
Originally Posted by hornetball View Post
In theory, I think that's right. But I'm not sure if length is critical, or tuned volume is critical, or ??

I think Emilio uses 2.75" tubing of between 19 and 23" length for his intake builds.

Anyway, I agree, I think it looks better.
Yep, ~21" is ideal iirc
