Old 09-01-2015, 03:39 PM   #461
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by hornetball View Post
In theory, I think that's right. But I'm not sure if length is critical, or tuned volume is critical, or ??

I think Emilio uses 2.75" tubing of between 19 and 23" length for his intake builds.

Anyway, I agree, I think it looks better.
MX-5 Miata Forum - View Single Post - 180whp 152tq CNC head
emilio700 is offline   Reply With Quote
Old 09-01-2015, 03:49 PM   #462
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Monk View Post
Thanks. That's basically what I expected.
Now if I could just find someone near that also wants one so we can split shipping...

I heard my name mentioned, here i am!
concealer404 is offline   Reply With Quote
Old 09-01-2015, 03:54 PM   #463
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,399
Total Cats: 356
Default

Let's do it.
Rick, is that paint or a vinyl decal on the top?
Monk is offline   Reply With Quote
Old 09-01-2015, 03:54 PM   #464
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Quote:
Originally Posted by emilio700 View Post
Awesome and worth repeating here:

"BP pipe should be about 21" long x 2.5", aluminum, largest radius you can make fit with your particular car setup. Keep the beginning of that first turn as far from the TB as possible. Generally that's difficult because the pipe hits the hood, radiator, everything. Simple but high quality cone filter on the end. No pep boys or ebay filters. I suggest Green, K&N, AEM, etc. Filter doesn't need to be huge. We measured no power loss from a huge 6x8" AEM to and old 3.5x5" round K&N or no filter. B6 pipe the same but about 19". Length measured along centerline of tube from TB plate to filter element or area where cross section increases, not measured to filter flange. Getting the length wrong is not a a huge problem, just costs 1-3 whp. You'll lose more than that by using a tight radius silicone U coupler stuck on the TB. We prefer a larger radius aluminum U bend with a very small straight section off the TB before the bend begins.

Not always possible with headlights and other stuff in the way but we like to route the intake back towards the RF shock tower. On race cars with headlight removed, you can sometimes just fit the required length in the abandoned headlight area. That reduces the bend on the pipe and maybe worth 2whp or so over a U bend. If you are wondering if a straight pipe sticking out of the hood makes the most power, ah yep. 4whp over anything with a U bend. Did we try huge 3 and 4" pipes? Ah yep, no gain.

Engine moves around, particularly with rubber mounts. Pay attention to how your fancy new intake pipe wears holes in the rad top hose, pulls loose your IAT, bangs against the hood prop and generally tells you"do over".

I won't provide specific sources for the materials here because google."


So, maybe I've done myself some good with the new intake!
hornetball is online now   Reply With Quote
Old 09-01-2015, 03:56 PM   #465
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Quote:
Originally Posted by Monk View Post
Let's do it.
Rick, is that paint or a vinyl decal on the top?
Vinyl decal off E-bay. I'm thinking a giant squadron patch would have been cool too.
hornetball is online now   Reply With Quote
Old 09-01-2015, 04:20 PM   #466
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Monk View Post
Let's do it.
Rick, is that paint or a vinyl decal on the top?

I need to wait until my vehicle situation is sorted out, but i'm 100% down for this after.

I've been wanting to buy a vinyl cutter, so unless you "need" the graphic right meow, hang on a couple months and we can make something awesome. I'm thinking a huge eggplant for my eggplant-colored car.
concealer404 is offline   Reply With Quote
Old 09-29-2015, 10:54 AM   #467
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Been quiet here, so adding a video. This is basically the delta between a no-aero SuperMiata and Spec Miatas. The driver of the Sunburst car is a former Porsche pro -- so not a slouch.

hornetball is online now   Reply With Quote
Old 10-01-2015, 10:28 AM   #468
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,949
Total Cats: 139
Default

Quote:
Originally Posted by hornetball View Post
...The driver of the Sunburst car is a former Porsche pro -- so not a slouch.

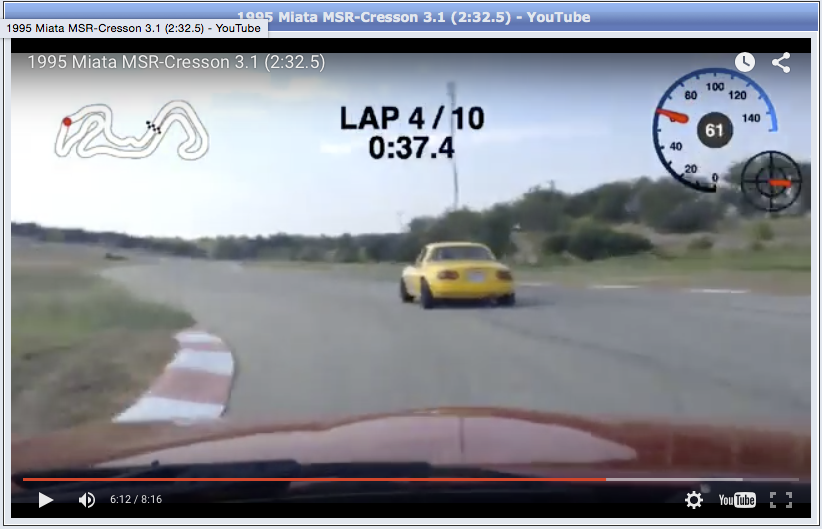

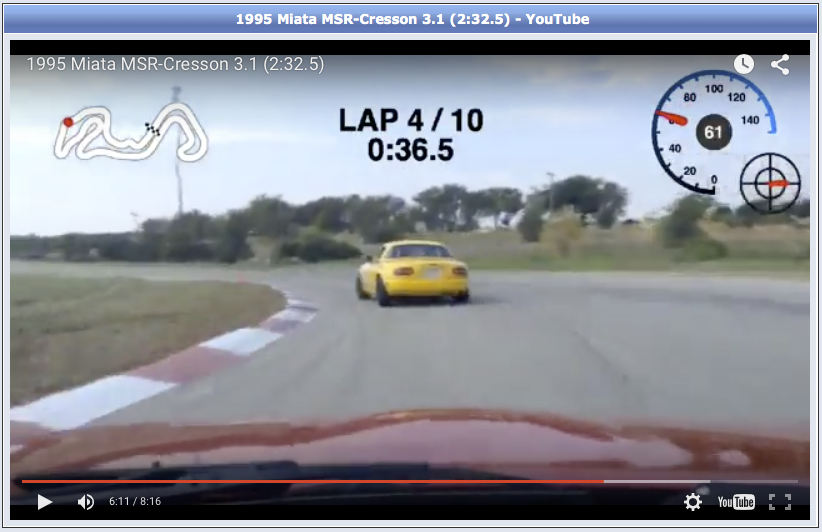

Though he was missing apexes, some significantly once he was in camera view. A long time ago I got a ride with a pro driver and was amazed at how much quicker he was than I. I asked why and he replied, "You miss apexes by six feet, I miss them by six inches."

him


you in the same turn on the seam/paint


My assumption is that happens several times a lap at various corners. Usually a poor turn leans to another poor turn if they're in close proximity.
Attached Thumbnails
HornetBall's Build #2:  Meet Red-screen-shot-2015-10-01-9.24.19-am.png   HornetBall's Build #2:  Meet Red-screen-shot-2015-10-01-9.24.31-am.png
m2cupcar is offline   Reply With Quote
Old 10-02-2015, 06:04 PM   #469
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

He was driving some different lines than I was, but on this particular corner I think he was already adjusting to let me by. But, yeah, use the whole track . . . .
hornetball is online now   Reply With Quote
Old 10-31-2015, 01:51 PM   #470
Newb

Join Date: Sep 2014
Location: Granbury TX
Posts: 1
Total Cats: 0
Default

More on the hardtop.

I have one of the Treasure Coast hardtops too. Rick and I and another guy piggybacked our orders to save shipping.

I agree with Rickís remarks on finish and fit and given the 32# weight savings, Iím satisfied.

I did not leave mine in gelcoat. I painted mine after talking with a friend who has worked fiberglass for years with Corvette projects.

He warned me against leaving the gelcoat finish alone due to UV rays creating future problems. He told me there are products (like wax stuff) that you can put on to prevent problems, but that is supposed to be done yearly.

He recommended at a minimum putting on clear coat. I found a local paint shop that did a decent job of painting it body color for $200.

So talk to people you know and trust that know fiberglass and make your own decision whether to paint or not.
nealb is offline   Reply With Quote
Old 11-23-2015, 01:52 PM   #471
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Been out of the country quite a bit working, but finally made it back to a track weekend. The weather's cooled off and the car was running great. This session, in particular, was a lot of fun. First TDE instructor session on Sunday morning:

hornetball is online now   Reply With Quote
Old 11-24-2015, 08:57 PM   #472
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,988
Total Cats: 409
Default

Rick's flat gettin' after it here. Nice.
turbofan is online now   Reply With Quote
Old 01-18-2016, 09:54 PM   #473
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 616
Total Cats: 74
Default

Bawmp.

I've been following along but haven't posted as of yet, just wanted to say good ****!

Any plans for wheel to wheel soon?
Arca_ex is offline   Reply With Quote
Old 01-19-2016, 09:54 AM   #474
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

Quote:
Originally Posted by Arca_ex View Post
Bawmp.

I've been following along but haven't posted as of yet, just wanted to say good ****!

Any plans for wheel to wheel soon?
Me too. It's amazing to see how much faster Rick gets from the earlier videos to now. Nice work, nice build Rick!
fivehundredton is offline   Reply With Quote
Old 01-19-2016, 12:04 PM   #475
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Thanks guys.

Seat time, seat time, seat time. That's why you need a reliable car.

I'm planning to do some WRL racing this year with some of my track buds.
hornetball is online now   Reply With Quote
Old 01-19-2016, 02:22 PM   #476
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,138
Total Cats: 28
Default

What is WRL racing?
Chilicharger665 is offline   Reply With Quote
Old 01-19-2016, 03:05 PM   #477
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Quote:
Originally Posted by Chilicharger665 View Post
What is WRL racing?
That post was more keystrokes that typing "wrl racing" into google.

I counted.
emilio700 is offline   Reply With Quote
Old 01-19-2016, 03:08 PM   #478
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,808
Total Cats: 931
Default

Here

(I just got a lmgtfy extension the other day. Highlight text, click extension, boom. there you go)
aidandj is offline   Reply With Quote
Old 01-20-2016, 01:03 AM   #479
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 616
Total Cats: 74
Default

Dang those rules are pretty severe for contact, kind of cool. It's like the iRacing of real life hahaha.

The modifications section is curious, I wonder if they sort of just make **** up on the fly as far as these unlisted power/weight penalties go for using certain parts.
Arca_ex is offline   Reply With Quote
Old 01-20-2016, 11:43 AM   #480
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

WRL is more of a gentleman's series for people that like to get out and drive (a bunch) but aren't interested in having their car banged up for no reason.
hornetball is online now   Reply With Quote
