Old 11-05-2015, 07:57 PM   #401
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Schuyler View Post
I went to install the exhaust brace I bought from FM, but it does not fit on my MKTurbo exhaust. Not worried about it, as I knew it was a risk going in. Made one instead. Works well, but I can definitely feel exhaust vibrations when decelerating and stuff like that. I have to drive on the interstate for a while tomorrow, so that should be a good test of how bad that is. I may end up adding a piece of rubber on the brace or something. I cannot move the midpipe now. But I have a flex in the downpipe, so I am not very worried about anything breaking.


I made a brace for in that bolted to that same spot, and I used rubber. It melted... Make sure if you do that, the rubber is at least 2" or so away from the pipe. Which is about impossible to do in that spot since they are so close together.
patsmx5 is offline   Reply With Quote
Old 11-05-2015, 08:00 PM   #402
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Goal of this brace was to stop rattles, nothing else.

I'll keep that in mind Pat.

This is fundamentally identical to the brace FM sells for their turbo exhausts.
Schuyler is offline   Reply With Quote
Old 11-05-2015, 08:04 PM   #403
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Brace looks good. If it does what you want, I'd keep it. I admitedly have no brace there any more, mine just hangs on the header now... Luckily it's pretty light so I'm not that worried about it, but adding a hanger is not a bad idea for me.
patsmx5 is offline   Reply With Quote
Old 11-05-2015, 08:07 PM   #404
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Schuyler View Post
Thanks to you both. I've updated my settings.

My car runs super cool (due to the incorrect thermostat I'm running. Long story.) on the interstate on cool days. On warm days it runs ~20deg over the thermostat. But in downtown traffic it has been creeping up into the high 220s low 230s, especially if the a/c is on. I had everything set up for both fans to run with a/c, but my thought is that they may only run with the compressor is on. I'm hoping that maybe this new Programmable i/o setting will help with that. In addition, if I cut a/c off, now I will have both fans helping cool things off faster.

Next step if this doesn't resolve it will be bigger (maybe SPAL) fans. I will be doing some ducting at some point, but probably not soon. In my mind that will be more track-oriented, because as I said, I don't really have much of an issue at cruising speeds once I get the car moving.

EDIT: Thermostat is 170deg. Realized I kept talking about it, but left that tidbit out.
I run a pair of Spal Extreme performance fans. Was a pain to setup (had to install bigger alternator), but they do cool very well. When I had my a/c condenser up front, in bumper to bumper houston traffic, 90-100*F days the fans would cycle on and off between low and high. Big fans will help low speed cooling. I'd make sure the ducting is spot on though before doing fans, since that's a lighter better solution if you haven't got that nailed down.
patsmx5 is offline   Reply With Quote
Old 11-05-2015, 08:08 PM   #405
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
I run a pair of Spal Extreme performance fans. Was a pain to setup (had to install bigger alternator), but they do cool very well. When I had my a/c condenser up front, in bumper to bumper houston traffic, 90-100*F days the fans would cycle on and off between low and high. Big fans will help low speed cooling. I'd make sure the ducting is spot on though before doing fans, since that's a lighter better solution if you haven't got that nailed down.
I'm using stock fan ducting at the moment. I've considered making one out of Al.
Schuyler is offline   Reply With Quote
Old 11-05-2015, 08:12 PM   #406
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

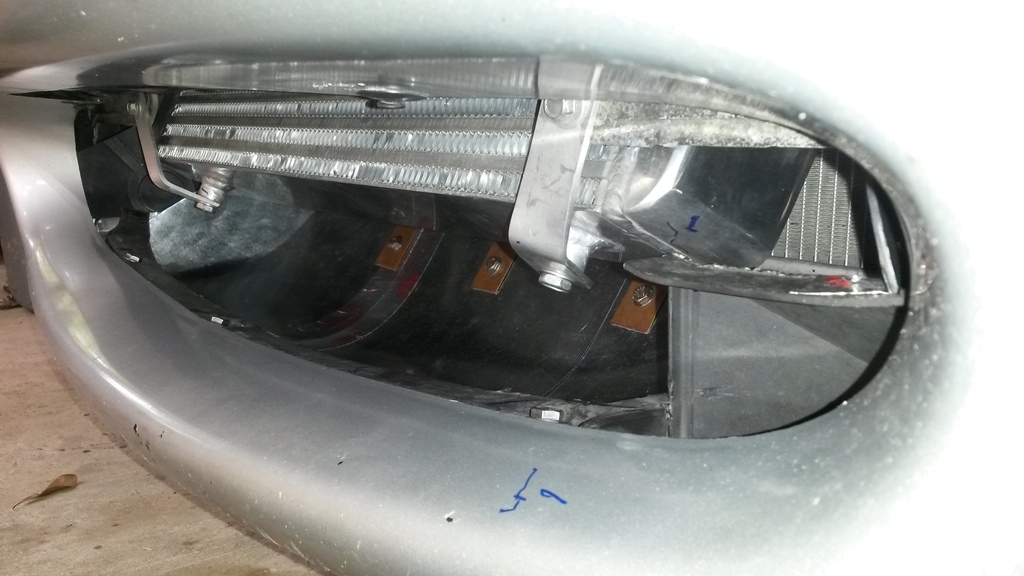

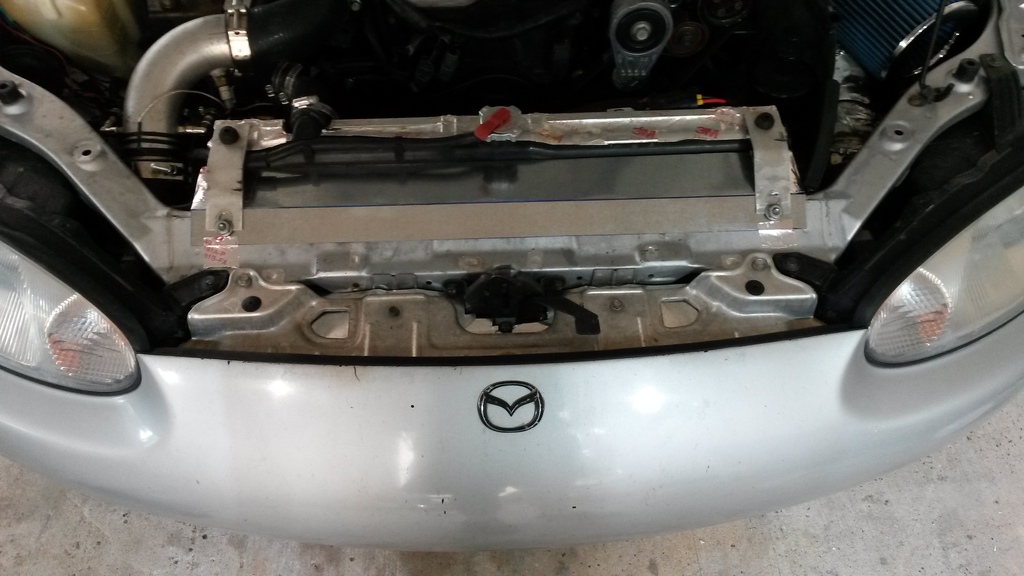

I don't mean the fans shroud, I mean the ducting in the front end that directs air that enters the bumper to the radiator. That part is terrible on NB's, you have to fab pieces to seal up the front end.

Like this:


Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-20150613_145926_zpsjhztlkwq.jpg   ITT we discuss why not to turbo your daily bent rod-20150613_150030_zpsuoxofxvl.jpg
patsmx5 is offline   Reply With Quote
Old 11-05-2015, 08:14 PM   #407
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
I don't mean the fans shroud, I mean the ducting in the front end that directs air that enters the bumper to the radiator. That part is terrible on NB's, you have to fab pieces to seal up the front end.
I have no issues while moving. Only when sitting in traffic.
Schuyler is offline   Reply With Quote
Old 11-05-2015, 08:16 PM   #408
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Schuyler View Post
I have no issues while moving. Only when sitting in traffic.
FM shroud modded and 12" extreme performance fans

patsmx5 is offline   Reply With Quote
Old 11-05-2015, 08:18 PM   #409
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

[QUOTE=patsmx5;1281418]FM shroud modded and 12" extreme performance fans

My fear is what happens with this once you are back traveling at speed. I find it hard to believe that doesn't impede flow semi-significantly. I feel like I read sixshooter or someone that was overheating on the track as the result of adding this type of shroud.
Schuyler is offline   Reply With Quote
Old 11-05-2015, 08:25 PM   #410
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

[QUOTE=Schuyler;1281419]
Quote:
Originally Posted by patsmx5 View Post
FM shroud modded and 12" extreme performance fans

My fear is what happens with this once you are back traveling at speed. I find it hard to believe that doesn't impede flow semi-significantly. I feel like I read sixshooter or someone that was overheating on the track as the result of adding this type of shroud.
Yeah, at 60 mph that shroud isn't helping cooling, it's hurting it.

But you said your car overheats at low speed with a/c on. This fixes that problem.

My car runs thermostat at all times (180*F) with these fans AND PROPER DUCTING.

Without proper ducting it did run hotter than I wanted (210-220*F) with the a/c on max in 100*F temps on the highway.

If you want it perfect, move or remove the a/c condenser and then you can easily get away with less fans at low speed. A single fan would be fine at idle if you don't have a/c.

There is no perfect solution to everything if you're going to keep 3 heat exchangers stacked in the front.
patsmx5 is offline   Reply With Quote
Old 11-13-2015, 08:07 PM   #411
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,154
Total Cats: 972
Default

Source of vibrations and rattling:

Quote:
I may have not torqued the motor mount nuts. And they may have been gone on one side of the motor.
aidandj is offline   Reply With Quote
Old 11-13-2015, 08:26 PM   #412
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by aidandj View Post
Source of vibrations and rattling:
lol. I planned on making a "I dun fucked up post", but that makes it easier.

I guess in the process of throwing the car together quickly on my birthday I forgot to torque the motor mount nuts. One was loose, one was gone.

The exhaust was definitely the rattle, it just had some help moving lol.

Remember when I texted you saying "I may need stiffer motors mounts.." ? lol.
Schuyler is offline   Reply With Quote
Old 11-20-2015, 03:12 PM   #413
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

The curb angled a little faster than I thought leaving a store the other day, and the car scraped a little bit. Didn't think much of it, happens all the time. Then I drive like a mile, and all of a sudden I notice this rumble. I pause for a second, blip the throttle, and all of a sudden I'm in a race car. I guess I tapped the vband hard enough on this curb to break the clamp open somehow. It's been on/off 5 times or so.

All I gotta say is, I could dig some electric cutouts. This thing sounded like a beast. lol.

Fixed the clamp using an Acura TL jack because I left mine at a friends place by accident. I forgot how sketchy using one of those scissor jacks felt. Can't imagine not using a jackstand. Also, you hear lots of scary things in Forest Acres at night when you're outside for an extended period of time, Rallas. Probably 2-3 instances of a single random angry shout, and multiple police sirens in the 20 minutes i was outside.

Problem solved. Only drove maybe ~12min home like that. I could hear the T-bolt portion of the v-band dragging the ground. She looked pretty rough.
Schuyler is offline   Reply With Quote
Old 11-24-2015, 12:03 PM   #414
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 975
Total Cats: 12
Default

Not the best area to break down in!
Rallas is offline   Reply With Quote
Old 11-24-2015, 06:57 PM   #415
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by Rallas View Post
Not the best area to break down in!
lol, I live there. At least this year. I've never rented a house in Columbia more than 12mo.
Schuyler is offline   Reply With Quote
Old 12-01-2015, 08:50 PM   #416
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

I would develop a significant coolant leak right as the temperatures get too low to run water...

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-1rtlmlf.jpg
Schuyler is offline   Reply With Quote
Old 12-07-2015, 09:28 AM   #417
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Well, I thought I fixed the coolant leak. But I haven't. It replicates the above picture every time I park.

I have finals for the next two days, and I don't think my Automotive System Fundamentals professor will support any decisions to do an "independent study" as opposed to studying combustion cycles and ackerman angles.

I'm going back to my parent's place for a few weeks in December while I go back to work finishing up my internship. I'm debating whether to make the 2hr drive a 3-4hr drive and just feed it water every 20mi. Once I'm there I can mooch a car and fix this at my own pace. Not super excited about taking the coolant reroute stack off the back of the head while everything is in the car.
Schuyler is offline   Reply With Quote
Old 12-07-2015, 10:05 AM   #418
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Quote:
Originally Posted by Schuyler View Post
Not super excited about taking the coolant reroute stack off the back of the head while everything is in the car.
truer words were never spoken, good luck with that
Sirnixalot is offline   Reply With Quote
Old 12-07-2015, 10:43 AM   #419
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,305
Total Cats: 73
Default

Quote:
Originally Posted by Sirnixalot View Post
truer words were never spoken, good luck with that
Maybe if I replace my coolant with something thicker, like 0W-60, it wouldn't leak?
Schuyler is offline   Reply With Quote
Old 12-07-2015, 12:18 PM   #420
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,356
Total Cats: 768
Default

It took me about 75 minutes to get my Begi spacer off the back of my head when it was leaking. It then took me another 7-9 months to put it back on. I hate dealing with the spacers on a car.
shuiend is online now   Reply With Quote
