Old 10-12-2014, 01:30 PM   #281
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

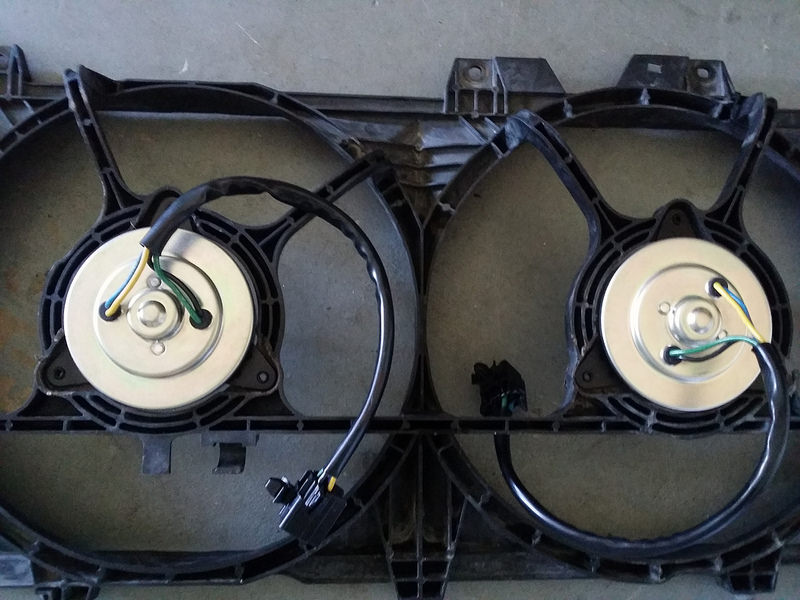

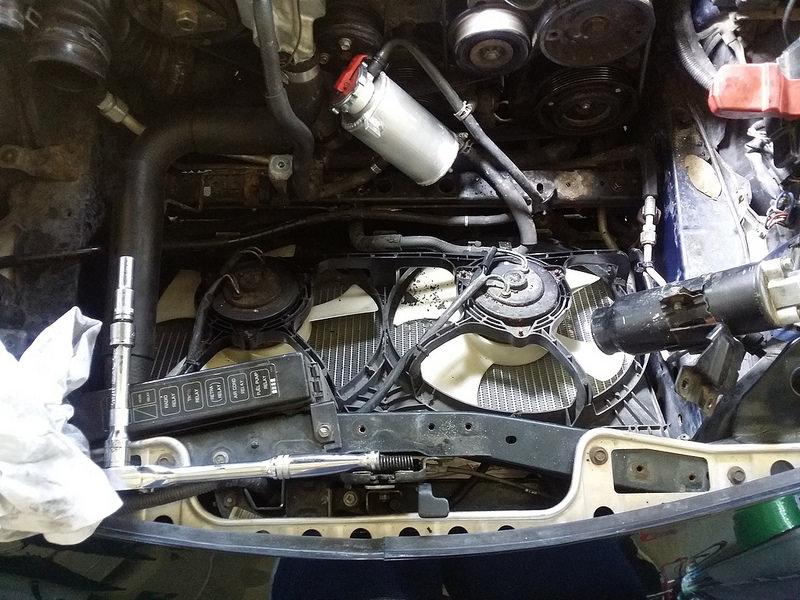

So I was pretty intimidated taking the entire front assembly of the motor apart like airbox, battery, intercooler, and upper radiayor hose but it wasn't all that bad.

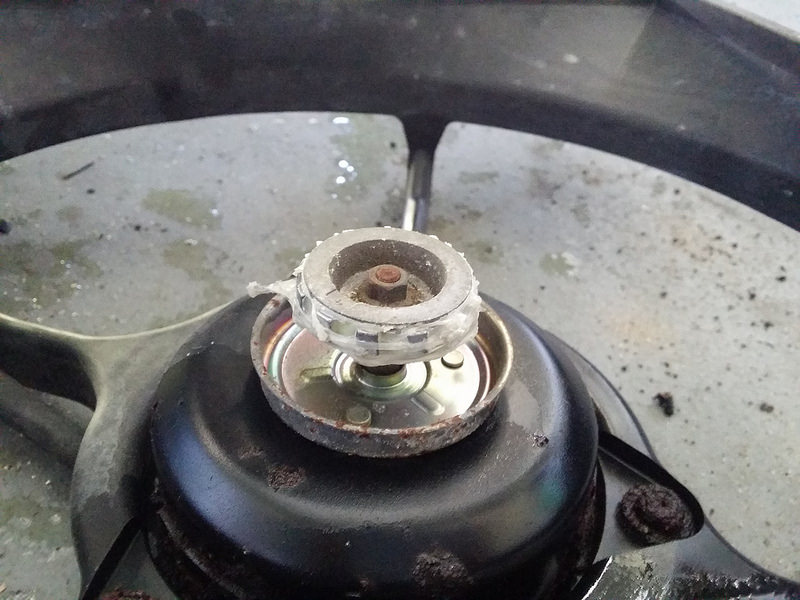

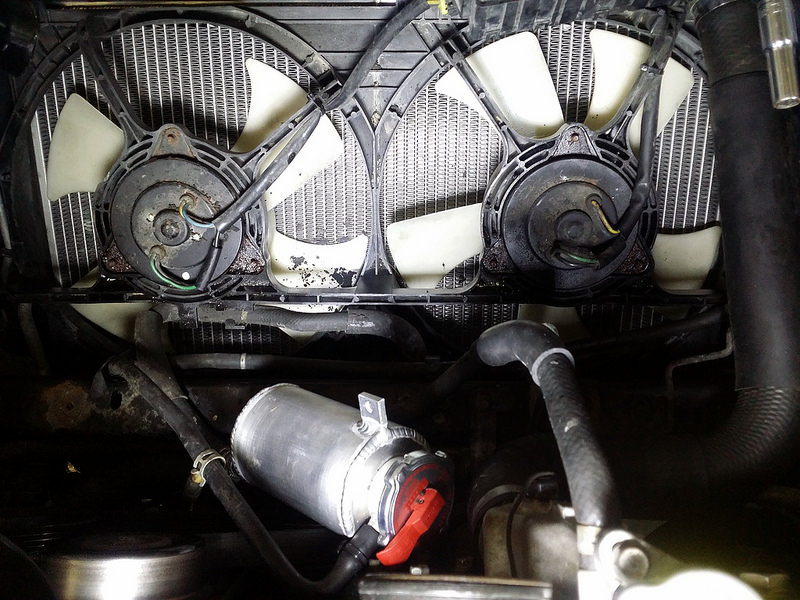

Found out why my temp gauge started to creep and a burning electrical smell. It was the fan. So on Monday I'll be ordering two new fans with new hardware. I absolutely hate rust but love airplane stripper. That stuff ate up everything.



20141011_103236 by rocketeerbandit, on Flickr


20141011_103248 by rocketeerbandit, on Flickr


20141011_121124 by rocketeerbandit, on Flickr


20141011_133118 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-15329938297_4fb5a05ba0_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15329625159_1b02a545db_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15493356836_c6f91baa45_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15513368151_a909d5047a_c.jpg
BlackBandit is offline   Reply With Quote
Old 10-12-2014, 01:59 PM   #282
Junior Member
iTrader: (11)

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 280
Total Cats: 6
Default

Thanks for taking pics. I need to get in there and upgrade my radiator. Nice to get an idea of what is all down there.
iantboyd is offline   Reply With Quote
Old 10-12-2014, 02:00 PM   #283
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I am going to make a write up since there isn't one. I can help you out with the process. I had to figure it out.
BlackBandit is offline   Reply With Quote
Old 10-18-2014, 12:32 AM   #284
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I forgot to make a how to.. pm me so I can write it up

Regarding suspension in the rear, I'm replacing every bushing. Though some are not available in the aftermarket world and need to be directly sourced through mazda, I don't know of I want to stick with all oem or go stiffer? I was wondering if there is a compound that is mazda competition stiff but stiff provides a comfortable ride.

Last edited by BlackBandit; 10-18-2014 at 09:45 AM.
BlackBandit is offline   Reply With Quote
Old 10-22-2014, 06:23 PM   #285
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Latest pic... I also took some shots of sep3 that look fantastic

Montego blue on steroids but not yet painted



MontegoBlue2 by rocketeerbandit, on Flickr



HighwayStar by rocketeerbandit, on Flickr


KeywestContrast by rocketeerbandit, on Flickr


UnderGround by rocketeerbandit, on Flickr



Steve'sRX8 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-15417422600_bcb4a4f7f8_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15599689761_194525530e_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15416841458_0856e44a5d_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15416513959_d323fba39f_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15417333847_bdfb746999_c.jpg

BlackBandit is offline   Reply With Quote
Old 10-22-2014, 06:34 PM   #286
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by EO2K View Post
If the lore is to be believed, the transmissions are the same.

Nope. FD is an "R" box.

I was also curious about the shifters, though...

I have a B2600 transmission sitting here that has an RX7 shifter in it, so that works, and i'd assume vice versa.

I suppose i could throw a spare Miata shifter in there and see how that goes. Would love to have a MiataRoadster tall angled shifter in my FD box end game.
concealer404 is offline   Reply With Quote
Old 10-23-2014, 08:19 PM   #287
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

That would be nice to know. Maybe if they fit I can order one and quite possibly have miataroadster become an rx7 vendor

Since she got no attention yesterday, here are some pictures I took this evening waiting around for the partial eclipse. Which, by the way, wasn't as successful. I've never tried to snap photos of the sun before and didnt get it right.

...



RxSunset2 by rocketeerbandit, on Flickr


I just couldn't make up my mind which photo that I liked more.



RxSunset by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-15425594248_fb3f0452d7_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15611706085_51f7f46c1e_b.jpg
BlackBandit is offline   Reply With Quote
Old 11-17-2014, 07:29 PM   #288
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

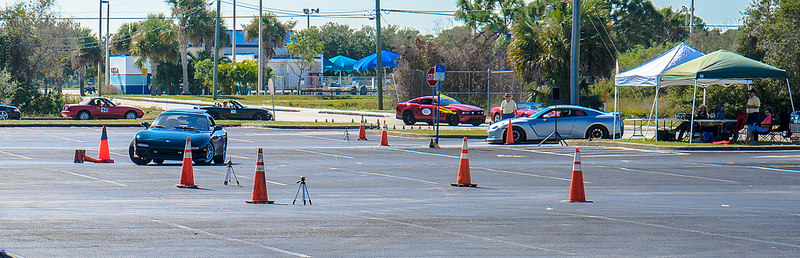

Autocrossed the Gal this past weekend. I'm diagnosing if I have a legit power steering leak.

What I did to remedy that was cleaning everything around the reservoir and the reservoir itself. I added dye to see if its a hose or not because the reservoir is still full. I replaced the cap for preventive cheap measures.


DSC03299 by rocketeerbandit, on Flickr



DSC03297 by rocketeerbandit, on Flickr



DSC03287 by rocketeerbandit, on Flickr


DSC03269 by rocketeerbandit, on Flickr


DSC03267 by rocketeerbandit, on Flickr


DSC03255 by rocketeerbandit, on Flickr


DSC03512 by rocketeerbandit, on Flickr




DSC03263 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-15807184235_4eb4d31731_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15807178405_ee04fb5bb5_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15187721133_ce0db4fa53_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15808739002_f22e6c3b00_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15621763678_63dc6f14c0_c.jpg

Mini_FD '99 Flyin' Miata Turbo Build-15621753608_bef3bc670d_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-15188326843_198f3e041a_c.jpg
BlackBandit is offline   Reply With Quote
Old 11-17-2014, 07:39 PM   #289
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I have some issues I need to clear up like Why am I keeping my hand on the shifter for so long? Why am I not having both hands on the steering wheel like I should be doing instead swagging it out one handed on the course?

Need to work on that. Also the video is my best time. 49.813

I was getting 50.2- 50.7 all day long. So I was enthusiastic about breaking under 50

BlackBandit is offline   Reply With Quote
Old 11-18-2014, 02:33 PM   #290
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Looks like a helluva course, and looked pretty fast to me. Nice work.
turbofan is offline   Reply With Quote
Old 11-26-2014, 09:51 AM   #291
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I felt the course was tight and constricted. It had two slaloms one going into a a left turn down a straight at beginning and one towards the end of the video where after a straight went into a slalom with a tight left and right.

Regardless I was happy with my results completely stock and torn bushings.


Today the car is getting the front windshield pulled to replace the moulding and stripping around the perimeter. It's curling and exposing what's underneath. I don't want a future problem with rust where water seeps in little pockets of the old adhesive. I was told that the previous owner also quite possibly tried to add a adhesive himself to fix the issue. So I'm going in there with oem seals getting the job done right.
BlackBandit is offline   Reply With Quote
Old 01-14-2015, 10:32 AM   #292
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

The car is getting a complete sequential system service;

Update the crankcase and turbo vent breather system

by passing the warm up system "Florida is warm already" and fuel regulator switch

Fit sequential control system with HD hose and install over boost safety circuit

calibrating system actuators

tune up: plugs,wires,fuelfilter, servicing ignition system, fuel system, airfilter, tune and adjust for optimum performance and longevity

Install thermostat, fan switch, replace turbo cooling hoses, flushing system, pressure check cooling system, service cooling fan relays, update central system, verify proper operation

185f fan switch

Green engine sensor temp


Cold air induction system with ICD cover kit, dual K&N filters and "V" duct inlet system off road use

Cool power kit, twin turbo 20ft. Woven thermal barrier

fully isolated shifter short stroke

Pulleykit, alternator and water pump belt
BlackBandit is offline   Reply With Quote
Old 01-18-2015, 09:23 AM   #293
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

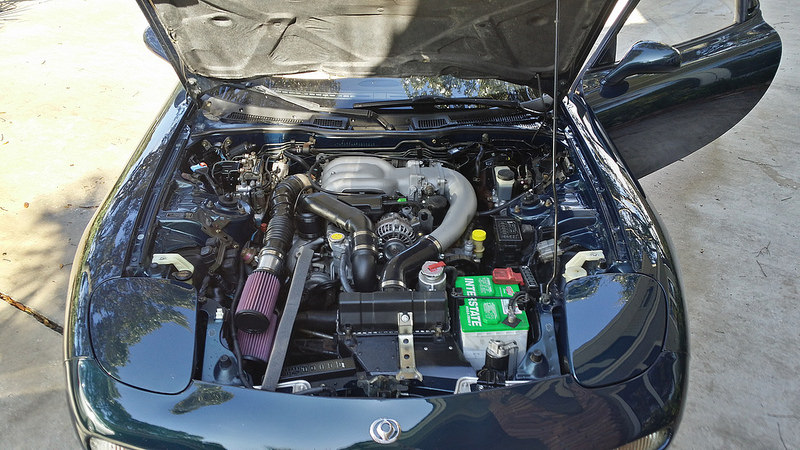

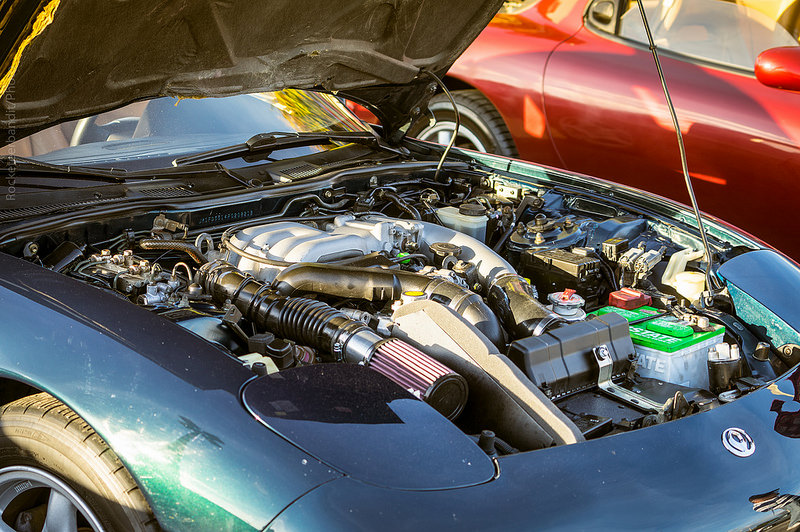

Everything got done. Emissions have been removed and this car is only breathing in fresh air.


DSC04449 by rocketeerbandit, on Flickr



20150117_101650_Richtone(HDR) by rocketeerbandit, on Flickr


DSC04432 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-16119212049_04ddf6139b_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-16122599387_f0f22a594d_c.jpg
BlackBandit is offline   Reply With Quote
Old 03-17-2015, 04:21 PM   #294
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

The car is at Mazda right now. The reason is because after I installed a remanufactured alternator, it seemed one of the wires to the sensor clip that plugs in the alternator was stripped out of its connector.

The power supply cable from the alternator started to burn and melt causing a plastic burn smell. I got the car towed to Mazda from Orlando to Melbourne using AAA.

So the car is getting a new Co-harness to fix the burnt current one. The cars low beams also are not working simultaneously as this all happened. I also am getting a full inspection done because I'm driving to DGRR and afterwards taking a cross country trip in the Rx-7.

So while the car is at mazda, I'm getting brand new coil packs and in the next couple weeks having mazda replace all the bushings.

Now you think I'm crazy having the dealership work on the car and pay dealership prices but I'm receiving quality work on one special mechanic who has worked on rotaries since 1990 and I'm paying for oem parts at wholesale price.

I can't wait to get my car back.
BlackBandit is offline   Reply With Quote
Old 03-29-2015, 10:45 AM   #295
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Stock Rx7 pull:
BlackBandit is offline   Reply With Quote
Old 03-29-2015, 01:01 PM   #296
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

"This video is private"

I'd love to see it.
Fireindc is offline   Reply With Quote
Old 03-30-2015, 08:38 PM   #297
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Okay so it's finalized.
Speaking with James from Mazda competition has been extremely pleasant. He helped me out multiple times and we together made sure what I needed.

J-auto helped me out for 40 mins on the phone for everything else Mazda competition didn't have. We went over my order from Mazda and created an order over the phone on his Web site to make sure the entire job was complete front to back.-
I purchased Mazda competition bushings. They are stiffer rubber oem bushings that are not available in the factory.-

I went with j-auto pillow ***** with j auto toe links, inner/auto tie rods/ boot covers, ball joint boots, and super pro trailing arm bushing.-

After the help here online and to James and j-auto, I feel like I am making the right decision.
BlackBandit is offline   Reply With Quote
Old 03-31-2015, 12:17 PM   #298
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

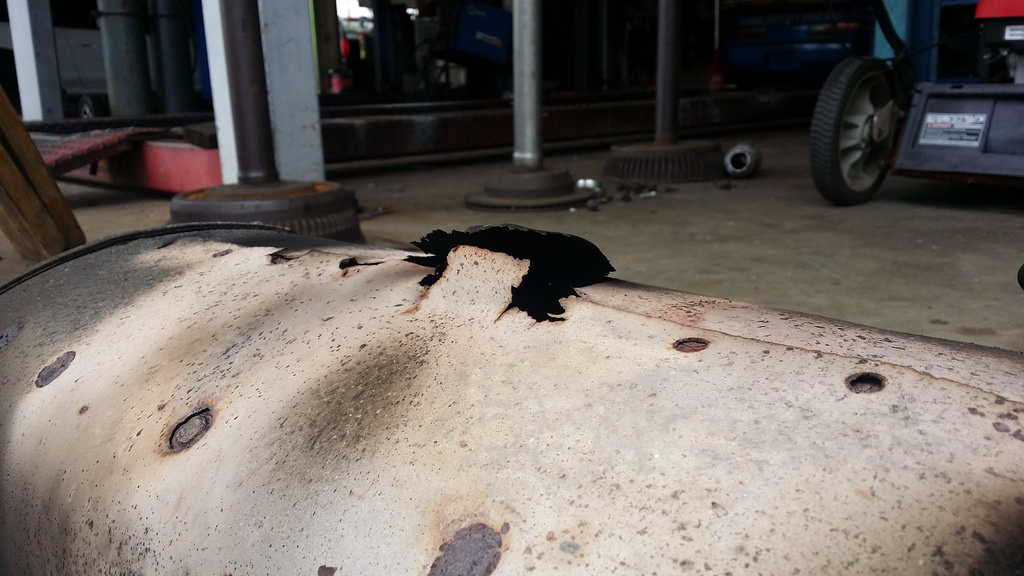

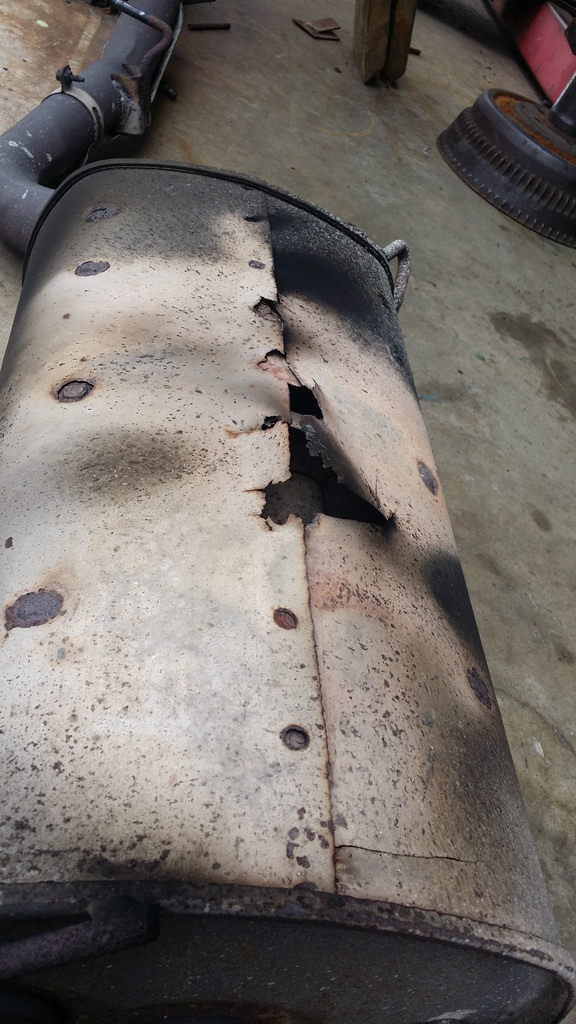

So I got a used exhaust from Pettit racing because there is a giant hole that's unrepairable on top of the oem muffler. It's a 3 inch far can. Well see how long this will last. I have my eyes on a full titanium cat back.
BlackBandit is offline   Reply With Quote
Old 03-31-2015, 08:38 PM   #299
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

This sounded cool with the back fire but the rattle noise sucked.

20150331_142726 by rocketeerbandit, on Flickr


20150331_142729 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-16805475410_eb5ab9b20a_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-16806734999_768fdacd1e_b.jpg
BlackBandit is offline   Reply With Quote
Old 04-02-2015, 06:51 PM   #300
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

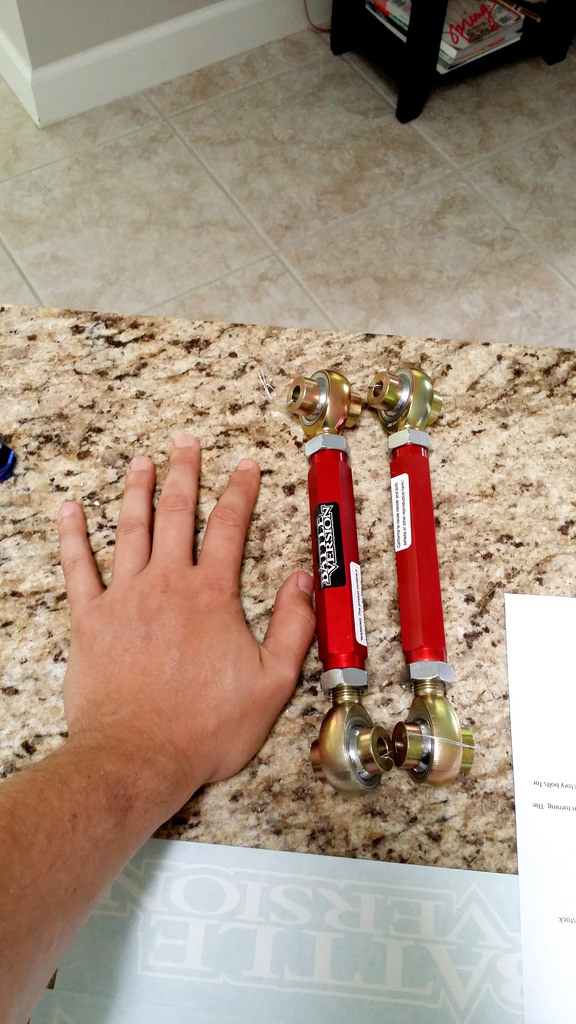

First item to arrive for operation "Suspension Revival"

2015-04-02_05-40-31 by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-17013612085_7fa2b145dc_b.jpg
BlackBandit is offline   Reply With Quote
