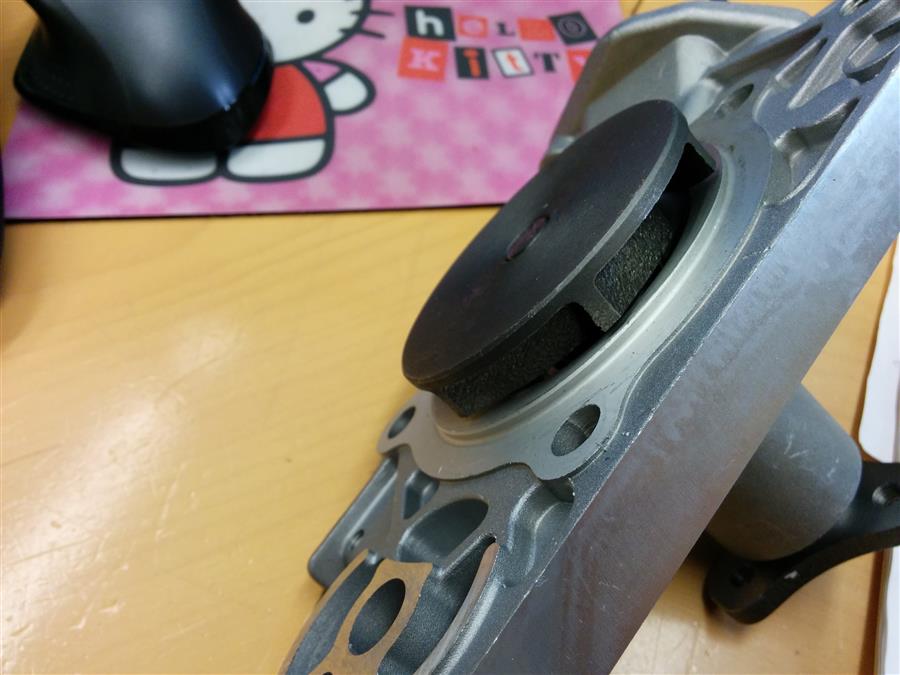

Hablando del diablo...


ˇNuevo cinturón azul!


ˇNuevo bomba de agua! (Thats the end of my spanish for today)

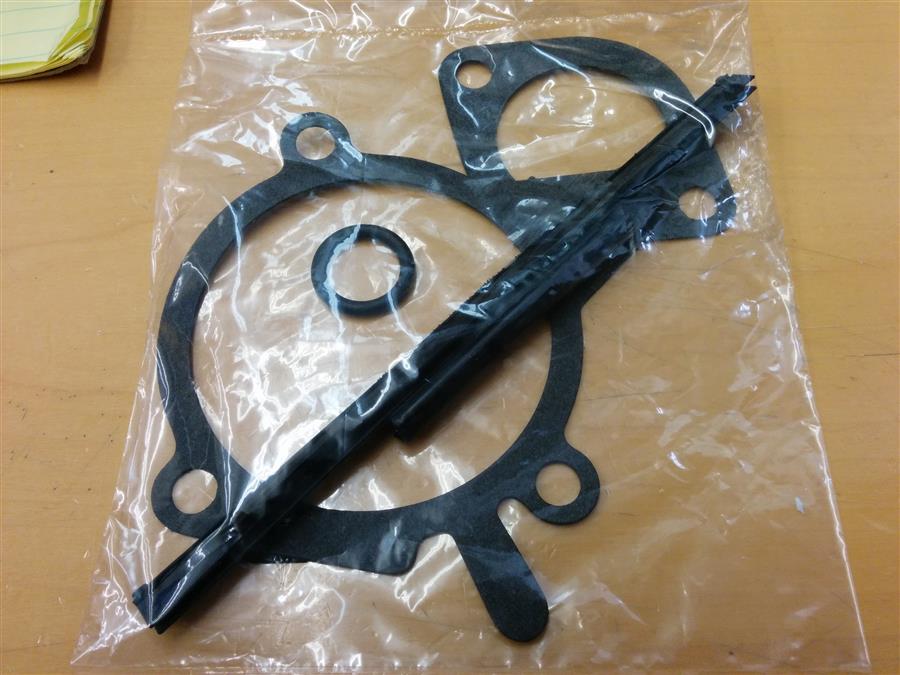

It even came with a thermostat gasket, how nice of them.

More stuff should turn up tomorrow, I should probably go pick up a gallon of acetone and see who sells VHT locally.

Anyone actually use primer/color/clear on a block or have you guys just shot color? I can't remember what I did for my FE but I know it was all VHT and its held up great so far.
EO2K is online now   Reply With Quote
Old 01-29-2015, 05:19 PM   #722
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,573
Total Cats: 224
Default

dat hello kitty mouse pad
Girz0r is online now   Reply With Quote
Old 01-29-2015, 05:20 PM   #723
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

I do not recommend the clear unless it is a 2 pak expensive can of it. My diff has already started to yellow and I prepped the **** out of it, put tons of coats down, and used a decently nice 2 pak.
Jeffbucc is offline   Reply With Quote
Old 01-29-2015, 05:28 PM   #724
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Mmmmmm . . . Made in USA . . . .
hornetball is offline   Reply With Quote
Old 01-29-2015, 06:19 PM   #725
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Quote:
Originally Posted by Girz0r View Post
dat hello kitty mouse pad
My coworkers surprised me with that one morning. BecauseMiata.
Quote:
Originally Posted by Jeffbucc View Post
I do not recommend the clear unless it is a 2 pak expensive can of it. My diff has already started to yellow and I prepped the **** out of it, put tons of coats down, and used a decently nice 2 pak.
Good to know, I will keep this in mind. I'm not sure I used clear when I did my truck. The last time I used clear was on my intake manifold and I'm sure we all remember how that turned out...
Quote:
Originally Posted by hornetball View Post
Mmmmmm . . . Made in USA . . . .
Sadly, not enough of these around these days :(
EO2K is online now   Reply With Quote
Old 01-30-2015, 07:49 PM   #726
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Hey, all the ARP studs are Made in the USA so I got that going for me

I just realized I can't paint the block until I get the pan on, and I can't put the pan on until it has extra holes added. I was going to have Gesso weld up some threaded bungs in the pan like we did with the last one, but it would probably help if I gave him the pan...

Anyway, big pack of gaskets showed up today. I'll probably try to make some progress this weekend by installing the oil and water pumps, and maybe the rear main carrier if I can get my torque wrench between the back of the block and the stand.

I was going to clear the exposed aluminum on the pump, but maybe I'll just leave it alone now.
EO2K is online now   Reply With Quote
Old 01-31-2015, 03:01 AM   #727
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,016
Total Cats: 222
Default

Quote:
Originally Posted by EO2K View Post
I just realized I can't paint the block until I get the pan on, and I can't put the pan on until it has extra holes added. I was going to have Gesso weld up some threaded bungs in the pan like we did with the last one, but it would probably help if I gave him the pan...
Why can't you paint it without the pan on? Masking tape and plastic sheeting should work for the oil pan surface just fine, no?

IMHO if you're gonna paint the block you should do it with as little stuff on it as possible. I didn't bother to paint mine, so it's still a mix of old factory paint and surface rust... whatever.

--Ian
codrus is offline   Reply With Quote
Old 01-31-2015, 10:03 AM   #728
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,704
Total Cats: 472
Default

Yeah, I just painted Mobius's block with absolutely nothing on. Wipe some grease on the oil filter surface, and put a bolt in the 2 oil holes. Lock your stand diagonally, and paint one side at a time.
curly is offline   Reply With Quote
Old 01-31-2015, 11:38 AM   #729
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 684
Total Cats: 47
Default

^This
rwyatt365 is offline   Reply With Quote
Old 01-31-2015, 04:32 PM   #730
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Eh, I guess that's true. If I can find paint locally I'll probably shoot it this weekend.
EO2K is online now   Reply With Quote
Old 02-01-2015, 11:22 PM   #731
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

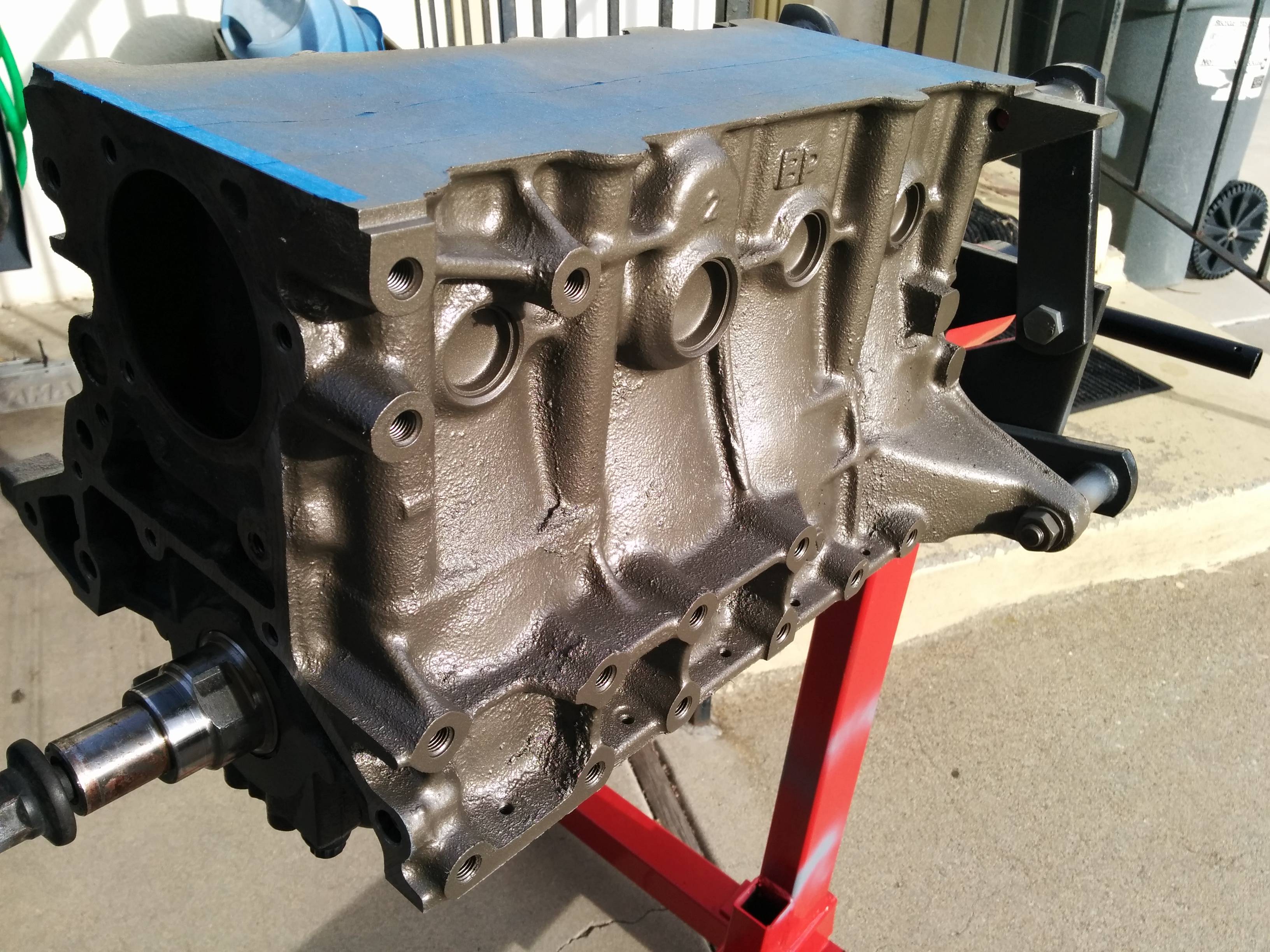

So some paint happened:

That is Dupli-Color DE1651 Ceramic Cast Coat Iron Engine Paint. Underneath that is VHT SP148 Engine Enamel Light Gray Primer, because thats what I had lying around, probably left over from when I did my Ford. I was really hoping it would be darker, but it'll do. Hopefully it holds up well. Obviously I've unmasked most of the block in that shot, I didn't paint it with the bottom end open like that

I started wiping down the gasket surfaces with acetone and suddenly a bunch of things happened...

Boundary oil pump, Gates fancy impeller water pump, front main, rear main carrier (no main yet) most of the timing set, Supermiata harmonic damper, and the oil cooler/warmer.

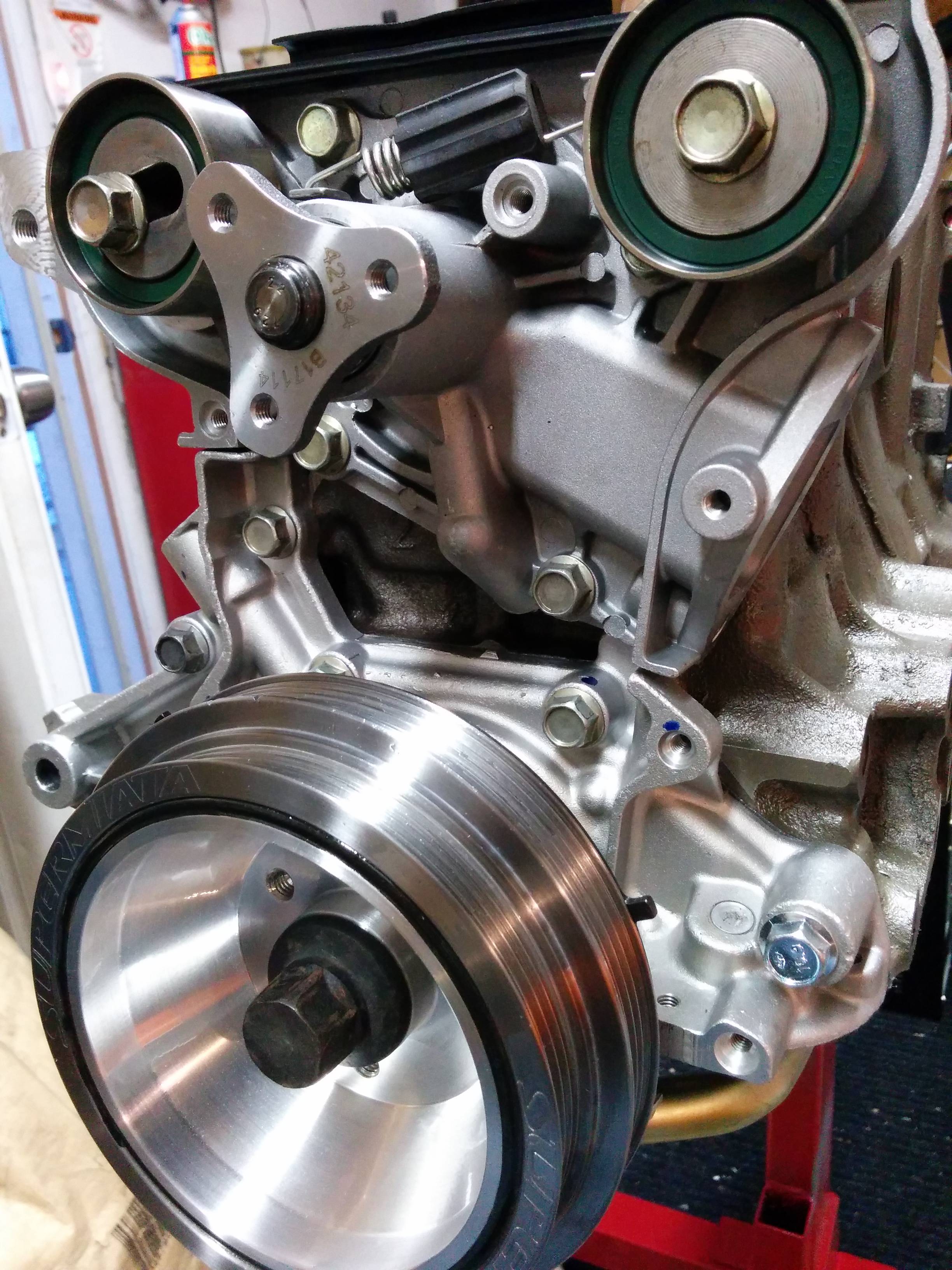

Supermiata damper AND Boundary pump? Yes, I'm a belt and suspenders kind of guy. Do it once, do it right.

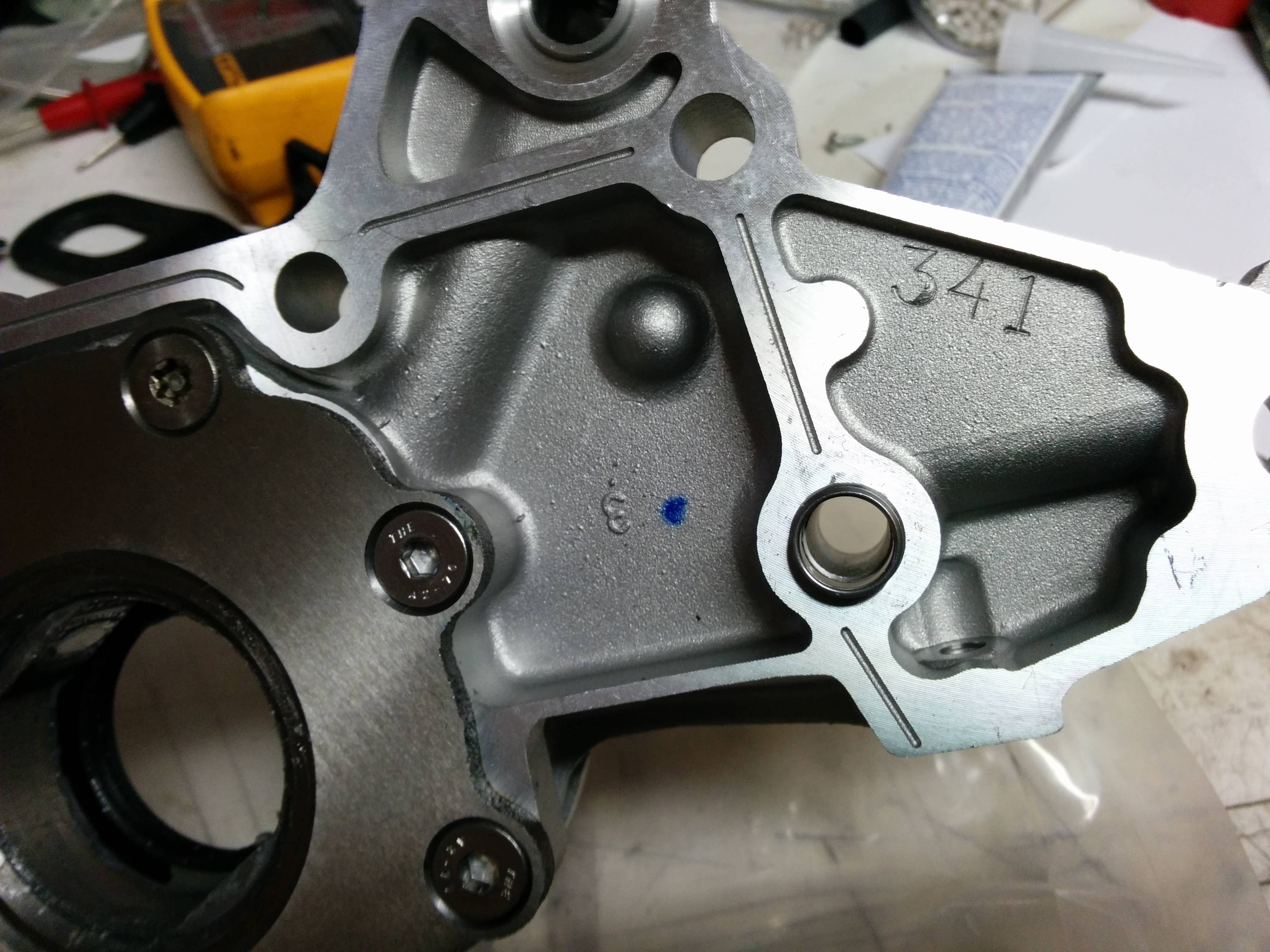

Fancy Boundary pump #341: street/strip (aka High Flow Pump) with +1 shim.

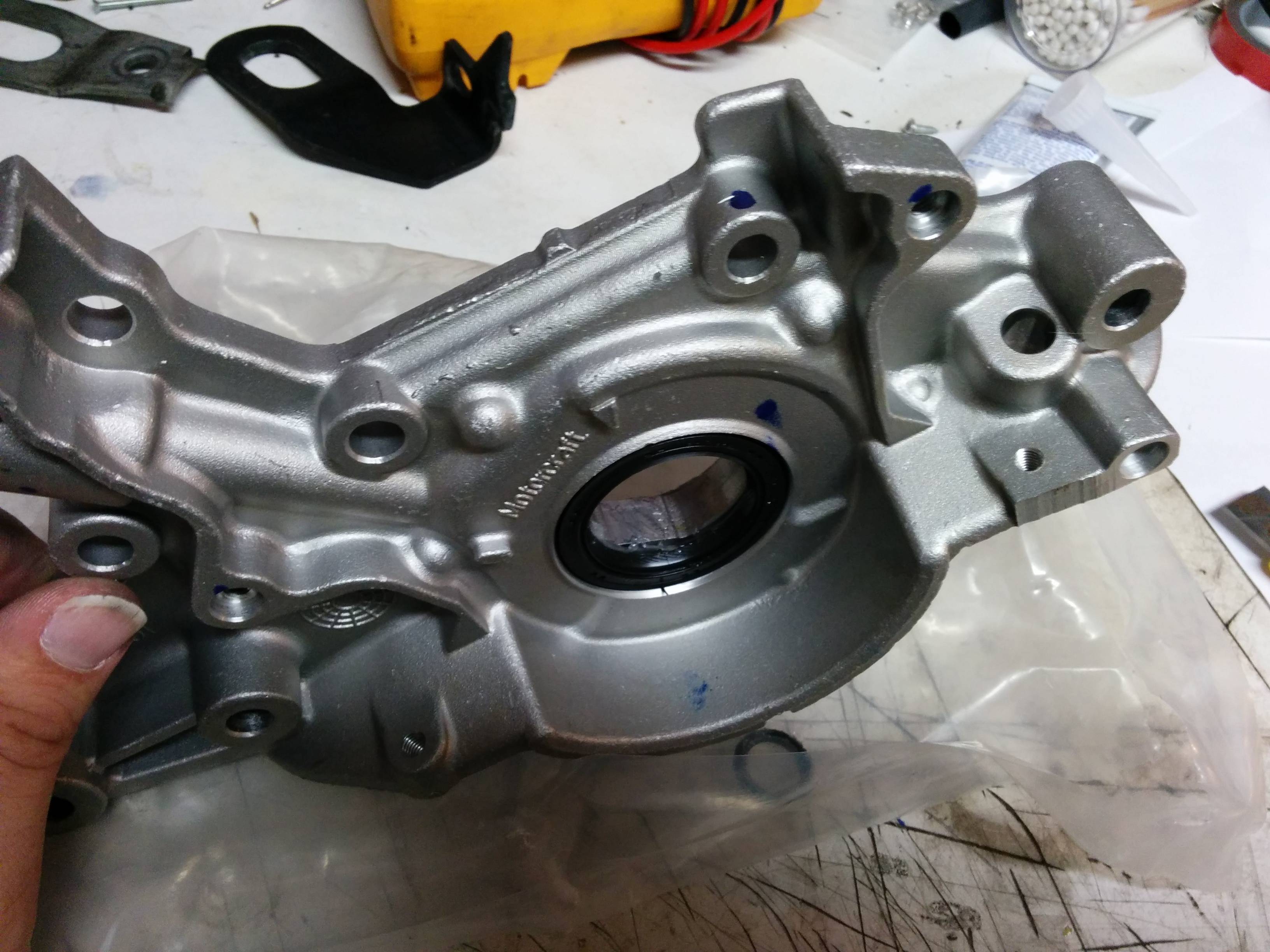

Front main was already installed in the pump. It made the installation only slight more challenging as I had to run the end of a zip tie around the seal while pressing it onto to crank to get it to pop on without flipping inside out and disgorging the tension spring. Also in the bottom of the image you can see the block to pump O-Ring. Sharp eyes will notice something missing...

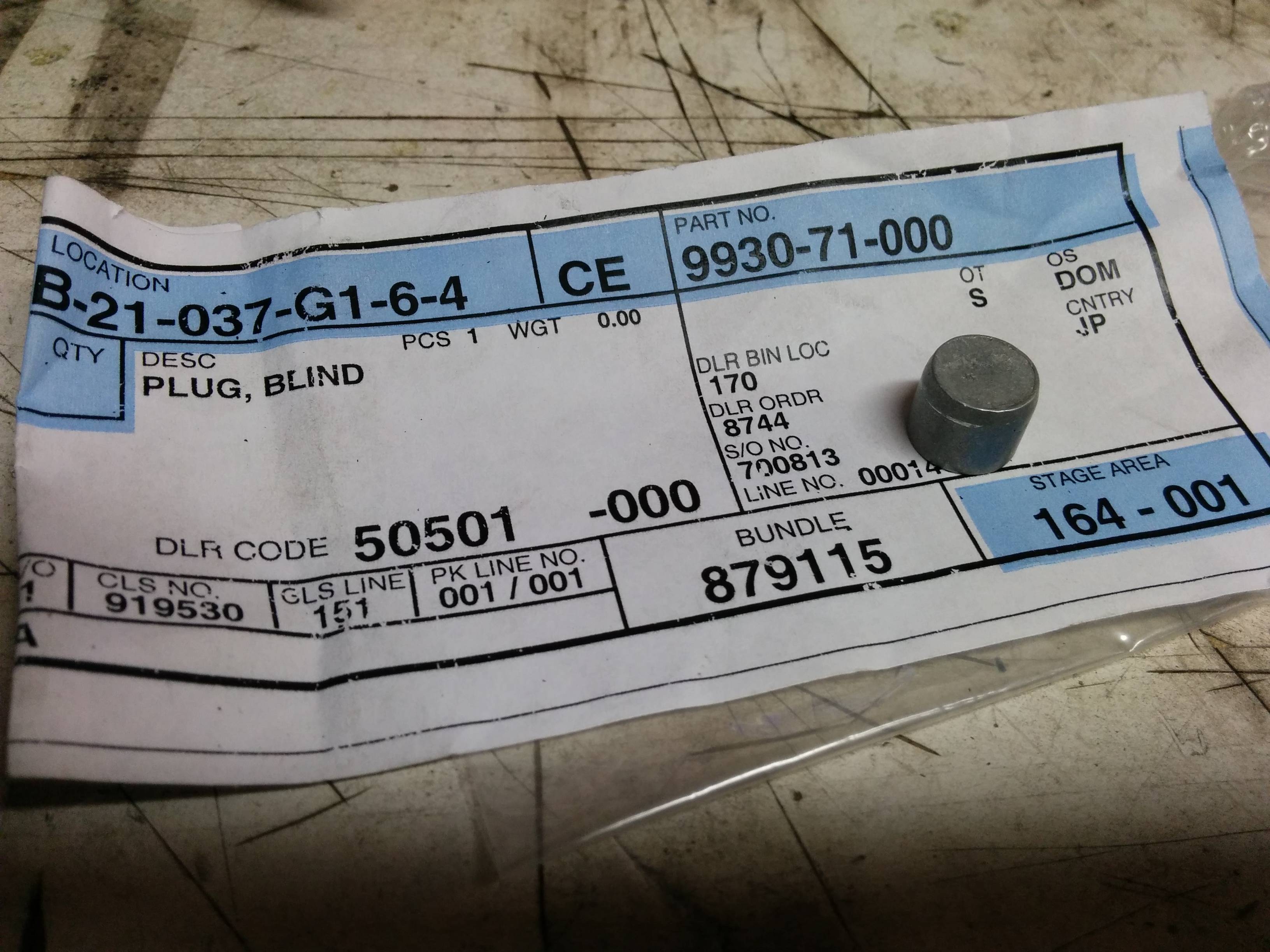

That would be this little ******. It plugs the hole where the FWD dipstick tube goes through the pump body. I put a very small amount of superblack in the bore and then drove that little bastard into its new home. The sealer was probably unneeded as it took quite a bit of whacking to get it flush with the pump body. Aggressive hammering on a very expensive pump will definitely make you pucker.

About the Supermiata damper... I chose to go with the 4T wheel because I am not smart and I know my stock ECU and the MS3 are already set up for it. The thing that impressed me about the timing wheel is that there is literally no way to put it on incorrectly. As long as you can get all 8 tiny little screws in there you are golden. The threaded holes could have been a little clener, but a quick blast with some brake cleaner cured that little issue. I installed the screws with blue loctite.

I'd also like to point out that the damper is not installed all the way. Its slipped on to the crank about 1/4" and its held in place by the bolt. I just wanted to see what it looked like on there.

I'm also not dead set on re-installing the oil heater/cooler. its on there now but it could easily come off again. In the future I see myself installing an oil cooler on this engine and I feel like the fewer things jacking with my oil supply, the better. I'm also not married to my oil temp/pressure sender sandwich plate. Need to figure out how I'm going to do all this moving forward. I need to find someone who has done this and go stalk their build thread.
EO2K is online now   Reply With Quote
Old 02-02-2015, 12:31 AM   #732
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,016
Total Cats: 222
Default

Quote:
Originally Posted by EO2K View Post
So some paint happened:
I'd also like to point out that the damper is not installed all the way. Its slipped on to the crank about 1/4" and its held in place by the bolt. I just wanted to see what it looked like on there.

I'm also not dead set on re-installing the oil heater/cooler. its on there now but it could easily come off again. In the future I see myself installing an oil cooler on this engine and I feel like the fewer things jacking with my oil supply, the better. I'm also not married to my oil temp/pressure sender sandwich plate. Need to figure out how I'm going to do all this moving forward. I need to find someone who has done this and go stalk their build thread.
Is the SuperMiata damper as much of a PITA to install as the ATI one?

Note that unless you get creative, you'll probably need to retain the oil/water heat exchanger as a spacer if nothing else. Sandwhich plates generally don't fit directly against the block because the ribbing is in the way.

I didn't go into a lot of detail on the oil stuff in my build thread, but I have:

- Stock heat exchanger used as a spacer (no water plumbed to it)
- Mocal thermostat sandwich plate (the one FM uses, although I bought it from Summit)
- Stock filter

I then have a pair of -10 AN fittings in the Mocal sandwich plate (FM supplies -8s, but IMHO that's not big enough), and braided stainless lines going to a -10 cooler mounted on the FM brackets (attaches via the steering rack bolts).

At one point I had a remote filter adapter installed as well, and mounted the filter on the firewall. I took this out, mainly because I wanted the space for the ABS pump when I was transplanting ABS into the car.

At the moment I don't have an oil temp sender installed, although I do have an inline -10 AN male/female fitting with a 1/8 NPT hole in it, which is intended for this purpose. I couldn't find a spare sender for my oil temp gauge when I was putting the motor together, so I decided I'd fix that later.

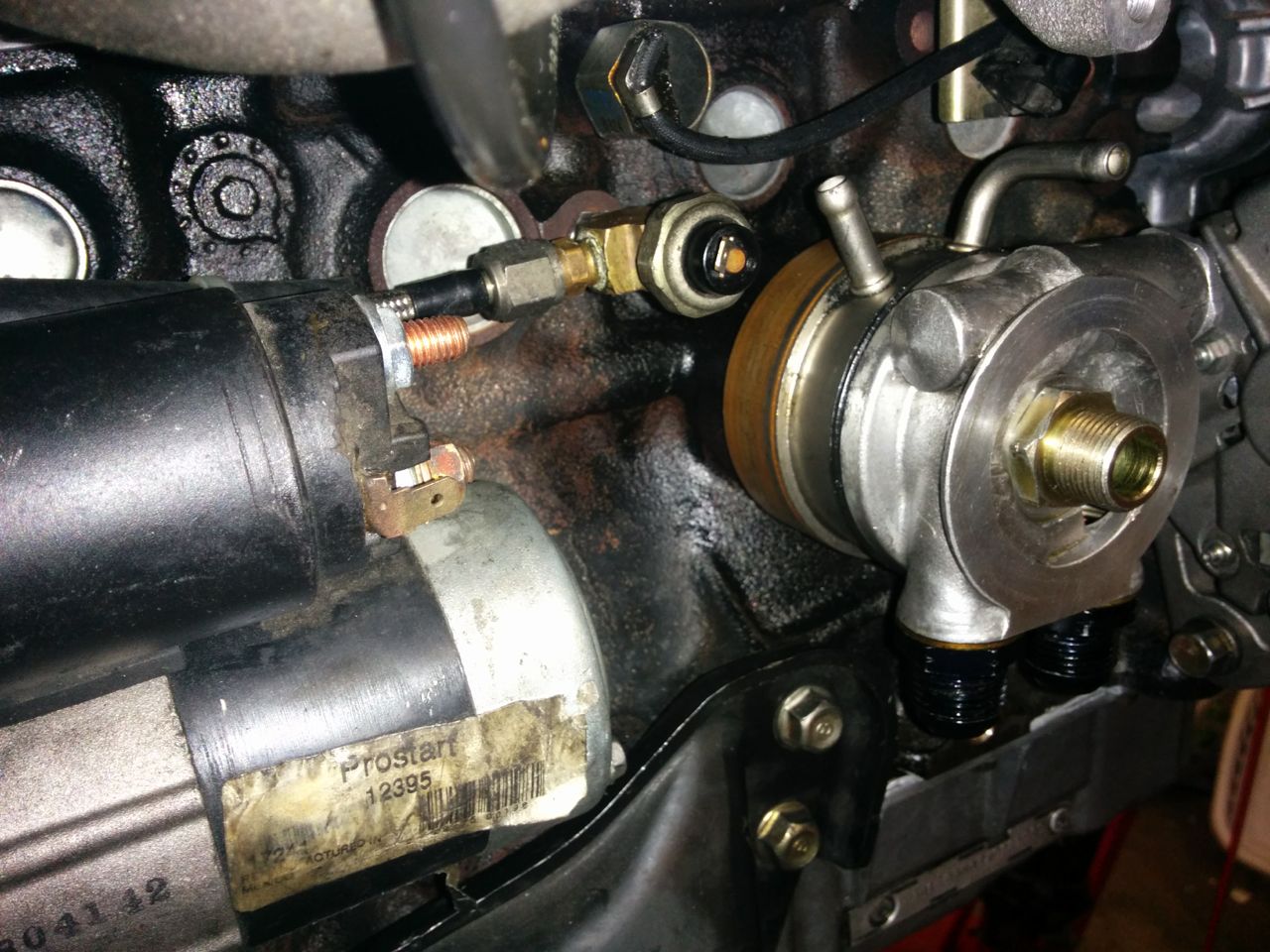

Digging through my spare shots of the motor before I put it in, I found one of the oil setup:



The AN fittings are black and camouflaged against the block.

--Ian
codrus is offline   Reply With Quote
Old 02-02-2015, 01:41 AM   #733
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,704
Total Cats: 472
Default

Bets on who's engine finishes first? Yours or Mobius? I put paint on his Friday, but haven't touched it since. Rotating assembly isn't even going out for balancing until tomorrow. ATI damper here. I'm very excited that you've called it a giant PITA to install!
curly is offline   Reply With Quote
Old 02-02-2015, 12:03 PM   #734
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Curious about the damper and TB changes. Are you able to slip the TB around the damper, or are we talking about pulling it to change the TB?
hornetball is offline   Reply With Quote
Old 02-02-2015, 12:15 PM   #735
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,704
Total Cats: 472
Default

I have the ATI damper here in front of me. It has the lower timing sprocket built into it, and yes, requires you to pull it off to perform a timing belt change. I'm assuming 949's is similar.

I'd suggest using the best belt money can buy (gates racing) to avoid having to replace it any time soon.

However, the internet's very first picture from the back of a 949 pulley from the OP would be really helpful...
curly is offline   Reply With Quote
Old 02-02-2015, 12:18 PM   #736
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Thanks for the pics Ian! I'll take a look

Quote:
Originally Posted by curly View Post
Bets on who's engine finishes first? Yours or Mobius?
That's not even a bet, smart money is on Mobius.

Quote:
Originally Posted by hornetball View Post
Curious about the damper and TB changes. Are you able to slip the TB around the damper, or are we talking about pulling it to change the TB?
It looks like you will have to remove the damper to do it. The damper is not on all the way yet, but I'll try to poke my nose in there and let you know.

Quote:
Originally Posted by curly View Post
I'd suggest using the best belt money can buy (gates racing) to avoid having to replace it any time soon.

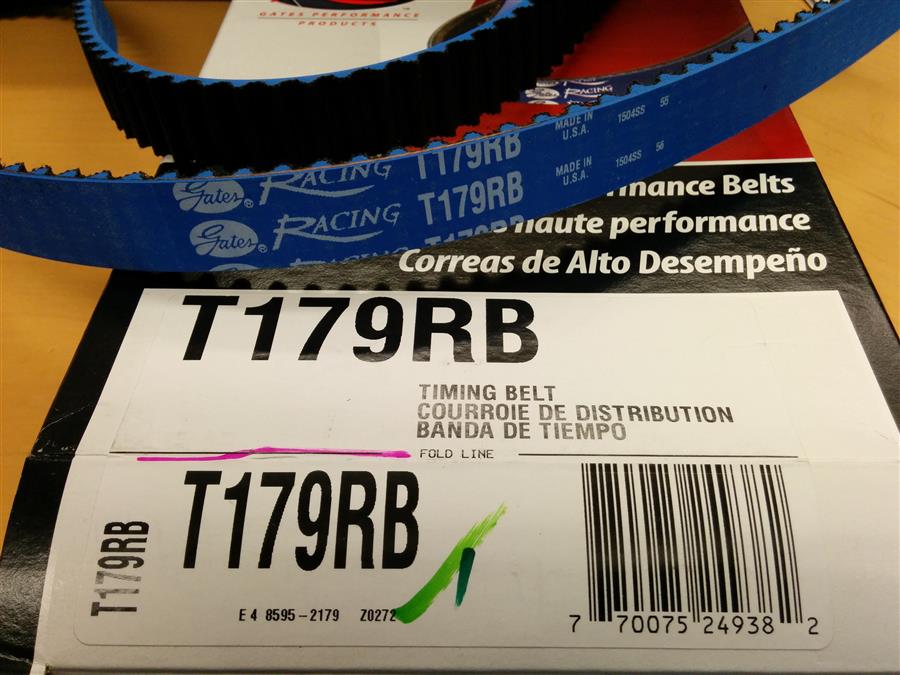

That was my logic as well. Blue belt is in my box o'parts.

Quote:
Originally Posted by curly View Post
However, the internet's very first picture from the back of a 949 pulley from the OP would be really helpful...
What's it worth to you?
EO2K is online now   Reply With Quote
Old 02-02-2015, 02:03 PM   #737
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,016
Total Cats: 222
Default

Quote:
Originally Posted by curly View Post
ATI damper here. I'm very excited that you've called it a giant PITA to install!
It's a press fit, and takes quite a bit of force to wrench it down. You need a longer bolt than factory, because there aren't enough threads on the factory bolt to pull it on. You need to keep taking the longer bolt out adding washers, and then putting it back in. It's either an M12 or M14 bolt (I forget threads) which isn't something they had at any local store, so I needed to order it.

And yes, the TB pulley is integral, so you need a third hand to hold the TB up, teeth engaged with the pulley. Then for some reason when I put mine on this time the woodruff key got cocked and the pulley was machining it as I wrenched it down. There's also an intricate dance of which bolts and plastic covers need to be installed before the pulley, and which ones afterwards.

Anyway, it's a PITA to install, but I haven't blown up an oil pump yet, so...

--Ian
codrus is offline   Reply With Quote
Old 02-02-2015, 02:09 PM   #738
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Haha, I got in on the first group buy for the Supermiata Damper specifically so I wouldn't have to 1.) deal with the ATI dance and 2.) buy a Boundary pump. Then magically a pump fell in my lap. I didn't complain much
EO2K is online now   Reply With Quote
Old 02-02-2015, 02:57 PM   #739
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,016
Total Cats: 222
Default

Quote:
Originally Posted by EO2K View Post
Haha, I got in on the first group buy for the Supermiata Damper specifically so I wouldn't have to 1.) deal with the ATI dance and 2.) buy a Boundary pump. Then magically a pump fell in my lap. I didn't complain much
There was no SuperMiata damper when I bought mine. The damper seemed like the right solution because it fixes the cause rather than the symptom. Of course, now I have both as well. The car makes 25 psi of oil pressure at idle! Of course, that's with straight 30 weight in it, it'll probably go down with real oil.

--Ian
codrus is offline   Reply With Quote
Old 02-02-2015, 03:19 PM   #740
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,890
Total Cats: 774
Default

Funny how life works out that way.

Ian, what pump did you end up buying? How many shims? I'm guessing that 25psi figure is fully warmed up?
EO2K is online now   Reply With Quote
