Old 03-17-2015, 01:43 PM   #961
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,014
Total Cats: 222
Default

Quote:
Originally Posted by EO2K View Post

I find building wiring harnesses to be somewhat zen. Give me some whiskey and some 80's David Bowie and eventually I'll spin up something that works.

I agree, there's a certain satisfaction in the kind of OCD attention to detail required to do it right. It's a bit like assembling the bottom end.

--Ian
codrus is offline   Reply With Quote
Old 03-17-2015, 02:06 PM   #962
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

You want to see electronic sadness? No start, much sadness, 99/00 DIYPNP

Not shown in the pic, but I reinforced the junctions where the injector leads break off the harness with some of that awesome silicone tape. I wasn't happy with just the heat shrink on there and I wanted something that would make it a little beefier.
EO2K is offline   Reply With Quote
Old 03-17-2015, 02:10 PM   #963
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by codrus View Post
I agree, there's a certain satisfaction in the kind of OCD attention to detail required to do it right. It's a bit like assembling the bottom end.

--Ian
Oh, I agree. If I ever have the occasion to go through that again, I'll probably do it myself.
EO2K is offline   Reply With Quote
Old 03-19-2015, 02:46 AM   #964
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Hey G. Go look at the last bit of my build thread. Got the vei gauge to fit in the stock gauge area with just a bit of dremeling.
aidandj is offline   Reply With Quote
Old 03-19-2015, 12:27 PM   #965
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by aidandj View Post
Hey G. Go look at the last bit of my build thread. Got the vei gauge to fit in the stock gauge area with just a bit of dremeling.
How in the hell am I NOT subbed to your build thread? I got some readin' to do, thanks for the heads up!
EO2K is offline   Reply With Quote
Old 03-19-2015, 12:28 PM   #966
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

It fit wayyy better than I expected. The ring on the front face centers it pretty well. I could maybe center it a bit better, but right now it looks like none of the numbers got cut off. I'll know more when I wire it.
aidandj is offline   Reply With Quote
Old 03-19-2015, 12:53 PM   #967
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

I knew it would fit, I just haven't had to motivation to make it happen. Good thing I have like 3 extra clusters in the garage.

Now I need to find some brushed aluminum gauge rings to match the VEI ones.
EO2K is offline   Reply With Quote
Old 03-19-2015, 02:23 PM   #968
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

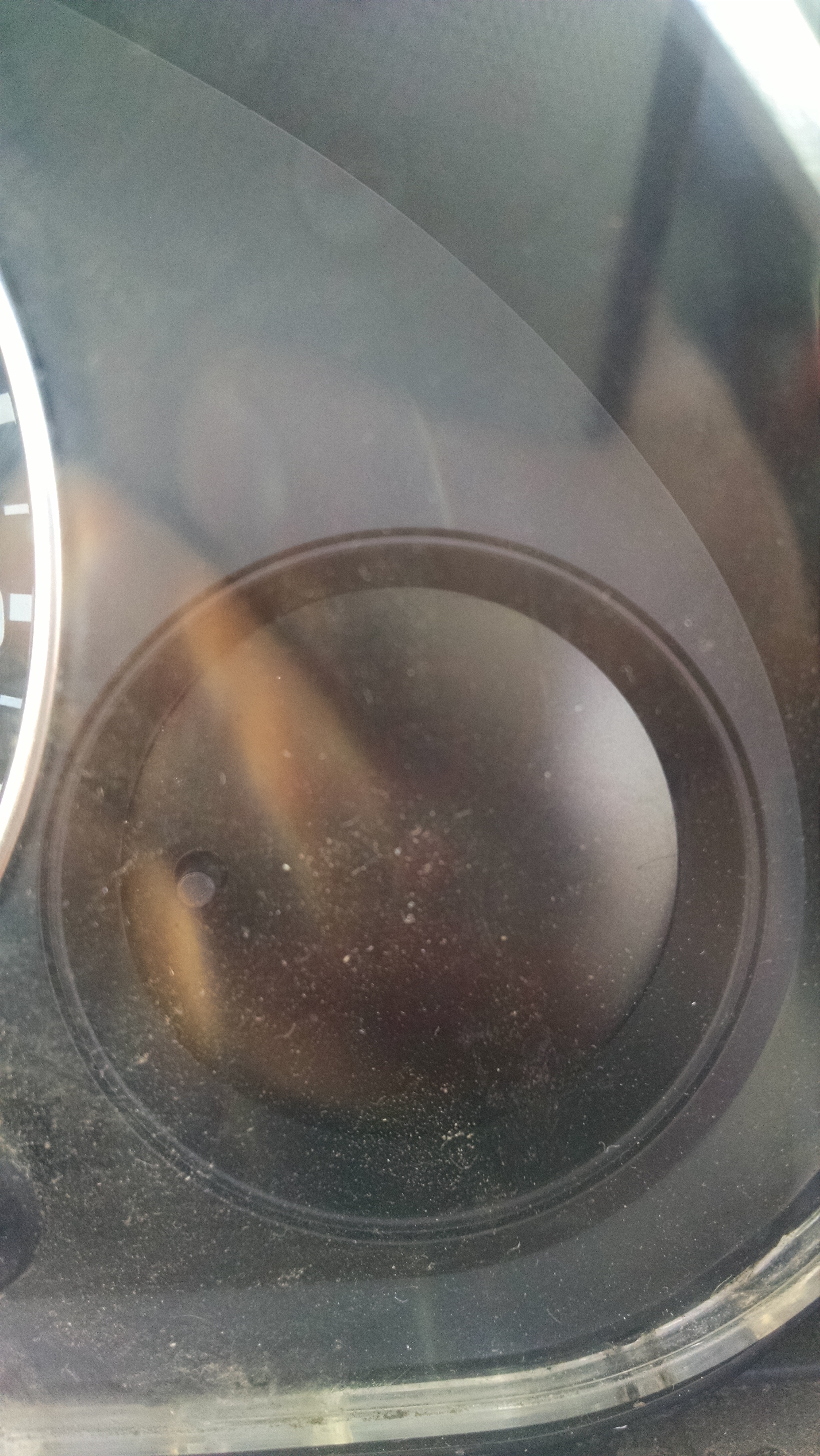

The rings actually hide behind the cluster face.


Last edited by aidandj; 03-19-2015 at 02:58 PM.
aidandj is offline   Reply With Quote
Old 03-19-2015, 02:33 PM   #969
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

I'm not sure I have that much space in the NB cluster, but I'll have to look.

How are you going to get to the buttons on the gauge faces?
EO2K is offline   Reply With Quote
Old 03-19-2015, 02:34 PM   #970
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Quote:
Originally Posted by EO2K View Post
I'm not sure I have that much space in the NB cluster, but I'll have to look.

How are you going to get to the buttons on the gauge faces?
By taking the gauge cluster out

I plan on setting them once and not touching them again.
aidandj is offline   Reply With Quote
Old 03-19-2015, 02:38 PM   #971
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

But... recall function!
EO2K is offline   Reply With Quote
Old 03-19-2015, 02:52 PM   #972
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Hmmm. Did not think about that. Drill a hole and get a chopstick?
aidandj is offline   Reply With Quote
Old 03-19-2015, 02:55 PM   #973
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Although to be honest I don't really care about recall. I just like the alarm feature.

And while its too late for both of us you can call vei and get a motorcycle version of the gauge which has an external button.
aidandj is offline   Reply With Quote
Old 03-19-2015, 03:13 PM   #974
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Not too late for me, that's how I ordered them

I still need to program in my alarm and recall stuff, then figure out where to put the buttons.
EO2K is offline   Reply With Quote
Old 03-19-2015, 03:14 PM   #975
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Ahhhhh, screw you. I wish I had known before I ordered. Oh well. If I were to use buttons I would put them in my custom switch panel I'm laser cutting...
aidandj is offline   Reply With Quote
Old 03-19-2015, 05:45 PM   #976
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,014
Total Cats: 222
Default

Quote:
Originally Posted by aidandj View Post
Ahhhhh, screw you. I wish I had known before I ordered. Oh well. If I were to use buttons I would put them in my custom switch panel I'm laser cutting...
If there's an external button option available, odds it's the same circuit board with just some different bits soldered in. Shouldn't be too hard to take it apart and add some wires to an external button.

--Ian
codrus is offline   Reply With Quote
Old 03-19-2015, 05:45 PM   #977
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Too much effort for something I'll probably use once. Also, these things are really hard to take apart. Without drilling or something.
aidandj is offline   Reply With Quote
Old 03-19-2015, 06:00 PM   #978
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by aidandj View Post
Also, these things are really hard to take apart. Without drilling or something.
That's kinda why I never finished my cluster project. Though at this point I'll probably just butcher something together and see what happens.
EO2K is offline   Reply With Quote
Old 03-19-2015, 06:01 PM   #979
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,165
Total Cats: 972
Default

Yep I remembered reading that. So instead I thought that I was going to hack this together #becauseracecar but then it turned out surprisingly nice.
aidandj is offline   Reply With Quote
Old 03-23-2015, 03:13 PM   #980
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Well, ****.



And suddenly I realize the Miata, the Subaru and the Dentside are all manual transmissions.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-phone-stuff-029r.jpg
EO2K is offline   Reply With Quote
