Old 04-22-2014, 12:44 PM   #101
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

After watching my wideband this morning I believe its more pressure (or volume?) on the low end. After about 4k~ the ARFs seem to be about the same. Plus I forgot my laptop this morning.

Though I must say, its liberating to think I don't NEED to carry around my laptop on a daily basis just in case something goes screwy with the MS3. The base config is so dialed in on this thing its stupid.

More props for MSLabs

While I'm on the subject, I've been considering screwing around some more with my fuel system. I don't like the "returnless" fuel system on the NB simply out of principal. I scavenged another NB fuel line out of a friends car who is doing an engine swap so that I could set up a return system, but never followed through. I'm starting to think maybe I do want to do that now. I really REALLY like what Soviet did with his car. Even though I don't think I'll ever NEED 400+hp worth of fuel in my car, his setup is exactly what I see in my head as an "ideal" fuel system. I could do the same thing but with my DW200 and have more fuel than I'll probably ever need. Probably.

The only thing that's really stopping me at the moment is finding OEM style socket connectors that will work with AN lines. I can't cut the ends off my fuel lines because I will need to go back to stock eventually. If anyone has any leads, I'm open to recommendations.
EO2K is offline   Reply With Quote
Old 04-22-2014, 10:28 PM   #102
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by 18psi View Post
Except the DW300 that I installed last week into a subaru that was a complete and utter POS and literally died after 2 starts.
Don't you put that evil on me!

Ok, so back to the fuel line stuff. I did a bit of snooping around the interwebs and I found this little guy:

http://www.summitracing.com/parts/rus-640863

This looks kinda like exactly what I want, except its discontinued. It sounds like the "domestic" crowd couldn't figure out how to install these correctly and burned down a bunch of cars.

This is the replacement:

http://www.summitracing.com/parts/rus-644113

The male threaded part goes under the retainer groove in the line and threads into the female part that seals internally with O-Rings.


http://www.summitracing.com/parts/rus-611273

Its also available with incredibly convenient 90 fittings. They are twice the price but when you consider you would need a -6F to -6M 90 to go with the straight adapter, it ends up as a wash.

Unfortunately I'm going to need about 8 of these bastards:
  • 2 90 fittings for underhood hardlines (feed and return)
  • 2 for the top of the tank (feed and return)
  • 2 for the "other ends" of the hardline under the rear of the vehicle
  • 2 for the fuel filter (assuming I continue to use the stock filter)

That's about $150 worth of just hardline adapters, and that's assuming I can get away with only using the 2 90 ones under the hood. I had considered cutting the fittings out of the OEM lines and installing them with hose and clamps but then I remembered I can actually do things right once in a while. I might consider doing this on the return side simply because once fuel passes the regulator under the hood, its all free flow low pressure from the regulator back to the tank.

Anyone know the 5/16" ones will fit a NB Miata fuel line, and if these things are rated for 60~80+psi? I can't find a pressure rating anywhere so I may call Russell and ask about the pressure thing.

Edit: Oh, look what I found EFI hardline fitting
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-rus-640863_w_ml.jpg   Nothing to see here, just project Sisyphus, move along-rus-644113_sn_ml.jpg   Nothing to see here, just project Sisyphus, move along-rus-611273_ml.jpg

Last edited by EO2K; 04-22-2014 at 10:45 PM.
EO2K is offline   Reply With Quote
Old 04-22-2014, 11:41 PM   #103
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 52
Default

Quote:
Originally Posted by EO2K View Post
...Begi...
Good. Life would just be too easy and predictable if parts were actually unscrewupable!


How are you liking the MS3 basic? When are the FICs going in?
petrolmed is offline   Reply With Quote
Old 04-23-2014, 01:47 AM   #104
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by petrolmed View Post
Good. Life would just be too easy and predictable if parts were actually unscrewupable!
That would certainly make for less of a challenge. Of course, I would do well to stop getting involved with challenges I don't need

Quote:
Originally Posted by petrolmed View Post
How are you liking the MS3 basic? When are the FICs going in?
MS3-Basic is glorious. I don't know if its the base configuration or the customized firmware or what, but everything is exactly as it should be. My previous DIYPNP seemed to be a mess of unconfigured settings that I beat my head against trying to find any kind of range that might be appropriate to even start from. In contrast, the MS3-Basic started on the second crank. I thought I was smarter than the config and started screwing with things and jacked up my idle, but Rev set me straight and I was off and tuning my fuel table and warmup. Booyeah. Highly recommended.

I actually signed up and paid for the MS3 Pro/Enhanced 14 months ago before the hardware was completely finalized and tested. Rev and I were in touch every couple of months and it was my decision to continue to wait. When I made the decision to move to the MS3-Basic, Rev had no issues with making the change. I ended up asking myself "Am I actually going to use the rest of these features?" Ultimately the answer was no, and I wanted to get my project rolling again.

As for the FIC 650's, they have been installed since the MS3 went in. Also highly recommended. I made the car idle at 16:1 just to see if I could do it.
EO2K is offline   Reply With Quote
Old 05-06-2014, 02:43 AM   #105
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

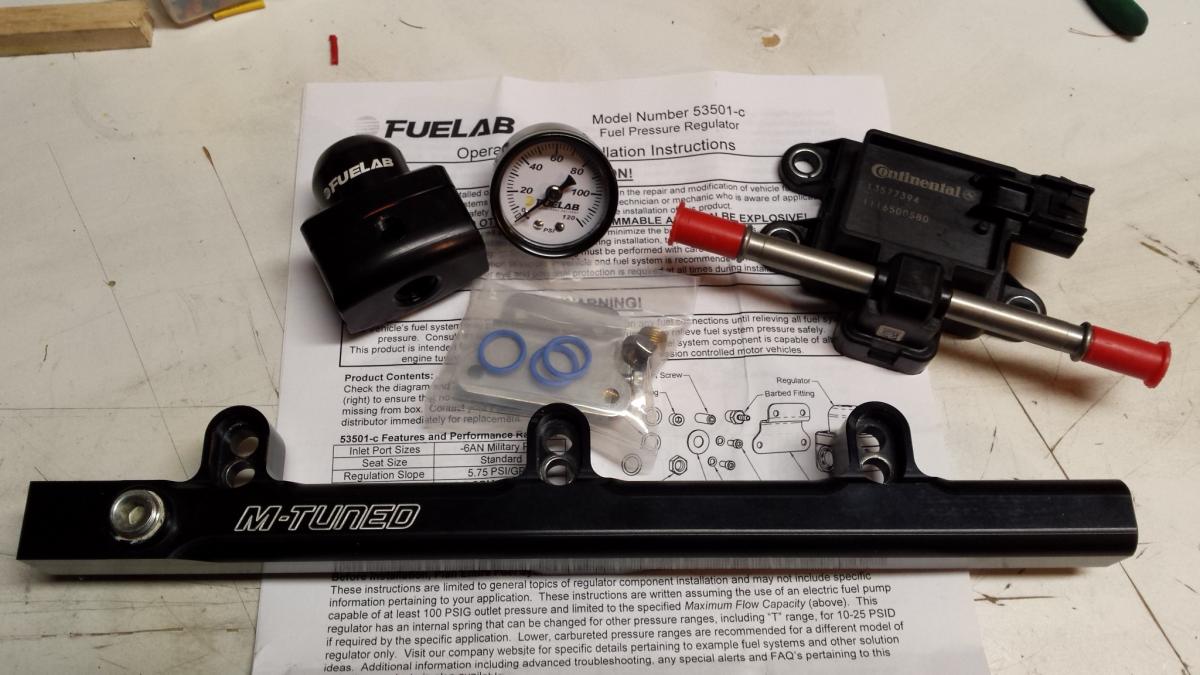

Some goodies showed up while I was in Florida on vacation:


  • M-Tuned Fuel Rail (I've owned this one for years)
  • Fuelab 53501-1 Fuel Pressure Regulator
  • Fuelab FPR gauge
  • GM E85 Sensor (just in case)

I followed a page from Soviet's build thread and I'm basically copying his fuel system. The Fuelab "mini" regulators (535/545) are good to like 500hp worth of flow so WAY more fuel than I'll ever need. I'll block one of the inlets with a plug and then I won't have to deal with the upside-down regulator mounting scheme

Next step is to map out where I want to put everything under the hood and then put together a Mocal hose and fittings order from BatInc. Thanks (again) to Soviets (and also I'm guessing Hustler?) recommendations I've got a pretty solid parts list for the fuel system so reorders should be minimal.

Quick shout-out about the folks at Fuelab: These guys are great to work with. I exchanged several emails with them regarding regulator selection and not only did they reply in minutes, but also tolerated my stupid questions and treated me like a human. I love doing business with these types of people

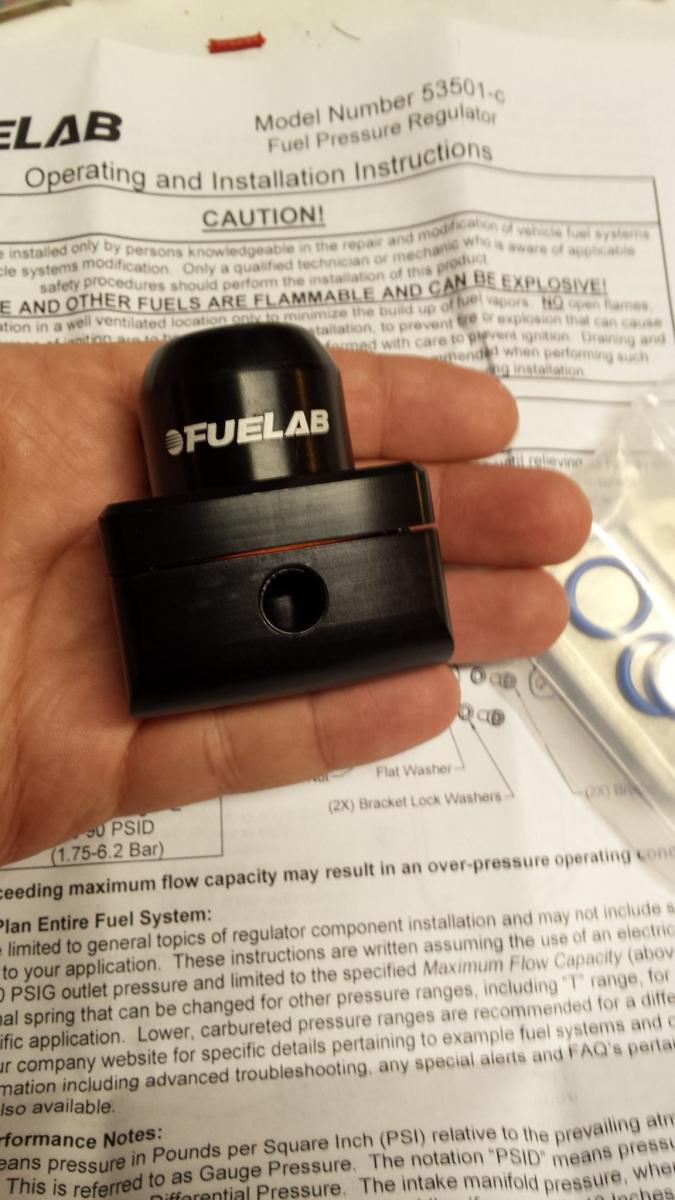

So tiny! (Apparently I have no thumb)

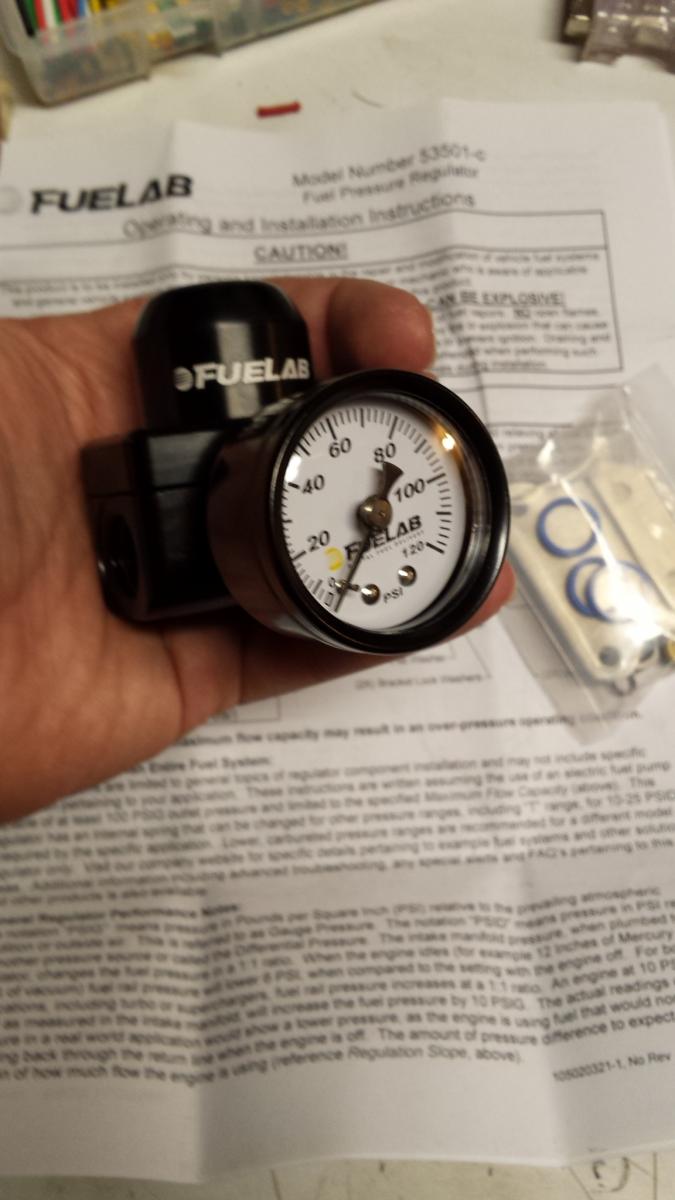

damn gauge is almost as big as the regulator!

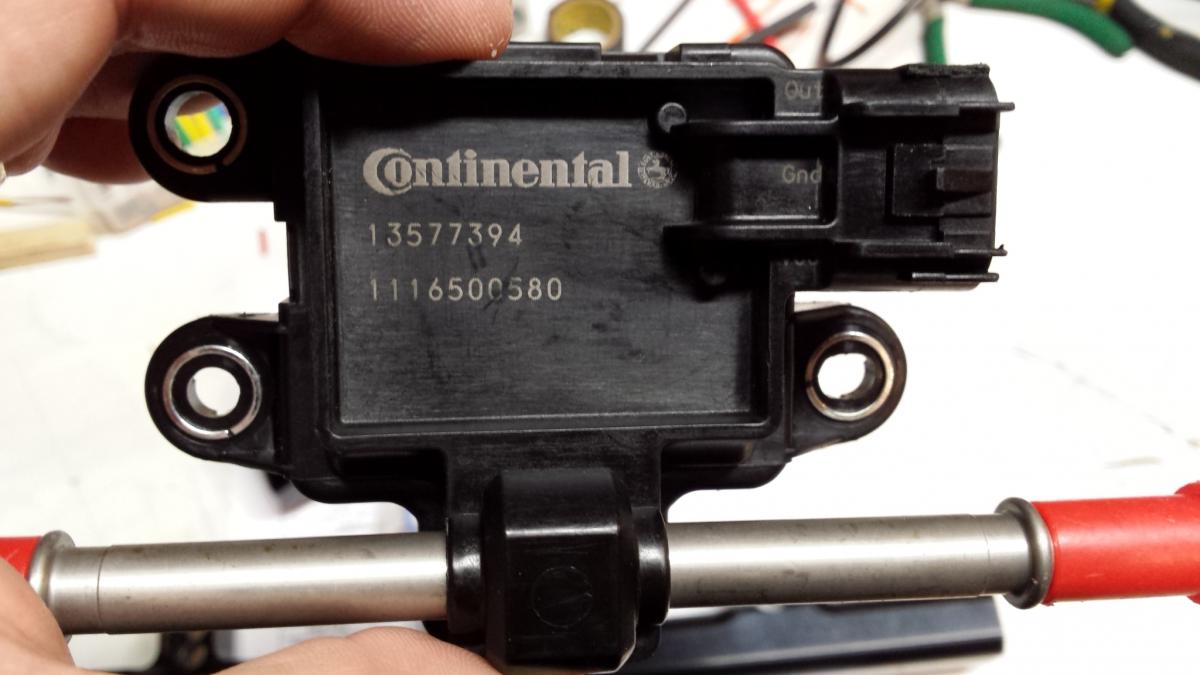

Here thar be part numbas!

The E85 sensor is kinda just for kicks and giggles right now. My MS3-Basic is wired for it so I figured while I was pulling things apart, there was no reason NOT to add E85 compatibility. Someday maybe we'll get corn fed out here

On the recommendation of a coworker I stopped by a body shop today to get another quote for paint. While discussing particulars we were quite rudely interrupted by the sounds of a smallblock Chevy running out to about 6,000rpm on open pipes through the wall from next door. Cursory inspection has revealed a Dynojet chassis dyno no more than 10 minutes from my front door! I was out of time at the moment but I did get their card and I'll be stopping by for more infos shortly. So I got that goin' for me, which is nice.

Begi update: Cover made it to them on Monday 28th and the refund landed in my Paypal account today. Thus far I'm out about $40 for both times I mailed it to Texas, plus the frustration. Waiting to hear back about when I should expect the replacement cover to show up.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20140504_223450.jpg   Nothing to see here, just project Sisyphus, move along-20140504_215108.jpg   Nothing to see here, just project Sisyphus, move along-20140504_215232.jpg   Nothing to see here, just project Sisyphus, move along-20140504_223547.jpg
EO2K is offline   Reply With Quote
Old 05-06-2014, 02:24 PM   #106
Senior Member
iTrader: (12)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,168
Total Cats: 29
Default

I'm liking my M-tuned rail, I just hated having how much grinding has to be done to fit a BP4W head.
Midtenn is offline   Reply With Quote
Old 05-06-2014, 02:32 PM   #107
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Fuelab is good people and i will give them my business many more times in the future. Them and Turbosmart are standouts to me in the last couple years of building stupid ****.


Oh, and spoon feed me: Tell me what threads all the ports on the M-Tuned rail are. I need to replace the fuel lines on our car and figured i'd throw an AFPR and ditch the rubber lines while i was at it.
concealer404 is offline   Reply With Quote
Old 05-06-2014, 03:01 PM   #108
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by Midtenn View Post
I'm liking my M-tuned rail, I just hated having how much grinding has to be done to fit a BP4W head.
Yeah, that was not a surprise I was expecting. FUEL ERRYWHER! Do you by chance have pics of how much you ended up grinding off the rail to make it fit?

Quote:
Originally Posted by concealer404 View Post
Fuelab is good people and i will give them my business many more times in the future. Them and Turbosmart are standouts to me in the last couple years of building stupid ****.
Yeah buddy! I've got a Turbosmart IWG75 from a Protege that will be put to use once I figure out a bracket. I bought it used but it looks like its never been mounted. Will also be using a Turbosmart plumb-back BOV

Quote:
Originally Posted by concealer404 View Post
Oh, and spoon feed me: Tell me what threads all the ports on the M-Tuned rail are. I need to replace the fuel lines on our car and figured i'd throw an AFPR and ditch the rubber lines while i was at it.
3/8NPT on the ends or the -6 male to 3/8NPT male adapters I bought are going to be worthless I think the port in the top is 1/4 NPT but I don't have it in front of me at the moment so don't quote me.
EO2K is offline   Reply With Quote
Old 05-06-2014, 03:07 PM   #109
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

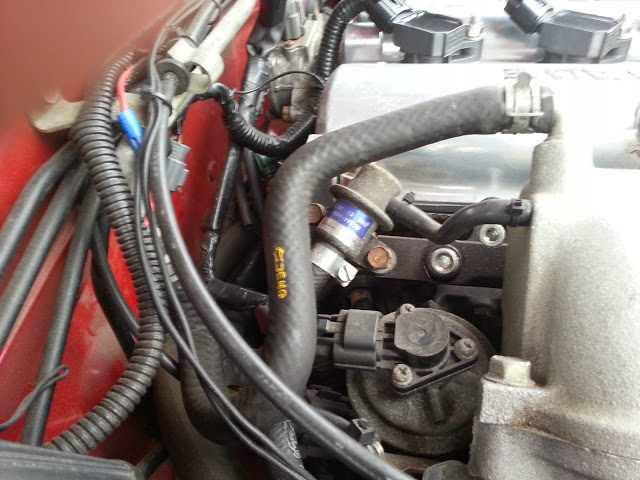

Oh wait... is ours different?

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20140319_170039.jpg
concealer404 is offline   Reply With Quote
Old 05-06-2014, 03:37 PM   #110
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Yeah, I dunno what you've got there

It's probably the same rail. It looks like you might have a 90 fitting in the end of the rail, then the brass FPR adapter?

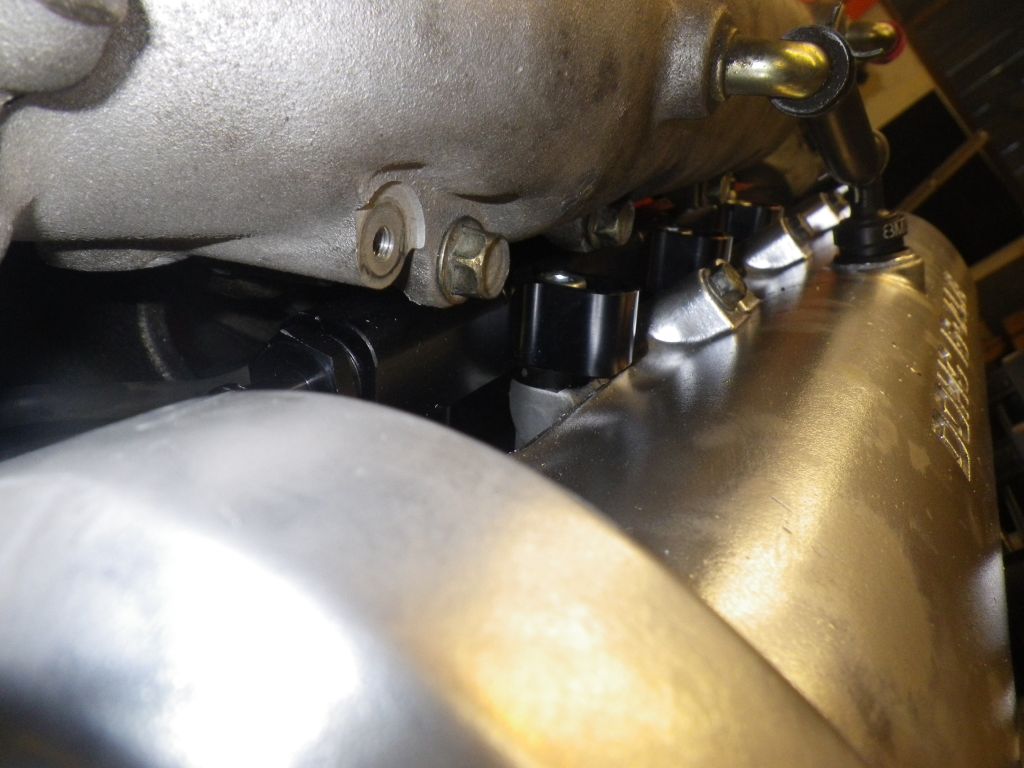

Google image search of "m tuned fuel rail" turned up this gem:



Looks like I've got some more grinding to do
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-rail.jpg
EO2K is offline   Reply With Quote
Old 05-06-2014, 03:44 PM   #111
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Oh.... you think the FPR isn't bolted directly on the rail? That would make sense and be awesome.
concealer404 is offline   Reply With Quote
Old 05-06-2014, 04:03 PM   #112
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by concealer404 View Post
Oh.... you think the FPR isn't bolted directly on the rail? That would make sense and be awesome.
Yep, that's what it looks like to me anyway. I'm guessing there is a 3/8NPT street ell and maybe a bushing adapter to the FPR adapter? FWIW that brass adapter should screw directly into the blocked port on the rail in your pic and thus act as a return. I guess if you aren't running dual feed it does not matter.
EO2K is offline   Reply With Quote
Old 05-06-2014, 04:04 PM   #113
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I'll be running dual feed when i re-do it i think.
concealer404 is offline   Reply With Quote
Old 05-06-2014, 04:27 PM   #114
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

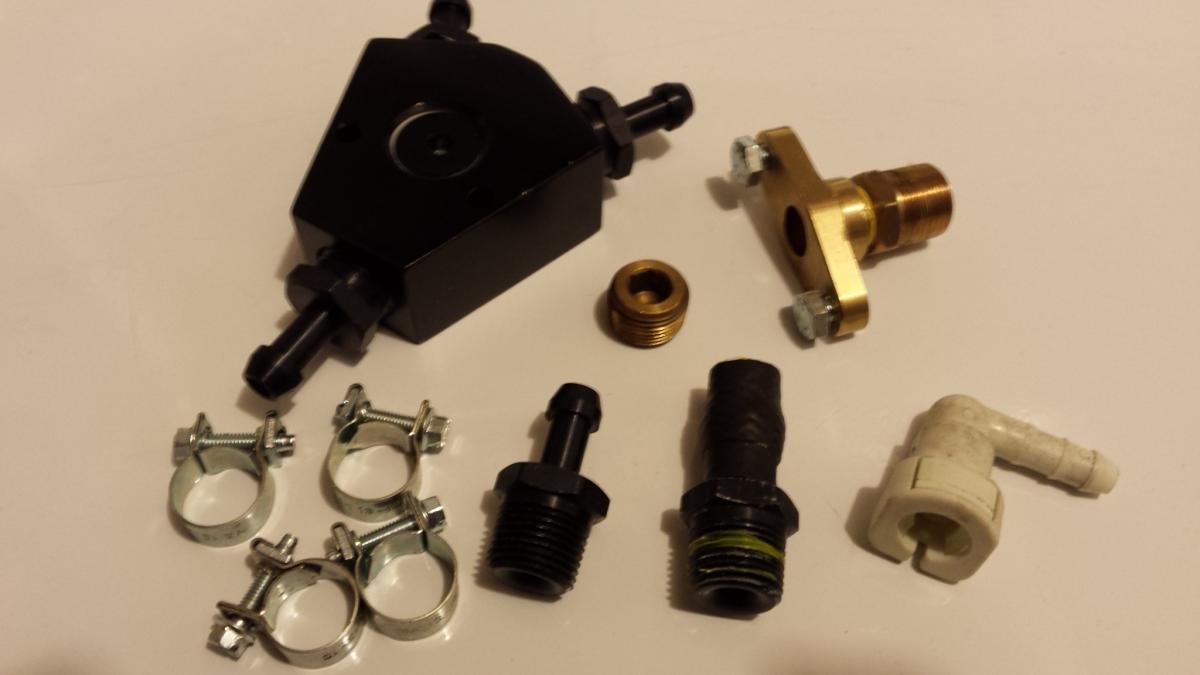

If you are not going AN, I have the M-Tuned plumbing kit to go with the rail that I won't be using that I'd be happy to sell.



No hose but mine has a legit "Y" adapter rather than the galvanized pipe "T" they used to ship
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20140504_222750.jpg
EO2K is offline   Reply With Quote
Old 05-06-2014, 04:30 PM   #115
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

PM me with price. Even if i don't use it now, that stuff looks handy.
concealer404 is offline   Reply With Quote
Old 05-06-2014, 08:41 PM   #116
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 647
Total Cats: 107
Default

Quote:
Originally Posted by EO2K View Post
Yeah buddy! I've got a Turbosmart IWG75 from a Protege that will be put to use once I figure out a bracket. I bought it used but it looks like its never been mounted. Will also be using a Turbosmart plumb-back BOV
Quote:
Originally Posted by EO2K View Post
Looks like I've got some more grinding to do
I've got access to the machine shop at work now, Send me your things and I'll poke at them over lunch
gesso is offline   Reply With Quote
Old 05-06-2014, 09:02 PM   #117
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by gesso View Post
I've got access to the machine shop at work now, Send me your things and I'll poke at them over lunch
Are you aloud to tell me what magical machines this shop contains? If I can remember how to write G-Code in Notepad++ will that be helpful at all?

Also: Random email notification showed up in my inbox this afternoon with tracking from UPS that says there is a box on its way to me from BEGI. w00t!
EO2K is offline   Reply With Quote
Old 05-08-2014, 09:10 AM   #118
Senior Member
iTrader: (12)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,168
Total Cats: 29
Default

Quote:
Originally Posted by EO2K View Post
Google image search of "m tuned fuel rail" turned up this gem:



Looks like I've got some more grinding to do
I ground mine back a little further because I wanted to be able to remove the valve cover without scratching it.
Midtenn is offline   Reply With Quote
Old 05-08-2014, 01:34 PM   #119
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,869
Total Cats: 774
Default

Quote:
Originally Posted by Midtenn View Post
I ground mine back a little further because I wanted to be able to remove the valve cover without scratching it.
Good point. I'll probably wait until I get my valve cover finalized and go from there. Speaking of valve covers, the replacement should be here Monday from BEGI. For whatever reason they are returning the baffles and hardware I removed for the old cover before sending it in for coating, but included in the package when I returned it for exchange. Not sure what's up with that. They probably pulled the baffles out of the one they were going to send me, assuming I wasn't going to include the originals? Meh. I'd end up pulling them anyway to inspect and clean so no skin off my nose, just kinda strange.

In other news: I've got an appointment for paint. I am cautiously optimistic, god I hope this turns out

In prep for paint, I pulled everything out of the car last night except the jack, spare, registration and insurance card, including the stereo. Not that I don't trust the bodyshop, but I also don't want to tempt people. I have no soft top so while the hard top is getting painted, its just going to be open.

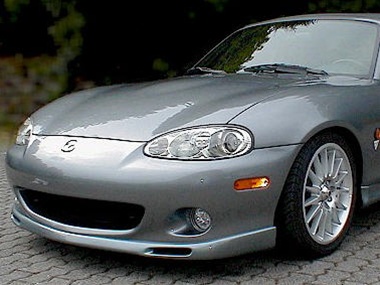

Something I picked up years ago that I've been lusting over for a long time is also finally being painted and installed on the car. Back when I pulled off the guppy mouth 99/00 nose in favor of the 01/05 nose and massively improved MSM headlights, I lost the 99/00 specific "Sport Package" mini lip as seen in my sig pic image:



I always loved that lip. It just seems to complete the nose of the car and it perfectly matches the lines of the rest of the factory small tupperware. Without it, the NB nose just looks soft and flabby and and meh. I pulled the lip off the old 99/00 nose and used some burly 3M double stick automotive trim adhesive tape to see if I could make it sit correctly on the 01/05 nose, but the contours are just different enough that it never lined up properly and looked like ***. No lip for me. Sad panda :(

Then I found this gem:

"99 Factory Style Front Sport Package Lip Spoiler for Mazda Miata MX-5 2001-2005"
Quote:
Originally Posted by RSpeed
These spoilers are one of a kind. Made from Durable PU (polyurethane) and designed to look like 1999 - 2000 Sport Package Spoilers. Fits Mazda Miata MX-5 2001-2005
Its now discontinued so you can't actually browse to it on their website, but I saved the direct link to it years ago: RSpeed: 99 Style Front Lip Spoiler Miata MX-5 and they have very limited stock, but the part can still be ordered. The part number is NB2-40405. Yes it was godawful expensive, but its a really nice part and it gets me exactly what I want: 99/00 Sport Package lip that actually fits correctly on my 01/05 nose! w00t! Hopefully I can not trash it too badly on diveways and such
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-nb2-40405-2.jpg
EO2K is offline   Reply With Quote
Old 05-08-2014, 02:15 PM   #120
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,151
Total Cats: 30
Default

Well, that is interesting. They told me that I got the last one when I bought one of those 1.5 years ago. In case something happens, I have one you could buy.
Chilicharger665 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Help me test MS3 firmware! Win stuff! Ben MEGAsquirt 16 01-13-2017 08:56 PM
3d scanned miata parts- interest check asmasm General Miata Chat 32 01-05-2017 10:22 AM
Noob from Arizona, Hi Richard here! Richard346 Meet and Greet 11 12-16-2016 05:48 PM
Move to Florida. Buy Miata vtbandit Meet and Greet 7 12-15-2016 09:33 PM
The Slowest Miata in Tampa Build vtbandit Build Threads 4 12-13-2016 06:08 PM


Tags
begi isn't helping, buttsex, doubt, efr=tits man, failure is an option, iono mang, longing, manifold mastectomy, moist b-hole, offending tits, procrastination, silent but deadly, tartar sauce massage oil, uncertainty, yearning

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 05:16 PM.
