Old 02-11-2016, 01:37 PM   #201
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

Quote:
Originally Posted by vteckiller2000 View Post
Because I hate it just as much as the next guy when someone spouts out advise without data or evidence, This thread, starting at post #82 should be relevant to your interests.

$700 rear mount turbo build - Page 3 - LS1GTO.com Forums

I'd post more, but I am at work today and have limited *******-off time.
Uhh, I'm reading that post and homeboy is saying all sorts of stuff that doesn't sound right, like not using a BOV and such.

I'll keep reading, but so far he's not convincing me
18psi is offline   Reply With Quote
Old 02-11-2016, 01:39 PM   #202
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by 18psi View Post
Uhh, I'm reading that post and homeboy is saying all sorts of stuff that doesn't sound right, like not using a BOV and such.

I'll keep reading, but so far he's not convincing me
He went through a lot of growing pains, but the results toward the end include doing real tuning (via HPT) and running very fast times.

There are a lot of these guys doing rear mount setups. Smallish exhaust pipes and small charge piping is how they are managing to make them work.

102+ mph in the 1/8th mile with 6.0 liters breathing through one 2.5" pipe.
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 01:55 PM   #203
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,353
Total Cats: 80
Default

Talk about getting **** done. You accomplish more in a week than I do in a whole year.

Props for trying something different and keep it up!
cyotani is offline   Reply With Quote
Old 02-11-2016, 02:27 PM   #204
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

More rear turbo maths in this thread, post #16.

http://ls1tech.com/forums/forced-ind...ool-valve.html
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 02:41 PM   #205
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

What do you guys think about this Magnaflow?

18" body 4x9
https://www.magnaflow.com/products?partNumber=11259

14 body 4x9
https://www.magnaflow.com/products?partNumber=11229

The 18" would be a huge pain to make fit, but probably possible. The 14 is a lot easier to do.

EDIT:

14" 5x8 too
https://www.magnaflow.com/products?partNumber=12229

So for a given length, would the 5x8 be quieter than the 4x9?
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 02:43 PM   #206
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

...............try it without a muffler first

glasspacks and small tiny body mufflers like above are a huge waste of money and time if your goal is to cut down noise.
they kill resonance/rasp, and make very little difference to overall noise
18psi is offline   Reply With Quote
Old 02-11-2016, 02:48 PM   #207
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

Quote:
Originally Posted by 18psi View Post
...............try it without a muffler first

glasspacks and small tiny body mufflers like above are a huge waste of money and time if your goal is to cut down noise.
they kill resonance/rasp, and make very little difference to overall noise
Uh. I'm 90% sure it will be louder than I like with literally no mufflers at all. I like quiet. So I'm installing something. I'm gonna do one glasspack since fitting one is easy, then see what it sounds like. If it's too loud, I'll need a muffler that fits. I posted dimesions, I have limited space in the back, so just asking what would fit and work the best.

I know a big muffler is better than a little one, big one ain't gonna fit.
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 03:00 PM   #208
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
Uh. I'm 90% sure it will be louder than I like with literally no mufflers at all. I like quiet. So I'm installing something. I'm gonna do one glasspack since fitting one is easy, then see what it sounds like. If it's too loud, I'll need a muffler that fits. I posted dimesions, I have limited space in the back, so just asking what would fit and work the best.

I know a big muffler is better than a little one, big one ain't gonna fit.

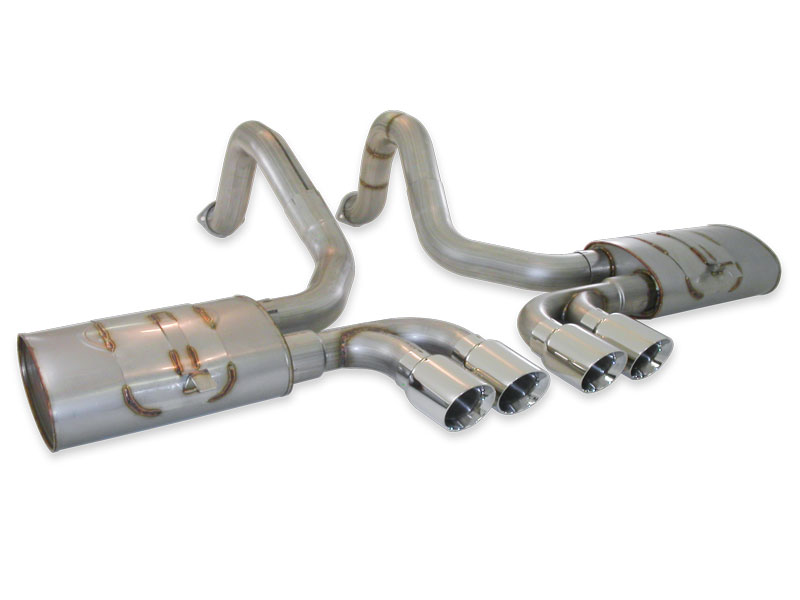

The longest the long side of the muffler is, the less low end resonance/lower Hz frequencies it will emit from the tailpipe. Can you get a corvette SI/SO muffler to fit there?

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-stainless.jpg
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 03:13 PM   #209
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

I know what you're saying, and I understand your space limitations, and you know how obsessed I am with quiet cars, that's why I'm saying tiny mufflers won't do much. it will be like 99.5% noise vs 100% noise.

I tried this on various cars, and small resonators and even mufflers did next to nothing. That's why we all love the giant maggies, they are actually very effective.

I have an Apexi ECV (exhaust control valve) left from my Subaru that I used if you want to try it. It's manual so it doesn't fail like the cutouts, and goes into a 3" exhaust and basically opens/closes from 100% free flow to like 10% free flow.

It was very effective on my Subaru. And it's tiny

*edit: like this
http://www.enjukuracing.com/products...FQ6maQodXAMEYw

you can youtube/google videos of sound
18psi is offline   Reply With Quote
Old 02-11-2016, 03:23 PM   #210
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

OP can you run a long bottle muffler transversely and loop the exit above it back to the passenger side? Like 180* out of turbo-> through transverse muffler-> 180* and straight abover muffler ->90* bend to exit at bumper? Like the twin loop setup minus the part going back through muffler again?
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 04:19 PM   #211
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

Quote:
Originally Posted by 18psi View Post
I know what you're saying, and I understand your space limitations, and you know how obsessed I am with quiet cars, that's why I'm saying tiny mufflers won't do much. it will be like 99.5% noise vs 100% noise.

I tried this on various cars, and small resonators and even mufflers did next to nothing. That's why we all love the giant maggies, they are actually very effective.

I have an Apexi ECV (exhaust control valve) left from my Subaru that I used if you want to try it. It's manual so it doesn't fail like the cutouts, and goes into a 3" exhaust and basically opens/closes from 100% free flow to like 10% free flow.

It was very effective on my Subaru. And it's tiny

*edit: like this
APEXi 70mm Exhaust Control Valve - Enjuku Racing Parts, LLC

you can youtube/google videos of sound
In all seriousness, if the big magnaflow is say, a 80% reduction in noise, you're saying the small ones are 0.5% reduction in noise? Is that actually true? I mean I know they aren't as good, but surely a small one would help some, at least 20-30% quieter vs nothing?

I installed a valve on my last setup, it melted at the track. I should post a pic of it, that's probably why the SC wasn't running as fast in the 1/8th as it did before, the valve melted and blocked 1/2 the pipe.

vtec- I was going to do thd 180* thing originally, but there really isn't enough space to pull that off. The corvette muffler looks possible though, will check into it.
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 04:27 PM   #212
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

Quote:
Originally Posted by patsmx5 View Post
In all seriousness, if the big magnaflow is say, a 80% reduction in noise, you're saying the small ones are 0.5% reduction in noise? Is that actually true? I mean I know they aren't as good, but surely a small one would help some, at least 20-30% quieter vs nothing?
I was just as surprised and disappointed as you are when I tested this.

Now, it was with my naked year that I did this, so percentages I posted are just opinions/guesstimates, but honestly I could tell no difference.

I don't know how you melted that valve, unless it was cheap or aluminum? My wrx put down 428whp and ran 11.7 @ 122 multiple times at the track. Valve looks like new when removed
18psi is offline   Reply With Quote
Old 02-11-2016, 04:54 PM   #213
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
In all seriousness, if the big magnaflow is say, a 80% reduction in noise, you're saying the small ones are 0.5% reduction in noise? Is that actually true? I mean I know they aren't as good, but surely a small one would help some, at least 20-30% quieter vs nothing?

I installed a valve on my last setup, it melted at the track. I should post a pic of it, that's probably why the SC wasn't running as fast in the 1/8th as it did before, the valve melted and blocked 1/2 the pipe.

vtec- I was going to do thd 180* thing originally, but there really isn't enough space to pull that off. The corvette muffler looks possible though, will check into it.
Several factors are at work here, case shape, size of long end, packing material, etc. What is the worst offender to you, low frequency drone or mid range volume? The low frequency drone is the easiest to kill, but it requires space or a bunch of math.
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 05:02 PM   #214
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

you want size and much girth
(I know, that's what she said)
the thicker the packing, the better. that's why glasspacks and resonators don't work well as mufflers. they don't actually "muffle" noise
18psi is offline   Reply With Quote
Old 02-11-2016, 05:41 PM   #215
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

Quote:
Originally Posted by 18psi View Post
I was just as surprised and disappointed as you are when I tested this.

Now, it was with my naked year that I did this, so percentages I posted are just opinions/guesstimates, but honestly I could tell no difference.

I don't know how you melted that valve, unless it was cheap or aluminum? My wrx put down 428whp and ran 11.7 @ 122 multiple times at the track. Valve looks like new when removed
It was cheap. I didn't expect it to fail though, it's steel. But it did.

We'll see, I'll try going through Magnaflow's website more later tonight, try to find the biggest one that will fit and order it. Something has to be better than nothing.
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 05:42 PM   #216
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

Quote:
Originally Posted by vteckiller2000 View Post
Several factors are at work here, case shape, size of long end, packing material, etc. What is the worst offender to you, low frequency drone or mid range volume? The low frequency drone is the easiest to kill, but it requires space or a bunch of math.
Volume mostly. I daily this car, I want quiet as possible.
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 07:08 PM   #217
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
Volume mostly. I daily this car, I want quiet as possible.
This should be obvious, but get the largest (oval cross section) and longest case you can fit. That is about all you can do.

Length helps with boom and drone. Case size should help with overall volume.
vteckiller2000 is offline   Reply With Quote
Old 02-11-2016, 07:11 PM   #218
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,967
Total Cats: 128
Default

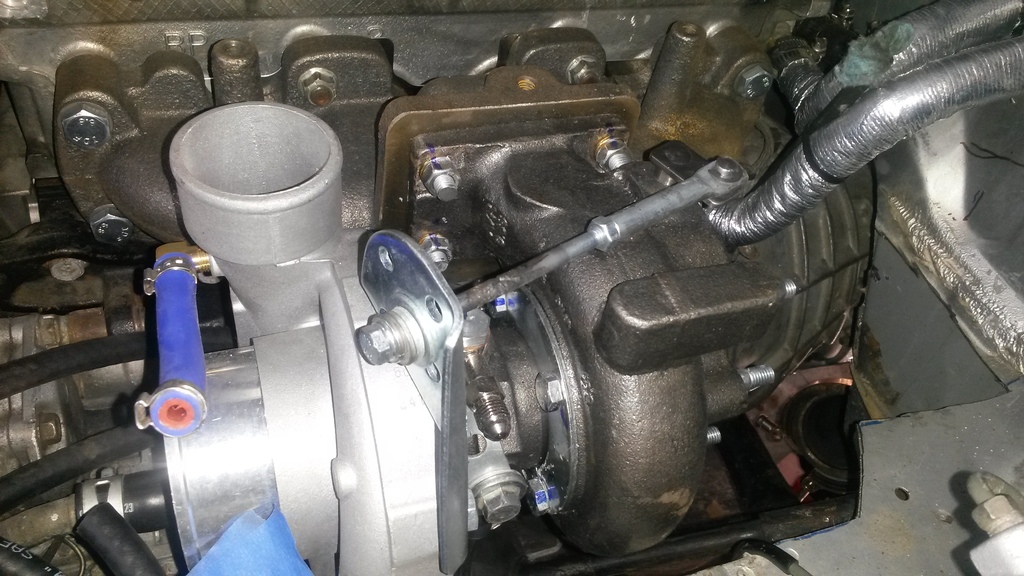

In other news, I decided how much boost I'm going to run.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-20160211_170435_zpso2hy1vz3.jpg
patsmx5 is online now   Reply With Quote
Old 02-11-2016, 07:14 PM   #219
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

18psi is offline   Reply With Quote
Old 02-11-2016, 07:17 PM   #220
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 754
Total Cats: 28
Default

Perfect.
x_25 is offline   Reply With Quote
