Old 02-16-2016, 03:42 PM   #321
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

You should theoretically just be able to hit it at like 7500rpm. You will probably need EBC to keep it from spiking down low
aidandj is offline   Reply With Quote
Old 02-16-2016, 03:47 PM   #322
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by aidandj View Post
You should theoretically just be able to hit it at like 7500rpm. You will probably need EBC to keep it from spiking down low
Hmm. Looks like I need to setup my boost to come up to around 350wtq and hold it there like you say, that's 500 wheel at 7500. Gonna need more fuel though, but still it's look promising.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 03:50 PM   #323
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,686
Total Cats: 113
Default

Why do you think you need bigger injectors? You aren't on e85, right, and you run the equivalent of 1200cc with your boosted fuel pressure?

That's like 700whp worth of fuel. With e85 it's still probably enough for 500-600 crank...

What's duty cycle doing during these pulls?
deezums is offline   Reply With Quote
Old 02-16-2016, 03:51 PM   #324
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

He is on e85

Also, unless you crank base pressure your differential fuel pressure is the same. which is what determines flow rate.
aidandj is offline   Reply With Quote
Old 02-16-2016, 03:52 PM   #325
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,686
Total Cats: 113
Default

Even still it's way more than enough.

Ditch the stupid atmo referenced NB **** and get a real 1:1 regulator on there and fix the pressure at 62psi if duty cycle is getting close. If your fuel pump keeps up you will not need larger injectors. All you gotta do is repourpose the evap lines, right?
deezums is offline   Reply With Quote
Old 02-16-2016, 03:53 PM   #326
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Yes on E85, I was at 90% duty cycle at 8,400 on the 376whp 3rd gear pull.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 03:53 PM   #327
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

Quote:
Originally Posted by deezums View Post
Even still it's way more than enough.

Ditch the stupid atmo referenced NB **** and get a real 1:1 regulator on there and fix the pressure at 62psi if duty cycle is getting close. If your fuel pump keeps up you will not need larger injectors. All you gotta do is repourpose the evap lines, right?
He has all that. But even at high boost, the flow rate is the same as at base pressure with a 1:1.
aidandj is offline   Reply With Quote
Old 02-16-2016, 03:54 PM   #328
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,686
Total Cats: 113
Default

That's NB right? The one that references 60 psi all the time. It's not a 1:1, it runs 60 psi all the time.

I still say switch to return style and up the pressure a tad.
deezums is offline   Reply With Quote
Old 02-16-2016, 03:54 PM   #329
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

He has 6an lines from the tank to rail.

Also, calculators are all ballpark. Engines all consume fuel slightly differently, and you won't know exactly when you will run out of fuel, until you go lean at max boost lol.
aidandj is offline   Reply With Quote
Old 02-16-2016, 03:55 PM   #330
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by deezums View Post
Even still it's way more than enough.

Ditch the stupid atmo referenced NB **** and get a real 1:1 regulator on there and fix the pressure at 62psi if duty cycle is getting close. If your fuel pump keeps up you will not need larger injectors. All you gotta do is repourpose the evap lines, right?
I have all the fuel system. Walbro 450 and Walbro 255HP, 10 gauge wires/relays to each, 6AN lines, Aftermarket regulator with 1:1 reference and ID 1000s, and a fuel PSI sensor logging fuel pressure.

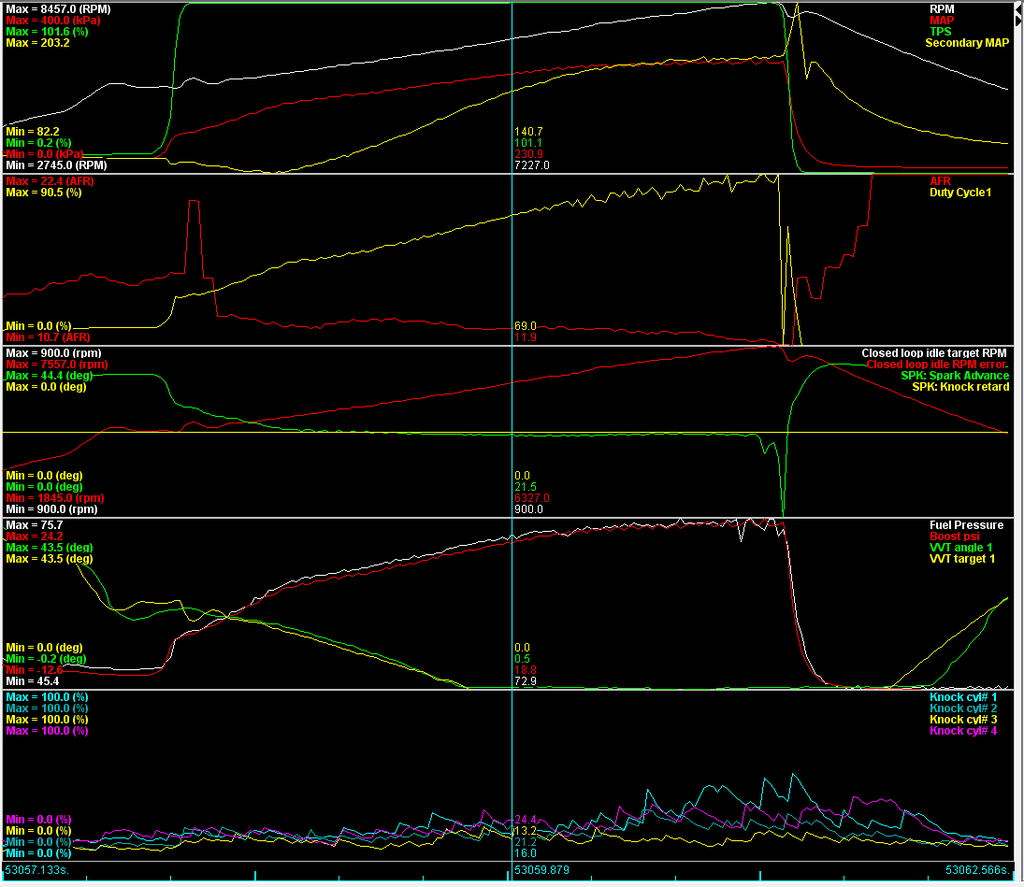

EDIT: Pic from log showing duty cycle/fuel PSI

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-log_zpsxrr5qmax.png
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 03:56 PM   #331
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,686
Total Cats: 113
Default

Well hell, crank the **** out of the pressure then. ID says the 1000's love 5 bar anyway, and you're set to do it.
deezums is offline   Reply With Quote
Old 02-16-2016, 03:58 PM   #332
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

I agree. 1000's have a max differential pressure of 101psi

So run a 100psi base pressure and go to town.
aidandj is offline   Reply With Quote
Old 02-16-2016, 04:03 PM   #333
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Also why won't Tunerstudio let me raise my rev limit higher than 8,500? I want to bump it up a big, kept hitting the limiter earlier making pulls.

EDIT: Fixed, under "gauge and setting limits" you can adjust it there, then change rev limit higher.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 04:11 PM   #334
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 263
Total Cats: 13
Default

It's so quiet!
glade is offline   Reply With Quote
Old 02-16-2016, 05:39 PM   #335
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,151
Total Cats: 1,990
Default

Yeah I'd agree with these young whippersnappers: crank the fuel pressure to ALLOFIT before you change those injectors.
If nothing else we'll all finally have some data on where they max out at full tilt.

The 400 number was assuming 60psi pressure, you have the pumps for way more than that.
18psi is offline   Reply With Quote
Old 02-16-2016, 07:53 PM   #336
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,611
Total Cats: 101
Default

I assume MAP is pressure at the manifold and Secondary MAP is between the turbos? It's interesting to see how the little turbo kicks in, then as the big turbo comes alive the little one seems to go away.
pdexta is offline   Reply With Quote
Old 02-16-2016, 08:02 PM   #337
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,151
Total Cats: 1,990
Default

so 140kpa from the 2nd turbo at 7200 rpm?
18psi is offline   Reply With Quote
Old 02-16-2016, 08:13 PM   #338
Junior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 397
Total Cats: 11
Default

Quote:
Originally Posted by patsmx5 View Post
LOL. At 22 PSI, the Turbo setup is making 20 whp more than the SC did at 30 PSI.
Its amazing how much power it takes to compress air with the crankshaft as opposed to the exhaust
hector is offline   Reply With Quote
Old 02-16-2016, 08:45 PM   #339
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by pdexta View Post
I assume MAP is pressure at the manifold and Secondary MAP is between the turbos? It's interesting to see how the little turbo kicks in, then as the big turbo comes alive the little one seems to go away.
Correct, MAP is total, Secondary MAP is the big turbo. The little turbo doesn't go away though, it keeps doing it's thing, it just sucks in boosted air at the higher revs for extra power.


Quote:
Originally Posted by 18psi View Post
so 140kpa from the 2nd turbo at 7200 rpm?
Yes on that pull. It's at ~165kPa / ~ 10 PSI in that log.

Quote:
Originally Posted by hector View Post
Its amazing how much power it takes to compress air with the crankshaft as opposed to the exhaust
Yes, I knew the SC was robbing lots of power after about 20 PSI.

In other news, found a small exhaust leak I fixed (pre-small turbo, will post pics later) and another probably bigger leak pre-big turbo I haven't fixed yet. The V-band on the rear is leaking where the big turbo is. I think I need a V-band gasket on that one... I nicked up the face of it and it's leaking. My fault, but gotta fix that.

Also about to install a restrictor on the big turbo. Small one has a built in restricer, big one did not and it's pushing oil out the turbine a bit. I tested the drain from it with the pump using clear tubing to "See" what's happening and the drain works great, but it's flowing 5x the amount of oil the front turbo drain flows. So it needs a restrictor me thinks.

Few small problems which is to be expected for a cheap DIY setup. No big problems yet.
patsmx5 is offline   Reply With Quote
Old 02-16-2016, 08:52 PM   #340
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

With most fuel pump I dont think you can reasonable run a base pressure higher than 60psi and expect to crank 30psi of boost into it.
Leafy is offline   Reply With Quote
