Old 04-09-2016, 06:45 PM   #701
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by fivehundredton View Post
No ****. Put it this way then. If that flywheel is one particle heavier than it needs to be for trans health then the POTENTIAL shock load to the drive train will be greater with less than PERFECT rev matched shifts. And longer delay between shifts. The flywheel may be too light now for all I know. I ask. Ya'll maths it.
We math'd it in the thread Sean linked that I started, go check it out. The takeaway is heavier flywheel = happier drivetrain, and it can be quantified. You are correct about shock loading, that is exactly what the heavy flywheel minimizes.

I understand what you're trying to say, a heavy flywheel can cause more shock loading between gear changes. Sure, but that's solvable via flat shift, launch control, and driver control. The shock loading via the engines torque pulses is ONLY minimized by damping those pulses, and that is literally why engines have flywheels.
patsmx5 is online now   Reply With Quote
Old 09-12-2016, 11:20 PM   #702
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Long time no update. Have been driving and enjoying the car for months. Got another set of 99 NB wheels and had them powdercoated and a set of street tires for them. And put the ID1300's in, and D34 yellow top optima battery. Other than that just oil changes and fuel. Up until a couple weeks ago...

I recently decided I should try turning the front turbo's boost up from 18-20 up to 25 or so to get more midrange power. Well after making about 20 pulls to 8,500, the front turbo had a bearing wear out and developed enough radial play in the front journal bearing to begin contacting the housing. Very minimal damage, easily fixed with a rebuild, but the REASON it failed became obvious, I overspun it.

Honestly I expected the thrust bearing to fail at high boost on a cheap ebay turbo, not a the journal bearing. It has excessive radial play in the front now.

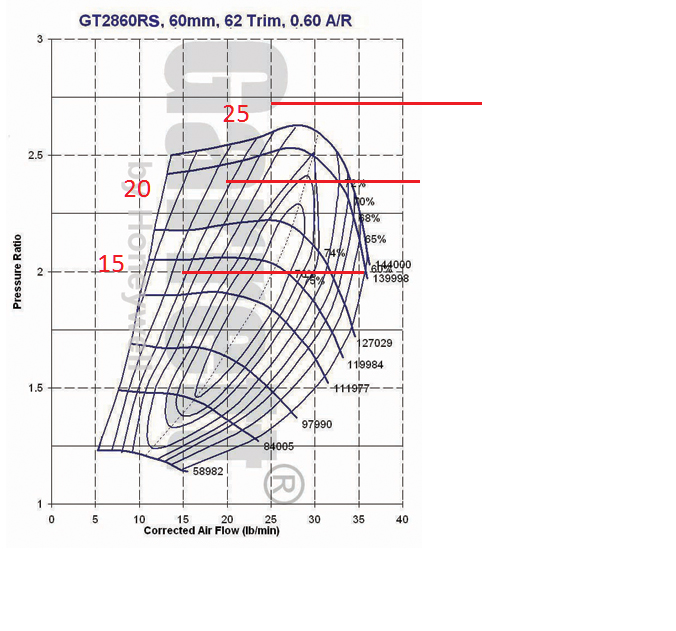

This is the GT2860 plotted on my setup for 15, 20, and 25 PSI.

Kind of obvious why it died after looking at that.

Also I have to say, after driving it with the compound setup for a few thousand miles, there was one thing I've wanted to fix. The current setup, the front turbo was too small. So it would spool up, and not pull all that great until the back turbo finally spooled up. Once the big one comes online it's nuts, but before that it wasn't. The ebay GT28 was only a 49mm inducer on the compressor, where the big turbo is a 69mm inducer. Internet wisdom says you want a small turbo about 10mm smaller than the big one for a compound setup. I was 20 smaller, so way off!

So I've decided to go to a bigger ebay turbo up front. Since I mostly drive this on the street, I want more torque available from the front turbo. It's obvious this GT28 I wasn't happy after 15 PSI. I think something around 20-25 would be a lot better.

After doing some research, and getting some advice from deezums and vlad, I bought another ebay turbo, a GT3076. Specs are:

Quote:
Compressor wheel: 57mm/76mm
Compressor Housing: 0.5 A/R Anti-Surge, 4" Inlet, 2.0" Outlet

Turbine wheel: 60mm/55mm
Turbine housing: T3 Inlet, Vband outlet, A/R 0.63
That's a 57mm compressor, so only 12 smaller than the big one, much closer to the 10mm smaller rule. Also plotted my setup on garrett's map for this turbo

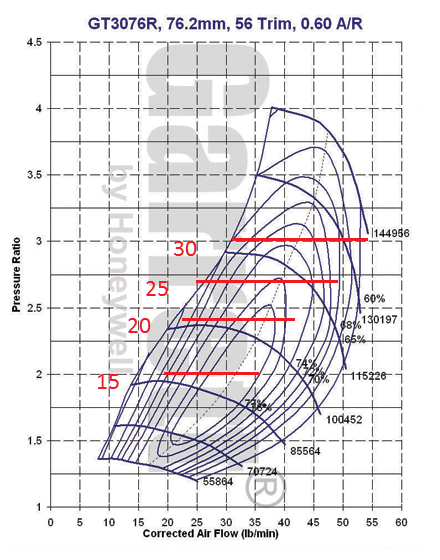

Looks a lot better, and not going off the map after 15 PSI. Should be able to run 20 or 25 reliably on this one I think. I may even try it at 30 (pushing it, but still on the map), and just set the back one to a low pressure to bring it up to whatever final boost I max these injectors out at.

Will be a week before it arrives. I gotta mod my manifold so a T3 will bolt to it (it's a T2 mani) and redo the downpipe. Good news is the new turbo is V-band on the exit of the turbine, so I look forward to not having to deal with bolts on that connection now. Apparently my 88 dollar manifold isn't on ebay any more??? Would just buy a T3 version if they were listed, but my taco taco friend must be out of them right now.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-2860-mapped.png   Pat's Ebay Turbo Compound Boost Build-3076r-maped.png
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 12:27 AM   #703
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 195
Total Cats: 0
Default

Right on man. At 30 psi you must be pushing at least 40lbs through that thing, even if it gets bypassed for the rear at mid rpm. That must be crazy. I really wish I would have put some rods in my proof of concept, it just wants to go and I won't let it. The GTX28 I installed has a clipped turbine (PO) so that is also bumming me a bit, but I don't want to pull it out right now cause it is too much fun to drive, and getting the sequencing in order for my air handling system is taking quite a bit of characterization.

good luck with the upgrade!
Ted75zcar is offline   Reply With Quote
Old 09-13-2016, 12:37 AM   #704
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Yeah I can't wait. I ran a GT3271 years ago (real garrett though) and it hit 28 PSI at 4,500 RPM on a non-vvt motor. I'm hoping this turbo can spool similarly. Honestly if it will hit 25 PSI or so by 5K from a 2nd or 3rd gear throttle stab at 3-4K, that would be great. Won't know till it's back together but I think this will prove to be better than the previous one, it should be a nice upgrade.

I was never bypassing the front turbo, just shoving boost into it when the big one spooled. Will do the same with this one. Let the 3076 get the party started, and let the GT45 keep it going up top.
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 01:04 AM   #705
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 195
Total Cats: 0
Default

Oh wow, yeah you totally need a bigger turbo in the front! Do you taper the PR across the smaller compressor via wastegate on the exhaust? I use an external WG to bybass the SC when the turbo is spooled, works pretty well.
Ted75zcar is offline   Reply With Quote
Old 09-13-2016, 01:06 AM   #706
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,510
Total Cats: 219
Default

Girz0r is online now   Reply With Quote
Old 09-13-2016, 01:24 AM   #707
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by Ted75zcar View Post
Oh wow, yeah you totally need a bigger turbo in the front! Do you taper the PR across the smaller compressor via wastegate on the exhaust? I use an external WG to bybass the SC when the turbo is spooled, works pretty well.
No, I keep the front turbo holding a constant pressure relative to the pressure going into it via closed loop electronic boost control. Before it was 20 PSI on the front, and then the back one would add in 18 into it, so the front would output 38 PSI at the motor.

What I would like to do is set the 3076 to 25-28 PSI, and then adjust the big one up until I max out these ID1300's. That way I have good midrange from torque and response, but still have the topend. In this example, if 35 PSI maxed them out, that would be say 25 from the GT3076, and 10 PSI from the GT45.
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 10:43 AM   #708
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,197
Total Cats: 749
Default

Why not just buy the T3 version of the 1.8 TacoTaco manifold and save yourself some effort modding the other one. They are pretty cheap.

Also what ever happened to you running stock ecu with MS in piggyback and such.
shuiend is online now   Reply With Quote
Old 09-13-2016, 12:47 PM   #709
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by shuiend View Post
Why not just buy the T3 version of the 1.8 TacoTaco manifold and save yourself some effort modding the other one. They are pretty cheap.

Also what ever happened to you running stock ecu with MS in piggyback and such.
I couldn't find the 1.8 taco mani on ebay any more. If they're still for sale I'll just buy another one for sure. Or if someone here has one.

ECU project has changed a lot, but it's still alive. It's not finished yet.

patsmx5 is online now   Reply With Quote
Old 09-13-2016, 12:56 PM   #710
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,197
Total Cats: 749
Default

Quote:
Originally Posted by patsmx5 View Post
I couldn't find the 1.8 taco mani on ebay any more. If they're still for sale I'll just buy another one for sure. Or if someone here has one.

ECU project has changed a lot, but it's still alive. It's not finished yet.
You got a PM. I should have you covered on the t3 tacotaco.
shuiend is online now   Reply With Quote
Old 09-13-2016, 09:09 PM   #711
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by shuiend View Post
You got a PM. I should have you covered on the t3 tacotaco.
Sweet! I PM'd you back, this will make it easier vs having to mod my T2 manifold. It is an authentic tacotaco T3 mani, right? :P
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 10:07 PM   #712
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Just read this entire thread. Can't wait to see the next timeslips.

Have you gotten slicks yet?
miata2fast is offline   Reply With Quote
Old 09-13-2016, 10:19 PM   #713
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by miata2fast View Post
Just read this entire thread. Can't wait to see the next timeslips.

Have you gotten slicks yet?
I have the mickey thompson drag radials, no slicks yet. But I will be making a BIG change to make the car faster at the track after the turbo is swapped out and working well. Besides the fact that I expect a GT3076 to make more power.
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 10:58 PM   #714
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Do you have a size in mind?
miata2fast is offline   Reply With Quote
Old 09-13-2016, 11:00 PM   #715
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,796
Total Cats: 931
Default

2 of the big ones.
aidandj is offline   Reply With Quote
Old 09-13-2016, 11:09 PM   #716
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by miata2fast View Post
Do you have a size in mind?
I'm going to do an auto swap. Once that's done, sorted, and not slipping at full power, I was thinking a 100 shot out of the hole would be nice to get a good launch once the auto is in. But we will see.
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 11:10 PM   #717
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,796
Total Cats: 931
Default

quicktime bellhousing with a powerglide?
aidandj is offline   Reply With Quote
Old 09-13-2016, 11:14 PM   #718
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by aidandj View Post
quicktime bellhousing with a powerglide?
99 auto transmission, built of course. Plan is to swap all the stuff in to do the conversion, drive it at low boost to confirm the swap was a success (it's a pain to do a swap, lot of crap...), then build the transmission and get the boost up to all of it.
patsmx5 is online now   Reply With Quote
Old 09-13-2016, 11:15 PM   #719
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,796
Total Cats: 931
Default

Why not something proven in the drag racing world to hold real power and shift fast? Easy to control, all you need to do is get a driveshaft and a mount?
aidandj is offline   Reply With Quote
Old 09-13-2016, 11:18 PM   #720
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by aidandj View Post
Why not something proven in the drag racing world to hold real power and shift fast? Easy to control, all you need to do is get a driveshaft and a mount?
It's a street car, a powerglide is a drag car transmission. I can not imagine how slow a miata out of boost would be around town with a powerglide. The only way a powerglide would work in a miata is with a 5K stall so I could launch at full boost, and that would never work for a street car.

I admit I don't know what a built miata auto will take, but I'm about to find out. Good news is these transmissions are dirt cheap to buy, so if I break a couple figuring out what works, it's like 1/4th the cost of a 6 speed.
patsmx5 is online now   Reply With Quote
