Old 03-11-2016, 09:53 PM
  #2601
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 775
Total Cats: 24
Default

Originally Posted by turbofan

Iono though. I guess it's sorta tempting to go with the Sport, then do an OS Giken and Ohlins......
That's pretty much my conundrum right there. I'd do the suspension and wheels/tires on either one right away and the OSG diff is probably a lot better than the factory LSD on the Club. Are the dash screen, spoilers, stb, bose, and red stitching worth an extra $3500? Kind of hard to justify for my needs.
paNX2K&SE-R is offline
Old 03-11-2016, 10:24 PM
  #2602
Elite Member
iTrader: (2)

Chilicharger665's Avatar

Join Date: Oct 2011
Location: SE NM
Posts: 1,637
Total Cats: 57
Default

The only thing I would miss about the lack of screen in the Sport is the future apps that will come out and allow OBD2 info streaming. Having a fully integrated and factory screen used as auxiliary gauges would be perfection.
Chilicharger665 is offline
Old 03-12-2016, 12:22 AM
  #2603
Supporting Vendor
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,951
Total Cats: 1,004
Default

Originally Posted by paNX2K&SE-R
That's pretty much my conundrum right there. I'd do the suspension and wheels/tires on either one right away and the OSG diff is probably a lot better than the factory LSD on the Club. Are the dash screen, spoilers, stb, bose, and red stitching worth an extra $3500? Kind of hard to justify for my needs.
For your needs? No. For mine, maybe. Need to think a bit more.

One bonus of going with the Sport is that we have a ceramic one in stock and it could be mine any moment I want..............
__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com
turbofan is offline
Old 03-12-2016, 09:40 AM
  #2604
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 775
Total Cats: 24
Default

Originally Posted by Chilicharger665
The only thing I would miss about the lack of screen in the Sport is the future apps that will come out and allow OBD2 info streaming. Having a fully integrated and factory screen used as auxiliary gauges would be perfection.
Hmm now that's an interesting proposition. If that were possible along with the system being capable of running some other apps (especially Waze!) might well tip the scales in favor of a Club.
paNX2K&SE-R is offline
Old 03-13-2016, 01:36 PM
  #2605
Elite Member
iTrader: (4)

hornetball's Avatar

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,301
Total Cats: 696
Default

I was all about the Club until I drove the Sport. For my purposes, it had everything I needed as a base platform for speed parts -- the LSD being the only exception. But I'm betting that LSDs are going to start showing up in the yards soon.

Keep in mind that neither of my Miatas has a radio. I'm a fan of the original R-package.
hornetball is offline
Old 03-13-2016, 02:03 PM
  #2606
Supporting Vendor
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,951
Total Cats: 1,004
Default

Yeah, that's the big difference. For me, I don't plan on a lot of speed parts. Exhaust, tune, springs, wheels/tires drive. The club means I'm not spending more right away aside from the payment, and it means I get more of what I want. Talked with the boss more yesterday, definitely placing the order this next round (Mazda only picks up orders once per month).
__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com

Last edited by turbofan; 03-13-2016 at 03:22 PM.
turbofan is offline
Old 03-13-2016, 03:15 PM
  #2607
Moderator
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 3,033
Total Cats: 324
Default

Girz0r is offline
Old 03-15-2016, 02:47 AM
  #2608
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

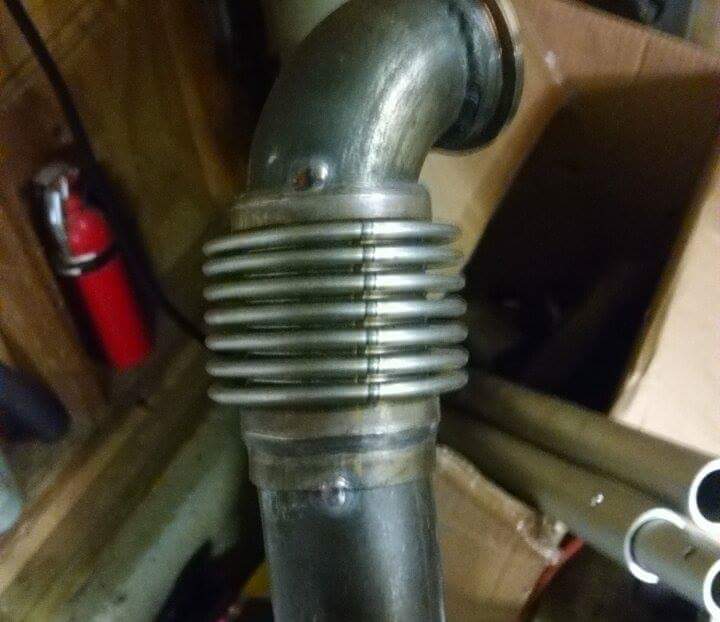

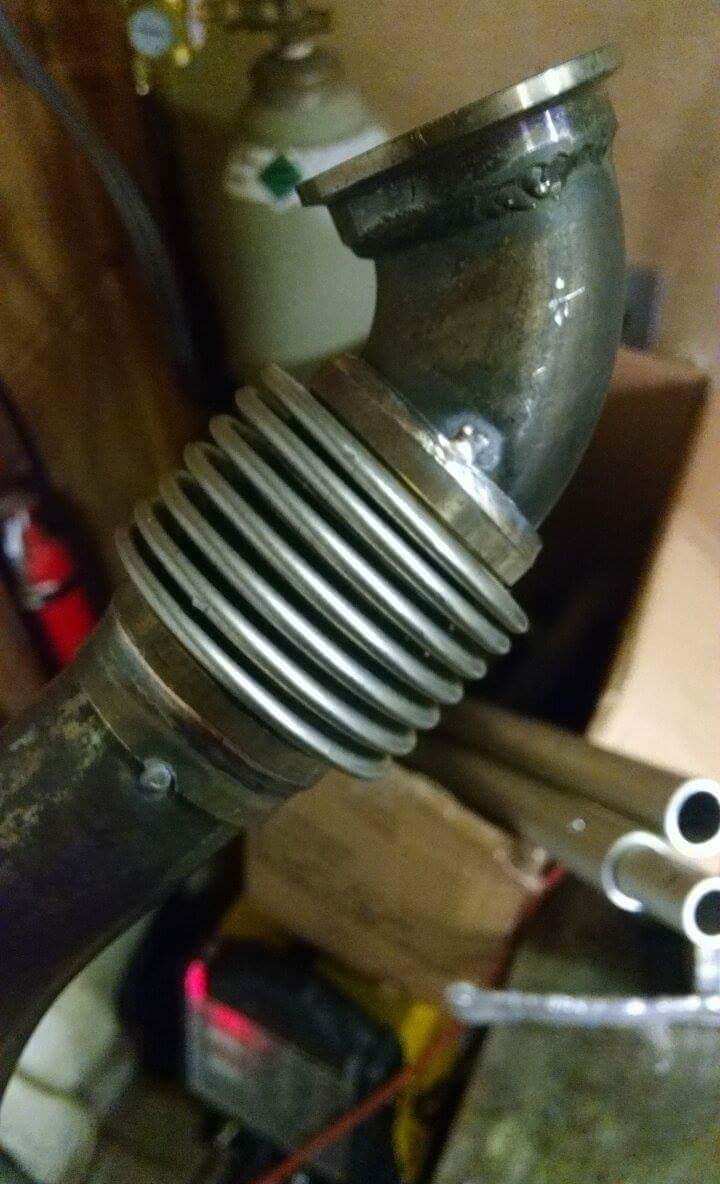

@TurboTim were rewelding a new bellow on because the old one cracked around the edge. Any suggestions to try and relieve some of the stress?
Attached Thumbnails Rebuild all the salvage Miatas! ASS!-slrikq1.jpg   Rebuild all the salvage Miatas! ASS!-4anxd1r.jpg
aidandj is offline
Old 03-15-2016, 07:54 AM
  #2609
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,893
Total Cats: 399
Default

You're not the first to have one of those Vibrant bellows crack. Seems like most have actually. Hell, Shieud's cracked almost immediately. Not sure how how to fix it other than trying not Vibrant, or replacing it with a solid section. My early setups had no flexes in them at all but were a nightmare to assemble.
TurboTim is offline
Old 03-15-2016, 09:15 AM
  #2610
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

What bout replacing the bellow with a flex section further down the pipe?

Glad to hear were not the only ones with this issue.
aidandj is offline
Old 03-15-2016, 10:01 AM
  #2611
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,893
Total Cats: 399
Default

That will change harmonics and may help, sure.
TurboTim is offline
Old 03-15-2016, 10:11 AM
  #2612
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

And we might have better luck with a flex pipe instead of a bellows. Maybe we'll try that if these break.
aidandj is offline
Old 03-15-2016, 10:28 AM
  #2613
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,893
Total Cats: 399
Default

flex pipe is a bellows. WEll, there's bellows inside it. But the liner and/or braided outer will help on harmonics too.
TurboTim is offline
Old 03-15-2016, 10:32 AM
  #2614
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Hmmm, alright, we will find out if this will last.

It slightly pains me to put my ugly welds on your stuff
aidandj is offline
Old 03-15-2016, 11:47 AM
  #2615
Supporting Vendor
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,951
Total Cats: 1,004
Default

I bought a flex pipe style one first, but it was too tall and I don't think it will fit.

Ha. This thing is something of a nightmare to install as-is. If it had no flex portion.... No bueno.

In other news, there are whispers of a PRHT ND. Supposed to be announced by month end. This is not my intel, comes from a post from GWR. If that's the case, I'll have to slightly modify my order...
__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com
turbofan is offline
Old 03-21-2016, 06:12 PM
  #2616
Supporting Vendor
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,951
Total Cats: 1,004
Default

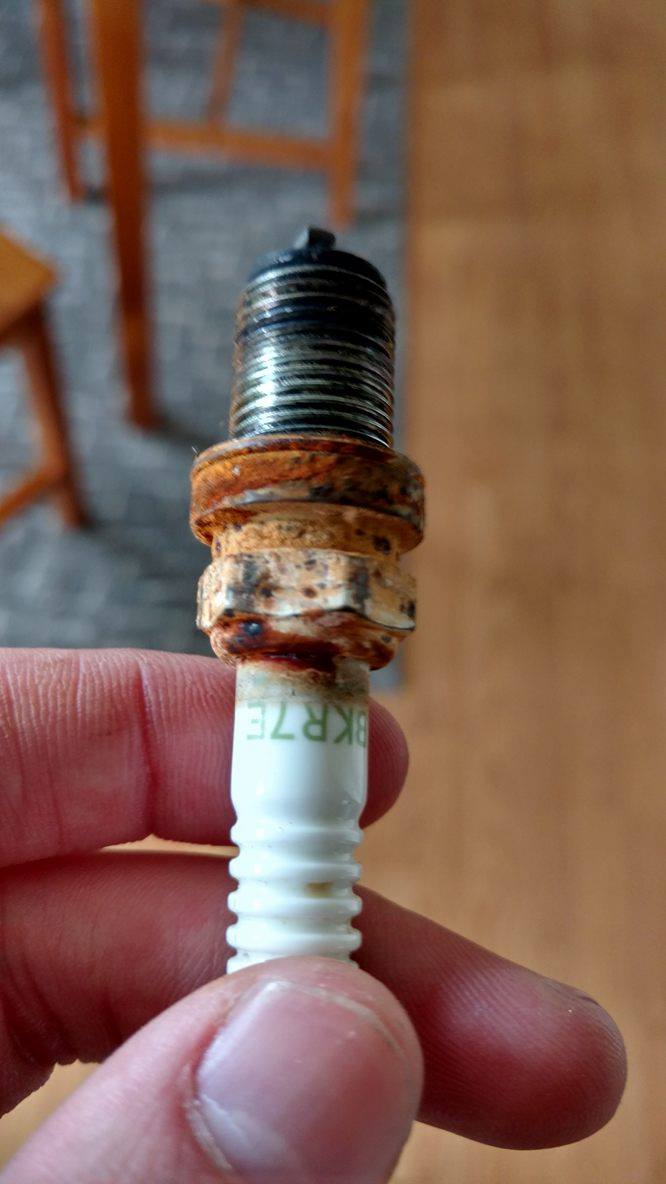

Rusty plugs. Gap was roughly .036 ish.

New plugs gapped at .025 going in. Then boost.
__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com
turbofan is offline
Old 03-21-2016, 06:13 PM
  #2617
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Forgot the pic

Attached Thumbnails Rebuild all the salvage Miatas! ASS!-yubkwkc.jpg
aidandj is offline
Old 03-21-2016, 06:22 PM
  #2618
Supporting Vendor
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,951
Total Cats: 1,004
Default

Didn't forget. On mobile and uploaded was being recalcitrant
__________________
Ed@949Racing/Supermiata
www.949racing.com
www.supermiata.com
turbofan is offline
Old 03-21-2016, 07:58 PM
  #2619
Elite Member
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: Very NorCal
Posts: 10,441
Total Cats: 1,899
Default

Originally Posted by aidandj
Oh god why?!
EO2K is offline
Old 03-21-2016, 10:51 PM
  #2620
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

949 Damper: just install it with the crank bolt right? Can we use a normal wrench or do we have to impact it on.

I assume lots of lube.
aidandj is offline
