Old 05-03-2014, 02:47 PM   #341
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,994
Total Cats: 409
Default

Quote:
Originally Posted by 18psi View Post
lol if you love it that much you should check out a 01+ I bet you'll be looking for an NB in no time
Ya know, compared to the last 2 '01+ stock Miatas i've driven, I like this one considerably better. Granted, one was a 32k mile butt-licker base model that surely had regular fuel in it, and the other was a beat up 74k mile '02, but even so... I think I prefer the characteristics of the '99-00 engine

I REALLY like this car.

I'm going to attempt to drive my MSM on Monday
turbofan is offline   Reply With Quote
Old 05-03-2014, 03:12 PM   #342
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,635
Total Cats: 463
Default

The code is P1135, HO2S Bank 1 Sensor 1 Heater Circuit Low Input.

Which is funny, since I mentioned to Ed the o2 sensor looks brand new. Maybe they were chasing this issue before it was wrecked?
curly is offline   Reply With Quote
Old 05-03-2014, 03:28 PM   #343
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,635
Total Cats: 463
Default

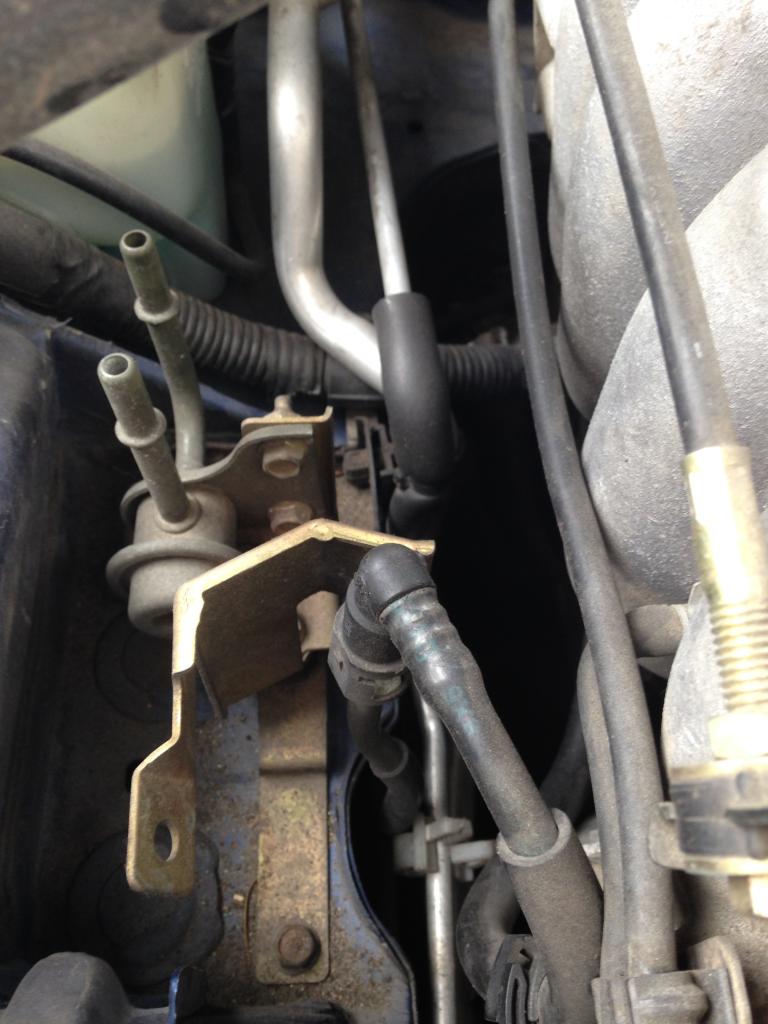

What's this for anyways? It's next to the intake manifold, and I don't think it should be disconnected and just sitting there, but what do I know. I'm fairly certain it's part of the fuel system, but again, it's working great.

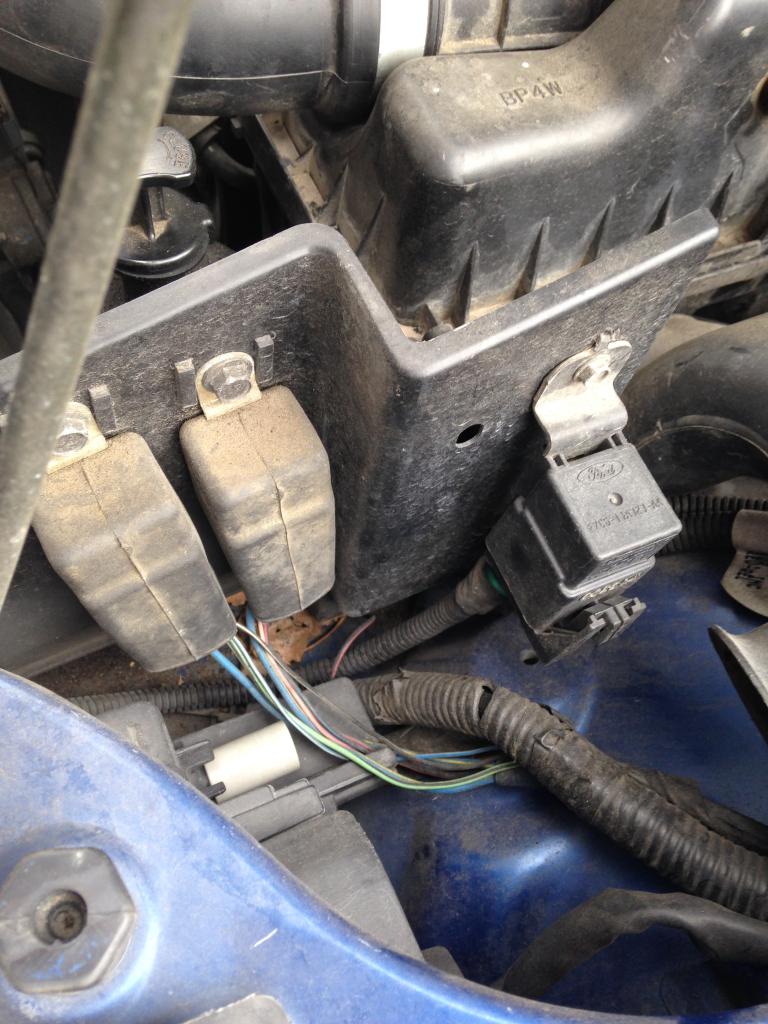

And are these three relays OEM? I think the one on the right is for the alarm, or are they all?

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-12315a02-f8a9-494b-bfd2-d2fe9cd69aca_zpscs3uhxc8.jpg   Rebuild all the salvage Miatas! ASS!-3598501b-8048-4133-97b2-dda2c62ca776_zpsolrw8af3.jpg
curly is offline   Reply With Quote
Old 05-03-2014, 03:41 PM   #344
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Left two are oem.
concealer404 is offline   Reply With Quote
Old 05-03-2014, 05:01 PM   #345
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

disconnected is the fuel dampener.
the left relays are oem right one is not.
looks like someone clueless worked on it before

is this a fed spec or ca spec car?
18psi is offline   Reply With Quote
Old 05-03-2014, 06:46 PM   #346
Newb

Join Date: Apr 2014
Posts: 30
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
disconnected is the fuel dampener.
the left relays are oem right one is not.
looks like someone clueless worked on it before

is this a fed spec or ca spec car?
I'm 99.9% this car is a Canadian model.... Because in the passager side has a federal sticker in French/English and is not the u.s federal tag
yellowspecvnismo is offline   Reply With Quote
Old 05-03-2014, 06:47 PM   #347
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

does that relay say "Ford" on it? hahahah
18psi is offline   Reply With Quote
Old 05-03-2014, 08:53 PM   #348
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Our airbag parts say Ford on them too. Ford and Mazda were pretty close back then. Some of my best Mazdas wore Ford badging.
hornetball is offline   Reply With Quote
Old 05-03-2014, 10:08 PM   #349
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,187
Total Cats: 325
Default

Is that an airbag sensor?
rleete is offline   Reply With Quote
Old 05-03-2014, 11:42 PM   #350
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Portland, Oregon.
Posts: 6,841
Total Cats: 63
Default

How many miles on that engine? lol
Doppelgänger is offline   Reply With Quote
Old 05-04-2014, 12:33 AM   #351
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,635
Total Cats: 463
Default

102,000? Back off it!
curly is offline   Reply With Quote
Old 05-04-2014, 01:20 AM   #352
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Portland, Oregon.
Posts: 6,841
Total Cats: 63
Default

That's too many anyway.



Though I could use a spare Ti colored hood to make a vented one....
Doppelgänger is offline   Reply With Quote
Old 05-04-2014, 01:47 AM   #353
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,758
Total Cats: 749
Default

I believe my 2000 has 3 relays bolted to that plastic air guide, but none of them say "Ford" on them. I can confirm tomorrow for you. Someone may have gotten creative with replacing a dead one.

Also, I find it interesting that someone would bypass the pulsation damper like that. There is absolutely no reason to do that, unless you jacked up the connectors trying to remove/reinstall the fuel supply fittings? It's kinda hakneyed TBH. How does the rest of the fuel system look? There should be NO hose clamps ANYWHERE on the NB fuel system.

Regardless, get us a shot of the exhaust manifold.

Cal Spec: Front o2 wiring connects at the front of the engine and cat lives next to the block, front sensor screws into manifold before the cat. Rear o2 connects at the rear drivers side next to the coil pack and sensor installs in the downpipe under the hood after the front cat. Cat in midpipe is unmonitored.

Fed Spec: Front sensor installs in the downpipe under the hood and rear sensor connects through a hole in the trans tunnel to a connector under the carpet on the drivers side, and screws into the midpipe after the "main" cat.

I have ELI5 MSPaint diagrams I made of both the Fed and Cal spec exhaust & o2 sensor locations I made for someone on M.net if the above is verbally too complicated.
EO2K is offline   Reply With Quote
Old 05-04-2014, 01:54 AM   #354
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

I had to bypass my dampener when I had the cold side stupidcharger on there. Otherwise there should be no reason for sure.

Get us some detailed shots of dat engine bay.

we'll get all nancy drew up in this mess.
18psi is offline   Reply With Quote
Old 05-04-2014, 02:18 AM   #355
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,635
Total Cats: 463
Default

I'll take some pics tomorrow. Sounds exactly like his cal spec description though. Both o2 sensors are in the engine bay, I removed the mid pipe an there was definitely no sensor.
curly is offline   Reply With Quote
Old 05-04-2014, 02:23 AM   #356
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

ca spec for sure then. fed spec its in the midpipe
18psi is offline   Reply With Quote
Old 05-04-2014, 02:29 AM   #357
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,635
Total Cats: 463
Default

What's that mean? Anything specific? Or just more emissions crap.
curly is offline   Reply With Quote
Old 05-04-2014, 02:45 AM   #358
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

the ca spec 99-00's have the uber retarded pre-cat crap and are NOTORIOUS for constantly throwing the CEL for o2 sensor. Its either bad cat or bad sensor or both. On many of ours it would just pop up, we'd clear it and it wouldn't come back for a long time sometimes ever. Its so weird and stupid.
18psi is offline   Reply With Quote
Old 05-04-2014, 02:55 AM   #359
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,758
Total Cats: 749
Default

Just emissions crap for the most part. Super easy upgrade on the exhaust is the 2001+ tubeular exhaust manifold, heat shield and egr tube. The precat is unnecessary and the iron manifold weignts about 50lbs. The install of the later 01+ hardware is trivial (other than maybe relocation of the stock o2 sensors) and in my experience, resulted in significant butt-dyno results at anything over 5k rpm. That iron boat anchor really chokes things up. I know you didn't really wind it that far out but if you like it now, you will love it after the manifold swap. It's honestly my favorite upgrade on my 2000. The Racing Beat header is even better, but bang for the buck the 01+ hardware can't really be beat.
EO2K is offline   Reply With Quote
Old 05-04-2014, 02:21 PM   #360
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,779
Total Cats: 205
Default

I have PDF of 99-00 service manual. For joo.
Mobius is offline   Reply With Quote
