Old 08-09-2015, 01:57 PM   #561
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

Well used. I'd rather pay you for those than send you my old ones I bet. I have like 7 track days on them and a year of use. I bet they have one more track season left with how I drive.
aidandj is offline   Reply With Quote
Old 08-09-2015, 03:41 PM   #562
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

aidan, can i has afr table?

ive been looking through your thread and cant find it

I get white smoke with a little bit of revs.... problem?
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 03:49 PM   #563
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

Yes.I'm house shopping right now though.
aidandj is offline   Reply With Quote
Old 08-09-2015, 04:14 PM   #564
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

Quote:
Originally Posted by aidandj View Post
Yes.I'm house shopping right now though.
Cool thanx.

Oil return line leaks at the upper fitting from the threads, which probably means I need to remake the line It is the only leak though, so thats cool.



thinking of you aidan



shitty video where you mostly just hear the HLAs struggling to pump up.

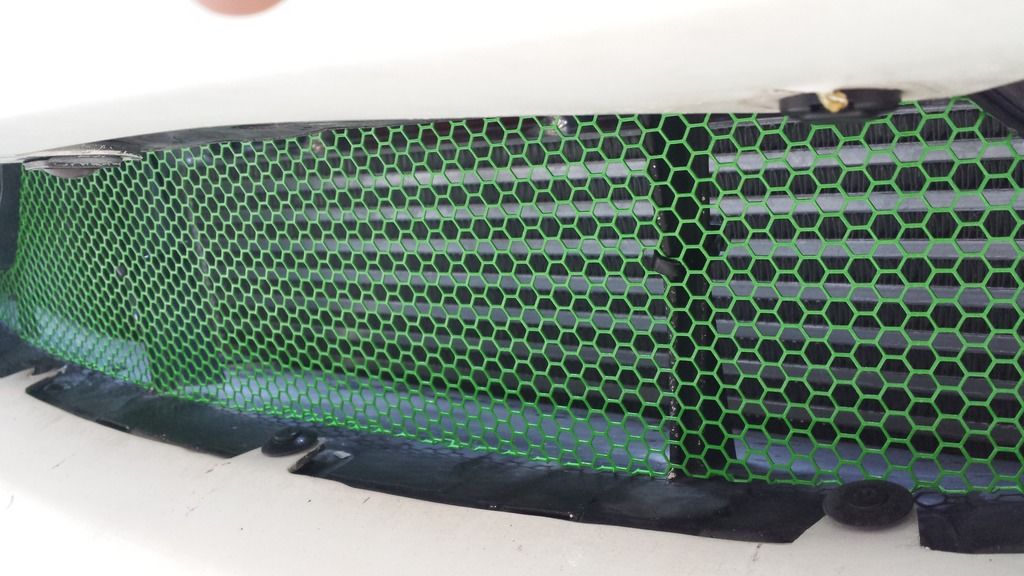

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150809_130237_zpshhcbmw0s_0223e6477eaf1bf95485b49b3b156fdd58f24f4d.jpg
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 05:35 PM   #565
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

Ignition table would be cool too aidan.

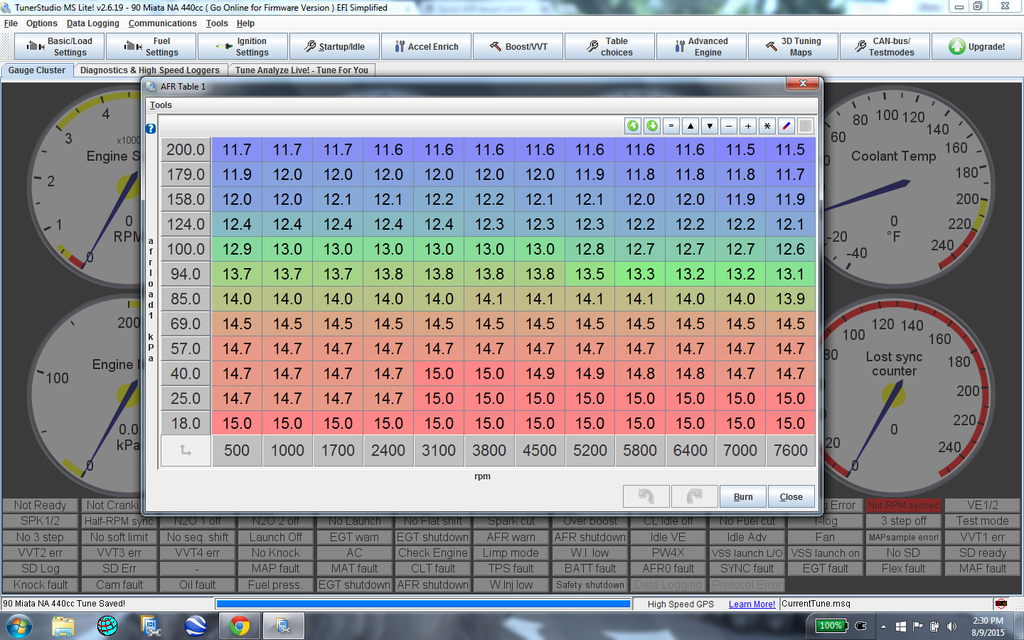

Here is the afr table I just built mostly copied from thirdgen.



I looked closer at the oil drain and i was actually leaking from the flare, I put a wrench on it and was able to get another half turn out of it. my bad. hopefully that takes care of that.

The car does smoke pretty bad though. I was hoping it would clear up, but it hasnt. There is just a little white smoke at idle, and a nice plume comes out when you rev it. Im wondering if its the turbo. I am using a 1.5mm restrictor and I did rebuild it, but... it does seem to coincide with oil pressure.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-afr_20target_20table_zpssre3xzho_b7dbc3fd11bcefe1ae671e3e93ab6e58f721f66e.png
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 08:42 PM   #566
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

<p>Here is my 33mpg AFR table. Everything above 100kpa has been dyno tuned, just fyi, my fuel map doesn't match that above 100kpa. I don't even autotune in boost anymore, just dyno tune. You can run even leaner in cruise. Ben (@diyautotune) has mentioned before that he tunes cruise as lean as it will go without stumbling.</p><p><a href="http://imgur.com/M5ZSNhq" target="_blank"><img alt="" src="http://i.imgur.com/M5ZSNhq.png" /></a></p><p>And spark. Its a combo of some different stuff. It was dyno tuned, but changing spark didn't change power so I don't believe it is much different than whatever basemap I pulled it from.</p><p><a href="http://imgur.com/qz4RdY2" target="_blank"><img alt="" src="http://www.miataturbo.net/attachment.php?attachmentid=146484&amp;dateline=14 39167370" /></a></p><p>Table files are attached. (right click table and import)</p>
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-qz4rdy2.png
Attached Files
File Type: table sparktableforsean.table (3.3 KB, 64 views)
File Type: table afrtableforsean.table (2.4 KB, 75 views)
aidandj is offline   Reply With Quote
Old 08-09-2015, 08:43 PM   #567
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

<p>Ew, my AFR table needs some cleaning up top. I'll update it.</p>
aidandj is offline   Reply With Quote
Old 08-09-2015, 09:22 PM   #568
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,683
Total Cats: 98
Default

<p>Lean cruise takes lots of spark advance though.&nbsp; Like &gt;40&deg;.</p>
Ben is offline   Reply With Quote
Old 08-09-2015, 09:27 PM   #569
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

<p>How lean? I'm seeing 15.5ish in cruise. Are you saying I should add more advance? Or I would need more if I went leaner than that.</p><p>Mind posting your maps Ben?</p>
aidandj is offline   Reply With Quote
Old 08-09-2015, 10:06 PM   #570
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

This is a track only car, no care about cruise AFRs for fuel mileage. Having said that, my NA tune had me cruising around 16:1, and the NA section of your spark map is almost identical to mine. Thanks for the maps aidan.

Is there any way to rule out the turbo oil supply causing my smoking. For example, can I plug the feed, and just keep the blades from spinning just to do a quick rev test to see if the tail pipe clears up a little. Im trying to determine if this is coolant or oil. Eveything points to oil. Hell it might still be burning residual **** I guess.
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 10:16 PM   #571
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

You will care about cruise when you drive that thing up to Oregon to come to some awesome tracks.
<br />What does it smell like? They are pretty different smells.
<br />What seal did you forget during the turbo rebuild
aidandj is offline   Reply With Quote
Old 08-09-2015, 10:39 PM   #572
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

Quote:
Originally Posted by aidandj View Post
<br />What seal did you forget during the turbo rebuild
this

smells like gas. im running straight water right now, so it wouldnt smell like coolant anyway.
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 10:44 PM   #573
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

I seem to recall from past experience that water vapor basically dissipates as soon as it leaves the tail pipe. Burning oil carries.

It carried to my neighbors yards.

Ill get a video tomorrow.
hi_im_sean is online now   Reply With Quote
Old 08-09-2015, 10:52 PM   #574
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,880
Total Cats: 1,092
Default

<p>Doubt you would see steam out of the tailpipe. Just burning coolant. Though white means its like pissing oil. Small amounts of oil are usually blue.</p><p>Any hints of oil in your charge pipes?</p>
aidandj is offline   Reply With Quote
Old 08-09-2015, 10:54 PM   #575
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

Quote:
Originally Posted by aidandj View Post
<p>Doubt you would see steam out of the tailpipe. Just burning coolant. Though white means its like pissing oil. Small amounts of oil are usually blue.</p><p>Any hints of oil in your charge pipes?</p>
I only dropped the coupler coming right off the turbo. It was clean.

Im going to go pull a few more right now. If those are clean, maybe ill pull the midpipe tomorrow.

edit-Or hell, maybe even just the o2
hi_im_sean is online now   Reply With Quote
Old 08-10-2015, 03:09 PM   #576
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

So I plugged the oil feed, locked the turbine in place with a piece of wood and a vice grip and ran it for a minute. The smoking might have improved marginally. There is nothing in the charge pipes, or in the intake itself, all clean as new.

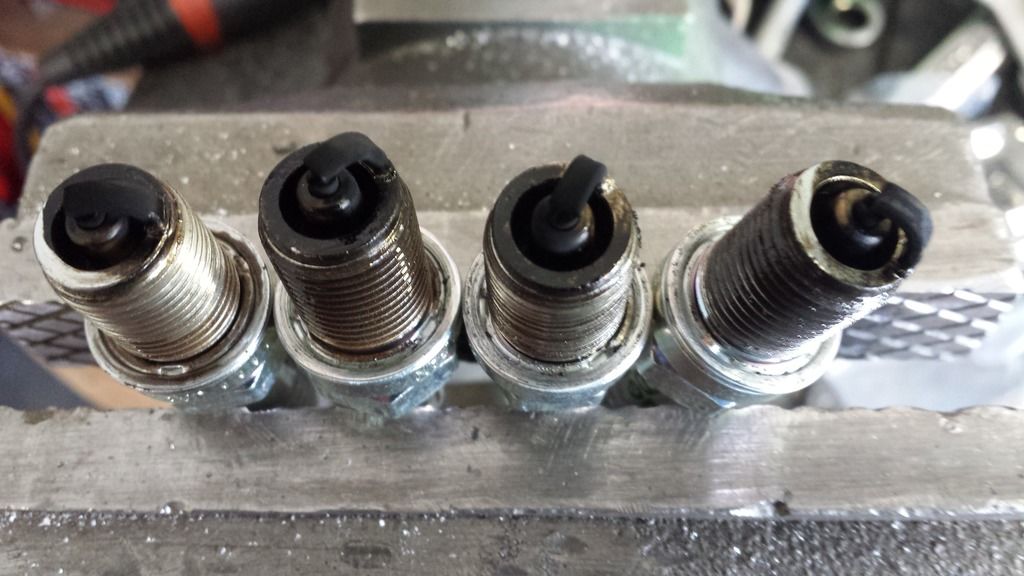

so I pulled the plugs, theyre covered in oil. Keep in mind this is about 20 minutes run time total on these plugs. 1-4 from left to right, you can see where I just wiped the oil off of 1 and 4. So I think this rules the turbo out, at least as the only cause as it might be contributing.




So my intake valves are leaking is my best guess. They are new. Guess I should go pull the VC? Or should I just go flog it and see what happens?
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150810_115704_zpsgjwxkuxa_fe349ad9ba3b489b902327b2d9f7970f897fa70c.jpg
hi_im_sean is online now   Reply With Quote
Old 08-10-2015, 04:09 PM   #577
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

I looked down the spark plug holes, all 4 pistons has a small puddle on it

Stem seals are the only thing that can cause this to my knowledge. Its like theyre not even there. Im confused how new stem seals can all fail so bad like this? Can you really **** up seal install that bad? I handed the seals that came in the felpro kit to my machinists, so its possible a mistake was made. Interestingly the part number on the head gasket kit for the stem seals isnt the same part number that comes up if you buy the seal separately from felpro. Felrpo doesnt even recognize the kit part number.

Any insight before I order seals and a valve spring/keeper tool? Is there a stupid plug or something I forgot to install? I would really like an easy button. This has me upset so im going to go play world of tanks for a few hours.
hi_im_sean is online now   Reply With Quote
Old 08-10-2015, 06:20 PM   #578
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

I installed my felpro stem seals myself and wasn't exactly easy on them. They come with a stem straw to guide them over the valve, but I just used a pair of needle nose pliers...

Anyway, I wasn't gentle but I did pre-lube them a bit and made damn sure they were seated with a socket. I don't think I burn oil...

I've got a c-clamp hacked socket mess you are welcome to borrow, if you've got a tilting head on that mill of yours I'd use the quill because that sounds slick!

Although I guess you'd probably like to do it without removing the head...
deezums is offline   Reply With Quote
Old 08-10-2015, 06:25 PM   #579
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,553
Total Cats: 446
Default

Quote:
Originally Posted by deezums View Post

Although I guess you'd probably like to do it without removing the head...
Correct. I can get the tool, and new seals for less than just a head gasket costs, and with less work and time. Thanks for the offer though.

Ive installed many stem seals in my life, theyre usually pretty straight forward. Thats why im so surprised that its leaking, let alone like the titanic.
hi_im_sean is online now   Reply With Quote
Old 08-10-2015, 07:06 PM   #580
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

I wonder if maybe they were installed dry and tore or rolled up or something, like you said I don't see a lot of room to mess up the install.

The only other thing I can think of is they didn't get pressed down onto the valve guide thing far enough and the spring bucket trashed the top of em, ripped the oil seal spring out? I hope not, those would be a bitch to find.
deezums is offline   Reply With Quote
