Default A Tale of Two Miatas: Hraday93's MSM Build

I always wanted a fast car. But for the longest time, I was reliant on the beautiful Daddy's Dollar.

The inevitable happened sometime back in 2014 as my Saturn died on me, and I was left with one option: ride a bike to work. I had recently taken on a job in the wireless industry and was taking home some moolah that was actually worth spending. After perusing Craigslist for some time, I found a peachy 1990 Miata with a 1.6 on Christmas Day. Within 2 hours of finding it, I picked it up for $2500 and was surprisingly happy with my choice. It had awfully mismatched tires, Toyota MR2 wheels, barely functional brakes, a laughably ricer exhaust setup and no stereo. But I was in love with this piece of junk. I knew it was entirely too much money to spend on one in this condition but I never regretted buying it. Six months go by, and I manage to spend a few dollars to spruce her up. I bought a Moroso overflow tank, replaced the shift boot (both the rubber and the leather decorative boot) Mishimoto radiator, the dual fan shroud, Mishimoto 140 degree thermostat, the FM Happy Meal clutch kit and I figured out how to wire up my Saturn's stereo into the car since I hadn't had any tunes for a while. I had a lot of fun in the car. I learned how to rev match, drift, hit apexes, and funnily enough... keep up with that 600hp Mazdaspeed 6 (usually with the tail end of the Miata swinging wildly like a 18 wheeler caught in a crosswind).

















After a huge rain storm, my ECU nearly fried itself and I was able to take it apart and clean off the corrosion and save it w/ Silica gel (after being left at this intersection)




About a month after the rain incident, June 2015, bad luck struck me again. Some military brat drove into oncoming traffic while he was texting and driving. As some of you have already seen in my Meet & Greet, this was the end of my little hunk of junk after she had lived a long 25 year adventure with god knows what in her past.




A guy near Ft. Hood posted an ad for a 2004 Mazdaspeed Miata that I absolutely fell in love with. We agreed on a fair price, and I took her home with a gigantic grin on my face. Everything about the car was perfect. The Konig wheels were beautiful, he installed a FM exhaust (stock downpipe), Kenwood Stereo, DDM HIDs, Kobalt rear strut, Koyorad radiator/fan shroud, and deleted quite a bit of unnecessary vacuum related things and the EGR. It had an aftermarket intake (unknown brand)




I beat on the car quite a bit, and drove it between San Antonio and DFW regularly. Eventually it developed an exhaust leak because of the cheap eBay turbo manifold.




A bunch of stock parts came with the car and one of them happened to be the stock manifold (among other things like the FM cam gear tool, a tournneau cover for the ragtop, etc.). I drove the car with an exhaust leak for a while, because I was eventually going to replace the head gasket with a 99-00 headgasket per the advice of Trackdog Racing to "properly accommodate" the M-Tuned Coolant Reroute, which meant I could just have my buddy weld up the eBay manifold while the motor was taken apart. Awful idea, exhaust leak continued because the manifold eventually warped. I diverted to the stock manifold, so we got that installed and I noticed it made more boost.




I couldn't believe that all this time, the car was actually making little wastegate and BOV noises. This encouraged me to beat on the car endlessly, and seeing what the car could handle because I had caught the turbo bug and was soon addicted.








Whether by my own negligence, or just happenstance, the oil return line from the turbo cracked, and I spewed out about half of the engine's oil on a entrance ramp pull.




This bit of hooning damaged a rod bearing (unbeknownst to me at the time, but it was definitely a guess of mine that I had damaged something internal). I had the cracked line replaced, and completely went against my better judgement by not having my machinist friend tear my block down to inspect the motor for any severe damage after the mechanic replaced the line for me. I drove the car for about 1000 miles with this rattling sound that I had convinced myself was a loose heatshield somewhere. Come mid November, I'm doing about 70-80mph down I-35 when I noticed a subtle bucking from the car, single pulse every 2 or 3 minutes. I look down at my gauges and the car is absolutely beyond all saving at this point so I pull to the side of the freeway and throw my hands up in the air.




The flat bed comes to pick her up, while my friends and I discuss the possibility of just selling the car and cutting my losses. On the ride home, my buddies talk me off the ledge and convince me to just build the motor.




So here we are. My machinist started working on a spare block that I had before the MSM motor came out of the car

My machinist had my spare 1.8 block that I had bought in the hopes of doing a cute little turbo build for my 1990. I picked up the long block about 2 weeks after I bought the first car, and had all but forgotten about it. I disassembled the entire motor myself and left it abandoned for 30+ weeks without any plans to move forward. So yes, I was "that guy" who does a half assed build and never follows through.














But now, without a running car, I figured I would bring out my inner psycho and go as crazy with my car as my pockets would allow. Thus far we've tried to come a long way with our own knowledge, and admittedly up until my Meet & Greet, I hadn't bothered to read up anything about the trial and error of other people hoping to get more than 100 hp out of their cars.

I went into the situation knowing this much: My turbo had to go, I needed Megasquirt, and my transmission was a ticking time bomb. Also, I knew that I had made a questionable decision changing the head gasket to a 99-00 part

With all of that being said, I think I went after a solid bit of goodies for the build in my hopes of achieving a 500whp 1.8.

So far

9.5:1 Supertech pistons (these are stock compression pistons, I know a lot of you guys question this setup for turbo Miatas, but that's what these MSMs came with)
Supertech Valves, Valve springs (heavy doubles)
Eagle rods
1.8 BP block from an unknown year Miata,
MSM non-VVT head and reverted back to stock MSM headgasket
Billet gear water pump
Billet gear oil pump
GTX3076R, Tial hotside
Tial wastegate
RX7 Turbo II 5-speed transmission
Megasquirt PNP-Pro








Yet to buy, but WILL (because nobody likes a dude with a wishlist):

ATI Superdamper
Ford 8.8 rear end whenever I find a wrecked Cobra or Thunderbird.
Custom exhaust manifold
Aftermarket Fueling system (injectors, flex fuel sensor, etc.)

All in all, I'm hoping to have a really badass Miata. I'm beyond excited and I'm not really out to prove anything. Personally I feel like I don't know anything worth mentioning about building motors. I just have a fetish for speed and wanted to tell my story along the way. With the help of some awesome friends who share my passion for cars.

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-10676329_797342583719341_612071701119512340_n.jpg   A Tale of Two Miatas: Hraday93's MSM Build-11252645_809588775828055_3576527360626869442_n.jpg   A Tale of Two Miatas: Hraday93's MSM Build-11665592_810885945698338_5739451248540010728_n.jpg   A Tale of Two Miatas: Hraday93's MSM Build-11781599_821294084657524_2108219605183925747_n.jpg   A Tale of Two Miatas: Hraday93's MSM Build-11866398_830854300368169_46594381189603486_n.jpg

A Tale of Two Miatas: Hraday93's MSM Build-20150929_144130.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150929_202600.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150922_194139.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150923_214617.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151105_165419.jpg

A Tale of Two Miatas: Hraday93's MSM Build-20151001_120425.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151014_151208.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151111_233444.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151112_003717.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151124_170157.jpg

A Tale of Two Miatas: Hraday93's MSM Build-20151225_131317.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20151225_131745.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160106_161050.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-20160106_161139.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-20160106_161159.jpeg

A Tale of Two Miatas: Hraday93's MSM Build-20160204_171104.jpg   A Tale of Two Miatas: Hraday93's MSM Build-img_20151208_214911.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160126_175229.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160118_142630.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160209_184037.jpg

A Tale of Two Miatas: Hraday93's MSM Build-20160204_153443-2.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160201_220032.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20160209_184102.jpg   A Tale of Two Miatas: Hraday93's MSM Build-smartselectimage_2016-01-11-00-26-38.png   A Tale of Two Miatas: Hraday93's MSM Build-smartselectimage_2016-01-11-00-26-51.png

A Tale of Two Miatas: Hraday93's MSM Build-smartselectimage_2016-01-11-00-28-09.png   A Tale of Two Miatas: Hraday93's MSM Build-fb_img_1452100931048.jpg   A Tale of Two Miatas: Hraday93's MSM Build-fb_img_1452100921100.jpg   A Tale of Two Miatas: Hraday93's MSM Build-download_20141230_230956.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-img_141853201724829.jpeg

A Tale of Two Miatas: Hraday93's MSM Build-img_20141226_151509.jpg   A Tale of Two Miatas: Hraday93's MSM Build-img_20150217_085211.jpg   A Tale of Two Miatas: Hraday93's MSM Build-download_20150126_114605.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-11124537_781537918633141_407159061052786920_n.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150206_150224.jpg

A Tale of Two Miatas: Hraday93's MSM Build-20150211_022519.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150325_152623.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150325_235002.jpg   A Tale of Two Miatas: Hraday93's MSM Build-20150325_235029.jpg   A Tale of Two Miatas: Hraday93's MSM Build-download_20150220_091340.jpeg

A Tale of Two Miatas: Hraday93's MSM Build-download_20150404_234456.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-20151218_115414.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-img_20151001_121826.jpg   A Tale of Two Miatas: Hraday93's MSM Build-img_20150916_174419.jpg   A Tale of Two Miatas: Hraday93's MSM Build-a__a990.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-download_20141230_230956_b8e0e671fdd12e451c0bdd9068c0e3d3737efef2.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-11124537_781537918633141_407159061052786920_n_dd0cf30ddc6ce916704eb89208c929247f457933.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-10676329_797342583719341_612071701119512340_n_4689959e53dda182f3b7364a94b6059282998947.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-11252645_809588775828055_3576527360626869442_n_ee8028c27fa499177d152db6a5c933357447e370.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-11866398_830854300368169_46594381189603486_n_bccb08e3bc26a7b72f7e6b353b4cfe32b303ad5c.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20150929_144130_b9b46752da658e55aa63f92fd330997f8cff1365.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20150916_174419_7dc2536b6044472a9cdf7d55c750d7f411e177a4.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-fb_img_1452100921100_2592f4a24580f75adb588eda18a7a45ebda278c5.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20151111_233444_165d75f6adf8ab524f47e95b6af81601862beba0.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20151112_003717_e3f52c57d289eb470274f9213a32ad73bf644e20.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20151124_114615_5e61ecee1d813622475e4ec60ed10b5085ec518d.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-smartselectimage_2016_01_11_00_26_38_edcb0ba15e258ae1ba050c13a139383ba4a4f912.png   A Tale of Two Miatas: Hraday93's MSM Build-80-20151218_115414_b215c29a265b6a31d067b5e28d831e60b33533ec.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-download_20141230_230956_f57db947dbb23f61a53c26402cb3dc757416e943.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_141853201724829_a8d271a9fda92bfcee4c5fd5179bb8a1717ee309.jpeg

A Tale of Two Miatas: Hraday93's MSM Build-80-smartselectimage_2016_01_11_00_28_09_9b5989e853d769b22cf02eb8364e8529f93a464e.png   A Tale of Two Miatas: Hraday93's MSM Build-80-20150206_150224_fd444e0691be6787316c734300d11ec5dfe7b7bb.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150211_022519_4f020d76371525ead76bc9cee69ec6dbe87237ca.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150325_152623_471908154d3586889391390e76ed5a6276d9df85.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150325_235002_0383293bedf3983ced1e46f7a07181a52bf6ea54.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20150325_235029_2e32842eed822a7a8626b3cec97a16302f74063e.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-download_20150126_114605_3cab0defb1d4cd3a4c3b8abc46e989d9abbeacb7.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-download_20150220_091340_0d332d8d3e06f65a1fc5ae1cfc307e053fcac26c.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-download_20150404_234456_8cb8a1cba21e30d49b9f1fcd66a924512b54e14a.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20141226_151509_bad49b524e76ab6414d5dfdbb9913b6e379813e7.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-img_20150217_085211_9354862a7b960399b73f4e5ad45138bedefe4021.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-80_screenshot_normalappimage_2_c6c0522d1416dee4d9264acaae1faa05b39a2b84_05809f122d30a5090c878.png   A Tale of Two Miatas: Hraday93's MSM Build-80-11665592_810885945698338_5739451248540010728_n_96dde5f824dc0717c99d5a43b73aa7640faf2505.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-11781599_821294084657524_2108219605183925747_n_ff9bc48c5e4bece767668b7b38bacdc44a234322.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150929_202600_c49b249accaab113b796771a72982ee413ed5829.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-img_20150916_174419_018b2c7ba21238c9da01facab5eeb104d82c7ed8.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20151001_121826_4cd9464c0003bb4da52192dc66a121268a25b73c.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150922_194139_ea979961873ae0023af1eab80af731e13002ef75.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20150923_214617_e7fff170d452f31edb143f5389bcf6866bfcb75b.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20151001_120425_643cd38b23911e49cffc7afcf401cd98ce70b80a.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20151105_165419_a9add717aa9aa12a6d66eb2639de1ae3644781c6.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20151014_151208_b866cafa393b556f1f1da4243b7f715ffeb83527.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-smartselectimage_2016_01_11_00_26_38_911f5e96c09cc9f7512097f2f3134b619e2bffe1.png   A Tale of Two Miatas: Hraday93's MSM Build-80-smartselectimage_2016_01_11_00_26_51_c731d53220cb42ef9b90536dfe63ea988f52aa3e.png   A Tale of Two Miatas: Hraday93's MSM Build-80-20160204_171104_95b26b8033989095dccbba4af0bb5da98e739bd6.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20151124_170157_529e81c30feb9f5ab12cc35c84ef627fd26a8e53.jpg

Last edited by hraday93; 02-10-2016 at 06:11 AM. Reason: I'm seriously failing at properly inserting photos into this thread.......
hraday93 is offline   Reply With Quote
Old 02-10-2016, 05:13 AM   #2
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

.

Last edited by hraday93; 02-10-2016 at 06:13 AM. Reason: bc derpz
hraday93 is offline   Reply With Quote
Old 02-10-2016, 04:22 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default



Matt at Kotzur Racing Engines sent me this earlier. Looks as if the short block will be done today and the head will soon be placed back on the block sometime later this week.

I'm really excited to see the port work when it's done.
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160210_132512_12ae1ef5ed454db9aea476199d424d61e76610e6.jpeg
hraday93 is offline   Reply With Quote
Old 02-10-2016, 05:11 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

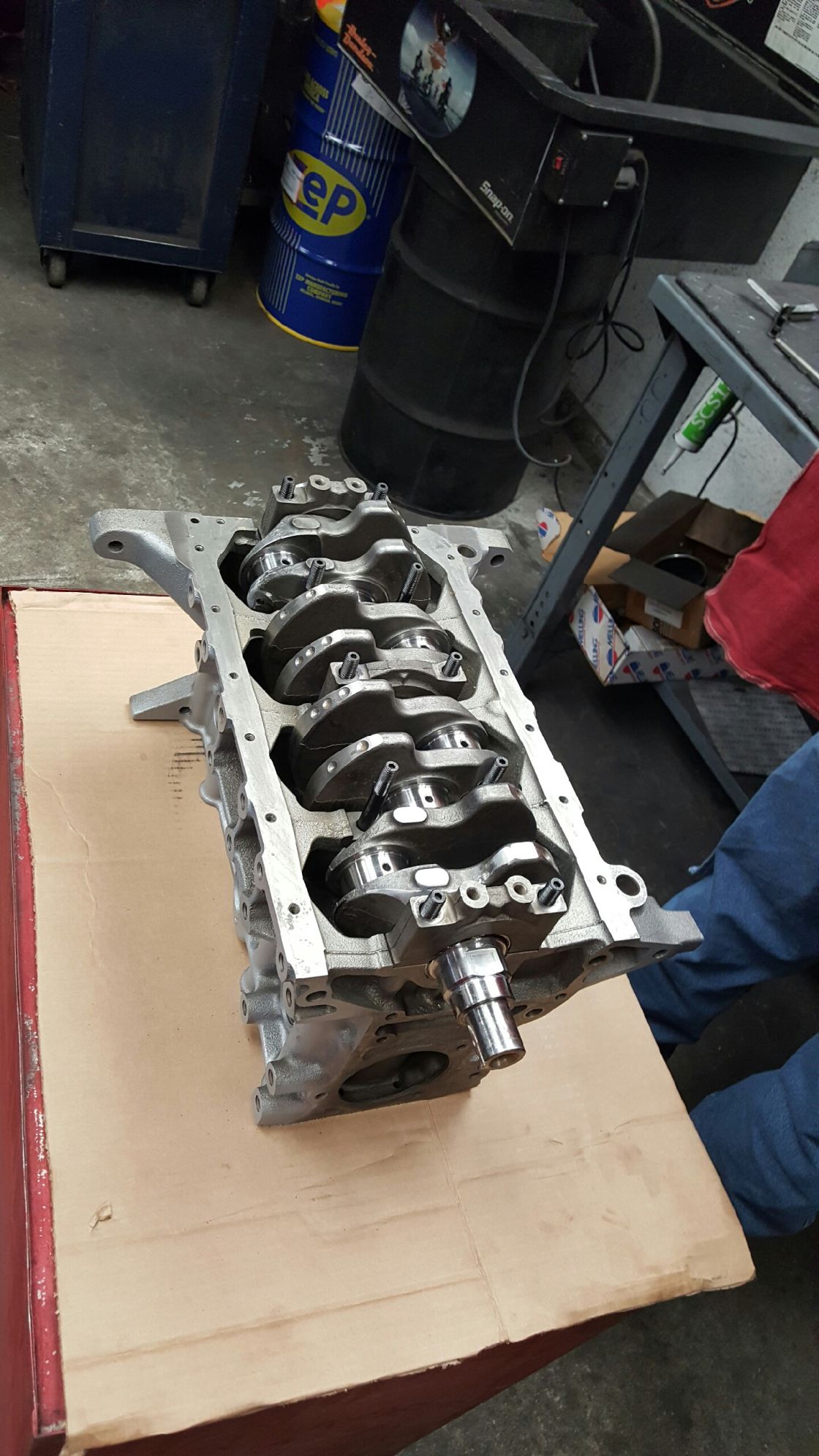

Kotzur Racing Engines sent me this to tell me my short block was nearly done. About 20 minutes later, Matt calls me and says that his dad noticed something up with the crankshaft.
Apparently both of the cranks I had bought from a guy in DFW had spun a rod bearing, and had been welded on then reground to hide the damage. Needless to say I'm pretty pissed off because the guy runs a shop, and should hold himself to higher integrity.

I'm holding off on mentioning names until I'm positive that wrongdoing is at play. But rest assured if that's the case, I will give all the details possible regarding the person involved and the shop they currently work at
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160210_143509_17c323704446d21e861f51a8aa1ae5468f17fc88.jpeg
hraday93 is offline   Reply With Quote
Old 02-17-2016, 05:57 PM   #5
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

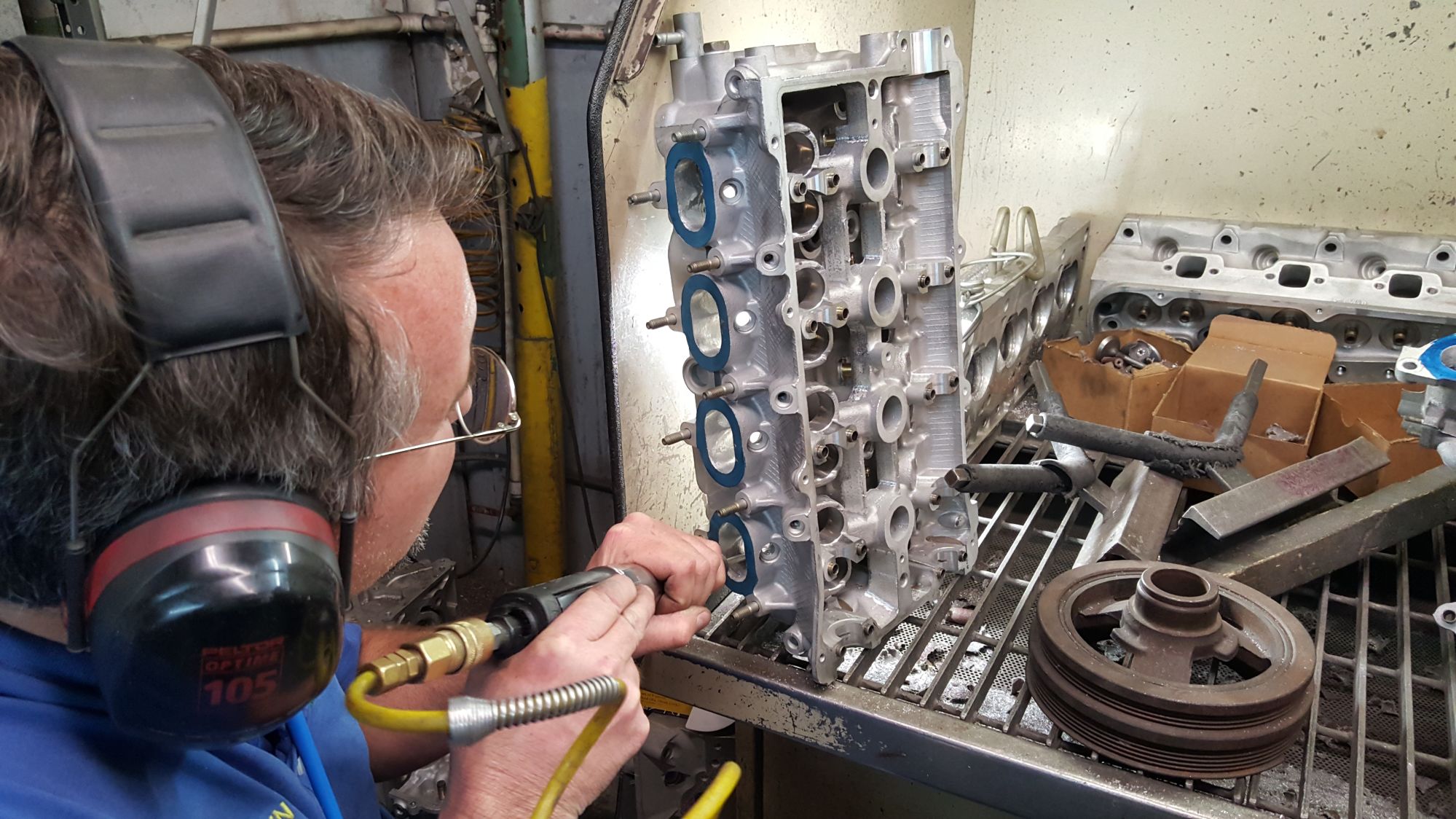

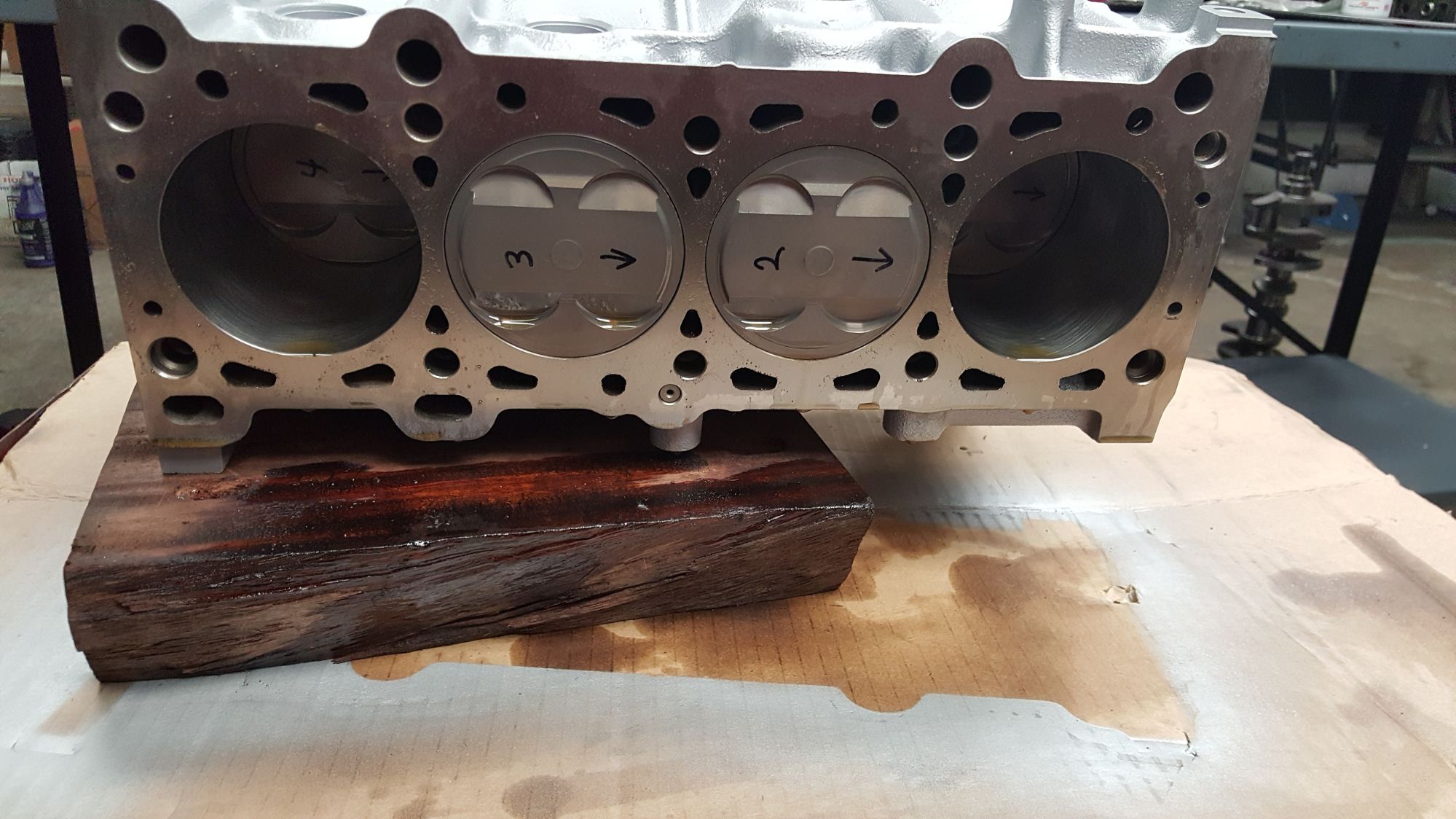

I finally got the shortblock situation sorted out, my machinist also started on the head porting and valve train. I had to eat it bad on a crankshaft local to me, as BOTH of the crankshafts I bought were unacceptable as core trades. I'm still in the middle of a resolution with the seller of the cranks I mentioned in previous posts so he will remain unnamed until I can honestly know if shady business practices were the cause rather than miscommunication.

We also deleted the intake flaps for the VCTS and are hoping the change doesn't hurt low end torque to the point I end up going to find another MSM intake.

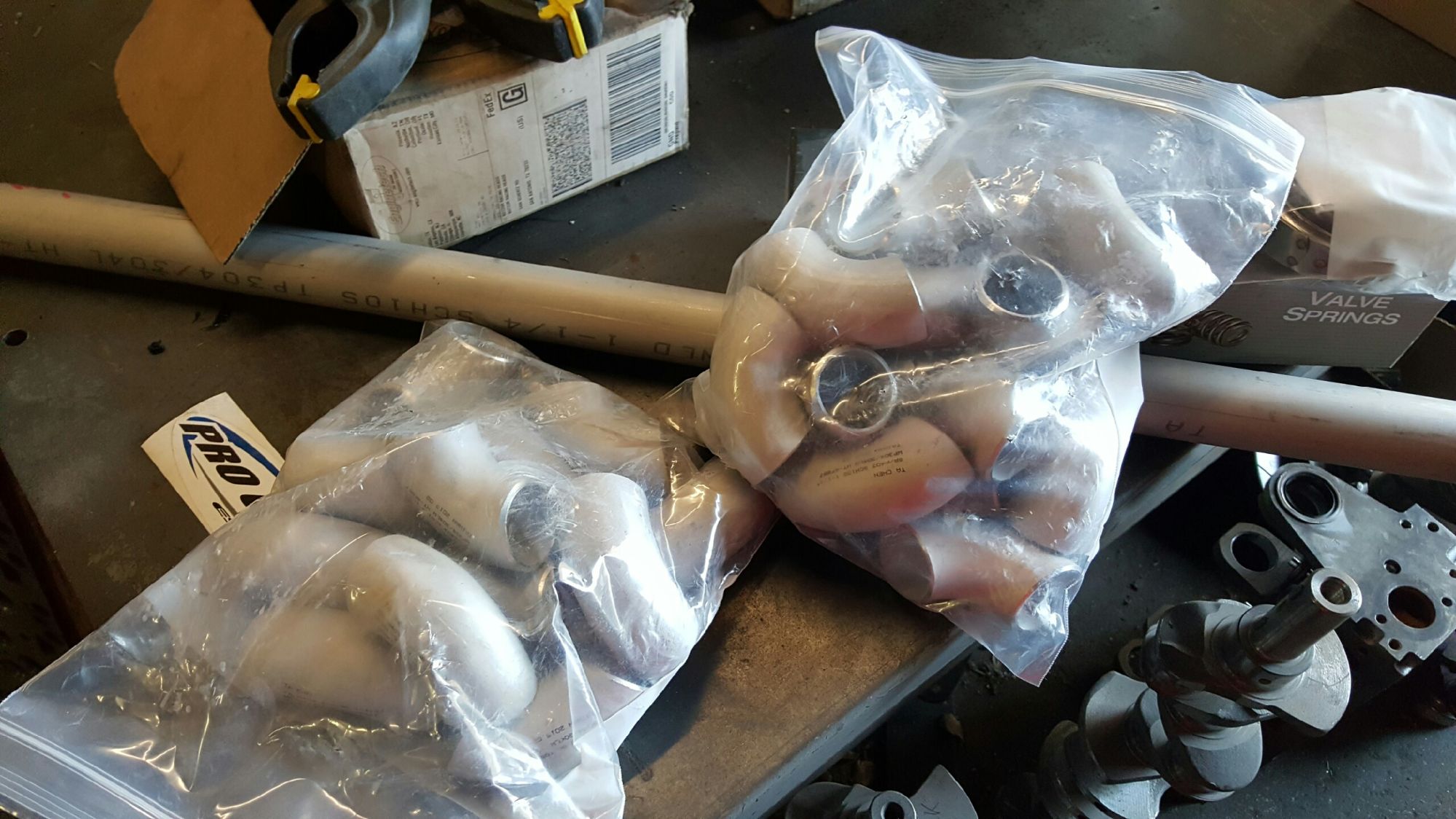

Then my piping for the exhaust manifold came in this morning...I'm extremely excited to see how this turns out

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160213_160153_95b99004b679641dee988a36f1dbba485dd09dc6.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_002449_21f03a3a5bf6b06b8c51170293c874fed3fd4816.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_002427_4bfe2afed9c809bca8f601c834582c54a6838c0c.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_113400_9b2de3bf9a384e404bb33e6b55b6cf8e835d3f32.jpeg
hraday93 is offline   Reply With Quote
Old 02-17-2016, 05:57 PM   #6
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default










I finally got the shortblock situation sorted out, my machinist also started on the head porting and valve train. I had to eat it bad on a crankshaft local to me, as BOTH of the crankshafts I bought were unacceptable as core trades. I'm still in the middle of a resolution with the seller of the cranks I mentioned in previous posts so he will remain unnamed until I can honestly know if shady business practices were the cause rather than miscommunication.

We also deleted the intake flaps for the VCTS and are hoping the change doesn't hurt low end torque to the point I end up going to find another MSM intake.

Then my piping for the exhaust manifold came in this morning...I'm extremely excited to see how this turns out

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160213_160153_95b99004b679641dee988a36f1dbba485dd09dc6.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_002449_21f03a3a5bf6b06b8c51170293c874fed3fd4816.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_002427_4bfe2afed9c809bca8f601c834582c54a6838c0c.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160217_113400_9b2de3bf9a384e404bb33e6b55b6cf8e835d3f32.jpeg
hraday93 is offline   Reply With Quote
Old 02-18-2016, 02:01 PM   #7
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

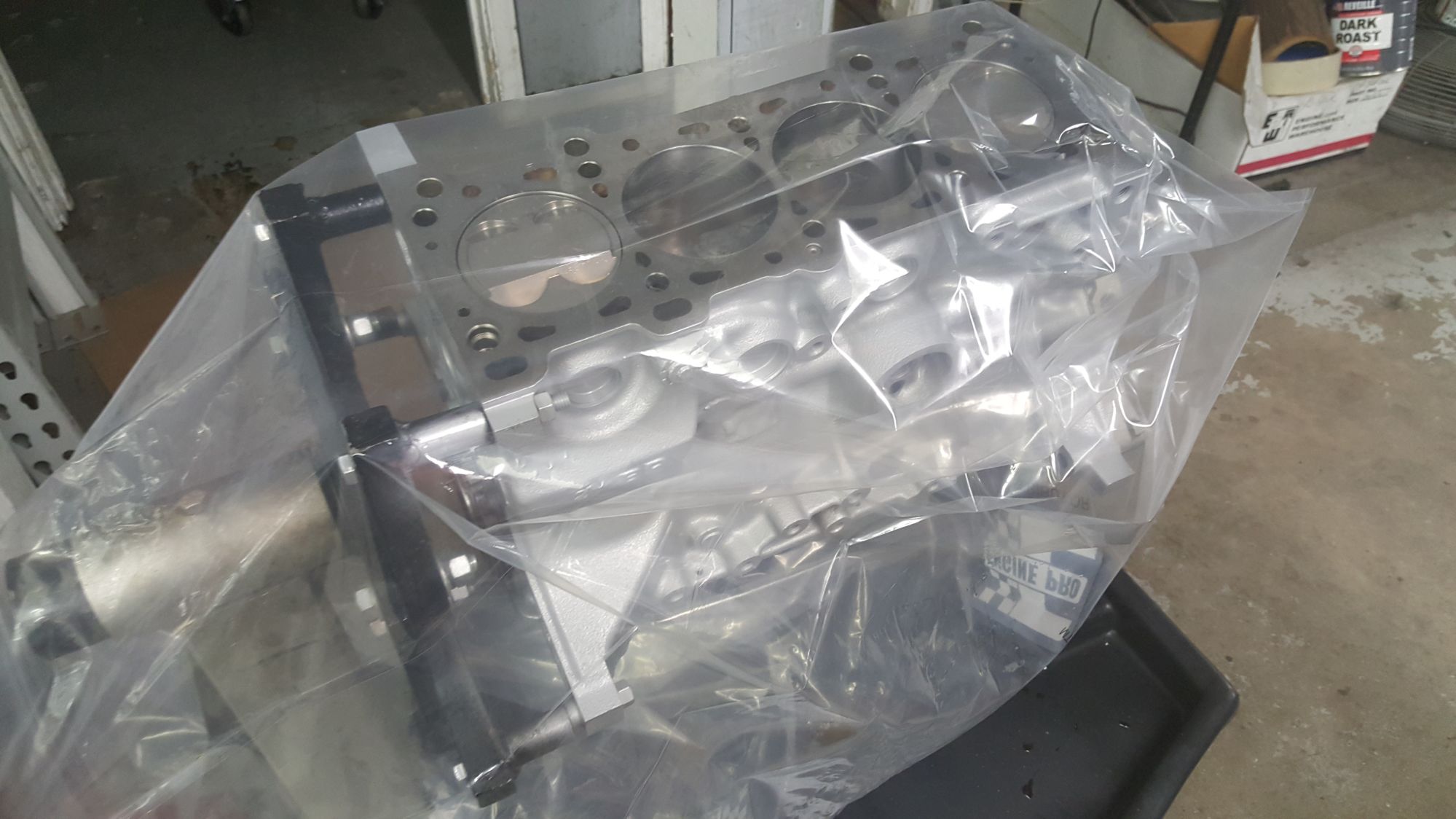

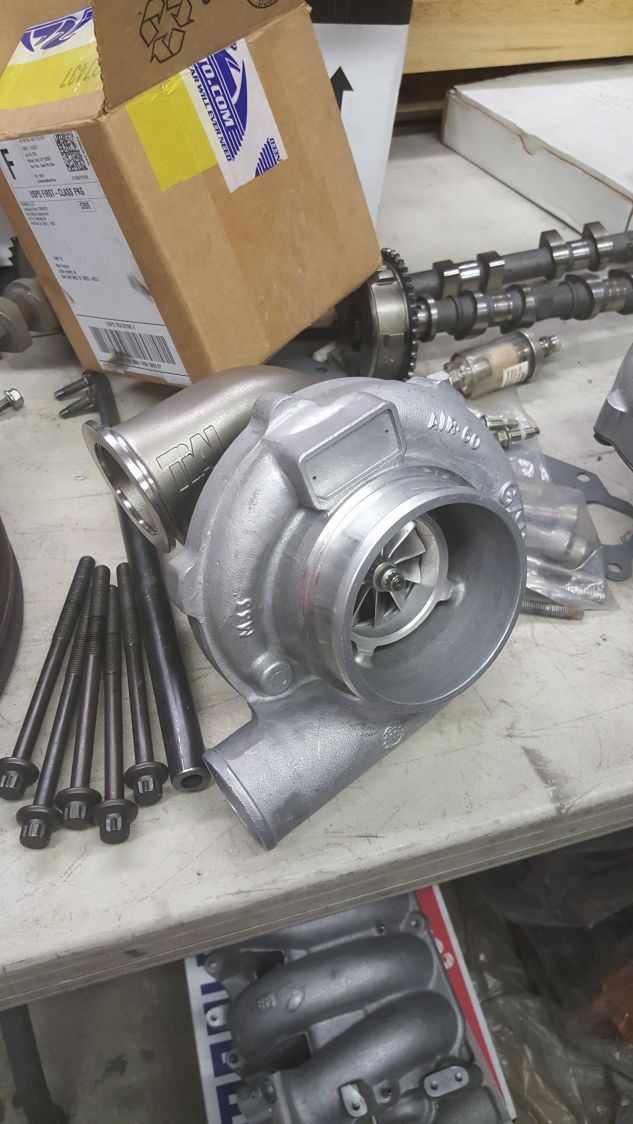

Stopped by the shop, they've got the shortblock bagged up ready for the head to go on later this week after Matt finishes the with the valvetrain. Also, we finally managed to get the hotside of the Mazdaspeed 6 off my turbo so my TiAL housing could be put on.




Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-1455818388113_1546016267_9d009dc4381b7acdcf50176cccd77e7ed853cf29.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160218_115652_92004fd9ff64772fedea1b83c0c57897e45c82fa.jpg
hraday93 is offline   Reply With Quote
Old 02-18-2016, 02:07 PM   #8
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,559
Total Cats: 222
Default

Why such a large trubo if you don't mind me asking

Have any target psi you wanna hit?
Girz0r is offline   Reply With Quote
Old 02-18-2016, 02:14 PM   #9
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Because it's what we had available and I got a sweet deal on it from the guy building my motor. Couldn't turn it down. As for boost targets I'm not sure. I'm learning as I go.
hraday93 is offline   Reply With Quote
Old 02-18-2016, 02:20 PM   #10
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,559
Total Cats: 222
Default

We have similar setups

I have a gt2860 now but I 'wish' I had a 2560 or GTX2860. I <3 spool

My guesstimate on psi once I get things going is going to be 12-14psi with my 9.5CR pistons, maybe higher if I do E85. But that's a ways away from now.
Girz0r is offline   Reply With Quote
Old 02-18-2016, 02:37 PM   #11
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

I read up on yours back when I had my Meet and Greet thread going up, badass little car!

Figured I had the world at my fingertips with this build so I went all out. Plus I'm a bit psychotic behind the wheel so the thought of 500hp made me more tingly than nervous.
hraday93 is offline   Reply With Quote
Old 02-24-2016, 03:26 PM   #12
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

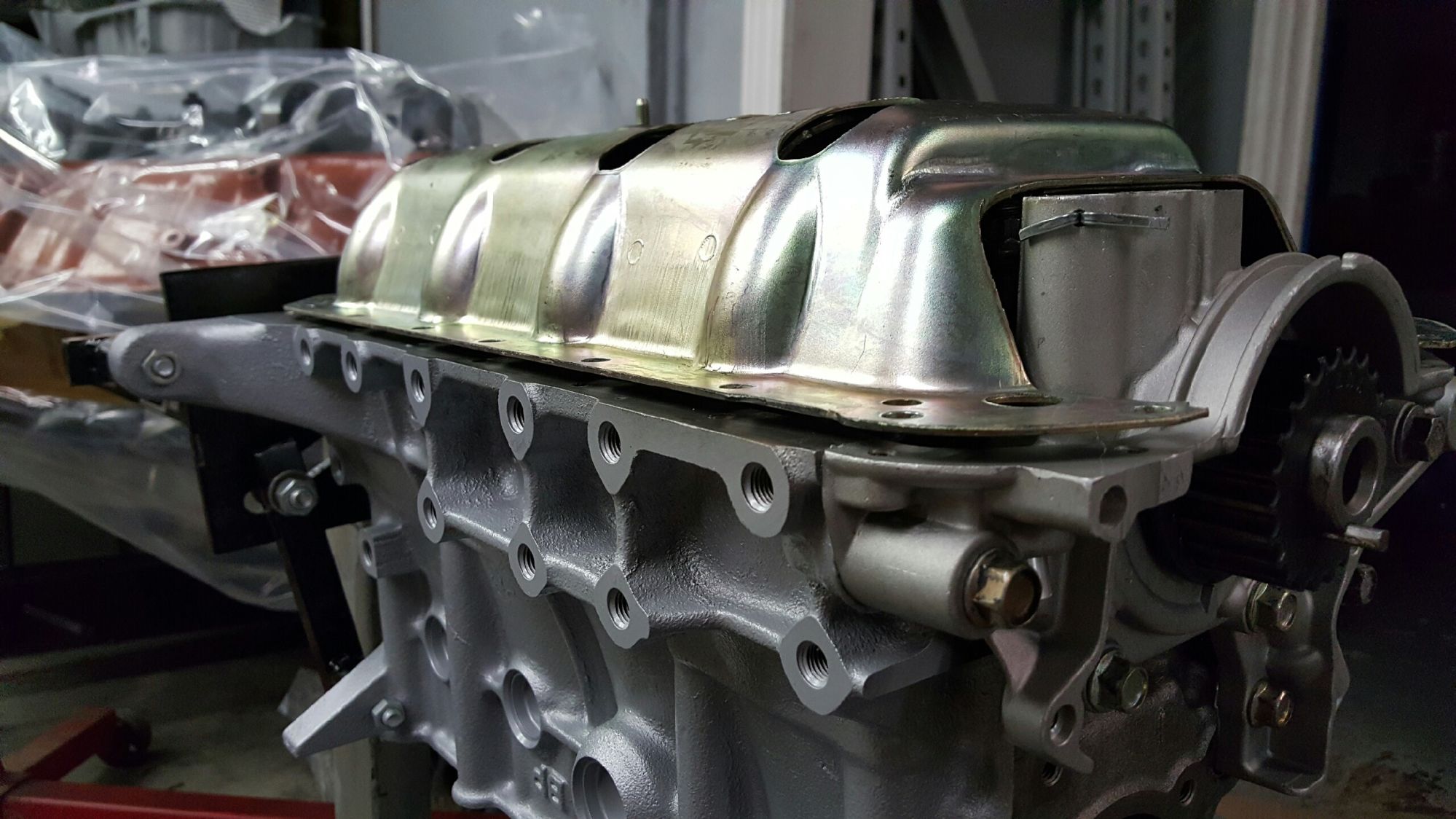

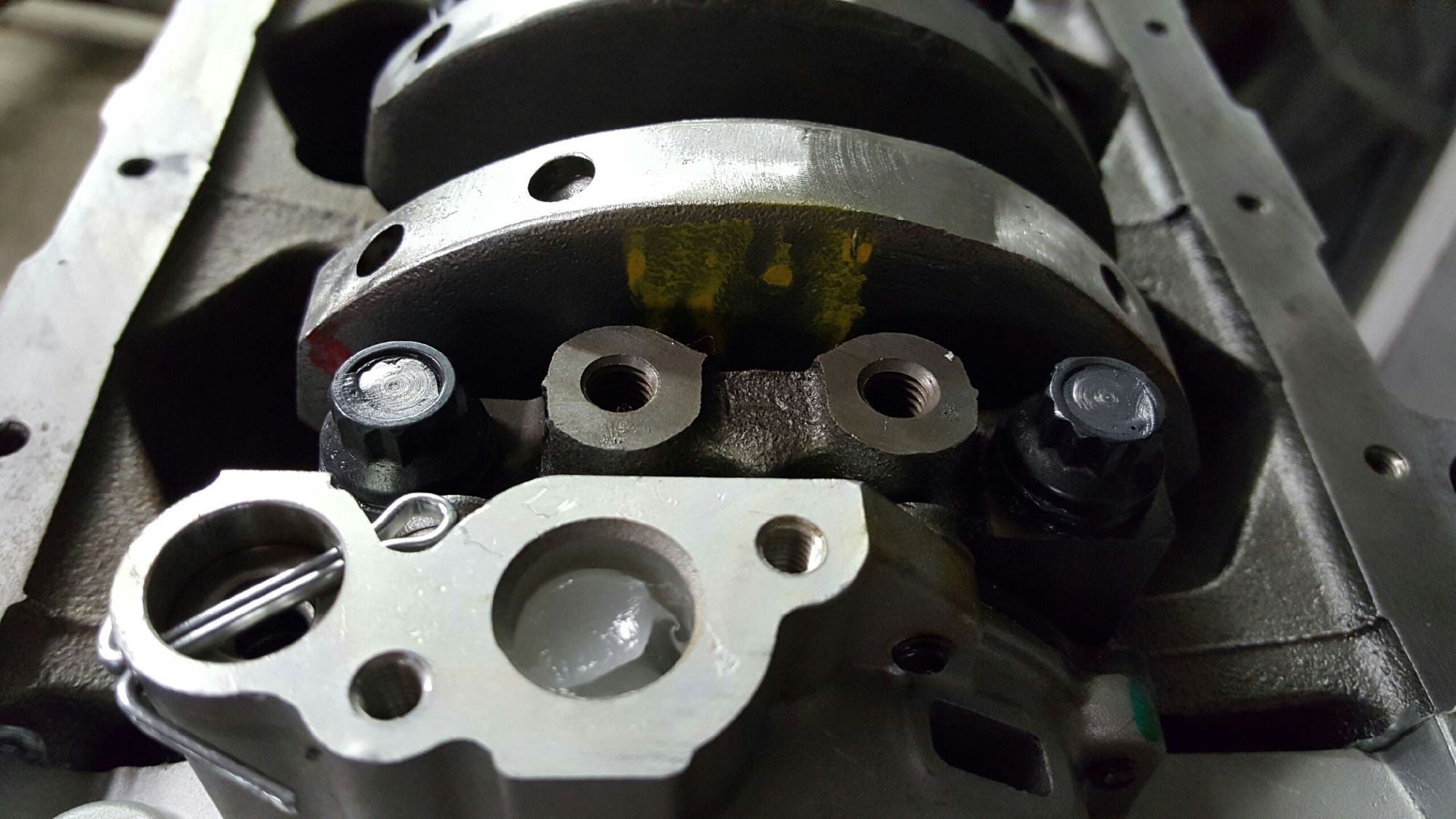

Machinist sent me this photo when I asked for build progress...

Quote from Matt at Kotzur Racing:

"Another day getting fucked by a motor, God damn main studs hit the windage tray. ******* Miatas"

This guy makes me laugh to no end, I swear.
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160222_144205_9ce06766963ba265fcd9fcc1ba98ec23e4c17c99.jpeg
hraday93 is offline   Reply With Quote
Old 03-01-2016, 06:13 AM   #13
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

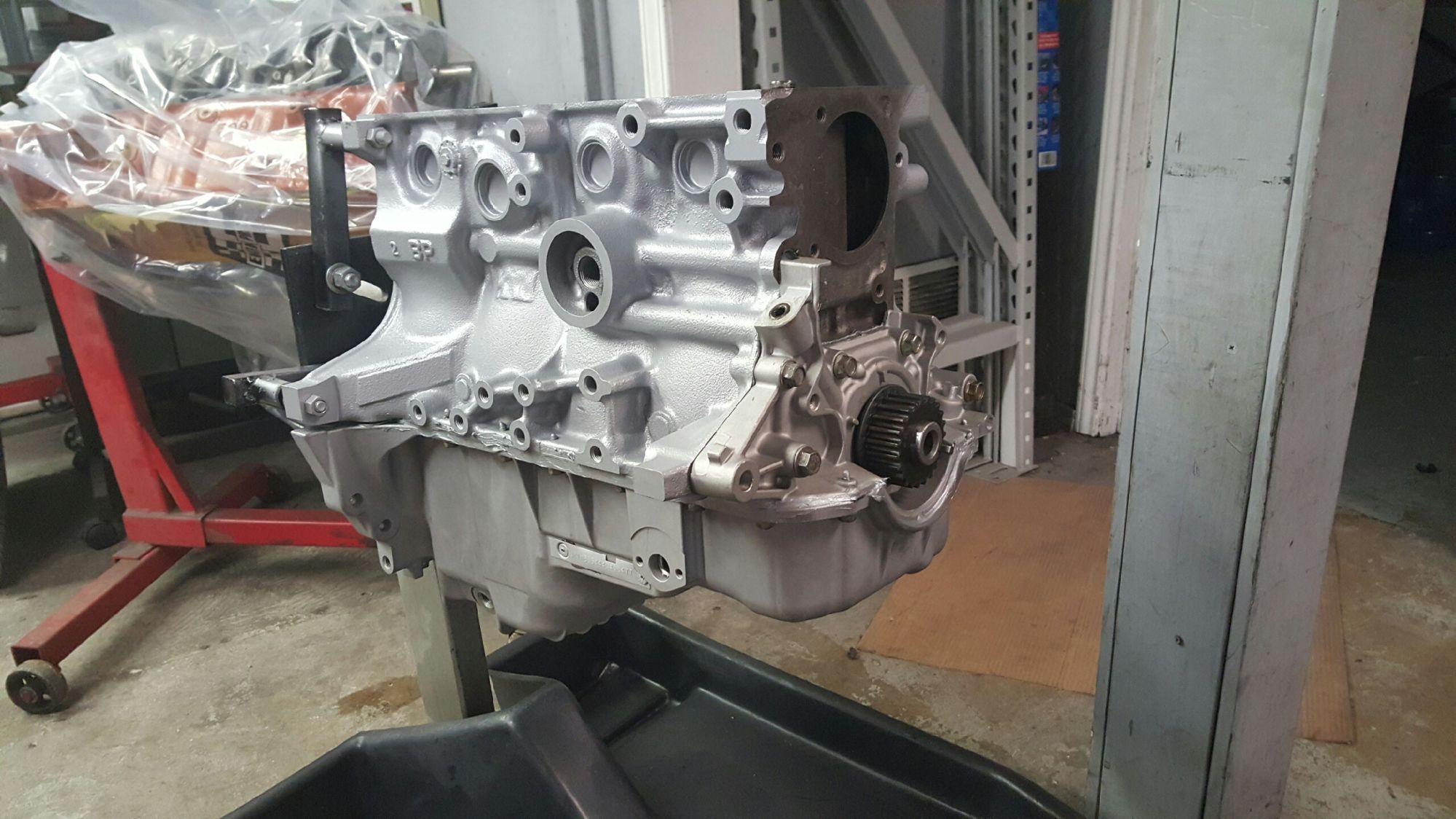

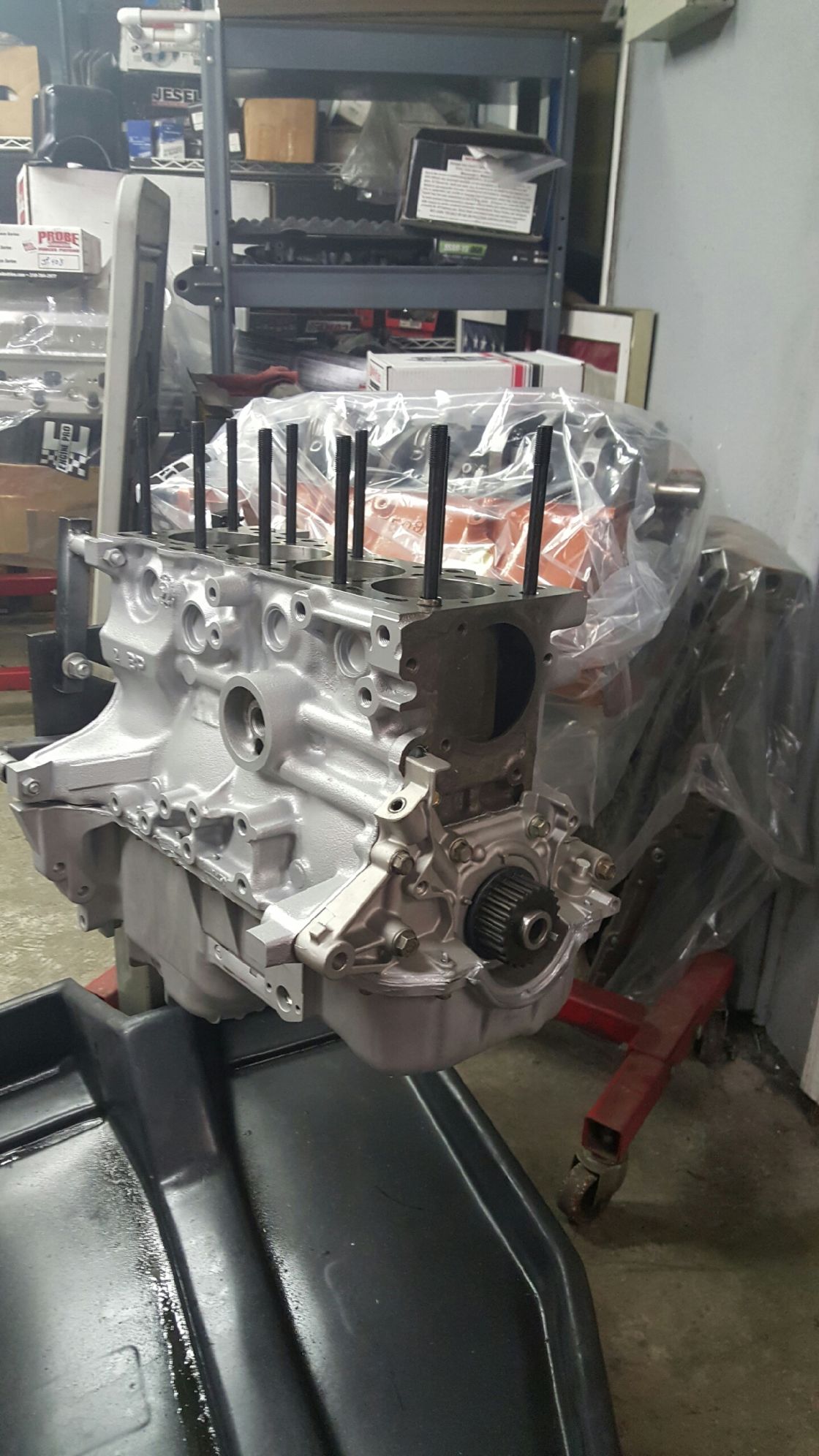

She's nearly assembled!!!

Should be up and running by Friday, but I'm undecided on whether or not I'm going to break the motor in with the MSPNP or the stock ECU.

Here's the thing, my engine builder's advice was to run with no boost...but since I have to drive at varying RPMs to seat the rings and everything the way he wants them to, that means that pretty little custom waste gate has to basically stay open. Will the stock Mazdaspeed ECU freak out with the lack of boost at high RPM?

Or should I save my self the trouble and get the megasquirt on its base break-in map to get things going? I went gung-ho with the build before I realized the ECU needs gradual changes in parts, luckily I still have the stock fueling system in place for now. I don't expect big power until later in the year.











But really.... who else has quantifiable fear of seeing headlights coming at them after a hard pull? HAHA!
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160229_144205_952935d2481ec1aeba2c0c208e610f3e641b4502.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160229_160806_67f84f3ab56d1f4b472ae9025f26e179348c8432.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160229_163943_fc8adc6a2f509a2163a367781853a54adaa034f1.jpeg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160229_221457_78f828e398edb86a47d3d6a0f1024e38a2cae004.jpg
hraday93 is offline   Reply With Quote
Old 03-04-2016, 01:07 AM   #14
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

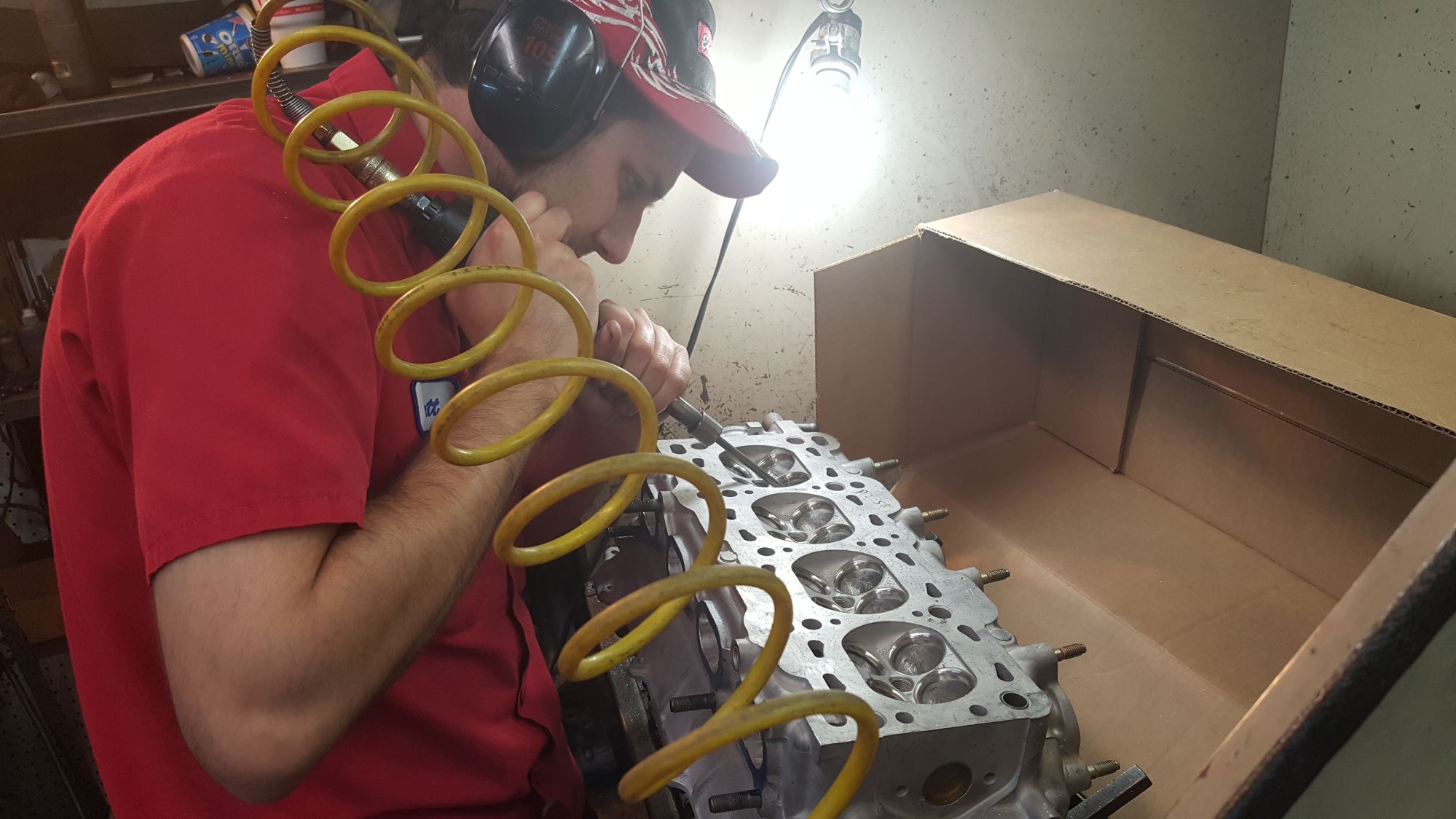

Back on the bench, every time Matt shows me the head I always find little things I want to shave down. He's starting to become amused at how open we're making the ports.
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160303_230325_d4a50531da87d8648de7e7d553500e764a5c3b44.jpg
hraday93 is offline   Reply With Quote
Old 03-04-2016, 01:13 AM   #15
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

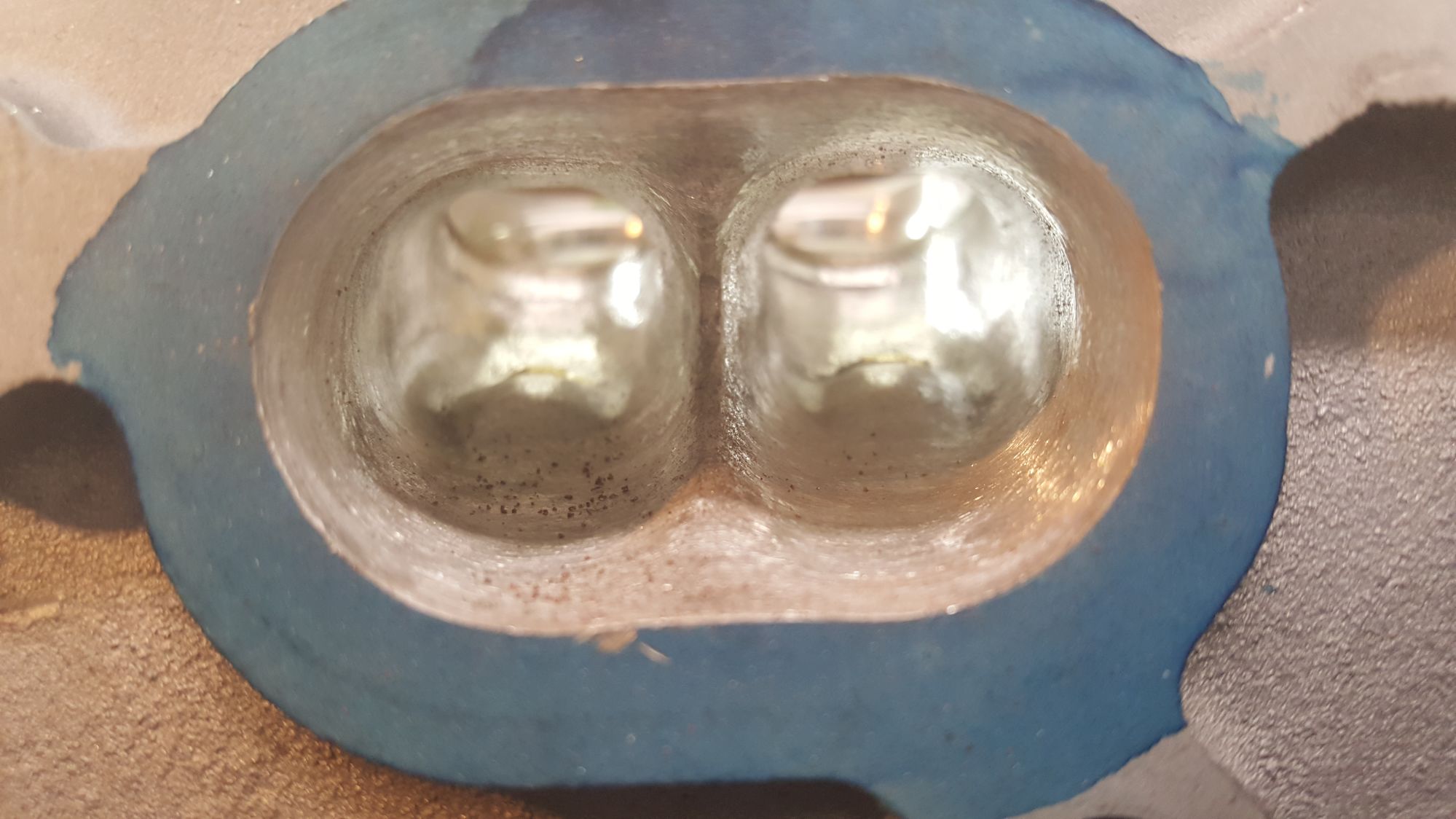

View from the exhaust port, pre polish.
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160303_231011_12d6903ad0021889c4926b3fc759e282e127591f.jpg
hraday93 is offline   Reply With Quote
Old 03-04-2016, 02:40 AM   #16
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

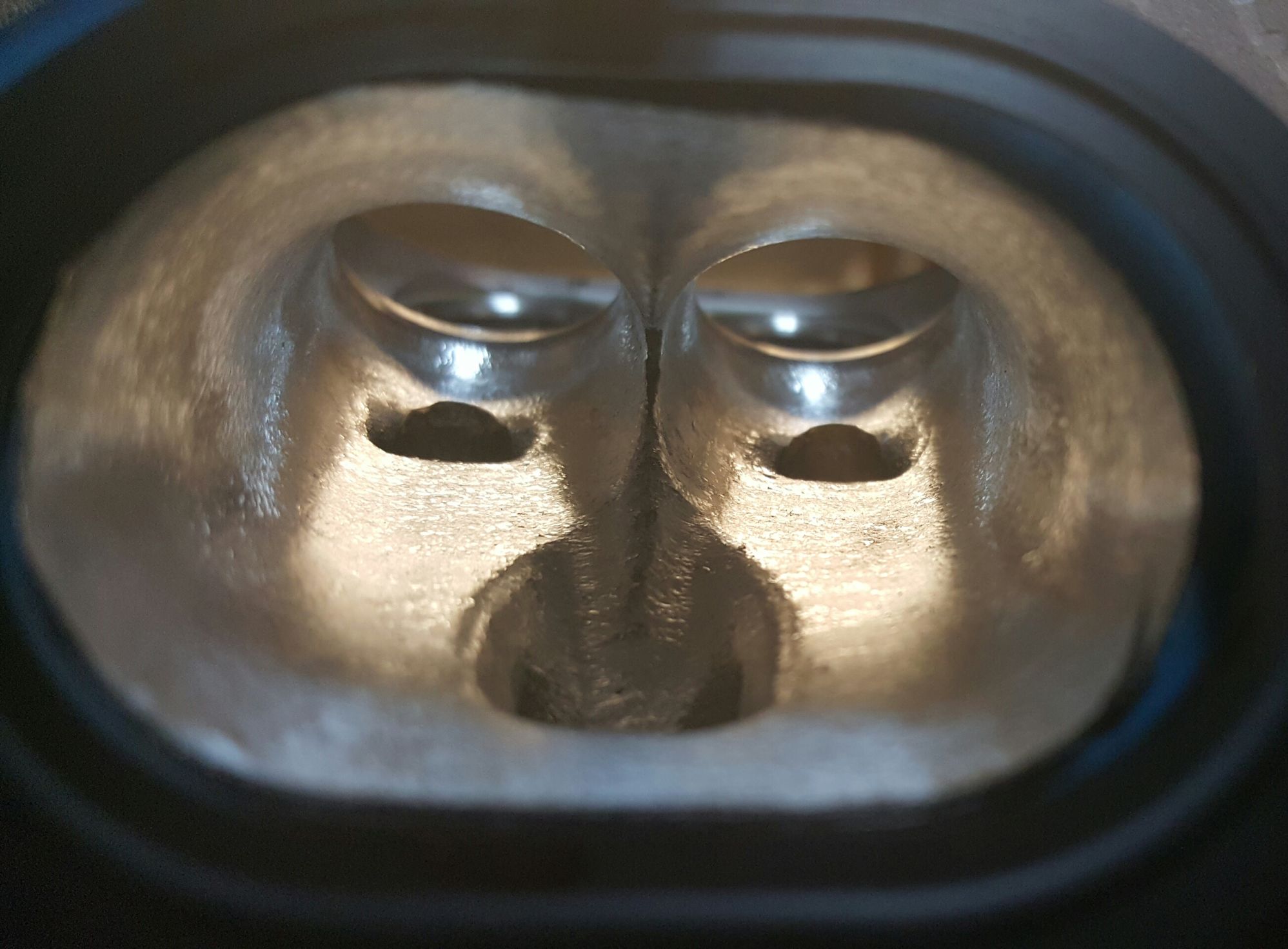

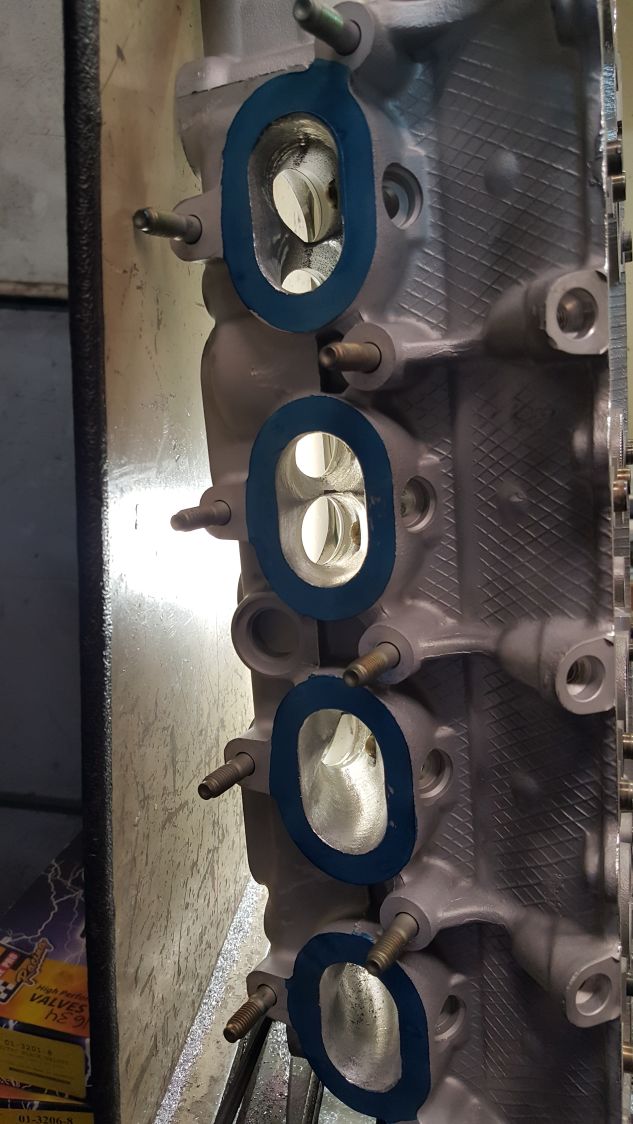

I'm beyond satisfied. Quick shot of the intake side after Matt smoothed everything out. This gas mask of a BP head should flow its best, now.

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160304_003424_1_b6d5e69e6cbd79a65c8542cd6f54d05331b0d3ec.jpg
hraday93 is offline   Reply With Quote
Old 03-09-2016, 10:44 PM   #17
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

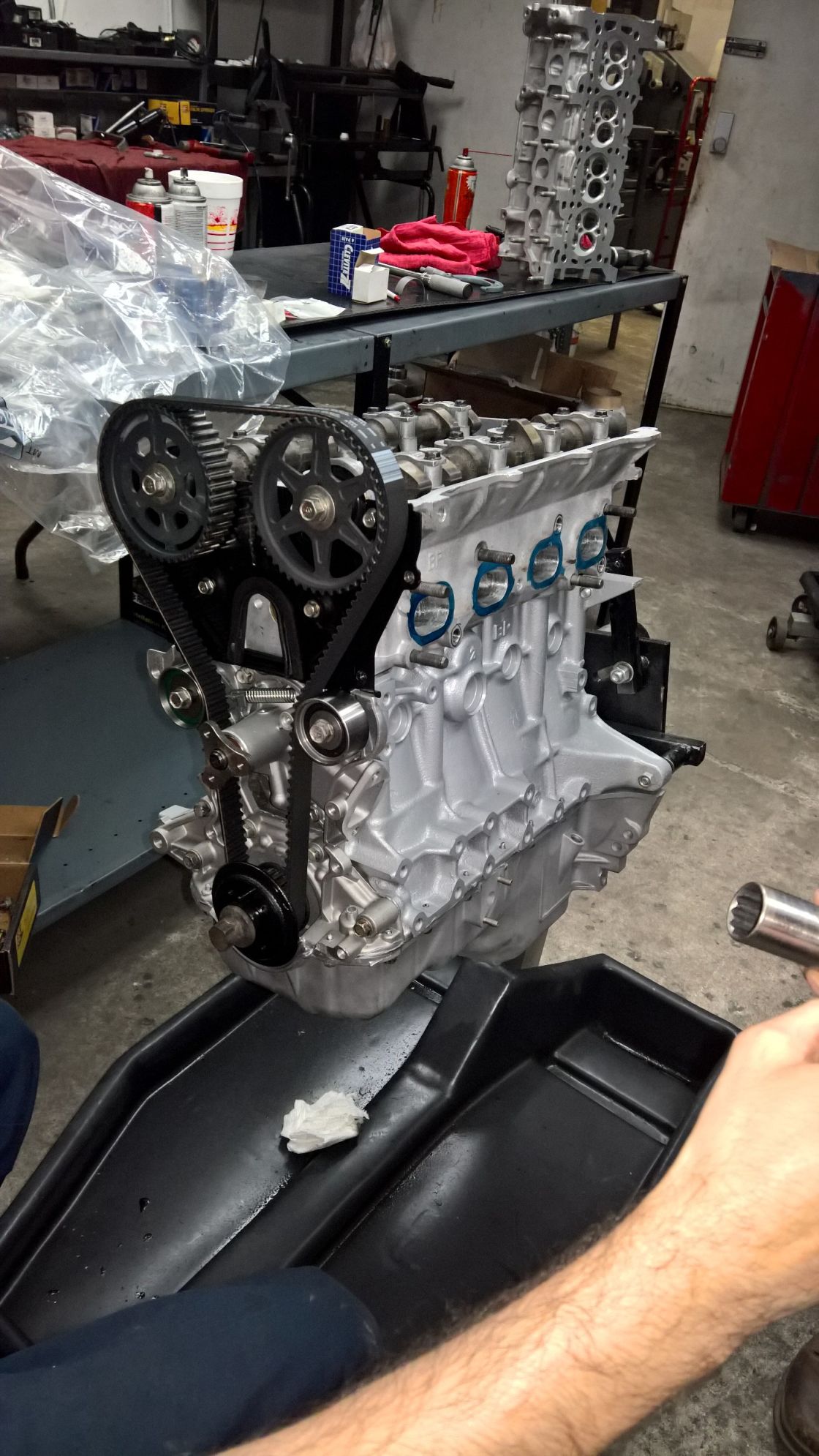

**** yea. Just gotta get the valve cover powdercoated and she's going in the car to be broken in.

Still undecided on what harmonic damper I should use. Any input on your varying experiences with ATI vs the Superdamper would be greatly appreciated. Thanks guys.

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-a_c6aa_ad584a0f3e5d3de4508ff4e53508ede3d4105078.jpg
hraday93 is offline   Reply With Quote
Old 03-10-2016, 03:19 PM   #18
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,559
Total Cats: 222
Default

Both are great, I hear the supermiata damper is tuned for a higher rpm range and is lighter vs the ATI.

I'll probably go with ATI when I have more funds

What color are you doing the valvecover?
Girz0r is offline   Reply With Quote
Old 03-10-2016, 11:17 PM   #19
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Well my redline is set for 8k+

I knew the supermiata one was lighter, wasn't aware of the RPM bit. As for the valve cover, I'm not sure. My car is red and black from head to toe, even the interior is trimmed red so I might as well retouch the wrinkle red, or I might color match it to the paint.
hraday93 is offline   Reply With Quote
Old 05-08-2016, 01:08 AM   #20
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

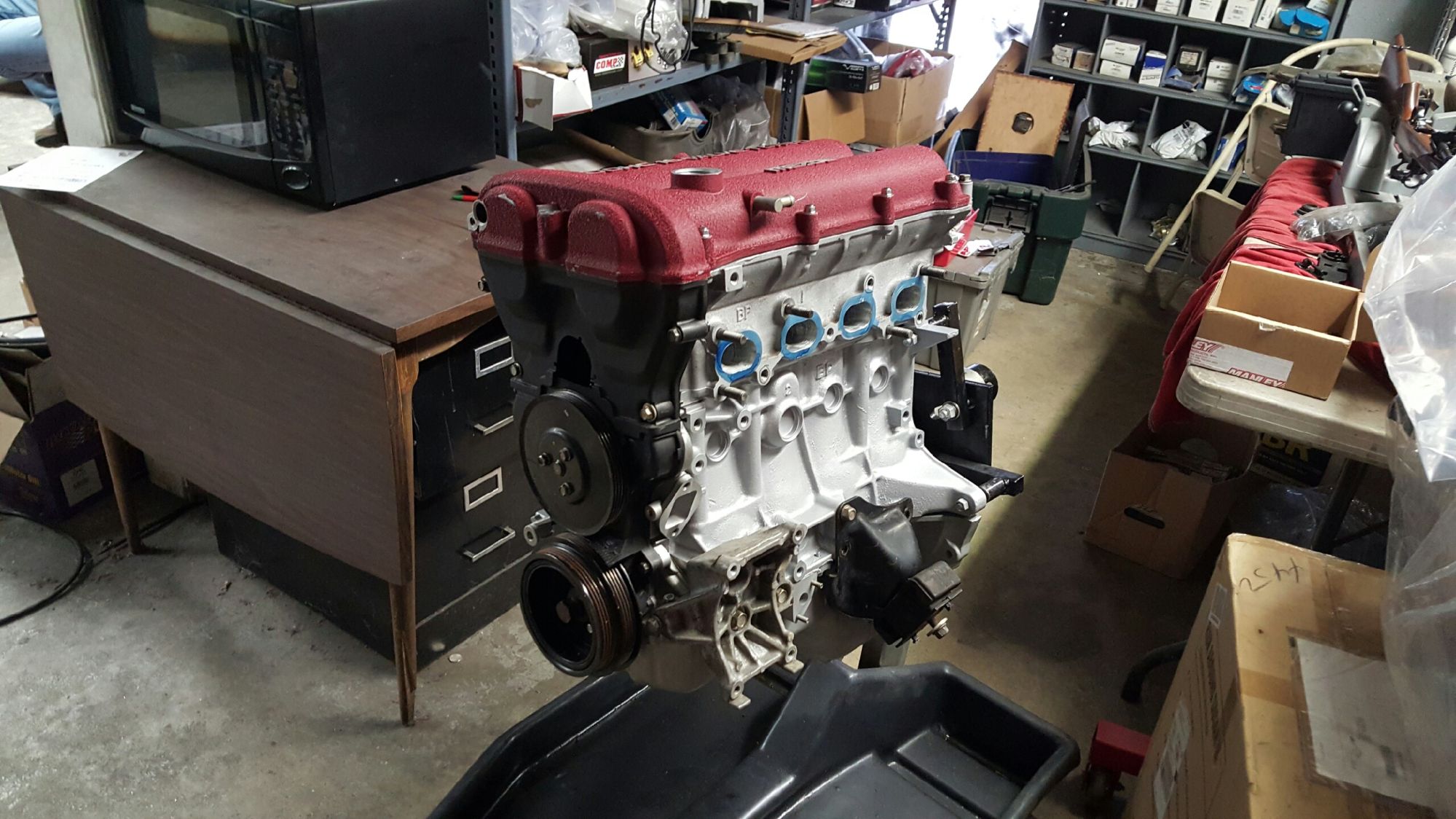

Some time in late March, a shot of the motor all finished up by Kotzur Racing.

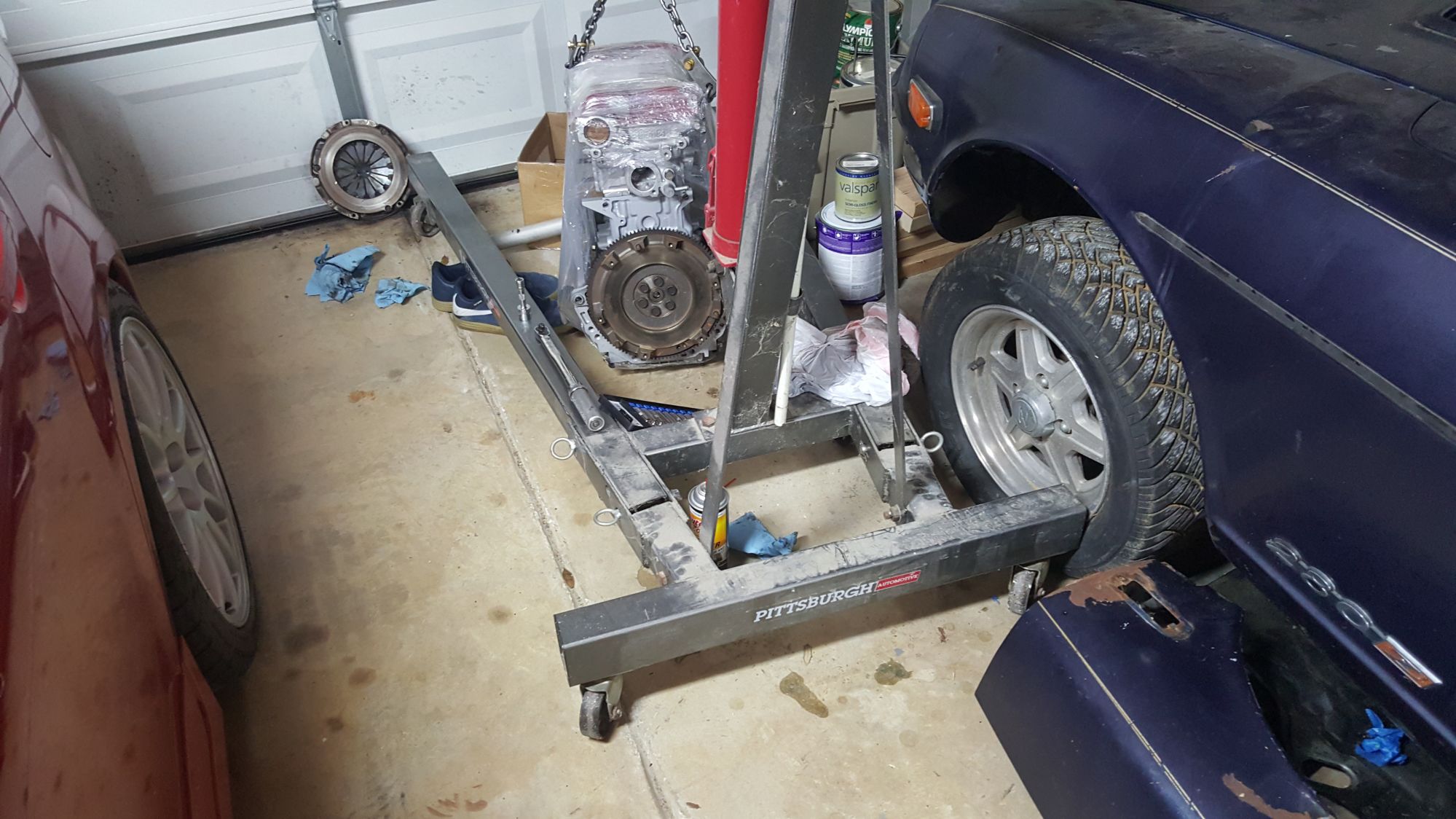

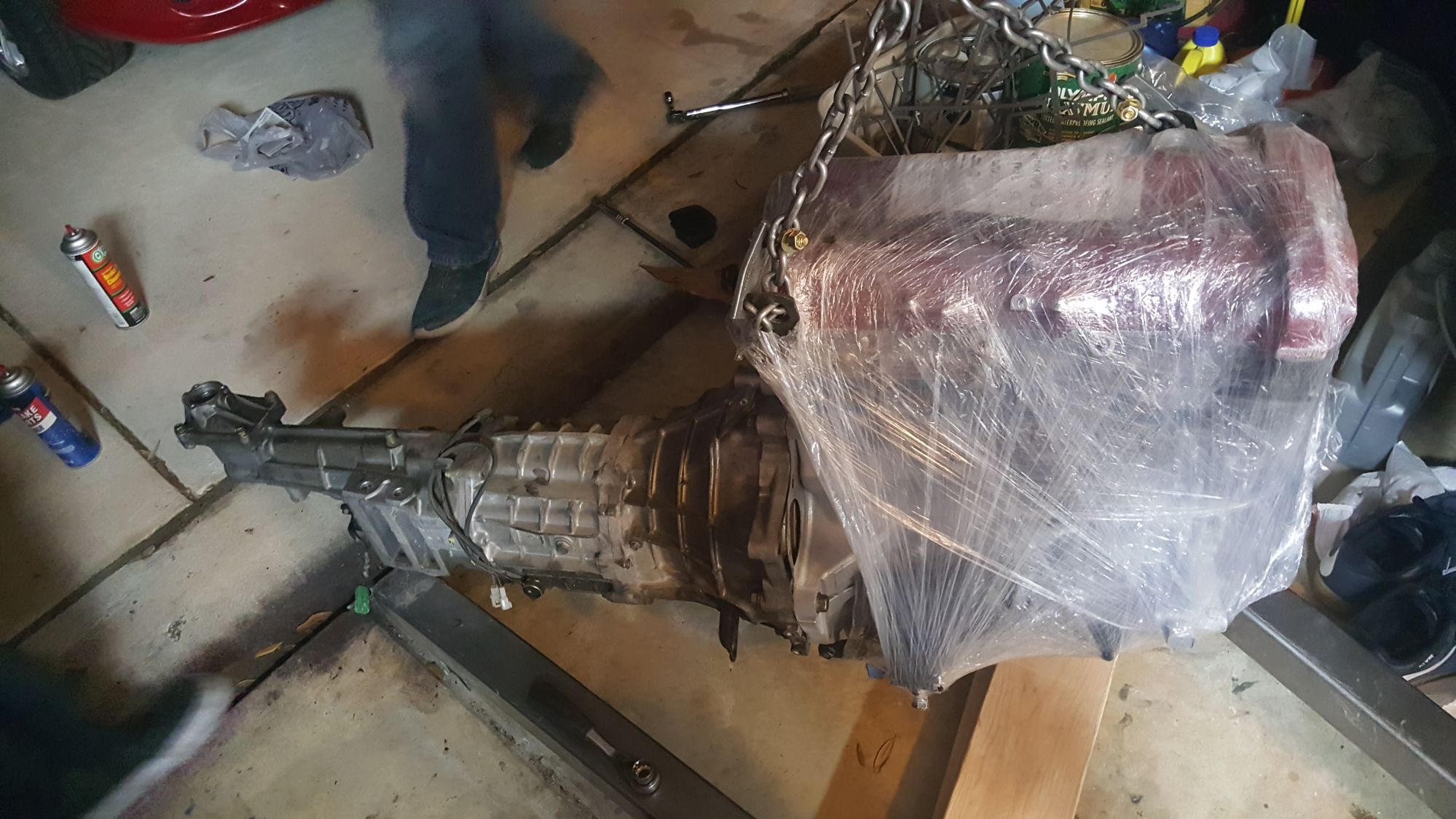

This was when we got it home, and into the garage before attaching the transmission back to the block.

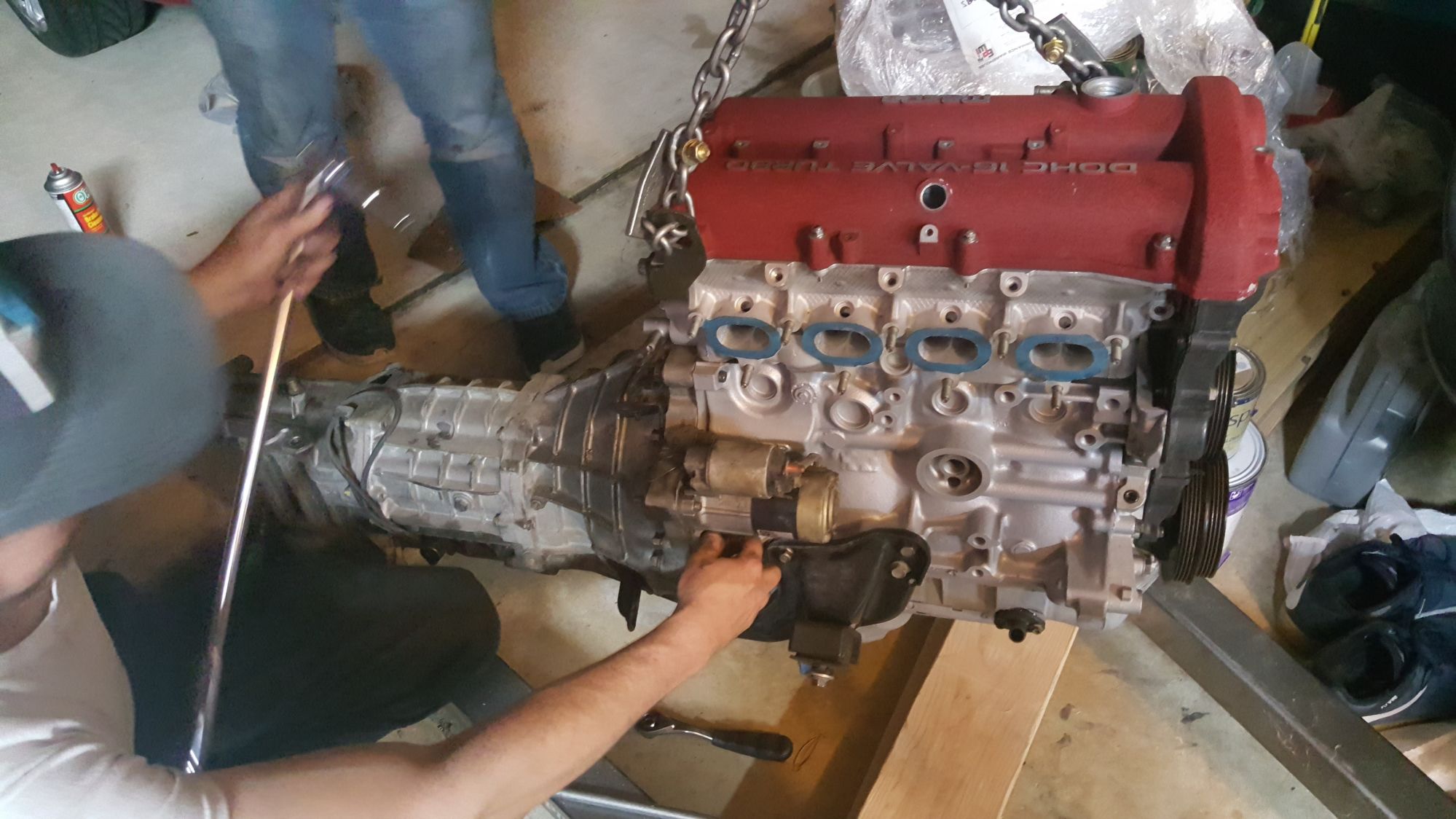

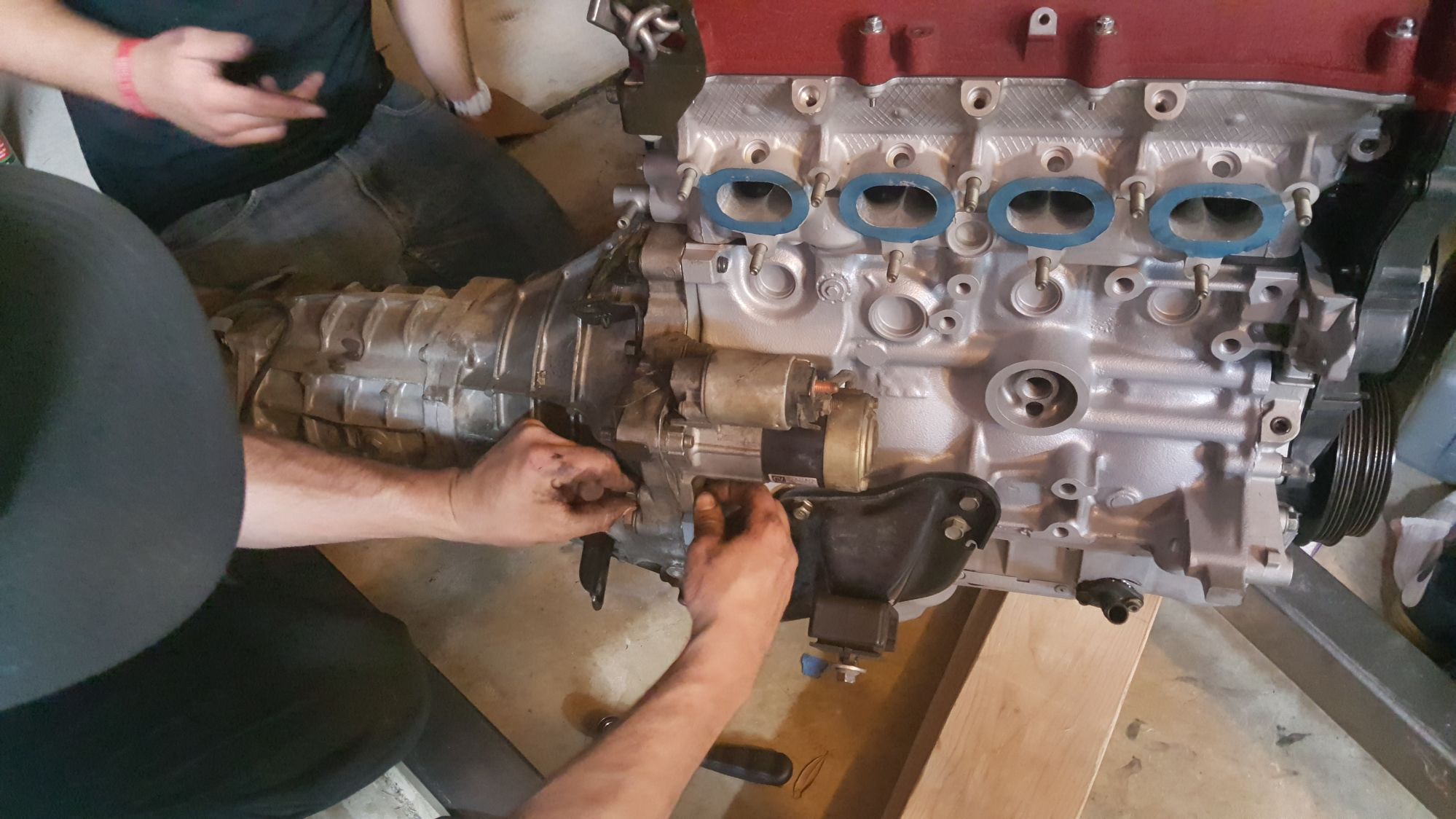

Got the transmission mounted, and it was at this point that I started to feel the reality of getting my car back!





Before my LS Juan Swap.

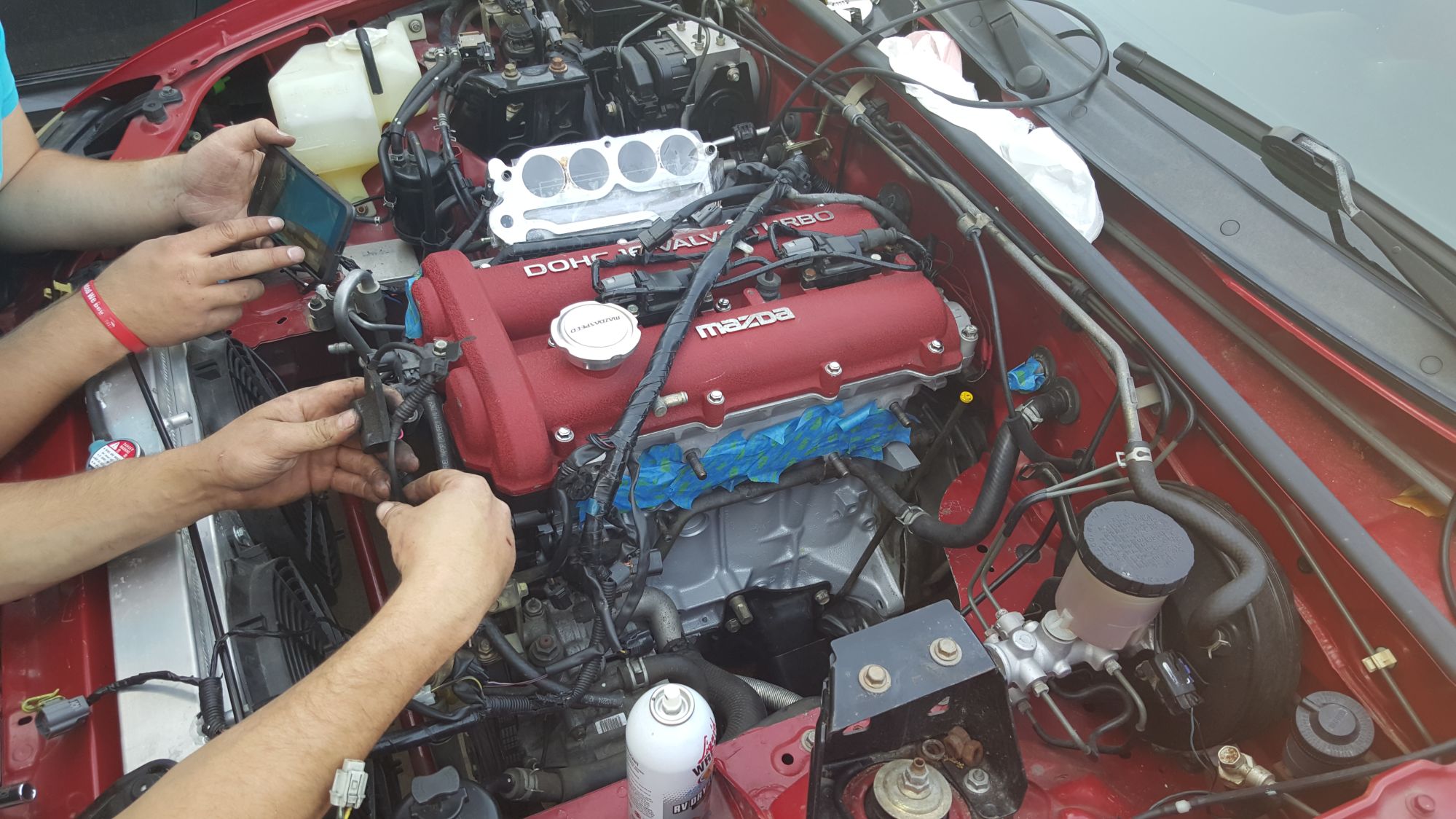

After my LS Juan Swap.

Things got a little too crazy that night, oh well.

SHE'S IN!
Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-20160322_183823_921b39162100ab9b5aabe4ae51ca92f1cb5a87b9.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160324_223706_22cf13eb055956b2c264fb3dedc316e64d2340fe.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160325_203713_a2d40770671ef8685c67312c07137699c9b97408.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160325_204123_8b6d1b9b2903758df5b2e18f6fa16045ee782edb.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160325_204116_a64e304c0026d4357b6481a190878bf5fafbfd10.jpg

A Tale of Two Miatas: Hraday93's MSM Build-80-20160322_170159_257e8f39c8b048e07e0caa1f1adf4bc63750dd64.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160325_205423_1865ff94c93c0a455ad50c221b0f093ae41ac93c.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160326_135514_235e54ef0976339dd7a43d052630c2ffb3c797f9.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-20160327_155822_c176624b95b98cf44eb0bb7b0efdded16bd72a25.jpg
hraday93 is offline   Reply With Quote


Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 08:49 AM.
