Old 02-09-2015, 10:49 AM   #261
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

All the BP05 manifolds will work with your 1.8 throttle body.
Leafy is offline   Reply With Quote
Old 02-09-2015, 11:04 AM   #262
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

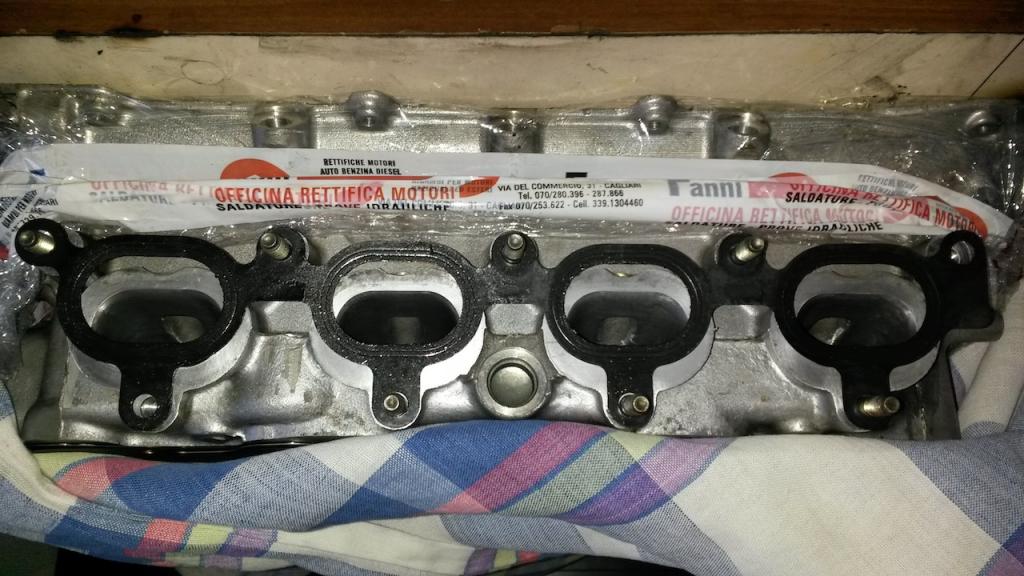

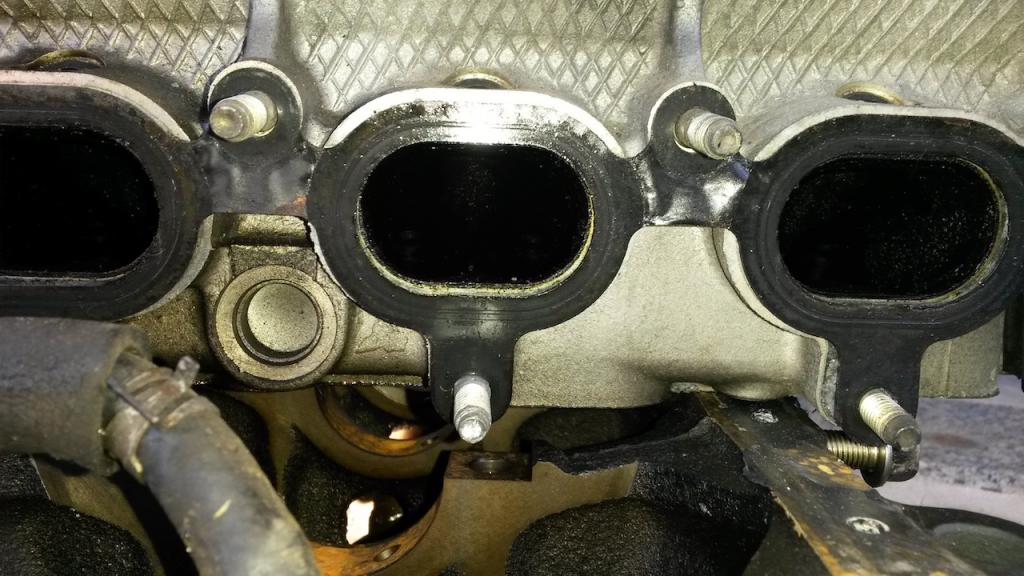

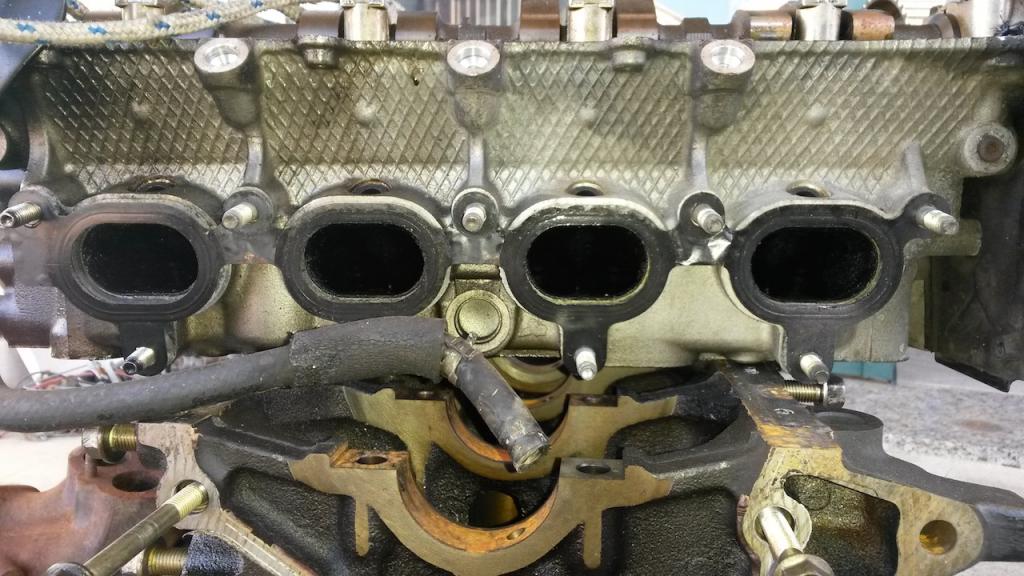

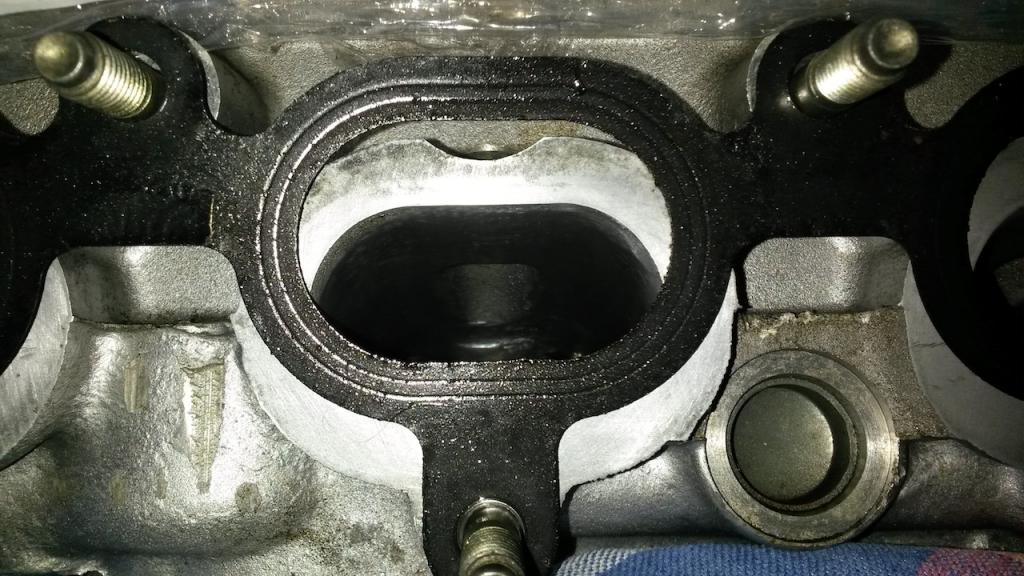

fuuuuuu
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150209_160836_zpsf119150d.jpg   diy "turbo no hit block" '00 BP miata-20150209_160830_zps726f8707.jpg   diy "turbo no hit block" '00 BP miata-20150209_160741_zps67f574b1.jpg   diy "turbo no hit block" '00 BP miata-20150209_160735_zpsb9048cfd.jpg
DNA54 is offline   Reply With Quote
Old 02-09-2015, 06:25 PM   #263
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,271
Total Cats: 32
Default

Bummer. :(
timk is offline   Reply With Quote
Old 02-11-2015, 02:26 PM   #264
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,000
Total Cats: 168
Default

Porting skillz?
m2cupcar is offline   Reply With Quote
Old 02-11-2015, 05:45 PM   #265
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Well, I just found a bp05 manifold, so let's continue

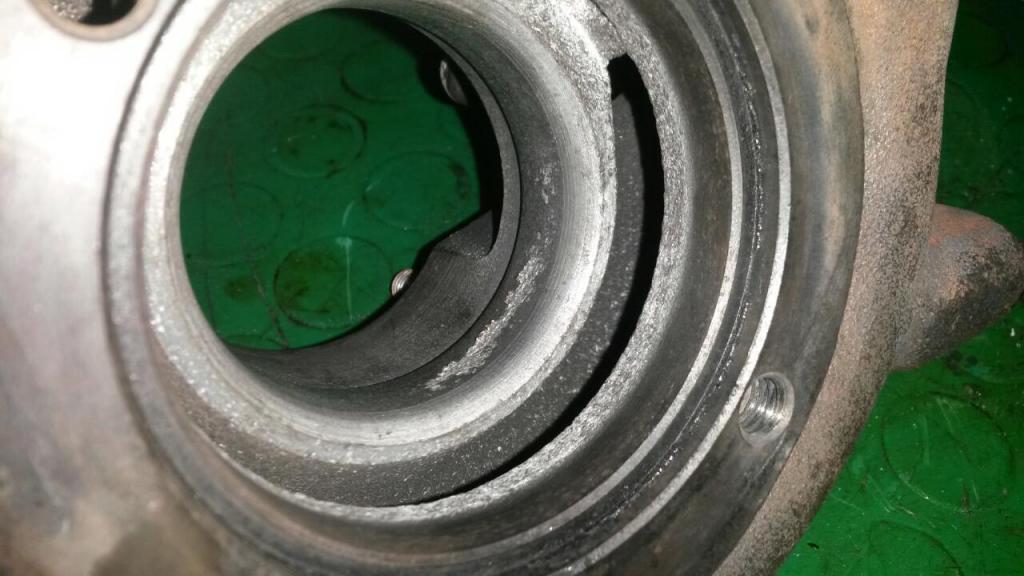

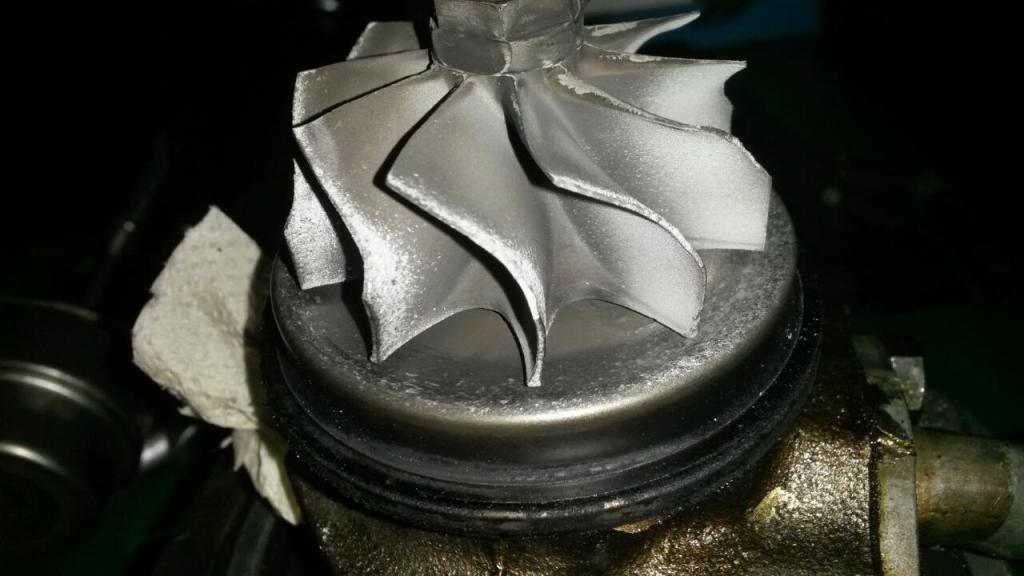

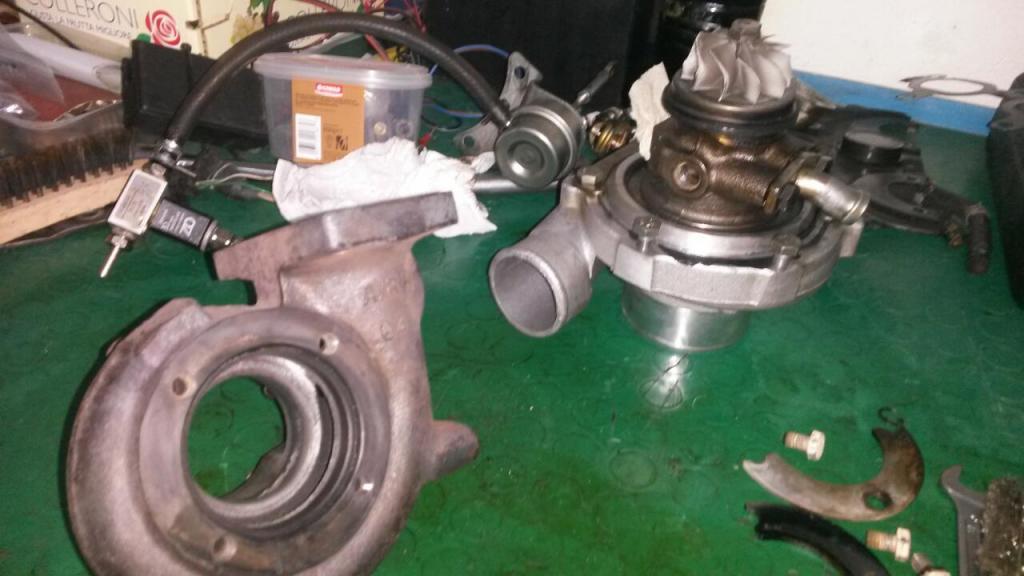

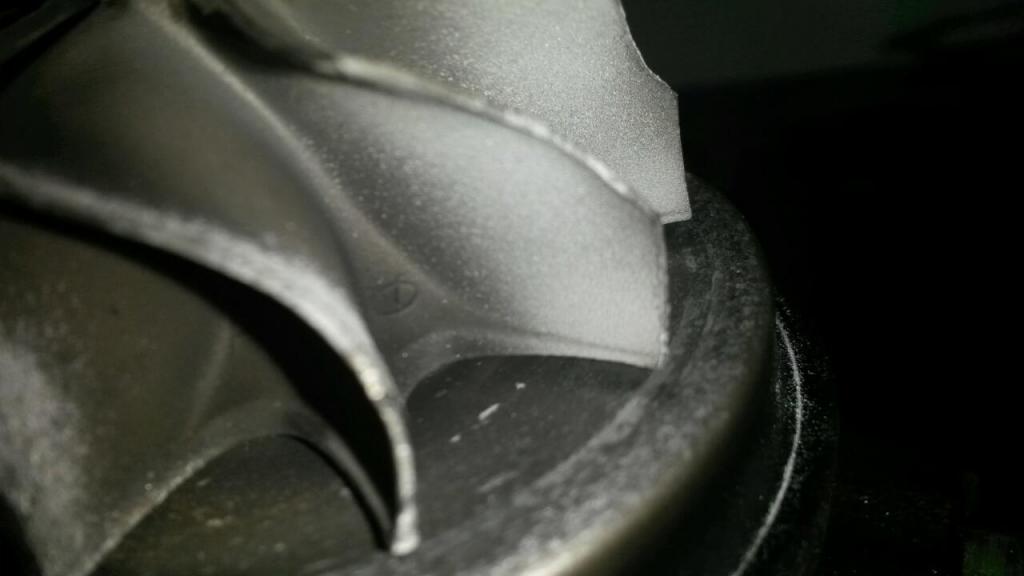

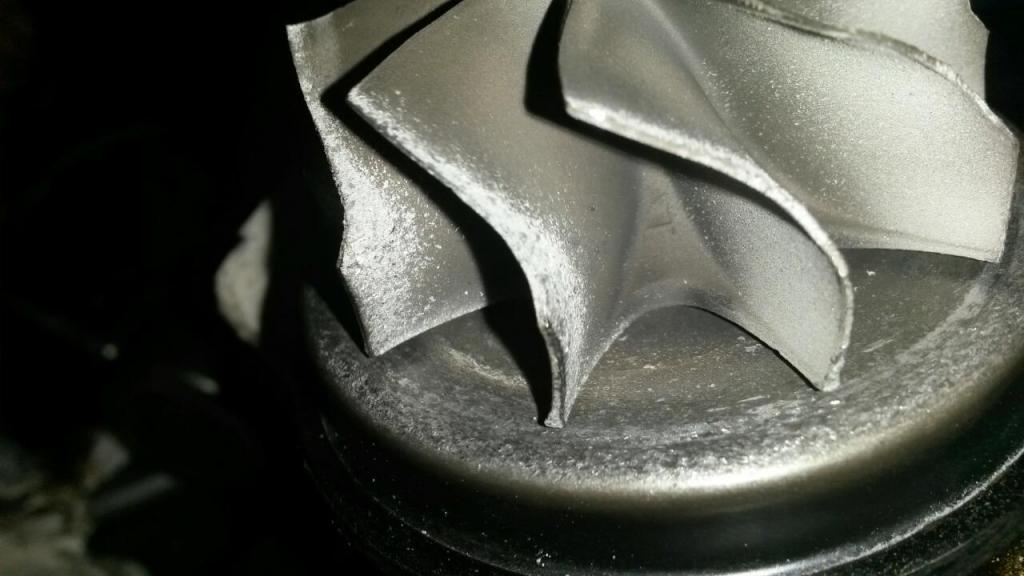

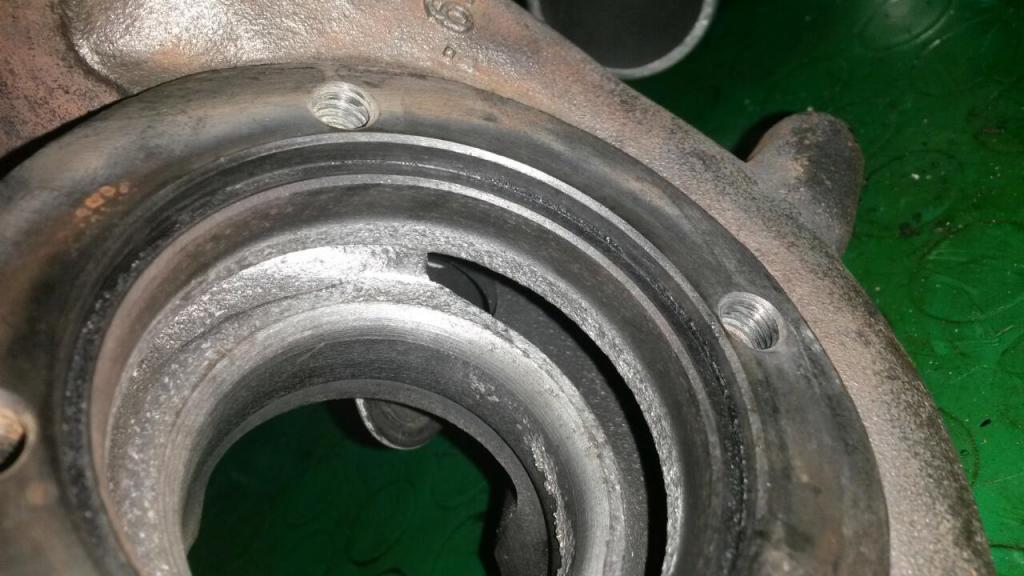

Today I checked the turbine for damages (it eated the *3 piston rings), and surprisingly it survived pretty well













It's good for the break in!
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-rps20150211_233020_zpsdaf748d6.jpg   diy "turbo no hit block" '00 BP miata-rps20150211_232930_zps77184512.jpg   diy "turbo no hit block" '00 BP miata-rps20150211_232910_zps3ea3bbc2.jpg   diy "turbo no hit block" '00 BP miata-rps20150211_232841_zps5c2fb538.jpg   diy "turbo no hit block" '00 BP miata-rps20150211_232818_zps258e2319.jpg

diy "turbo no hit block" '00 BP miata-rps20150211_232738_zps1938275a.jpg
DNA54 is offline   Reply With Quote
Old 02-19-2015, 02:16 PM   #266
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

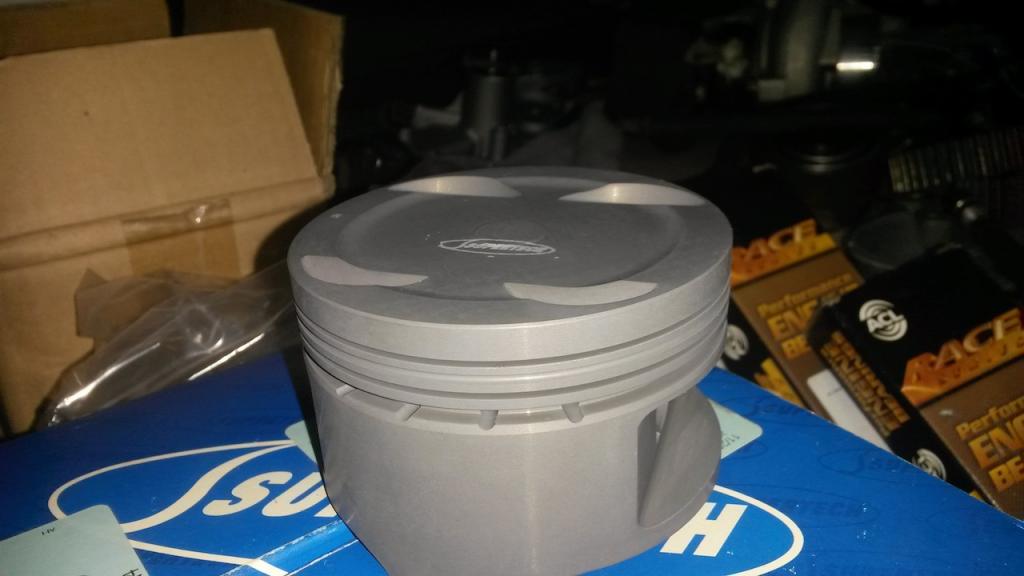

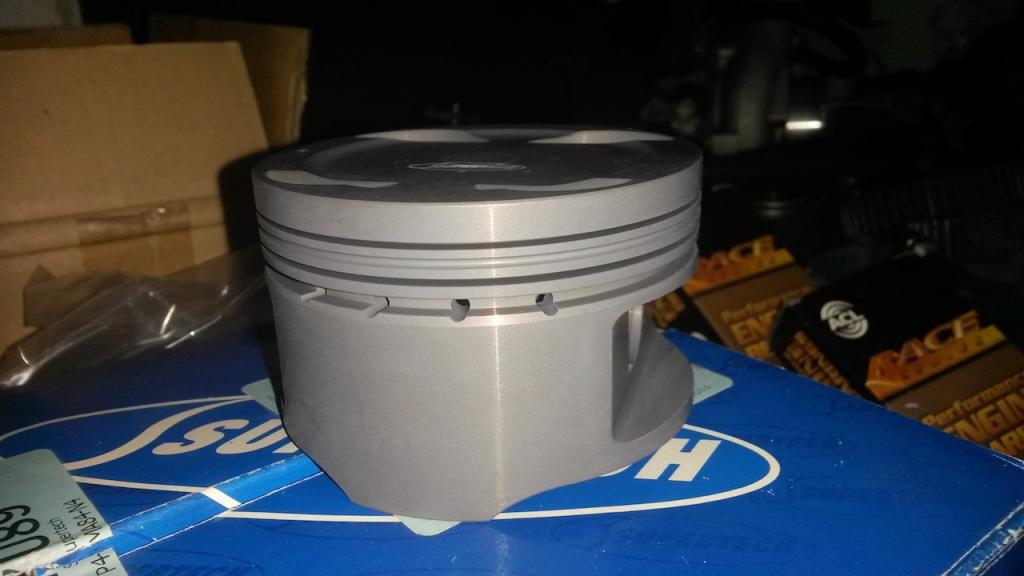

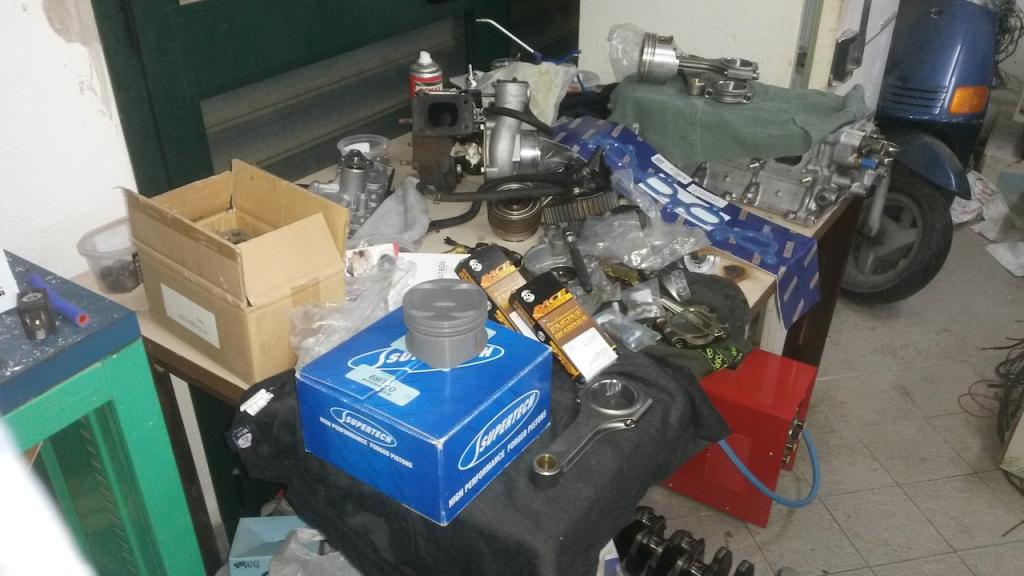

well, I eventually got pretty much everything





Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150219_195513_zpsc4bfbcbb.jpg   diy "turbo no hit block" '00 BP miata-20150219_195525_zps94ef8bb5.jpg   diy "turbo no hit block" '00 BP miata-20150219_195533_zpsea1b9c9b.jpg
DNA54 is offline   Reply With Quote
Old 02-24-2015, 08:57 AM   #267
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

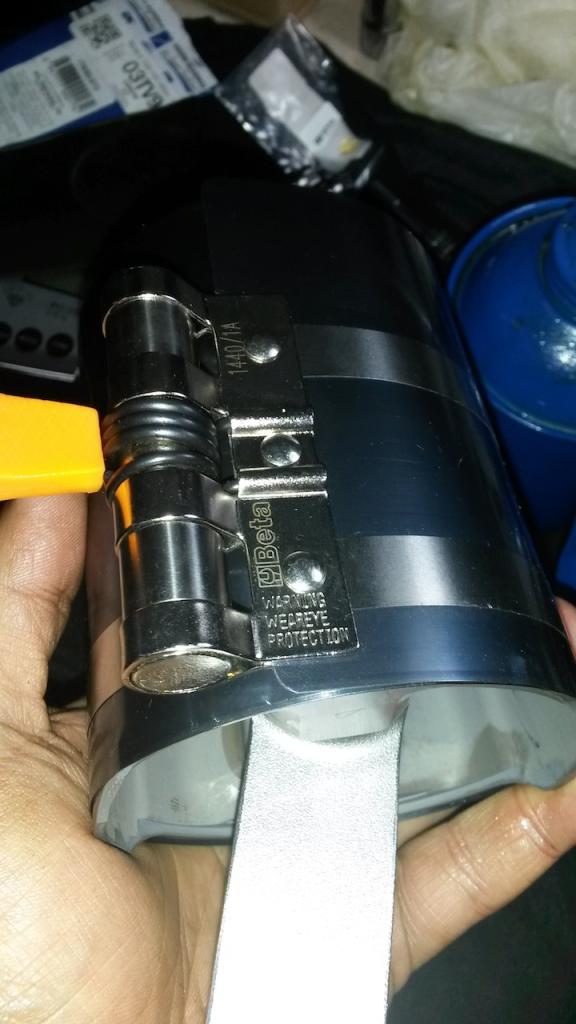

Finally I can build the engine, more or less

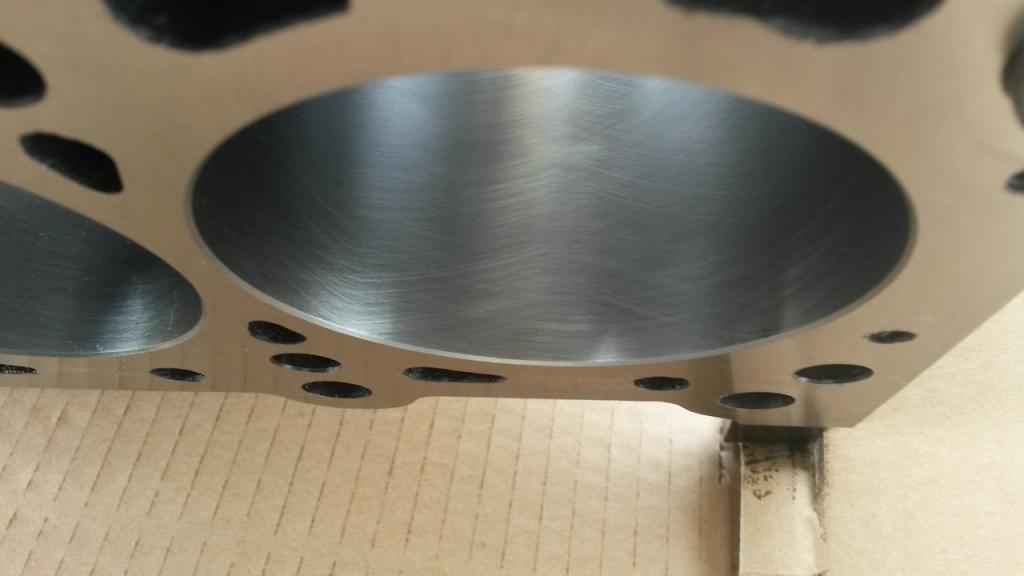

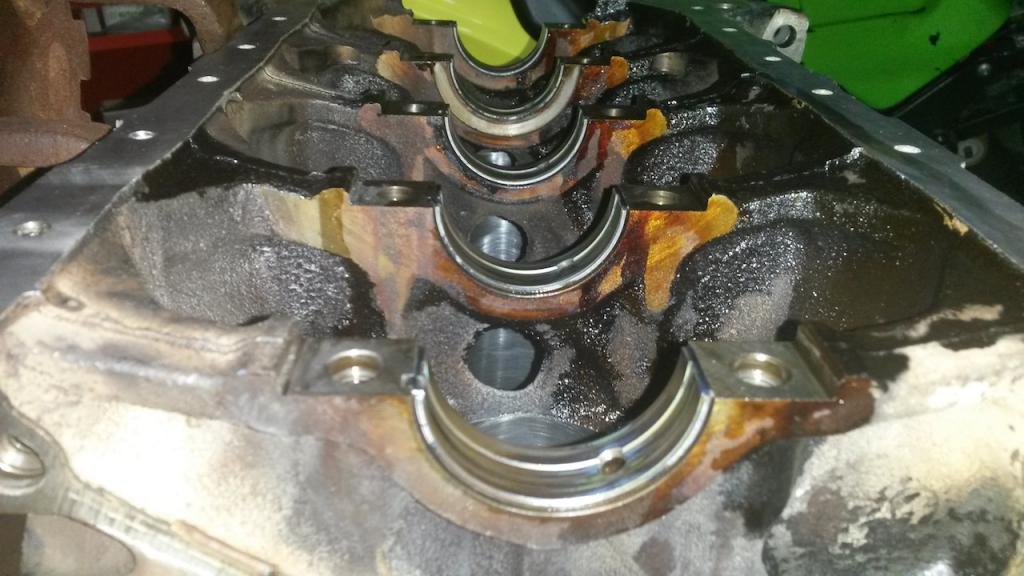

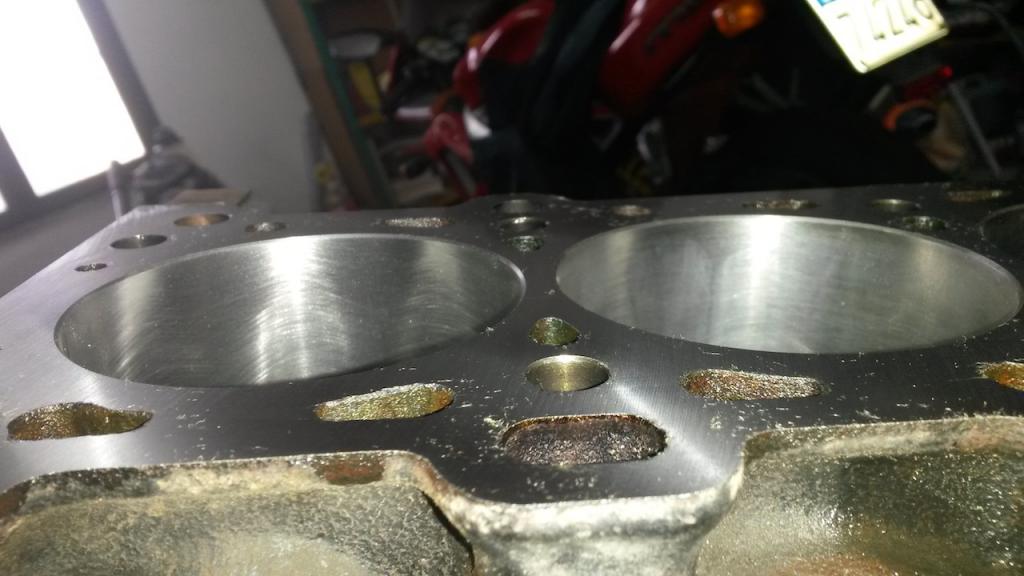

block honed and shaved

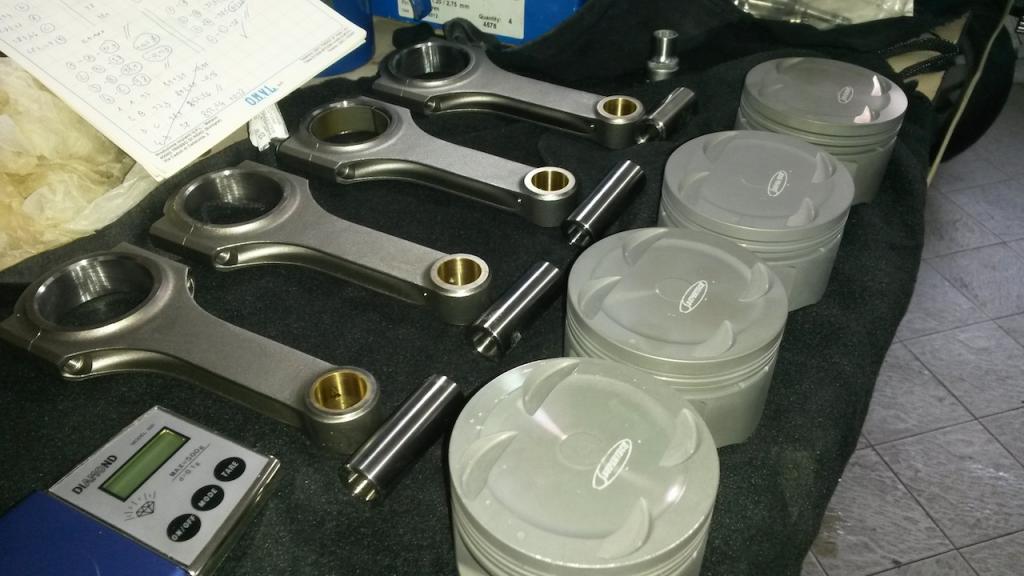

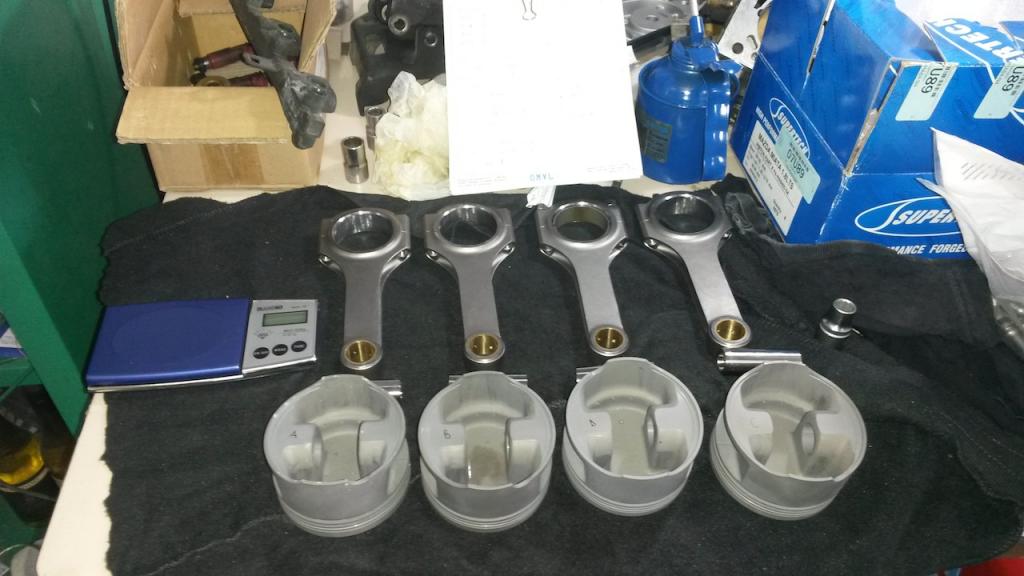

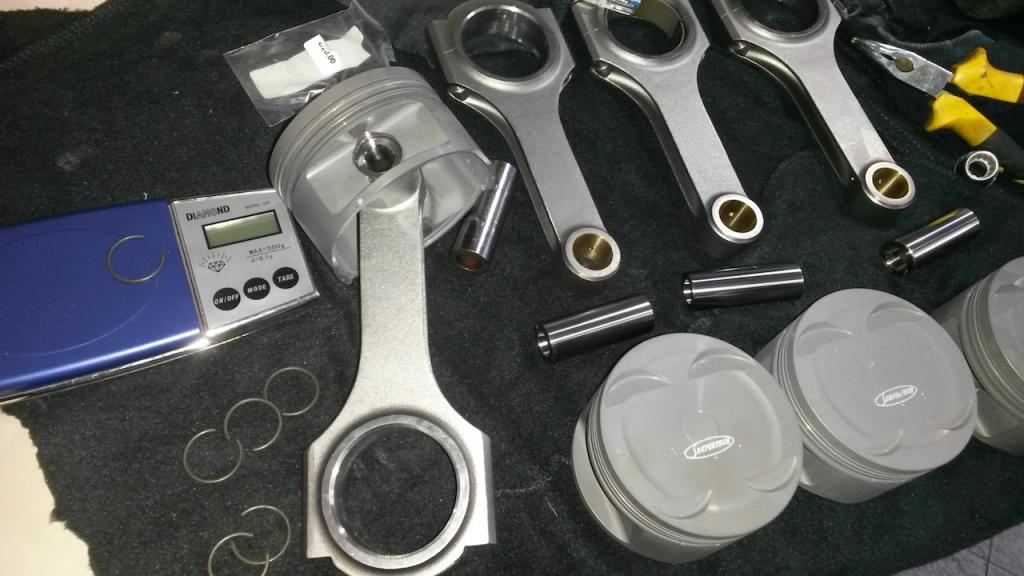

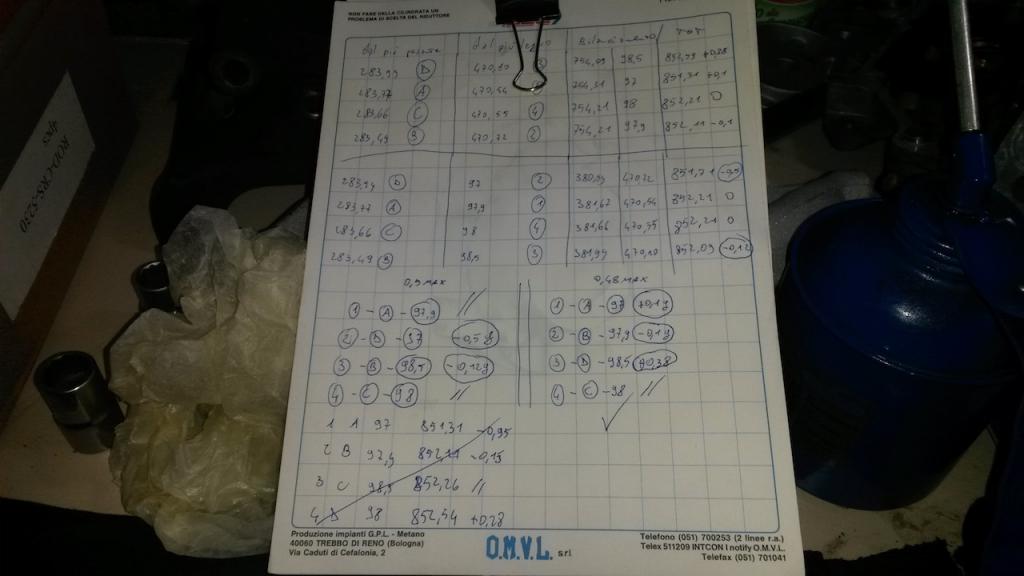

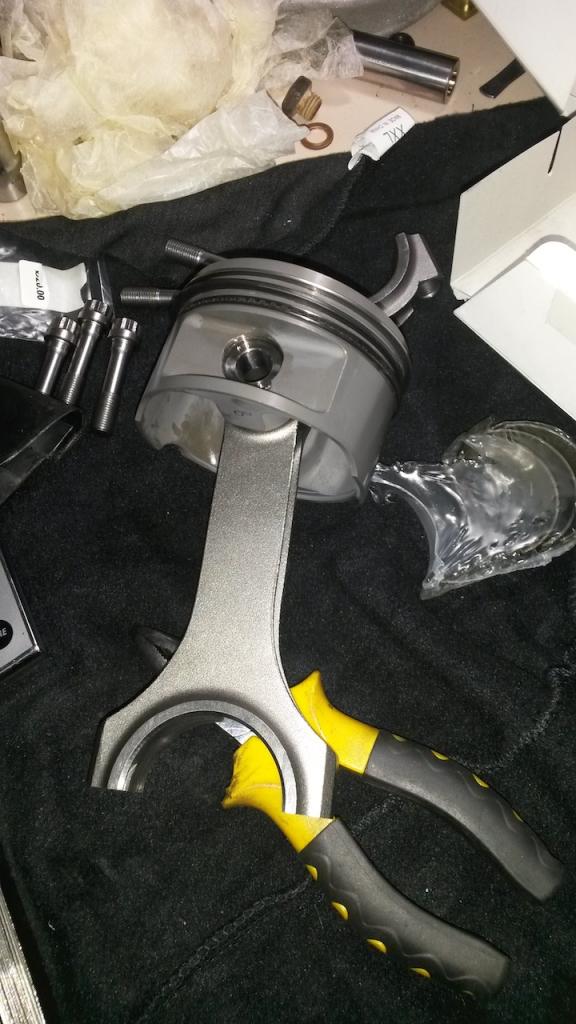

rods + pistons, weight matched. Maximum difference: 0.4 grams









time to rebuild
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150224_120439_zps9e706cb4.jpg   diy "turbo no hit block" '00 BP miata-20150224_130608_zps162fe9ce.jpg   diy "turbo no hit block" '00 BP miata-20150224_131702_zps69501671.jpg   diy "turbo no hit block" '00 BP miata-20150224_131709_zpsaaa58ba4.jpg   diy "turbo no hit block" '00 BP miata-20150224_131737_zpsf0c39dff.jpg

diy "turbo no hit block" '00 BP miata-20150224_133016_zps3c26e1ef.jpg
DNA54 is offline   Reply With Quote
Old 02-24-2015, 02:29 PM   #268
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

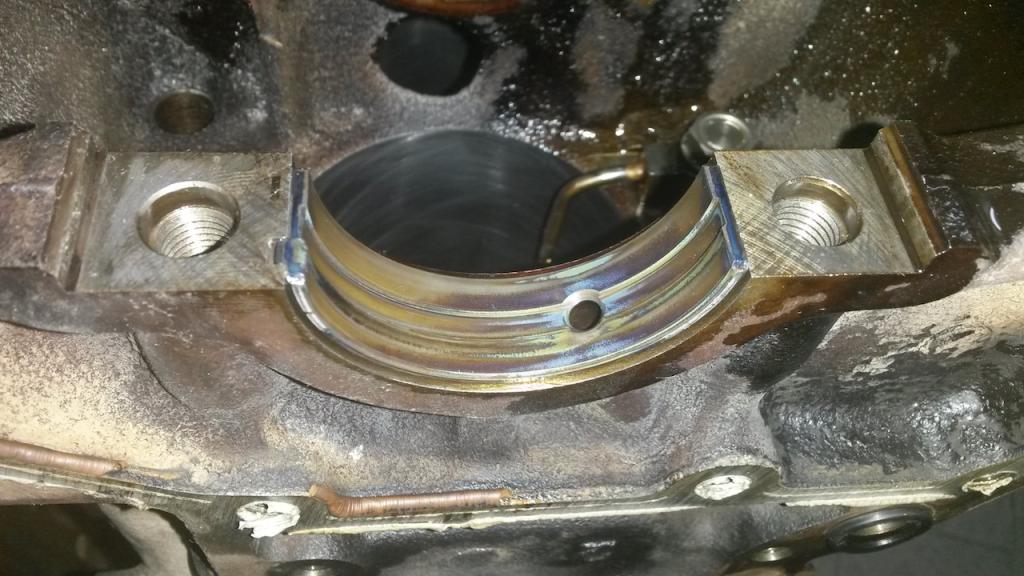

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150224_185001_zps90caf089.jpg   diy "turbo no hit block" '00 BP miata-20150224_185007_zpsd17fc34e.jpg
DNA54 is offline   Reply With Quote
Old 02-25-2015, 03:06 PM   #269
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

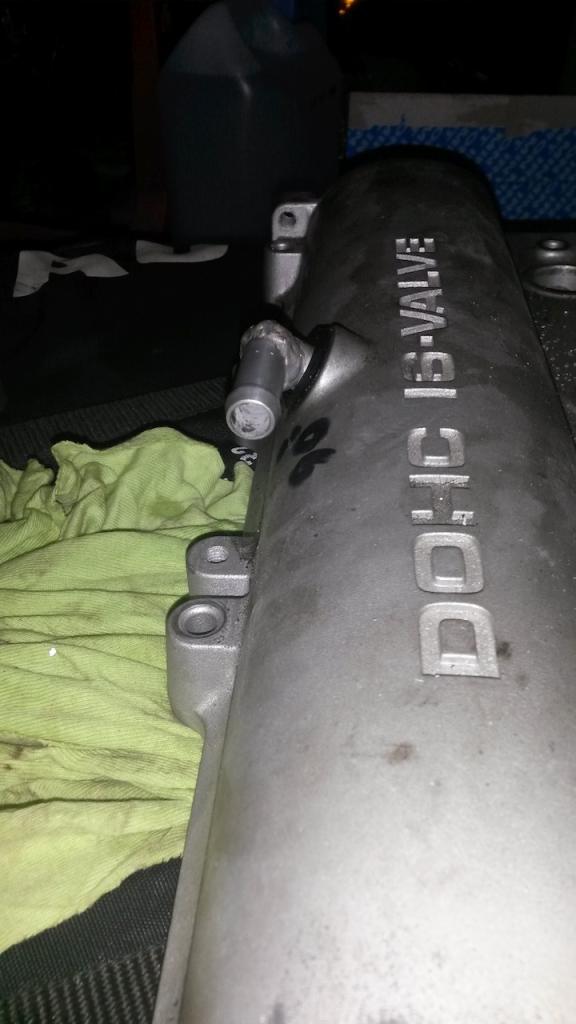

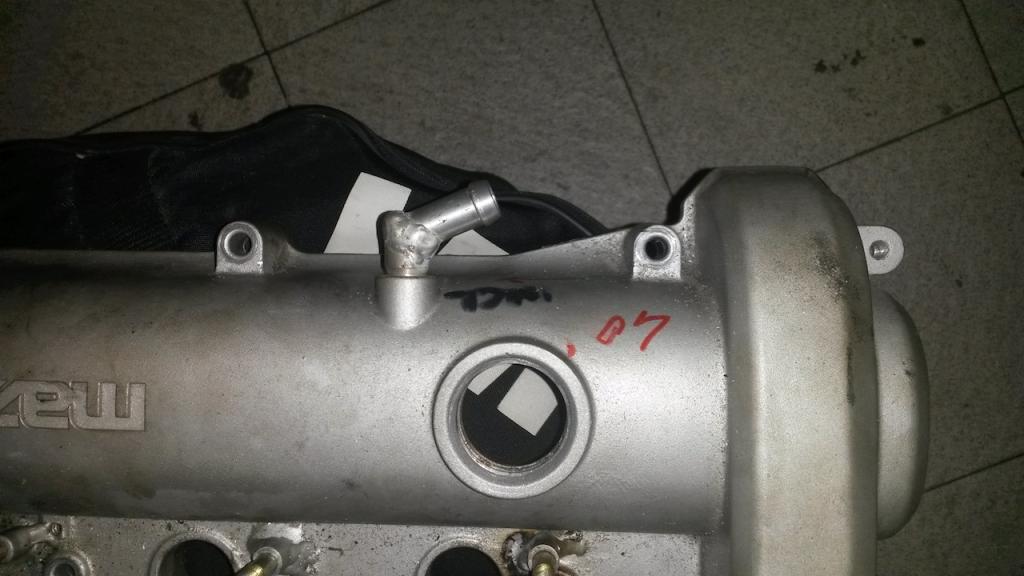

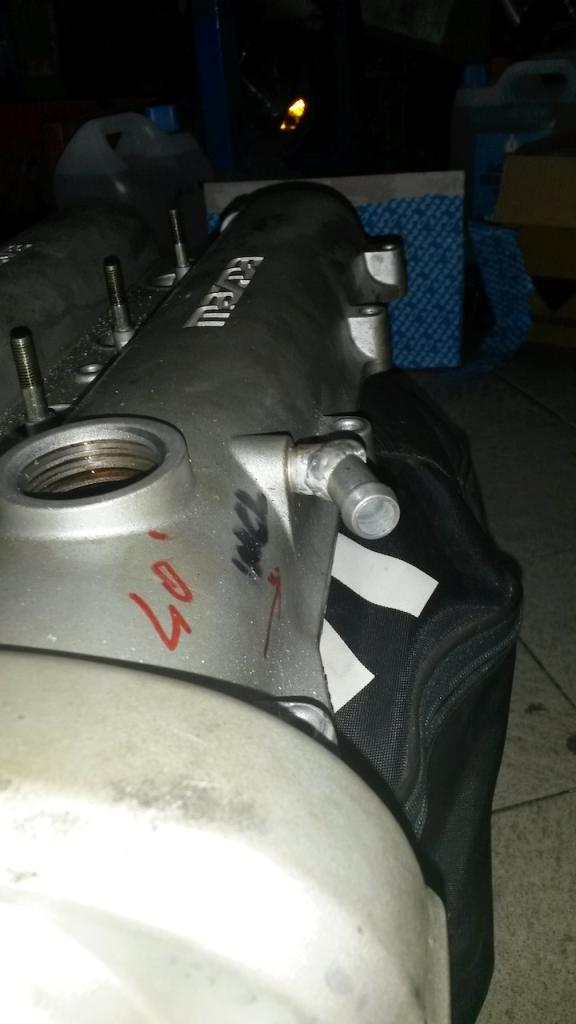

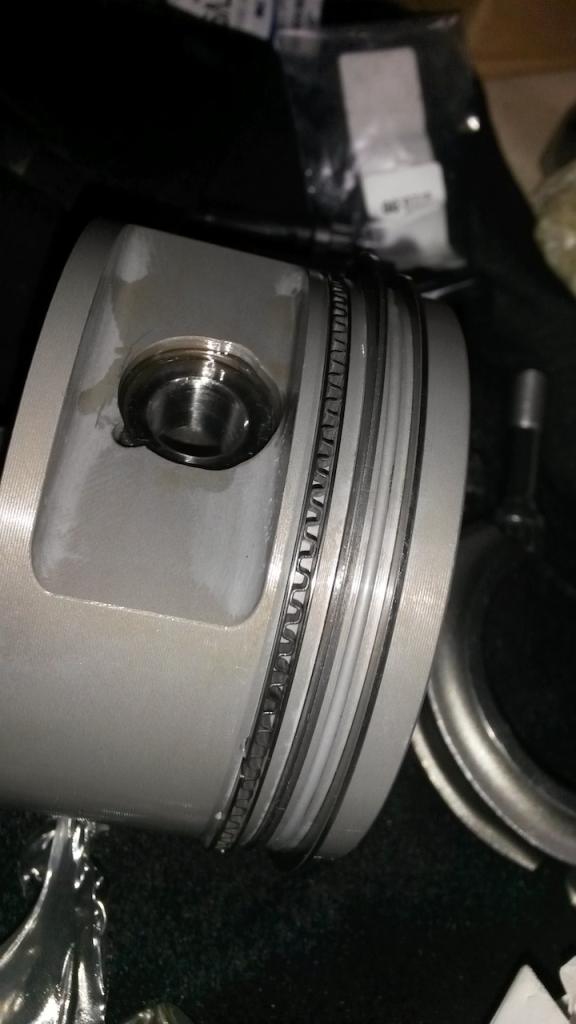

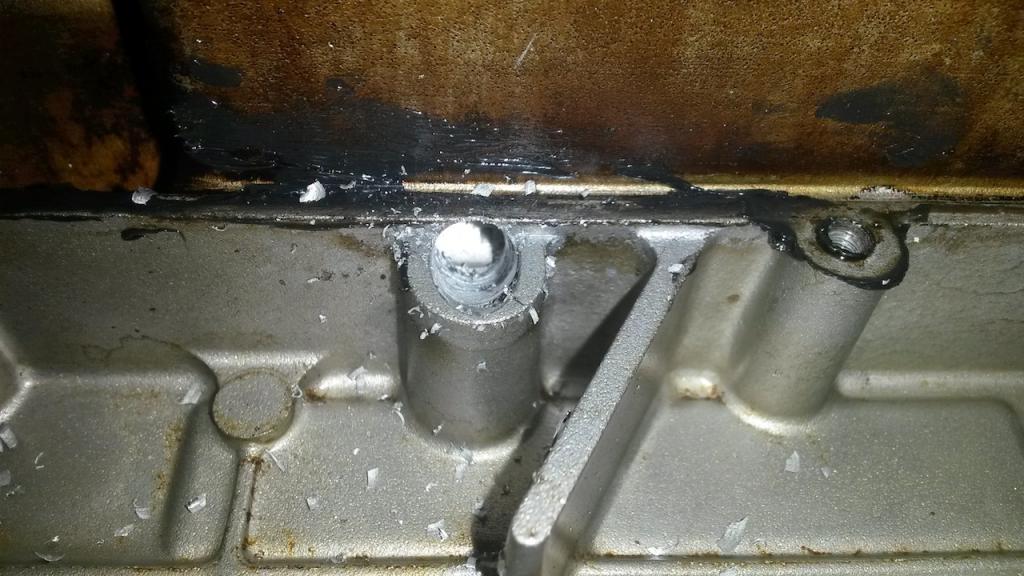

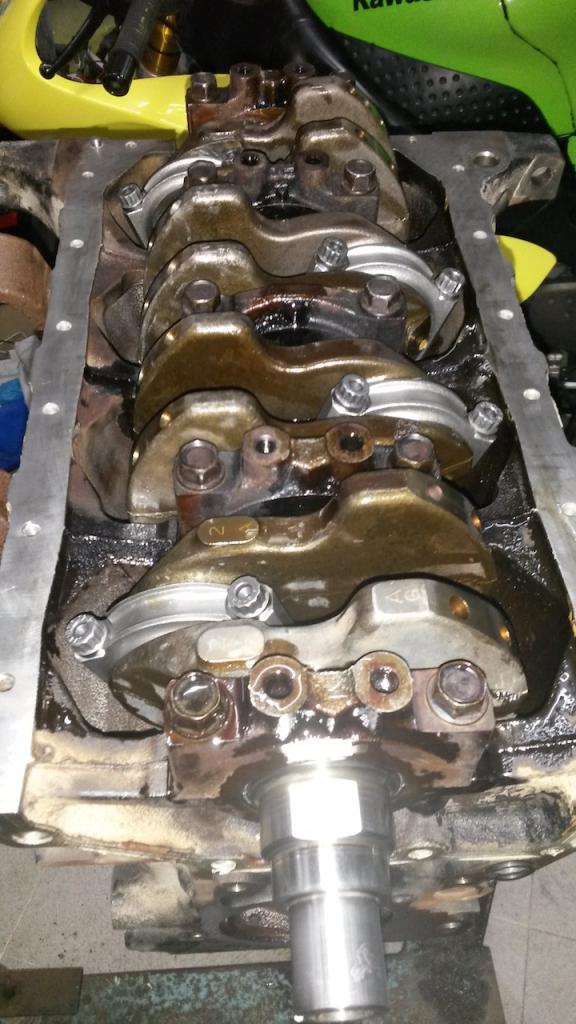

today I made two 12mm (3/8 ID) breathing ports that will fit the massive exhaust manifold, and built the bottom end.




















Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150224_213338_zpsfuz70kpb.jpg   diy "turbo no hit block" '00 BP miata-20150224_213350_zpsqwqmohhh.jpg   diy "turbo no hit block" '00 BP miata-20150224_213401_zpsszg1l1i8.jpg   diy "turbo no hit block" '00 BP miata-20150224_213429_zpsr9xytown.jpg   diy "turbo no hit block" '00 BP miata-20150225_184541_zpsiczzoclo.jpg

diy "turbo no hit block" '00 BP miata-20150225_184549_zpswwdjgmar.jpg   diy "turbo no hit block" '00 BP miata-20150225_192155_zpsgkowdvn7.jpg   diy "turbo no hit block" '00 BP miata-20150225_194513_zpsii0zpx1k.jpg   diy "turbo no hit block" '00 BP miata-20150225_194619_zps8w57vzwn.jpg
DNA54 is offline   Reply With Quote
Old 02-25-2015, 05:32 PM   #270
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

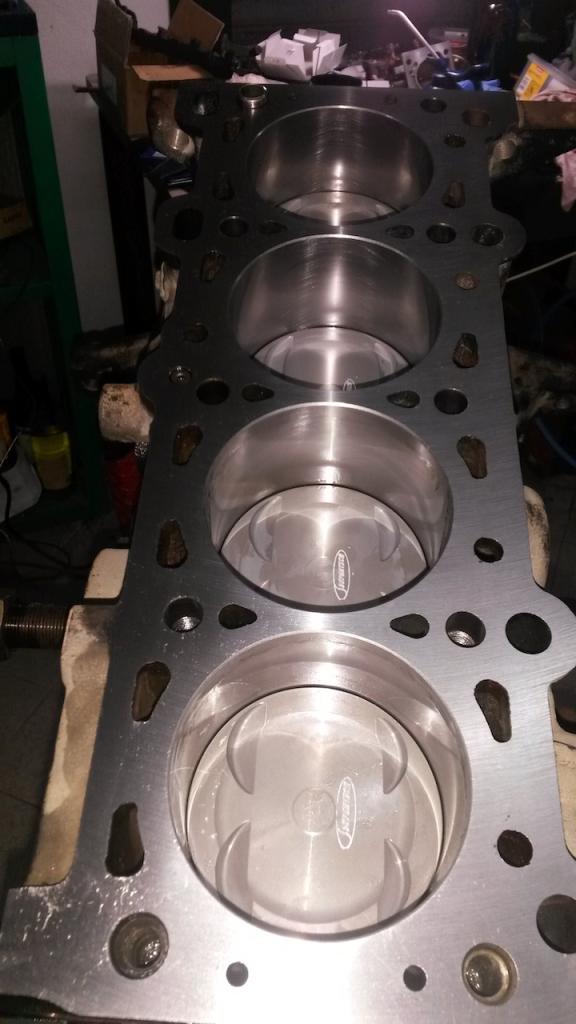

This evening I measured the engine specs

squish (head to piston clearance): 1.4mm
head gasket thickness: 1mm
compression ratio: 8.5:1 (8.6:1 supertech... fail!)
DNA54 is offline   Reply With Quote
Old 03-01-2015, 04:28 PM   #271
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

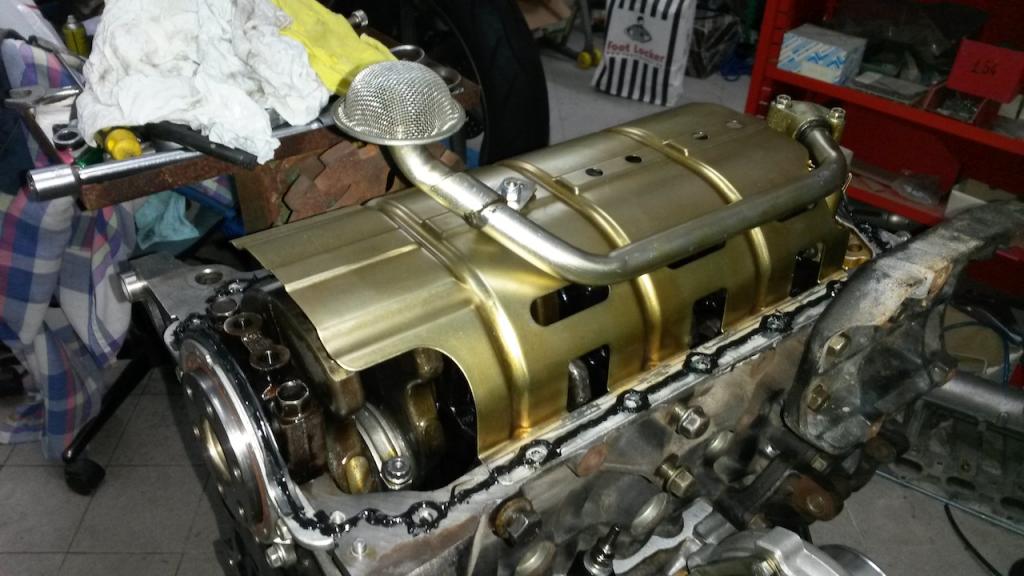

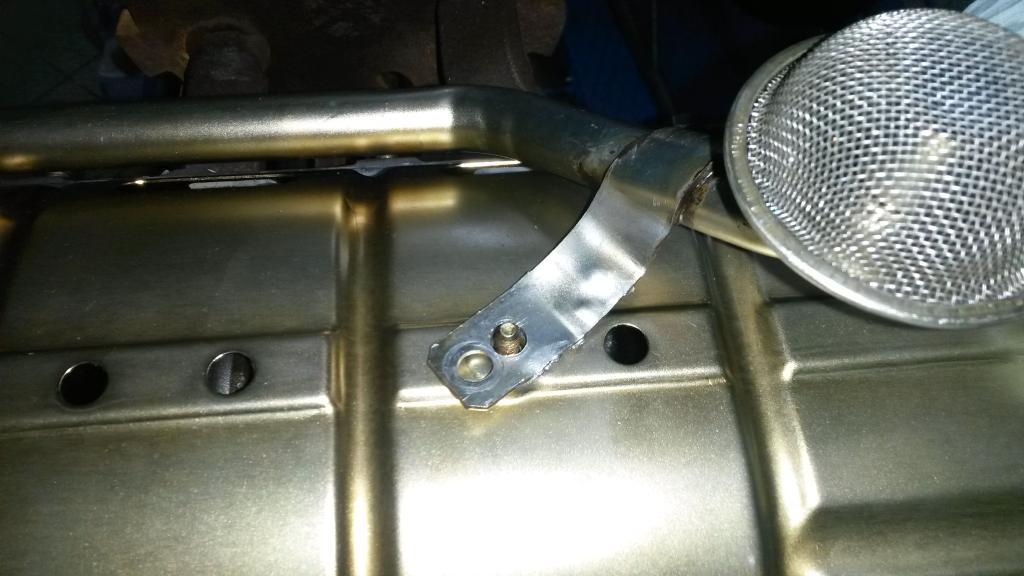

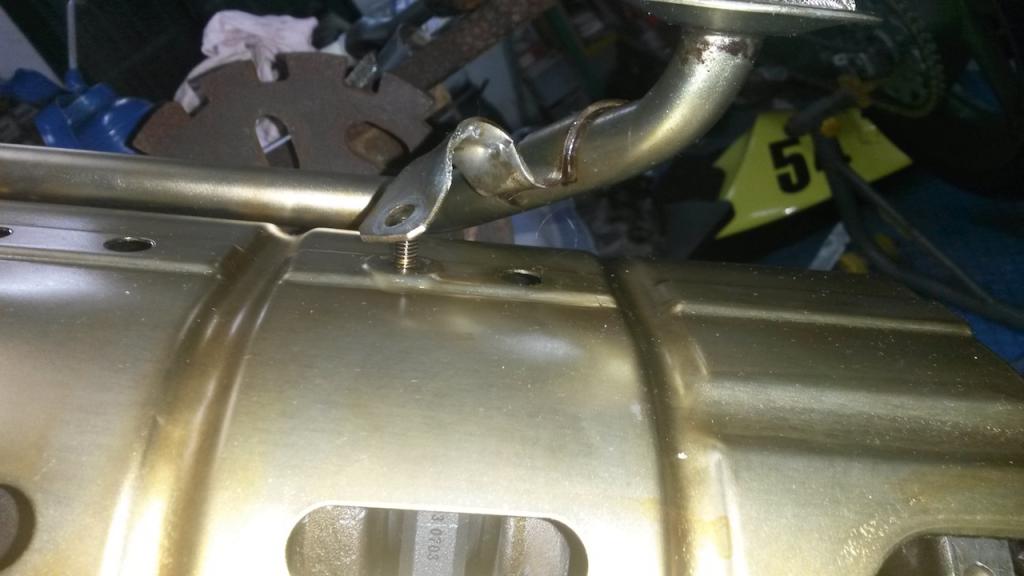

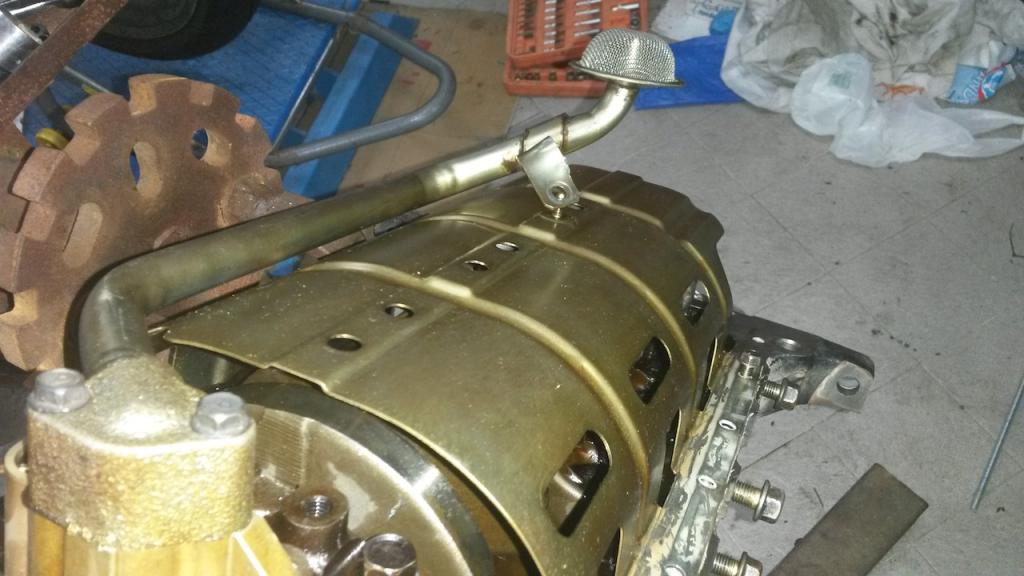

the strainer doesn't fit very well

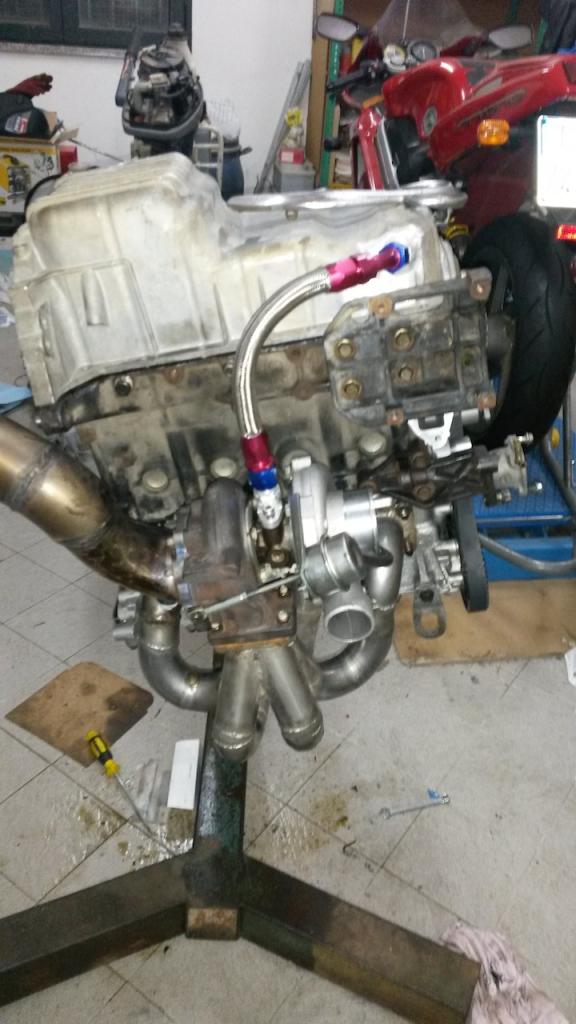

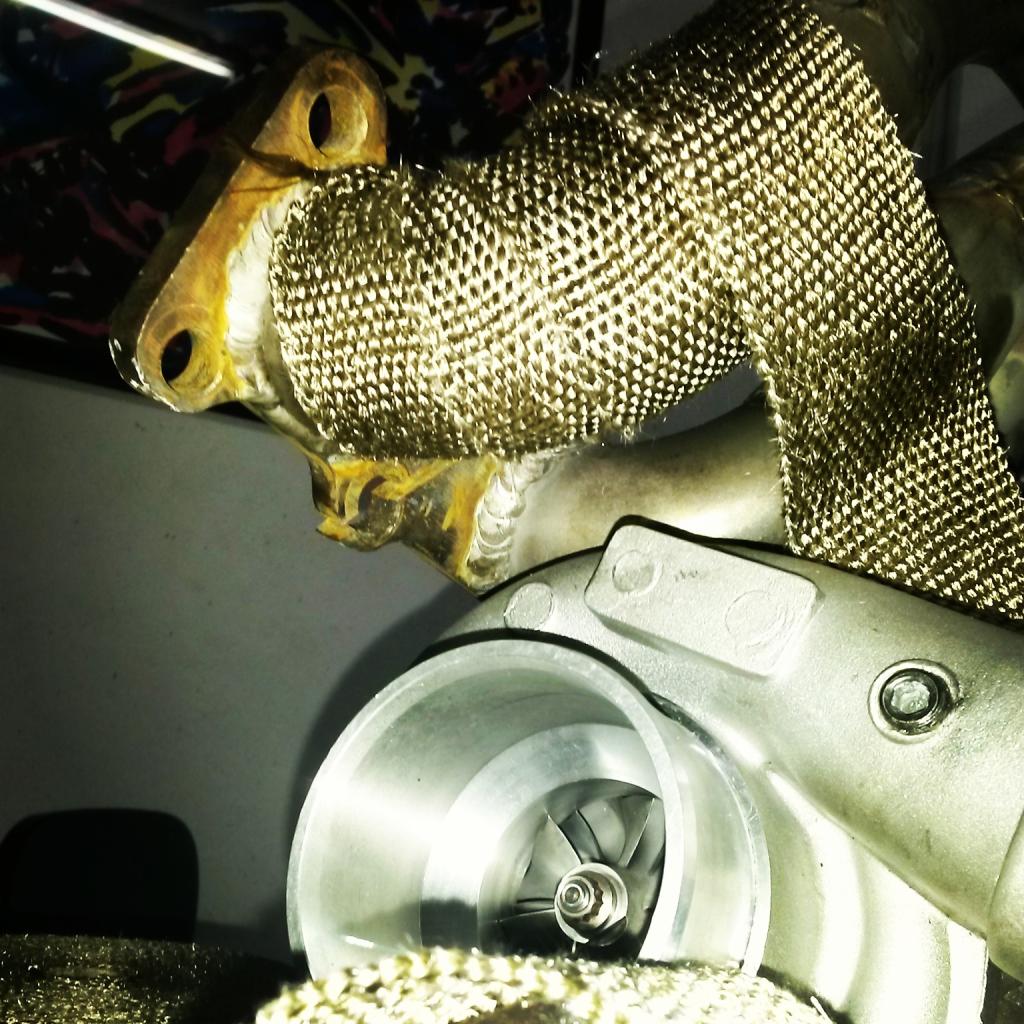

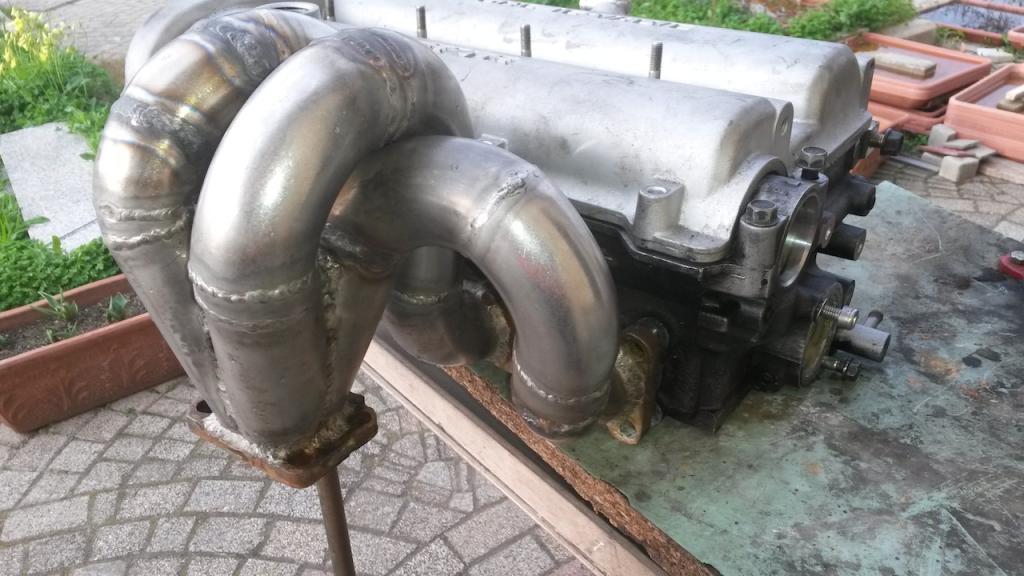

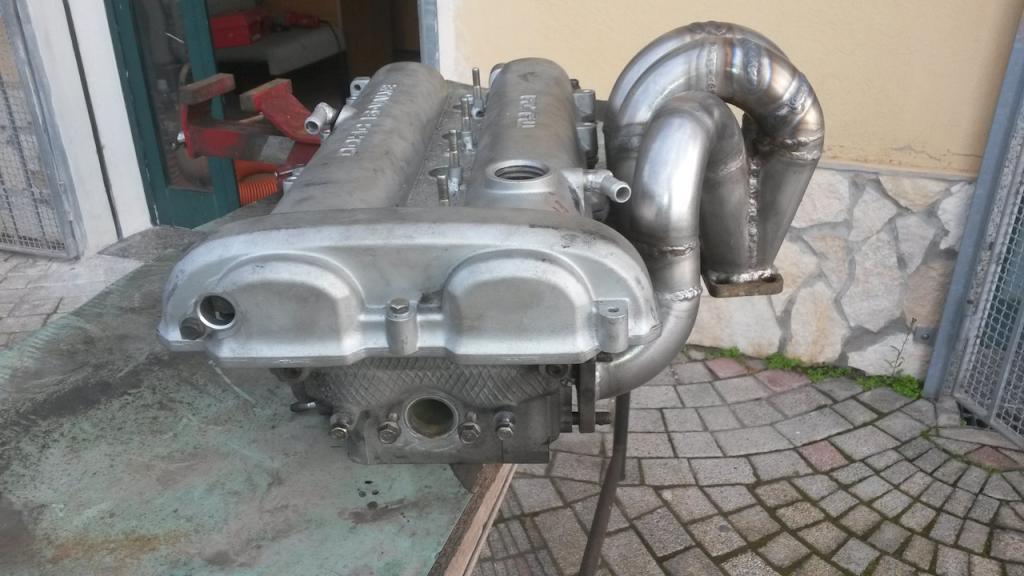

and: turbo not hit block v2.0







the magic of instangram

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150301_201900_zpsi8to00fo.jpg   diy "turbo no hit block" '00 BP miata-20150301_201915_zpsig1c2gke.jpg   diy "turbo no hit block" '00 BP miata-20150301_171558_zpsphzza8en.jpg   diy "turbo no hit block" '00 BP miata-20150301_171602_zps544jvgit.jpg   diy "turbo no hit block" '00 BP miata-20150301_171614_zpseixjk6ww.jpg

diy "turbo no hit block" '00 BP miata-img_20150226_214056_zpsfgaciado.jpg
DNA54 is offline   Reply With Quote
Old 03-01-2015, 06:12 PM   #272
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,115
Total Cats: 426
Default

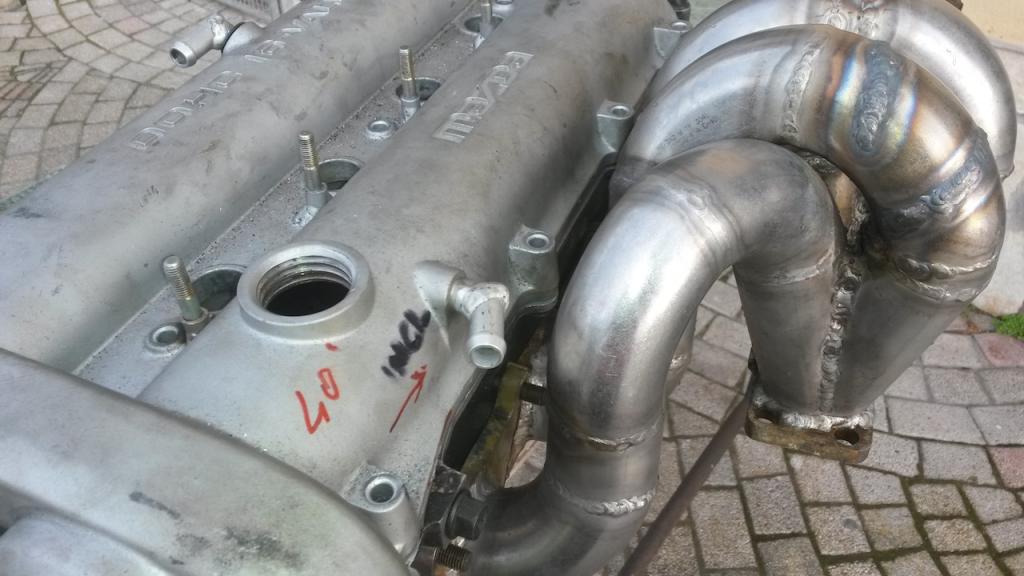

Pretty manifold. Did you make it?
turbofan is offline   Reply With Quote
Old 03-01-2015, 06:35 PM   #273
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by turbofan View Post
Pretty manifold. Did you make it?
yes, but it's an overkill for my build.
also the diameter is too big, 48mm
diy "turbo no hit block" '00 BP miata
hope it works!
DNA54 is offline   Reply With Quote
Old 03-02-2015, 12:53 PM   #274
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

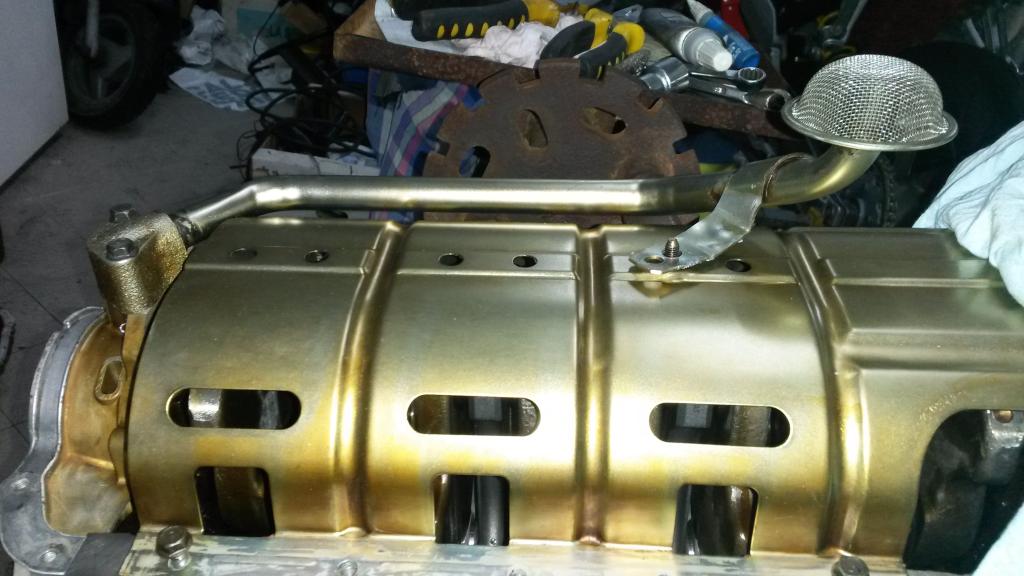

problem==> solved.





priscilla, in one of her best poses

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img-20150302-wa0000_zpsnhpifmgb.jpeg   diy "turbo no hit block" '00 BP miata-img-20150302-wa0002_zpsued0hi2u.jpeg   diy "turbo no hit block" '00 BP miata-20150302_152500_zpsbrueofcm.jpg
DNA54 is offline   Reply With Quote
Old 03-04-2015, 01:54 PM   #275
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

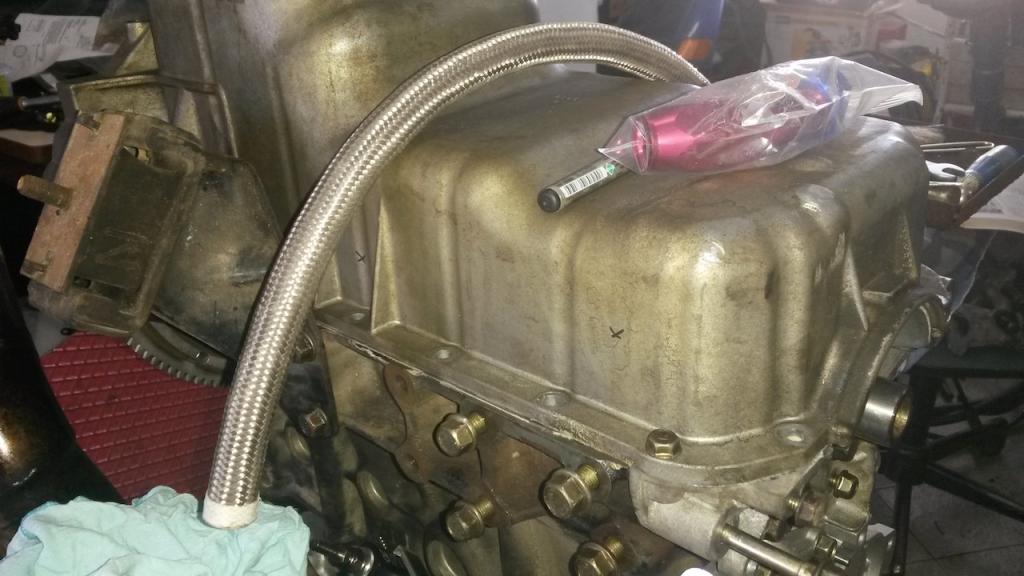

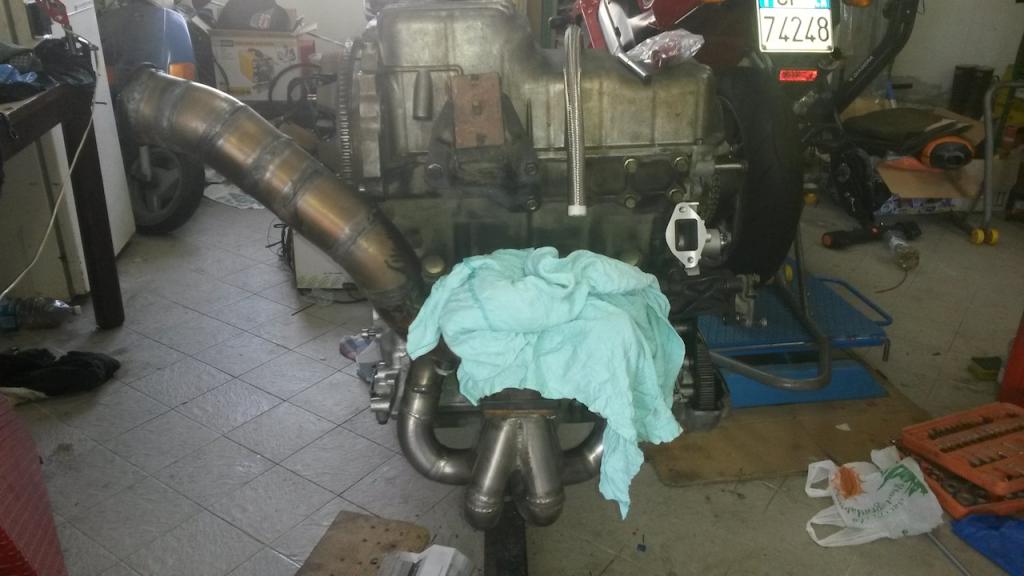

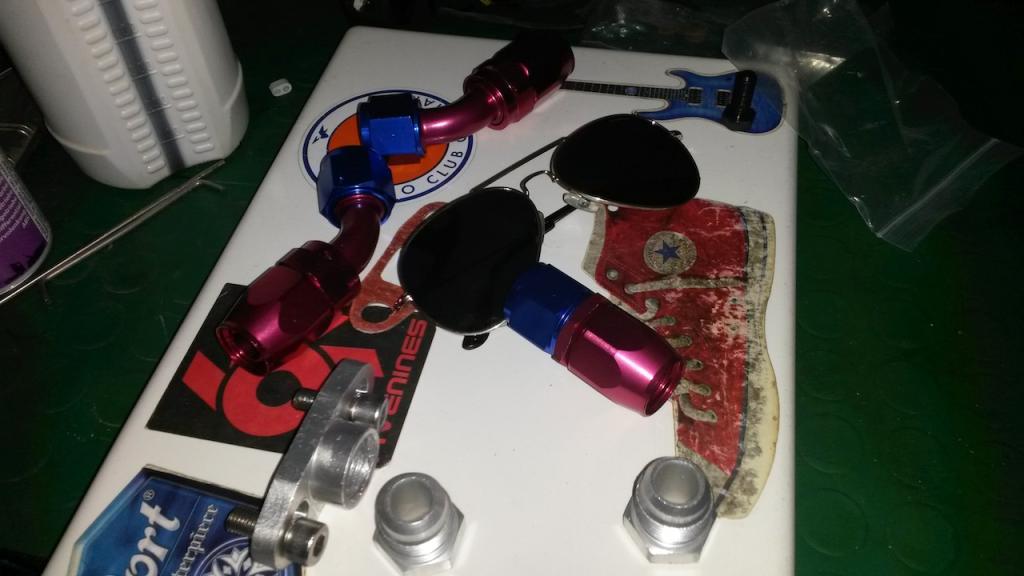

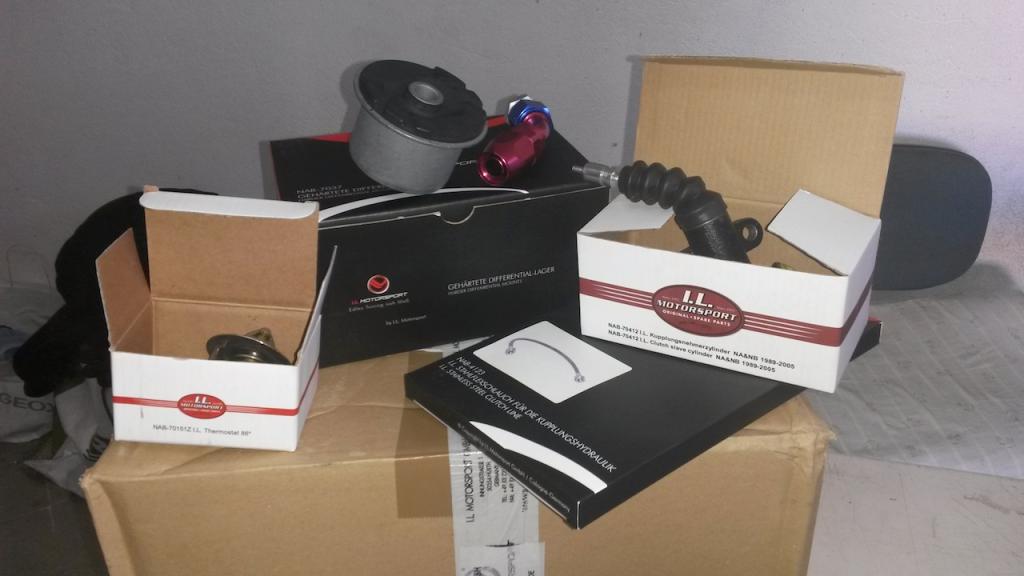

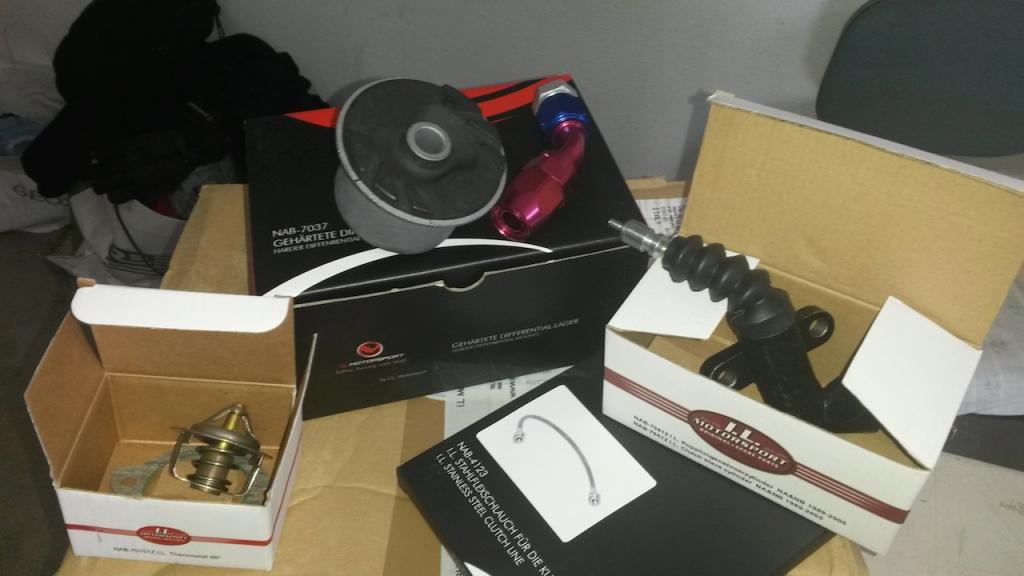

stuff arrived:

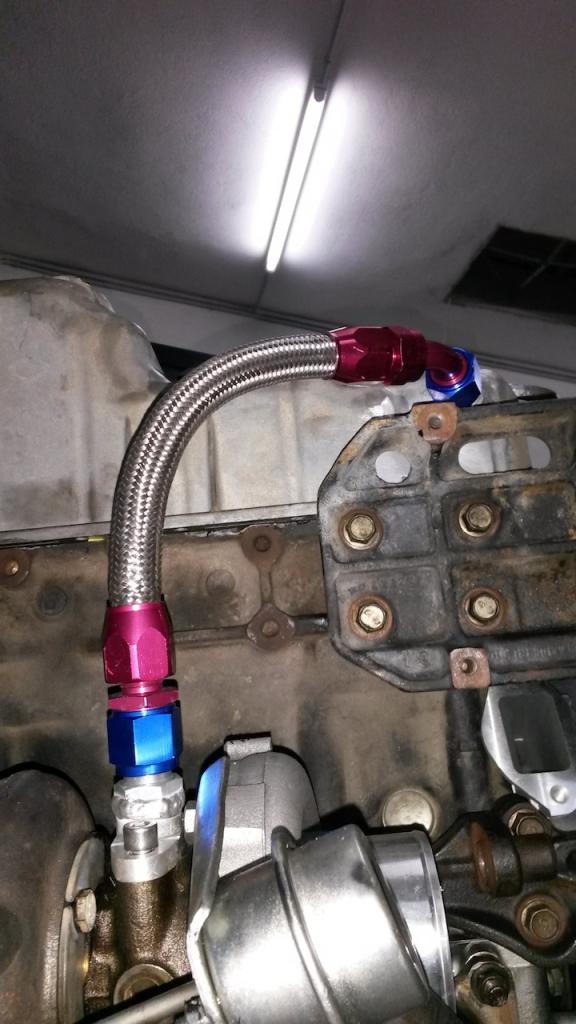

-an 10 return line



stiffer differential mounts, slave, 88C thermostat, stainless clutch line





and: the reason of the fact that I'm still with the engine on the stand

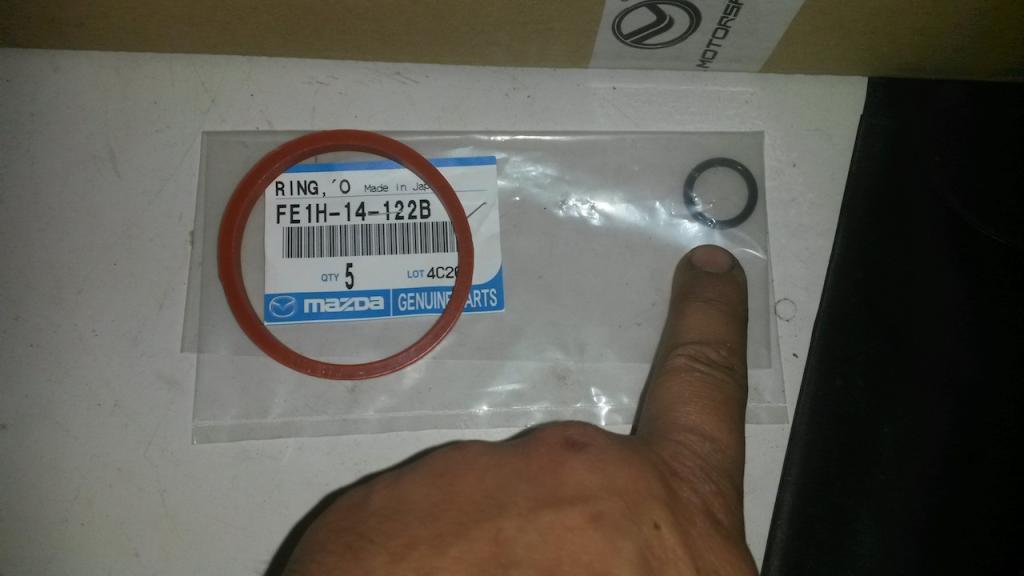

oil pump o-ring

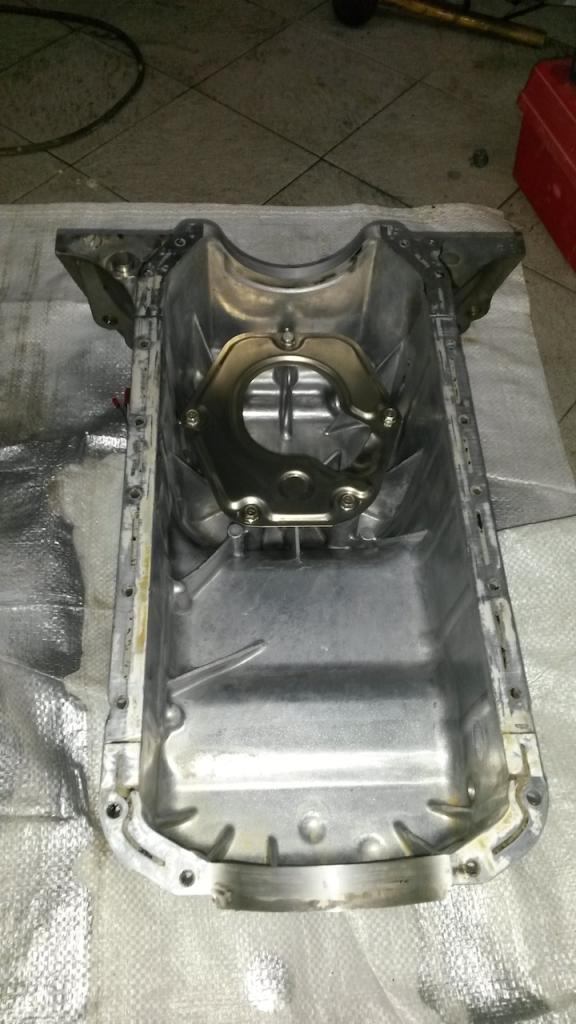

The oil pan is currently at the machine shop to weld the an-10 bung




a little bit less of the right cross



Tomorrow (I hope that) I can put the engine back in
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150303_212926_zpshtegtpk1.jpg   diy "turbo no hit block" '00 BP miata-20150304_114112_zpsvmoptyyq.jpg   diy "turbo no hit block" '00 BP miata-20150304_114117_zpsqk7fupec.jpg   diy "turbo no hit block" '00 BP miata-20150304_114133_zps8ptbc1hz.jpg   diy "turbo no hit block" '00 BP miata-20150304_114359_zpst4deo3j4.jpg

diy "turbo no hit block" '00 BP miata-20150304_114406_zps9iwamxb6.jpg
DNA54 is offline   Reply With Quote
Old 03-04-2015, 03:55 PM   #276
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

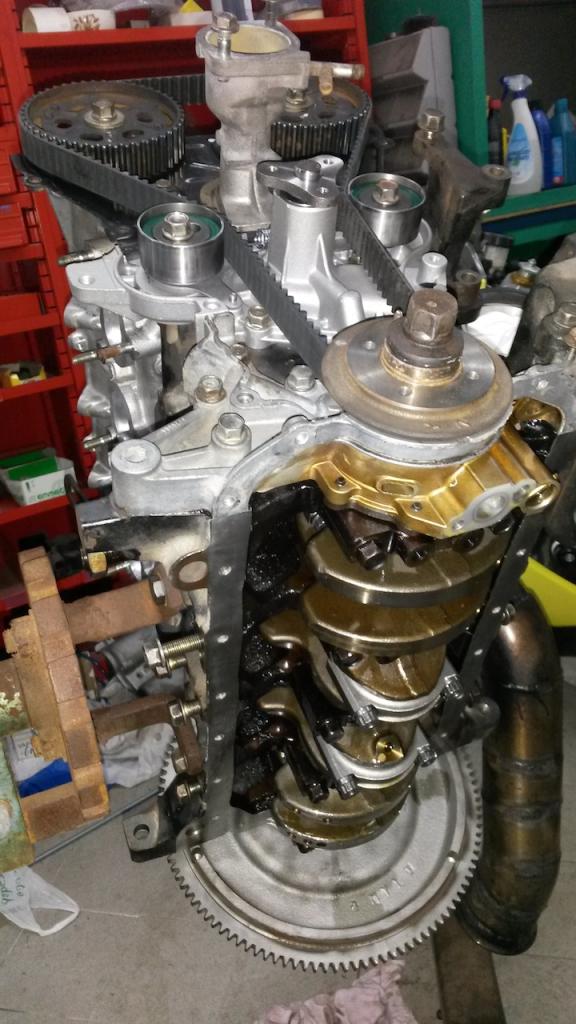

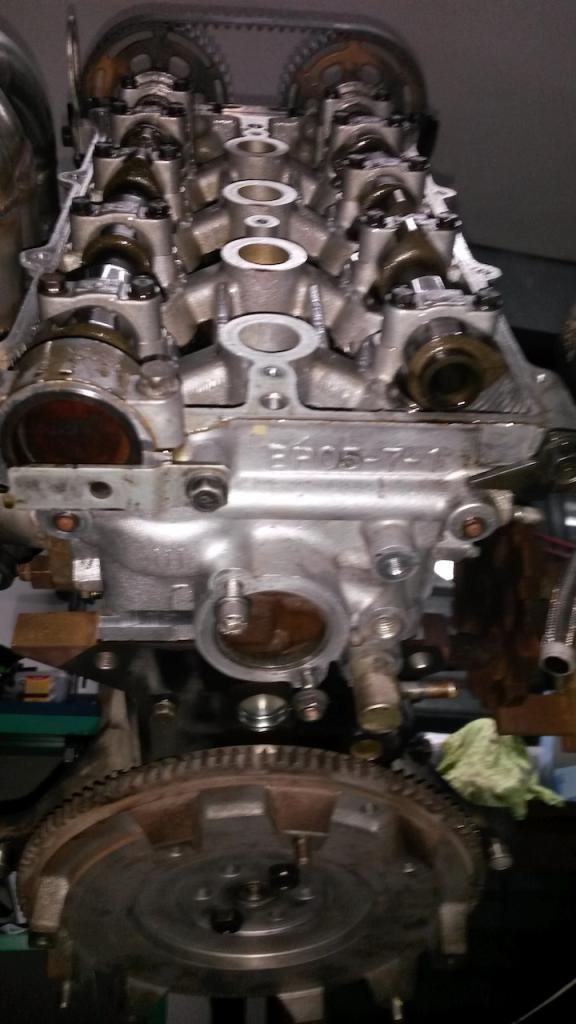

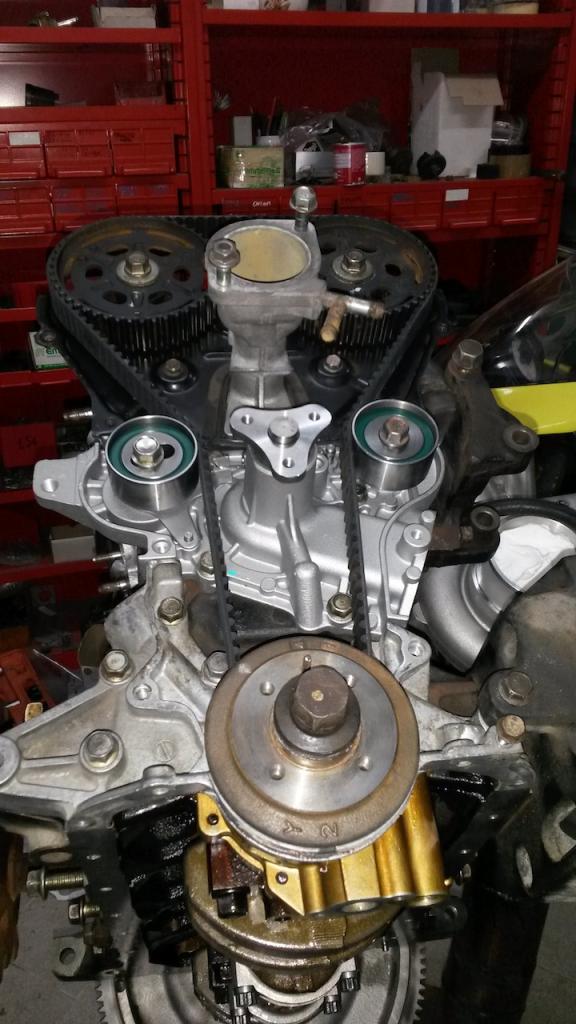

timing belt





Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150304_214000_zpsqosk3gf5.jpg   diy "turbo no hit block" '00 BP miata-20150304_214009_zpssujdhfrv.jpg   diy "turbo no hit block" '00 BP miata-20150304_214034_zpsahcoaqcg.jpg
DNA54 is offline   Reply With Quote
Old 03-05-2015, 04:46 PM   #277
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

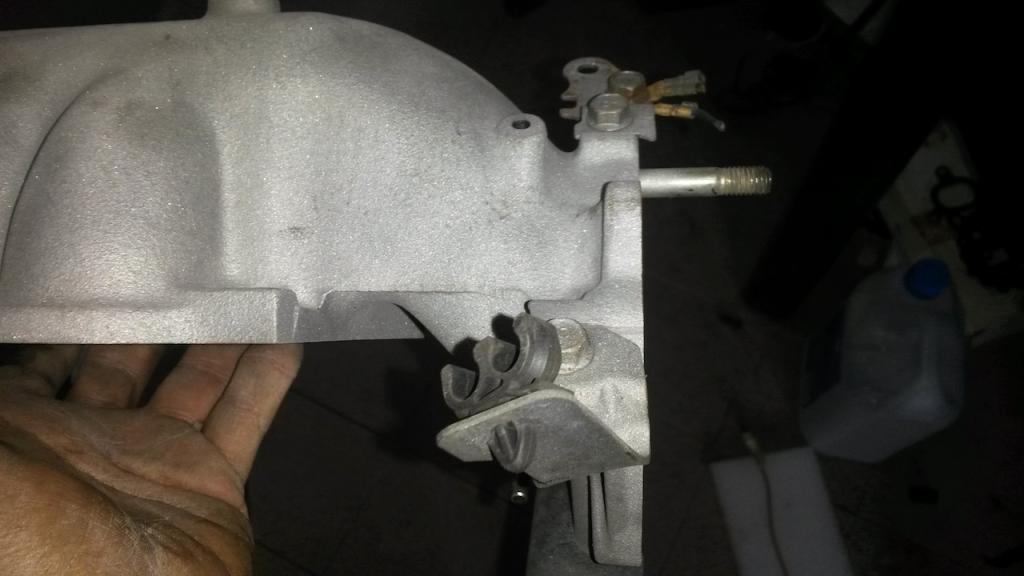

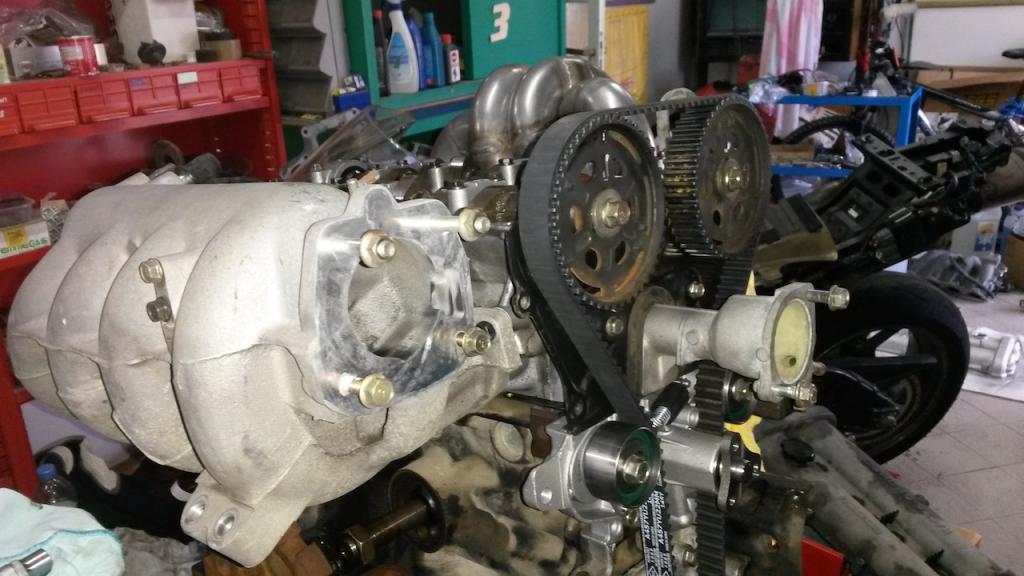

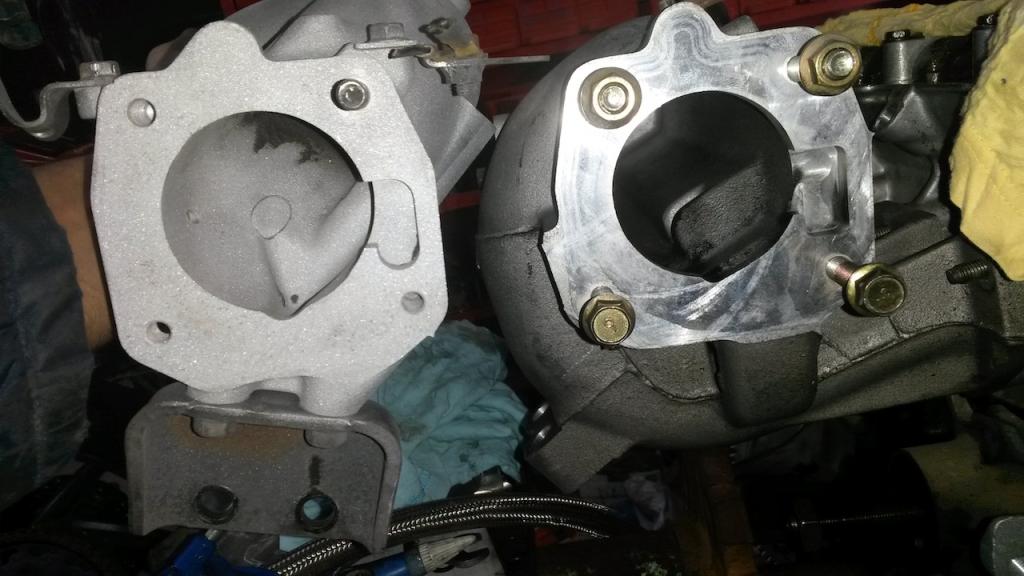

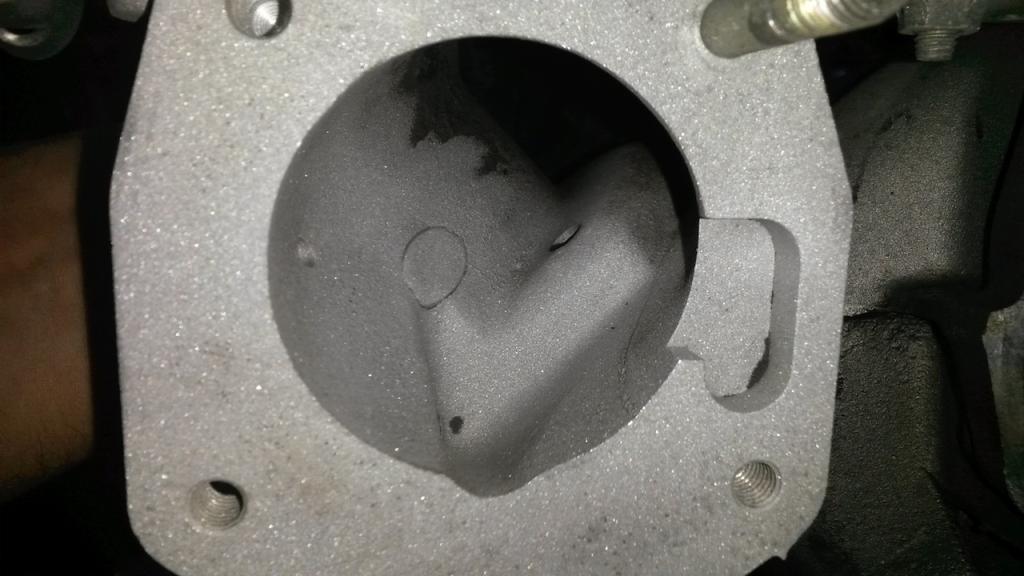

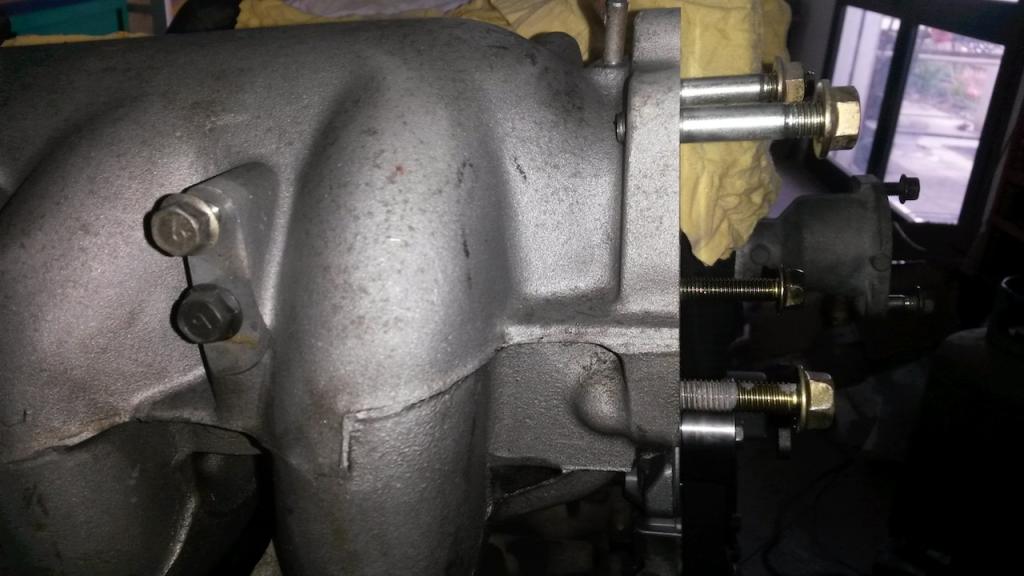

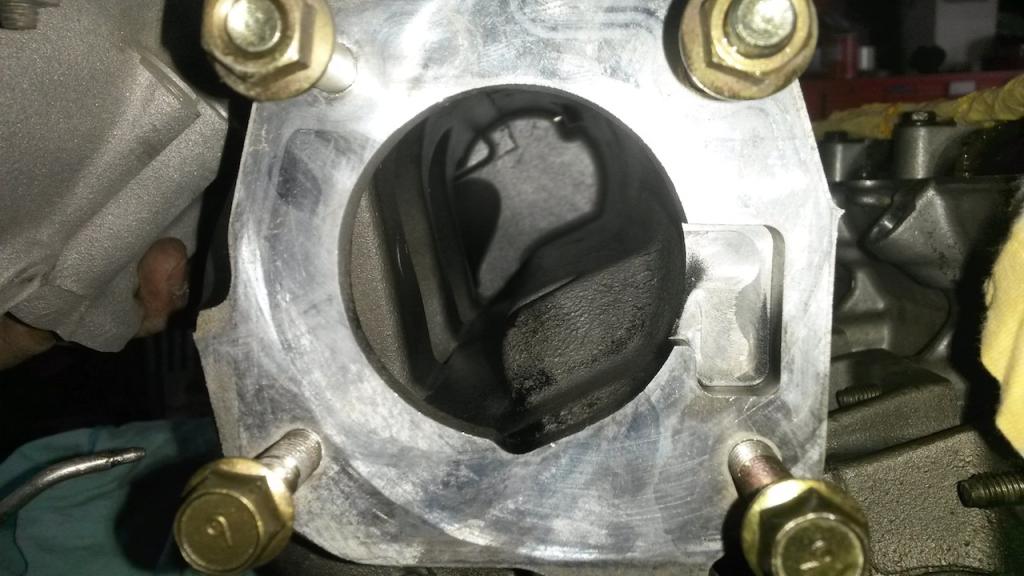

BP-4W vs BP-05













I like it!

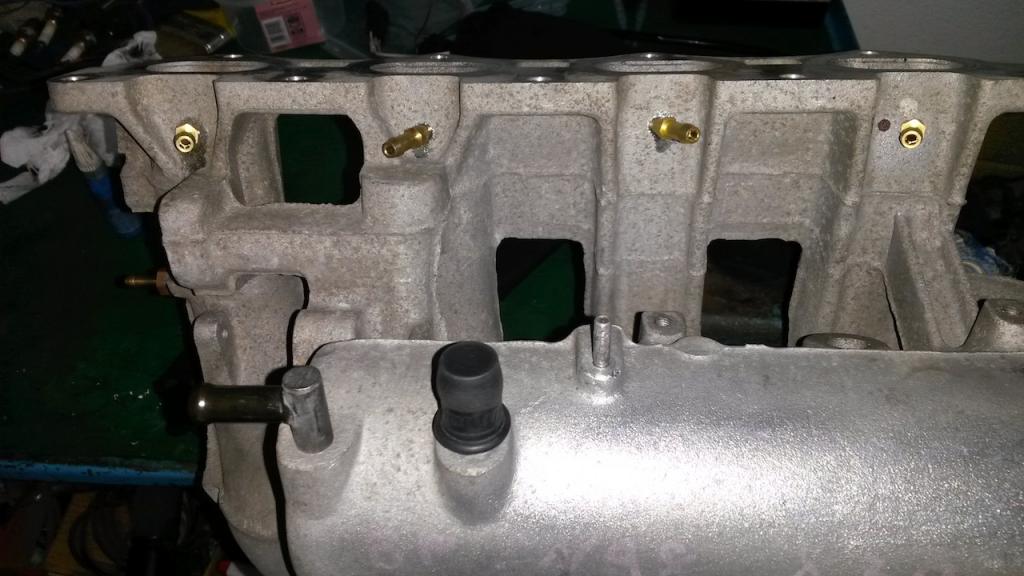

prepping for lpg injectors bungs



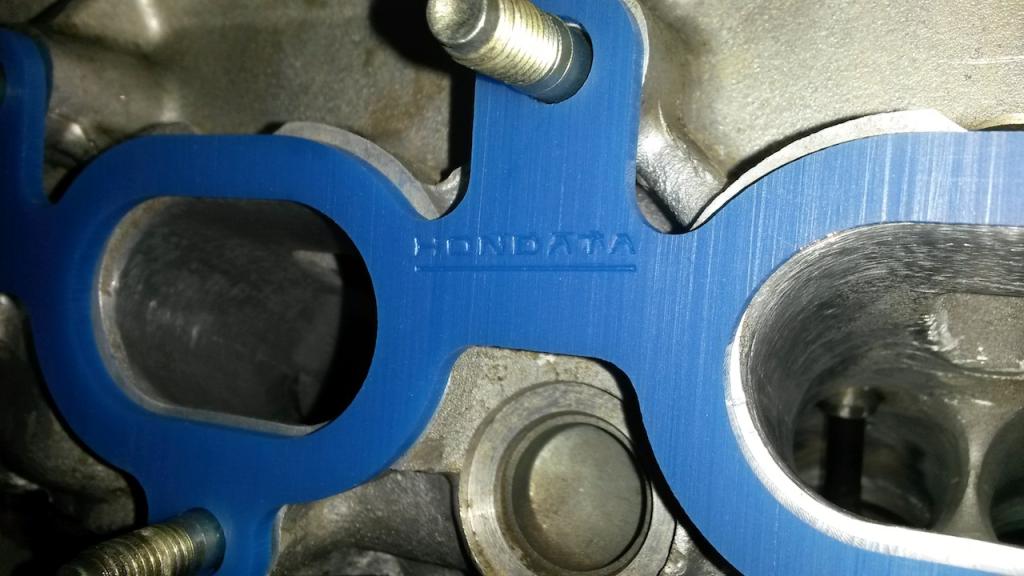

voila

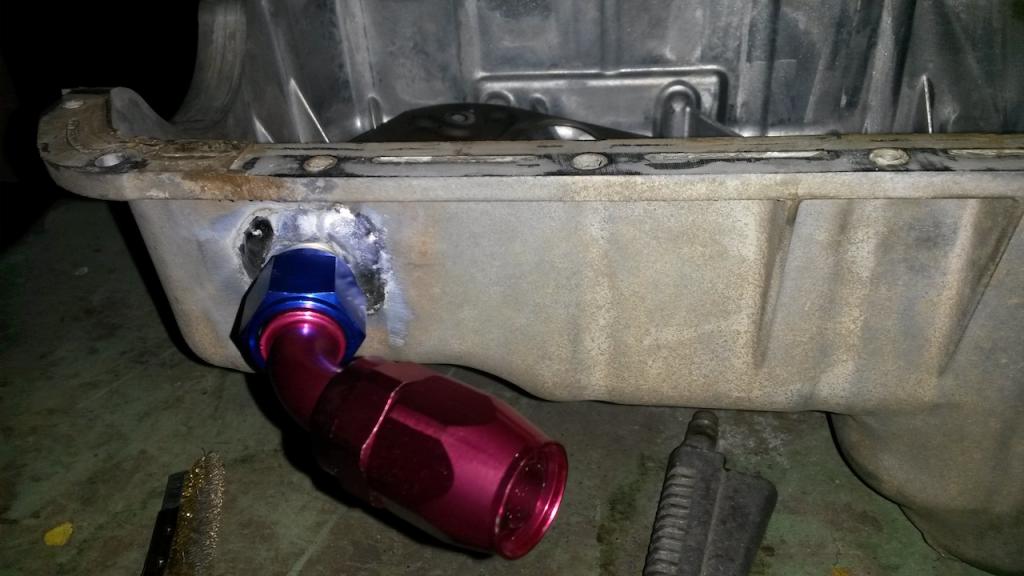

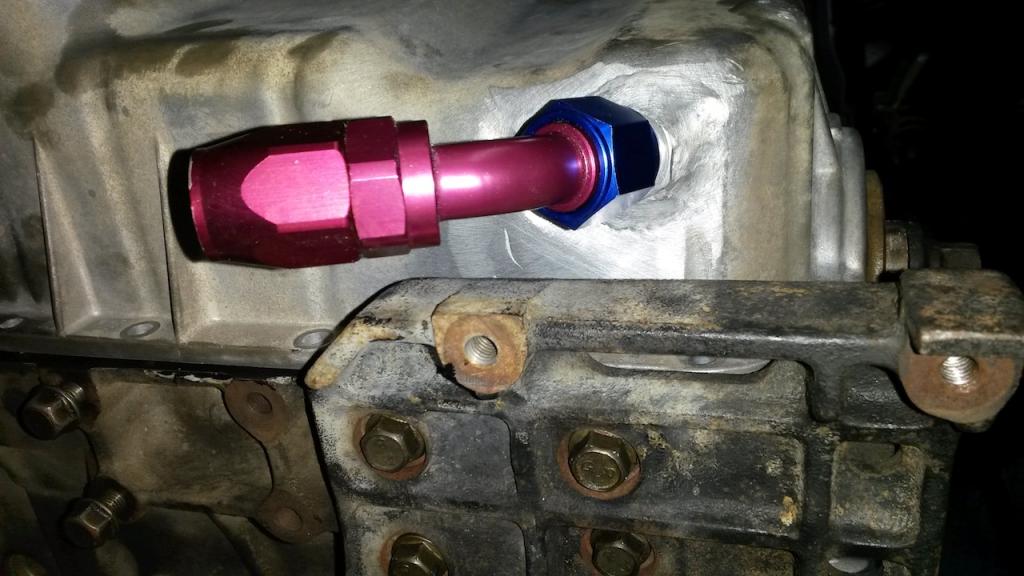

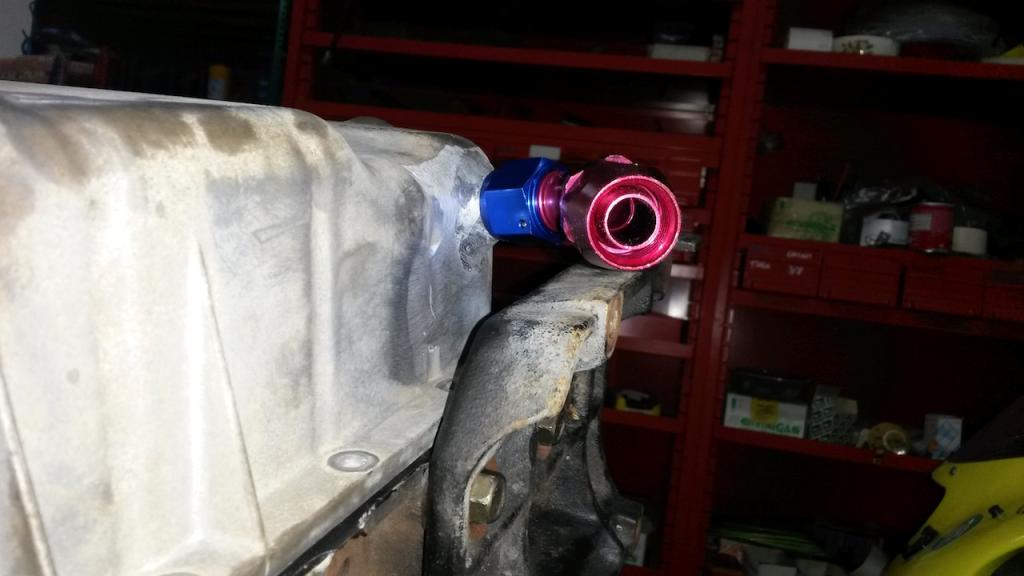

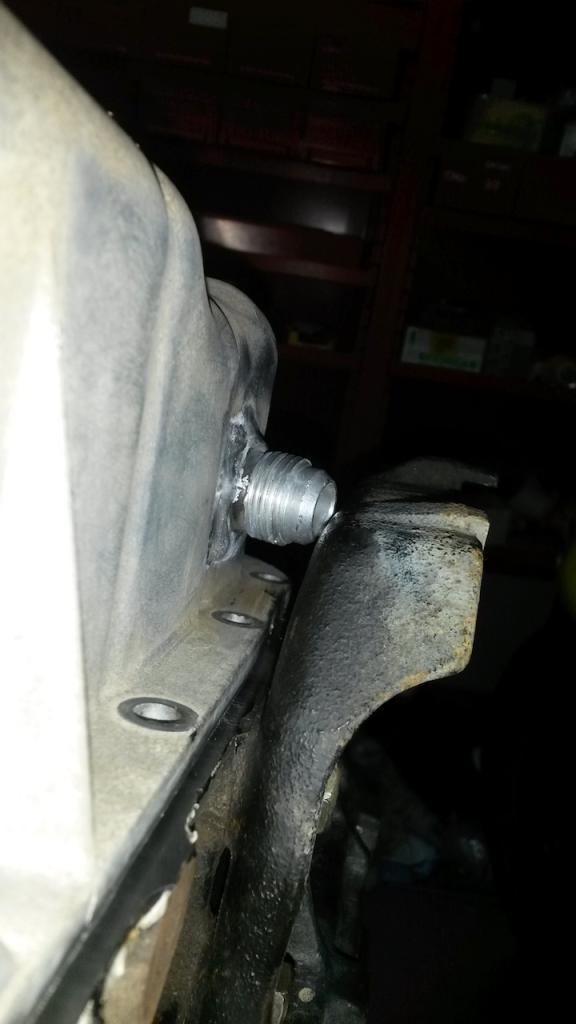

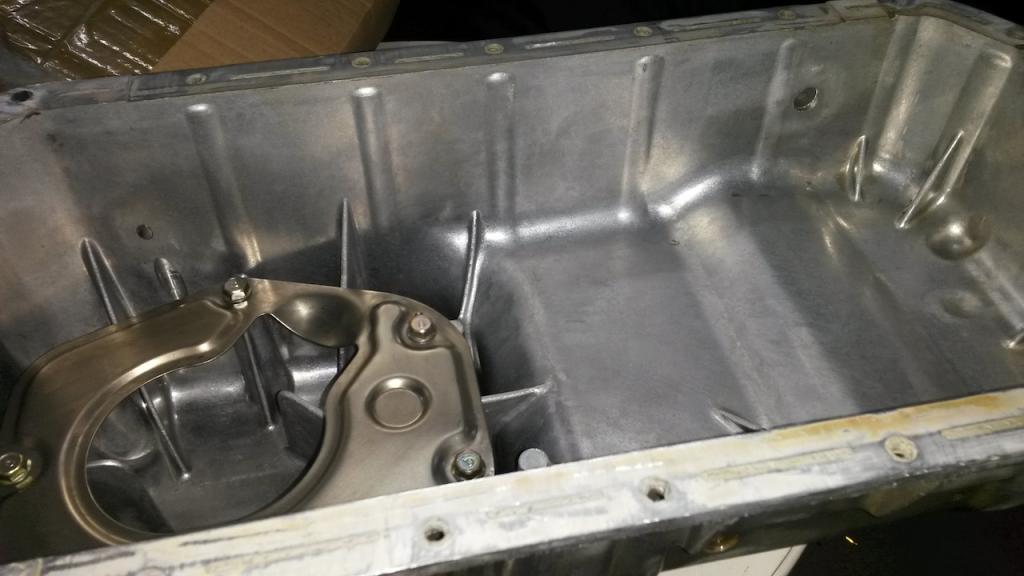

return bung





and... surprise



wrong height
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150305_145858_zpssuhtom4e.jpg   diy "turbo no hit block" '00 BP miata-20150305_145904_zps1589syrq.jpg   diy "turbo no hit block" '00 BP miata-20150305_145909_zpszcqvlynx.jpg   diy "turbo no hit block" '00 BP miata-20150305_145919_zps8qftw2pj.jpg   diy "turbo no hit block" '00 BP miata-20150305_145929_zpshv9wrc7w.jpg

diy "turbo no hit block" '00 BP miata-20150305_171524_zpsjz1eld3b.jpg   diy "turbo no hit block" '00 BP miata-20150305_193753_zpstjgx9oih.jpg   diy "turbo no hit block" '00 BP miata-20150305_195124_zps8ay3yjqx.jpg   diy "turbo no hit block" '00 BP miata-20150305_195325_zpslrgy9nuo.jpg   diy "turbo no hit block" '00 BP miata-20150305_203940_zpsi8yshn2o.jpg

diy "turbo no hit block" '00 BP miata-20150305_213241_zpsij6sfrgc.jpg
DNA54 is offline   Reply With Quote
Old 03-07-2015, 05:55 PM   #278
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

DNA54 is offline   Reply With Quote
Old 03-08-2015, 04:52 AM   #279
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

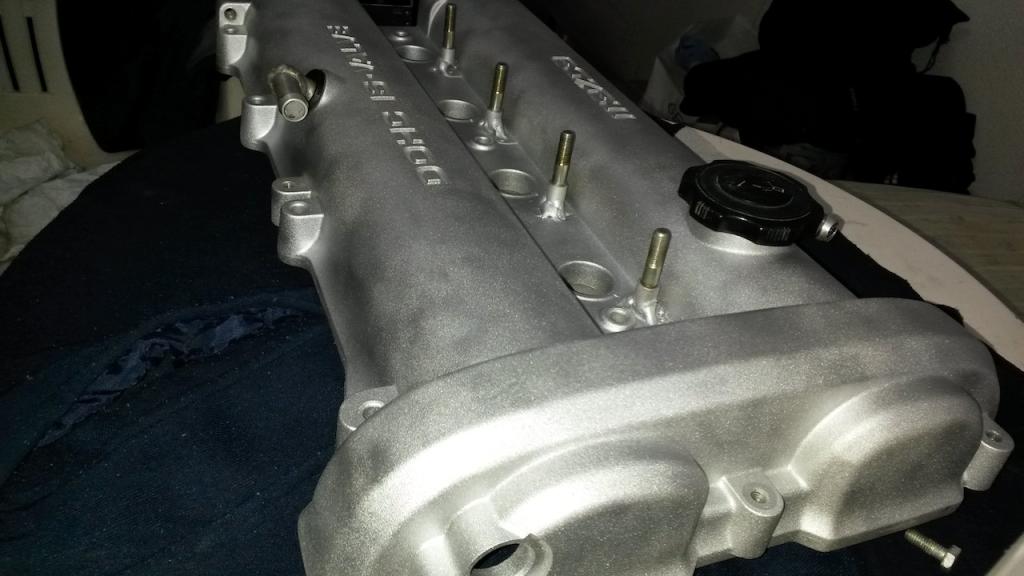

pics uploaded

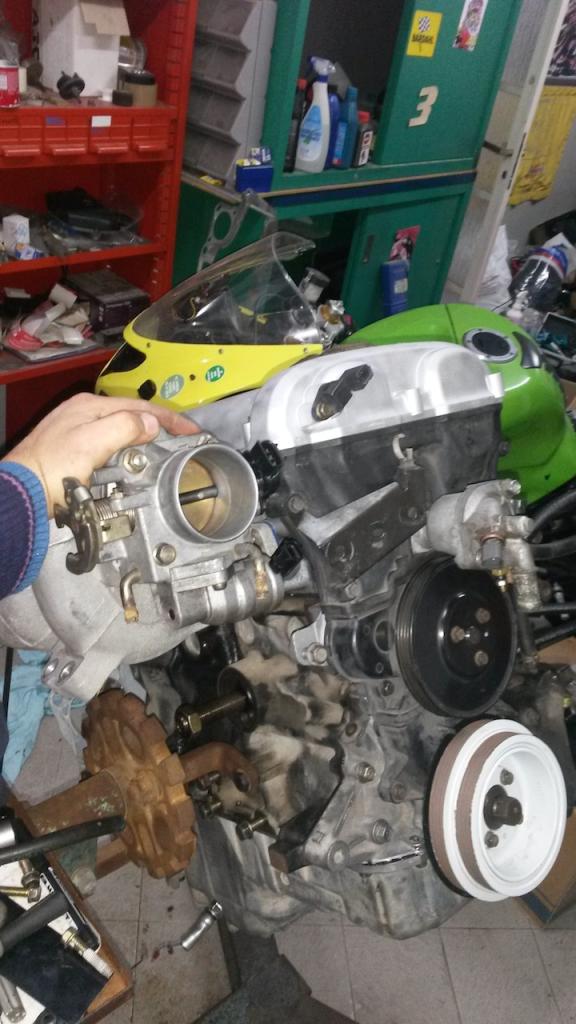

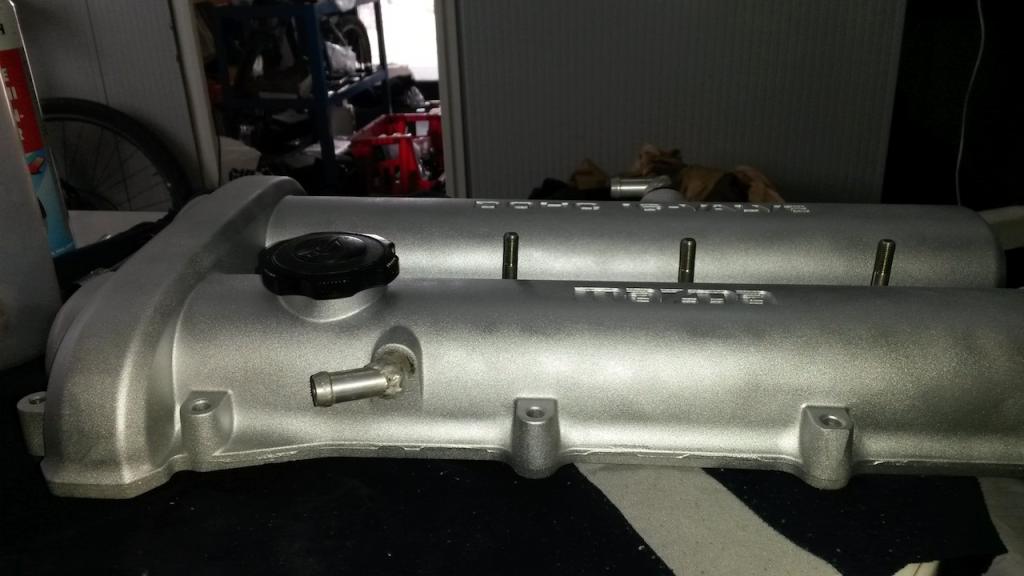

new position

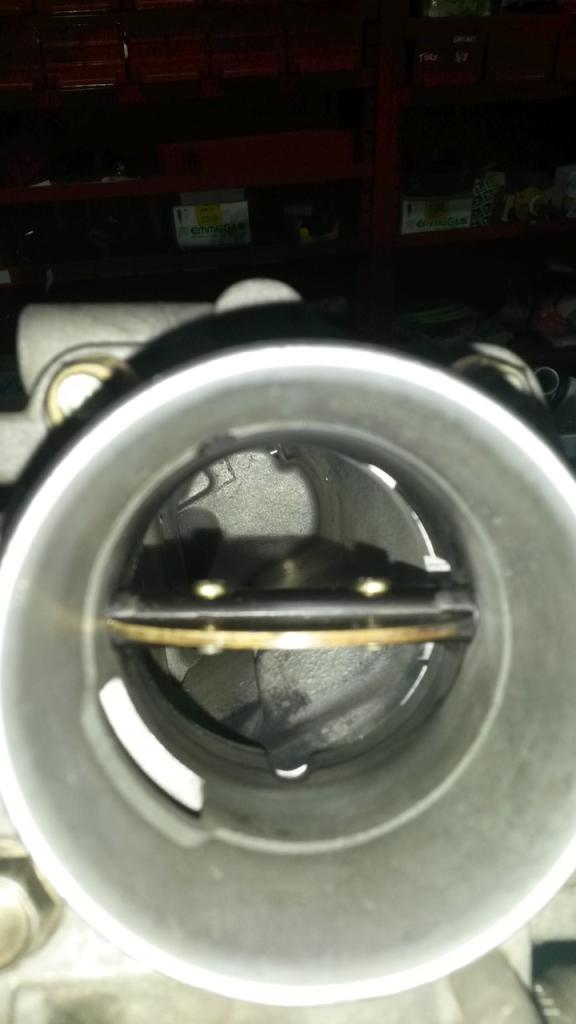

last time we can see inside (hoping that the inside woud not come out as the last time)

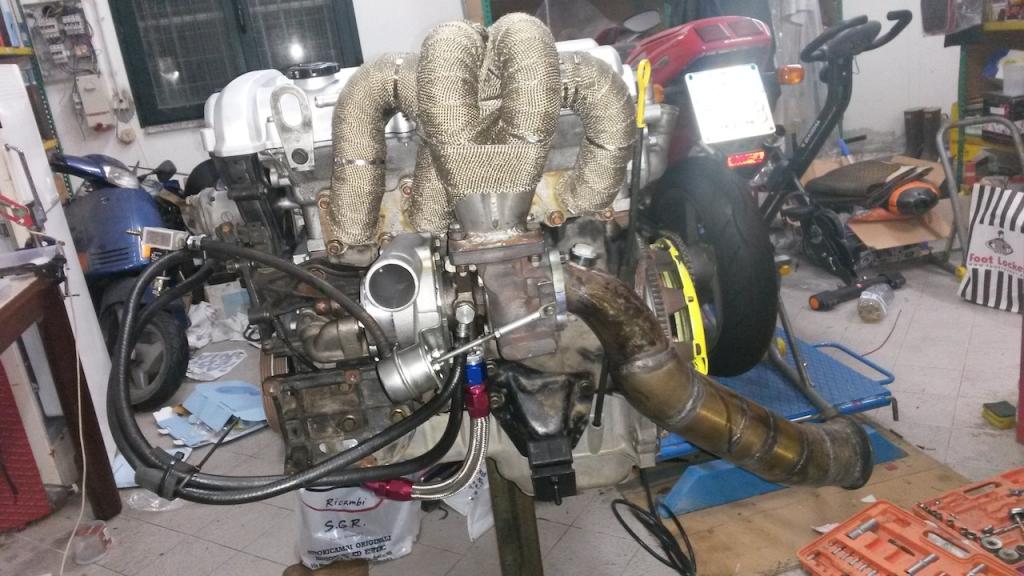

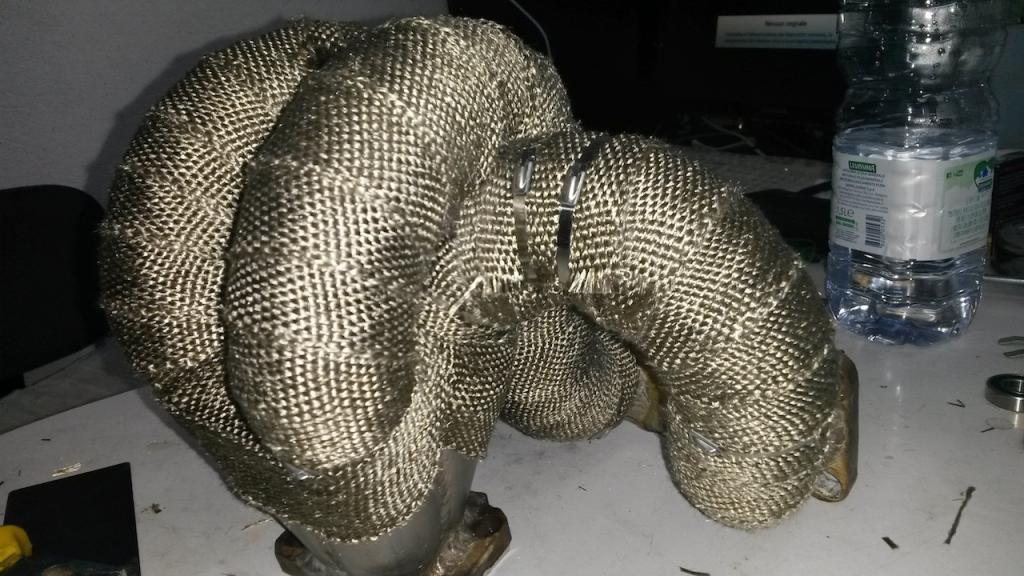

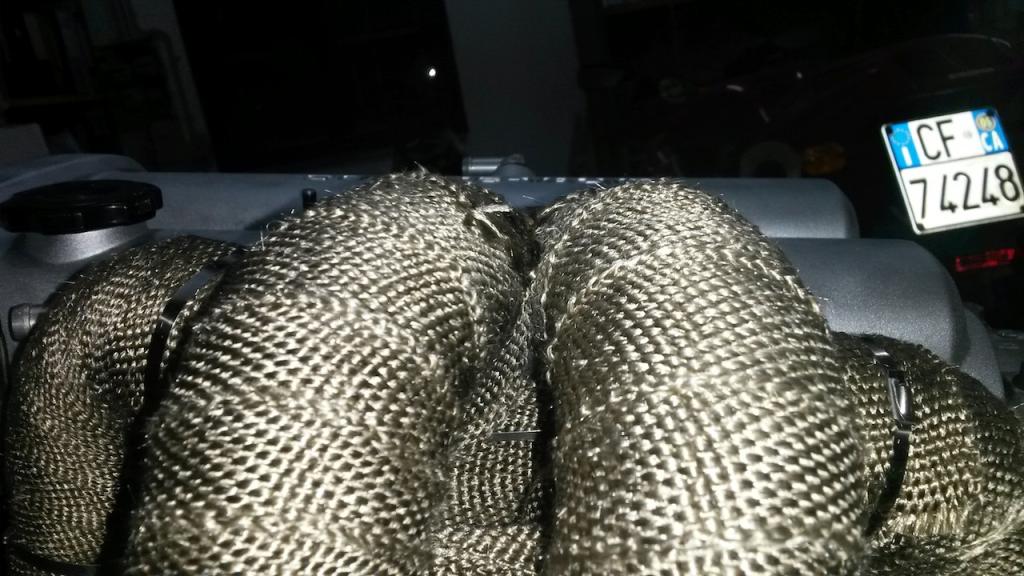

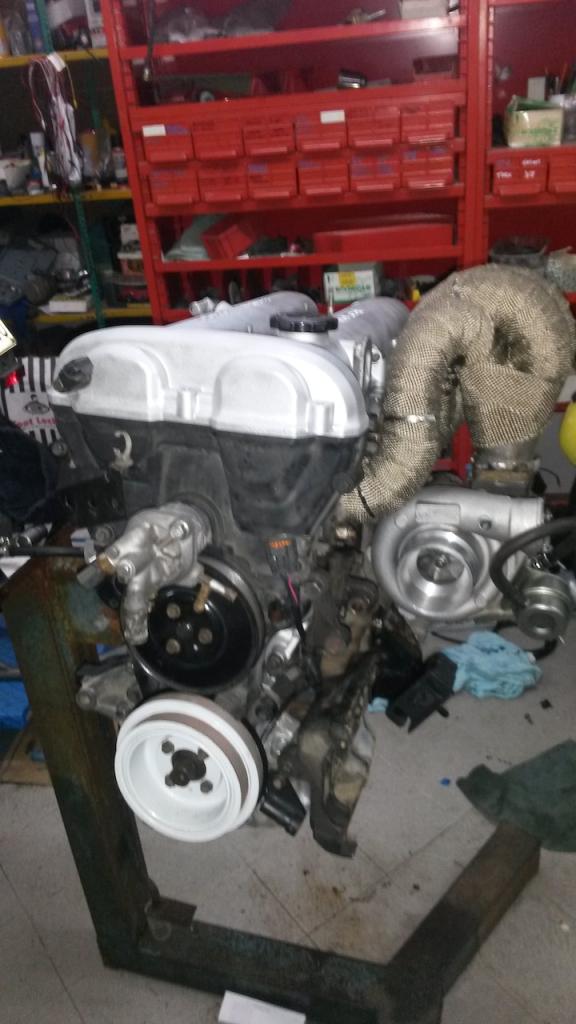

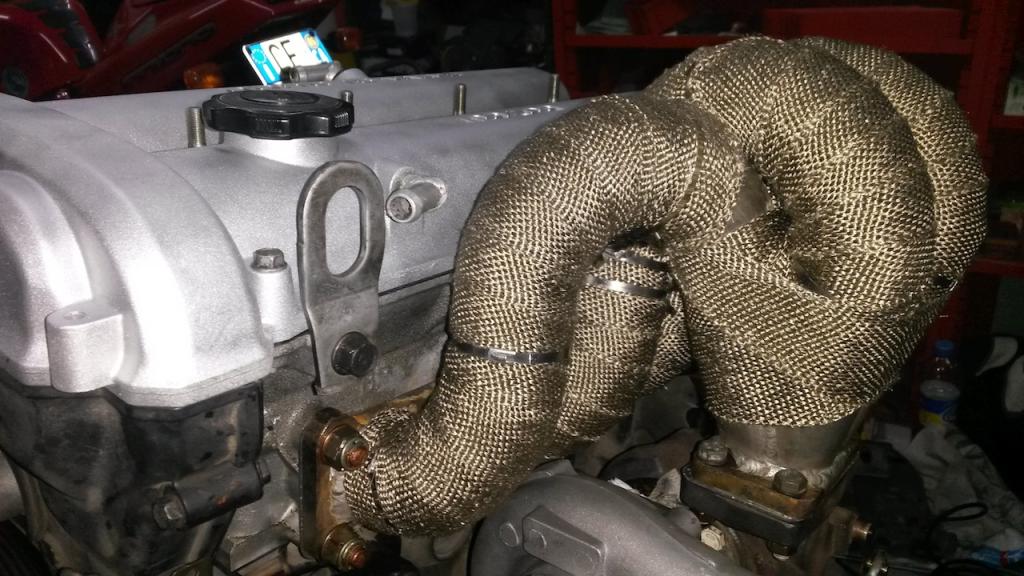

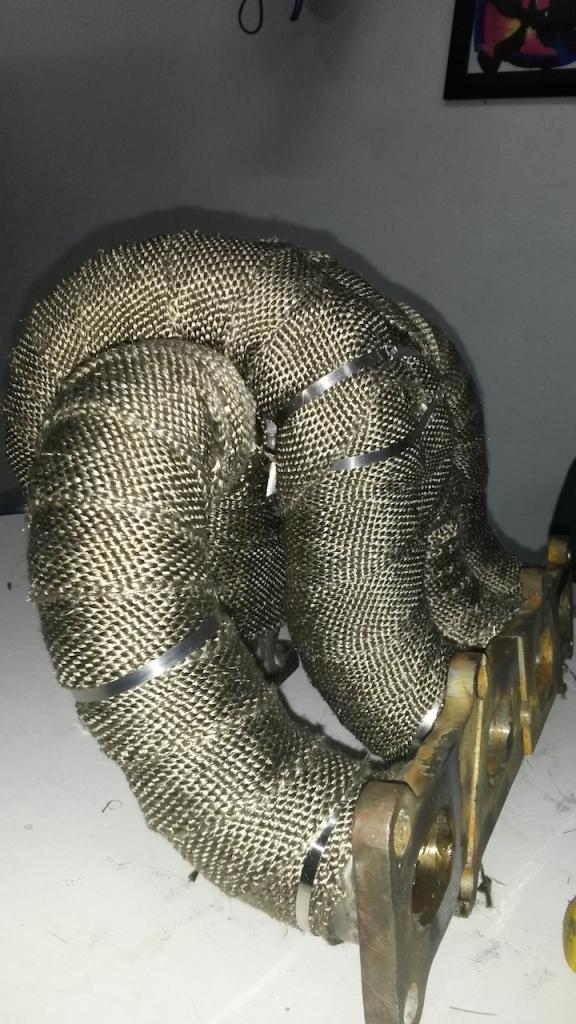

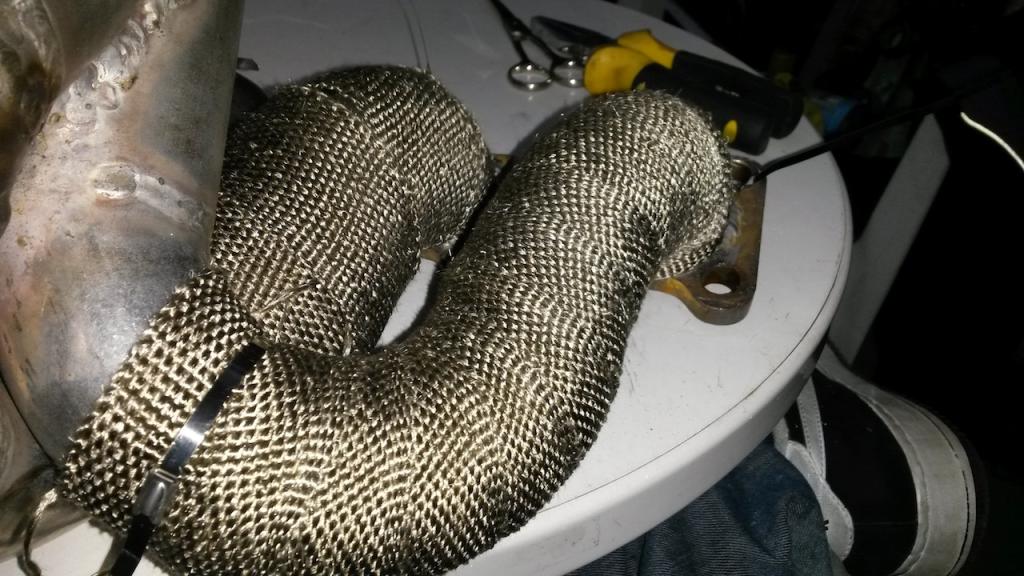

wrapped manifold -what a pita-

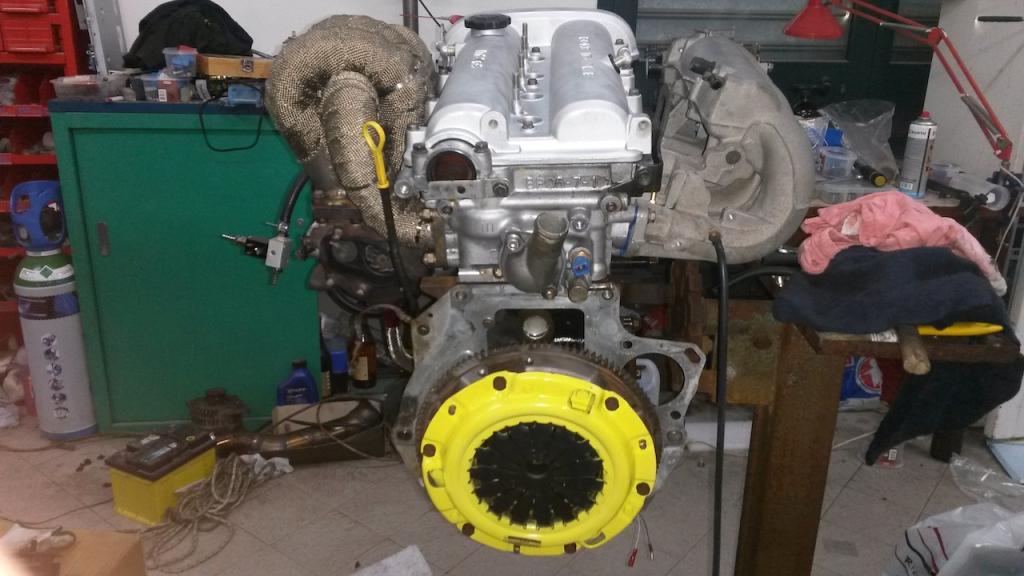

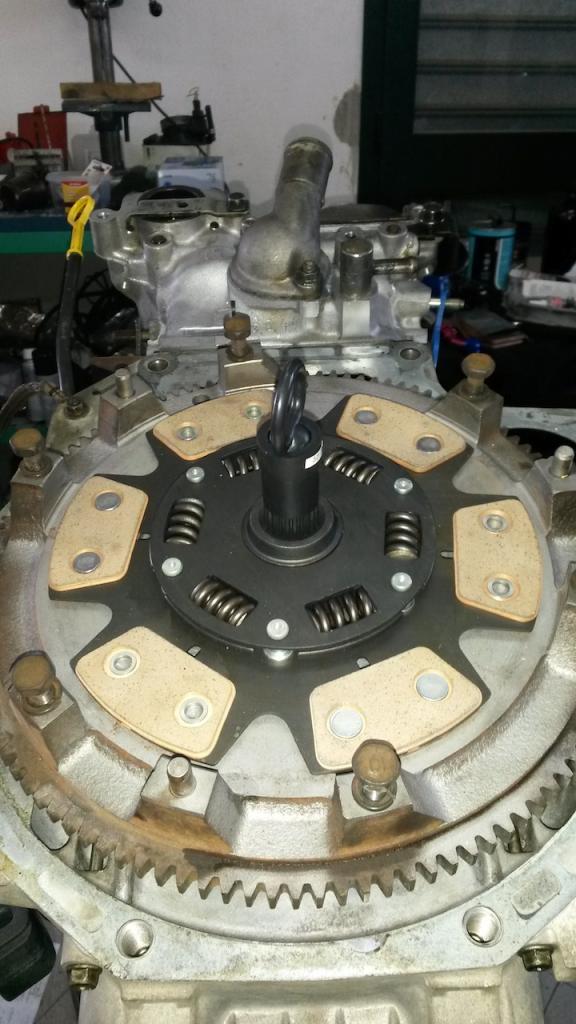

clutch in

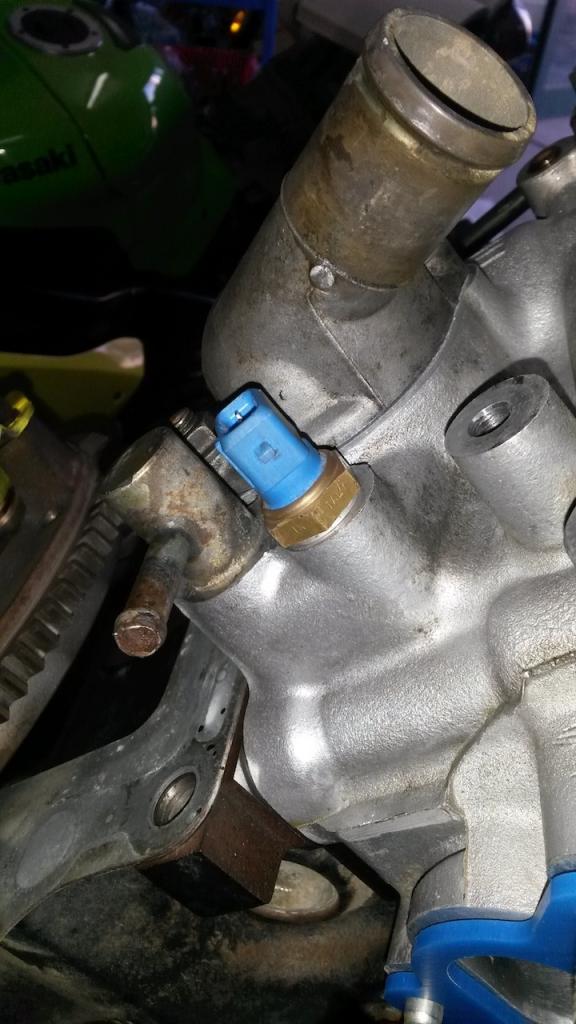

second water temp sensor inside the head (faster response that the previous one)

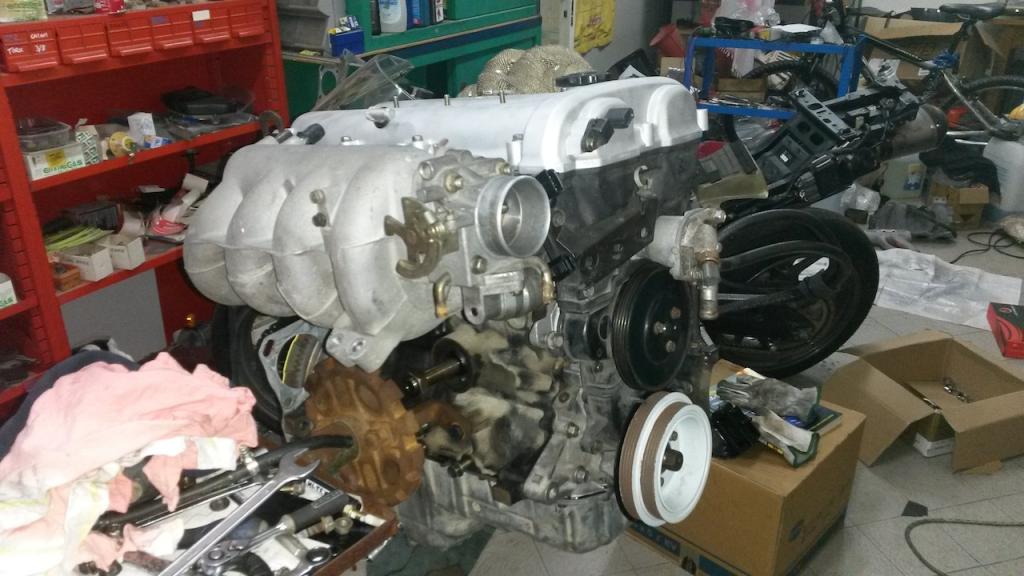

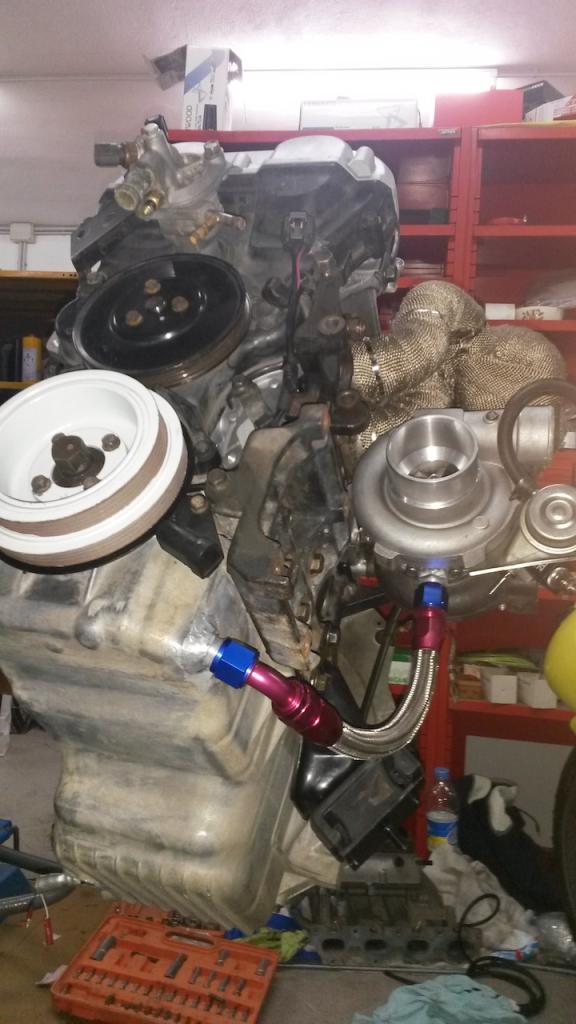

ready!!









Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150306_122600_zpsd16bhaij.jpg   diy "turbo no hit block" '00 BP miata-20150306_122611_zpsp83kskyc.jpg   diy "turbo no hit block" '00 BP miata-20150306_184726_zpsndpvdyhu.jpg   diy "turbo no hit block" '00 BP miata-20150306_184734_zpsy6bbx2v3.jpg   diy "turbo no hit block" '00 BP miata-20150306_185619_zpsaqtxddrg.jpg

diy "turbo no hit block" '00 BP miata-20150306_205443_zpsfyox474b.jpg   diy "turbo no hit block" '00 BP miata-20150306_233647_zpsjkmamatc.jpg   diy "turbo no hit block" '00 BP miata-20150306_233656_zpslus3frcn.jpg   diy "turbo no hit block" '00 BP miata-20150307_022508_zpspwmkwh0y.jpg   diy "turbo no hit block" '00 BP miata-20150307_125957_zpspfvgohje.jpg

diy "turbo no hit block" '00 BP miata-20150307_132901_zpsa6gb4sxy.jpg   diy "turbo no hit block" '00 BP miata-20150307_132908_zpswiinzb3z.jpg   diy "turbo no hit block" '00 BP miata-20150307_202949_zpsubm2bn3y.jpg   diy "turbo no hit block" '00 BP miata-20150307_203005_zpsiavirbbf.jpg   diy "turbo no hit block" '00 BP miata-20150307_211018_zpshabg8q5i.jpg

diy "turbo no hit block" '00 BP miata-20150307_211026_zpswxtcj12k.jpg   diy "turbo no hit block" '00 BP miata-20150307_211034_zps2lrsehky.jpg   diy "turbo no hit block" '00 BP miata-20150307_211214_zpsw0mc6hyn.jpg   diy "turbo no hit block" '00 BP miata-20150307_220835_zpsvvyha7ia.jpg   diy "turbo no hit block" '00 BP miata-20150307_220845_zpsux7w3ppi.jpg

diy "turbo no hit block" '00 BP miata-20150307_221659_zpspzexq2b2.jpg   diy "turbo no hit block" '00 BP miata-20150307_221710_zpsko2plxdj.jpg   diy "turbo no hit block" '00 BP miata-20150307_221731_zpstyndc5jc.jpg   diy "turbo no hit block" '00 BP miata-20150307_221958_zpsmk7qmieg.jpg
DNA54 is offline   Reply With Quote
Old 03-08-2015, 04:52 AM   #280
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

pics uploaded





new position









last time we can see inside (hoping that the inside woud not come out as the last time)

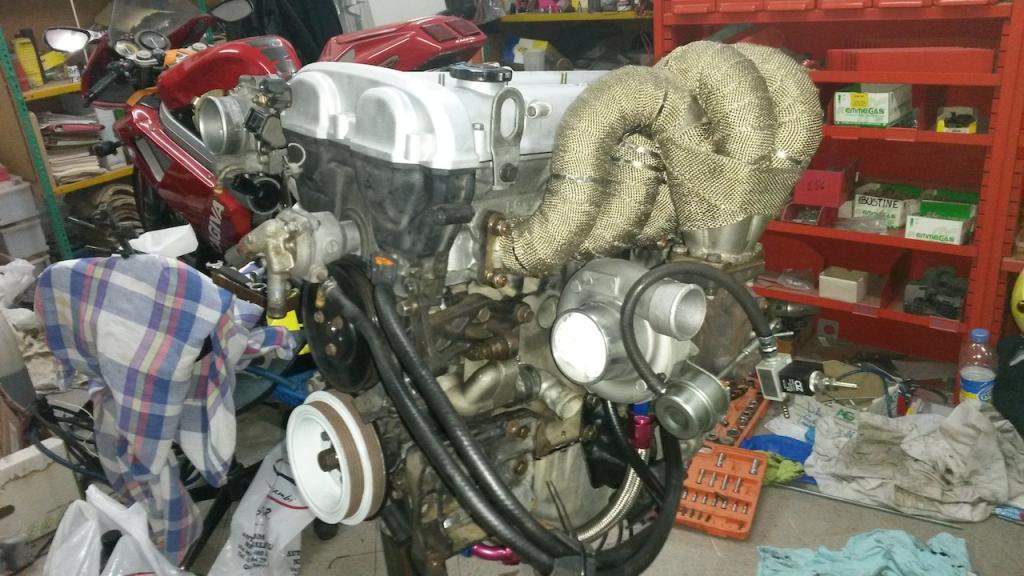

wrapped manifold -what a pita-



clutch in

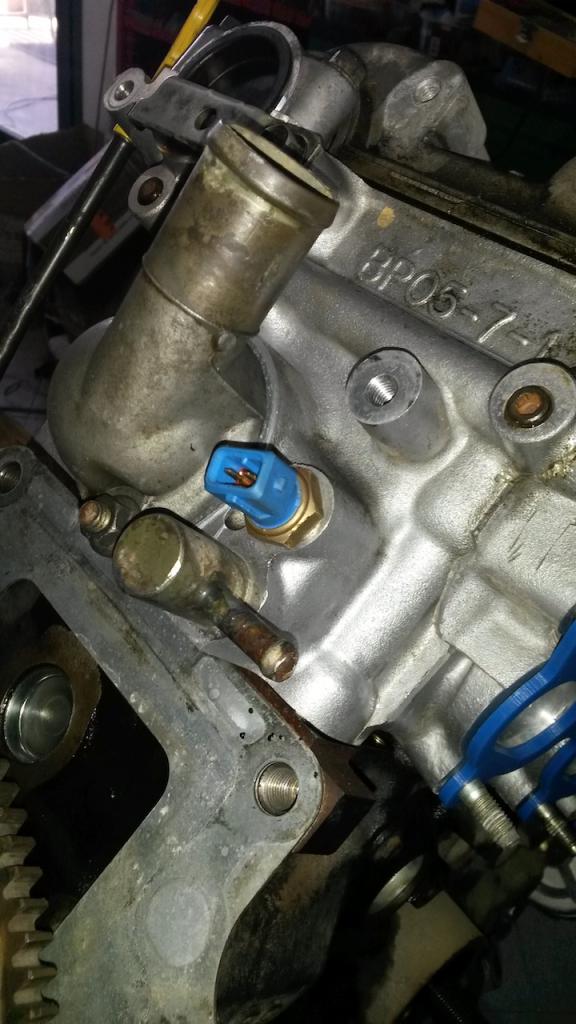

second water temp sensor inside the head (faster response that the previous one)



















ready!!









Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150306_122600_zpsd16bhaij.jpg   diy "turbo no hit block" '00 BP miata-20150306_122611_zpsp83kskyc.jpg   diy "turbo no hit block" '00 BP miata-20150306_184726_zpsndpvdyhu.jpg   diy "turbo no hit block" '00 BP miata-20150306_184734_zpsy6bbx2v3.jpg   diy "turbo no hit block" '00 BP miata-20150306_185619_zpsaqtxddrg.jpg

diy "turbo no hit block" '00 BP miata-20150306_205443_zpsfyox474b.jpg   diy "turbo no hit block" '00 BP miata-20150306_233647_zpsjkmamatc.jpg   diy "turbo no hit block" '00 BP miata-20150306_233656_zpslus3frcn.jpg   diy "turbo no hit block" '00 BP miata-20150307_022508_zpspwmkwh0y.jpg   diy "turbo no hit block" '00 BP miata-20150307_125957_zpspfvgohje.jpg

diy "turbo no hit block" '00 BP miata-20150307_132901_zpsa6gb4sxy.jpg   diy "turbo no hit block" '00 BP miata-20150307_132908_zpswiinzb3z.jpg   diy "turbo no hit block" '00 BP miata-20150307_202949_zpsubm2bn3y.jpg   diy "turbo no hit block" '00 BP miata-20150307_203005_zpsiavirbbf.jpg   diy "turbo no hit block" '00 BP miata-20150307_211018_zpshabg8q5i.jpg

diy "turbo no hit block" '00 BP miata-20150307_211026_zpswxtcj12k.jpg   diy "turbo no hit block" '00 BP miata-20150307_211034_zps2lrsehky.jpg   diy "turbo no hit block" '00 BP miata-20150307_211214_zpsw0mc6hyn.jpg   diy "turbo no hit block" '00 BP miata-20150307_220835_zpsvvyha7ia.jpg   diy "turbo no hit block" '00 BP miata-20150307_220845_zpsux7w3ppi.jpg

diy "turbo no hit block" '00 BP miata-20150307_221659_zpspzexq2b2.jpg   diy "turbo no hit block" '00 BP miata-20150307_221710_zpsko2plxdj.jpg   diy "turbo no hit block" '00 BP miata-20150307_221731_zpstyndc5jc.jpg   diy "turbo no hit block" '00 BP miata-20150307_221958_zpsmk7qmieg.jpg
DNA54 is offline   Reply With Quote
