Old 05-18-2015, 02:12 PM   #301
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 69
Default

Many 2871s I've seen can be had for even less than the 2560r. Just need to locate the right dealer. When I use to work parts we could get a 2871 for less than the 2560. Some sellers pass on the savings to the consumer.
ScottyP3821 is offline   Reply With Quote
Old 05-18-2015, 05:20 PM   #302
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

For a silvia replacement I mean this particular one : T25 T28 T25/T28 TURBOCHARGER NISSAN 200SX S13 S14 TURBO | eBay

just to boost the car again until I finally got €€€ enough for a bb gt2560r

TURBINA TURBO GARRETT GT2560R SU DOPPI CUSCINETTI 330 CAVALLI ORIGINALE garrett | eBay


I know that there is a little price difference between the 2560 and 2680, but I'm scared about driveability (it's my daily car).
2860+long tube manifold equals late spool? As it is now the car is undriveable, as the boost comes only after third gear and 5k rpm...
DNA54 is offline   Reply With Quote
Old 05-18-2015, 05:26 PM   #303
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

a proper 2860rs or 2871r reaches peak or near peak torque between 3500-4000.

So no, it would not be laggy. And would put out close to 350-400whp

It's not the same as your chinacharer, despite the similar nomenclature
18psi is offline   Reply With Quote
Old 05-19-2015, 06:14 AM   #304
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
a proper 2860rs or 2871r reaches peak or near peak torque between 3500-4000.

So no, it would not be laggy. And would put out close to 350-400whp

It's not the same as your chinacharer, despite the similar nomenclature
that's a good thing.

this is a choice I have to make once. This is why I was looking for a 2560: good for maybe 300hp but with good power under 4k rpm, just a little bit chocked at high revs.

I'm so unsure, even for the choice of the temporary chinacharger

sav's 2011 opinion Small (0.64 a/r) GT2860 dynos or boost datalogs

DNA54 is offline   Reply With Quote
Old 05-19-2015, 10:09 AM   #305
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,383
Total Cats: 2,032
Default

the bottom line though is you can't really compare chinacharger to the real deal in terms of spool and torque onset. they're quite different. looks like you're injector limited anyway though
18psi is offline   Reply With Quote
Old 05-19-2015, 10:43 AM   #306
Supporting Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

If not a competitive event, the 2560 is a pretty sweet all around turbo.

corky
Corky Bell is offline   Reply With Quote
Old 05-29-2015, 05:04 PM   #307
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

Quote:
Originally Posted by Corky Bell View Post
If not a competitive event, the 2560 is a pretty sweet all around turbo.

corky
this is what my brain told me, but my body wants the 2860... I've not deceided yet...

Quote:
Originally Posted by 18psi View Post
the bottom line though is you can't really compare chinacharger to the real deal in terms of spool and torque onset. they're quite different. looks like you're injector limited anyway though
Indeed. the rx8's are 100% opened from 4500 rpm until redline.

next step are ev14 610 or ID 750 (I haven't choose yet) and dw200 or similar pump

Btw, a few days ago I understood why the boost was too late and was too low on the dyno: the wastegate itself was stucked open
chinachargers...

Hammer + screwdriver and it's (more or less) working again. 1.2 bar from 5k rpm on. Good power and torque btw, virtual dyno says near 300hp.

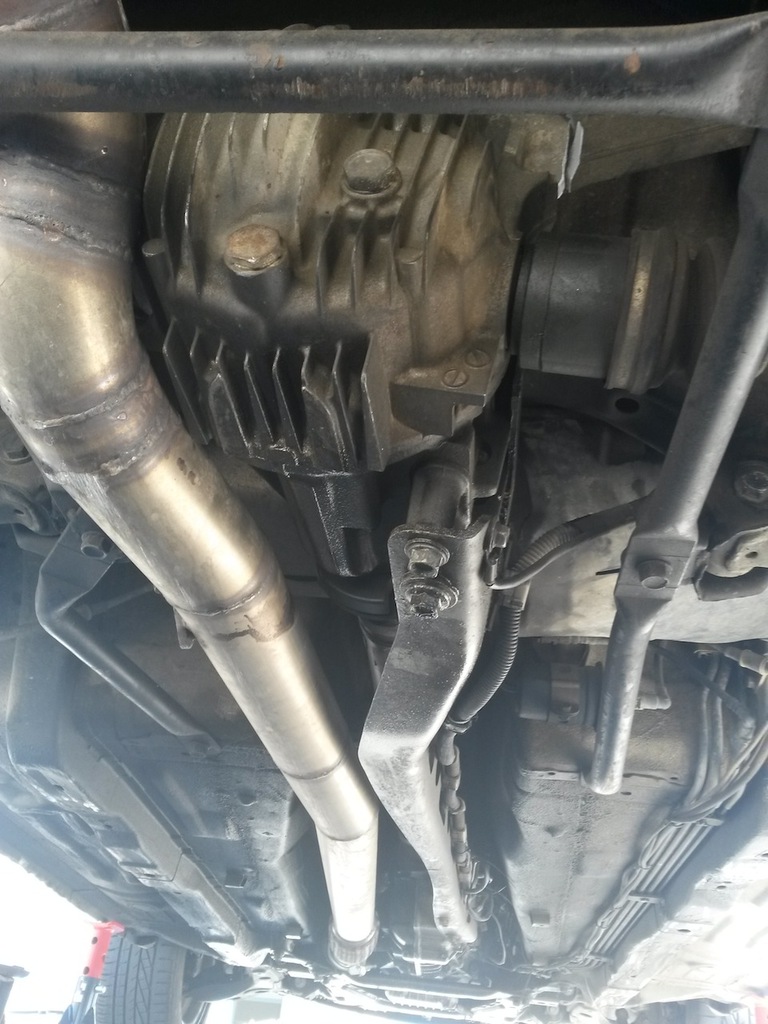

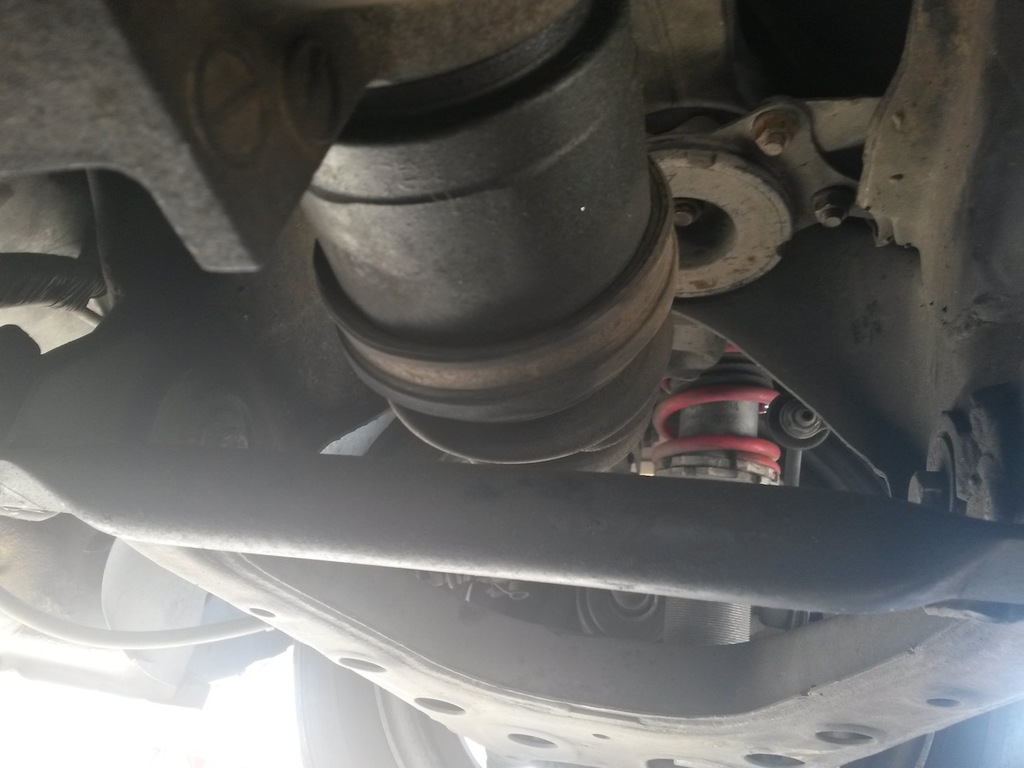

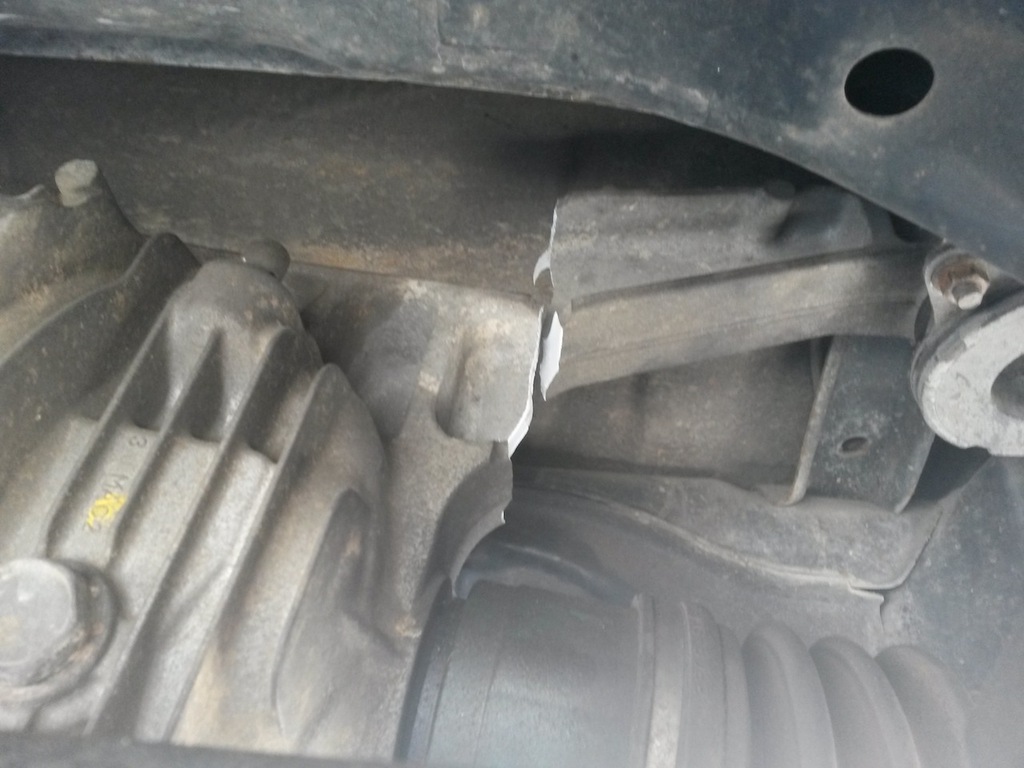

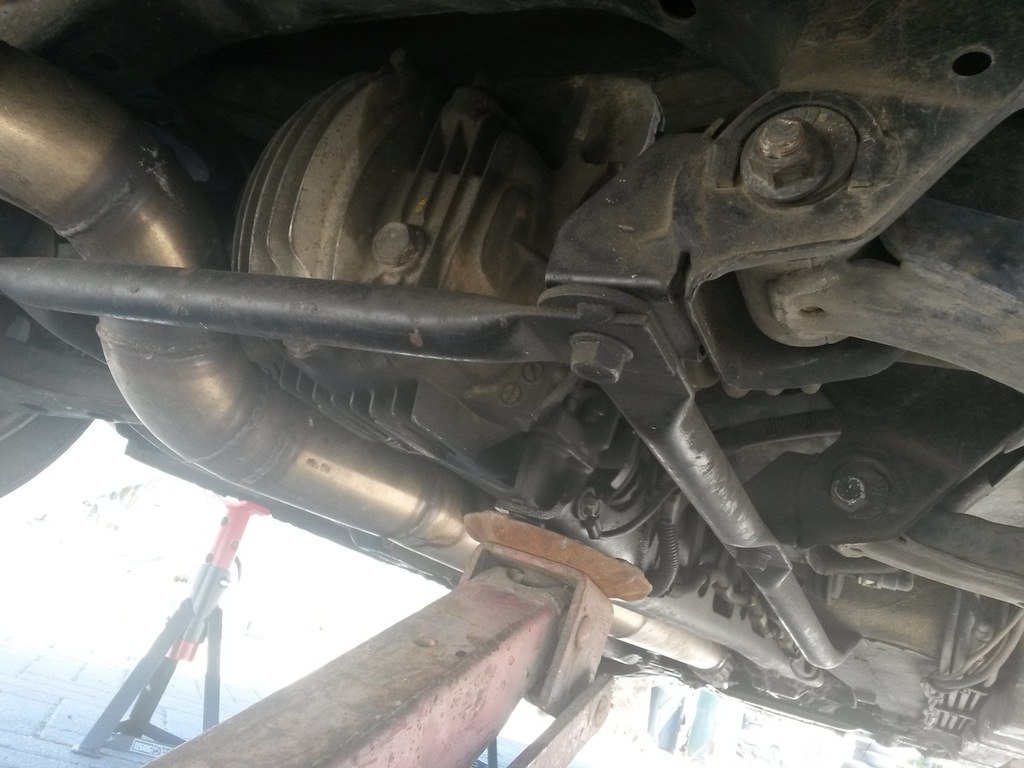

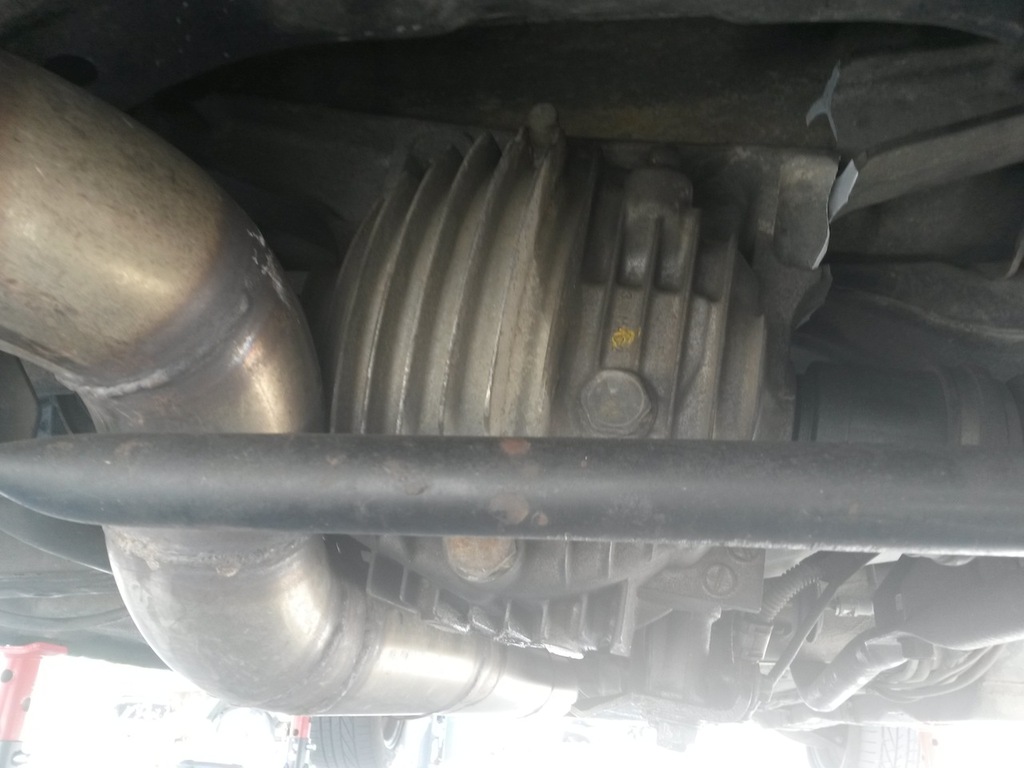

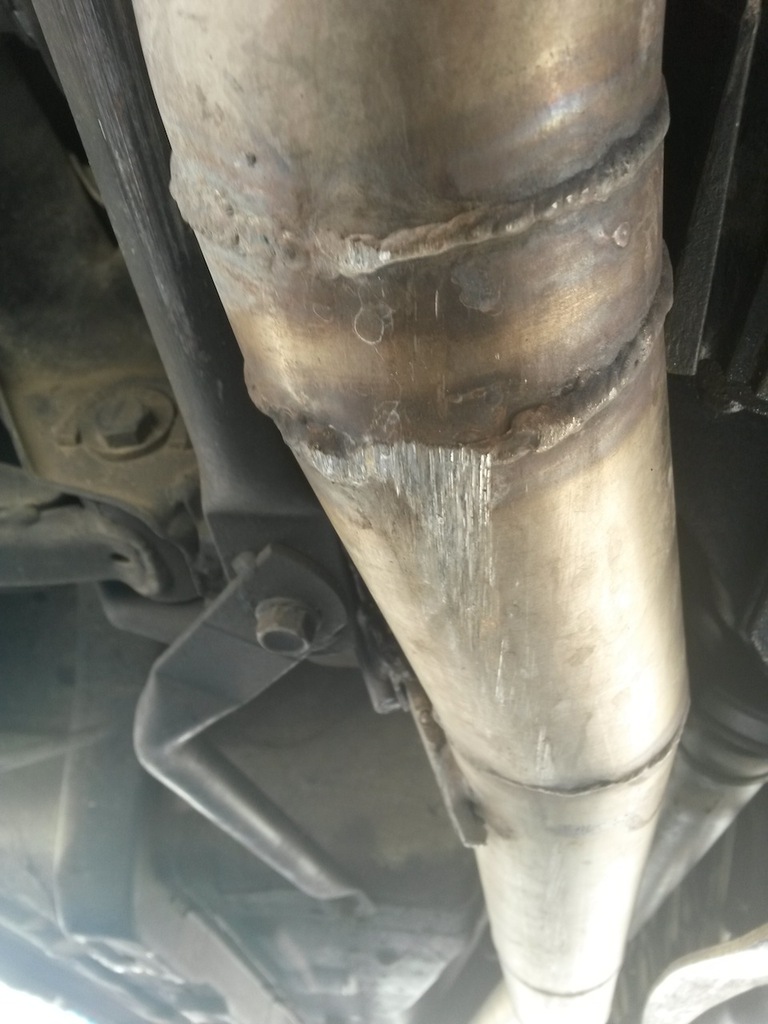

downside of the medal: yesterday night when I was wot on 4th gear (remember: 6 spd + 3.636 torsen) and went in full boost suddenly I heared an awful cracking noise, the rpm went from 5k to 7k instantly and the shift **** jumped to neutral on her own...

this was the noise:


towed the car, and today I inspected...













well... f**k.
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150529_160620_zpsnoocvr6n.jpg   diy "turbo no hit block" '00 BP miata-20150529_160219_zpsgzmcx9tf.jpg   diy "turbo no hit block" '00 BP miata-20150529_160208_zps6xsuchpj.jpg   diy "turbo no hit block" '00 BP miata-20150529_160031_zpswclvb26s.jpg   diy "turbo no hit block" '00 BP miata-20150529_160025_zpswzkdrldu.jpg

diy "turbo no hit block" '00 BP miata-20150529_160014_zpslhkvulxm.jpg   diy "turbo no hit block" '00 BP miata-20150529_160620_zpsnoocvr6n.jpg   diy "turbo no hit block" '00 BP miata-20150529_160219_zpsgzmcx9tf.jpg   diy "turbo no hit block" '00 BP miata-20150529_160208_zps6xsuchpj.jpg   diy "turbo no hit block" '00 BP miata-20150529_160031_zpswclvb26s.jpg

diy "turbo no hit block" '00 BP miata-20150529_160025_zpswzkdrldu.jpg   diy "turbo no hit block" '00 BP miata-20150529_160014_zpslhkvulxm.jpg

Last edited by DNA54; 06-01-2015 at 06:21 AM.
DNA54 is offline   Reply With Quote
Old 05-29-2015, 05:27 PM   #308
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 405
Total Cats: 17
Default

Time for an RX7 carrier housing!
90civichhb is offline   Reply With Quote
Old 05-29-2015, 10:43 PM   #309
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

I feel sorry for you mate, you are having a lot of trouble with this car!

Out of interest is it your own work pit?
timk is offline   Reply With Quote
Old 06-01-2015, 06:29 AM   #310
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

Quote:
Originally Posted by 90civichhb View Post
Time for an RX7 carrier housing!
A friend of mine gave me another housing, if it fails again I have to do something...
Is the rx7's housing pnp? including the diff mounts.



Quote:
Originally Posted by timk View Post
I feel sorry for you mate, you are having a lot of trouble with this car!

Out of interest is it your own work pit?

I'm sorry, english isn't my first language.. what are you meaning?
DNA54 is offline   Reply With Quote
Old 06-01-2015, 09:19 AM   #311
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 405
Total Cats: 17
Default

Quote:
Originally Posted by DNA54 View Post
A friend of mine gave me another housing, if it fails again I have to do something...
Is the rx7's housing pnp? including the diff mounts.
Sorta, there is minor work that needs to be done to run an RX7 housing, but if you break another housing you will either have to gusset another Miata carrier or go with an RX7 diff. Unless you want to spend some big money on something else more robust.
90civichhb is offline   Reply With Quote
Old 06-01-2015, 10:46 AM   #312
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 69
Default

How the hell are you breaking housings like that?
ScottyP3821 is offline   Reply With Quote
Old 06-01-2015, 01:07 PM   #313
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,665
Total Cats: 92
Default

Quote:
Originally Posted by ScottyP3821 View Post
How the hell are you breaking housings like that?
wheel hop, or too much powah.
Leafy is offline   Reply With Quote
Old 06-01-2015, 07:37 PM   #314
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

Quote:
Originally Posted by DNA54 View Post
I'm sorry, english isn't my first language.. what are you meaning?
You seem to have lots of interesting equipment, a hoist, a pit, lots of open space. Is that at your workplace?
timk is offline   Reply With Quote
Old 06-03-2015, 06:12 AM   #315
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

Quote:
Originally Posted by timk View Post
You seem to have lots of interesting equipment, a hoist, a pit, lots of open space. Is that at your workplace?
Got it.
Sadly my workplace was just the open space, but a friend of mine lent me his pit for two days, just to build the exhaust line. Everything else was make without a garage, under the sky...
One day, maybe... I will buy a garage.
DNA54 is offline   Reply With Quote
Old 06-08-2015, 07:16 AM   #316
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

Finally I made my choice...
GT2560R with inconel shaft.
-turbine .60 cold side, .62 hot side A/R
-51mm (2") inlet/outlet flanges (garrett ones)
-0.9mm oil restrictor
850 shipped

I have to adapt someway the feed line, because now is a banjo bolt one, but nothing difficult.

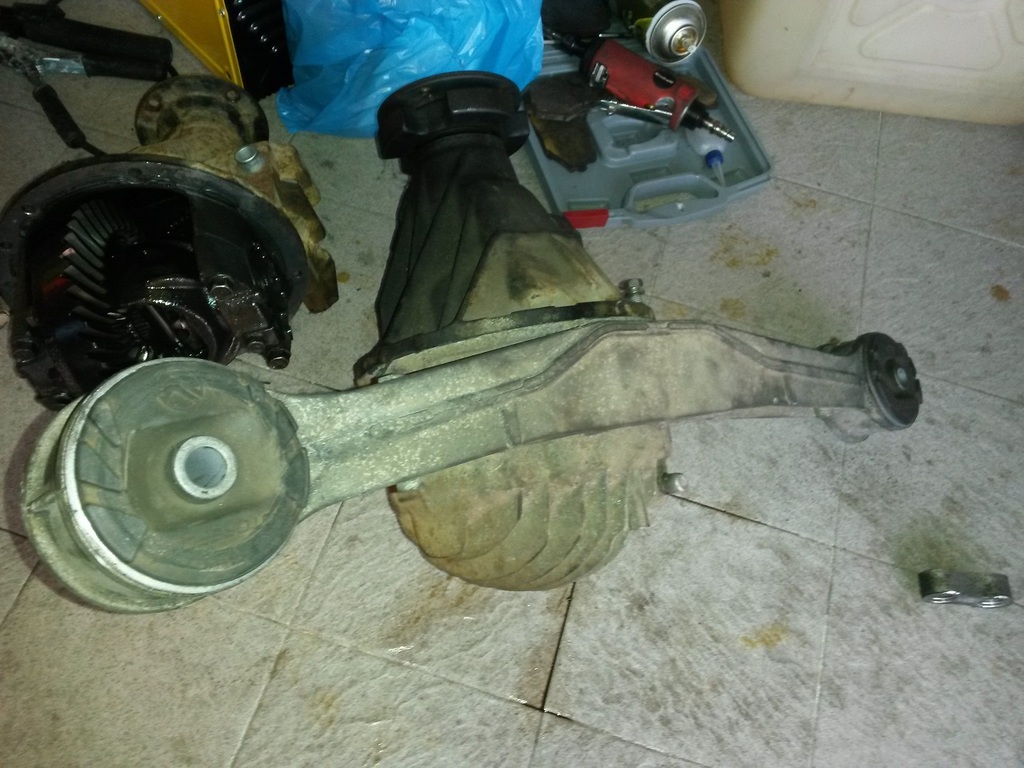

I also find another housing, but I'm waiting for the side oil seals for over a week!

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150604_202347_zpsxjetw5xe.jpg

Last edited by DNA54; 06-18-2015 at 07:23 AM.
DNA54 is offline   Reply With Quote
Old 06-18-2015, 07:05 AM   #317
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default





Attached Thumbnails
diy "turbo no hit block" '00 BP miata-dscf3310_zpssb90l4hx.jpg   diy "turbo no hit block" '00 BP miata-dscf3311_zps210g9epl.jpg
DNA54 is offline   Reply With Quote
Old 06-18-2015, 07:11 AM   #318
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,817
Total Cats: 1,600
Default

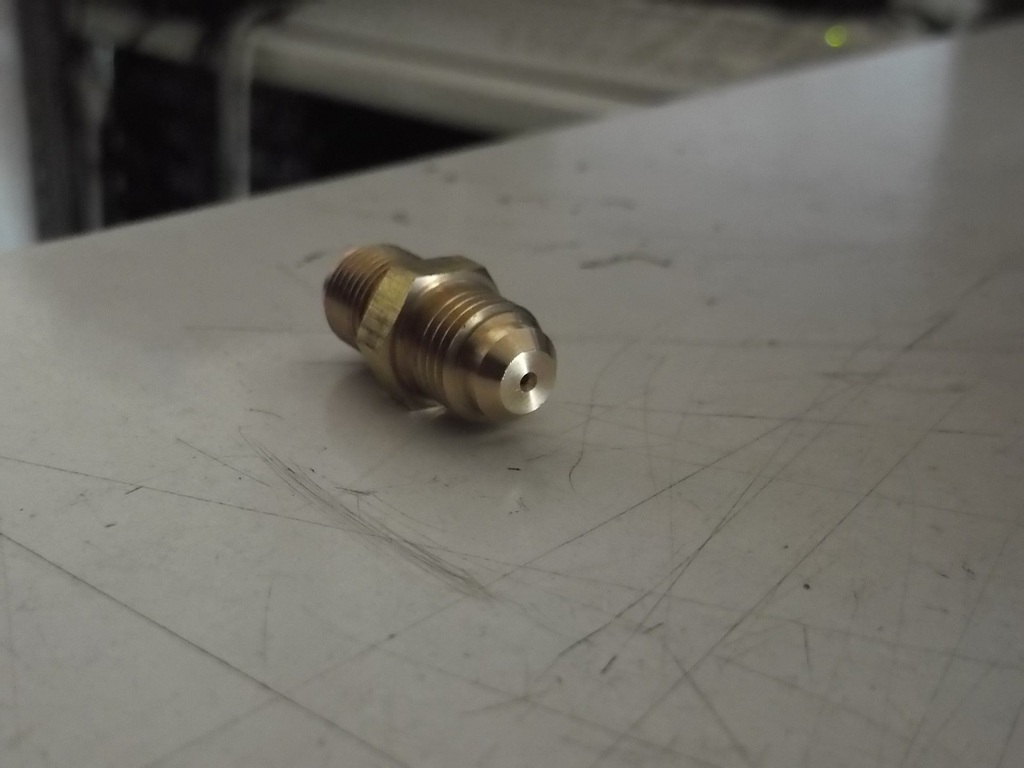

That seems like a lot of packaging for one little restrictor.
Joe Perez is online now   Reply With Quote
Old 06-18-2015, 07:21 AM   #319
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

yes, indeed.

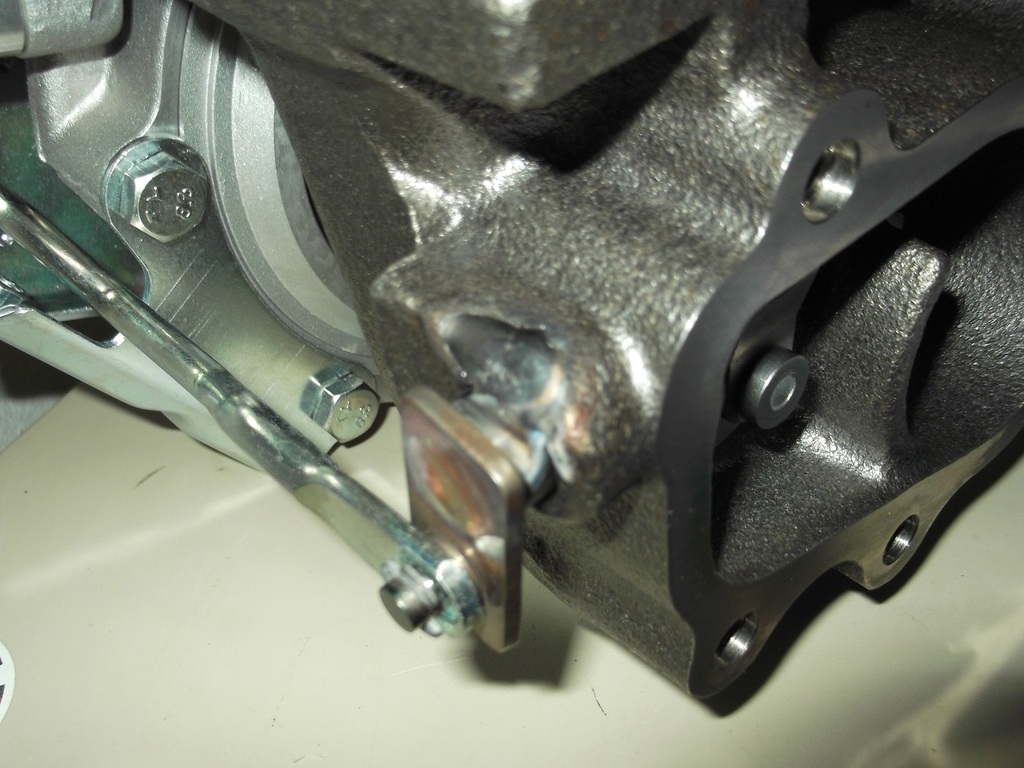

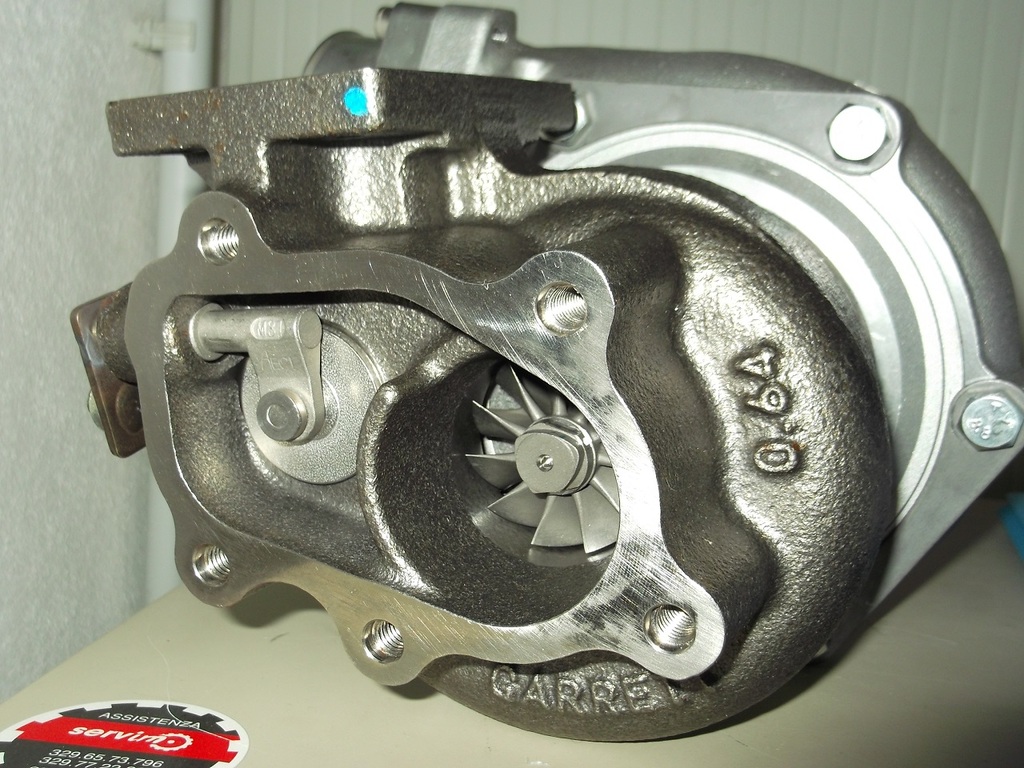

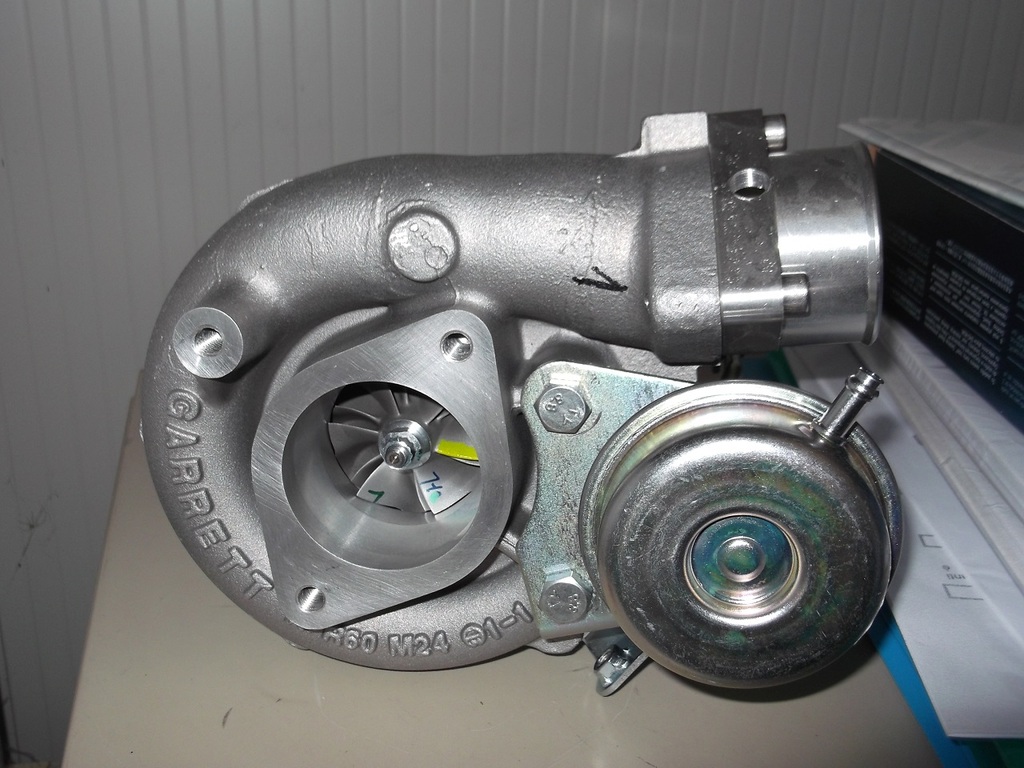

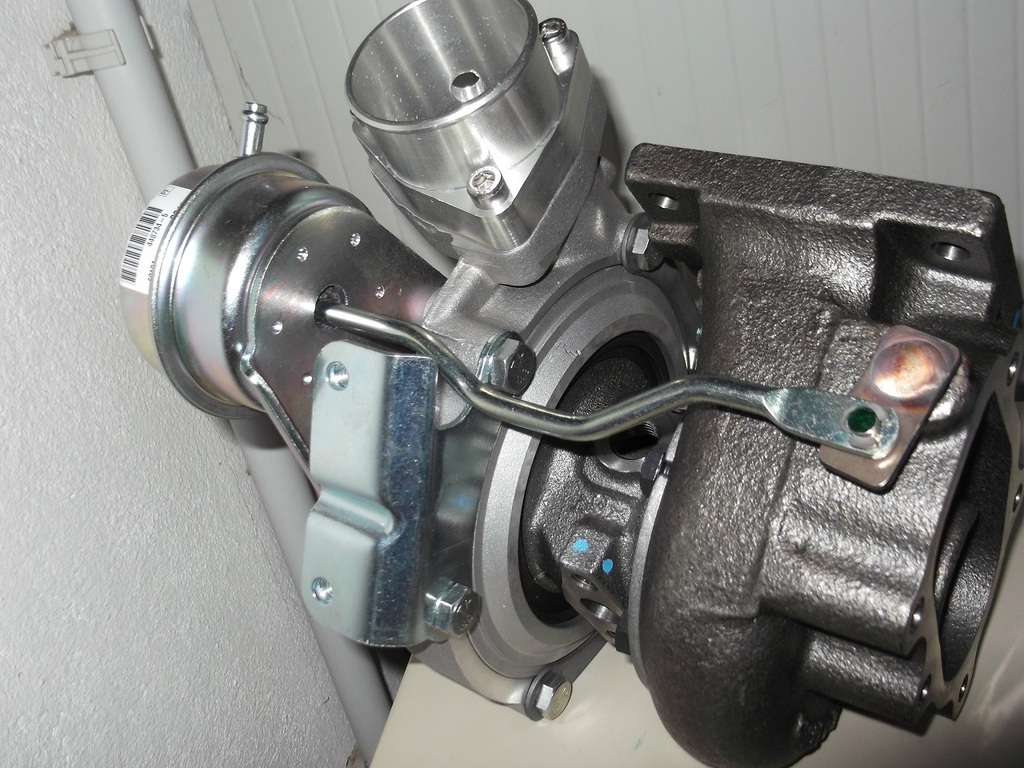

I paid a lot for that restrictor, but they included a turbo for free







Attached Thumbnails
diy "turbo no hit block" '00 BP miata-dscf3316_zpsdhqn3llc.jpg   diy "turbo no hit block" '00 BP miata-dscf3313_zps50menxpb.jpg   diy "turbo no hit block" '00 BP miata-dscf3319_zpskvb2n1cd.jpg   diy "turbo no hit block" '00 BP miata-dscf3312_zpspl8cqa2m.jpg
DNA54 is offline   Reply With Quote
Old 06-18-2015, 07:26 AM   #320
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 367
Total Cats: 49
Default

I noticed that this topic becomed a "build" one... Can it be moved in the media section?
