Old 04-04-2012, 02:17 PM   #1
Default Drawing for TD04H flange
Newb

I am: Nick
Join Date: Mar 2012
Posts: 16
Feedback: 0 / 0%
Total Props: -1
Does anybody have a drawing for a TD04H exhaust outlet flange. If not I can lay it out or something. I think I will just make a downpipe.
Nick-7 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2012, 03:44 PM   #2
Default
Boost Czar


Braineack's Avatar

I am: Scott
Join Date: May 2005
Location: Chantilly, VA
Posts: 49,470
Feedback: 54 / 100%
Total Props: 484

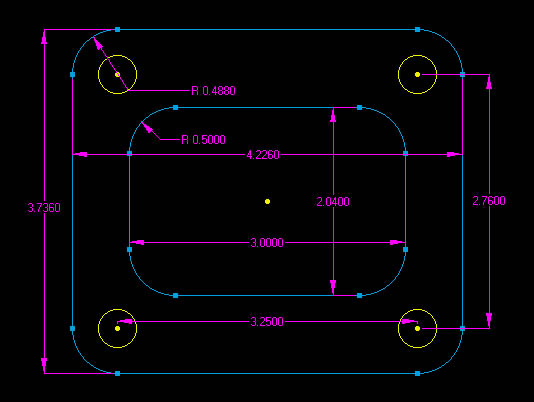

its labeled as T04
Attached Thumbnails
Drawing for TD04H flange-tk053p-jpg
Braineack is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2012, 04:18 PM   #3
Default
Elite Member

I am: Jeff
Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,761
Feedback: 10 / 100%
Total Props: 21
Quote:
Originally Posted by Braineack View Post


its labeled as T04
^ That isn't what he wants. He needs the drawing for a MHI TD04H turbine outlet.

OP- Do you need the standard DSM outlet, or the one that came on the Greddy?
Jeff_Ciesielski is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2012, 04:50 PM   #4
Default
Boost Czar


Braineack's Avatar

I am: Scott
Join Date: May 2005
Location: Chantilly, VA
Posts: 49,470
Feedback: 54 / 100%
Total Props: 484

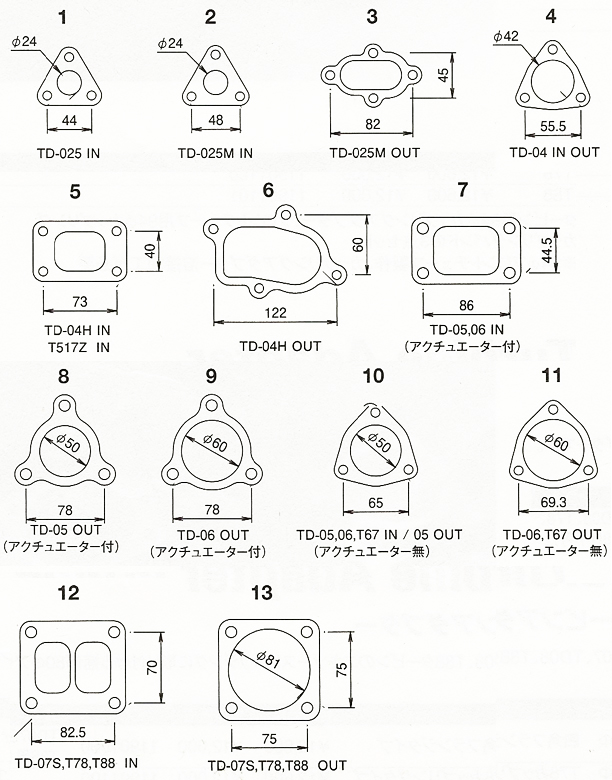

ohhh. i cant read.


best i can find:

Attached Thumbnails
Drawing for TD04H flange-gasket-jpg
Braineack is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-04-2012, 05:19 PM   #5
Default
Newb

I am: Nick
Join Date: Mar 2012
Posts: 16
Feedback: 0 / 0%
Total Props: -1
Thanks, those both are very helpful as well as

http://www.turbohelps.com/turbos.php which I found somewhere on this forum, but I have the TD04H pictured below
Nick-7 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote
Old 04-05-2012, 09:49 PM   #6
Default
Newb

I am: Nick
Join Date: Mar 2012
Posts: 16
Feedback: 0 / 0%
Total Props: -1
I will just make a template, and possibly draw it in case others want it.
Nick-7 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
