Old 04-02-2015, 09:32 PM   #21
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,532
Total Cats: 18
Default

It doesn't matter how obscure MS is, you didn't even say that and I didn't imply you did what you did say was the control method of configure able pwm tables is obscure, infact it is standard and expected on all standalones these days.

Yes you can easily buy servos that powerful that are also super fast.
nitrodann is offline   Reply With Quote
Old 04-02-2015, 09:40 PM   #22
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,678
Total Cats: 1,576
Default

Quote:
Originally Posted by PatCleary View Post
I like the hobby servo idea in concept. Can you get them making like 60 in-lbs?
I see that a couple of other folks have already posted links to ServoCity. I was going to post this link, which has externally gear-reduced servos rated at up to 1,700 in-lbs: https://www.servocity.com/html/top_m...l#.VR3g-PnF98F

They are, of course, relatively slow. Not sure if "slow" in the world of robotics is the same as "slow" in the world of engine management. I've never actually logged the operation of an EBC to see how rapidly it makes large changes in commanded position.
Joe Perez is online now   Reply With Quote
Old 04-02-2015, 10:12 PM   #23
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by leboeuf View Post
My browsing history turned up this little guy:
https://www.servocity.com/html/hs-79...l#.VR3Ov-H09sR

Titanium gears, 0.15 sec/60 speed, 333oz-in torque, cheap...
My plan was to buy 2 and see how it held up.
60C max operating temperature is a little bit weaksauce.

For comparison, I found this spec on a commercial wastegate servo
http://www.stoneridge.com/wp-content...eet_Rotary.pdf

Quote:
Hold Torque along Rod/Arm Up to 2.7Nm at 160C
2.7Nm torque is 382 oz-in
soviet is offline   Reply With Quote
Old 04-02-2015, 10:36 PM   #24
Junior Member

Join Date: Dec 2014
Location: Boston, MA
Posts: 134
Total Cats: 5
Default

Ahh, good to know.

I'm the servo torque matter, I'd been considering the waste gate valve being under pressure, but in reality it's just under whatever pressure the exhaust exerts, correct? If so it should be real low force. I'd probably try one of the servos without gear reduction and see if it has the guts. Return spring plays into that force of course.

And be sure to keep them way away from the turbo, those plastic cases will turn to soup if you don't.
PatCleary is offline   Reply With Quote
Old 04-02-2015, 10:37 PM   #25
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

Return spring....for what?
aidandj is offline   Reply With Quote
Old 04-02-2015, 10:56 PM   #26
Junior Member

Join Date: Dec 2014
Location: Boston, MA
Posts: 134
Total Cats: 5
Default

Unless you can link to the waste gate with a rigid linkage you'll need a return spring of some kind to close the waste gate. Whether it's built in or not in not sure (i know motion control stuff, not turbos). I've always assumed you'd end up needing a cable to move the actuator away from the turbo.
PatCleary is offline   Reply With Quote
Old 04-02-2015, 11:00 PM   #27
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

Servo at 0% duty cycle holds the wastegate shut. Servo at 100% duty cycle holds the wastegate open.
aidandj is offline   Reply With Quote
Old 04-02-2015, 11:02 PM   #28
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

Quote:
Originally Posted by soviet View Post
60C max operating temperature is a little bit weaksauce.

For comparison, I found this spec on a commercial wastegate servo
http://www.stoneridge.com/wp-content...eet_Rotary.pdf

2.7Nm torque is 382 oz-in
Awesome! So 382 oz per inch is a good baseline. Temp spec would need to be taken into account.
aidandj is offline   Reply With Quote
Old 04-03-2015, 04:27 AM   #29
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 365
Total Cats: 50
Default

that can be a great idea!

Quote:
Originally Posted by aidandj View Post
Servo at 0% duty cycle holds the wastegate shut. Servo at 100% duty cycle holds the wastegate open.
not exactly
it's simple, but not that way
every 20 ms you can send a pulse from 1 to 2 ms
1 ms = 0
1.5 ms = 90 etc
the servo can rotate from 0 to 180, but near the limit is a little flappering, even for the expensive units

I don't know how to write ms codes, but I think it can be done.

I've got some 16 kg (35 lbs) servo with metal gears, they are very powerful: if I hold a position I can't move it with my hands!

sadly I have a rev ms2 unit: I don't want to add the hardware for the servo...

you need a 5v power supply for the servo up to 1.5 A (an indipendent one is better) and the logic level pulse for the servo signal (before the mosfet or whatever you are using to drive the ebc solenoid)

please, someone make it!
the heat is not a problem for a pull or two, you are just testing. If it works: heatshield.
DNA54 is offline   Reply With Quote
Old 04-05-2015, 03:42 PM   #30
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

The ms already outputs a PWM signal. Couldn't we use that?
aidandj is offline   Reply With Quote
Old 04-05-2015, 04:01 PM   #31
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,709
Total Cats: 126
Default

Why not a solenoid powered butterfly valve instead of a wastegate?
cordycord is offline   Reply With Quote
Old 04-05-2015, 04:22 PM   #32
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,762
Total Cats: 749
Default

You guys are of course aware of Hella/Garrett electronic actuators for VNT turbos, yes?



You will notice its mounted directly to the turbo thus safe for underhood mounting. It comes in PWM and CAN flavors for OEM Ford and Mercadies/VAG vehicles in Europe.

More discussion, part numbers, electrical data, etc can be found here: Garrett 712120 VNT Hella 6NW 008 412 actuator.

They can be found used on ebay UK for around $50~$100
EO2K is online now   Reply With Quote
Old 04-06-2015, 06:07 AM   #33
Newb

Join Date: Aug 2013
Posts: 1
Total Cats: 1
Default

The late EA888 engines from VAG (audi,vw, etc) using IHI turbos with electric wastegate and electric dump valve. I'm using the middle size turbo from this series on my miata ( around 300hp at 1,5 bar). I had to remove the wastegate motor, because of the lack of specific controller in my aftermarket ECU. The electric BOV integrated into the cold side housing. My ecu can drive it, it's much better than the mechanical one. (only ON or OFF state, unlike the mechanical one)

Interestingly there are 2 different size/type from this wastegate servo motor. The smallest turbo, using smaller wastegate controller motor, the bigger ones using the same big robust one. On the small one, the return spring keeping the wastegate flap closes, on the big one it's the opposite. It's interesting they made such change... I disassembled the big one , attached several pictures.

It seems to using a simple driving mechanism with a return spring, and a magnet and magnetic field position sensor for feedback. The return spring keeping the wastegate flap open, without a control signal.The motor is quite strong. I planning to scope a the control signal in an OEM car in the future, to see how it's driven.













Here is a video from a feedback signal:

Electric wastegate control feedback signal

Attached Thumbnails
ITT: We discuss electronic wastegate ideas-turbo.jpg   ITT: We discuss electronic wastegate ideas-turbo.jpg   ITT: We discuss electronic wastegate ideas-6.jpg   ITT: We discuss electronic wastegate ideas-2.jpg   ITT: We discuss electronic wastegate ideas-3.jpg

ITT: We discuss electronic wastegate ideas-4.jpg   ITT: We discuss electronic wastegate ideas-5.jpg   ITT: We discuss electronic wastegate ideas-7.jpg   ITT: We discuss electronic wastegate ideas-8.jpg   ITT: We discuss electronic wastegate ideas-9.jpg

ITT: We discuss electronic wastegate ideas-12.jpg

Last edited by Aitrui; 04-06-2015 at 10:22 AM.
Aitrui is offline   Reply With Quote
Old 04-16-2015, 01:12 PM   #34
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

Quote:
Originally Posted by EO2K View Post
You guys are of course aware of Hella/Garrett electronic actuators for VNT turbos, yes?



You will notice its mounted directly to the turbo thus safe for underhood mounting. It comes in PWM and CAN flavors for OEM Ford and Mercadies/VAG vehicles in Europe.

More discussion, part numbers, electrical data, etc can be found here: Garrett 712120 VNT Hella 6NW 008 412 actuator.

They can be found used on ebay UK for around $50~$100
I'll look into that. But diesels run colder, and people have had issues with the VGT actuators on gas motors.
aidandj is offline   Reply With Quote
Old 04-17-2015, 03:50 AM   #35
Newb

Join Date: Apr 2015
Posts: 5
Total Cats: 1
Default

Interesting! I build an electronic wastegate on a BMW a year or so ago.

https://lh5.googleusercontent.com/-v...106_185244.jpg

https://lh3.googleusercontent.com/-n...106_191157.jpg

https://lh3.googleusercontent.com/-8...g%2Bscreen.jpg

https://lh3.googleusercontent.com/-b...106_234841.jpg

It was a 12V DC Servo with a potentiometer for feedback. The ecu I had at the time was able to control it via a 2D table (using MAP) or 3D one (MAP and RPM). I used a 2D table, basically opening the wastegate fully during low loads, then keeping the wastegate closed untill just below the target boost, and then tapering the valve open. This worked very well. Turbo spoolup was improved, Economy was a tiny bit improved, but my favorite part was that I was able to run any boost level I wanted quickly by adjusting a few parameters. I could turn the boost down all the way to zero, or run as much boost as I wanted to.

Eventually one of the butterfly valves I used failed, and the entire thing was binned. I think I'll build something similar again, but using a much more durable wastegate valve. The oem option above looks promising!

I'm not sure what motor it uses or what the feedback signal is, but if it's just a 12V motor with 0-5V feedback maybe this is a suitable and affordable controller:

STPS - controller for servo of exhaust valve. - IgniTech P?elou?
John Huijben is offline   Reply With Quote
Old 04-17-2015, 05:30 AM   #36
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 333
Total Cats: 66
Default

Why not use an electronically controlled 4-port solenoid. I've read about this a lot on the Honda forums. I think connecting a servo to a glowing turbo would be a bad idea unless you could find some reliable way to stop it getting cooked.

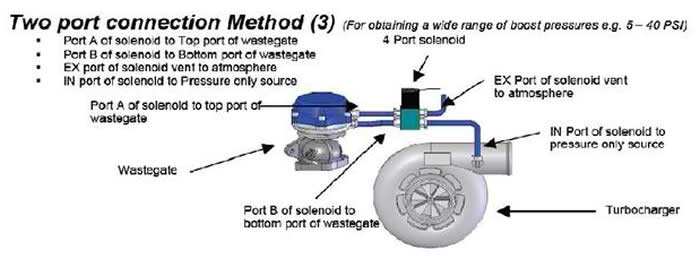

Here is a diagram that Jaydee made for a twin supercharged K24.
.
He's using a MAC 4-port solenoid to control a 38mm Tial wastegate which looks to be very successful. He's running boost by gear and can dial in max boost via his steering wheel. I think you need to run a lighter spring in the wastegate so that you get a good range of adjustable PSI.

A setup like this is what I want to run when I upgrade to a Rotrex.
Attached Thumbnails
ITT: We discuss electronic wastegate ideas-4portsolenoiddiagram%2520lge.jpg
Madjak is offline   Reply With Quote
Old 04-18-2015, 12:49 AM   #37
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Sunnyvale, CA
Posts: 1,588
Total Cats: 10
Default

How am I just finding out now that this is a thing...just 5 years late btw.
I need to hang out on this forum more often.
MartinezA92 is offline   Reply With Quote
Old 10-07-2016, 12:53 AM   #38
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 638
Total Cats: 102
Default

Bump...

Before I go buy a 4 port MAC and a 2 port actuator, has anyone gotten anywhere on this?

I've got some of the 1/4 scale super cheap hobby servos and would be willing to give it a go. I'd probably just start with a separate uC with a pressure sensor to save the trouble of trying to get the MS to do it to prove if works well or not.
gesso is online now   Reply With Quote
Old 10-07-2016, 12:55 AM   #39
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 937
Default

If I were to try it I would use some stupid long linkage. And then a uC. I wouldn't use a pressure sensor though. Just translate DC from the MS to output position. Then boost control should still work fine.
aidandj is offline   Reply With Quote
Old 10-07-2016, 02:11 PM   #40
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,762
Total Cats: 749
Default

Did I post this already? https://www.amazon.com/dp/B00CBKBQBE/


As far as I can tell that's a BorgWarner EFR/KKK turbocharger recirculating diverter/BOV 3 bolt flange. If I buy one of these things and a pigtail will one of you guys figure out how to make it work?
EO2K is online now   Reply With Quote
