Old 01-01-2016, 08:02 AM   #261
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,400
Total Cats: 835
Default

If you cut the firm-ish line off the OEM plastic fitting, it's barbed underneath. I slip 5/16" fuel hose over that with a hose clamp and I've never had any issues with it.
Savington is offline   Reply With Quote
Old 01-03-2016, 08:16 PM   #262
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

Quote:
Originally Posted by Savington View Post
The Definitive 1990-1997 VVT Swap Megathread.


You will need to retain one of the fuel injection fittings from the 01-05 fuel rail to use as an adapter on the 99-00 fuel rail. I prefer to use a 90* adapter instead of a straight adapter to aid fuel line routing around the alternator.Alternatively, you can use an aftermarket fuel rail and aftermarket fuel pressure regulator.



I have both 2004 fuel rail and 1999 fuel rail and I cant figure out what you mean by retaining the fuel injector fittings from the 2001-05 fuel rail. The fittings look the same to me.


Also, doesn't the VVT motor FPR regulate fuel to be @60psi vs 43psi for the 90-93? I'm using 2004 injectors with the 90 fpr, would the decrease on pressure affect the injectors? I am running a ms3 so fuel tuning will be done, obviously. Has anyone added an adjustable FPR? What about this one? http://www.miatacage.com/adjustable-...egulator-90-97

Last edited by btabor; 01-03-2016 at 09:49 PM.
btabor is offline   Reply With Quote
Old 01-03-2016, 08:22 PM   #263
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

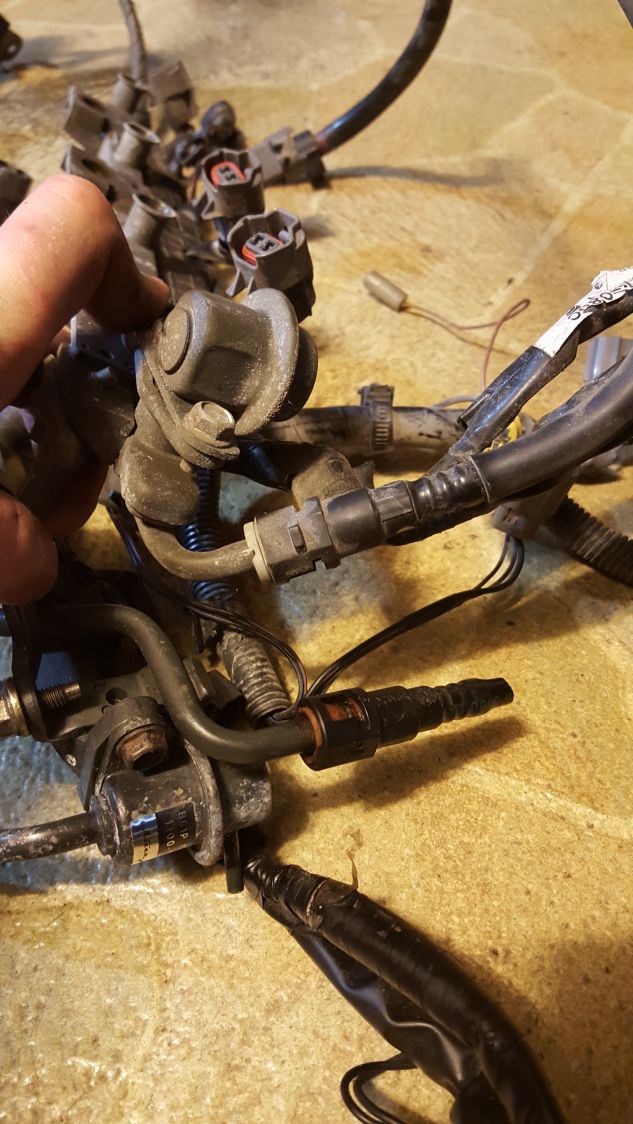

Here is a picture for reference. 2004 fuel rail on top, 1999 with 90 for on bottom. I don't know which fitting from 2001-05 "that needs to be kept" you are taking about. I'm confused
Attached Thumbnails
The Definitive "VVT swap into 90-97 chassis" Megathread.-80-20160103_191701_108647f4f66b86c2ae874218dcc3e7cacdd632e0.jpg
btabor is offline   Reply With Quote
Old 01-04-2016, 12:44 AM   #264
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

What color wire are you guys tapping of the injector harness for the vvt solenoid? Is there a way I can find out which one is the 12v without having the car on?
Could I use a 12v 2amp source from my megasquirt instead?
btabor is offline   Reply With Quote
Old 01-04-2016, 12:45 AM   #265
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,400
Total Cats: 835
Default

I'm referring to the plastic adapter attached to the fuel line that clips onto the fuel rail. You can use an aftermarket adapter too, but the 01-05 rails have a nice 90deg fitting that helps clear the alternator. The decrease in fuel pressure is not an issue, but if you want, you can run an aftermarket adapter.
Savington is offline   Reply With Quote
Old 01-04-2016, 10:54 AM   #266
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,210
Total Cats: 750
Default

Quote:
Originally Posted by btabor View Post
What color wire are you guys tapping of the injector harness for the vvt solenoid? Is there a way I can find out which one is the 12v without having the car on?
Could I use a 12v 2amp source from my megasquirt instead?
I tap the 12v wire on the CAS plug for VVT power. On the injector harness it should be one the white/red wires that you can grab power from.
shuiend is offline   Reply With Quote
Old 01-04-2016, 06:33 PM   #267
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

does the nb IAC valve have polarity?
btabor is offline   Reply With Quote
Old 01-04-2016, 06:39 PM   #268
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,400
Total Cats: 835
Default

Please read the original post in its entirety before asking questions.

Quote:
Originally Posted by Savington View Post
IAC Valve:
If you are swapping to the 99-05 throttle body to upgrade to the internally routed IAC valve, you will need to swap the pigtails for the TPS and IAC wires. The IAC valve wiring is not sensitive to polarity, so you can simply swap the pigtail without worrying about which wire goes where.
Savington is offline   Reply With Quote
Old 01-07-2016, 06:11 PM   #269
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

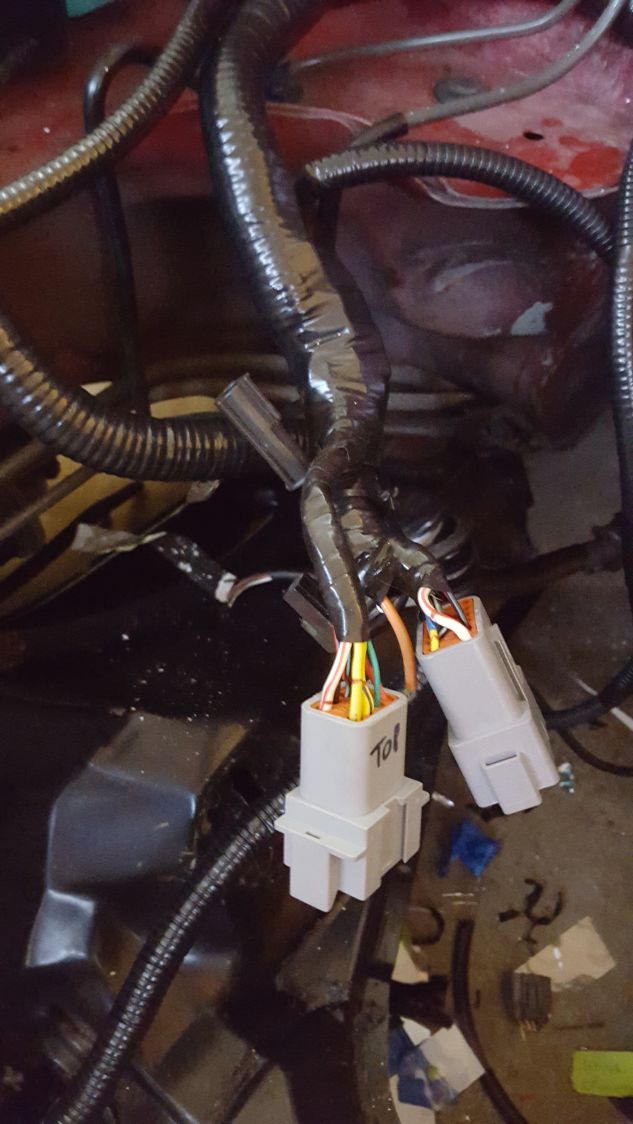

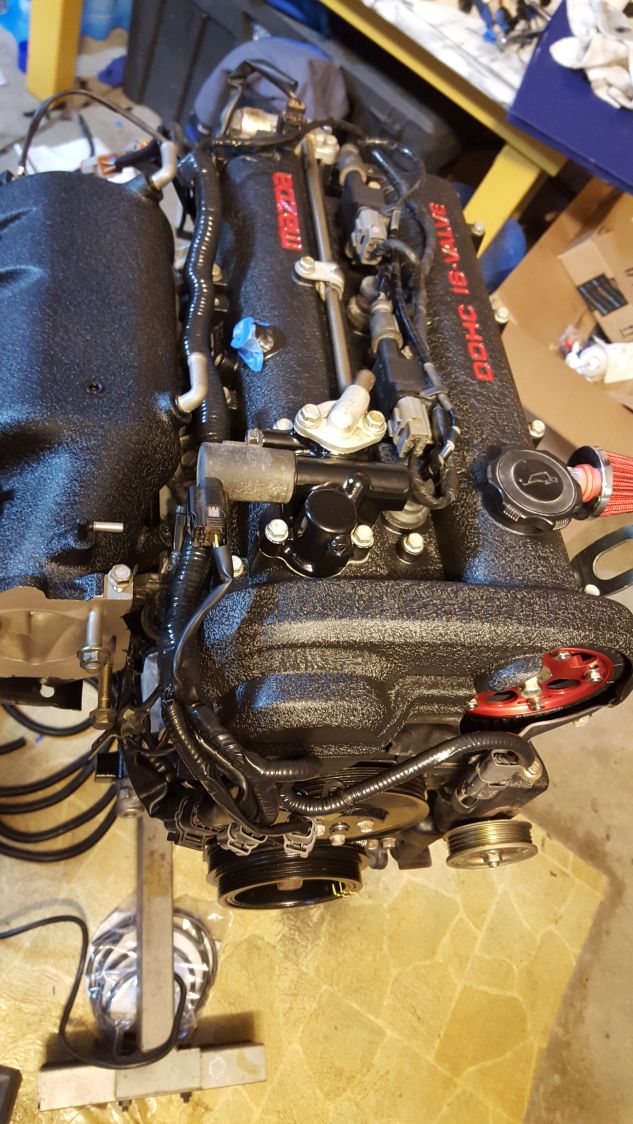

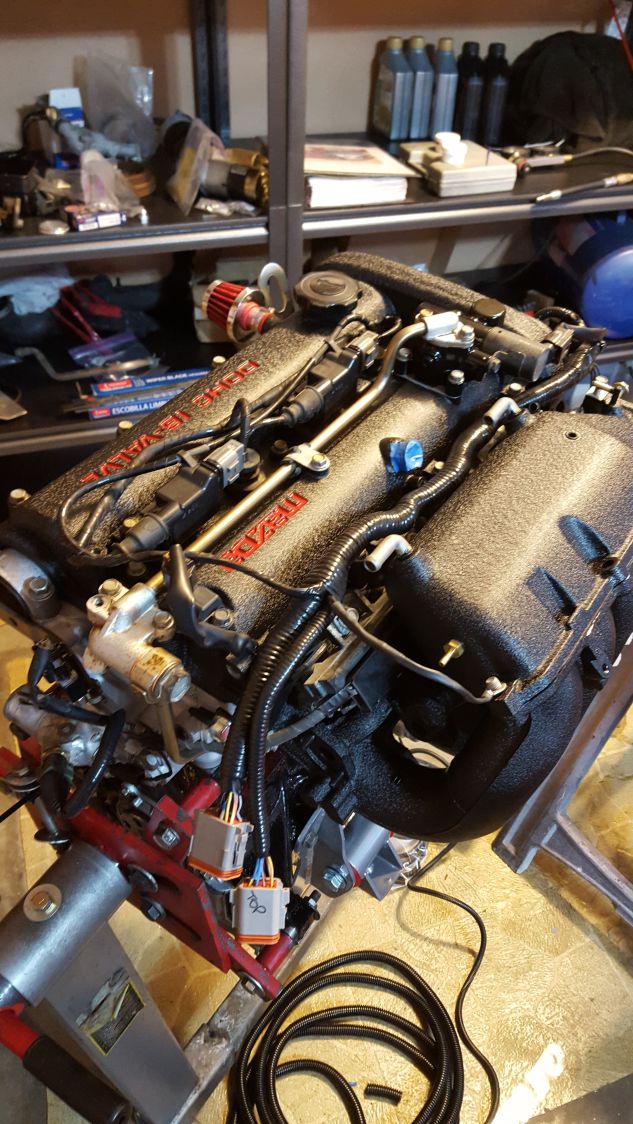

Thanks Savington for all the info. I kept the original vvt engine harness and used Deutsch connectors on both ends. I think it will end up working pretty well. Looks stockish






Attached Thumbnails
The Definitive "VVT swap into 90-97 chassis" Megathread.-80-20160107_170712_9317b3704e0f288fb4e83e205f58fad9f612a877.jpg   The Definitive "VVT swap into 90-97 chassis" Megathread.-80-20160107_170735_5ef57e6fd1c10b01a96e0063a97db462d085dc84.jpg   The Definitive "VVT swap into 90-97 chassis" Megathread.-80-20160107_170719_4b9e93d33524a32c77d261f64cd553cc0974d42e.jpg
btabor is offline   Reply With Quote
Old 01-21-2016, 01:42 AM   #270
Newb

Join Date: Mar 2014
Location: El Paso, TX
Posts: 8
Total Cats: 0
Default

Awesome info in this thread; it helped me swap a VVT into my to my NB1. I got it started with the stock ECU (small miracle), and I have my MS3 Basic waiting to go in, but I'm not sure which wire to tap on the injector harness for the 12v VVT actuator. I'm using the 2003 injector harness, and I think it's the white wire with the blue stripe. If anyone can tell me for sure before I spice into it, I'd appreciate it!

Thank you!
thelarva is offline   Reply With Quote
Old 01-21-2016, 01:54 AM   #271
Junior Member

Join Date: Mar 2010
Location: Melissa, TX
Posts: 172
Total Cats: 20
Default

Quote:
Originally Posted by thelarva View Post
Awesome info in this thread; it helped me swap a VVT into my to my NB1. I got it started with the stock ECU (small miracle), and I have my MS3 Basic waiting to go in, but I'm not sure which wire to tap on the injector harness for the 12v VVT actuator. I'm using the 2003 injector harness, and I think it's the white wire with the blue stripe. If anyone can tell me for sure before I spice into it, I'd appreciate it!

Thank you!
Blue/white is +12v on the injector harness, it's black/white on the spark harness. I used the spark harness, but I am sure either would work.
Ziggo is offline   Reply With Quote
Old 01-21-2016, 04:29 AM   #272
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,400
Total Cats: 835
Default

Logically, there is one wire that provides +12v to all four of your injectors. It will be the same color going to all four injectors, so look at a couple of your injector connectors, figure out which wire is shared among them. That's the +12v.
Savington is offline   Reply With Quote
Old 02-01-2016, 04:32 PM   #273
Junior Member
iTrader: (4)

Join Date: Mar 2009
Location: down south tx
Posts: 92
Total Cats: 0
Default

Quote:
Originally Posted by Ziggo View Post
Blue/white is +12v on the injector harness, it's black/white on the spark harness. I used the spark harness, but I am sure either would work.
This is going to help me too.. Thanks

Im in the process of doing a 01 vvt w/90k in my 94.. I already droped in the motor this past weekend.. I swap to the 94 na thtottle body to use my org tb plug etc.. Is that ok?
Im geting a 99-00 nb fr from my buddy and maybe fpr too..(ps can someone post me pic on how to route the fuel lines, what goes where to where) i have an idea but dont want to do it twice..
I have a vvtuner here at home, i dont have any instructions on where to wire thing up..

I just read this entire thread and seems like im on the right track 👍👍
1.8-m is offline   Reply With Quote
Old 02-02-2016, 11:01 PM   #274
Junior Member

Join Date: Aug 2013
Location: Cecil, MD
Posts: 45
Total Cats: -2
Default

Quote:
Originally Posted by 1.8-m View Post
(ps can someone post me pic on how to route the fuel lines, what goes where to where)
I'm pretty sure the hardlines are the same in both NA6 and NA8 chassis. This is accurate for NA6 for sure.

Feed: rear hard line to fuel rail quick-disconnect fitting
Return: FPR to front hard line

5/16" fuel line
add lightness is offline   Reply With Quote
Old 02-08-2016, 12:03 PM   #275
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

For you guys using MS3, do you enable alternator control in tunerstudio when using the 94-97 alternator? Do I set it to closed loop field control?
btabor is offline   Reply With Quote
Old 02-08-2016, 12:10 PM   #276
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,400
Total Cats: 835
Default

The ECU doesn't control the 94-97 alternator. It has on-board control and doesn't need any input from the ECU. Just plug the 1.6L alternator harness into the 94-97 alternator and don't touch any ECU settings.
Savington is offline   Reply With Quote
Old 02-08-2016, 12:26 PM   #277
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

Quote:
Originally Posted by Savington View Post
The ECU doesn't control the 94-97 alternator. It has on-board control and doesn't need any input from the ECU. Just plug the 1.6L alternator harness into the 94-97 alternator and don't touch any ECU settings.
That's what I did, stupid question. Sorry
btabor is offline   Reply With Quote
Old 03-10-2016, 12:08 AM   #278
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,423
Total Cats: 108
Default

Quote:
Originally Posted by dcamp2 View Post

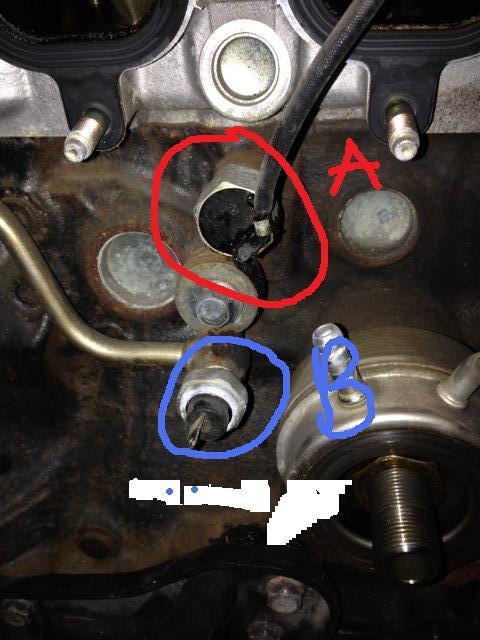

Does anybody know if the threads are different on the vvt block where the vvt oil line hooks up? Can you say bolt that line to a 94-97 block?
bbundy is offline   Reply With Quote
Old 03-10-2016, 12:17 AM   #279
Senior Member
iTrader: (2)

Join Date: Dec 2008
Location: KY
Posts: 621
Total Cats: 34
Default

I knew the answer at one point but I can't remember anymore. I think the VVT blocks are BSPP and all the older ones are BSPT. That banjo fitting shouldn't work with tapered threads.
jpreston is offline   Reply With Quote
Old 03-10-2016, 01:18 AM   #280
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,423
Total Cats: 108
Default

Quote:
Originally Posted by jpreston View Post
I knew the answer at one point but I can't remember anymore. I think the VVT blocks are BSPP and all the older ones are BSPT. That banjo fitting shouldn't work with tapered threads.
yea I'm pretty sure that oil pressure switch uses tapered threads. without VVT it would thread straight into the block. I think the sensor will thread into the straight threads but wouldn't seal.

Seems like it would make sense that the VVT blocks have straight threads there for the banjo but I don't know for sure. Also not sure if it makes a non VVT block a no go for adding VVT. maybe straight male thread could be forced in or a light re-tap before shipping it off to the machine shop for bore hone and clean would work.
bbundy is offline   Reply With Quote
