Old 06-06-2012, 03:50 PM   #481
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Sexy!
absRTP is offline   Reply With Quote
Old 06-06-2012, 05:15 PM   #482
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Thanks Abe, that looks great!
yellowihss is offline   Reply With Quote
Old 06-06-2012, 05:34 PM   #483
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 252
Default

Quote:
Originally Posted by yellowihss View Post
Thanks Abe, that looks great!
I want to see dyno numbers. This is probably a lot cheaper than a custom IM.
soviet is offline   Reply With Quote
Old 06-06-2012, 05:56 PM   #484
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Looks great! Have you checked the flange for straightness?
k24madness is offline   Reply With Quote
Old 06-06-2012, 06:04 PM   #485
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Stone Mountain, GA
Posts: 280
Total Cats: 7
Default

Looks great!

I've never had it warp so much that a few passes on a belt sander doesn't flatten it right back. I do bolt the flange to a 3/4" thick aluminum plate while welding though.

--Ferdi
ftjandra is offline   Reply With Quote
Old 06-06-2012, 06:05 PM   #486
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Normaly I would not discuss price on the forum, but with as much interest as there is in this here it is.

Skunk 2 TB - $250
Skunk 2 Manifold - $230
Ftjandra flange - $150
Abe's awesome work - $ask him (Don't know if he wants to charge more than he charged me since it was his first one, and I don't want anyone to hold him to the price he gave me.)
Still need TB hose, and TPS sensor and other misc items. No more than $100

So far I'm out $730 before labor. I could have done a knock off manifold for $150, or a stock GSR manifold for ~$50-$100. I could have also done a knock off TB for $150, or a stock TB for ~$25-$50. I would never use another flange, because Ftjandra's flange was the ----.

I would say a complete top of the line Honda intake manifold with TB would cost ~$1000
yellowihss is offline   Reply With Quote
Old 06-06-2012, 06:17 PM   #487
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Stone Mountain, GA
Posts: 280
Total Cats: 7
Default

Quote:
Originally Posted by yellowihss View Post
...
Ftjandra flange - $150
...
Flange was $125.

--Ferdi
ftjandra is offline   Reply With Quote
Old 06-06-2012, 07:03 PM   #488
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,273
Total Cats: 0
Default

Just cought up on this thread. Did falcon ever dyno with my old IM?


EDIT: NM, I see kotomile bought it and hasn't installed it.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-06-2012, 08:25 PM   #489
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by ftjandra View Post
Flange was $125.

--Ferdi
Yes sorry $125
yellowihss is offline   Reply With Quote
Old 06-07-2012, 11:24 AM   #490
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Thank you Allen, for the opportunity.

My labor was $200. That's what I originally quoted because I thought it would be a simple cut/weld job. If I'd known I'd have to use offset spacers and fit them down into the recessed flange I probably would have quoted it a little higher.

The flange did warp some. I tried to straighten it on the belt, but the aluminum kept galling and gumming up. I'll try again with some lubricant, and if that doesn't work, it'll go to a machine shop to be milled flat.
ARTech is offline   Reply With Quote
Old 06-08-2012, 01:54 AM   #491
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

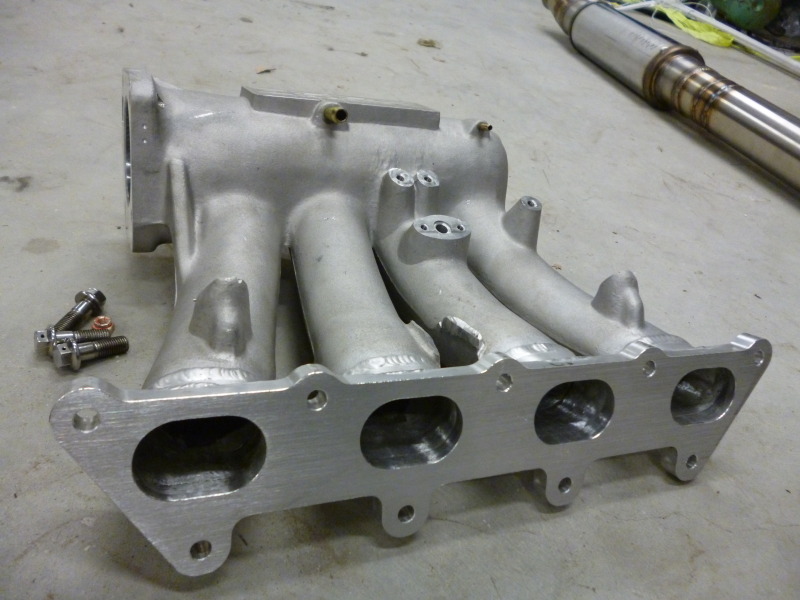

Done.

Attached Thumbnails
Honda intake manifold-p1020822.jpg
ARTech is offline   Reply With Quote
Old 06-08-2012, 02:59 AM   #492
Newb

Join Date: Mar 2009
Posts: 15
Total Cats: 0
Default

That look AWESOME!!!
benmiata is offline   Reply With Quote
Old 06-08-2012, 07:19 AM   #493
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,506
Total Cats: 874
Default

Are you guys really still looking for Honda dyno charts? I posted before-and-after charts like 2 years ago with the Honda IM on Theseus.
Savington is offline   Reply With Quote
Old 06-08-2012, 08:41 AM   #494
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 1
Default

The TPS/IAC/throttle cable compatable with this? (just went through hell connecting a four wire IAC to a 1990) Obviously splice on new plugs, but same amount of wires? Throttle bracket let the stock cable work?
Nagase is offline   Reply With Quote
Old 06-12-2012, 08:08 AM   #495
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
Are you guys really still looking for Honda dyno charts? I posted before-and-after charts like 2 years ago with the Honda IM on Theseus.
Any estimate on when the honda manifold would start to nose over? I know it's good for 7400 rpm, but I'm curious about beyond that (n/a, cams, ect).
Nagase is offline   Reply With Quote
Old 06-12-2012, 10:07 AM   #496
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,404
Total Cats: 2,035
Default

Quote:
Originally Posted by Savington View Post
Are you guys really still looking for Honda dyno charts? I posted before-and-after charts like 2 years ago with the Honda IM on Theseus.
More info = better understanding.
As it is right now I don't think we have more than like 5 documented before/after plots.

Quote:
Originally Posted by Nagase View Post
Any estimate on when the honda manifold would start to nose over? I know it's good for 7400 rpm, but I'm curious about beyond that (n/a, cams, ect).
actually the hondas these are meant for spin to 8-9k with ease without any drop off or choking.

these exceed the flow a miata engine is capable of.
18psi is offline   Reply With Quote
Old 06-12-2012, 01:54 PM   #497
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,506
Total Cats: 874
Default

No idea on nose over. I saw flat torque to 6k but I won't even begin to speculate on what causes the drop past that point.

Miata throttle cable works, expect to build your own bracket for it. B18 throttle bodies are 3-wire TPS. I do not have an idle valve.
Savington is offline   Reply With Quote
Old 06-12-2012, 02:27 PM   #498
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

From what i've read the idle valve should be pretty much plug and play...expect to have to retune closed loop idle of course. I have honda idle valve and such sitting around, but still waiting on motor to put it all on.
aaronc7 is offline   Reply With Quote
Old 06-12-2012, 05:44 PM   #499
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 1
Default

Awesome. I'm hoping that this manifold is good to about 8600rpm or so. Just put down a deposit for an IM and exhaust from Abe. Just need to get an ECU from Brain. Gogo comparatively cheap n/a build.
Nagase is offline   Reply With Quote
Old 06-12-2012, 06:35 PM   #500
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,913
Total Cats: 499
Default

Somehow i never subbed for this thread even though i've looked at it like 5-6 times on different occasion BSSSSS.. Soooo when are we going to get vtec cams too?

Also seeing that xfactor has the short runners, perhaps a 1-2" adapter that converts honda to mazda manifold flange that will also lengthen the runners to lower the power band range.
triple88a is offline   Reply With Quote
