Old 09-27-2013, 09:37 PM   #781
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

have you guys seen this
Now in Stock! Ultra Series Intake Manifold- Street - Skunk2 Racing

$360 they go for

emilio, do you have any pics of the performer x on your car?
ctdrftna is offline   Reply With Quote
Old 09-27-2013, 10:38 PM   #782
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Quote:
Originally Posted by ctdrftna View Post
have you guys seen this
Now in Stock! Ultra Series Intake Manifold- Street - Skunk2 Racing

$360 they go for

emilio, do you have any pics of the performer x on your car?
Honda intake manifold
emilio700 is offline   Reply With Quote
Old 09-27-2013, 11:01 PM   #783
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

Quote:
Originally Posted by emilio700 View Post

are you using the honda IACV on the manifold ? Also how did you come up with the 11" optimum runner length? when i built my manifold i used formulas from the manual to our super flow flow bench, they calculated runner length from the back of the valve to the end of the runner, are you calculating this the same?
ctdrftna is offline   Reply With Quote
Old 09-27-2013, 11:11 PM   #784
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Quote:
Originally Posted by ctdrftna View Post
are you using the honda IACV on the manifold ? Also how did you come up with the 11" optimum runner length? when i built my manifold i used formulas from the manual to our super flow flow bench, they calculated runner length from the back of the valve to the end of the runner, are you calculating this the same?
I didn't calculate it. I individually asked two very smart guys who know about this stuff the same question and got the same answer from both. Plus thats how long the OEM Mazda runners are. Plus we tested it and it works.
emilio700 is offline   Reply With Quote
Old 10-22-2013, 12:07 AM   #785
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

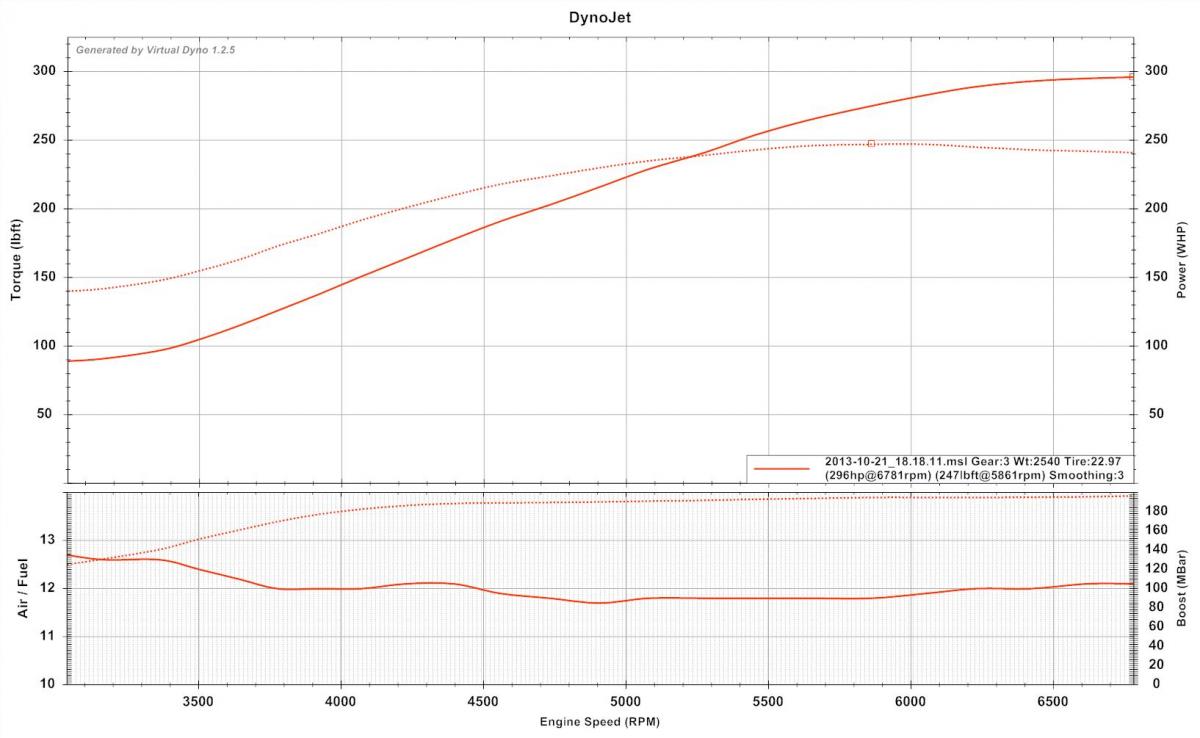

99 block, 8.6 ST pistons, stock VVT head (VVT not being used at the moment), GTX2867R @ 14psi (198 kPa) w/ .86 turbine housing. Godspeed (looks same as Blox) intake mani with Godspeed (again, looks just like Blox) 68mm TB.

I don't have any sort of realistic before comparison, just wanted to throw it on here for 'data'. I should have gone to 7500 RPM or so to see what happened to the HP curve (drop/climb/maintain). As I continue to up the boost on my build I'll post more info in this thread. Either way it definitely shifts the powerband to later RPM. I should have measured my runner lengths before I bolted it on, eh?

Attached Thumbnails
Honda intake manifold-3rd-gear-again.jpg
aaronc7 is offline   Reply With Quote
Old 11-04-2013, 11:26 PM   #786
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

Quote:
Originally Posted by emilio700 View Post
So we ended up at 9.5" runner length, about 1.5" short from optimal of 11". Up against the ABS and we still had to move the pump almost 2". I realize now the only way to get the required length is to wrap it around like OEM. To get it right we'll have to build it from scratch.
Emilio,
If one were to construct an intake as you describe where would the runner length be measured from when considering the velocity stack inside the plenum? Would it be at the widest part of the mouth? Or the point at which the stack tapers to the diameter of the runner?

Thanks!
Amellrotts is offline   Reply With Quote
Old 11-17-2013, 12:05 PM   #787
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

I measured the runners on the flat top manifold today....12.5"

Thoughts?
Amellrotts is offline   Reply With Quote
Old 12-30-2013, 02:41 PM   #788
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

Quote:
Originally Posted by emilio700 View Post
Two different dynojets. Will get run files and overlay when we get back next week.
did you ever post this?
Dot3 is offline   Reply With Quote
Old 12-30-2013, 08:35 PM   #789
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Quote:
Originally Posted by Dot3 View Post
did you ever post this?
Previous page.

Edit: Couldn't obtain run file from other dyno operator so no A/B. Made about 6whp more than square top and peak power moved up about 300rpm. If we could fit another 1.5" of runner length in there, I think we'd find another 5-10whp.
emilio700 is offline   Reply With Quote
Old 01-07-2014, 05:31 PM   #790
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

Did anyone know that skunk2 is working on a miata intake manifold?
Dot3 is offline   Reply With Quote
Old 01-07-2014, 05:36 PM   #791
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,668
Total Cats: 93
Default

First I've heard of it. Would be amazing, $360ish for a decent intake manifold that was lighter and better flowing than a flat top.
Leafy is online now   Reply With Quote
Old 01-07-2014, 05:38 PM   #792
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

I sent a email asking about a intake manifold and put a link to this thread. This is what they sent me back.

"Thank you for that John. I forward the email to the R & D department and they actually told me we are already looking into it and have some in production for testing. I would keep an eye on our website, facebook and instagram page as those are the first place to release teaser pics & video. Thank you again for the suggestions.

Kind Regards,

Liz"
Dot3 is offline   Reply With Quote
Old 01-07-2014, 05:40 PM   #793
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

Sweet !!
ctdrftna is offline   Reply With Quote
Old 01-07-2014, 07:01 PM   #794
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

They've been saying that they wanted to work on it. They talked to me about the possible interest the Miata community would have in it.
Why me? No clue, I'm nothing special haha.

Nice to see they are actually keeping their word.
Impuls is offline   Reply With Quote
Old 01-07-2014, 08:58 PM   #795
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 439
Total Cats: 26
Default

Quote:
Originally Posted by Dot3 View Post
Did anyone know that skunk2 is working on a miata intake manifold?
Umm no but that has some major potential!

Quote:
Originally Posted by Leafy View Post
First I've heard of it. Would be amazing, $360ish for a decent intake manifold that was lighter and better flowing than a flat top.
I do not know Honda manifold pricing is that what they charge normally? It's funny to think about how much OEM square tops fetch these days compared to a aftermarket unit from Skunk2.

Quote:
Originally Posted by Dot3 View Post
I sent a email asking about a intake manifold and put a link to this thread. This is what they sent me back.

"Thank you for that John. I forward the email to the R & D department and they actually told me we are already looking into it and have some in production for testing. I would keep an eye on our website, facebook and instagram page as those are the first place to release teaser pics & video. Thank you again for the suggestions.

Kind Regards,

Liz"
Lincoln Logs is offline   Reply With Quote
Old 01-07-2014, 09:00 PM   #796
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,668
Total Cats: 93
Default

Yeah if you look at the link at the top of this page there's a rather nice honda manifold that retails for $360.
Leafy is online now   Reply With Quote
Old 01-08-2014, 09:16 AM   #797
Junior Member

Join Date: May 2010
Posts: 56
Total Cats: 1
Default

Quote:
Originally Posted by Dot3 View Post
Did anyone know that skunk2 is working on a miata intake manifold?
Since 2009, according to this m-net thread (NB wanted for intake manifold dyno testing - MX-5 Miata Forum)
M2Ken is offline   Reply With Quote
Old 01-08-2014, 11:19 AM   #798
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Now that all the Honda Geh Boyz are jumping into the Miata "Game" the market for Skunk2 miata products must look much, much more promising...
Efini~FC3S is offline   Reply With Quote
Old 01-08-2014, 11:22 AM   #799
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,387
Total Cats: 2,032
Default

I doubt anything will be made or released any time soon tbh
I hope I'm wrong, but companies do this crap all the time: "Something might be in teh works some time, so go ahead and subscribe to all our advertising and check all our websites every day because within the next 20 years we might put something out that you're looking for"

herp derp

yeah okay
18psi is offline   Reply With Quote
Old 01-09-2014, 10:29 PM   #800
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

anyone seen these manifolds?
8.5 on Bone Stock JDM K20A | NUMBER 1 RACING
Dot3 is offline   Reply With Quote
