Old 02-22-2015, 08:23 PM   #881
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,608
Total Cats: 14
Default

Quote:
Originally Posted by Savington View Post
I'm quite aware of what an STL car makes. STL has cams. Doesn't change my point one iota: Stock cams + stock ports = not 170whp
Agreed. Will likely need more than 10:1 compression too.
Stealth97 is offline   Reply With Quote
Old 02-23-2015, 12:42 PM   #882
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

Quote:
Originally Posted by bbundy View Post
this is what I have been using. I'm guessing its not bad might could use slightly larger cross section for the runners.
Excuse my ignorance, but what did that start life as, and what all was done to it?
vehicular is offline   Reply With Quote
Old 02-23-2015, 01:45 PM   #883
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,600
Total Cats: 855
Default

Quote:
Originally Posted by Savington View Post
I'm quite aware of what an STL car makes. STL has cams. Doesn't change my point one iota: Stock cams + stock ports = not 170whp
I think it might be possible with an unlimited build, 12.0:1, 2.0L, vacuum pump oiling system, fully coated, E85. STL legal though, no. Even a "stock" STL port isn't stock.

We barely hit 180whp in ours before we discovered the road blocks and why 190-195whp STL motors are both grenades and stupid expensive. That's when I pulled the plug and used one of Oscars mildly tuned B6's in Super. Still had fastest trap speed in STL at runoffs. Diff magic + gearing =
emilio700 is offline   Reply With Quote
Old 02-23-2015, 02:21 PM   #884
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Quote:
Originally Posted by Savington View Post
I'm quite aware of what an STL car makes. STL has cams. Doesn't change my point one iota: Stock cams + stock ports = not 170whp
Sorry...I was confused. Your post didn't say anything about stock cams, I thought you were claiming you had never seen a BP make more than 170whp on stock ports.

Quote:
Originally Posted by emilio700 View Post
Even a "stock" STL port isn't stock.
Other than a 1/2" of intake and exhaust port matching it has to be 100% OEM, at least that's my understanding of the rules. I was under the impression the allowance really doesn't make that much of a difference, but surely you would know better than I.

We never did any port work on our STL motors... #becauseK20
Efini~FC3S is offline   Reply With Quote
Old 02-23-2015, 02:38 PM   #885
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Last i knew, Quinn's car wasn't stock ports, either.
concealer404 is offline   Reply With Quote
Old 02-23-2015, 03:29 PM   #886
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,431
Total Cats: 108
Default

Quote:
Originally Posted by vehicular View Post
Excuse my ignorance, but what did that start life as, and what all was done to it?
95 Miata with all EGR features cut out of and welded up it making slightly larger plenum and the head mounting flange modified to fit a 99 head gasket matched porting is done on both the manifold and the head.
bbundy is offline   Reply With Quote
Old 02-23-2015, 03:33 PM   #887
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,600
Total Cats: 855
Default

There is genuinely stock then there is tech shed legal. Port matching helps on the BP's. We do it on SCCA and NASA dynio classed motors not on NASA points classed motors. Anyway, yeah, the magic in an STL motor is getting the cams just so. We stopped at 5 proprietary cam designs as we ran out of development time the blew it up and quit the BP. The tinkerer in me would love to build someone elses STL motor. Knowing what we know now, I feel confident we could build 190whp, 9000rpm that would last 10-15hrs before it lost much power. It would be the most expensive BP we have ever built.

Back to the OT, such a OEM-ish long block with stock cams isn't going to benefit too much with a B18 based manifold. Big cams and a B18 manifold would likely show gains of 8-15whp at high rpm over a square top.
emilio700 is offline   Reply With Quote
Old 02-23-2015, 05:39 PM   #888
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Quote:
Originally Posted by emilio700 View Post
Knowing what we know now, I feel confident we could build 190whp, 9000rpm that would last 10-15hrs before it lost much power. It would be the most expensive BP we have ever built.
Sorry to go off topic one more time but this is what drives me crazy about SCCA rules sometimes. Limit engine modifications to 11.0 compression, and .450" lift in the vein of keeping costs low. And in the end make a rule set where engine costs are astronomical, and engine durability is low.

:shakeshead:

Oh well
Efini~FC3S is offline   Reply With Quote
Old 02-25-2015, 06:31 AM   #889
Junior Member

Join Date: Jan 2014
Posts: 59
Total Cats: -53
Default

For B DOHC vtec B16A B16B B18 B18C5 Intake Manifold 70mm Silver Throttle Body | eBay Would this work as well? Not sure if I can trust that tb though.
RoadsterKirby is offline   Reply With Quote
Old 02-25-2015, 08:10 AM   #890
Junior Member

Join Date: Jan 2014
Posts: 59
Total Cats: -53
Default

RoadsterKirby is offline   Reply With Quote
Old 02-26-2015, 05:02 AM   #891
Junior Member

Join Date: Jan 2014
Posts: 59
Total Cats: -53
Default

Would any b18 manifold work? I mean when comparing the skunk and victor and obx, I was wondering which one to pick from. I'm leaning towards Civic EK Integra Da DC2 B16A B16A2 B16A3 B16B B17A1 B18C5 Cast Intake Manifold | eBay because it's cheaper and it allow one to run a larger tb than the obx.
RoadsterKirby is offline   Reply With Quote
Old 02-26-2015, 03:06 PM   #892
Junior Member
iTrader: (2)

Join Date: May 2014
Location: Arlington, TX
Posts: 311
Total Cats: 39
Default

Kirby,

When you are accummulating negative props for posts, that means you should stop, not keep posting similar junk.

Just thought I'd let you know.
Dustin1824 is offline   Reply With Quote
Old 02-26-2015, 04:22 PM   #893
Junior Member

Join Date: Jan 2014
Posts: 59
Total Cats: -53
Default

Thanks, just trying to get an answer is all.
RoadsterKirby is offline   Reply With Quote
Old 02-26-2015, 08:00 PM   #894
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 944
Total Cats: 20
Default

The problem is, your asking questions that have already been answered many times. I'd suggest reading through these pages and then searching for an answer to any questions you might have. Then, if the answer still isn't showing up, make a post specific to the information you aren't able to find.
TheBandit is offline   Reply With Quote
Old 03-01-2015, 12:06 PM   #895
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

I have not read all 45 pages but the general consensuses seems to be OEM length is best and skunk 2 is too short. I disagree with that in the context of racing and 8k RPM redline. OEM's tune for lower RPM's on the street so it's hard to believe Mazda created the perfect manifold for racing and compromised street performance.

I have avoided this discussion for some time but will add the facts that I know from years of playing with intake tracks on other cars/motorcycles.

Intake cams play a role in determining proper intake length. Because the pulse wave oscillates from the backside of the valve to the plenum, (assuming non ITB's) as the IVC event and IVO event change so does the ideal intake track length.
Plenum volume seems to change the tuned length of the runners.
FI and the added volume requirements of boosted motors change things as well.
length of intake port is another variable to consider.

Even with all the math and proper formulas I have gotten surprised more often than not with intake length.

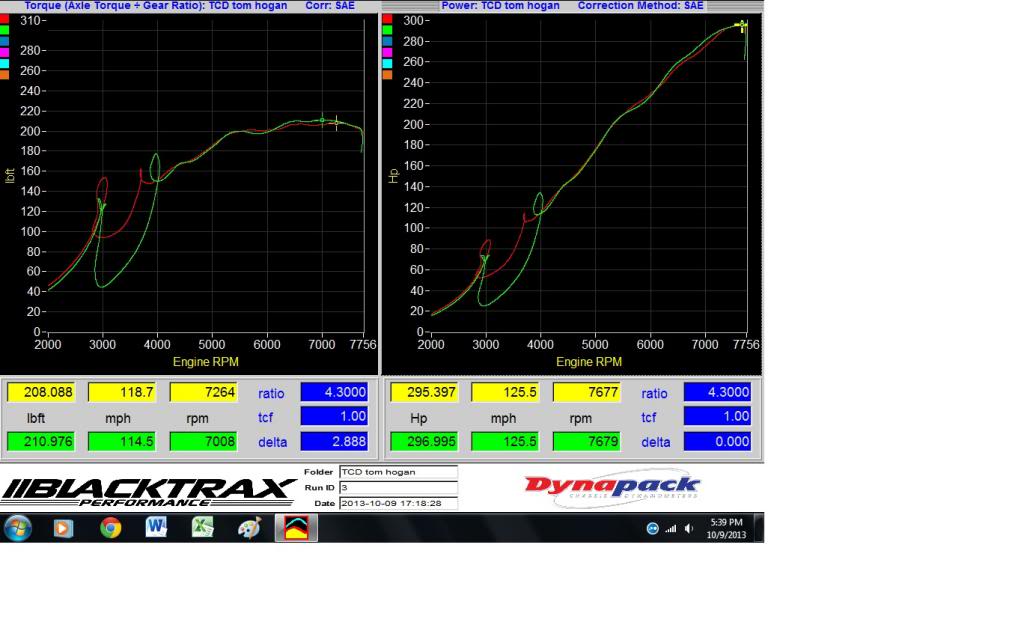

A well respected member of the community and a friend of mine dismissed the Skunk2 as being wrong for the job. He was very surprised with the results I got with mine. Would love to see results with a fixed boost setup.

The intake is not a one size fits all situation. Just like cams, headers etc it can (and should be) be tweaked to compliment your other components.

Attached Thumbnails
Honda intake manifold-295whpdyno-2.jpg

Last edited by k24madness; 03-01-2015 at 05:02 PM.
k24madness is offline   Reply With Quote
Old 11-27-2015, 05:06 PM   #896
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 532
Total Cats: 15
Default

Anyone have any updates to this?
vteckiller2000 is offline   Reply With Quote
Old 11-27-2015, 09:49 PM   #897
Junior Member

Join Date: Jan 2014
Location: Western Australia
Posts: 344
Total Cats: 61
Default

Quote:
Originally Posted by vteckiller2000 View Post
Anyone have any updates to this?
I run a skunk2 ultra street. Works great on high reving, ported BPs.
Honda Intake - No welding req
Madjak is offline   Reply With Quote
Old 11-27-2015, 11:03 PM   #898
Senior Member
iTrader: (2)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 699
Total Cats: 28
Default

I'll be putting a skunk 2 on an msm long block with a mild shave and rods with an upgraded msm turbo/ported exhaust manifold and upgraded exhaust and intercooler piping, curious to see results vs tuned vics
greddygalant is offline   Reply With Quote
Old 11-28-2015, 09:52 AM   #899
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 532
Total Cats: 15
Default

Quote:
Originally Posted by Madjak View Post
I run a skunk2 ultra street. Works great on high reving, ported BPs.
Honda Intake - No welding req
Your car is an anomalous animal. Good job with that! I would still like to see this intake on something with stock cams...
vteckiller2000 is offline   Reply With Quote
Old 11-28-2015, 11:51 AM   #900
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,154
Total Cats: 972
Default

Quote:
Originally Posted by vteckiller2000 View Post
Your car is an anomalous animal. Good job with that! I would still like to see this intake on something with stock cams...
Quote:
Originally Posted by emilio700 View Post
a OEM-ish long block with stock cams isn't going to benefit too much with a B18 based manifold. Big cams and a B18 manifold would likely show gains of 8-15whp at high rpm over a square top.
aidandj is offline   Reply With Quote
