Old 07-30-2015, 12:38 PM   #121
Senior Member
iTrader: (4)

Join Date: Feb 2011
Location: Joliet, IL
Posts: 603
Total Cats: 15
Default

So glad I ran across this. Subed
Does this have any hope of connecting to the Miata gauges?
2manyhobyz is offline   Reply With Quote
Old 07-30-2015, 12:52 PM   #122
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,709
Total Cats: 125
Default

Quote:
Originally Posted by 2manyhobyz View Post
So glad I ran across this. Subed
Does this have any hope of connecting to the Miata gauges?
Apparently 2000-2005 gauges can work using a $100 box that converts the signals.
cordycord is offline   Reply With Quote
Old 07-30-2015, 01:13 PM   #123
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

99-05 use electronic gauges, not manual speedo like NA. So its a matter of just adjusting signals.
aidandj is offline   Reply With Quote
Old 07-31-2015, 07:06 PM   #124
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 286
Total Cats: 24
Default

So I think I might be the one that's making the gauge solution. The Dakota Digital box doesn't work perfectly with the NB dash - it's a mostly analog solution, turning the analog output of the sensor to another analog sensor for the dash. This works well for most gauge clusters, but as I understand it, there are differences between 3 types of NB dashes and each one is slightly "off" with the dakota boxes. While I was at the Mitty I talked to both FM and V8Roadsters, trying to get a handle on what exactly the problem(s) were.

Either way - there's a problem, and I'm making a solution. I already have some experience writing CAN to megasquirt (see made my own canbus gauge ) and it's just a little bit more hackery to get canbus from a non-MS ECU. I've already gotten control of the gauge cluster - and it's more accurate than the stock ECU. The oil pressure switch and coolant sensor are better served by running a wire to the stock sensors, or replacing the NB's oil pressure gauge with the real NA OPG. I can read the standard OBDII pid's for 2008 and up ECU's for km/h and RPM's. I'll be finishing up this board and the code once I get my dad's LFX on the road (best way to test it, eh?)



As an aside - I was thinking of just replacing the NA's cluster with a GM stepper motor setup, but then the odometer function wouldn't work. It seems trivial (though slightly annoying) to swap it out for an NB cluster.
gooflophaze is offline   Reply With Quote
Old 08-01-2015, 08:17 PM   #125
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 412
Total Cats: 8
Default

Cool build Ryan, well it be at laguna ? I saw V8R V6 last year, very clean build.
jmann is offline   Reply With Quote
Old 08-01-2015, 10:31 PM   #126
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,568
Total Cats: 226
Default

Quote:
Originally Posted by jmann View Post
Cool build Ryan, well it be at laguna ? I saw V8R V6 last year, very clean build.
I'll definitely be at MRLS, and IF the car is done in time then it will be there too. V8R was in the garage next to us last year and that is what got us talking and eventually lead to this in fact!

-Ryan
ThePass is offline   Reply With Quote
Old 08-04-2015, 10:48 AM   #127
Newb

Join Date: Feb 2011
Posts: 34
Total Cats: 2
Default

I hope that your car will be there!

This will be my first time running MRLS and I couldn't be more pumped!
deadohiosky1984 is offline   Reply With Quote
Old 08-13-2015, 02:12 PM   #128
Junior Member

Join Date: Jul 2015
Location: grayson, ga
Posts: 96
Total Cats: 5
Default

making any headway?
portabull is offline   Reply With Quote
Old 08-13-2015, 04:58 PM   #129
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,568
Total Cats: 226
Default

I've been so busy with ND development that I've decided that I don't want to rush the LFX swap just to have it (hopefully) running in time for MRLS in October. Prototype clutch is still in the works and a few weeks away, driveshaft and axles are still a few weeks out.. and I wouldn't take a car to Laguna Seca that I haven't had time to shake down and work out the kinks.

I'll be starting the project this month, but extending the deadline frees me up to keep some focus on the many ND projects we have going on, and I'll be able to do things right on this LFX project as I go.

-Ryan
ThePass is offline   Reply With Quote
Old 08-14-2015, 01:32 PM   #130
Junior Member

Join Date: Jul 2015
Location: grayson, ga
Posts: 96
Total Cats: 5
Default

makes perfect sense. there's some confusion as to whether our axles are too long, happened to carnut and i think us too. we'll get it worked out eventually.
this is not a project to get in a rush about, but it'll be worth the wait. we're wiring now....
portabull is offline   Reply With Quote
Old 09-08-2015, 03:59 PM   #131
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,568
Total Cats: 226
Default

Updated the budget list to reflect a change in expected cost on the ECU with base tune from V8R, as their tuner's license costs went up.
ThePass is offline   Reply With Quote
Old 09-08-2015, 04:08 PM   #132
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,568
Total Cats: 226
Default

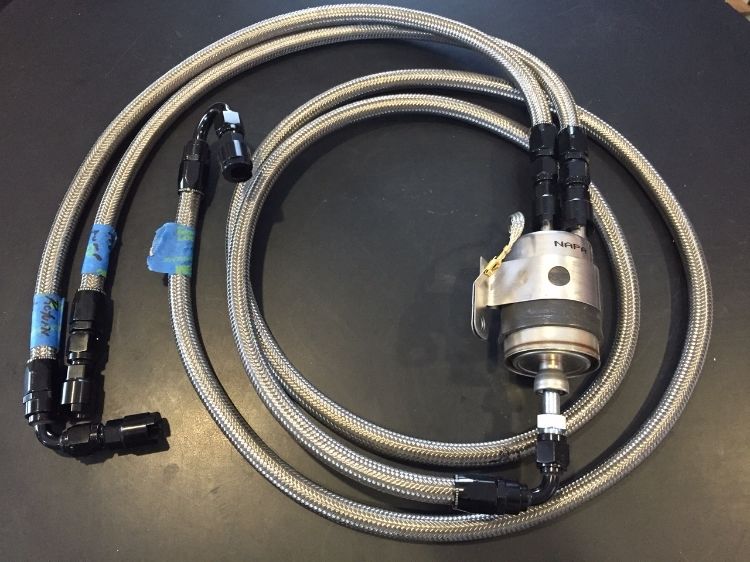

LFX Fuel Kit arrived, sans fuel pump as I already have a Walbro 255 from the turbo setup that will do the job. Kit uses a Corvette fuel filter, SS lines and AN fittings:



Clutch and flywheel are still in the works with some delays, but nothing unexpected as it's all prototype stuff.

Because the car won't be running at Laguna Seca, I'm picking up some of the remaining large items from V8R when we see them at that event (driveshaft and axles).
Attached Thumbnails
Miata LFX Swap (Singular Motorsports & Good-Win Racing)-80-lfx_fuelkit_zpsnbvojuxo_f33d253ff81538a3109f5a2ed2463de619cca98e.jpg
ThePass is offline   Reply With Quote
Old 09-11-2015, 11:30 AM   #133
Newb

Join Date: Sep 2015
Posts: 3
Total Cats: 0
Default

Wow, just getting back into Miatas and a lot has changed.....awesome build, who's ready to do the twin turbo GM swap?!?
miketurbo is offline   Reply With Quote
Old 09-11-2015, 01:02 PM   #134
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,709
Total Cats: 125
Default

Quote:
Originally Posted by miketurbo View Post
Wow, just getting back into Miatas and a lot has changed.....awesome build, who's ready to do the twin turbo GM swap?!?
Twin turbo swap will be crazy, especially when considering that the default transmission is an eight speed automatic with push-buttons on the steering wheel. It can do full-throttle shifts in .3 seconds.
cordycord is offline   Reply With Quote
Old 09-11-2015, 01:34 PM   #135
Newb

Join Date: Sep 2015
Posts: 3
Total Cats: 0
Default

Quote:
Originally Posted by cordycord View Post
Twin turbo swap will be crazy, especially when considering that the default transmission is an eight speed automatic with push-buttons on the steering wheel. It can do full-throttle shifts in .3 seconds.
Sounds like a fast car.....maybe just mate a t56 for rowing capabilities
miketurbo is offline   Reply With Quote
Old 09-11-2015, 03:27 PM   #136
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 610
Total Cats: 72
Default

Wonder if a Ford V6 Ecoboost would fit. Now that would be nuts.
Arca_ex is offline   Reply With Quote
Old 09-13-2015, 02:38 AM   #137
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,709
Total Cats: 125
Default

Quote:
Originally Posted by miketurbo View Post
Sounds like a fast car.....maybe just mate a t56 for rowing capabilities
The default manual transmission for this engine is an Aisin MV5 or MV7 six speed. With the MV7 and 3.23 rear end, theoretical gear-limited top speed is over 200mph. Emphasis on "theoretical".
cordycord is offline   Reply With Quote
Old 09-13-2015, 03:17 AM   #138
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

<p>In for 200mph miata.</p>
aidandj is offline   Reply With Quote
Old 11-04-2015, 04:15 PM   #139
Junior Member
iTrader: (1)

Join Date: Feb 2015
Location: Farmington Hills, MI
Posts: 84
Total Cats: 7
Default

Any updates? Using this as motivation to start collecting parts.
rollie is offline   Reply With Quote
Old 11-04-2015, 04:52 PM   #140
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,568
Total Cats: 226
Default

More parts in from V8R

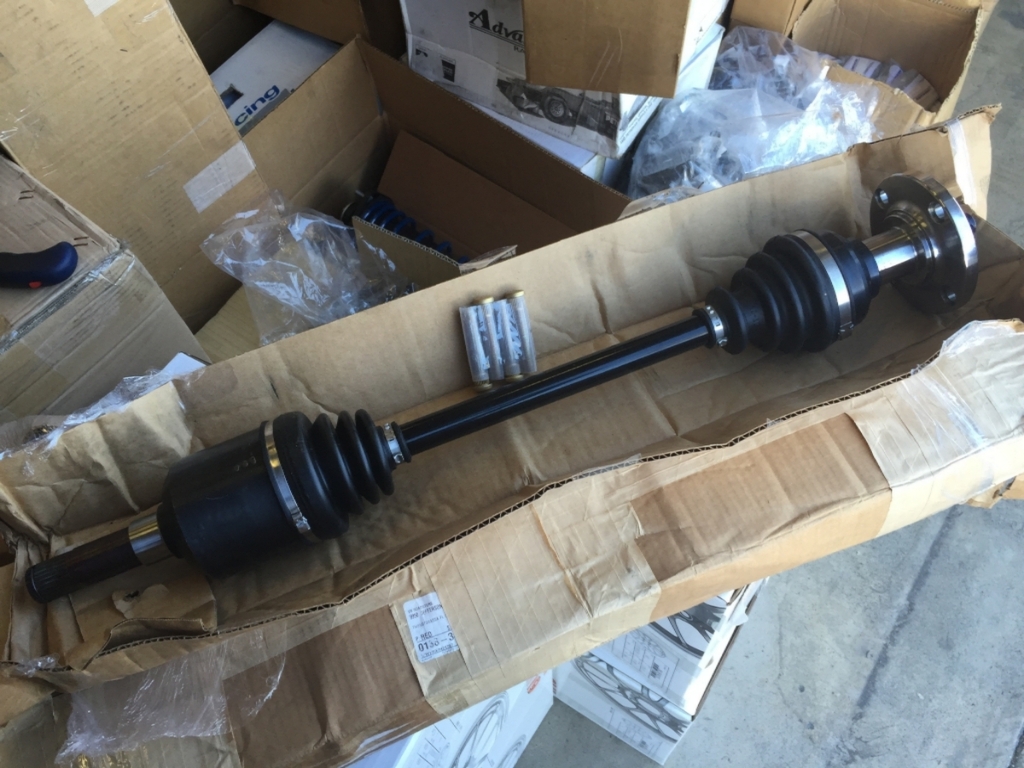

"Stage 2" 32 spline axles rated for 550 lbs-ft with billet hubs and ARP studs:

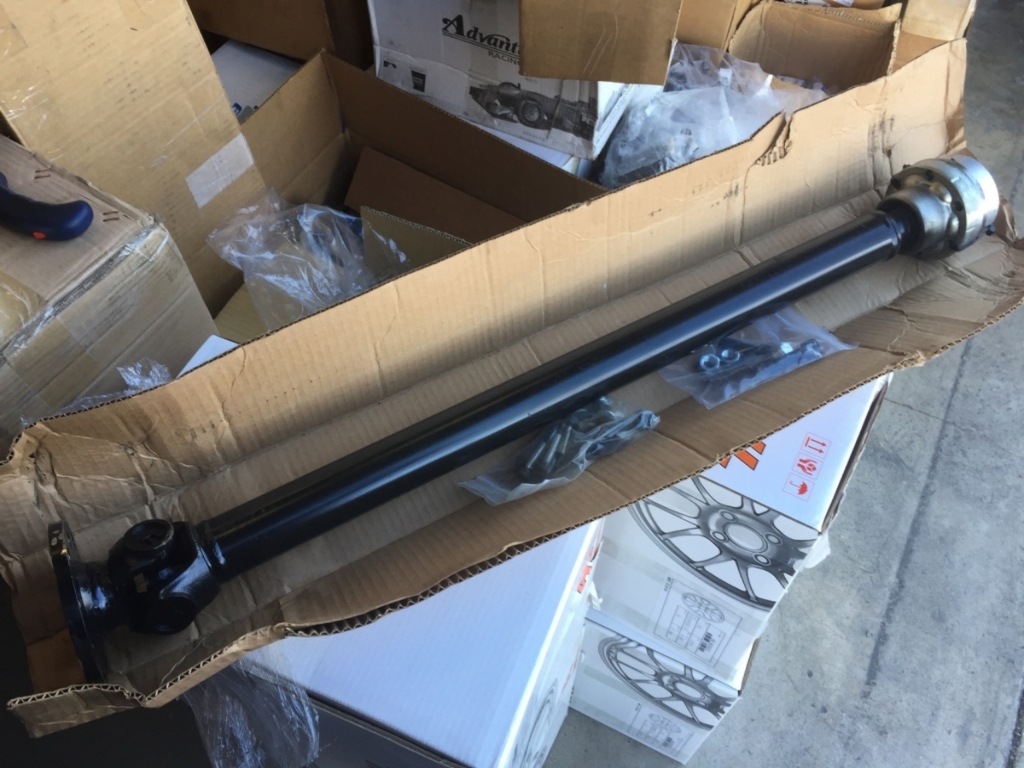

MV7 to Getrag Driveshaft:



The list of parts I'm waiting on is diminishing!

Still waiting on:
- Clutch/flywheel
- Radiator
- ECU with V8R's tune - after speaking with Shandelle about options I'm going to run their tune rather than tune it ourselves here so that we can build experience on their off-the-shelf offering.
Attached Thumbnails
Miata LFX Swap (Singular Motorsports &amp; Good-Win Racing)-bf5c6d0f-91fa-4e1f-b0b7-9b7e2f53f5cd_zpsiy20phu1.jpg   Miata LFX Swap (Singular Motorsports &amp; Good-Win Racing)-1f036a67-fa96-407e-97ed-d59d45c0cf83_zps8ny94z25.jpg
ThePass is offline   Reply With Quote
