Old 09-14-2012, 09:03 PM   #41
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

Quote:
Originally Posted by EO2K View Post
Sav: you running one of these?
Got one as soon as I could get my hands on one, yes. One junked $4000 race motor is one too many.
Savington is offline   Reply With Quote
Old 09-14-2012, 09:34 PM   #42
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,035
Total Cats: 543
Default

Sav, have you guys done any testing on that? A replacement for that ugly upper manifold piece?
triple88a is offline   Reply With Quote
Old 09-14-2012, 09:55 PM   #43
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

Quote:
Originally Posted by triple88a View Post
Sav, have you guys done any testing on that? A replacement for that ugly upper manifold piece?
? I don't know what you're referring to. A replacement upper intake manifold?
Savington is offline   Reply With Quote
Old 09-14-2012, 10:17 PM   #44
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,035
Total Cats: 543
Default

You know how the manifold is split into 2 pieces? The upper piece of the manifold has a wimpy 2" diameter bottle neck right after the throttle body.
triple88a is offline   Reply With Quote
Old 09-14-2012, 10:20 PM   #45
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

The stock manifold does. The squaretop improves on that drastically, and any aftermarket intake manifold does as well. I have no idea why you would bother replacing the upper half when you could just change the entire thing and see even more of a gain.
Savington is offline   Reply With Quote
Old 09-14-2012, 11:44 PM   #46
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,295
Total Cats: 226
Default

OK so a replacement top half that is similar to the square top and has a throttle body flange for the small ford pattern (I used a $45 shipped 65mm crown vic TB. Included the TPS/pigtail & works with the miata throttle cable end). Should be doable for less than an entire new intake manifold. No whistle on the ford throttle bodies cause no IAC. bwahahaaha. Simple fix with another bracket.
TurboTim is offline   Reply With Quote
Old 09-15-2012, 12:37 AM   #47
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,035
Total Cats: 543
Default

Hmm whatever came of the top mount throttle body, intake manifold begi was working on? Sure probably looks funny but if it gets rid of the uneven flow why does it matter?
triple88a is offline   Reply With Quote
Old 09-15-2012, 08:00 AM   #48
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

The whistles go "woo".
hustler is offline   Reply With Quote
Old 10-05-2012, 01:04 PM   #49
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,621
Total Cats: 18
Default

So lets say that I wanted to wait on buying one of these because of a lack of funds at the moment. Is welding or JB welding the screws on the stock one an acceptable temporary solution? Does it stop the engine from ingesting the screws or does something else get swallowed when the throttle shaft breaks?
MartinezA92 is offline   Reply With Quote
Old 10-05-2012, 02:20 PM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

Quote:
Originally Posted by MartinezA92 View Post
So lets say that I wanted to wait on buying one of these because of a lack of funds at the moment. Is welding or JB welding the screws on the stock one an acceptable temporary solution? Does it stop the engine from ingesting the screws or does something else get swallowed when the throttle shaft breaks?
Use two-part epoxy. I do it on throttle bodies and VICS butterflies.
hustler is offline   Reply With Quote
Old 10-05-2012, 04:56 PM   #51
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

Quote:
Originally Posted by hustler View Post
Use two-part epoxy. I do it on throttle bodies and VICS butterflies.
Have the VICS butterflies been known to fall apart, or are you just being extra-cautious?
DeerHunter is offline   Reply With Quote
Old 10-07-2012, 10:01 PM   #52
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,621
Total Cats: 18
Default

Quote:
Originally Posted by hustler View Post
Use two-part epoxy. I do it on throttle bodies and VICS butterflies.
Is JB weld basically a two part epoxy or am I about to make a horrible decision?
MartinezA92 is offline   Reply With Quote
Old 10-07-2012, 10:52 PM   #53
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,334
Total Cats: 383
Default

Yes, JB Weld is 2 part. It's also one of the best available for metals.
rleete is offline   Reply With Quote
Old 10-17-2012, 08:37 PM   #54
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

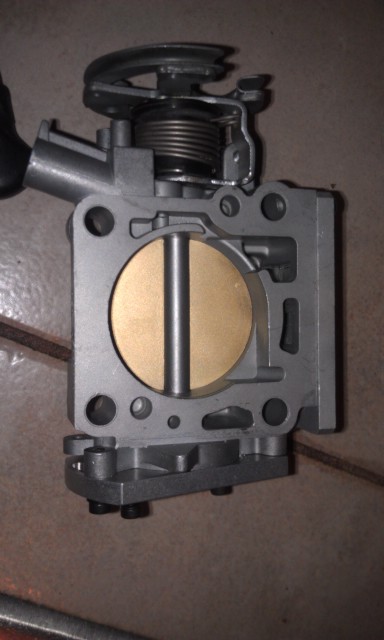

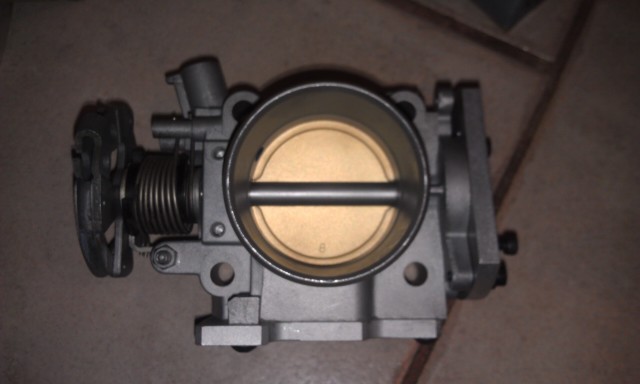

Here is the throttle body on my 1.6 car. It is also available in the 1.8 version. Last I checked cost was $ 410.00 plus a core.




$400 is expensive for a throttle body but whats an engine cost?
Attached Thumbnails
No more broken throttle shafts-imag0299.jpg   No more broken throttle shafts-imag0298.jpg
hingstonwm is offline   Reply With Quote
Old 10-17-2012, 09:04 PM   #55
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,035
Total Cats: 543
Default

Uck for 400 bucks i'll look for alternatives
triple88a is offline   Reply With Quote
Old 10-17-2012, 11:01 PM   #56
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

Quote:
Originally Posted by triple88a View Post
Uck for 400 bucks i'll look for alternatives
Not to be a dick, but this is basically what everyone who's never broken a throttle shaft is going to say. I have a $4000 built motor in pieces in the shop because it ate a throttle screw - I would have gladly paid $1000 for an upgraded throttle body a year ago had I known it was going to break 8 hours after installing that motor.

If you don't think it's worth $300 or $400 or whatever, just wait until you're replacing a motor because your OEM TB broke. That's usually pretty convincing.
Savington is offline   Reply With Quote
Old 10-18-2012, 01:30 AM   #57
Junior Member

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
Use two-part epoxy. I do it on throttle bodies and VICS butterflies.
Pretty sure I remember Emilio saying in a post that he does this on his track cars and hasnt had a TB shaft failure since
AllSystemsNominal is offline   Reply With Quote
Old 10-18-2012, 01:50 AM   #58
Junior Member

Join Date: Feb 2012
Posts: 85
Total Cats: 1
Default

AllSystemsNominal is offline   Reply With Quote
Old 10-18-2012, 03:27 AM   #59
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

Quote:
Originally Posted by AllSystemsNominal View Post
Pretty sure I remember Emilio saying in a post that he does this on his track cars and hasnt had a TB shaft failure since
A lot can happen in a year.
Savington is offline   Reply With Quote
Old 10-18-2012, 04:48 AM   #60
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 676
Total Cats: 11
Default

Does this happen to the 1600 TB as well?
mx5-kiwi is offline   Reply With Quote
