This week I completed my hybrid electronic boost control (EBC)/manual boost control (MBC)/water injection (WI) so I'm posting this up for those who are interested in how it works.
First of all, here is the operational concept:
1. The EBC is the primary boost controller. It is being controlled open-loop (for now) by the Adaptronic via ground-switched pulse width modulation (PWM). The open-loop control in the Adaptronic works the same way, and is tuned the same way
, as the Megasquirt; there is an RPM based table that regulates the valve duty cycle.
2. When the WI is turned on, and activated by the boost switch, a switch on the high pressure side of the WI pump is closed. One side of the switch is grounded to the chassis. The other side is tapped into the ground trigger wire for the EBC. So, when the switch closes, the EBC goes to 100% DC (closed).
3. There is an MBC plumbed in parallel with the EBC. This does two things. One, the boost can never exceed the MBC boost set point no matter what the EBC is doing. Two, when the EBC goes to 100% DC (see #2 above) the MBC is in control of boost. Thus, when the WI is on, and the nozzle is pressurized, the MBC takes over. This allows for fail-safe two-stage boost control.
4. There is a WI arming switch in the cab. When this switch is off, EBC is in control, and everything works normally. When the switch is on, the WI system is armed, and when it is triggered by the boost switch, will spray water into the system AND run boost off of the MBC. In my case, I have the MBC set to a higher level of boost than the EBC.
Here is a thread with more discussion on the whole hybrid EBC/MBC idea.
So, on to the pictures:

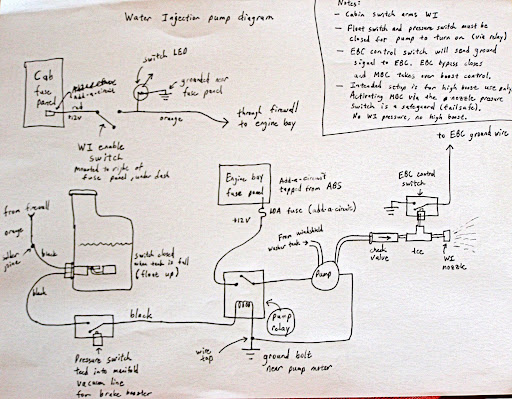

Here is the diagram of how I wired it all up. I do not want to redo this in visio today so you will just have to live with my sketch for now. There is one minor deviation; the pressure switch that grounds the EBC is between the WI pump outlet and the check valve, not between the check valve and the nozzle as drawn. It was a cleaner install this way, and still works.
Here is an image of the vacuum tap (boost signal) for the wastegate

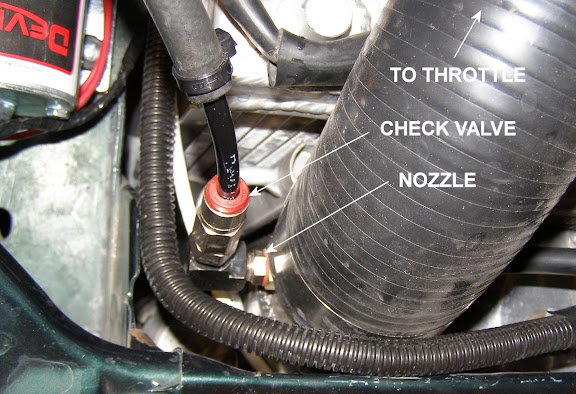

Here is the WI check valve and nozzle
Here is the WI pump assembly
Here is the water supply tap and the float switch at the windshield washer fluid bottle
And finally, here is the EBC/MBC assembly
If you want to see larger versions of the images, here is a link to the Picasa folder
