chance91

iTrader: (3)

Hey all. So I'm trying to gather interest in my bracket design for a set of elise seats. I'd started this at MS.com, and moved to CR, and am bringing it here too, trying to get enough interest to actually make these. I'm doing one-offs right now, making them from scratch and piece by piece on my own, and if I get enough people interested I can outsource the welding and not have it be a big deal, with me only cutting and shaping the metal.


Here's the jump to the CR post, and then here is the MS post, where i started.
http://clubroadster.net/vb_forum/showthread.php?t=32484
http://www.mazda-speed.com/forum2/in...c,20342.0.html

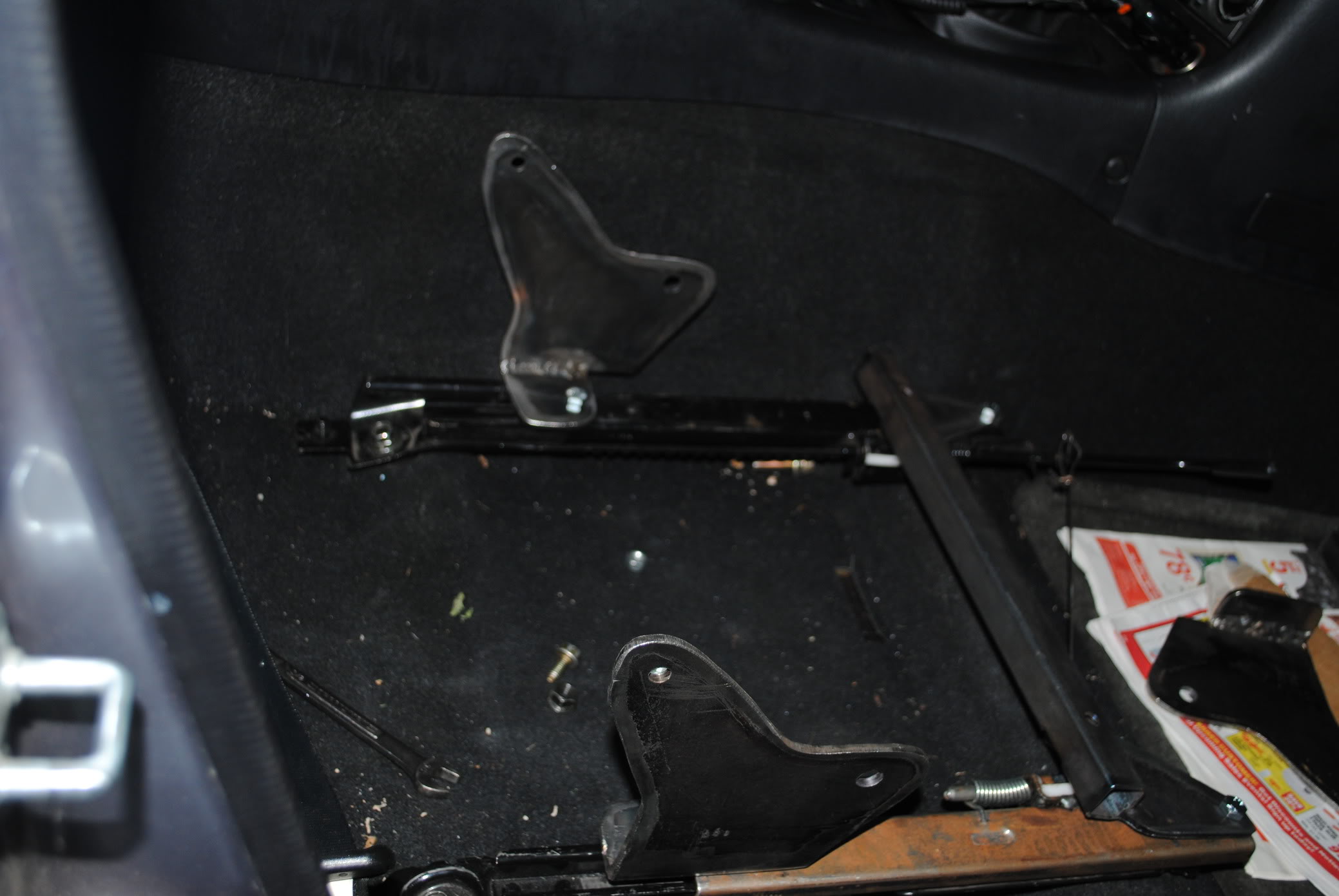

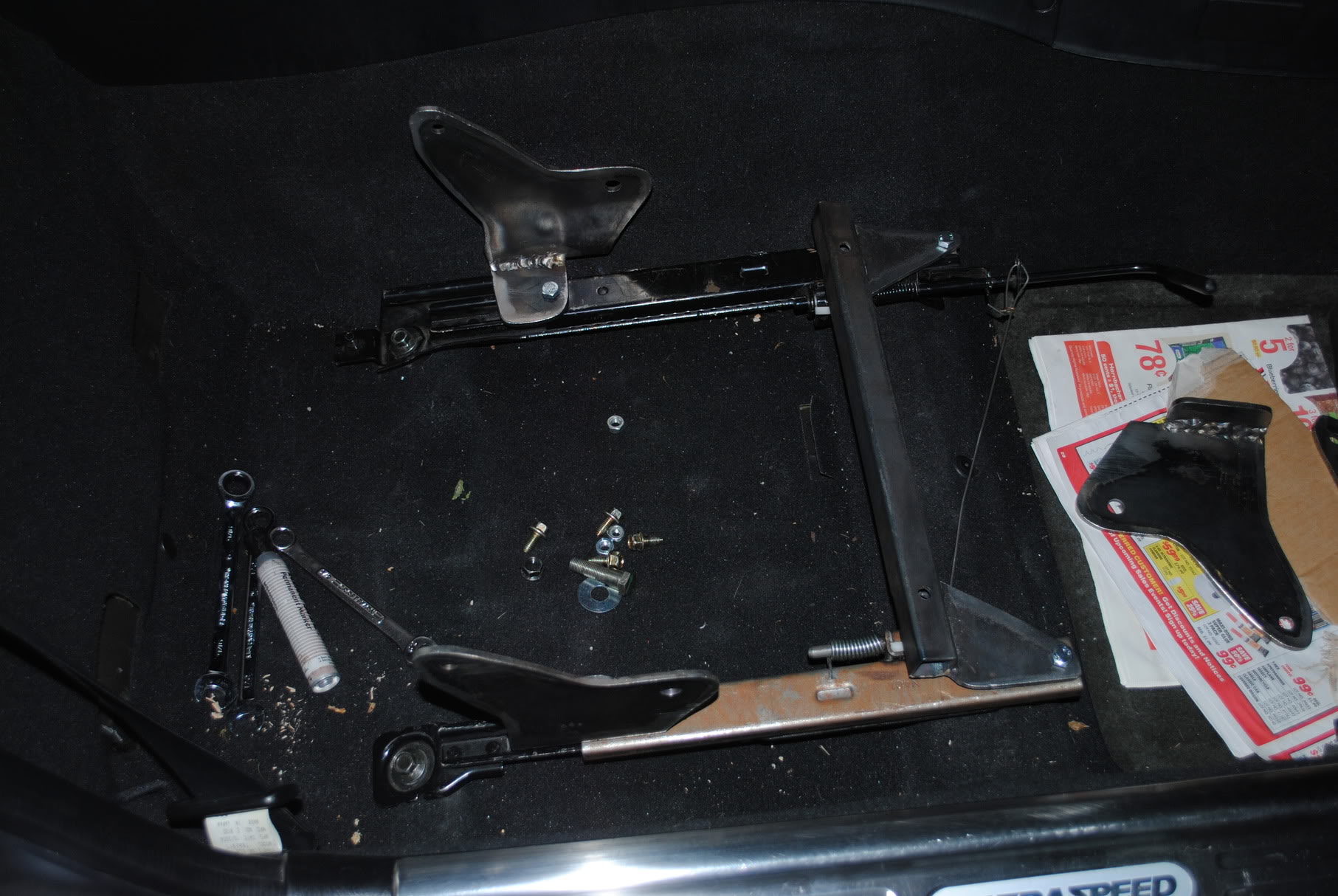

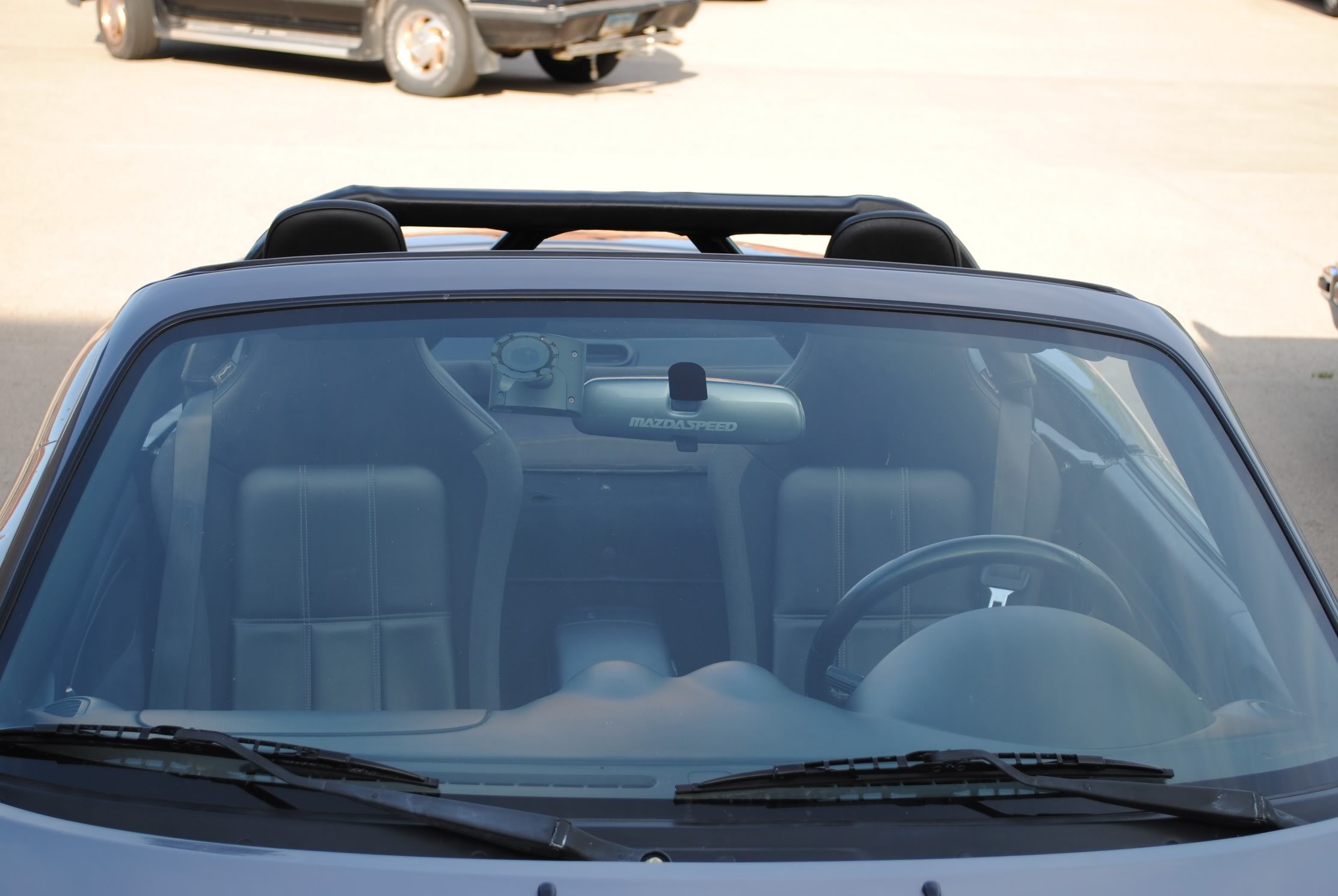

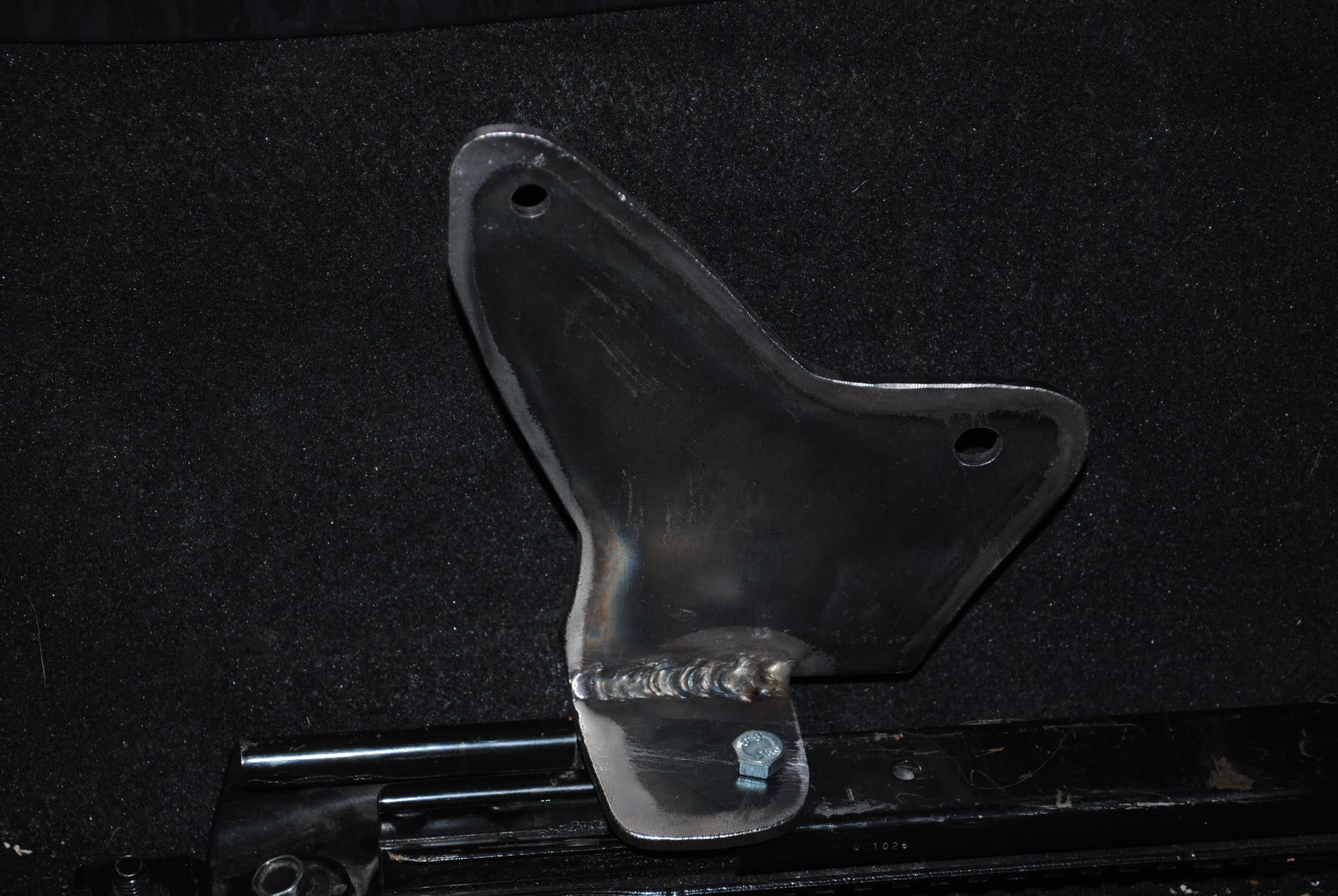

Just a few shots, here they are in my car:





I've got nothing to sell right now, this is just a way for me if there is enough interest to go ahead and make a bunch. Basically, I don't want a steel collection in my garage. So, no commitment of money right now, and please don't tell me your ready to pay, as I've nothing to sell at the moment.

I'll get updated pics later this weekend hopefully, I'm working on the final version right now, and I'm about done. Further in to the trans tunnel and further back with provisions for boss-frog seat belt adapters...

Thanks,
Chance91 AkA Nick

RyanLewo

iTrader: (1)

I may need some soon. I just have to hunt down some seats first... Where is everyone finding these things??!

chance91

iTrader: (3)

Lotustalk and ebay, and that's about it. Can also hunt for them on Craigslist. they pop up just not on demand. Give it a month of looking sometimes.

JayL

iTrader: (12)

I might be interested depending on the price.

hustler

iTrader: (6)

If I could score those seats, then yes I'd like to have some. Why don't you make a set for me, hold on to them for 3-5 years, and when I get the Lotus seats you can sell them to me then?

chance91

iTrader: (3)

3 to 5 years might be a while, ha, but I can certainly throw you on there. I know you are pretty heavy track oriented, the only way I'd really recommend these for a hardcore track guy would be going Exige seats. Either way, these aren't 100% optimal for track because they are using the stock sliders. If you are serious about track use and only you drive your car, I'd go to a set of custom solid mount brackets over ones that use oe sliders. They get you lower and you have more control over seating position, etc. That said, the exige seats are real freakin nice pieces. Or the Cup car ones (recaro I think) that exige's come with. All together, those bastards have a lot of nice options we should have had. Damn them.


Price is supposed to be $125/set, plus actual shipping to your location. Per set of 4 plates/2 fronts, so for two seats total. I might have to run it up to 150/set because we are outsourcing the welding since I can't handle the volume. I dunno yet as the final decision hasn't been made, but I'll probably be doing this. I've almost 15 ppl interested which is bout good enough IMO.

chpmnsws6

iTrader: (12)

Why they do not have the holes for shoulder straps in them from the factory is beyond me.... If they did, those seats would be a dream come true. They are far more comfortable then the Cobra Clubman 2's I have now. Do you know if they'll fit with the door bars?

Just helping push the seats and your possible brackets

chance91

iTrader: (3)

Mmmhmmm.

One of our guys is putting these in when he gets his set. (one of the only guys I'm hand making them for)


Also, a few people have these for the seats without the nice harness holes from the factory.
http://sector111.com/products/interi...t_grommets.cfm
http://sector111.com/images/products...s/seatgrom.jpg

I'll either go Exige or use the grommets eventually, but as of now, the Probax seats I use are freakin sweet. Pretty comfy and no pressure points like the MSM ones, and they have good lateral support compared to OE.

I dunno if they will fit with door bars since I don't have any, but I'd bet yes. And if they didn't I could make a set so they did. There is a lot more clearance on either side of this seat than an oem one, I'd say about 1inch on either side more, and probably even more still, and my estimate is conservative. I've been considering heavily making my own set of door bars for my Boss frog bar to fit everything. I'd make them lower than most so that entry/exit isn't affected.

seraph

iTrader: (4)

Would definitely like a set of those. I need another seat option and these would definitely fit my budget even with shipping. Has to have the belt holes though. Keep us posted on progress. Any idea when you'll have the first ones done?

hustler

iTrader: (6)

I'd use them in my daily because I haz lots of torso...but don't put me on the list.

chance91

iTrader: (3)

You'd probably need exige ones.. A buddy of mine who is about 5'10" and pretty wide shoulders has a bit of trouble with the stock elise probax ones. He says its about 1/2 to an inch too little width. This kid is pretty big though. I'm 6'0" 192 and he is 5'10" 215 and pretty trim.

Also, what do you mean, belt hole, Seraph? I don't put in the sector 111 stuff.

chance91

iTrader: (3)

MTMS just got itself a band saw, a welder, grinder, and a few other goodies for the Garage. Woo. about 1/2 way to an actual starter shop.

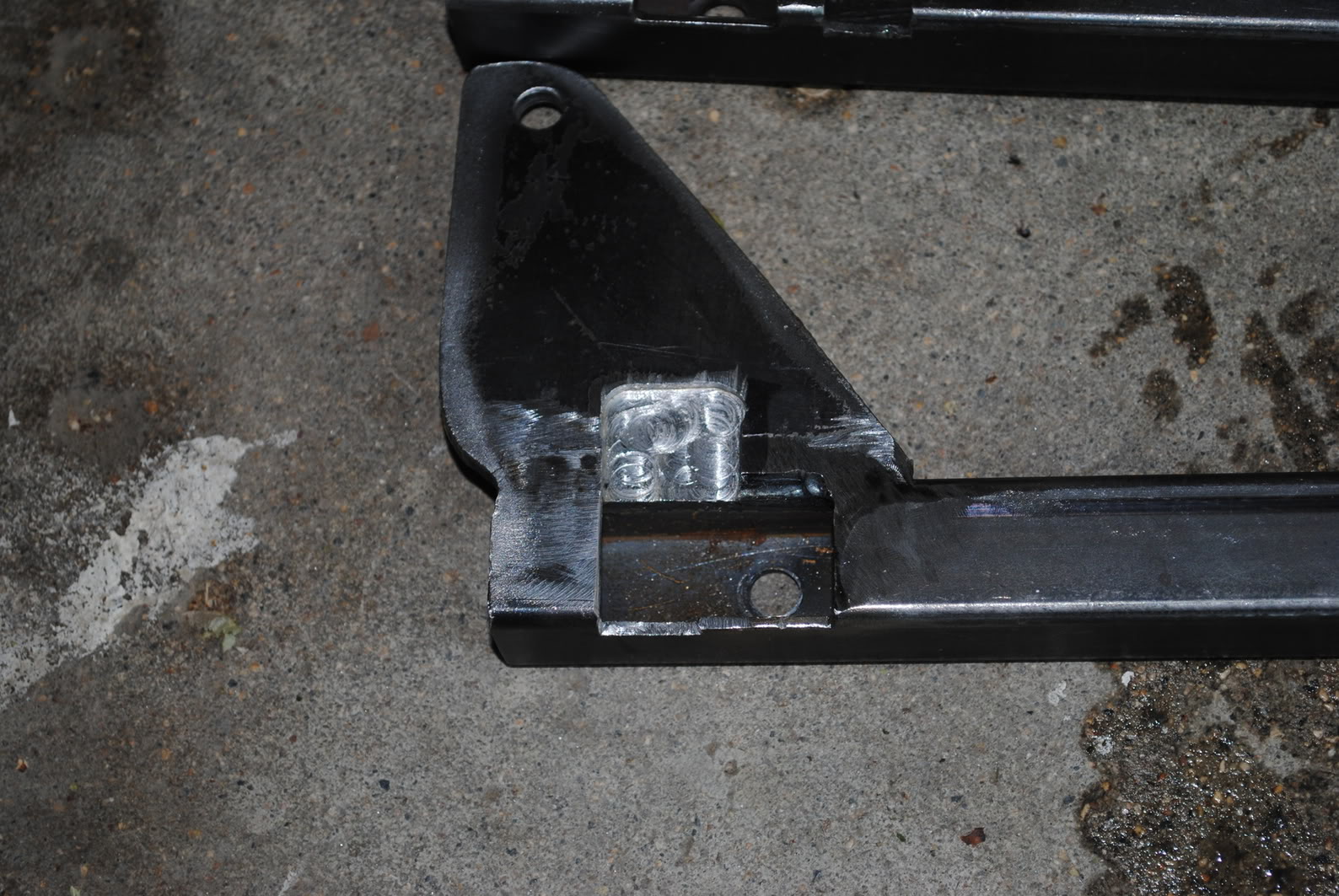

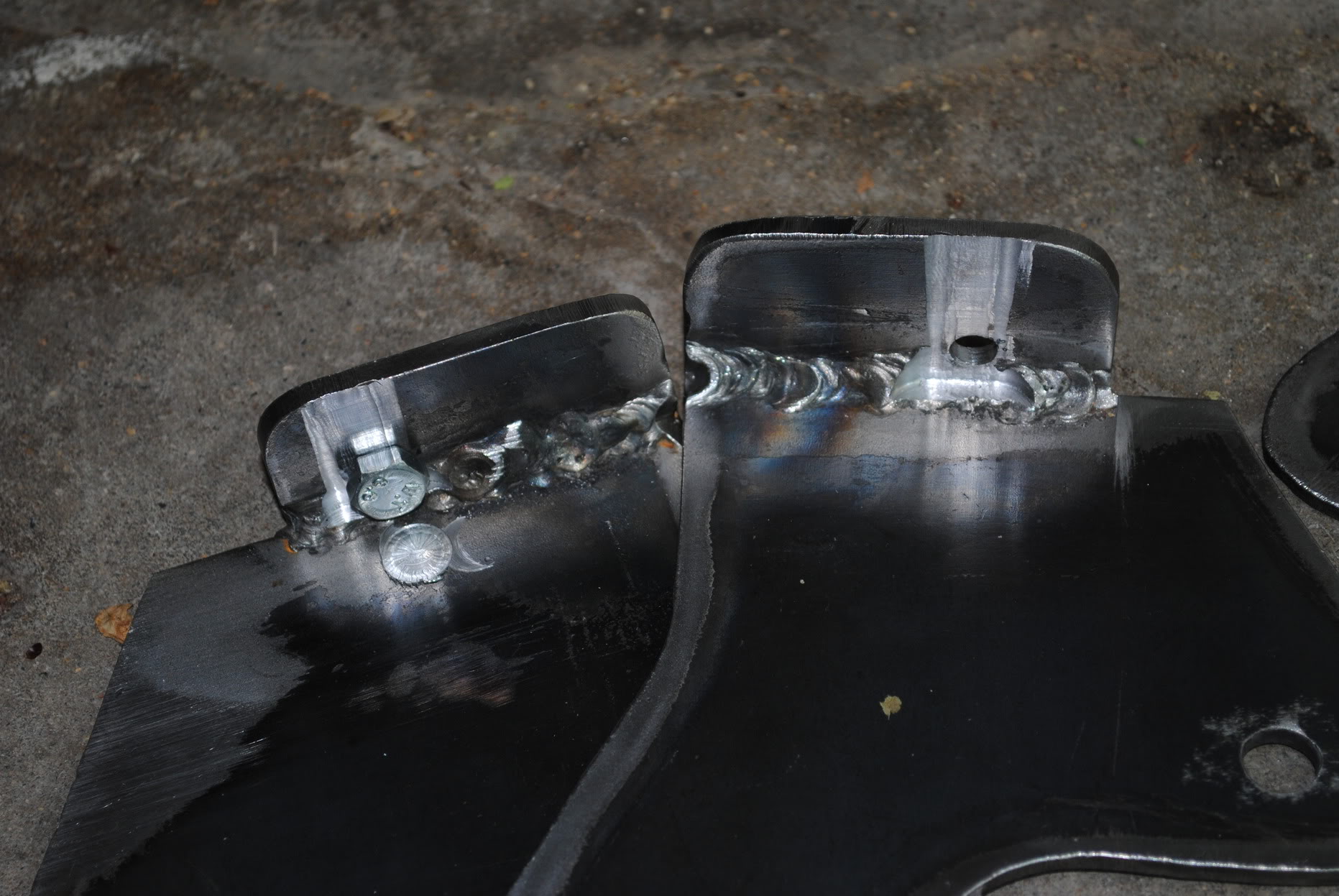

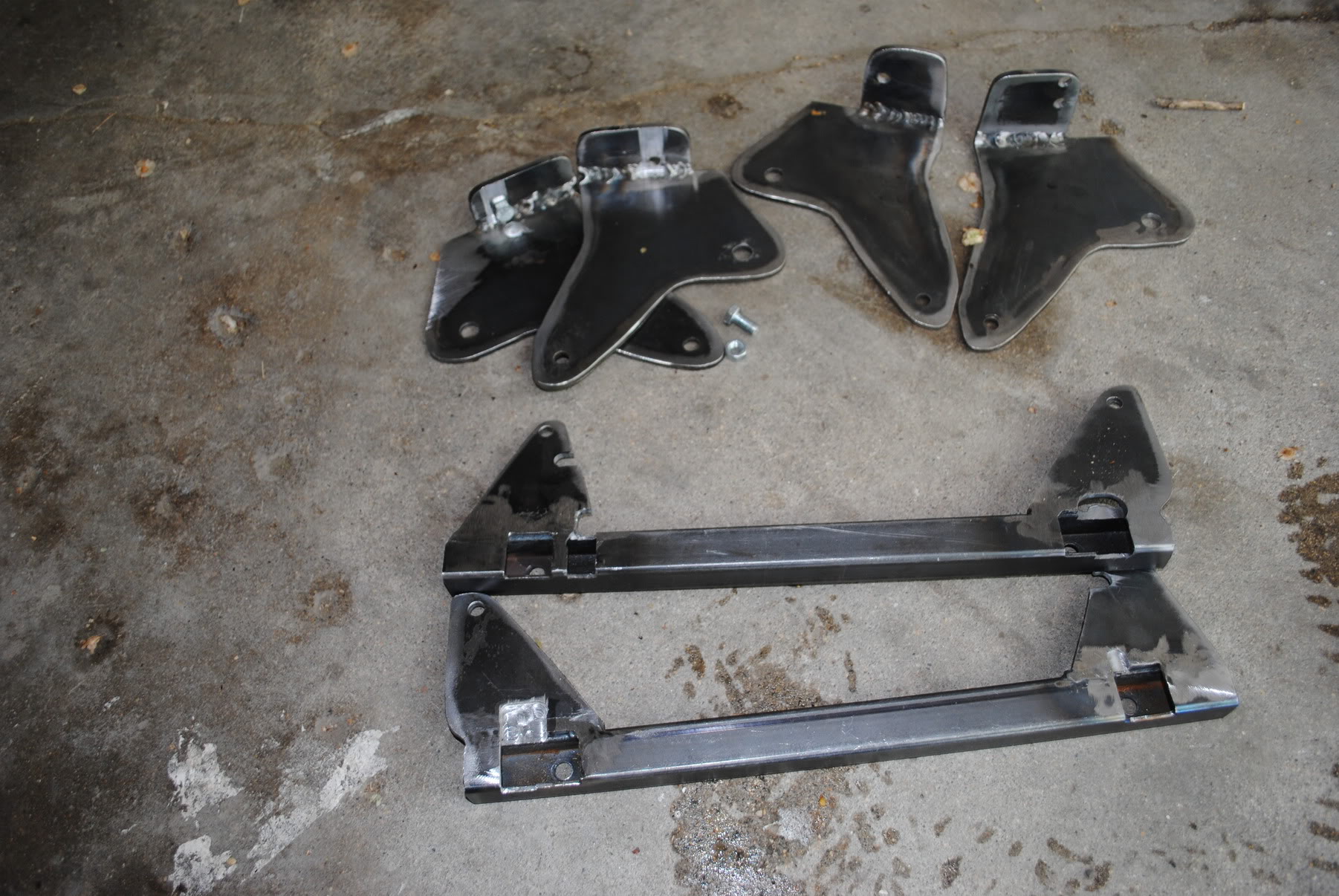

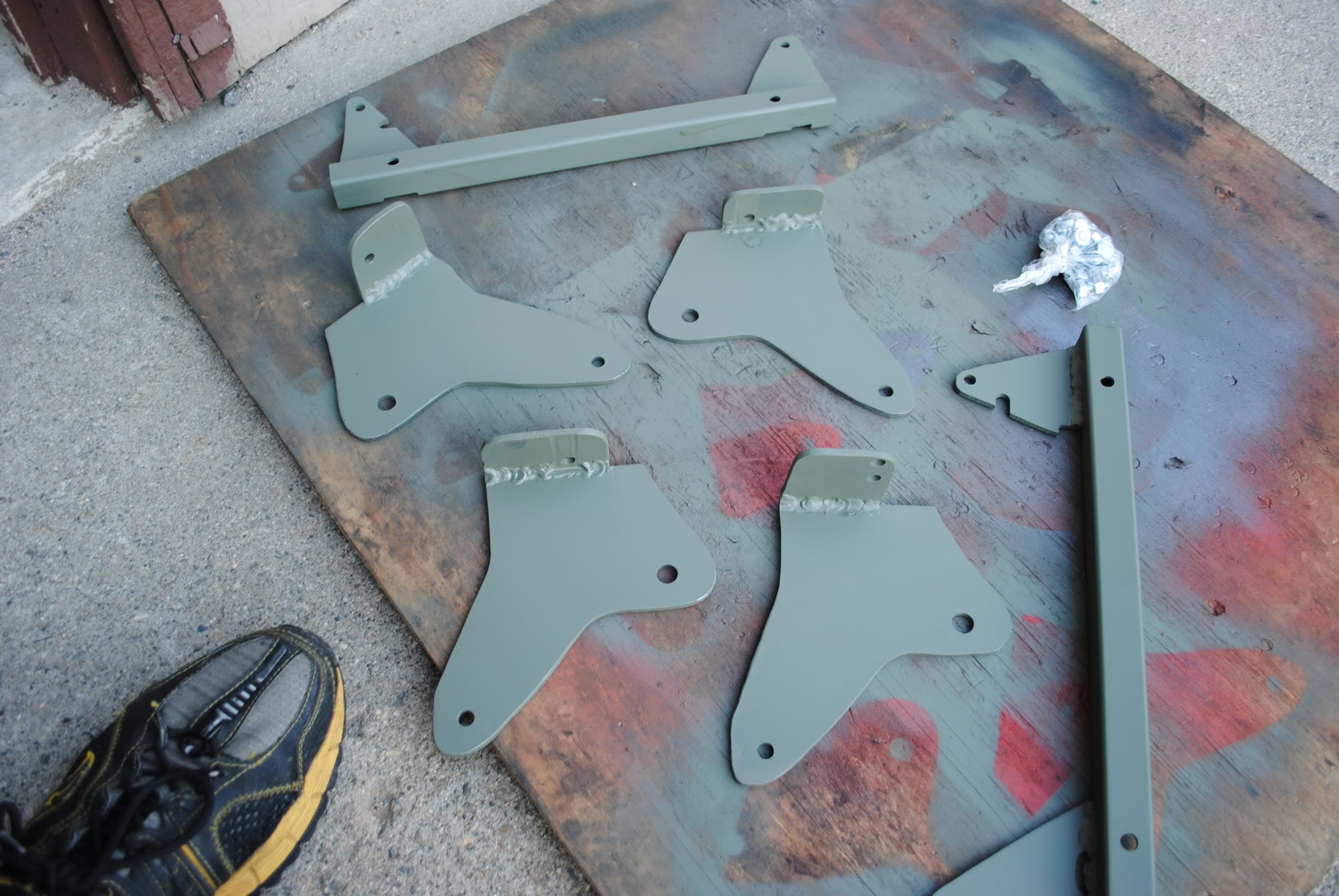

Some pics of the very first ones off the line. Primed em so they don't rust on the way. Also, bag of bolts for installation.
















Looking forward to the review in a few days....

chpmnsws6

iTrader: (12)

Since your still buying tools, invest in a plasma cutter and skip the torch. Much cleaner, much quicker, and decent resale value. Plates looks good, and will only get better as you get more comfortable behind the trigger

chance91

iTrader: (3)

Yea, that was a good idea. Plasma cutter = win. Its not a ton faster than the torch, but no need to refill acetylene.

bellwilliam

iTrader: (1)

how much are Elise or Exige seats ?

chance91

iTrader: (3)

I got my pair for $500 picked up, but I was lucky. Usually about 500-800 for elise seats (probax go for more) and sometimes up to 1000, Exige ones you'll be looking at 1000-1500 typically, I usually see them at 1200. They are sort of hard to get ahold of since there aren't a lot of Loti out there. But they do come out of the car often because these guys apparently love Carbon fiber seats.. almost everyone who takes them out gets these ridiculous tillet carbon seats.

Lazy_g

can one still get these brackets? just got some elise seats....

baron340

iTrader: (5)

I'm pretty sure he quit making them. I seem to remember getting one of the last sets he made. They are fantastic though. If he won't make them, you can always do it yourself though. It's really not that complicated. There are some pretty good instructions on Revlimiter's site.

Lazy_g

thanks, i did see his site already. just thought this would save me al lot of work...

guess we will have to make them our selfs...

revlimiter

iTrader: (1)

http://revlimiter.net/blog/2010/06/c...seat-brackets/

Chance91's bracket design lives here. I thought future searchers might benefit.
