Old 04-16-2014, 03:02 PM   #1
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default miataturbo.net-like debauchery thread (about the ND or something)

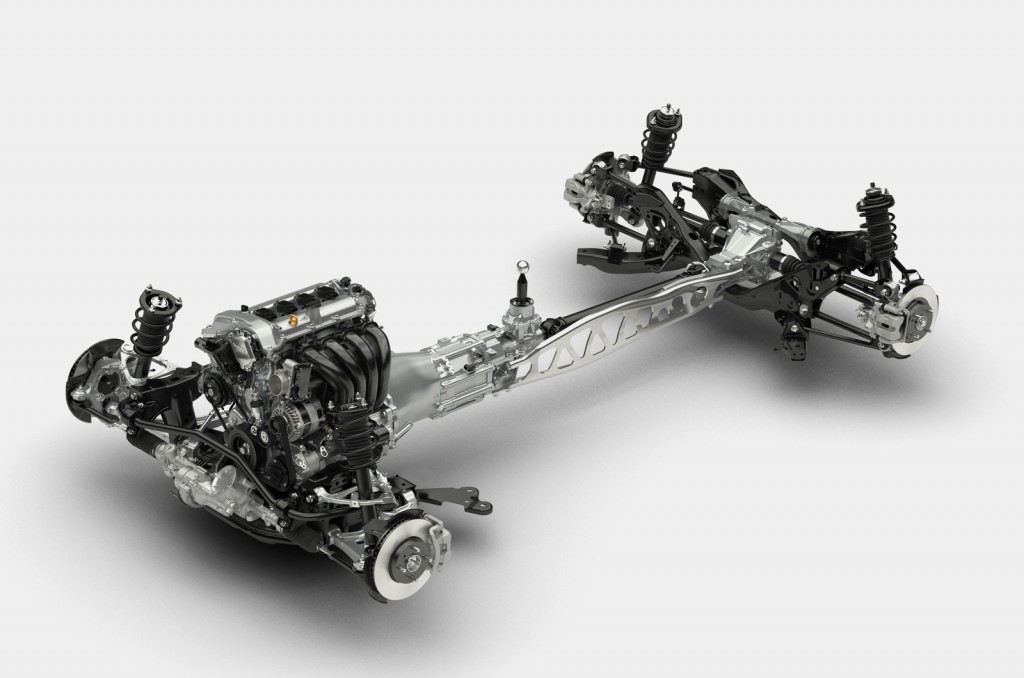

Image: 2016 Mazda MX-5 Miata SkyActiv chassis, 2014 New York Auto Show, size: 1024 x 678, type: gif, posted on: April 16, 2014, 1:14 am - MotorAuthority

My analysis:

First look at the next generation Miata, er..MX5 chassis. Several interesting details. The pic is a RHD chassis. The engine sits further back than the NA/NB, possibly even further back than the NC. This is a true front-mid engine. Electric power steering. Drive by wire throttle body visible on the LHD side, meaning the head flows the same direction as the NC, opposite to the NA/NB. That means that those long runners are not coated headers but probably a plastic intake manifold as is de rigeur. Difficult to get the scale but those runners are very long, well past 14" to valve seat. That means possibly 2nd order resonance tuning. I'm thinking it will be a variable runner length manifold. Still a clockwise engine rotation. The front spindles, control arms and rear spindles appear to be aluminum. Not enough resolution to determine cast or forged. The front spindles are hollow indicating they could be shared with an AWD/FWD platform. COP ignition. Variable intake and exhaust cam timing. The transmission bell housing is blurred in this press photo indicating either the spec will change or Mazda has something tricky to hide there. No dual clutch as it would be too expensive for a car at the SRP the ND will likely have, and there's a shift lever besides. What's comforting to this Miata enthusiast is the same basic architecture as the first Miata 25 years ago. They got it right and have't messed with it. No struts, no transverse engines, no messing with what works to save a few pennies.

-SuperMiata


Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-2015-mazda-mx-5-chassis-new-york-auto-show_100463895_l.jpg
emilio700 is offline   Reply With Quote
Old 04-16-2014, 03:09 PM   #2
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,190
Total Cats: 325
Default

I'd be willing to bet Jeffbuc's car is still cleaner.
rleete is offline   Reply With Quote
Old 04-16-2014, 03:11 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Electric power steering is not good news, but other than that it looks like were in good shape.
I cant wait to know what the engines puts out and what the curb weight will be. Hopefully it will be a step in the right direction from the NC.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-16-2014, 03:13 PM   #4
Senior Member

Join Date: Sep 2013
Posts: 900
Total Cats: 57
Default

So Emilio, are you going to try to take a page out of the ND's book and try to build an intake manifold for the NA/NB that does something similar? It's a way to get your 13" runners, but it isn't exactly a straight shot.

Looks like the powerplant is a Skyactiv G 2.0L. Hopefully Mazda will do some massaging similar to what they did to the MZR in the NC.

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Electric power steering is not good news, but other than that it looks like were in good shape.
I cant wait to know what the engines puts out and what the curb weight will be. Hopefully it will be a step in the right direction from the NC.
The electric steering in my Mazda2 and in the S2000 are pretty spot on. I wouldn't knock it until you could sit in the car.
Dunning Kruger Affect is offline   Reply With Quote
Old 04-16-2014, 04:31 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,811
Total Cats: 554
Default

Lol. I was amazed at how similar this looks to an na rollerscate. Might have to buy one to reward Mazda for being such an awesome car company. They have brought us all such joy!
hornetball is offline   Reply With Quote
Old 04-16-2014, 05:30 PM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Quote:
Originally Posted by Dunning Kruger Affect View Post
The electric steering in my Mazda2 and in the S2000 are pretty spot on. I wouldn't knock it until you could sit in the car.
I didnt know the S2000 had it.
Its pretty **** in my mustang. Vague. No feedback.

The real problem is what happens when you start modifying stuff. Unlike the dumb, mechanical control system on hydraulically assisted power steering, this is an electrical control system that uses some kind of feedback loop from sensors. With the mustangs, changing bushings in the front suspension or even changing the wheels can mess up the tuning of the racks control algorithm. The manifests itself as an unpleasant oscillation in the steering and the only cure is a special rack from ford racing that is like 2 grand.

Hopefully this wont be a problem with the ND. If it is, at least there is a possibility someone around here would figure out how to fix it with different firmware or a workaround, unlike in the mustang world where they just throw money at the problem and live in perpetual fear of electronics.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-16-2014, 06:06 PM   #7
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Awesome. Glad to see the same basic architecture in place. Hopefully they make it lighter and more powerful than the NC, and hopefully it looks awesome like every miata thus far does (imho).
Fireindc is offline   Reply With Quote
Old 04-16-2014, 06:09 PM   #8
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Fireindc View Post
Awesome. Glad to see the same basic architecture in place. Hopefully they make it lighter and more powerful than the NC, and hopefully it looks awesome like every miata thus far does (imho).


2016 Mazda MX-5's SkyActiv Chassis Previewed In New York

Quote:
The SkyActiv chassis will help deliver a weight-loss goal of 220 pounds in the new car, bringing some models below the magic 2,000-lb figure. Despite the weight-loss program, achieved through redesigned suspension and joining techniques, safety and rigidity have improved in line with modern standards. It will keep the current car's front-midship layout--where the engine largely sits behind the front axle, rather than over it--and Mazda also says it offers the lowest center of gravity yet in an MX-5.
concealer404 is offline   Reply With Quote
Old 04-16-2014, 06:28 PM   #9
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 611
Total Cats: 33
Default

have to doubt that sub 2000lb claim... NC weighs 2500? 2500-220=2280 I thought the goal was to match the original '90 miata at roughly 1000kg or 2200 lbs.


Either way, substantial weight loss from such a small car in this day of increasing saftey standards is a huge accomplishment.
dcamp2 is offline   Reply With Quote
Old 04-16-2014, 06:41 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

sub 2k lb? lolol yeah right
18psi is offline   Reply With Quote
Old 04-16-2014, 06:46 PM   #11
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

I did remember reading about that a few years ago. They mentioned that a little weight loss here and there adds up to more, as the brakes, clutch, etc. can then get smaller and lighter since they will be seeing less force. Sub-2000 I highly doubt, maybe that guy misinterpreted it and meant sub-1000kg.
thenuge26 is offline   Reply With Quote
Old 04-16-2014, 06:46 PM   #12
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

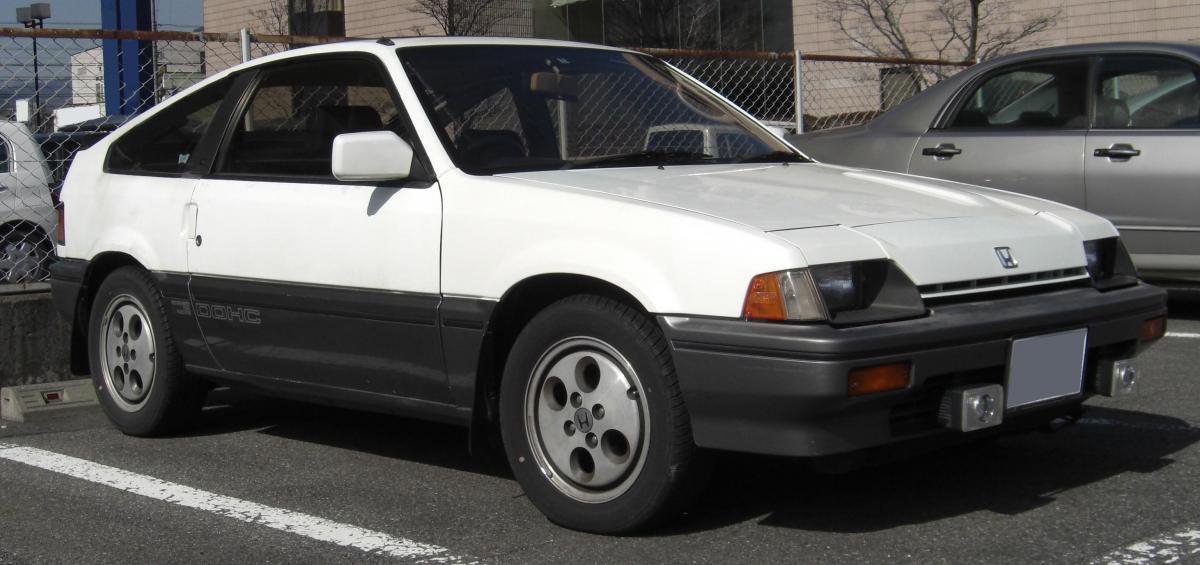

Leaked pic of ND:



I hear it has a SOHC dual carb 1.5L
Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-honda_ballade_cr-x.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-16-2014, 07:04 PM   #13
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 2,976
Total Cats: 103
Default

Quote:
Originally Posted by dcamp2 View Post
have to doubt that sub 2000lb claim... NC weighs 2500? 2500-220=2280 I thought the goal was to match the original '90 miata at roughly 1000kg or 2200 lbs.


Either way, substantial weight loss from such a small car in this day of increasing saftey standards is a huge accomplishment.
Our gutted NC-FL is still a porky ~2600lbs. No way it's ever going to be <2k. Ever.
Oscar is offline   Reply With Quote
Old 04-16-2014, 08:09 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Electric power steering is not good news, but other than that it looks like were in good shape.
I cant wait to know what the engines puts out and what the curb weight will be. Hopefully it will be a step in the right direction from the NC.
The RX8 also had an electric rack. I thought it was pretty good. Remember, electric power steering can be better than normal hydraulic because it gives the engineer more options to tune it to be perfect (or more opportunities to completely flub and make it vague and shitty).
Leafy is offline   Reply With Quote
Old 04-16-2014, 10:26 PM   #15
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 22
Default

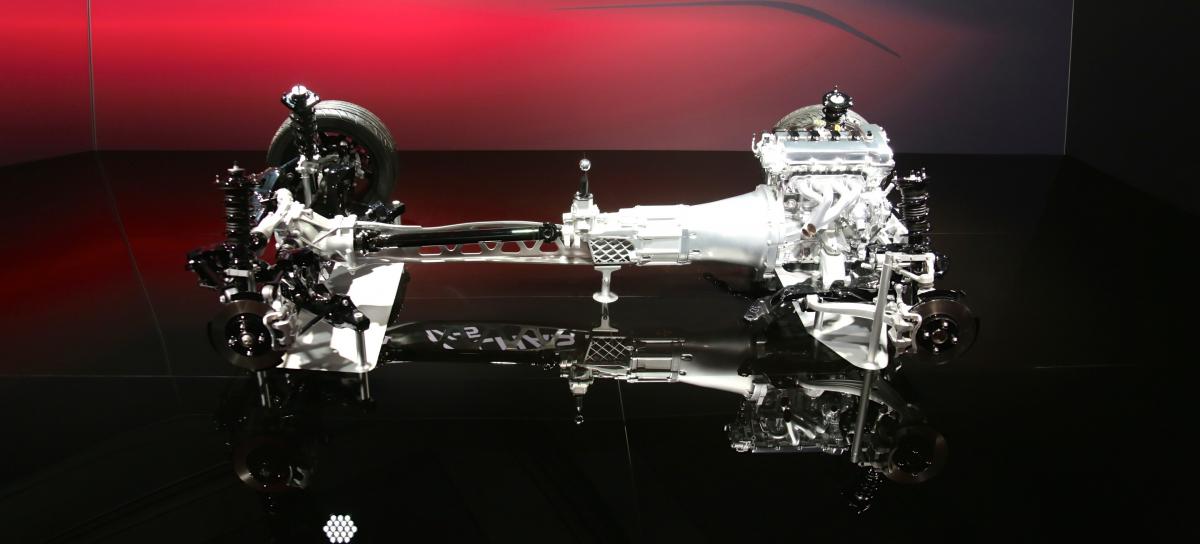

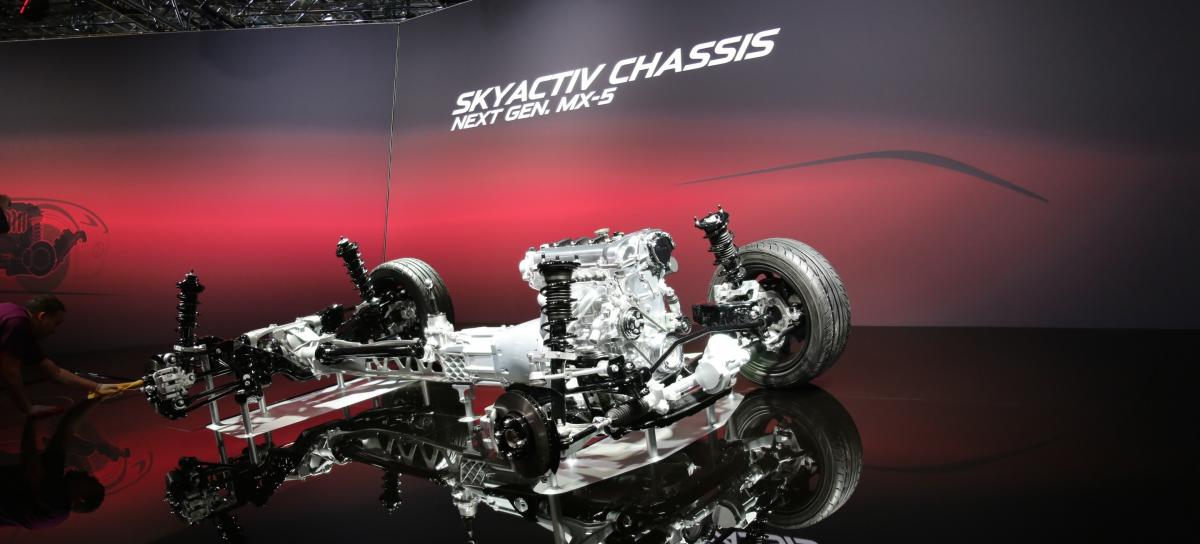

A couple more images. I am surprised in a way how similar parts of it are to the NA design. Front control arms and ppf look very similar. Also that bolt patter better be 4x100.



Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-ujrxien6thp9vnbz2rty.jpg   miataturbo.net-like debauchery thread (about the ND or something)-wcoq4pmyzik6ix1u62it.jpg
cjsafski is offline   Reply With Quote
Old 04-16-2014, 10:35 PM   #16
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

Quote:
Originally Posted by cjsafski View Post
A couple more images. I am surprised in a way how similar parts of it are to the NA design. Front control arms and ppf look very similar. Also that bolt patter better be 4x100.
Confirmed a few months ago, it is 4x100. Anxious to see a pre-production car later this year so we can figure out how much wheel/tire will fit under it.
emilio700 is offline   Reply With Quote
Old 04-16-2014, 10:48 PM   #17
Senior Member

Join Date: Sep 2013
Posts: 900
Total Cats: 57
Default

I'm hoping that it can clear 6ULs.
Dunning Kruger Affect is offline   Reply With Quote
Old 04-16-2014, 11:08 PM   #18
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

I'm hoping with this coming out that NC's will drop in price by 3-4k
Fireindc is offline   Reply With Quote
Old 04-17-2014, 12:30 AM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

I'm hoping with some cutting an hammering it'll take 315s on 17x11s.
Leafy is offline   Reply With Quote
Old 04-17-2014, 03:32 AM   #20
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,327
Total Cats: 183
Default

How is that thing "a chassis" just because it has a PPF that keeps the gearbox aligned with the diff?
Reverant is offline   Reply With Quote
