Default Basic MS3 - Now available from MS Labs!

We all love pictures, so here goes:

- 2001 - 2005 and 2004 - 2005 MSM


- 1990-1993 1.6L and 1994-1997 1.7L for other regions.
- 1994-1995 1.8L
- 1996-1997 1.8L


- Direct fit, no cables to cut or splice
- MS3 processor
- Standard 21psi of boost MAP sensor
- 4 injector outputs
- 4 ignition outputs
- Idle control
- Electronic boost control
- Coolant fan control
- Condenser fan control
- A/C control and idle-up
- Tachometer output
- VICS/VTCS control
- Alternator control (99-05)
- Battery light control (99-05)
- VSS input (94-05)
- VVT control
- CEL control
- 2 or 3 spare programmable outputs
- 4 spare digital inputs
- 5 spare analog inputs (oil pressure, oil temperature, other 0-5V sensors)
- Knock module installed as standard
- RTC module installed as standard, complete with battery
Attached Thumbnails

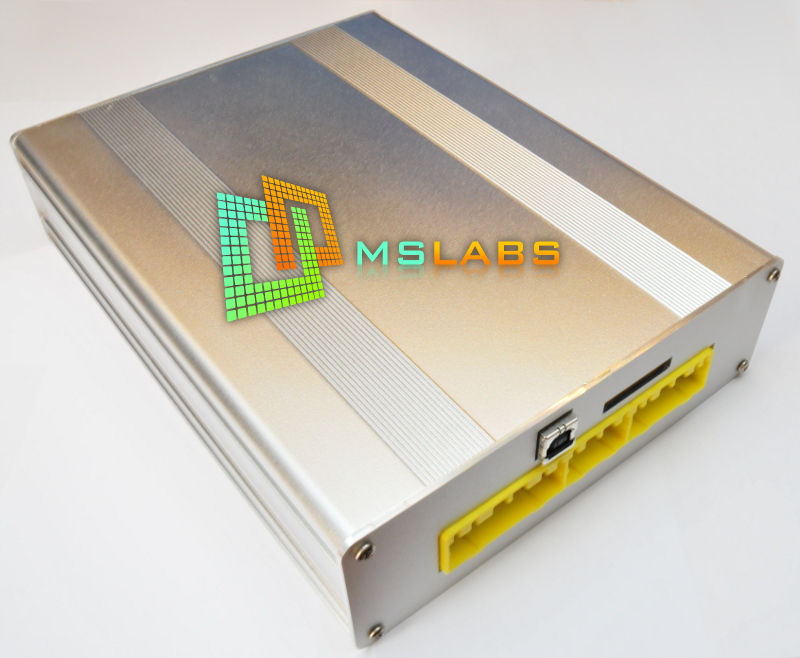

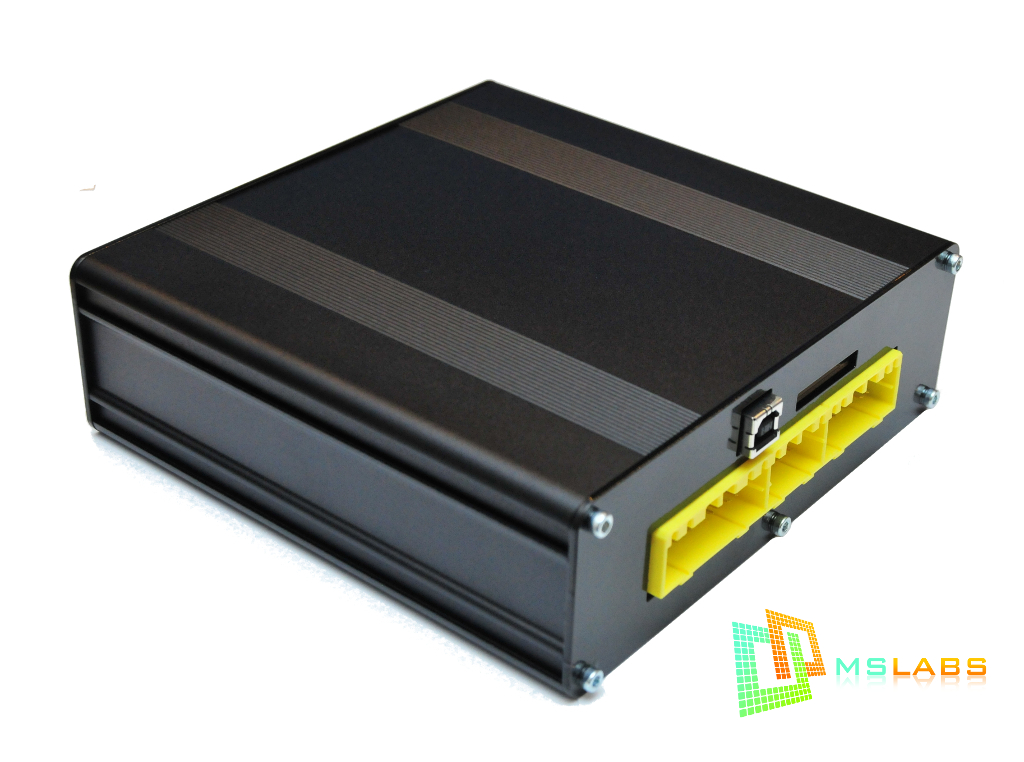

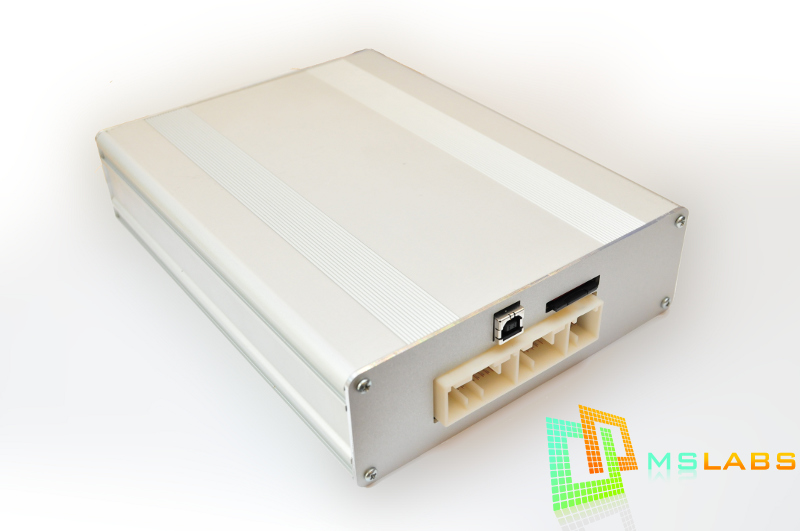

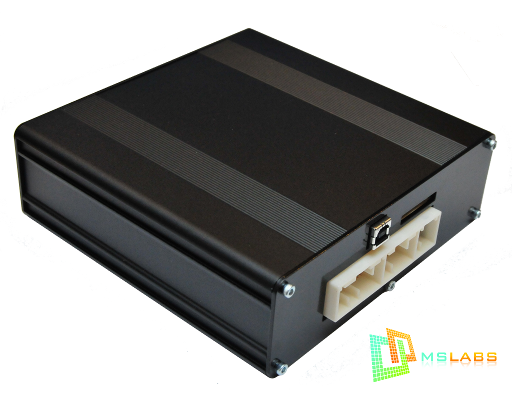

Basic MS3 - Now available from MS Labs!-basic_ms3_v2.1.jpg   Basic MS3 - Now available from MS Labs!-basic_ms3_v22_90_00.jpg   Basic MS3 - Now available from MS Labs!-basicms3front01-0550p.png   Basic MS3 - Now available from MS Labs!-basicms31990-2000front.jpg

Last edited by Reverant; 09-11-2014 at 03:03 PM.
Reverant is offline   Reply With Quote
Old 12-12-2012, 03:14 PM   #2
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,030
Total Cats: 808
Default

For those of us who are confused by your obvious mental and physical superiority, could you please put together a quick chart comparing the features of your currently available ECUs?

Example: Megasquirt Product Comparison but actually readable.

MS Labs Enhanced MS2 -vs- MS Labs Basic MS3 -vs- MS Labs Enhanced MS3

EO2K is online now   Reply With Quote
Old 12-12-2012, 03:25 PM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Will do!
Reverant is offline   Reply With Quote
Old 12-12-2012, 03:33 PM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

so this is MS3 with a custom expansion board?
soviet is offline   Reply With Quote
Old 12-12-2012, 03:35 PM   #5
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,030
Total Cats: 808
Default

Oo! Would that mean that its upgrade-able to baller Enhanced MS3 status in the future?
EO2K is online now   Reply With Quote
Old 12-12-2012, 03:36 PM   #6
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by soviet View Post
so this is MS3 with a custom expansion board?
...that can work out of the box for all 90-05 Miatas, yes. Includes the knock, RTC modules/functionality, alternator control, battery light control, CEL, etc.

Last edited by Reverant; 08-27-2013 at 01:11 PM.
Reverant is offline   Reply With Quote
Old 12-12-2012, 03:38 PM   #7
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by EO2K View Post
Oo! Would that mean that its upgrade-able to baller Enhanced MS3 status in the future?
Not really. The Enhanced MS3 will be a totally different beast.
Reverant is offline   Reply With Quote
Old 12-12-2012, 04:17 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

Bauce!
hustler is offline   Reply With Quote
Old 12-12-2012, 04:21 PM   #9
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

I think I found my X-MAS gift to myself. So tell me Rev, what reasons keep me holding out for an MS3 Enhanced for my NB01 versus going with this beauty?
flying_solo is offline   Reply With Quote
Old 12-12-2012, 04:25 PM   #10
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

1) Cost. The Basic MS3 is CHEAP, the Enhanced MS3 will be more like $1200-$1500.
2) Availability. The Basic MS3 is here now, the Enhanced MS3 is still pending due to licensing.

Last edited by Reverant; 09-11-2014 at 03:05 PM.
Reverant is offline   Reply With Quote
Old 12-12-2012, 04:28 PM   #11
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

I had deduced that much LOL.
flying_solo is offline   Reply With Quote
Old 12-12-2012, 04:45 PM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

Could you, theoretically, replace the expansion board with a regular MS3X board?
Just a question, since there's hardly a reason to do so.
soviet is offline   Reply With Quote
Old 12-12-2012, 04:53 PM   #13
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

The pinout is different, but if you rewire the top DB37 connector, yes, you could.
Reverant is offline   Reply With Quote
Old 12-12-2012, 05:27 PM   #14
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Rev,

Will your basic MS3 come with an optional wideband module like the enhanced MS3?

That's the only thing missing from your basic MS3 and is the only thing stopping it from being a must have for me.
blaen99 is offline   Reply With Quote
Old 12-12-2012, 05:27 PM   #15
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

Quote:
Originally Posted by Reverant View Post
The pinout is different, but if you rewire the top DB37 connector, yes, you could.
Yeah that's what I assumed.
Awesomesauce! Going to point all my friends to this.
soviet is offline   Reply With Quote
Old 12-12-2012, 05:30 PM   #16
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by blaen99 View Post
Rev,

Will your basic MS3 come with an optional wideband module like the enhanced MS3?

That's the only thing missing from your basic MS3 and is the only thing stopping it from being a must have for me.
No, that goes way beyond the scope of the Basic concept.
Reverant is offline   Reply With Quote
Old 12-12-2012, 05:34 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,787
Total Cats: 2,113
Default

Ordered
18psi is offline   Reply With Quote
Old 12-12-2012, 05:36 PM   #18
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Reverant View Post
No, that goes way beyond the scope of the Basic concept.
Darn you, Rev!

I'll probably order it anyways, assuming you build harnesses to the specific customer?
blaen99 is offline   Reply With Quote
Old 12-13-2012, 01:13 AM   #19
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by blaen99 View Post
Darn you, Rev!

I'll probably order it anyways, assuming you build harnesses to the specific customer?
Correct!
Reverant is offline   Reply With Quote
Old 12-13-2012, 01:56 AM   #20
Newb

Join Date: Sep 2011
Posts: 30
Total Cats: 0
Default

Excuse my MS noobness. I want to take a dive into the land of megasquirt.

What is the difference between ms3x, ms3 enhanced, and this basic ms3 being spoken of in this thread?

Where do I go to order this?

This unit is PNP into my miata? I'm assuming so due to talks of DB37 connectors...
xjdesertfox is offline   Reply With Quote
