Old 10-14-2014, 10:55 AM   #201
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Quote:
Originally Posted by Reverant View Post
You can add a couple of low power outputs by connecting a couple of wires from the MS3 daughterboard to the DB37 connector. Email me for more info.

Red is 12V, black is ground, correct.
I will, thanks. I will also need some direction on how to ID the I/O's and the parameters I am looking for, as TS does not seem to correlate all parameters, e.g. I know there is a knock annunciator on TS, but how do I map it to the I/O. I will detail the questions in the email.

Love me some MS3Basic
DNMakinson is offline   Reply With Quote
Old 10-15-2014, 12:52 AM   #202
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 970
Total Cats: 25
Default

My MS Basis is on the way from Reverent. I am impressed with his level of service and attention to detail for the base tune. The digital wideband option is a nice addition! Amazing level of control and options in such a tidy cost effect package.

Thanks Dimitris!
k24madness is offline   Reply With Quote
Old 05-03-2015, 07:04 AM   #203
Newb

Join Date: Oct 2011
Posts: 2
Total Cats: 0
Default

Just wondering if anyone knows how to feed an aftermarket water temp gauge from a basic ms3, I have a stack gauge I want to use but assume the feed it requires is different to that of that stock gauge so thinking I could feed it something from the MS?
timgsxr is offline   Reply With Quote
Old 05-03-2015, 12:59 PM   #204
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

I would imagine you could use one of the spare analog inputs, provided its 0-5v
EO2K is offline   Reply With Quote
Old 05-03-2015, 05:59 PM   #205
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,311
Total Cats: 73
Default

Quote:
Originally Posted by EO2K View Post
I would imagine you could use one of the spare analog inputs, provided its 0-5v
He wants to power the gauge. The answer is to just run another sensor.
Schuyler is offline   Reply With Quote
Old 05-03-2015, 07:31 PM   #206
Newb

Join Date: Oct 2011
Posts: 2
Total Cats: 0
Default

Yes just seems intercepting the stock sensor would be neater.
timgsxr is offline   Reply With Quote
Old 07-21-2015, 10:45 AM   #207
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

What does it take to get AC working with the MS3 basic?
Also I read it somewhere but now I can't find it, what do I jump over for a tach signal with MS3 basic?
Erat is offline   Reply With Quote
Old 07-21-2015, 04:46 PM   #208
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

The A/C works out of the box on all Basic MS3s.

I need to look up your ECU to answer your second question, as I've been strapped down for the last couple of days with a bad back. PM me in a couple of days.
Reverant is offline   Reply With Quote
Old 07-21-2015, 04:56 PM   #209
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

Hmm... AC button doesn't even turn on the second fan. Maybe i need to do more digging into why it's not working. May be bad fuse or relay.

I'll PM you this weekend. Thank you.
Erat is offline   Reply With Quote
Old 07-27-2015, 04:38 PM   #210
Newb

Join Date: Mar 2011
Location: VA
Posts: 36
Total Cats: 0
Default

Reverant your inbox is full at m.net

My question is how does the wiring differ if you were to run the MS3 parallel with the stock ECU. I'm assuming the stock harness needs to stay plugged into the stock ECU. What gets plugged into the MS3?
mzmanny is offline   Reply With Quote
Old 07-27-2015, 04:45 PM   #211
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

The Basic MS3 is not designed to run in parallel, and my recommendation is that you don't do it.
Reverant is offline   Reply With Quote
Old 08-06-2015, 09:18 AM   #212
Junior Member

Join Date: Jan 2015
Posts: 246
Total Cats: -17
Default

How are NB guys mounting the MS3 Basic? The zip tie approach doesn't seem like a reasonable expectation, and doesn't allow the DB37 connector to be used.

Rev doesn't seem to be answering PM's at this time.

The only viable answer I can find is to make an extension harness ad put it on the passenger side. Doesn't this defeat the purpose of having a plug and play system if you need an external harness? Doesn't the first line in the MS3 Basic description state no cutting or splicing?
Alternative is offline   Reply With Quote
Old 08-06-2015, 09:45 AM   #213
Elite Member
iTrader: (6)

Join Date: Apr 2013
Location: Ohio
Posts: 1,666
Total Cats: 72
Default

<p>&nbsp;</p><p>
Quote:
Originally Posted by Alternative View Post
How are NB guys mounting the MS3 Basic? The zip tie approach doesn't seem like a reasonable expectation, and doesn't allow the DB37 connector to be used.</p><p>&nbsp;</p><p>Rev doesn't seem to be answering PM's at this time.</p><p>&nbsp;</p><p>The only viable answer I can find is to make an extension harness ad put it on the passenger side. Doesn't this defeat the purpose of having a plug and play system if you need an external harness? Doesn't the first line in the MS3 Basic description state no cutting or splicing?
</p><p>&nbsp;</p><p>Zipties work or some hack up the old stock bracket to support the firewall end.&nbsp; Or some of us have moved on to a fabbed bracket from here; Singular Motorsports Miata ECU Bracket for '99+ for Miata 1999-2005</p><p><img src="http://cimg0.ibsrv.net/gimg/www.miataturbo.net-vbulletin/1632x1224/80-sms99ecubracket_b1c78bc3a8df45000ad09f237a14067037 055cf0.jpg" title="" /><br /><br />&nbsp;</p><p>Disclosure: I have an MS2 but the MS3 uses the same bracket.</p><p>&nbsp;</p>
bahurd is offline   Reply With Quote
Old 08-06-2015, 10:50 AM   #214
Junior Member

Join Date: Jan 2015
Posts: 246
Total Cats: -17
Default

That looks like a great option, does it allow access to the DB37?
Alternative is offline   Reply With Quote
Old 08-06-2015, 10:54 AM   #215
Junior Member
iTrader: (2)

Join Date: Jul 2014
Location: Knoxville, TN
Posts: 54
Total Cats: 0
Default

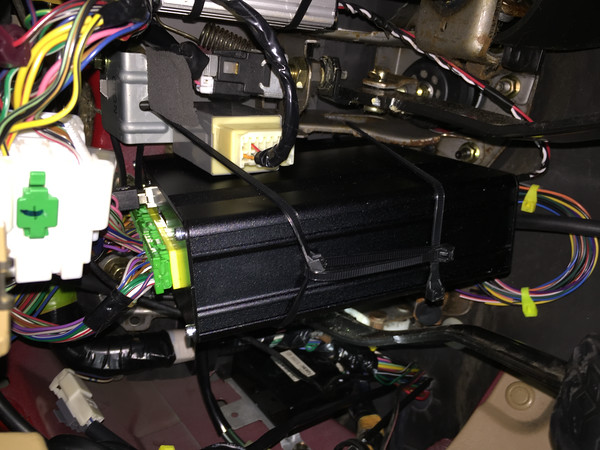

That bracket looks nice, though I don't remember my MS3 having any mounting holes. Zipties worked fine for me in my '99, and I was able to leave the DB37 connected, without even needing to get a right-angle connector as I'd read I might have to.

Attached Thumbnails
Basic MS3 - Now available from MS Labs!-2014-10-04%252019.17.28-m.jpg
TheCowGod is offline   Reply With Quote
Old 08-06-2015, 11:03 AM   #216
Elite Member
iTrader: (6)

Join Date: Apr 2013
Location: Ohio
Posts: 1,666
Total Cats: 72
Default

<p>&nbsp;</p><p>
Quote:
Originally Posted by TheCowGod View Post
That bracket looks nice, though I don't remember my MS3 having any mounting holes. Zipties worked fine for me in my '99, and I was able to leave the DB37 connected, without even needing to get a right-angle connector as I'd read I might have to.</p><p>&nbsp;</p><p><a href="http://photos.binrock.net/2014/Turbocharging-the-99-Miata/i-G9Vk5KQ/A" target="_blank"><img alt="" src="http://www.miataturbo.net/attachment.php?attachmentid=146322&amp;dateline=14 38872847" /></a>
</p><p>When you order the bracket you specify using an ecu from MSLabs and they'll include the small &quot;L&quot; brackets to mount the MS2 or MS3.&nbsp; They use the end screw holes of the ecu housing.&nbsp; I have no issues getting to the connectors but haven't had the need once it's in.&nbsp; I used zip ties for over a year with no problems as well...</p><p>With the bracket, it's easier to just drop the unit with the ecu on it if you need to pull the connector. IMO...</p><p>&nbsp;</p><p>&nbsp;</p>
bahurd is offline   Reply With Quote
Old 08-06-2015, 11:09 AM   #217
Junior Member
iTrader: (2)

Join Date: Jul 2014
Location: Knoxville, TN
Posts: 54
Total Cats: 0
Default

Quote:
Originally Posted by bahurd View Post
<p>&nbsp;</p><p></p><p>When you order the bracket you specify using an ecu from MSLabs and they'll include the small &quot;L&quot; brackets to mount the MS2 or MS3.&nbsp; They use the end screw holes of the ecu housing.&nbsp; I have no issues getting to the connectors but haven't had the need once it's in.&nbsp; I used zip ties for over a year with no problems as well...</p><p>With the bracket, it's easier to just drop the unit with the ecu on it if you need to pull the connector. IMO...</p><p>&nbsp;</p><p>&nbsp;</p>
Ah, nice. I've since sold my Miata, but I'm glad there's a proper bracket available now. Zip ties may have worked OK, but I certainly wished I could have mounted my $1000 ECU in a more professional-looking way. Glad that's an option for people now.
TheCowGod is offline   Reply With Quote
Old 08-06-2015, 11:11 AM   #218
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,686
Total Cats: 840
Default

My bracket comes in tomorrow. I am hoping it works well for my MS3x.
shuiend is offline   Reply With Quote
Old 08-06-2015, 11:16 AM   #219
Elite Member
iTrader: (6)

Join Date: Apr 2013
Location: Ohio
Posts: 1,666
Total Cats: 72
Default

<p>
Quote:
Originally Posted by shuiend View Post
My bracket comes in tomorrow. I am hoping it works well for my MS3x.
</p><p>In for SWAG...&nbsp; Shocked you didn't have it yet. <img alt="Giggle" src="http://www.miataturbo.net/images/smilies/gay.gif" style="height:21px; width:15px" title="Giggle" /></p>
bahurd is offline   Reply With Quote
Old 08-06-2015, 11:17 AM   #220
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

<p>
Quote:
Originally Posted by TheCowGod View Post
That bracket looks nice, though I don't remember my MS3 having any mounting holes. Zipties worked fine for me in my '99, and I was able to leave the DB37 connected, without even needing to get a right-angle connector as I'd read I might have to.</p><p>&nbsp;</p><p><a href="http://photos.binrock.net/2014/Turbocharging-the-99-Miata/i-G9Vk5KQ/A" target="_blank"><img alt="" src="http://www.miataturbo.net/attachment.php?attachmentid=146322&amp;dateline=14 38872847" /></a>
</p><p>From the Singular website:&nbsp; &quot;For those with REVERENT-built ECUs, a small pair of adapter tabs are necessary to fit the ECU to this bracket. Write in the notes during checkout that you need these and we'll include them.&quot;</p><p>I presently have zip ties, but plan to find a way to use the stock backets mounted to the MS3. I think 18psi did this. Maybe he can post info on how he did it.</p>
DNMakinson is offline   Reply With Quote
