Old 10-27-2014, 10:28 PM   #201
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 96
Total Cats: 1
Default

Looking good....thx for posting the videos!
Raucky is offline   Reply With Quote
Old 11-16-2014, 10:57 PM   #202
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

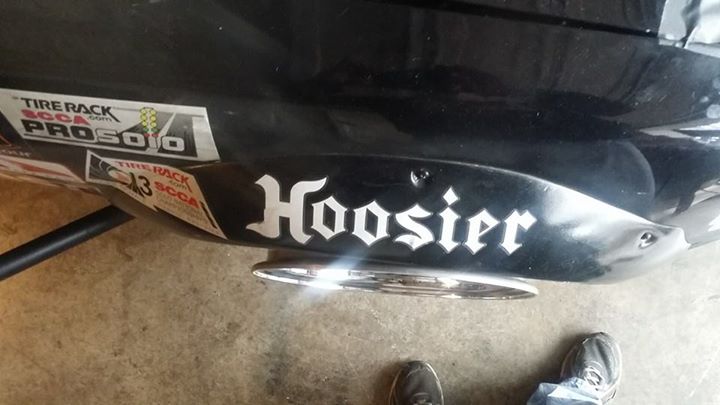

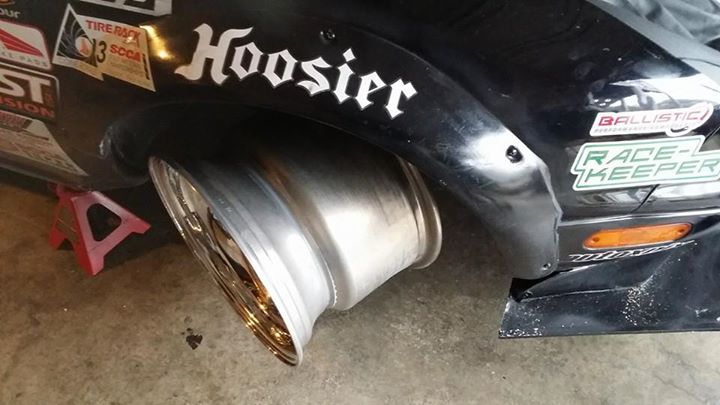

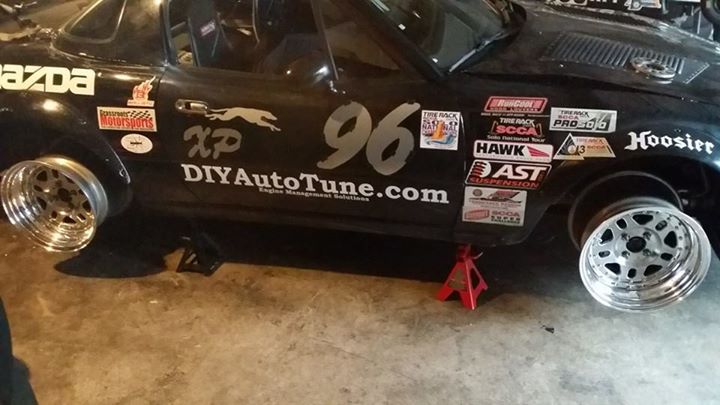

It was only a matter of time. Here are some pics of the new wheels being test fitted.

[/URL]

[/URL]

[/URL]

[/URL]

[/URL]

[/URL]
Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-1017547_10152795961089242_4115502537413604285_n_zps7e9c4288.jpg   Eric Anderson's Supercharged SSM Miata-1240386_10152795961189242_6503327883200434606_n_zps90c0d9cd.jpg   Eric Anderson's Supercharged SSM Miata-10174898_10152796457254242_2242197894104185349_n_zpsce7bd2d8.jpg   Eric Anderson's Supercharged SSM Miata-1926895_10152796458504242_2678300984107140732_n_zps36105101.jpg   Eric Anderson's Supercharged SSM Miata-10653688_10152796458049242_3961195233034790183_n_zpscda4b388.jpg

Eric Anderson's Supercharged SSM Miata-10353628_10152796457594242_5283505841889100245_n_zps6f7cea8e.jpg
TNTUBA is offline   Reply With Quote
Old 11-17-2014, 08:41 AM   #203
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 96
Total Cats: 1
Default

Sweet looking wheels.....275s still?
Raucky is offline   Reply With Quote
Old 11-17-2014, 09:27 AM   #204
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

wait.. class change?
tpwalsh is offline   Reply With Quote
Old 11-17-2014, 09:52 AM   #205
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Those look like Bogart wheels.
miata2fast is offline   Reply With Quote
Old 11-18-2014, 01:56 AM   #206
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by Raucky View Post
Sweet looking wheels.....275s still?
Yea. Sticking with 275's. Until someone builds a 315 30 15

Quote:
Originally Posted by tpwalsh View Post
wait.. class change?
It was just a one event thing. There was nobody in SSM so we ran XP to have someone to race

Quote:
Originally Posted by miata2fast View Post
Those look like Bogart wheels.
Good eye 15x11 Bogarts
TNTUBA is offline   Reply With Quote
Old 12-01-2014, 01:50 PM   #207
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Thanks to Y8 for charging the thread title to something more appropriate. I figured since there was a lot more than head porting in here now, it was time.
TNTUBA is offline   Reply With Quote
Old 12-05-2014, 09:48 AM   #208
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

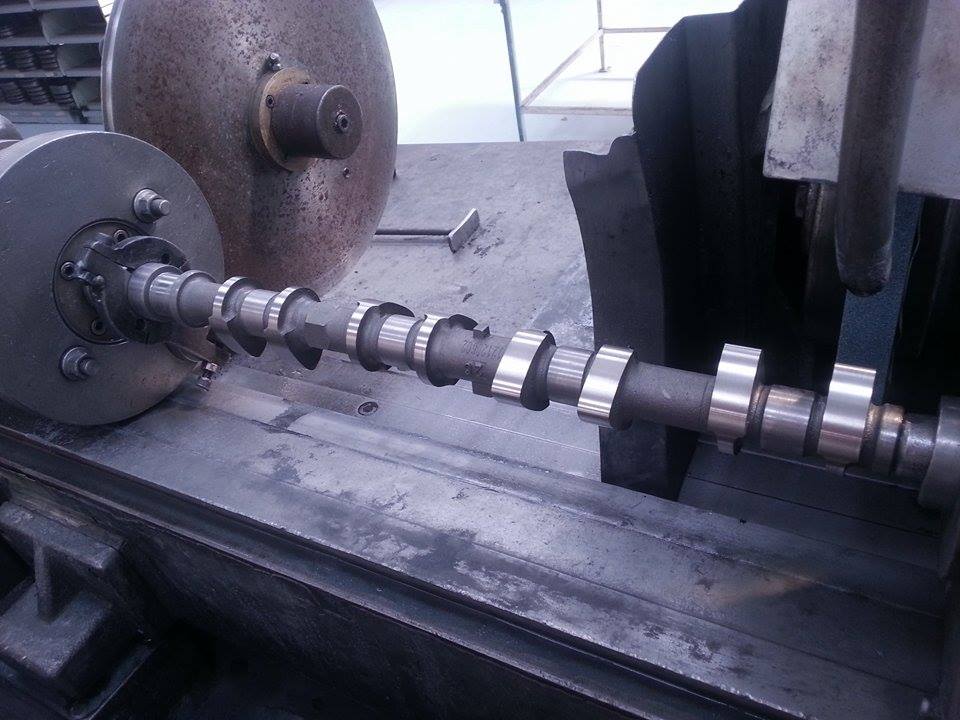

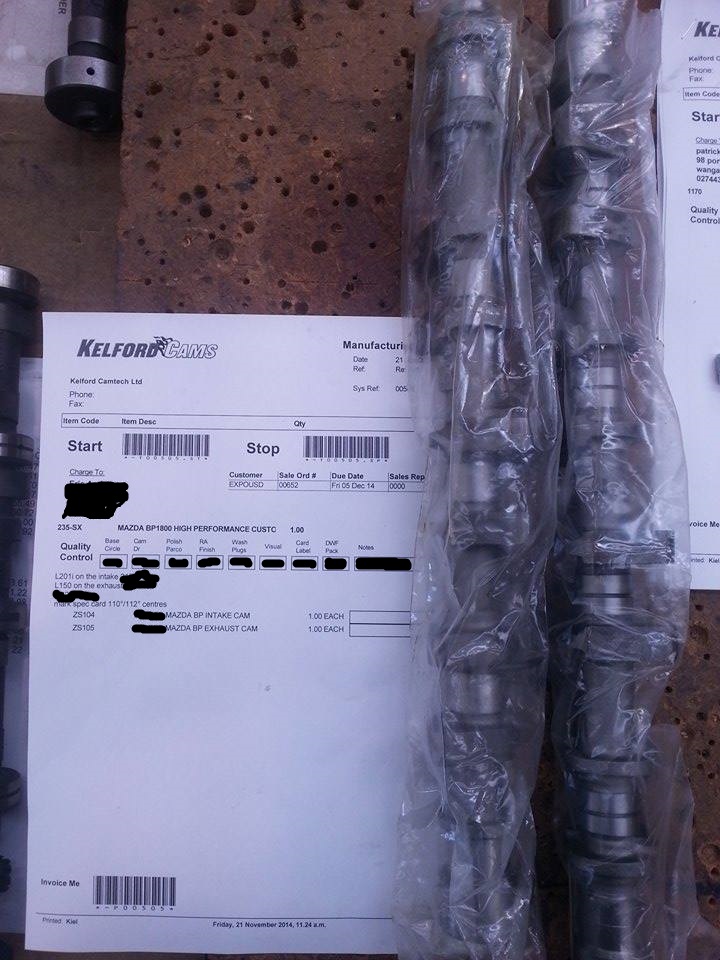

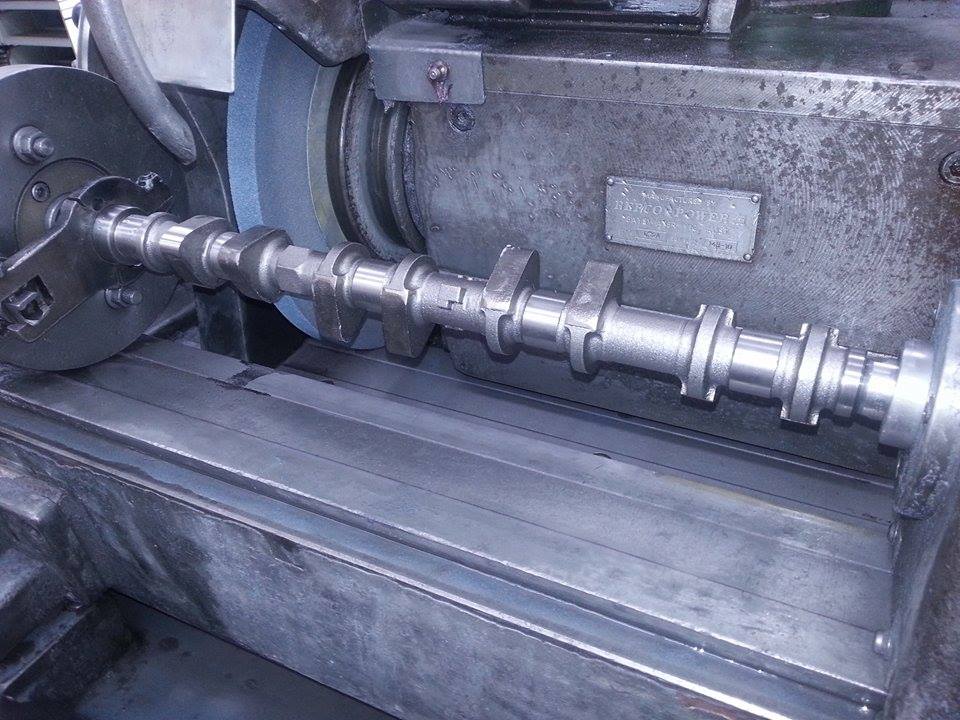

A few pictures of some of the off season upgrades

[/URL]

[/URL]

[/URL]

Hate away my Turbo powered cousins
Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-10834083_10152818957484242_921463873_n_zps1a6ac18b.jpg   Eric Anderson's Supercharged SSM Miata-10834176_10152837483614242_449887106_n_zpsf4a53b68.jpg   Eric Anderson's Supercharged SSM Miata-10847018_10152837522734242_505690949_n_zps5d328e8a.jpg
TNTUBA is offline   Reply With Quote
Old 12-05-2014, 06:39 PM   #209
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

You seem to post "hate away" in just about every other post. And no one is hating. And I don't think anyone has ever hated. You think maybe its time to stop being so defensive and dramatic?

Anywho, recent upgrades look hardcore. I'm curious: are you using na, nb, or custom trigger setup with those cams?
18psi is offline   Reply With Quote
Old 12-05-2014, 07:11 PM   #210
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,962
Total Cats: 140
Default

I hate him - cause he's actually getting **** done. Actually, it's more redirected hate from my current lack of track car. :P
Keep in it Eric!
Cam spec profile, do tell!
GeneSplicer is offline   Reply With Quote
Old 12-05-2014, 07:15 PM   #211
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Quote:
Originally Posted by GeneSplicer View Post
I hate him - cause he's actually getting **** done. Actually, it's more redirected hate from my current lack of track car. :P
Keep in it Eric!
Cam spec profile, do tell!
Come on, you know cams are more black magic and voodoo than shocks, theres a secret agent claus on all cam spec sheets that talk about telling and killing.
Leafy is offline   Reply With Quote
Old 12-05-2014, 07:17 PM   #212
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 96
Total Cats: 1
Default

Those are pretty serious looking ramps and I'm looking forward to more progress here!
Raucky is offline   Reply With Quote
Old 12-05-2014, 07:34 PM   #213
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

It's just based off the general distain for superchargers around this place

I'm using a 36-2 tooth crank trigger with a modified NA CAS for cam sync signal.
TNTUBA is offline   Reply With Quote
Old 12-05-2014, 09:38 PM   #214
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by GeneSplicer View Post
I hate him - cause he's actually getting **** done. Actually, it's more redirected hate from my current lack of track car. :P
Keep in it Eric!
Cam spec profile, do tell!
Haaa. Thanks man. It's so much time and work to have a car this fast and to keep developing it. Thanks foe the words of encouragement
TNTUBA is offline   Reply With Quote
Old 12-06-2014, 04:04 PM   #215
Newb

Join Date: Dec 2013
Posts: 34
Total Cats: 0
Default

Looking great! My old SM build (for a VW, but very similar to this) used some pretty crazy cams with more lift and more overlap than anyone (at least in the VW world) thought would work on a SC motor. Enough overlap to hear it in the exhaust. Lots of people seemed to think that you couldn't go too aggressive with the cam on an SC motor. But it just kept making more power, and didn't seem to hurt torque at all.

What wheels did you have previously? If they're 15x10, have you (or do you plan to) test them back-to-back? We're on 15x10s just because that's what everyone else seems to run. That's what our car had when we got it, and we're still pretty new to the Miata, so we've got plenty of other stuff to play with. But based on what I've found with A6s in other classes, I suspect the 275s might like a 10.5-11...
SUV-ETR is offline   Reply With Quote
Old 12-06-2014, 05:37 PM   #216
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

I tend not to listen to "they"(i.e. "lots of people") when it comes to my setup. "They" say a lot of things that have turned out to not be true I have found that with the twin screw it has unique needs especially with cam and valve timing.

These cams were designed by taking flow bench data from the head, the map of the blower, data logs from 10 National events to get a real RPM band, static and dynamic compression ratios and about 9 other data points. The lift increase is dramatic over a stock cam. So much so that there is no way these profiles would work on a motor that needed to last more than @15 hours between rebuilds. They also required some custom (read very expensive) valve springs to control them.

I haven't tested the 10's and 11's back to back. I would imagine that any data would be simply anecdotal. I imagine that the 11's will require tweaks to shock settings as well as possible spring changes. Even if they don't make the tires work any better, they are lighter than the 15x10 949 6ULs and they look better
TNTUBA is offline   Reply With Quote
Old 12-06-2014, 05:52 PM   #217
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,359
Total Cats: 56
Default

Any clue to us less experienced why the base circle is narrowed?
Less drag and less weight of course, but is it that simple?
NiklasFalk is offline   Reply With Quote
Old 12-06-2014, 06:00 PM   #218
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Those things along with oiling advantages. Several other OEM make / model cams have this type of base circle.
TNTUBA is offline   Reply With Quote
Old 01-03-2015, 05:45 PM   #219
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

[/URL]

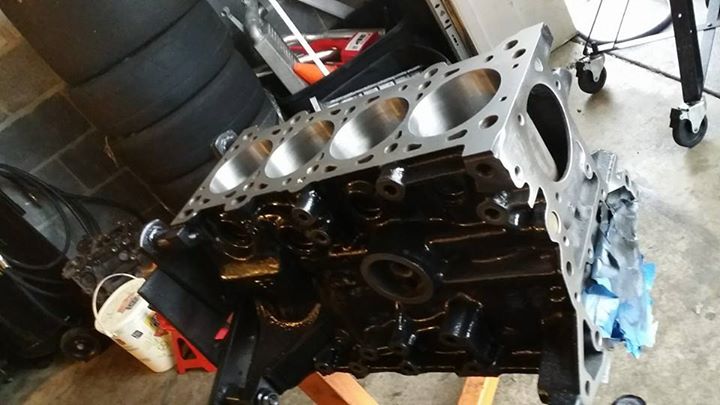

Parts are back from B&B Performance Engines. Spent the day cleaning and measuring. Gonna set the ring end gaps tomorrow and start throwing the rack in it on Monday.
Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-10906585_10152927432889242_4683360876615211240_n_zps6a37bc01.jpg
TNTUBA is offline   Reply With Quote
Old 01-05-2015, 12:58 PM   #220
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 331
Total Cats: 2
Default

Do you use torque plate and torqued main caps to resemble distortion from torqued cylinder head and torqued down main bearings? If so, did you notice the difference in ring caps?
hrk is offline   Reply With Quote
