Old 09-17-2014, 07:02 AM   #361
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

I was thinking more of the 0.82 5th. Looking quick it looks like now there's even a .90 5th as an option that I never saw before.
Leafy is offline   Reply With Quote
Old 09-17-2014, 08:41 AM   #362
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,295
Total Cats: 226
Default

My spreadsheet from a few years ago has the following for the 2.95 1st ratio T5:

(.63 stock)
.75 Gforce
.90 Gforce
.81 Medatronics $236
.78 Astro $279
.73 OEM discontinued ratio via Astro $192

These are helical gears because streetcar.

I haven't done the swap so take that for what it's worth, but 5th gear is outside the main housing and can be swapped relatively easily without complete disassembly. Unbolt the back portion, there's a sometimes PITA ring that holds a gear on, sometimes some clearance needed depending on which 5th you go with, something like that. "Minor".
TurboTim is offline   Reply With Quote
Old 09-17-2014, 09:40 AM   #363
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

The 0.90 on jegs says it requires machining on the housing because the bearing is larger. And of course there's also the .83 Gforce to add to that list. I think there's also a 2.42 1st gear ratio available.
Leafy is offline   Reply With Quote
Old 09-17-2014, 10:19 AM   #364
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Isn't the T-5 one of the transmission options for the Lakewood/Hays bellhousing for the BP engine available from Summit or Jegs?
sixshooter is offline   Reply With Quote
Old 09-17-2014, 10:40 AM   #365
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,654
Total Cats: 46
Default

Quote:
Originally Posted by DeerHunter View Post
No, I haven't had the heart to do anything with it yet. I'm assuming I'll find chunks of metal.
If you are lucky you'll find it's a bearing coming apart and some minor smearing/pitting on some gear teeth. But a loud clickety clack like that is likely broken teeth.

That it's quiet in 4th gives me hope that it may be a countershaft bearing coming apart.
matthewdesigns is offline   Reply With Quote
Old 09-17-2014, 12:18 PM   #366
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

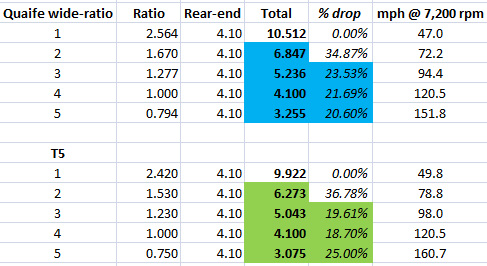

This is getting interesting. There's a gearset available from JEGS with some almost perfect ratios:



I switched the overdrive gear for a compromise ratio that will be livable on the highway. As you can see, it's a close-ratio gearset (approx. 20% drop in the middle gears) that closely approximates that of the wide-ratio Quaife. Second gear is even better and is close the the magical <6.0 total ratio that Savington deems desirable. If a road racer specs the 0.82 overdrive gear, the drop is 18% and speed at 7,200 rpm is 147 mph.

As a bonus, this gearset is rated for 500 lb-ft in a 3,300 lb vehicle. I don't think many turbo Miatas, even the extreme ones, will break these.

Quote:
Originally Posted by matthewdesigns View Post
If you are lucky you'll find it's a bearing coming apart and some minor smearing/pitting on some gear teeth. But a loud clickety clack like that is likely broken teeth.

That it's quiet in 4th gives me hope that it may be a countershaft bearing coming apart.
I'll probably end up doing a teardown at some point. I'll definitely update you with what I find. If (fingers crossed) it's only minor smearing/pitting, can the gears be saved?
Attached Thumbnails
Gearbox options/experiences-ratios-2.jpg
DeerHunter is online now   Reply With Quote
Old 09-17-2014, 01:08 PM   #367
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,654
Total Cats: 46
Default

Ehh, the pitting not really. Once the mating surfaces begin to fret then there's no reversing that, and it's a matter of time before the wear is bad enough to snap teeth off. If they are smeared then you've got some time left, but that sort of wear is a function of torque load and lubrication. Turn down the power or find a gear oil that takes the abuse a little better.
matthewdesigns is offline   Reply With Quote
Old 09-17-2014, 11:43 PM   #368
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

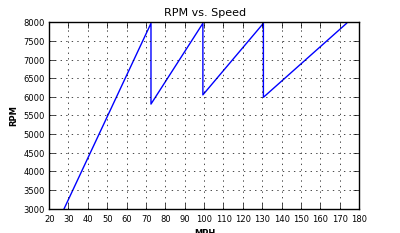

Have we talked about using a t101a with a 3.3r&p when it's available?
Launching from a stop will so suck, but a dog box that will never fail at 500+ might be something to look at.
Thinking 2.45/1.75/1.33/1 ratios - puts rev drop to ~6k at 8k shifts.
That first gear is still gonna suck - forget driving the car into the trailer



This is using 2.86/1.86/1.33/1 ratios 245/40-15



There's all sorts of options, of course will need bell, clutch and shaft.

http://www.texracing.com/pdfs/GF4A%20Ratio%20Chart.pdf


Edit to add: this was Sav's suggestion
Attached Thumbnails
Gearbox options/experiences-c2.4_1.75_1.33_1.0_none_none-3.3_24.0_3000_8000_zps9eegoeqd.png

Last edited by GeneSplicer; 09-18-2014 at 06:05 PM.
GeneSplicer is offline   Reply With Quote
Old 09-18-2014, 05:32 AM   #369
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

Going with a 3.636 will make your 4th gear the same as 5th in a 1.6l car with a 4.3 pretty much, you would be cursing at 4k on the highway at like 75.
ctdrftna is offline   Reply With Quote
Old 09-18-2014, 03:46 PM   #370
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 980
Default

Quote:
Originally Posted by GeneSplicer View Post
t101a with a 3.3r&p
I've suggested it to a few people. For a dedicated, trailered track car, you won't beat the strength-to-cost ratio.
Savington is offline   Reply With Quote
Old 09-18-2014, 04:09 PM   #371
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

The quicktime + t101a isnt exactly light though. 26lbs for the bell housing and another 74 for the tranny + a few more for the shifter. And you could always step up to the jerico 5 speed that only weighs 6 lbs more. But just kind of crams 1 more gear in without giving an over drive.

Another new idea, The jerico 3 speed with a gear vendor over drive. Then you actual get over dive gearing (0.78), and 6 gears.
Leafy is offline   Reply With Quote
Old 09-18-2014, 04:12 PM   #372
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 992
Total Cats: 119
Default

If it weren't for rules limitations and weight of the bell housing id have a t101a in my car. Abandoned the project for the Quaife. Throwing 6 speed shredding torque through it, it hasn't skipped a beat.

If you are gonna go Quaife...do it right. Send it to a reputable builder. I used Mike at Helios Motorsports and thus far couldn't be happier. I had him replace the entirety of the internals. Literally only reused the case and he did some magic coating / stress relieving process to the case.

Shifts are fast, positive (almost bolt action rifle like)



BUUUT. If you can make it fit within the rules of your class....the t101a is much cheaper (not including fab work to make it fit) and stronger
TNTUBA is offline   Reply With Quote
Old 09-18-2014, 04:19 PM   #373
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,295
Total Cats: 226
Default

Quote:
Originally Posted by Leafy View Post
Another new idea, The jerico 3 speed with a gear vendor over drive. Then you actual get over dive gearing (0.78), and 6 gears.
This +1
TurboTim is offline   Reply With Quote
Old 09-18-2014, 08:08 PM   #374
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

how much does a stock 6spd weigh, If you are making enough power to need a 4spd dog box then you can make the power to move the added weight.

I think i would be much happier having a bullet proof drivetrain and 450whp then having a car sitting in my garage with a broken 6spd and armchair engineering all the negatives of 30 extra lbs.
ctdrftna is offline   Reply With Quote
Old 09-18-2014, 08:40 PM   #375
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

^ my rational exactly. Mine'll be a straight-up 450hp fun track car that, yeah, I wanna track... not have to replace transmissions every other weekend. I even contemplated a quaife sequential but thought the divorce would be more costly.
GeneSplicer is offline   Reply With Quote
Old 09-19-2014, 12:30 AM   #376
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

Quote:
Originally Posted by ctdrftna View Post
how much does a stock 6spd weigh, If you are making enough power to need a 4spd dog box then you can make the power to move the added weight.

I think i would be much happier having a bullet proof drivetrain and 450whp then having a car sitting in my garage with a broken 6spd and armchair engineering all the negatives of 30 extra lbs.
Your point is very well taken. However, what if you can source a gearbox that is within spitting weight of the stock unit and then find strong gears that will work well for street and track use? No-one's commented on the T5/custom gearing option I referenced above. It seems if I'm not missing something important, it's a decent solution that can probably be adapted to a Miata with reasonable effort.
DeerHunter is online now   Reply With Quote
Old 09-19-2014, 05:10 AM   #377
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

I like the idea of the T5, I need a transmission to go into my K swap car, does the T5 use the same bolt pattern as 4spds? Right now I'm planning to use a MSM 6spd because of ease of use and i won't be pushing the power right off the bat.
ctdrftna is offline   Reply With Quote
Old 09-19-2014, 07:14 AM   #378
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

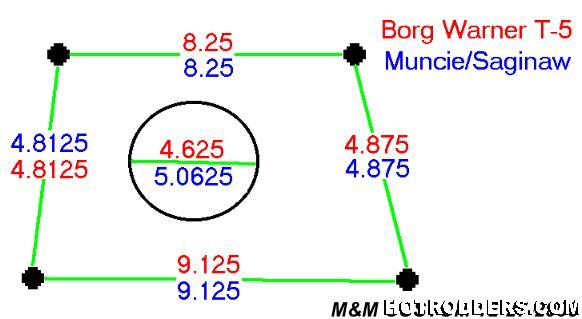

My holdup is not being sure the t5 and the t10 use the same bellhousing bolt pattern.
Leafy is offline   Reply With Quote
Old 09-19-2014, 08:34 AM   #379
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Attached Thumbnails
Gearbox options/experiences-9020bellhousing_bolt_pattern.jpg.pagespeed.ce.abur8nssuq.jpg
sixshooter is offline   Reply With Quote
Old 09-19-2014, 08:53 AM   #380
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

Is the BW T5 the same pattern as the tremmec T5? Or do the GForce gears not care which case they get put in? We want the T5z for shifter placement which would be the tremmec one anyways.
Leafy is offline   Reply With Quote
