Old 07-10-2013, 02:45 PM   #61
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,052
Default

Is anyone actually tracking a turbo Miata without heat shielding the exhaust the full length of the transmission? Mazda thought it was necessary at stock power levels. How could it be unnecessary at twice the power or more? Shielding is much cheaper and less failure prone than external coolers, if you haven't done that first. My trans temp went from ~270 to ~200 with just shielding (according to Harbor Freight thermo gun), and I'm not pushing nearly the power of some on here. The diff had a similar drop when I shielded back there.
sixshooter is offline   Reply With Quote
Old 07-10-2013, 02:53 PM   #62
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,057
Total Cats: 11
Default

The OEM shielding is to stop burning your feet/trans tunnel, no?
Having said that, I've got some thermo stuff around that area, but mainly aimed to stop heating from getting in the cabin.
Laur3ns is offline   Reply With Quote
Old 07-10-2013, 02:55 PM   #63
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,273
Total Cats: 122
Default

Quote:
Originally Posted by Laur3ns View Post
The OEM shielding is to stop burning your feet/trans tunnel, no?
Having said that, I've got some thermo stuff around that area, but mainly aimed to stop heating from getting in the cabin.
Which would by proxy stop heat from getting into the transmission considering the heat does not seek out the cabin, it just radiates in all directions.
Ryan_G is offline   Reply With Quote
Old 07-10-2013, 03:42 PM   #64
Senior Member

Join Date: Dec 2007
Posts: 665
Total Cats: 2
Default

Quote:
Originally Posted by Savington View Post
The 5-speed will be much tougher, since the drain is on the bottom and thus won't accept an adapter fitting unless you want to run the very real risk of breaking it off on a curb someday.
Instead of a vertical adapter fitting, replace the drain plug with a banjo bolt/fitting and route the hose towards the back.

http://www.ebay.com/itm/Banjo-Bolt-K...345#vi-content



Last edited by j_man; 07-10-2013 at 04:04 PM.
j_man is offline   Reply With Quote
Old 07-10-2013, 03:42 PM   #65
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,499
Total Cats: 872
Default

Quote:
Originally Posted by Handy Man View Post
The fluid might not be burnt, but over temp fluid still has worse lubricating properties and therefore will increase wear on the transmission.
Increased wear would show up in a UOA, but it doesn't. Amsoil is very, very good at not allowing accelerated wear, even when fluid temps are very high.

my tranny/diff UOA, let me show you thems
Savington is offline   Reply With Quote
Old 07-10-2013, 05:10 PM   #66
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 15
Default

I stand corrected
Handy Man is offline   Reply With Quote
Old 07-10-2013, 09:35 PM   #67
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Quote:
Originally Posted by Savington View Post
Increased wear would show up in a UOA, but it doesn't. Amsoil is very, very good at not allowing accelerated wear, even when fluid temps are very high.
What about metal fatigue? I thought things get weaker with increasing temps. It's strange the way these trans fail. Once they give up they chew right through an entire gear. That to me seems odd. Most other trans failures I have seen (other cars) start by loosing a tooth or 2. Never before have I seen a gear stripped all the way around like I have seem on Miata's.

Thoughts?
k24madness is offline   Reply With Quote
Old 07-10-2013, 09:39 PM   #68
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,665
Total Cats: 92
Default

300*F is nothing for a steel alloy gear. I would tend to expect overloaded gears that arent failing from case flex to break off the weakest tooth and then cascade fail from impact loading the other teeth.

I would expect gears failing from impact loading, IE super hard shifts, to just break 1 or two teeth.
Leafy is offline   Reply With Quote
Old 07-10-2013, 09:46 PM   #69
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,499
Total Cats: 872
Default

Quote:
Originally Posted by k24madness View Post
What about metal fatigue? I thought things get weaker with increasing temps. It's strange the way these trans fail. Once they give up they chew right through an entire gear. That to me seems odd. Most other trans failures I have seen (other cars) start by loosing a tooth or 2. Never before have I seen a gear stripped all the way around like I have seem on Miata's.

Thoughts?
Mainshafts are steel, which doesn't fatigue significantly at only 300*F. Aluminum, OTOH, does, and case flex is something that a lot of applications struggle with. If we can keep the case cooler, the trans might last longer.

Wrapping the exhaust isn't going to help with longevity of the exhaust, but it should drop tranny temps. It's a good idea for track cars that don't get used in the rain a lot.
Savington is offline   Reply With Quote
Old 07-11-2013, 05:26 AM   #70
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 215
Total Cats: 5
Default

as far as i can gather case flex is not the main issue. this is from this thread Syncromesh gear kit for racing/FI applications - Page 2 - MX-5 Miata Forum from when the quaife gearset was first in development.

Based on my and Quaifes findings the "flexing case" syndrome which has been touted as the main cause of the OE 5 speed transmission failure simply isn't true. Does the case flex, yes. But, with the Quaife gear set or any other gear set w/o the OE gear set short comings, case flex will not be the cause of transmission failure. The bottom line is if case flex was the culprit for transmission failure, this gear kit WOULD NOT HAVE HAPPENED, PERIOD. Quaife has no intension of putting together a gear set that would wind up getting destroyed every time it's subjected to hard use.

The main cause of failure has to do with the shallow OE gear teeth and the extreme helical pitch they are cut at. A helical gear has much more torsional load than a straight cut gear. During the initial meshing, this load is concentrated in a small contact point on the teeth of the input and counter gears because of the pitch and depth of the gear teeth. When a excessive amount of torque is applied to the teeth over a short period of time (like during a speed shift) it will eventually lead to shorn gear teeth and ultimately transmission failure. The case flex only compounds the problem by putting an already small tooth to tooth contact point in jeopardy of misalignment.

The Quaife gear kit will be cut at a semi helical cut for a much larger contact patch between gear teeth, plus the gears themselves will be larger which will allow the teeth of each gear to be cut deeper for even more contact between the gear teeth.

By having a semi helical cut, Quaife is reducing the amount of torsional load on each gear which will maintain them in alignment and minimize parasitic driveline losses. Further, by minimizing torsional load across the gear teeth, less will be transferred to the case, hence less case flex. How much less is currently unknown as the gears are still be manufactured.



AS far as i am aware quaife are the only ones to do any real testing on the box and release any findings. Keeping the box cool though cant do it any harm and may go some way to reduce any case flex however insignificant it may be.

As has been said here and i am sure elsewhere the problem is excessive torque overload on the oem gears. i would love to know the real world limitations of the Quaife gearset. has anyone actually had one fail?

Last edited by mr2daj; 07-11-2013 at 05:36 AM.
mr2daj is offline   Reply With Quote
Old 07-11-2013, 08:58 AM   #71
Supporting Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Aluminum gets weak rather quickly above 5/600F.

But I was not aware that the modulos of elasticity is reduced with temperature. Until it melts, that is.

corky
Corky Bell is offline   Reply With Quote
Old 07-11-2013, 10:04 AM   #72
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 15
Default

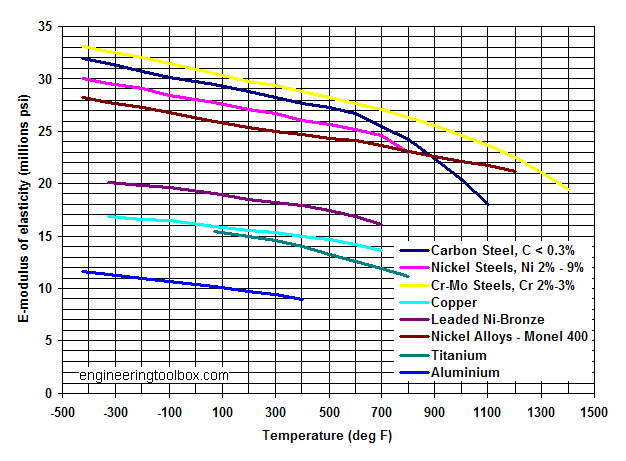

Attached Thumbnails
Gearbox options/experiences-metal-modulus-elasticity.png
Handy Man is offline   Reply With Quote
Old 07-11-2013, 12:01 PM   #73
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

Quote:
Originally Posted by k24madness View Post
Once they give up they chew right through an entire gear. That to me seems odd. Most other trans failures I have seen (other cars) start by loosing a tooth or 2. Never before have I seen a gear stripped all the way around like I have seem on Miata's.

Thoughts?
Quote:
Originally Posted by Leafy View Post
I would expect gears failing from impact loading, IE super hard shifts, to just break 1 or two teeth.
This is in fact the opposite of what we see at work in Evo 8/9 and DSM transmissions. I'd say 9 out of 10 gear failures involve both gears (fixed and floating) being stripped all the way around. The Supras, Evo 10s, 3S's, GTRs all have heavy enough gearsets that we rarely see any gear damage from torque. Running without fluid is another story...

When we see the rare single broken tooth, it's in random enough places (1st gear, center diff, front diff), that we assume it is from general fatigue or a defect, though to my knowledge we've never spent the money to have it analyzed post-mortem, so to speak. Safe enough to guess that a single tooth broken off 1st could be from shock loading given the driving habits of most of our customers (drag racing not road racing). When a gear strips all the way around it is usually 2/3/4, and will let go at peak torque whether it's been shocked or not.
matthewdesigns is offline   Reply With Quote
Old 07-11-2013, 07:57 PM   #74
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Quote:
Originally Posted by Handy Man View Post
Quote:
Originally Posted by Leafy View Post
300*F is nothing for a steel alloy gear. I would tend to expect overloaded gears that arent failing from case flex to break off the weakest tooth and then cascade fail from impact loading the other teeth.

We have some data on trans fluid temps but what about the actual gear teeth temps? Does everything equalize and the fluid temps reflect gear face temps? Looking at that chart for carbon steel it takes a nose dive at 600.

Is the trans like a motor where the pistons etc (or gears in this case) run hotter than the oil?
k24madness is offline   Reply With Quote
Old 07-11-2013, 08:03 PM   #75
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,665
Total Cats: 92
Default

If the gear face temps were 600*F the fluid would most likely flash, it would almost certainly flash if you were using non-synthetic.
Leafy is offline   Reply With Quote
Old 07-19-2013, 07:16 PM   #76
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,057
Total Cats: 11
Default

I totally missed this, so let me contribute:
Quote:
Originally Posted by Savington View Post
Way to create a false rumor, dude. "We don't provide strength estimates" is NOT the same as "they are not stronger than stock".
Please, get that tampon changed. Other e-mails where exchanged, such as:
Quote:
From: Adrian Naish [mailto:adrian@quaife.co.uk]
Sent: Wednesday, March 14, 2012 2:53 PM
To: Laur3ns
Subject: RE: MX5 gearkit enquiry

Hello Laurens,

The gearkit is designed to provide better ratios for racing compare to the standard, not necessarily to strengthen the box. I would advise that the torque limit would be the same as the limit on the original gearbox. If you wanted a significantly stronger gearbox with a wide choice of ratios might I suggest the QBE60G gearbox we manufacture?
Let me repeat:

Not necessarily to strengthen the box. I would advise that the torque limit would be the same as the limit on the original gearbox.
Laur3ns is offline   Reply With Quote
Old 07-19-2013, 07:32 PM   #77
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,499
Total Cats: 872
Default

Laurens, how many days on your Quaife box at ~300whp?
Savington is offline   Reply With Quote
Old 07-20-2013, 03:13 AM   #78
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,057
Total Cats: 11
Default

Only 9 so far, 10th this weekend.
Laur3ns is offline   Reply With Quote
Old 07-21-2013, 08:58 PM   #79
Junior Member

Join Date: Jul 2012
Location: Campbell, CA
Posts: 65
Total Cats: 0
Default

I'd love to hear more from folks who've used a Jerico or other dog box. There's a couple of multiple time National champ AutoX guys in the SFR that use them in their Mod cars. Dog boxes seem to be the answer for quicker shifting, and the straight cut gears must reduce friction/heat/wear/LOSSES.

Anyone know what the losses are relative to a Miata box? Speculation over beers with guys a lot smarter than me have suggested there's another 2-3% to the wheels to be had. That's got to be running much cooler too.
Ski_Lover is offline   Reply With Quote
Old 07-24-2013, 02:39 PM   #80
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,057
Total Cats: 11
Default

Quote:
Originally Posted by Laur3ns View Post
Only 9 so far, 10th this weekend.
10
Laur3ns is offline   Reply With Quote
