Old 07-05-2016, 10:39 AM   #501
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by psyber_0ptix View Post
I thought the more distance away from the heat exchangers, the better for flow? What's this too far nonsense?
The theory about gap between heat exchangers is mainly to give the air room to change direction if needed.

What I'm talking about is that the FAB9 mounting position is right up against the mouth of an NA bumper cover. Leaves very little room for any air to get around the IC (small slot at top with Stage 1, probably nothing with Stage 2). It's also a thick/dense bar and plate core. I've been thinking about doing some Sixshooter style bumper support surgery to open the gap at the top, but am going to try relieving engine bay pressure first.
hornetball is offline   Reply With Quote
Old 07-05-2016, 10:47 AM   #502
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

So bypassing the intercooler some will reduce the pressure differential through the intercooler itself right? Basically it's just acting as a sink now with less forced convection for heat exchange?

I was tempted to just remove that chunky black bumper thing on my car, but I have a begi #3 (with a big vibrant intercooler sitting on stand by). No gap from the front bumper because I retained that small plastic trim that sits in the mouth of the bumper.

When folks duct the radiator, do they just worry about the sides, and bottom, without sealing anything against the intercooler; intercooler just sits idly in space between the mouth of the bumper and radiator, with air flowing freely around and above?

I wonder if teasing out a couple rows of the high density fins will help facilitate flow through the larger intercoolers while still exchanging some heat if it's just acting as a sink at this point. I can only imagine how well a gummed up, bug jammed, fin bent third hand begi #3 will flow after multiple years of use.
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 11:23 AM   #503
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
The theory about gap between heat exchangers is mainly to give the air room to change direction if needed.

What I'm talking about is that the FAB9 mounting position is right up against the mouth of an NA bumper cover. Leaves very little room for any air to get around the IC (small slot at top with Stage 1, probably nothing with Stage 2). It's also a thick/dense bar and plate core. I've been thinking about doing some Sixshooter style bumper support surgery to open the gap at the top, but am going to try relieving engine bay pressure first.
I'm at a similar setup on an NB (A/C, 210whp). As greddygalant, have coolant rerroute, 1,3bar radiator cap and full ducting.

Fab9 mounting position leaves like half an inch between interior plastic bumper and i think that's the main reason of my overheating problem. I've yet to decide, if i should tilt the IC or move it back flushed with the A/C condenser. Either solution require custom A/C piping to remove the dryer away from it's original position. Problem is i can't find witch would be the more eficient solution, and if i should separate ducting, restricting like 1/3 of the mouth to de IC and 2/3 to the radiator. I'm @ like 50º IAT after 20min session on a 32º day, so 'm willing to sacrifice some IAT to get my coolant temperatures down.
kamel6k is online now   Reply With Quote
Old 07-05-2016, 12:32 PM   #504
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,029
Total Cats: 185
Default

I have been having the same questions. I am seriously considering remote mounting my A/C receiver so I can move the I/C back and get some flow around it. I am going to pull the bumper cover first and see if I have air bypassing the radiator, and if not, then I will move the I/C back. If I do have air bypassing, I will seal it first.

Could another experiment be running without the bumper cover?
DNMakinson is offline   Reply With Quote
Old 07-05-2016, 12:35 PM   #505
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

I was looking at remote mounting the accumulater/dryer (on NA). I'm wondering if I can get away with flipping the hardline that connects to the drier to attach directly to the condenser, then mating the drier up directly to the high pressure line after some hardline mangling. Looks like a 16MO fitting on both those hardlines.

Or maybe we can pitch a solution ala SADFab. I know the early Protégé drier shares the same fittings and have a slightly shorter body.
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 12:54 PM   #506
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,029
Total Cats: 185
Default

I was thinking sending a picture to a local A/C guy and having a flex line or lines built. I would install and then take car to him for evacuation and re-fill.
DNMakinson is offline   Reply With Quote
Old 07-05-2016, 01:00 PM   #507
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by psyber_0ptix View Post
I was looking at remote mounting the accumulater/dryer (on NA). I'm wondering if I can get away with flipping the hardline that connects to the drier to attach directly to the condenser, then mating the drier up directly to the high pressure line after some hardline mangling. Looks like a 16MO fitting on both those hardlines.

Or maybe we can pitch a solution ala SADFab. I know the early Protégé drier shares the same fittings and have a slightly shorter body.

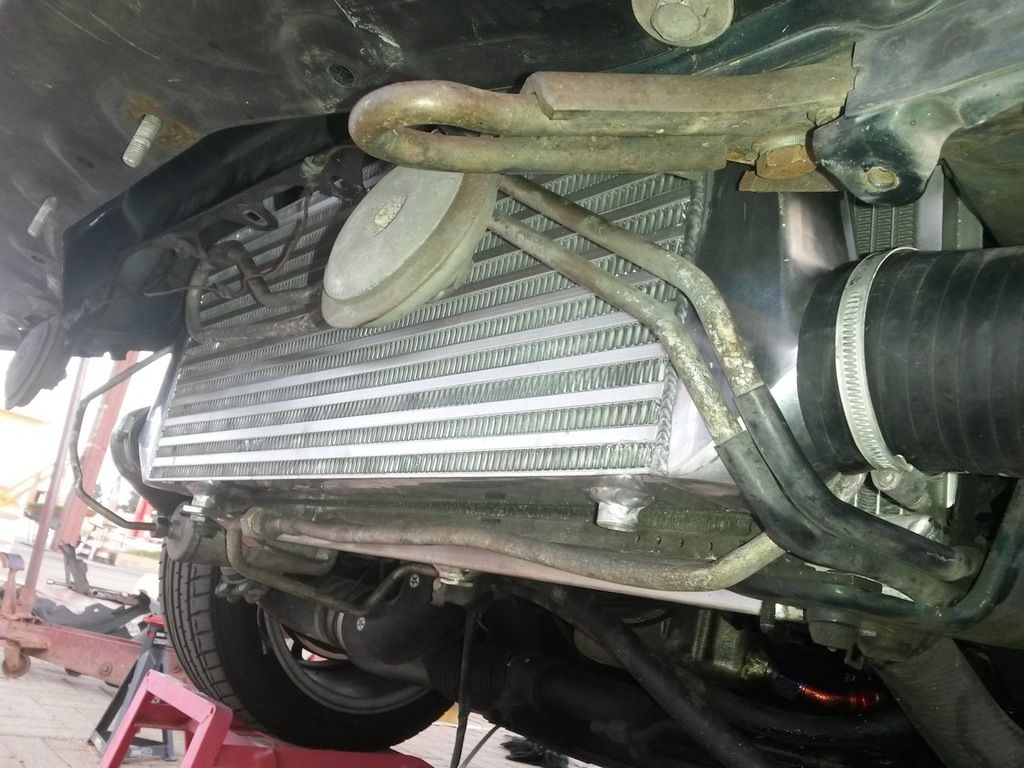

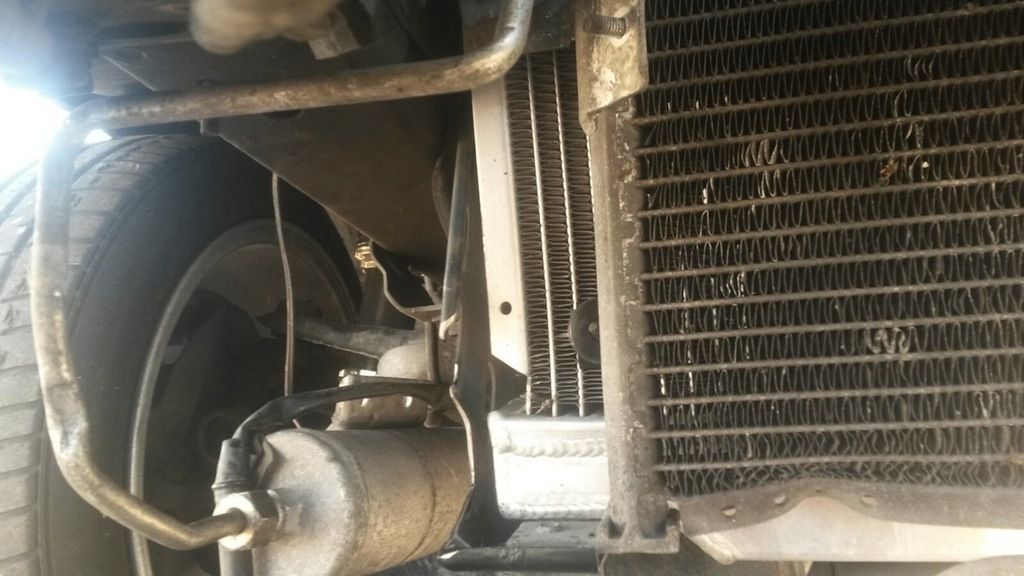

DNA54 on here did just that:



Problem is i'm not confortable "massaging" the lines that much, and as i'm no A/C expert and i haven't managed to find if i can crimp rubber lines, or any other type of line a normal hidralic shop could make.

But basicly, this could be the solution (if the problem isn't the A/C condenser per se), from what i can see in my temperatures log, i'm not that far away from managing a full 20min track session.

Other doubt that i have is if i should remove, or at least have some kind of water tap, to the oil/water "cooler" for track time beacause my coolant/oil temps are correlated and i can't understand if oil is heating the water or is just the engine heating all over the place.

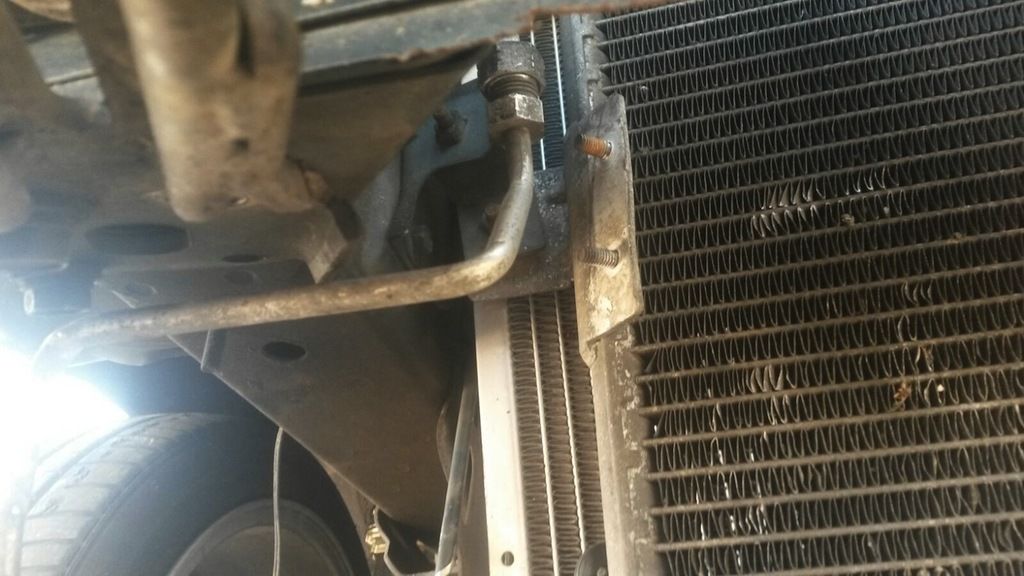

Attached Thumbnails
Miata cooling system thread-80-img_20160625_wa0039_zpsczg0u0dt_56b026dd6d812aadd70252d62254a0e07d34e8ec.jpg
kamel6k is online now   Reply With Quote
Old 07-05-2016, 01:31 PM   #508
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

Must the drier remain vertical? Where did he mount the can?
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 01:52 PM   #509
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by psyber_0ptix View Post
Must the drier remain vertical? Where did he mount the can?
I know nothing about A/C systems :S

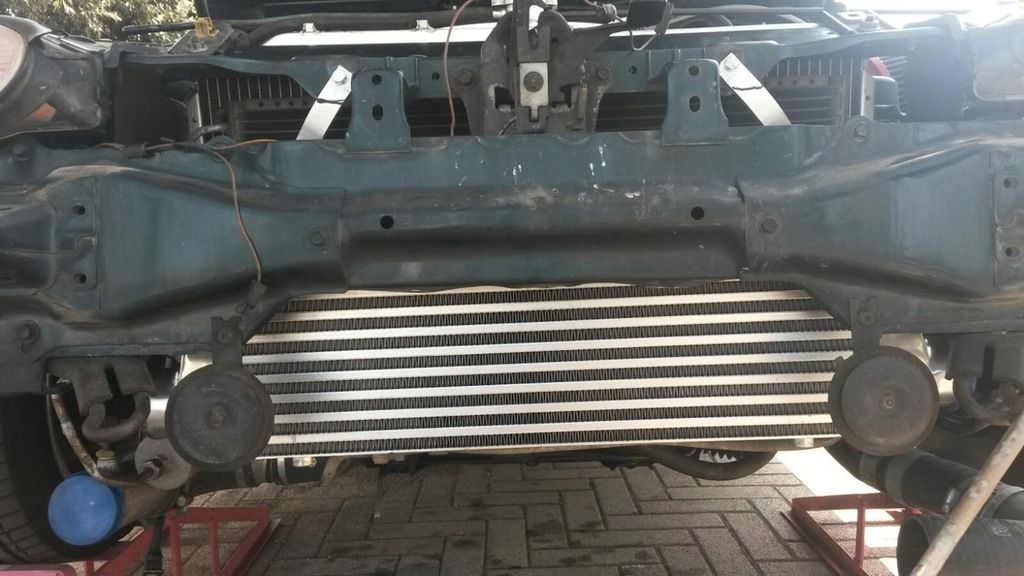

Here you have more pictures:







and more here: diy "turbo no hit block" '00 BP miata
Attached Thumbnails
Miata cooling system thread-80-img_20160626_wa0014_zpsvlka1ufs_202b8b6dc833630933e23b8c5456a8522775b0ba.jpg   Miata cooling system thread-80-20160626_201414_zpsus8w7f51_7fa7e6336f4ce58b4e59031f461f312e51c64db8.jpg   Miata cooling system thread-80-img_20160625_wa0037_zpsvzknpg77_dd0f8dda8b7f86ac24deb51507c0a97a8279478e.jpg
kamel6k is online now   Reply With Quote
Old 07-05-2016, 02:11 PM   #510
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

Ok, the drier is slightly different on the NB. I wonder if I can use an NB drier on the NA or if there's enough hard line for the NA drier to work. I'm still not convinced about the orientation of the drier, all applications I see have it sitting vertically, I don't know how it works so I don't know if this is a deal breaker. Stack height from that location would otherwise make the normal drier protrude downward below much of the existing hardware on the car, hence the interest in using the protégé or 626 driers as the canisters are physically shorter (albeit, not sure about whether the connections are 100% the same)
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 02:22 PM   #511
Newb

Join Date: May 2011
Posts: 15
Total Cats: -1
Default

Does anyone find fault with TDR intercooler system with their ducting? I want to hear from people with experience. Thanks.
RotrexMiata is offline   Reply With Quote
Old 07-05-2016, 03:29 PM   #512
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by psyber_0ptix View Post
Ok, the drier is slightly different on the NB. I wonder if I can use an NB drier on the NA or if there's enough hard line for the NA drier to work. I'm still not convinced about the orientation of the drier, all applications I see have it sitting vertically, I don't know how it works so I don't know if this is a deal breaker. Stack height from that location would otherwise make the normal drier protrude downward below much of the existing hardware on the car, hence the interest in using the protégé or 626 driers as the canisters are physically shorter (albeit, not sure about whether the connections are 100% the same)
That's neither an NA nor an NB receiver/drier. It looks like he found and sourced a receiver/drier that was designed for horizontal mounting.

The only incompatibility between receiver/driers is that units made for R-12 use a different desiccant than units made for R-134A. I "think" the mandatory switchover year was 1995, so as long as you're perusing a catalog for 1995 or newer cars . . . .
hornetball is offline   Reply With Quote
Old 07-05-2016, 03:37 PM   #513
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

Quote:
Originally Posted by hornetball View Post
That's neither an NA nor an NB receiver/drier. It looks like he found and sourced a receiver/drier that was designed for horizontal mounting.

The only incompatibility between receiver/driers is that units made for R-12 use a different desiccant than units made for R-134A. I "think" the mandatory switchover year was 1995, so as long as you're perusing a catalog for 1995 or newer cars . . . .

I'm positive that's an NB1 A/C drier, look at the mounting tab location. Normally it's on the condenser vertically.

Look up: NC10-61-500A



psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 03:42 PM   #514
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

94 they started using r-134a hardware. The pressure switches and the actual compressor and fittings are different on the compressor side. I had to swap my softlines and went ahead and changed the hardlines as well. I couldn't get an r12 compressor; car wouldn't hold vacuum mating the high pressure and suction hose to the r134a compressor using the older style line. I have one of the last MAZDA OEM ones sitting in my car right now so the car has been retrofitted entirely to r134.

I just need to get the pigtail for the pressure switch off a 94+ as they activate under different pressures. I didn't realize the desiccant was different between the years and will then use the later NA8 drier (thanks for the info). All the fittings are the same otherwise, but DNA54 was building an NB upon further investigation. His drier and hardlines are different.

Question remains: Does it matter in which orientation the drier sits?
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 04:08 PM   #515
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by psyber_0ptix View Post
I'm positive that's an NB1 A/C drier, look at the mounting tab location. Normally it's on the condenser vertically.

Look up: NC10-61-500A
Ooops. Sorry. I was thinking R-12 vs R134A NA receiver/driers, both of which have inlet/outlet at the top, R-12 has a sight glass and R134A does not.

Receiver/driers are designed for either vertical or horizontal mounting. Basically, this is how they separate the gas and liquid refrigerant states. If you flip the reciever/drier on its side, you'll be taking more gas to your expansion valve, which will reduce cooling in the evaporator.

I think you're better off finding an R134A receiver/drier from another car designed for horizontal mounting. Something like this: More Information for ÜRO PARTS MMD7410AA.
hornetball is offline   Reply With Quote
Old 07-05-2016, 04:21 PM   #516
Mr Broke Pants
iTrader: (7)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,158
Total Cats: 52
Default

Quote:
Originally Posted by RotrexMiata View Post
Does anyone find fault with TDR intercooler system with their ducting? I want to hear from people with experience. Thanks.
I will install the entire TDR rotrex kit sometime in August, stay tuned to my build thread.
thumpetto007 is offline   Reply With Quote
Old 07-05-2016, 04:59 PM   #517
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,030
Total Cats: 116
Default

I have the fab9 stage 1 as well and I have similar problems. I just can't keep it cool. This is my plan:
Attached Thumbnails
Miata cooling system thread-80-171894d1463602445_building_better_mazdaspeed_trackspeed_c2_92s_nb2_turbo_street_car_image_172.jpg
Chiburbian is offline   Reply With Quote
Old 07-05-2016, 05:48 PM   #518
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

Chiburbian, do you have an a/C condenser?

Is everyone still running that bulky plastic bit on the bumper?
psyber_0ptix is offline   Reply With Quote
Old 07-05-2016, 06:07 PM   #519
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,030
Total Cats: 116
Default

Yes, I have an A/C condenser. What do you mean by bulky plastic bit? There was a part that originally went from the front of the under-tray to the lip of the nose (or abouts) that had to be sacrificed to allow the first (ebay) intercooler to fit. I now have what is essentially coroplast ductwork, but it's still too tight to the bottom or the intercooler for my taste. There isn't enough space for air to go around the intercooler in my opinion.

On my way to tail of the dragon last year I was seeing 235 degrees (before I shut the A/C off) in 65 degree wet weather. It was damn scary because I couldn't see without the defrost on, but as soon as I turned the defrost on the temperature started climbing. With A/C off the temp at cruise was between 210-220 degrees.
Chiburbian is offline   Reply With Quote
Old 07-05-2016, 06:31 PM   #520
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,940
Total Cats: 227
Default

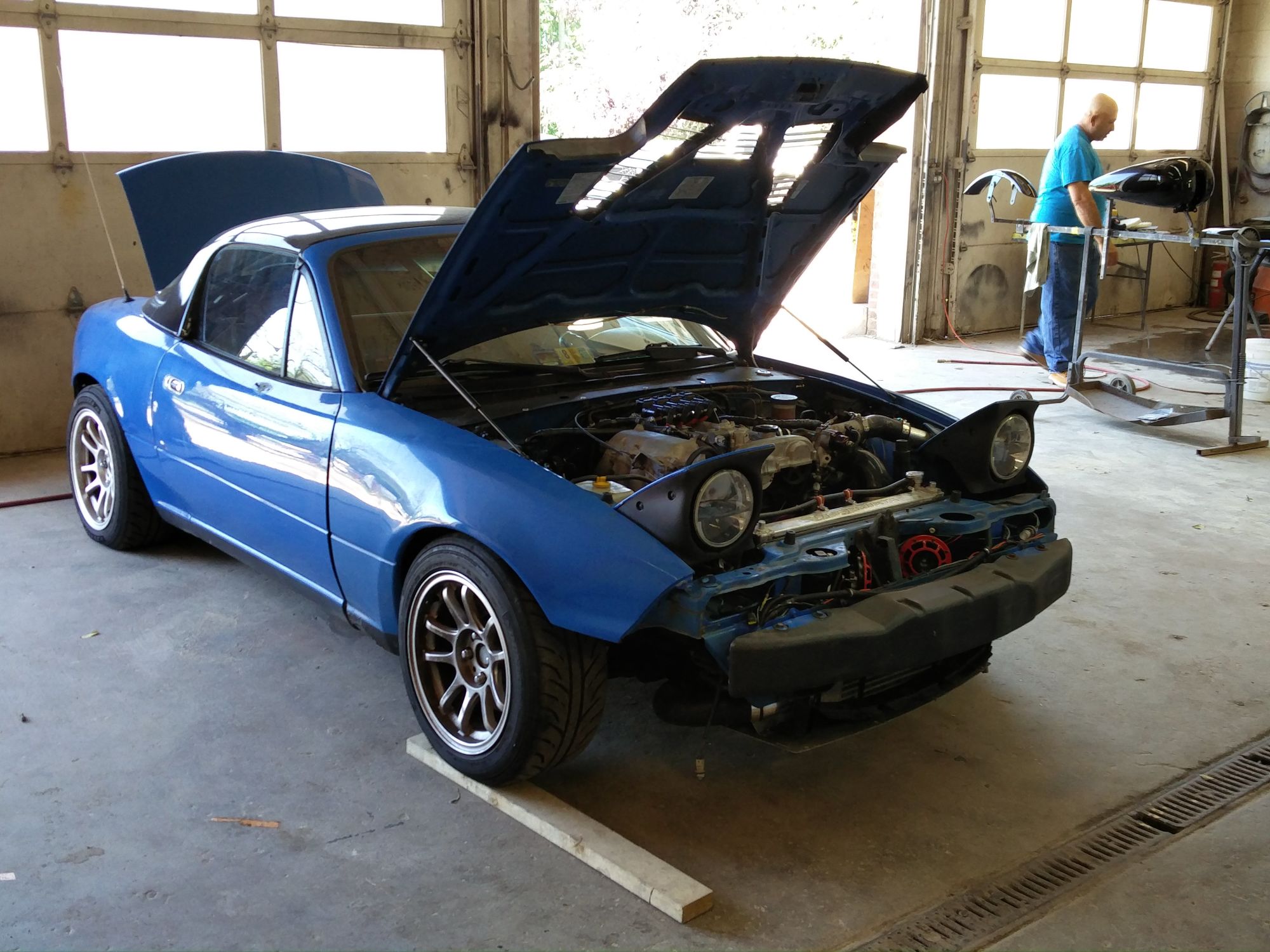

Sorry, I meant the plastic 5mph bumper. I also have the bumper facia plastic bit, but it's hacked up for clearance trying to hold up the undertray. Removing this would allow more air flow at the risk of a fucked up car after a collision?

Attached Thumbnails
Miata cooling system thread-80-img_20160702_122734_2c35a76d9abda83c130be9eb4c6e644c9e63aa5a.jpg
psyber_0ptix is offline   Reply With Quote
