Old 11-04-2013, 02:34 PM   #221
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,723
Total Cats: 971
Default

Quote:
Originally Posted by Mobius View Post
So it adapting the T56 simply not feasible? I did a quick search but didn't find any definitive answers on why it's not. Engine location compared to an LS simply too different to overcome? What's the issue with mounting the V8 drivetrain to the BP?
Massively heavy and shitty gear ratios.
Savington is offline   Reply With Quote
Old 11-08-2013, 04:55 PM   #222
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Rebuilding a 6 speed Got to the point of trying to press on the 6th gear clutch hub. I had noticed the end of the counter shaft had threads in the end of it and figured it would be easy to come up with a tool to tread in there and press the thing on.

Couldn’t find a bolt that fit the threads though. As near as I can tell they are 9mm left hand threads. Pretty much non existent off the shelf. I called Mazdamotorsports about the SST 49-N017-2A0 Clutch Hub Installer. Said it was ~ $90 special order 4 to 6 weeks for delivery.

How are other people getting that thing on? I think I might be able to press it on by somehow supporting the other end of the shaft up in the flywheel housing as I’m pressing on it which is what I’m leaning towards trying.

Last edited by bbundy; 11-08-2013 at 06:37 PM.
bbundy is offline   Reply With Quote
Old 11-08-2013, 08:45 PM   #223
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 417
Total Cats: 8
Default

I would think as long as the pressure needed to press the 6th gear hub on is not so great as to damage the roller bearing cage it should be fine.
jmann is online now   Reply With Quote
Old 11-08-2013, 09:12 PM   #224
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,723
Total Cats: 971
Default

Find a transmission shop who can do it for you and bring him a 6-pack.
Savington is offline   Reply With Quote
Old 11-09-2013, 01:28 AM   #225
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Quote:
Originally Posted by Savington View Post
Find a transmission shop who can do it for you and bring him a 6-pack.
Definitely could be done on a press with a really wide throat and an array of spacer blocks without the special AZ6 specific tool I think.

I'm going to try heating the clutch hub in the oven and whacking it on while supporting the other end of the shaft so as to not side load the roller bearings.
bbundy is offline   Reply With Quote
Old 11-09-2013, 11:00 AM   #226
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

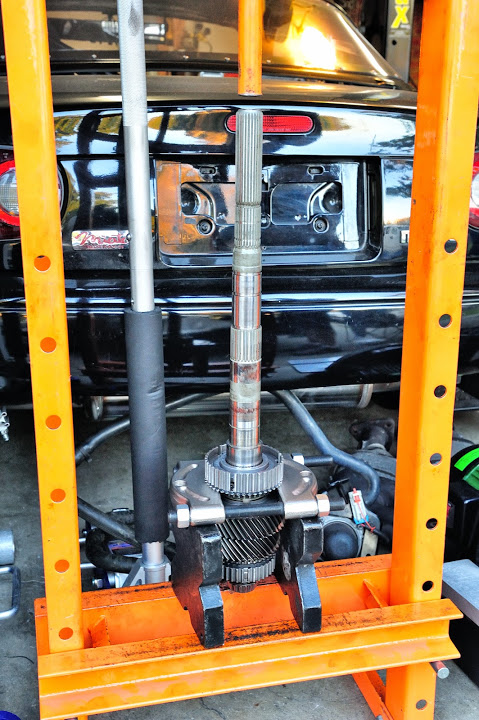

I've done all sorts of crazy stuff on my crappy 12-ton HF press I got for $20. Tried the hammer method once and messed up a bearing in the process. It's worth the time getting it pressed off. Most things aren't on very tight.

Attached Thumbnails
Another 6 speed bites the dust.-dsc_7564.jpg
orion4096 is offline   Reply With Quote
Old 11-09-2013, 01:30 PM   #227
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Quote:
Originally Posted by orion4096 View Post
I've done all sorts of crazy stuff on my crappy 12-ton HF press I got for $20. Tried the hammer method once and messed up a bearing in the process. It's worth the time getting it pressed off. Most things aren't on very tight.

I have a harbor freight press. but I don't have one that is that tall.
bbundy is offline   Reply With Quote
Old 11-09-2013, 04:09 PM   #228
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

dry ice from your local grocery for the shaft
mx594m is offline   Reply With Quote
Old 11-09-2013, 04:30 PM   #229
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,367
Total Cats: 56
Default

Create a tall/long press with a largish U profile (or dual I profiles) with welded ends and a jack?

Or simply make your existing press taller.
NiklasFalk is offline   Reply With Quote
Old 11-10-2013, 02:17 PM   #230
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Quote:
Originally Posted by NiklasFalk View Post
Create a tall/long press with a largish U profile (or dual I profiles) with welded ends and a jack?

Or simply make your existing press taller.
went to harbor freight and bought a 20 ton press yesterday but stuck doing yardwork today.
bbundy is offline   Reply With Quote
Old 11-10-2013, 10:27 PM   #231
Junior Member
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

I tried looking but can't find a definite answer...

Would a 1999 (3.9) torsen R&P gear set fit in a 1994 (4.1) torsen?

Thanks in advance.
mx54life is offline   Reply With Quote
Old 11-11-2013, 12:35 AM   #232
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Quote:
Originally Posted by mx54life View Post
I tried looking but can't find a definite answer...

Would a 1999 (3.9) torsen R&P gear set fit in a 1994 (4.1) torsen?

Thanks in advance.
Yes it would.
bbundy is offline   Reply With Quote
Old 11-11-2013, 02:01 AM   #233
Junior Member
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

Quote:
Originally Posted by bbundy View Post
Yes it would.
Thank you.

Well one/two more questions for the road.

I have a 1994 supercharged set-up. I am installing this 6-speed tranny and I also have a 4.1 Torsen. Would this be enough for a street use and spirited driving activities? Or since I'm there, a 3.9 FGR will be worth it?

Tnx again!
mx54life is offline   Reply With Quote
Old 11-11-2013, 11:32 AM   #234
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 417
Total Cats: 8
Default

3.90 well give you a little better rpm, thus gas mileage on the highway, other then that there is no real reason to change it. The 6 spd has a really low first gear so no real need for the 4.10. But unless you're bored or can't make the end of the straight at the race track i'd leave it be for the little gain.
jmann is online now   Reply With Quote
Old 11-11-2013, 12:42 PM   #235
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Quote:
Originally Posted by mx54life View Post
Thank you.

Well one/two more questions for the road.

I have a 1994 supercharged set-up. I am installing this 6-speed tranny and I also have a 4.1 Torsen. Would this be enough for a street use and spirited driving activities? Or since I'm there, a 3.9 FGR will be worth it?

Tnx again!
This has nothing to do with this thread. And is a very subjective question. Go to the FM gearing calculator and figure it out for yourself.
thenuge26 is offline   Reply With Quote
Old 11-11-2013, 05:19 PM   #236
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 396
Total Cats: 9
Default

Was just thinking about this again and it occured to me, what exactly are the ideal gear ratios for a track driven miata. Obviously there are lots of variables such as engine power, redline, diff ratio, tire size etc and even the track in question.
But many of the higher horsepower setups are relatively similar 15 inch wheels with 225/45 tires. 3.6 or 3.9 rear end ratios, 300-350hp, shift points around 7500rpm or so depending. similar to Bob's setup.

If you got to pick the ratios for a 5 or 6 speed what would they be. Obviously they might be different for track,autocross or a street car that is occasionally tracked. Many have pointed out that most of the tranny swap options have shitty ratios, so what would your ideal ratios be? Higher first gear, how tight of a spread across the ratios?
Sorry just seemed like it would be easier to define what was desired and then look for something.
kaisersoze is offline   Reply With Quote
Old 11-11-2013, 05:33 PM   #237
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,367
Total Cats: 56
Default

Quote:
Originally Posted by kaisersoze View Post
Sorry just seemed like it would be easier to define what was desired and then look for something.
Tried #172 as a starting point?
NiklasFalk is offline   Reply With Quote
Old 11-11-2013, 05:38 PM   #238
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Yep, start with this:

Quote:
Originally Posted by Savington
Any gear numerically higher than 6.0:1 can be considered unusable/nonexistent on track.
Then space the rest out as fits your use best.
thenuge26 is offline   Reply With Quote
Old 11-11-2013, 05:56 PM   #239
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

I am in the same boat, i pulled my 6speed apart last night and it needs some new synchros and sliders and forks ect... the parts are gonna be over $1500, so im just gonna buy another tranny.

It doesnt make sense to spend 1k on a 75,000+ mile miata box when i can spend $800 on a 15,000 mile RX8 box. Has the internal swap actually been done?
ctdrftna is offline   Reply With Quote
Old 11-11-2013, 06:06 PM   #240
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Quote:
Originally Posted by bbundy View Post
Rebuilding a 6 speed Got to the point of trying to press on the 6th gear clutch hub. I had noticed the end of the counter shaft had threads in the end of it and figured it would be easy to come up with a tool to tread in there and press the thing on.

Couldnít find a bolt that fit the threads though. As near as I can tell they are 9mm left hand threads. Pretty much non existent off the shelf. I called Mazdamotorsports about the SST 49-N017-2A0 Clutch Hub Installer. Said it was ~ $90 special order 4 to 6 weeks for delivery.

How are other people getting that thing on? I think I might be able to press it on by somehow supporting the other end of the shaft up in the flywheel housing as Iím pressing on it which is what Iím leaning towards trying.
That is good to know now... I bought an MSM tranny with a 3rd gear grind. I've got it torn down and have a 3rd gear, synchro and 3-4 hub sleeve on order. I had a hell of a time getting the 6th hub off and actually destroyed my HB puller. Ended up buying a Snap-on puller off of the truck to get it off. I have a feeling it will be a bear to get back on too. My parts should come in tomorrow, I'll let you know if I come up with a way to get it to go on. I have a 6ft name brand 20 ton press so I shouldn't have trouble getting the whole tranny in the press.
Sokool is offline   Reply With Quote
