Old 04-11-2014, 01:02 PM   #21
Newb

Join Date: Sep 2011
Posts: 23
Total Cats: 7
Default

I've read that those scaled sleeves can have problems with threads. Had any problems so far?

I did find a kit with the GC style "pinch" seat. Honda kits are said to be the same as far as sleeve diameter goes.
88 00 Civic LX DX EX coilover Conversion lowering Sleeves Set Purple Spring Set | eBay
Brendanj is offline   Reply With Quote
Old 04-11-2014, 01:27 PM   #22
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Holy ***** and they're even $10 cheaper!


Wonder what the rates are.

SURE ARE PURPLE.
concealer404 is offline   Reply With Quote
Old 04-11-2014, 06:18 PM   #23
Elite Member
Thread Starter

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,095
Total Cats: 121
Default

I don't like the Torrington bearings sandwiched between the spring and that poly isolator, too easy to bend, need larger size to sit on the perch. Changed the rear bump stop to a 10mm piece, just a shock saver, rides way smoother.
jacob300zx is offline   Reply With Quote
Old 04-11-2014, 06:32 PM   #24
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Here's mine:

Clean MSM shocks in special Miataturbo packaging - $150 (Anyone have info on the bumps that come with these? I can take pictures later, but they don't feel much different to the touch than the Integra Speedthane bumps.)

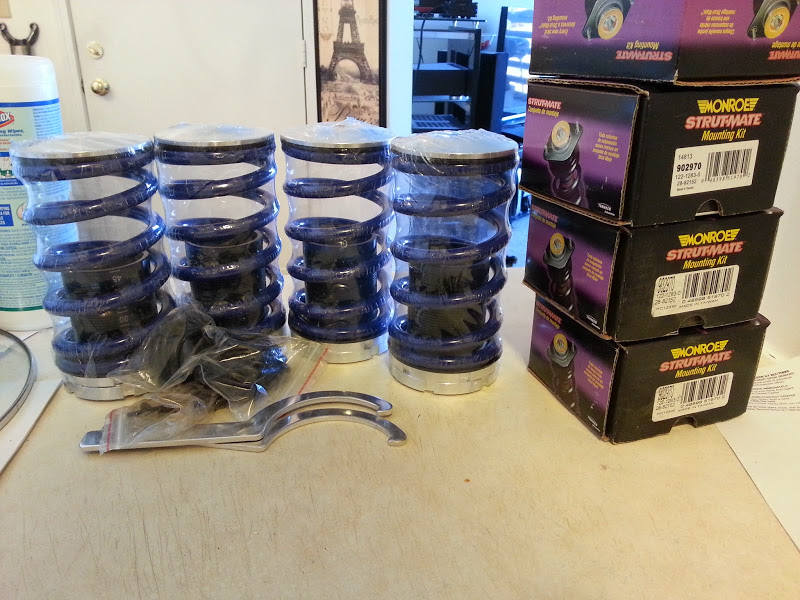

Fleabay sleeves/springs - $58 (450/325 setup)


Swapping springs out for 7" QA1 550/400 setup - $120 shipped for one new pair, one nearly new. (Second pair not shown. Red spring/collar setup and NB hats for my buddy.)



Integra Speedthane Medium bumps a.k.a. "Swank Force Racing 36/36 bumpstops" - $84



Having custom 1"/1.5" top hats made, will be paired with an RB 1.125 front, stock rear bar.
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-20140221_190141.jpg   The Better Bilstein Ebay Coilover Thread-20140315_163420.jpg   The Better Bilstein Ebay Coilover Thread-20140321_194123.jpg   The Better Bilstein Ebay Coilover Thread-20140324_194651.jpg
concealer404 is offline   Reply With Quote
Old 04-11-2014, 07:29 PM   #25
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 652
Total Cats: 10
Default

Here's my setup, I just had them re-valved and went up to 700/400 springs for this year.

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-img_20140410_142130_721.jpg
paNX2K&SE-R is offline   Reply With Quote
Old 04-11-2014, 07:41 PM   #26
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

It's a little hard to tell, but is the circlip captured by the threaded sleeve? It doesn't look like it from the pictures. You can probably get away without it captured, but there's a chance the clip can come out of the groove especially under extreme suspension movement. It shouldn't be too hard to get the sleeve machined to accept the circlip. Either that or tack weld the ends of the circlip into the groove.
Fidgitk is offline   Reply With Quote
Old 04-11-2014, 07:57 PM   #27
Junior Member
iTrader: (7)

Join Date: Mar 2013
Location: Des Moines, IA
Posts: 139
Total Cats: 31
Default

Living in the Midwest, I didn't like the idea of leaving bare metal after grinding town the tabs. Rustoleum caution yellow is a passable match.

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-img_20140411_183613446_zpsb5e7f474.jpg
Scrambles is offline   Reply With Quote
Old 04-11-2014, 08:48 PM   #28
Junior Member

Join Date: Aug 2013
Posts: 181
Total Cats: -40
Default

Come on guys, do you even poor? Here's your poverty spec coilover shopping list:

Coilover sleeves: $42
http://m.ebay.com/itm/351046622801

38mm Linear bumpstop: $11 each
http://www.acuraexpressparts.com/oe-acura/51722se0003

(56mm?) Progressive bumpstop: $6 each
http://www.hondapartssales.com/lisle...=51722-SR0-003

QA1 springs: $30 each from Summit
(if you lose the eBay spring lottery)

ISC style top hats: ~$10 each
Some plate, some pipe, and a trip to your friendly local machine shop.

Screw the thrust bearings, we don't have struts so the bearings just make it easier to adjust the ride height with load on the springs. You can use some harbor freight death sticks or man up and crank harder, your call.

All together, that's $100-200 for the full coilover conversion, depending on your luck with the springs and your bump stop choice.
Failure is offline   Reply With Quote
Old 04-11-2014, 10:25 PM   #29
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Awesome!

This thread is making me want to hack the Konis on my daily.
concealer404 is offline   Reply With Quote
Old 04-11-2014, 10:31 PM   #30
Elite Member
Thread Starter

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,095
Total Cats: 121
Default

Quote:
Originally Posted by concealer404 View Post
Awesome!

This thread is making me want to hack the shall not be named on my daily.
Nothing but Bilstein talk in here...

I think for anybody running the MSM Bilsteins the ISC hats are great to have, if not your gonna need some short bumpstops, like 20-25mm front and 10-15mm rear.
jacob300zx is offline   Reply With Quote
Old 04-11-2014, 10:35 PM   #31
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I want Bilsteins on my daily, but alas. No can has.

You recommend ISC hats and 36mm stops over NB hats and short bumps?
concealer404 is offline   Reply With Quote
Old 04-11-2014, 11:48 PM   #32
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

I love you Jake... sending you sparkly package in the mail because I love you do much for this ;o)
GeneSplicer is offline   Reply With Quote
Old 04-12-2014, 07:24 AM   #33
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -2
Default

Jake, I'll post some pics of our setup later today after we beat on it again, trying to be FTD etc. over cars with much higher dollar shocks.
FrankL is offline   Reply With Quote
Old 04-12-2014, 11:31 AM   #34
Elite Member
Thread Starter

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,095
Total Cats: 121
Default

Yeah I was out there earlier be back after sons baseball practice.

Yes seems like the MSM rears especially want a taller hat in the rear. The ebay collars are fine the perches might need to be chased, I just used lots of grease and chased them on the collar.
jacob300zx is offline   Reply With Quote
Old 04-12-2014, 04:39 PM   #35
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 400
Total Cats: 20
Default

Just more information for anyone reading this. I purchased GroundControl sleves from someone on ebay. They ended up being for Konis and I was going to use them on my MSM Bilsteins. They were loose on the shafts but did eventually work. I ended up having to put another C clip on top of the one already on the shaft and doing the few wraps of electrical tape at the top to get them to fit nicely.

Other than that, same setup as OP and been working great for 2 years.
slmhofy is offline   Reply With Quote
Old 04-13-2014, 10:48 AM   #36
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -2
Default

The very first thing we noticed switching from brand **** to revalved bilsteins is indescribable better ride quality. The car was comfortable to drive again. Pics incoming
FrankL is offline   Reply With Quote
Old 04-13-2014, 11:29 AM   #37
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -2
Default



Still digging up more
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-3d3fa630-ce73-4bca-be6c-7da6e61b6daf.jpg
FrankL is offline   Reply With Quote
Old 04-13-2014, 02:56 PM   #38
Elite Member
Thread Starter

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,095
Total Cats: 121
Default

Revalved Bilsteins spray painted black with Monroe stickers is pretty funny.

Last edited by jacob300zx; 04-13-2014 at 11:14 PM.
jacob300zx is offline   Reply With Quote
Old 04-13-2014, 04:34 PM   #39
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 947
Total Cats: -249
Default

I prefer the ISC tops hats the NB top hats in the rear. They offer a bit more bump travel.
wannafbody is offline   Reply With Quote
Old 04-13-2014, 06:24 PM   #40
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,105
Total Cats: 1,168
Default

I'm running 2000 "Hard S" valved Bilsteins with 550/350. This is a different part number than the shocks that come with the standard "Sport" package. The bodies are not as long as the MSM bodies, alleviating that problem, but I still use the ISC tophats.

Quote:
Originally Posted by sixshooter View Post
I did mine yesterday and have pics but not much time to write details right now. I'm just going to dumps some pics of the process here for your reference since I know you are trying to do this too. A real write up will come eventually.

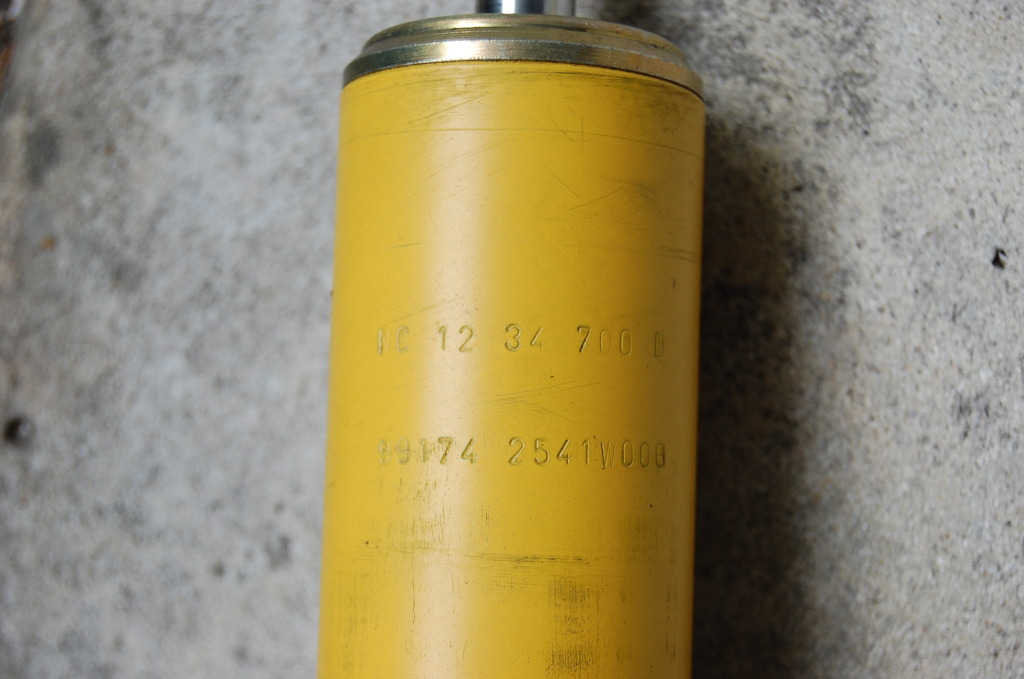

2000 NB Hard Bilsteins P/N NC1234700D

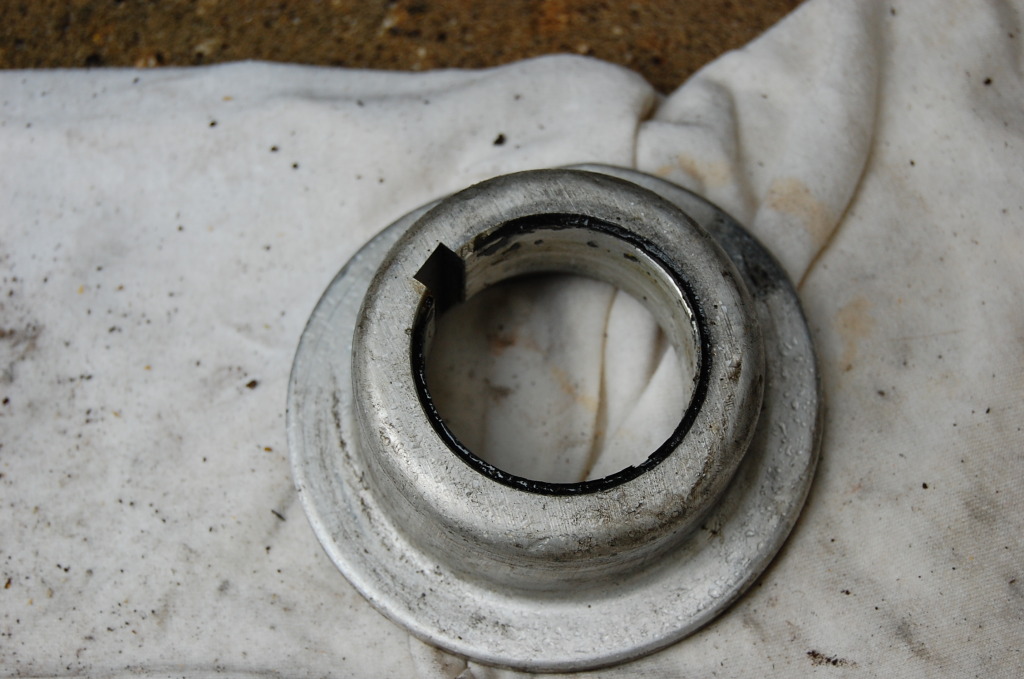

Factory NB Bilstein spring perches must come off.

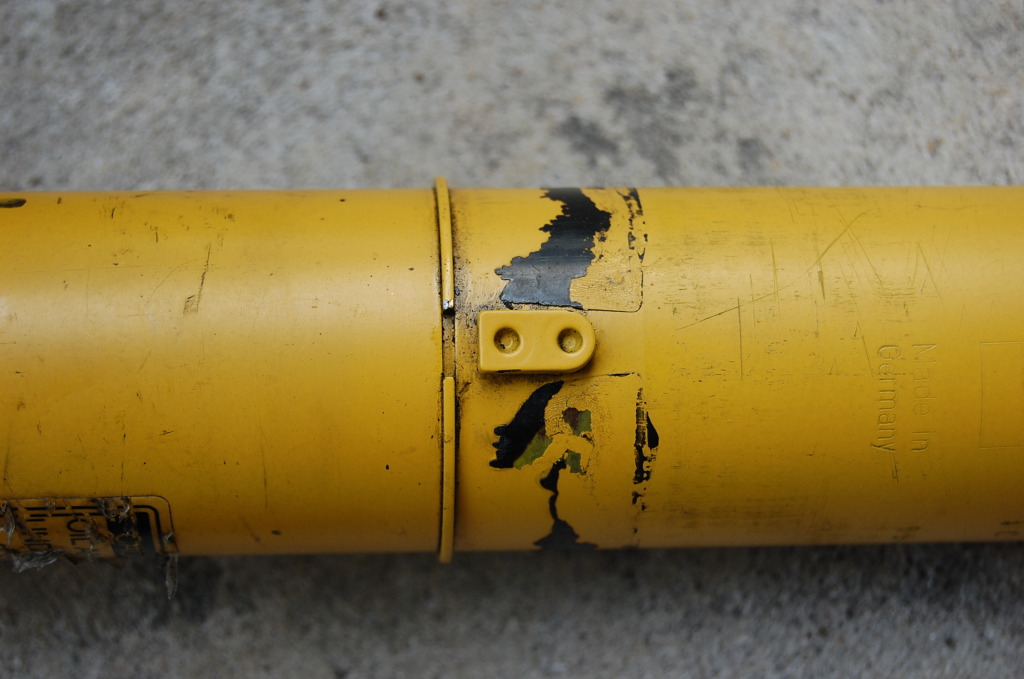

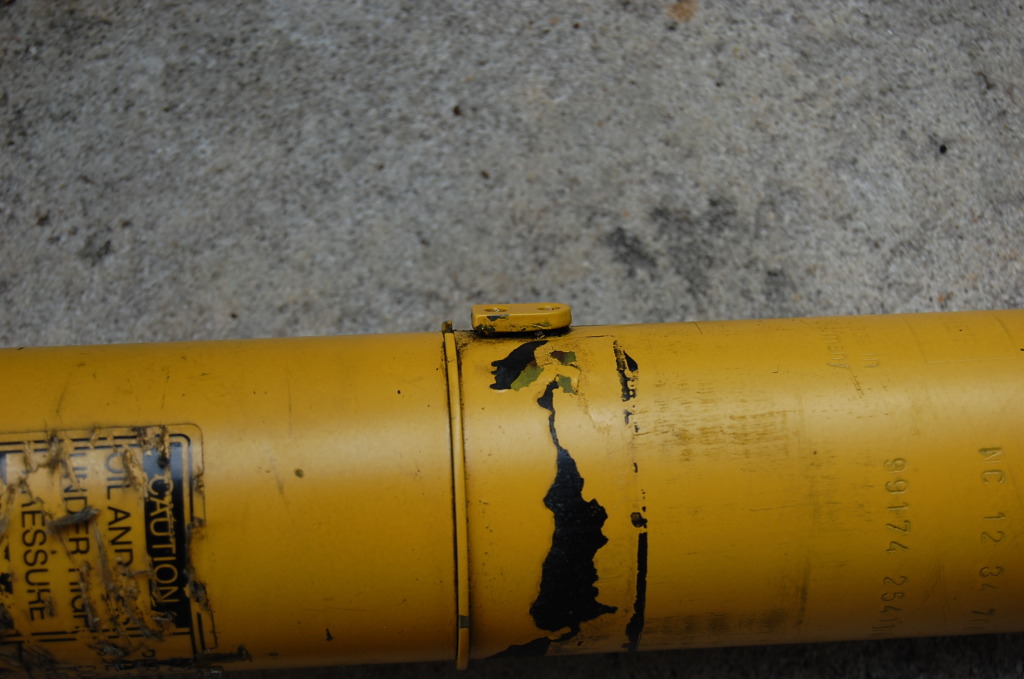

Spring perch locator tabs must come off very carefully with a grinder or cut off wheel.

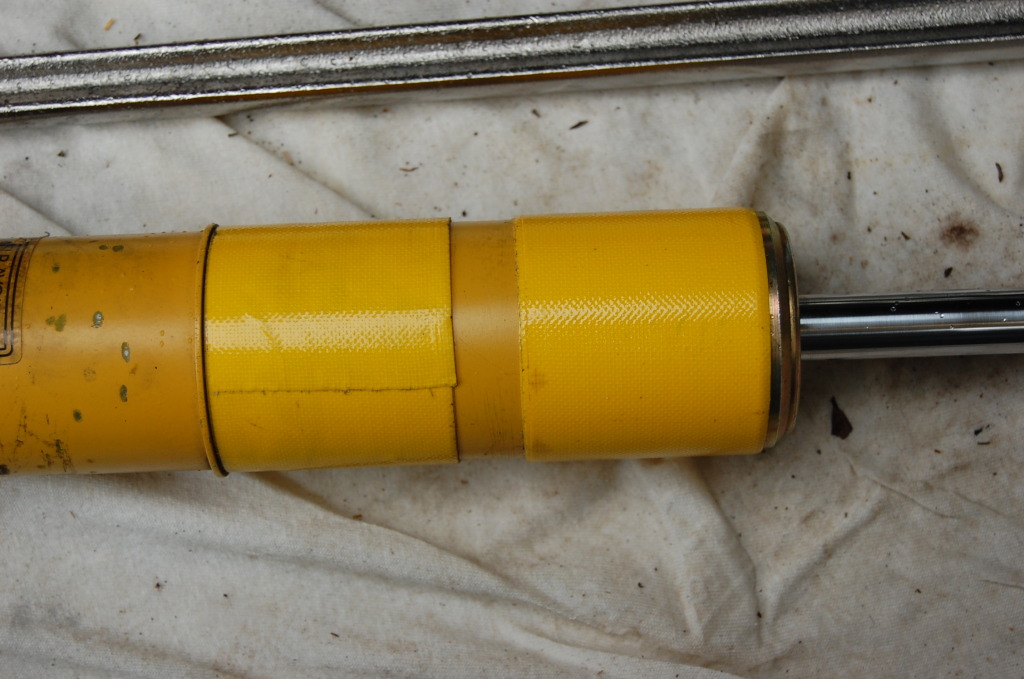

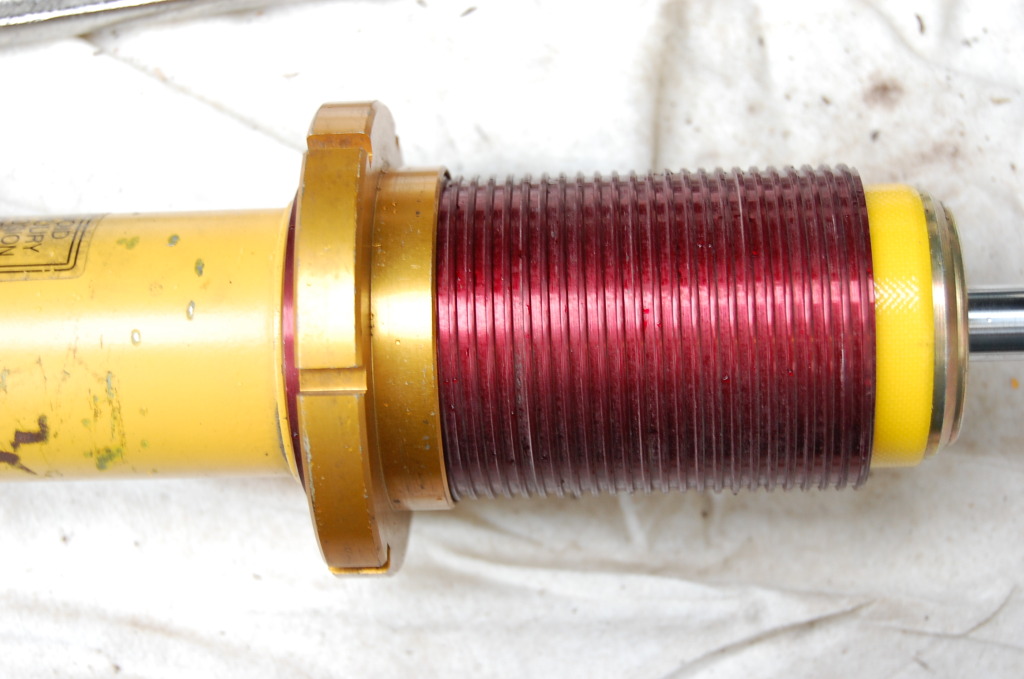

Wrap tape to take up thickness of ID of coilover so it doens't rattle or shift on clip.




It puts the lotion in the basket.

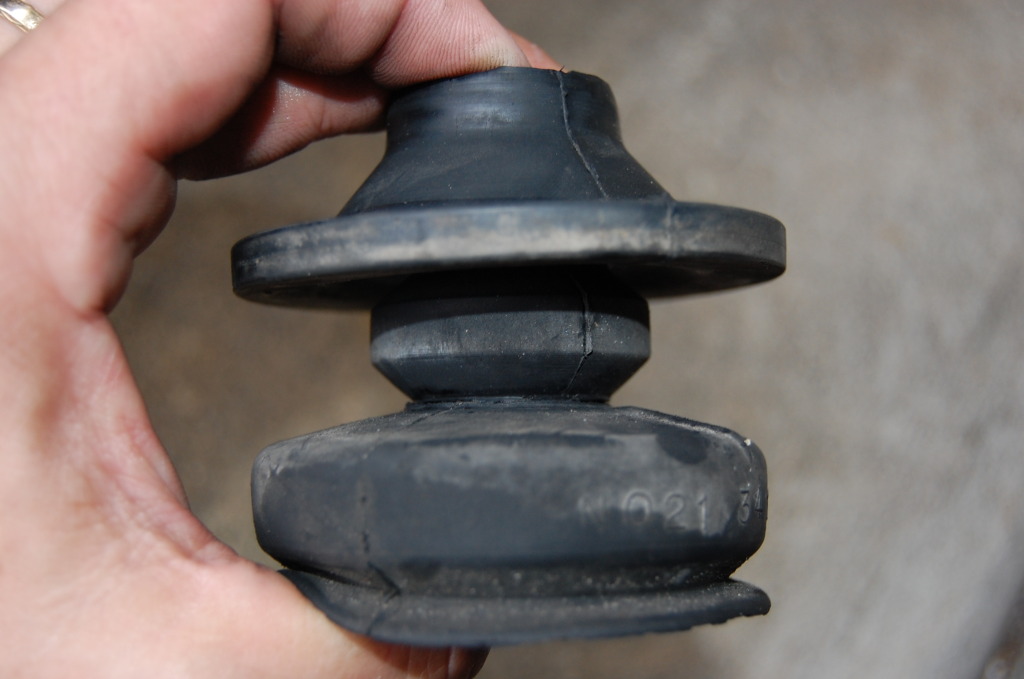

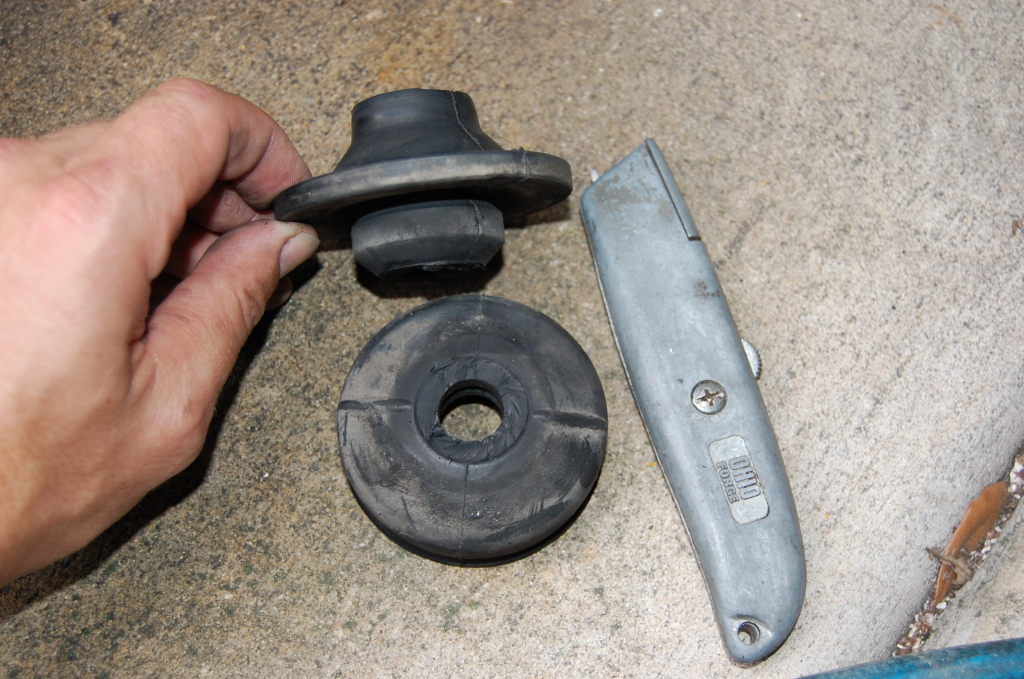

I have NA bumpstops still that I needed to cut down for increased travel until I can get good replacements at a later date.

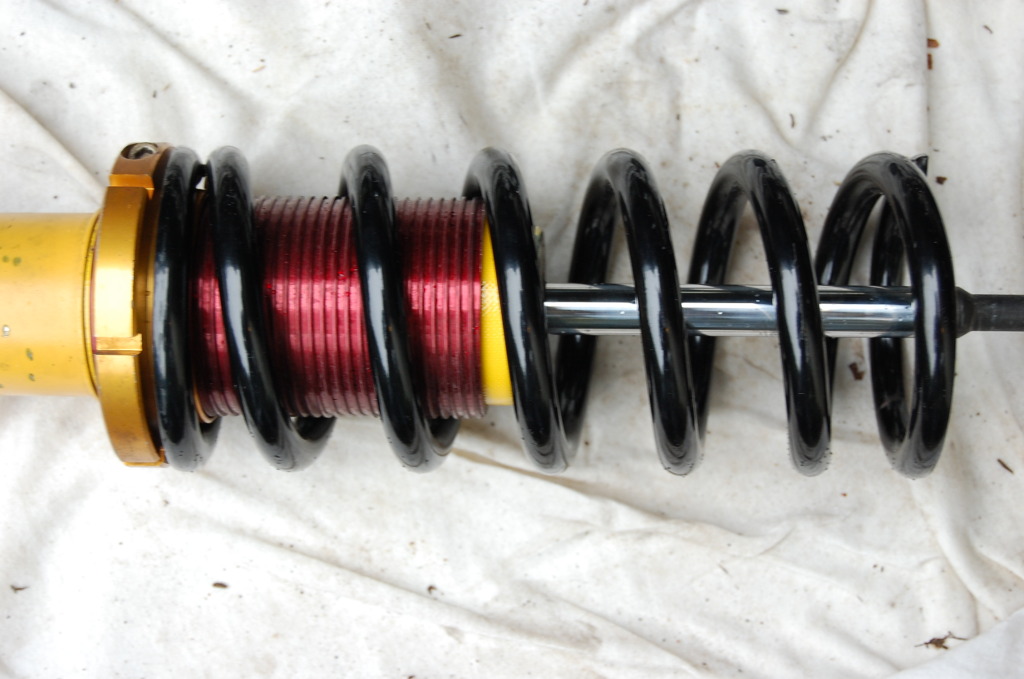

Voila'!




Let me say that the ride is so wonderfully smooth I could have easily gone to 550lbs plus instead of just 400 on the front with these shocks. They are valved very strong and have no problems controlling the springs. The ride is hellaplush, lol! It absorbs minor road bumps without a fuss but complies beautifully in big dips like railroad tracks without feeling busy at all. No more hitting the bumpstops!

I thought everyone was kidding when they said the ride could be better than stock with stiffer springs. It is sooooo much more comfortable than stock.

More fun to follow but I've got places to go right now.
Attached Images


Last edited by sixshooter; 04-13-2014 at 06:59 PM.
sixshooter is offline   Reply With Quote
